AKK 5.8GHz 4.5DBi Tube Antenna – 160MM.

AKK 5.8GHz 4.5DBi Tube Antenna – 160MM.

SKU:055146

Regular price Rs. 999.00
Regular price Sale price Rs. 999.00
Sale Sold out
Shipping calculated at checkout.

(Including GST)

View full details

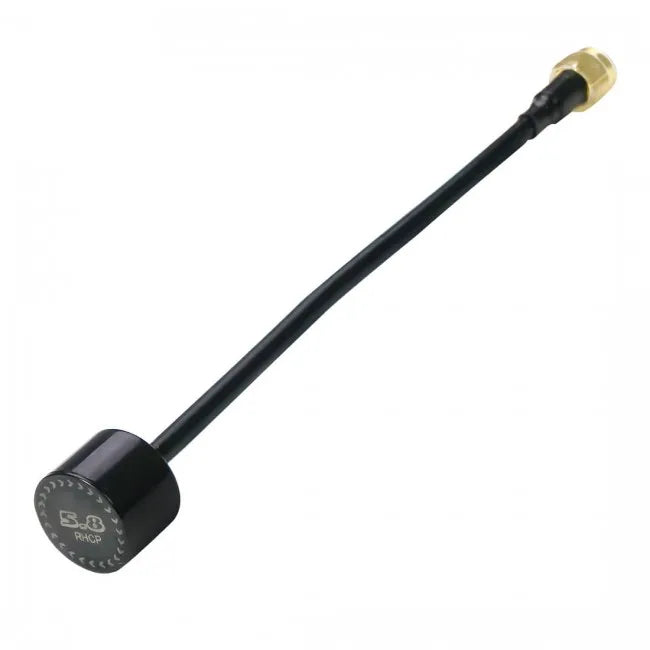

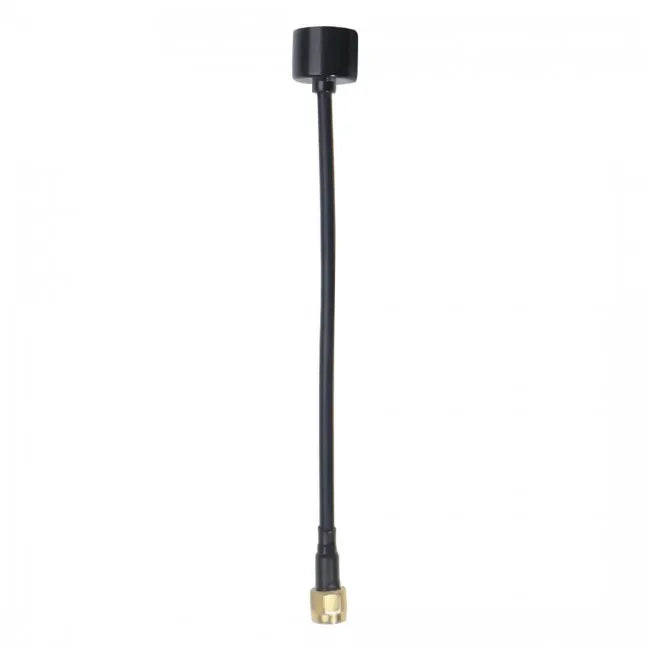

The AKK 5.8GHz 4.5DBi Tube Antenna-160MM is a high-performance antenna for FPV systems, featuring RHCP, omnidirectional radiation, low VSWR, and 50W max power. It has a sleek and compact design, with a height of 160mm and a max diameter of 17.8mm. It comes with an SMA-J connector and is available in black or white color.

Specification:

Frequency Range: 5.5-6GHz
Impedance: 50Ω
VSWR: <1.8
Gain: 4.5-6dBi
Polarization: RHCP
Radiation: Omnidirectional
Max Power: 50W
Height: 160MM
Max Diameter: 17.8mm
Connector: SMA-J
Color: White/Black

5G version: Black (working in 4990 to 5500MHz)
5.8G version: White (working in 5500 to 6000MHz)
