The 915MHz 100mW Mini Telemetry Kit is a compact and lightweight communication system that allows for wireless data exchange between a ground station (usually a handheld remote control unit or a computer) and a remote vehicle (such as a drone or RC vehicle). This telemetry kit provides real-time telemetry data, including important information about the vehicle’s status and performance, and it allows users to send commands to the vehicle from a distance.
Key Features:
Frequency: This telemetry kit operates on the 915MHz frequency band. It’s a popular choice for long-range communication, making it suitable for drones and other RC applications where a reliable connection over a distance is crucial.
Transmit Power: The kit typically includes transceivers with a transmit power of 100mW. This power level is sufficient for many drone and RC control applications, especially when a good line-of-sight is maintained.
Telemetry Data: The telemetry kit can transmit a variety of data, including GPS coordinates, battery voltage, signal strength, altitude, airspeed, and more. This data is crucial for monitoring the vehicle’s status and performance in real time.
Bi-Directional Communication: The kit allows for two-way communication. Users can not only receive telemetry data from the vehicle but also send commands to the vehicle, making it possible to control and adjust various parameters remotely.
Compact Size: The mini telemetry kit is designed to be compact and lightweight, making it easy to install on drones or other RC vehicles without adding significant weight or bulk.
Easy Integration: These telemetry modules are often designed for easy integration with popular flight controllers and autopilot systems used in the drone and RC hobby.
Antennas: The kit typically includes antennas for both the ground station and the vehicle to ensure a reliable and stable signal connection.
Compatibility: Depending on the manufacturer, these telemetry modules are designed to work with various telemetry protocols and systems, such as MAVLink, which is commonly used in the drone industry.
Range: The effective range of the telemetry kit may vary depending on factors like terrain, obstructions, and interference, but it is designed for long-distance communication, often reaching several kilometers or more in open environments.
User-Friendly Software: Many telemetry kits come with user-friendly software interfaces for configuring and monitoring the system, as well as for analyzing telemetry data.
More Features :
Small size and lightweight
CP2102 high-quality USB to TTL chips
915MHZ
Support MWC / APM / PX4 / Pixhawk other open-source flight control
MAVLink Framework Agreement
Open Source Firmware Frequency-hopping spread spectrum (FHSS)
2-way full-duplex communication adaptive TDM
Up to 25% can be corrected bit errors
Based on Si1000 and Si4432 wireless microcontroller modules.
Very small size & Lightweight
MAVLink protocol framing and status reporting
Interchangeable air and ground modules
Micro-USB port
UART interface
Error correction corrects up to 25% of bit errors
Configurable through Mission Planner and APM Planner
The demonstrated range of several kilometres with a small Omni antenna

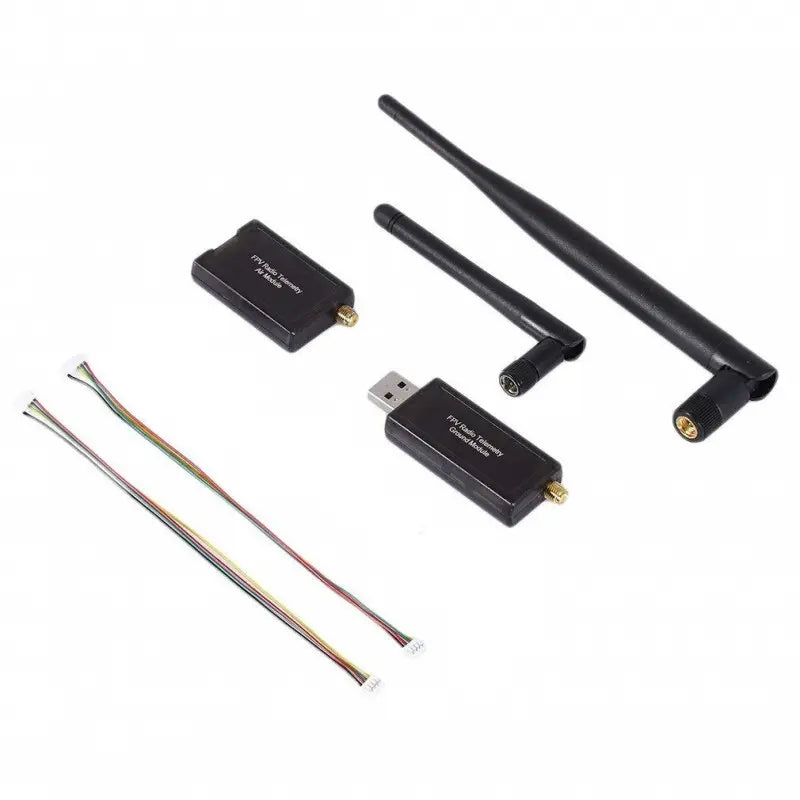

Package Included:
1× 3DR Radio Telemetry with the case (Air+Gnd module)
2× cables (APM/PIX).
2× 3.5dbi antennas.
| SPECIFICATION:- | |
| Frequency(MHz) | 915 |
| Rated Power (mW) | 100 |
| Range(m) | 1600 |
| Receive Sensitivity(dBm) | -117 |
| Air Data Rates(kbps) | 250 |
| Operating Temperature (°C) | -10 to 85 |
| Weight(gm) | 65 |
| Shipment Weight | 0.07 kg |
| Shipment Dimensions | 35 × 10 × 2 cm |
