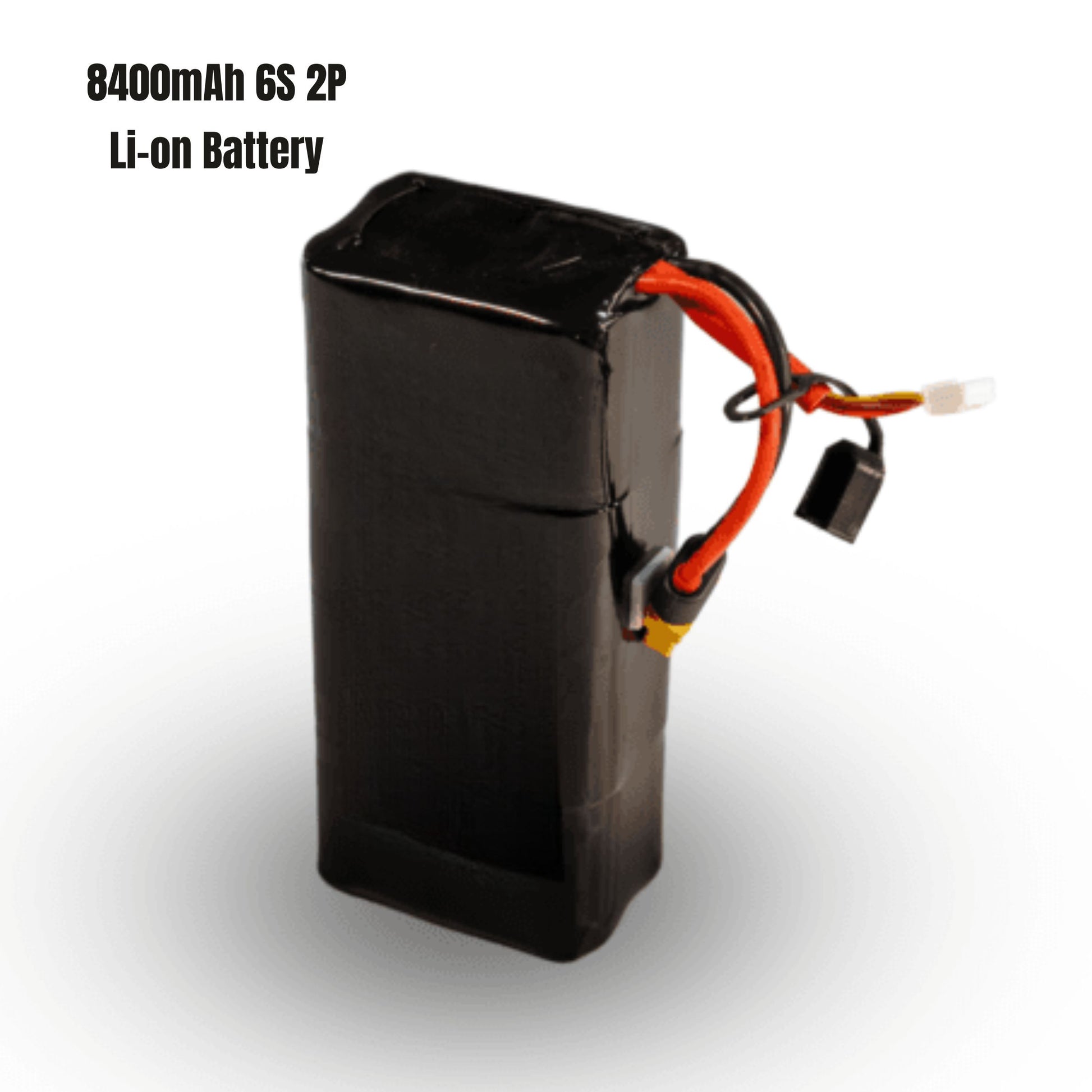

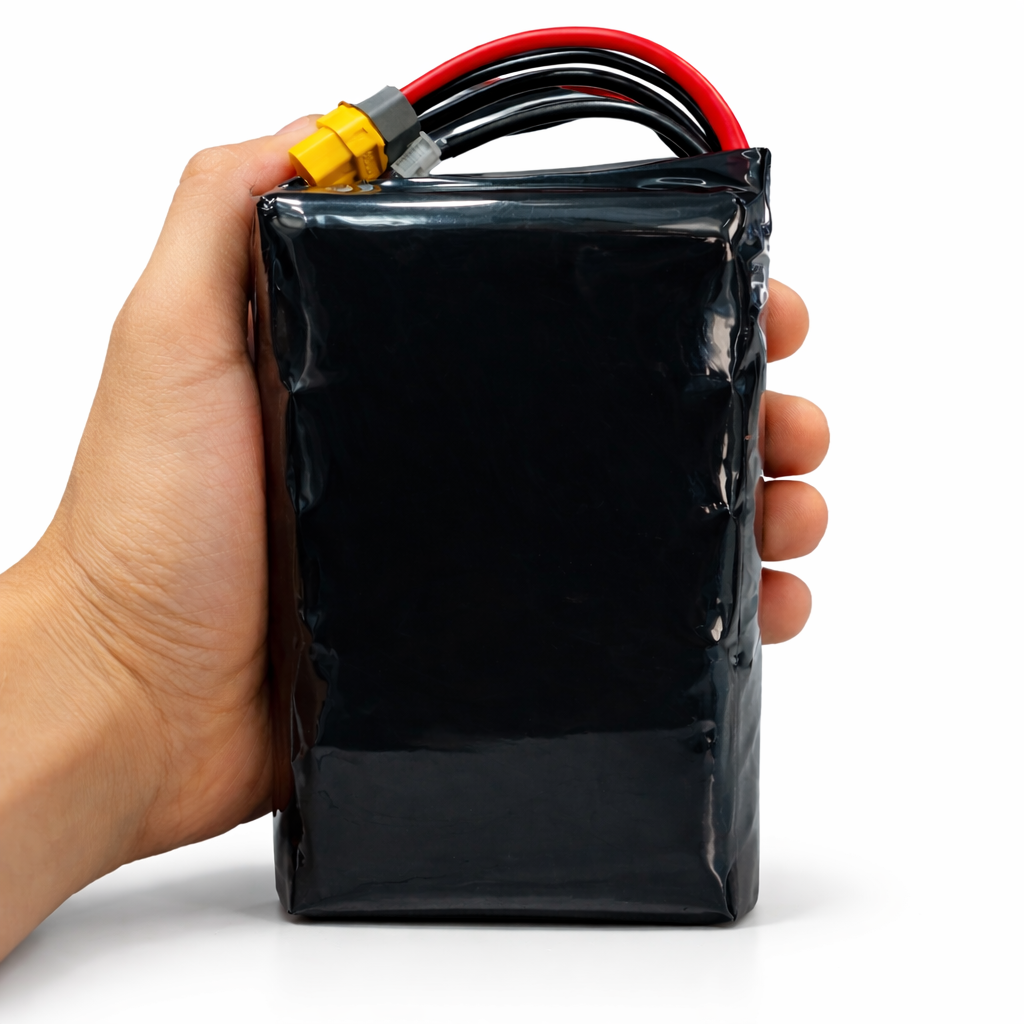

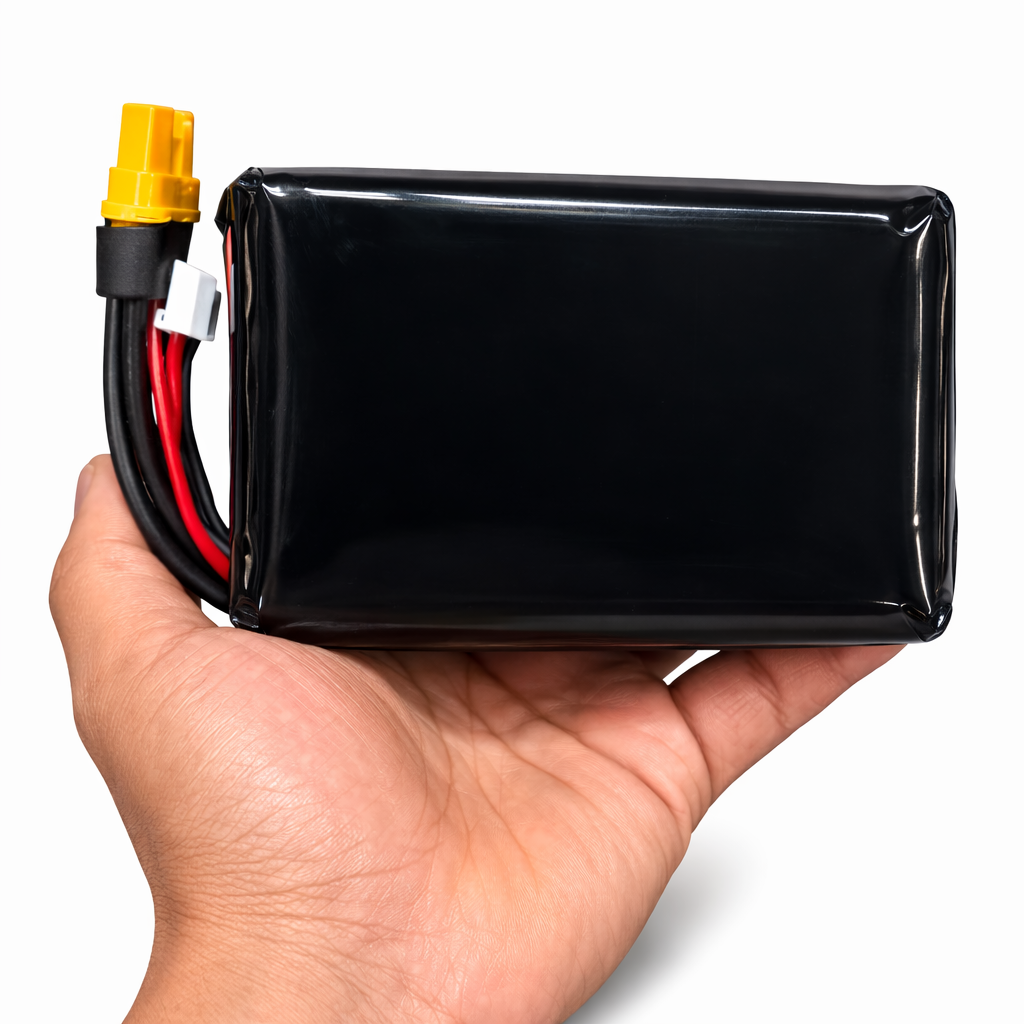

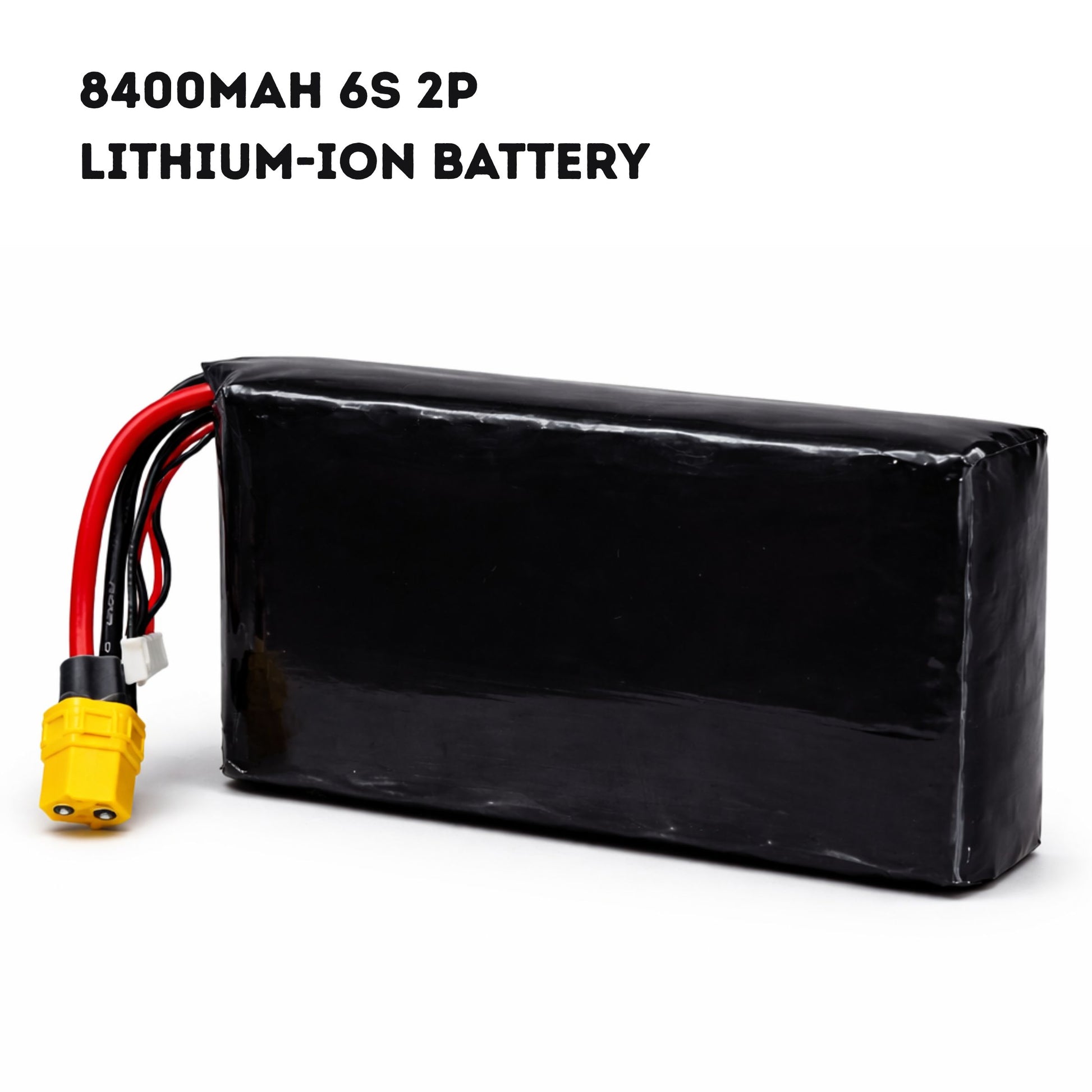

Battery Description – 8400mAh 6S2P Lithium-Ion Battery (Molicel Cells)
This 8400mAh 6S 2P Lithium-Ion Battery Pack is custom-built using 12 original Molicel A-Grade INR21700-P42A cells, known worldwide for their high performance, reliability, and long service life. Each cell operates at 3.6V with a capacity of 4200mAh and an 11C discharge rate, making this battery pack highly suitable for high-power applications.
The 6S2P configuration ensures a perfect balance between high voltage stability and increased capacity, delivering consistent power output, improved efficiency, and enhanced thermal performance. Lithium-ion technology offers a high energy density, low self-discharge rate, and the ability to withstand hundreds to thousands of charge cycles, making this battery pack a dependable choice for long-term use.
Designed for applications where performance, durability, and power consistency are critical, this battery pack is ideal for drones, robotics, electric mobility projects, industrial equipment, and custom power systems. When used under proper operating conditions, the battery can achieve a long lifespan with excellent charge retention.
Key Specifications:-
- Cell Type: Molicel INR-21700-P42A (A-Grade)
- Cell Chemistry: Lithium-Ion
- Cell Voltage: 3.6V
- Cell Capacity: 4200mAh
- Discharge Rate: 11C
- Total Cells Used: 12 Cells
- Battery Configuration: 6S 2P
- Total Capacity: 8400mAh
- Battery Type: Lithium-Ion Battery Pack
- Style: Flat Top
- Cell Color: Gray
- Cell Origin: Taiwan
- Protection: Not Protected (External BMS recommended as per application)
Features & Benefits:-
- High power density with stable voltage output
- Long cycle life and reliable performance
- Low self-discharge for better charge retention
- Lightweight and compact design
- Cost-effective solution for high-power requirements
- Suitable for continuous and demanding usage
Usage & Safety Notes:-
- Do not expose the battery to high temperatures
- Use with an appropriate BMS and charger
- Avoid overcharging and deep discharging
- Store in a cool and dry place
Package Include:
1× 8400mAh 6S 2P Lithium - ion Battery
