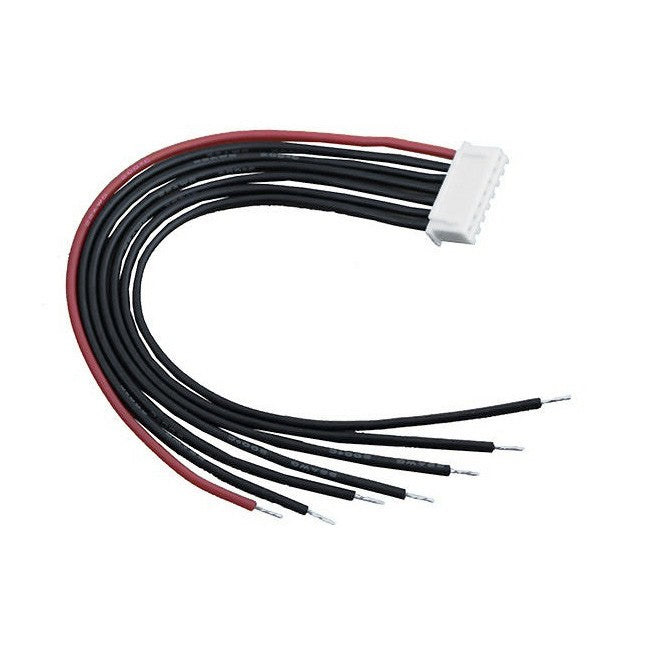

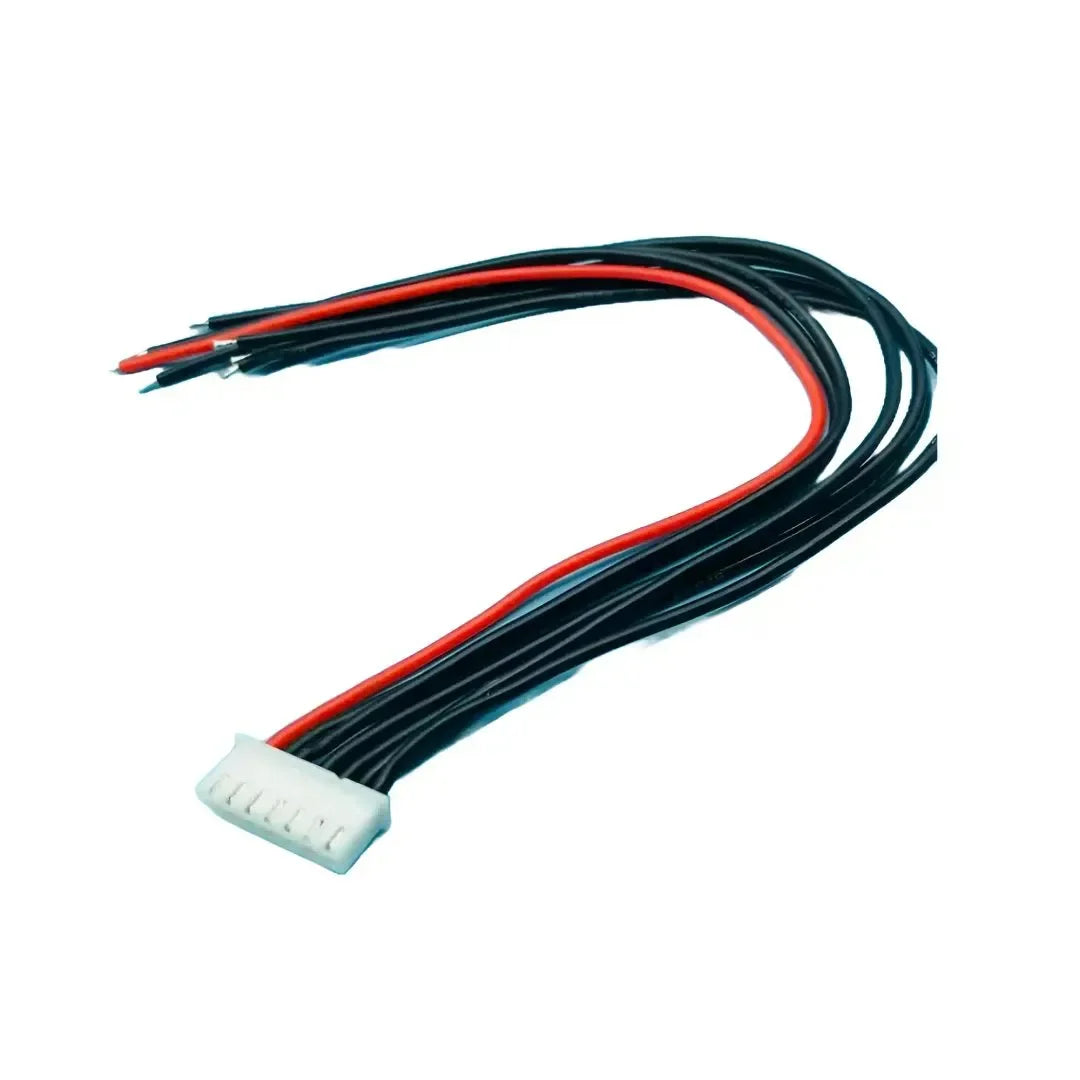

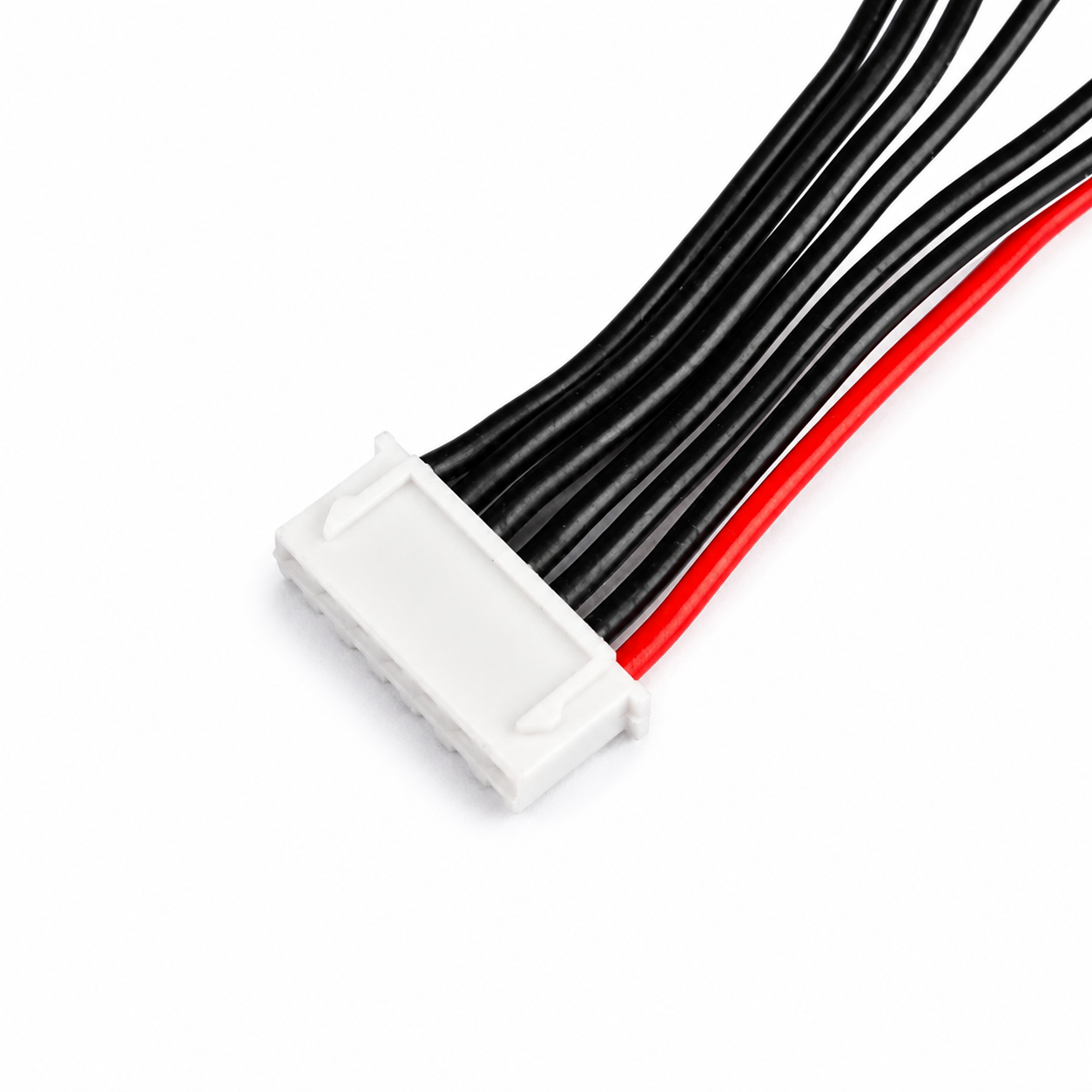

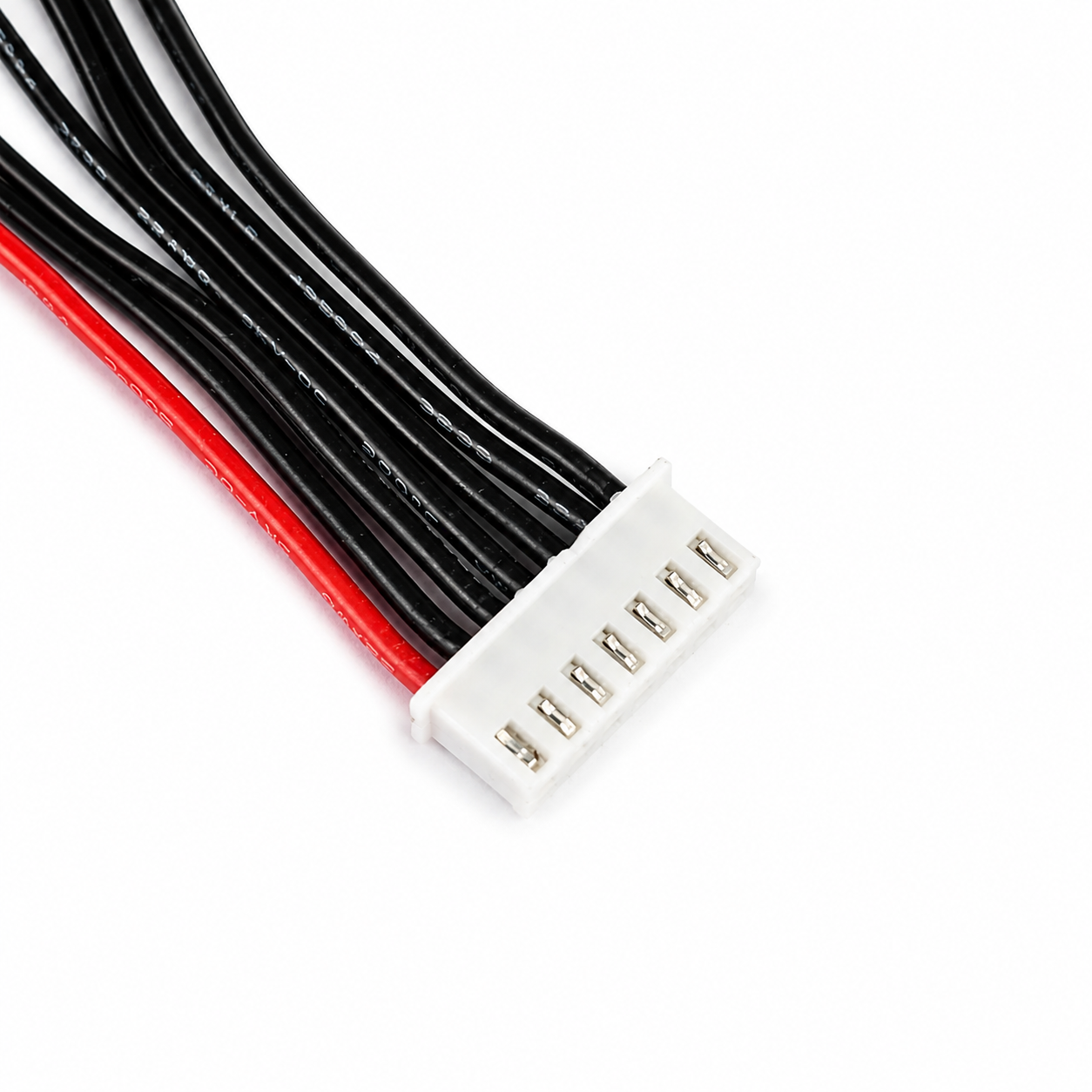

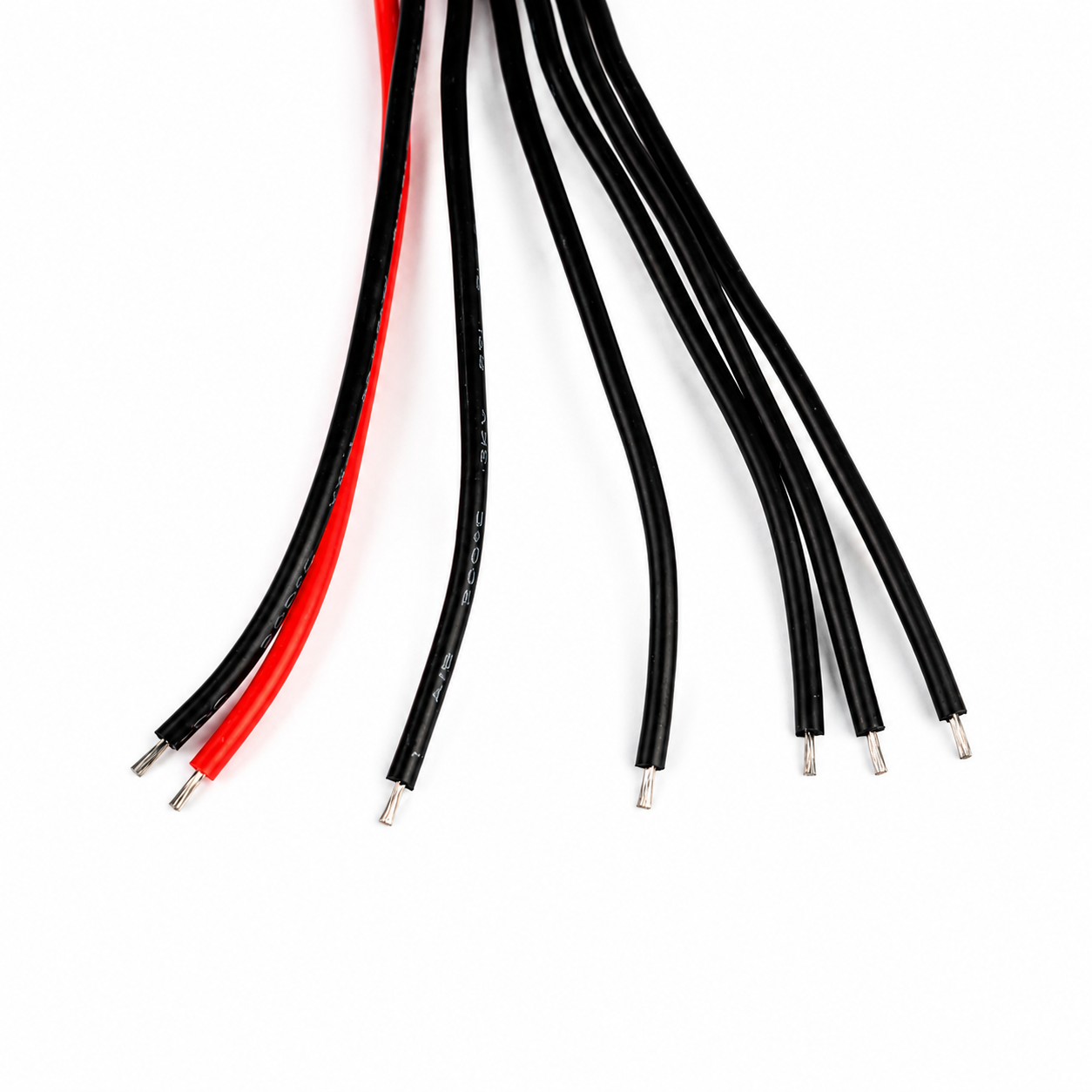

This is a 7 Pin JST XH with Cable. It is a multipurpose cable. The length of the cable is 22cm. The crimp-style connector was developed based on the high reliability and versatility of the connectors. These wire-to-board connectors are typically used to bring power to a PC board.
Applications:
- AC power supply to PCs and lab equipment.
- Also used in CCTV connections, pick-ups, etc.
Features:
- Use of electrical fire retardant material.
- Solid and durable.
- Safe and easy to install.
If you are facing any problems in buying or building your drone then you can consult with our drone expert they will guide you on your problem like which parts to choose, and what will be the best drone/parts in your budget.
Why you should consult with our drone experts
i. For any Doubt
ii. For any Advice & others
Overall, consulting with drone experts can help you make informed decisions, mitigate risks, and optimize the performance of your drone for your specific needs and objectives.
Book your slot now:
Consult with Our Drone Expert
Package Includes:
1× 7 Pin JST XH with Cable
| Specification | Details |
| Connector Type | JST XH |
| Number of Pins | 7 |
| Pitch | 2.54 mm |
| Connector Gender | Male (Plug) and Female (Socket) |
| Cable Length | Variable (commonly 150mm, 300mm) |
| Cable Type | UL1007 26AWG Stranded Wire |
| Voltage Rating | 250V AC/DC |
| Current Rating | 3A per pin |
| Insulation Resistance | 1000MΩ min. |
| Contact Resistance | 10mΩ max. |
| Wire Insulation Material | PVC |
| Operating Temperature | -25°C to +85°C |
| Housing Material | Nylon 66 UL94V-0 |
| Contact Material | Copper Alloy |
| Plating | Tin-plated |
