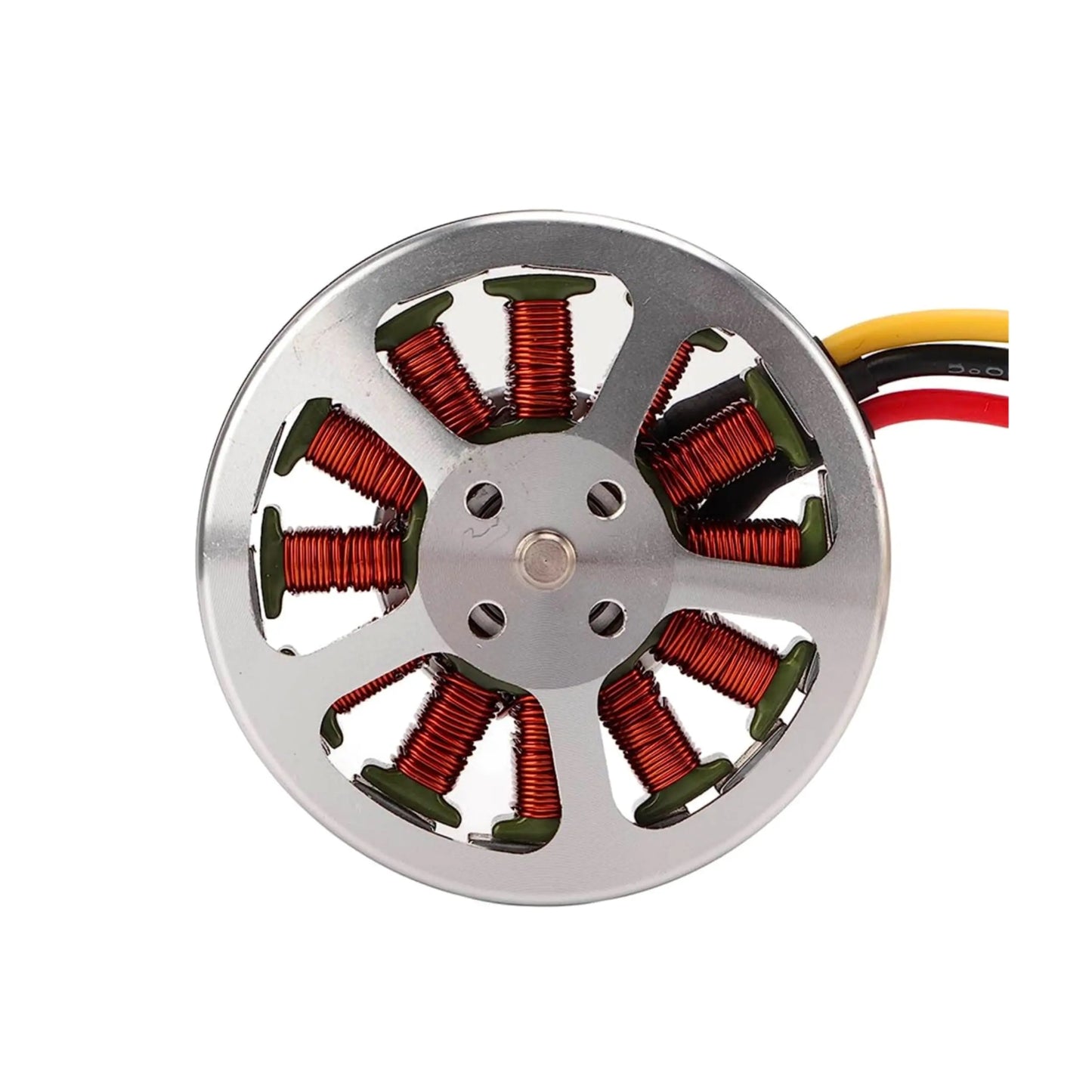

5010 360KV High Torque Brushless Motor.

The 5010 360KV High Torque Brushless Motor is a powerful motor designed for use in drones and other remote-controlled aircraft and vehicles. It is known for its high torque and efficiency, making it suitable for applications that require lifting heavy payloads or providing stable flight characteristics. Below is a description and a list of typical features of the 5010 360KV High Torque Brushless Motor:

The 5010 360KV High Torque Brushless Motor is a large, heavy-duty motor designed to provide ample power and torque for various applications, particularly in the field of aerial photography, heavy-lift drones, and industrial drones. Its high torque output allows it to handle large propellers and heavy payloads, making it a valuable choice for applications that require stability, precision, and reliability.

Typical Features of the 5010 360KV High Torque Brushless Motor:

High Torque: The motor is designed to produce a significant amount of torque, making it capable of lifting heavy payloads, such as high-resolution cameras, gimbals, and other equipment.

Low KV Rating: The 360KV rating indicates that for every volt applied to the motor, it will rotate at 360 RPM. The low KV rating is ideal for applications that require slower rotation speeds but higher torque.

Brushless Design: Like all brushless motors, this motor is known for its efficiency, reliability, and longer lifespan compared to brushed motors. It also generates less heat during operation.

Large Stator Size: The motor typically features a larger stator size compared to smaller motors, allowing it to accommodate larger windings and magnets, which contribute to its high torque output.

Durable Construction: These motors are built to withstand the rigors of drone flight and can endure vibrations, shocks, and heavy use.

Precision Bearings: Precision bearings are used in the motor to minimize friction and ensure smooth and reliable operation.

Heat Dissipation: Many high-torque motors, including the 5010 360KV, have a well-designed cooling system to dissipate heat generated during operation, preventing overheating.

Propeller Compatibility: The motor is typically compatible with larger propellers, allowing for precise control and stable flight.

Mounting Holes: The motor often includes standard mounting holes that are compatible with various frame designs and configurations.

Compatibility: The motor can be used with a wide range of electronic speed controllers (ESCs), flight controllers, and other drone components.

Payload Capacity: Due to its high torque, this motor is suitable for drones that need to carry significant payloads, such as heavy cameras, LiDAR sensors, or other specialized equipment.

Efficiency: The motor is designed to be energy-efficient, which can lead to longer flight times when used with appropriate power systems.

Customization: Some models may offer customization options, such as different winding configurations, to suit specific applications and requirements.

Specification:
KV(rpm/v): 360KV
LiPO Battery: 2-6s Li-Po
ESC: 20-40A
Shaft size: 4mm
Propeller: 14″ – 15″ inch
Cable length: 40cm

More Features:
Equipped with four fan-style cooling holes that pump air through the motor while it runs
Rear threaded mounting holes with both 16 mm and 19mm hole spacing fits a variety of applications
NdFeB magnets with a high-temperature rating for trouble-free operation
140° C high temperature rated wire is used for winding the motors
Plates are epoxy coated on the inner surface to prevent winding shorting out
Lubricated ball bearings are used to support the motor
High-temperature adhesives are used to secure the stator windings and prevent them from shifting, getting pinched, or shorting out

Package Includes:
1× 5010 360KV High Torque Brushless Motor for Drone
3× Male Female Golden Connector Pairs with Heat Shrink Tube
1× Propeller Mount with Accessories
