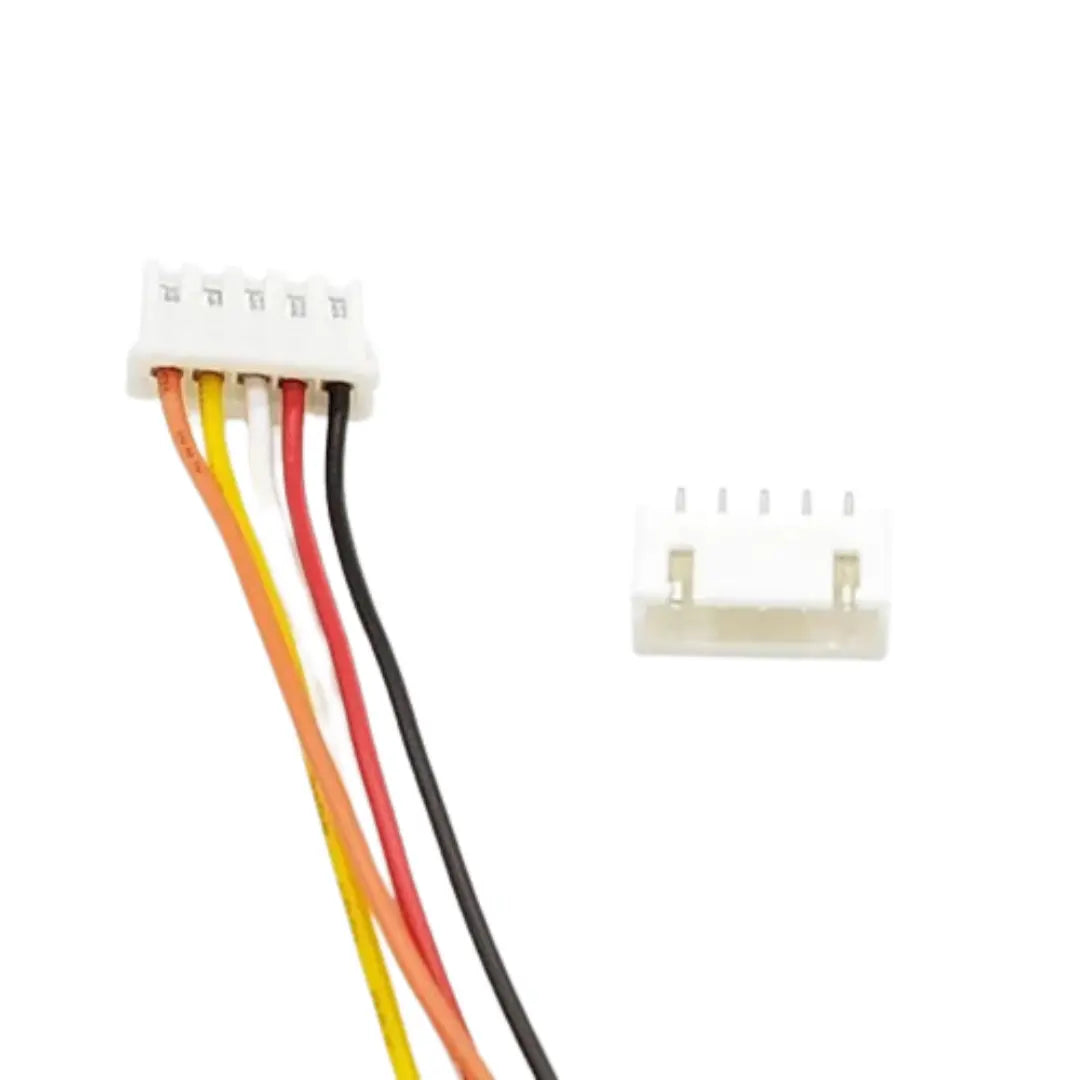

This is a 5 Pin JST XH 2.54mm Pitch Plug and Socket with Cable. It is a multipurpose cable. The length of the cable is 30cm and is 26 gauge on the AWG scale.

Applications:
AC power supply to PCs and lab equipment.
Used in all types of RCs( cars, boats, planes).
Also used in CCTV connections, pick-ups, etc.

Features:

A 5 Pin JST XH 2.54mm Pitch Plug and Socket with Cable is an electrical connector set used for establishing secure and reliable connections between electronic components or devices. Here’s a description of each component in this set:

1. 5 Pin JST XH Connector Plug:

• Number of Pins: This connector plug has five pins or conductive metal contacts, each corresponding to an electrical connection point.
• Pitch: The pitch of 2.54mm (0.1 inches) indicates the distance between the centre of one pin to the center of the adjacent pin. This standardized pitch is commonly used in electronics and is compatible with various components.
• Type: The JST (Japan Solderless Terminal) XH series is known for its reliability and secure locking mechanism, ensuring a stable and vibration-resistant connection.
• Connector Plug: This plug has a male configuration with protruding pins designed to fit into a matching female socket.
• Housing: The connector typically includes a plastic housing that holds the pins securely and provides protection and stability during the connection.

2. 5 Pin JST XH Connector Socket:

• Matching Pair: The connector socket is the female counterpart to the plug. It has corresponding receptacles that accept the male pins of the plug.
• Pitch: It also has a 2.54mm (0.1-inch) pitch to align with the plug’s pins.
• Housing: Similar to the plug, the socket features a plastic housing for protection and stability.

3. Cable:

• Cable Length: The attached cable may vary in length, depending on the specific product or application. It can be short or long, depending on the user’s requirements.
• Wire Conductors: Inside the cable, you’ll find five conductors, each corresponding to one of the pins in the plug and socket. These conductors are insulated to prevent electrical interference or short circuits.
• Connector: One end of the cable has a connector that matches the 5 Pin JST XH plug, allowing for easy connection to the plug.
• Other End: The other end of the cable is typically left bare or may have stripped wires, enabling users to connect it to various components or circuits as needed.

Usage: The 5 Pin JST XH 2.54mm Pitch Plug and Socket with Cable are often used in electronics projects to establish secure connections between components such as sensors, motors, LED strips, and other devices. The standardized pitch and secure locking mechanism make them convenient for both prototyping and permanent installations. They simplify the process of creating secure and reliable electrical connections without the need for soldering.

These connectors are popular among hobbyists, DIY enthusiasts, and electronics enthusiasts for their ease of use and versatility. They allow users to quickly and easily connect or disconnect components, making them valuable for applications where frequent assembly and disassembly are required.

Package Includes:
1× 5 Pin JST XH 2.54mm Pitch Plug and Socket with cable
