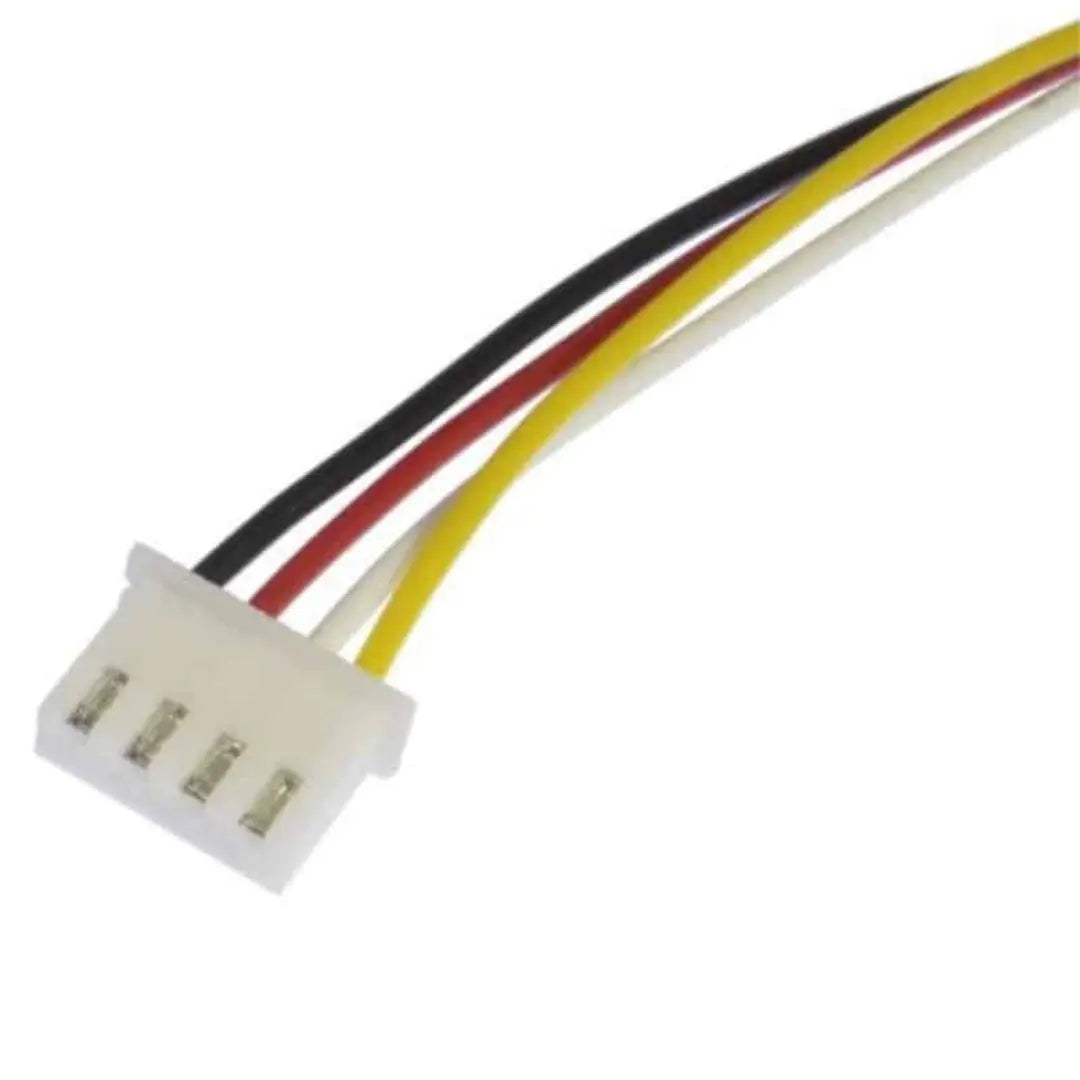

4 Pin JST XH 2.54mm Pitch Plug with cable.
4 Pin JST XH 2.54mm Pitch Plug with cable.
SKU:075101
(Including GST)
This is a 4 Pin JST XH 2.54mm Pitch Plug and Socket with Cable – 5 Pcs.. It is a multipurpose cable. The length of the cable is 30cm and is a 26 gauge on the AWG scale.
Applications:
- AC power supply to PCs and lab equipment.
- Used in all types of RCs( cars, boats, planes).
- Also used in CCTV connections, pick-ups, etc.
Features:
A 4 Pin JST XH 2.54mm Pitch Plug with Cable is an electrical connector assembly used for establishing secure and reliable connections between electronic components. Here’s a description of each component in this set:
1. 4 Pin JST XH Connector Plug:
- Number of Pins: The connector plug features four pins or conductive metal contacts, each corresponding to an electrical connection point.
- Pitch: The pitch of 2.54mm (0.1 inches) indicates the distance between the center of one pin to the center of the adjacent pin. This standard pitch is widely used in electronics and is compatible with many components.
- Type: The JST (Japan Solderless Terminal) XH series is known for its reliability and secure locking mechanism, ensuring a stable and vibration-resistant connection.
- Connector Plug: This plug has a male configuration with protruding pins designed to fit into a matching female socket.
- Housing: The connector typically includes a plastic housing that holds the pins securely and provides protection and stability during the connection.
2. Cable:
- Cable Length: The attached cable may vary in length, depending on the specific product or application. It can be short or long, depending on the user’s requirements.
- Wire Conductors: Inside the cable, you’ll find four conductors, each corresponding to one of the pins in the plug. These conductors are insulated to prevent electrical interference or short circuits.
- Connector: One end of the cable has a connector that matches the 4 Pin JST XH plug, allowing for easy connection to the plug.
- Other End: The other end of the cable is typically left bare or may have stripped wires, enabling users to connect it to various components or circuits as needed.
Usage: The 4 Pin JST XH 2.54mm Pitch Plug with Cable is frequently used in electronics projects to establish secure connections between components such as sensors, motors, LED strips, and other devices. Its standardized pitch and secure locking mechanism make it convenient for both prototyping and permanent installations. It simplifies the process of creating secure and reliable electrical connections without the need for soldering.
This type of connector is popular in the hobbyist and DIY electronics community due to its ease of use and versatility. It allows users to quickly and easily connect or disconnect components, making it valuable for applications where frequent assembly and disassembly are required.
If you are facing any problems in buying or building your drone then you can consult with our drone expert they will guide you on your problem like which parts to choose, and what will be the best drone/parts in your budget.
Why you should consult with our drone experts
i. For any Doubt
ii. For any Advice & others
Overall, consulting with drone experts can help you make informed decisions, mitigate risks, and optimize the performance of your drone for your specific needs and objectives.
Book your slot now:
Consult with Our Drone Expert
Package Includes:
1× 4 Pin JST XH 2.54mm Pitch Plug with cable
Specification | Details |
Connector Type | JST XH |
Pin Count | 4 |
Pitch | 2.54mm |
Cable Length | 15cm |
Wire Gauge | 26 AWG |
Material | Plastic (Nylon 66) and Copper |
Voltage Rating | 250V AC/DC |
Current Rating | 3A |
Contact Resistance | ≤ 20mΩ |
Insulation Resistance | ≥ 1000MΩ |
Operating Temperature | -25°C to +85°C |
Locking Mechanism | Friction Lock |
Colour | White |
