2-axis Brushless Gimbal Controller Driver.
2-axis Brushless Gimbal Controller Driver.
SKU:050002
(Including GST)
A 2-axis Brushless Gimbal Controller Driver is a component responsible for managing the operation of a 2-axis brushless gimbal system. This controller/driver typically interfaces with the brushless motors on the gimbal and ensures precise control to stabilize the camera or payload mounted on the gimbal. Here's a breakdown of its key features and functionalities:
-
Brushless Motor Control: The controller manages the operation of two brushless motors that control the movement of the gimbal along the pitch (up and down) and roll (side to side) axes. Brushless motors are chosen for their efficiency and precision in controlling movement.
-
Stabilization Algorithms: The controller incorporates sophisticated algorithms to process data from onboard sensors, such as gyroscopes and accelerometers, to determine the orientation of the gimbal. This information is then used to adjust the motors in real-time, counteracting any unwanted movements and stabilizing the camera.
-
Input Compatibility: The controller is designed to work with specific types of input signals, which can include PWM (Pulse Width Modulation) signals from a radio receiver, or other communication protocols depending on the specific design and compatibility with a drone or other systems.
-
Control Modes: Some controllers offer various control modes, such as follow mode, lock mode, or joystick control, allowing users to customize how the gimbal responds to movements.
-
Adjustable Parameters: Users may have the ability to adjust parameters such as motor strength, responsiveness, and follow speed to tailor the gimbal's behavior to their specific needs and preferences.
-
Power Management: The controller typically manages power distribution to the brushless motors and may include features to optimize power consumption for longer battery life.
-
Calibration: Calibration features are often included to ensure accurate sensor readings and optimal gimbal performance. Calibration may involve setting level positions and tuning the controller for optimal stability.
-
Compatibility: The controller should be compatible with the specific gimbal system it is intended for. This includes compatibility with the physical design and electrical characteristics of the brushless motors used in the gimbal.
-
Firmware Updates: Some controllers allow for firmware updates, enabling users to take advantage of improvements or new features introduced by the manufacturer.
This Shock Absorbing 2 Axis Brushless Gimbal Kit for Card Type Cameras – Carbon Fiber Version is a specific design for the DJI Phantom multicopter and action cameras. It has a lightweight and durable carbon fiber body.
This gimbal is a great choice for those using various brands of action cameras as the mounting bracket allows for securing of the camera simply by the camera’s tripod mount. There are even slots for adding a hook and loop strap (not included) for extra protection.
If you are facing any problems in buying or building your drone then you can consult with our drone expert they will guide you on your problem like which parts to choose, and what will be the best drone/parts in your budget.
Why you should consult with our drone experts
i. For any Doubt
ii. For any Advice & others
Overall, consulting with drone experts can help you make informed decisions, mitigate risks, and optimize the performance of your drone for your specific needs and objectives.
Book your slot now:
Consult with Our Drone Expert
Features:
Carbon fiber construction
Four point vibration isolation
Compatible with many different model action cameras (including GoPro Hero 3)
Package Included :

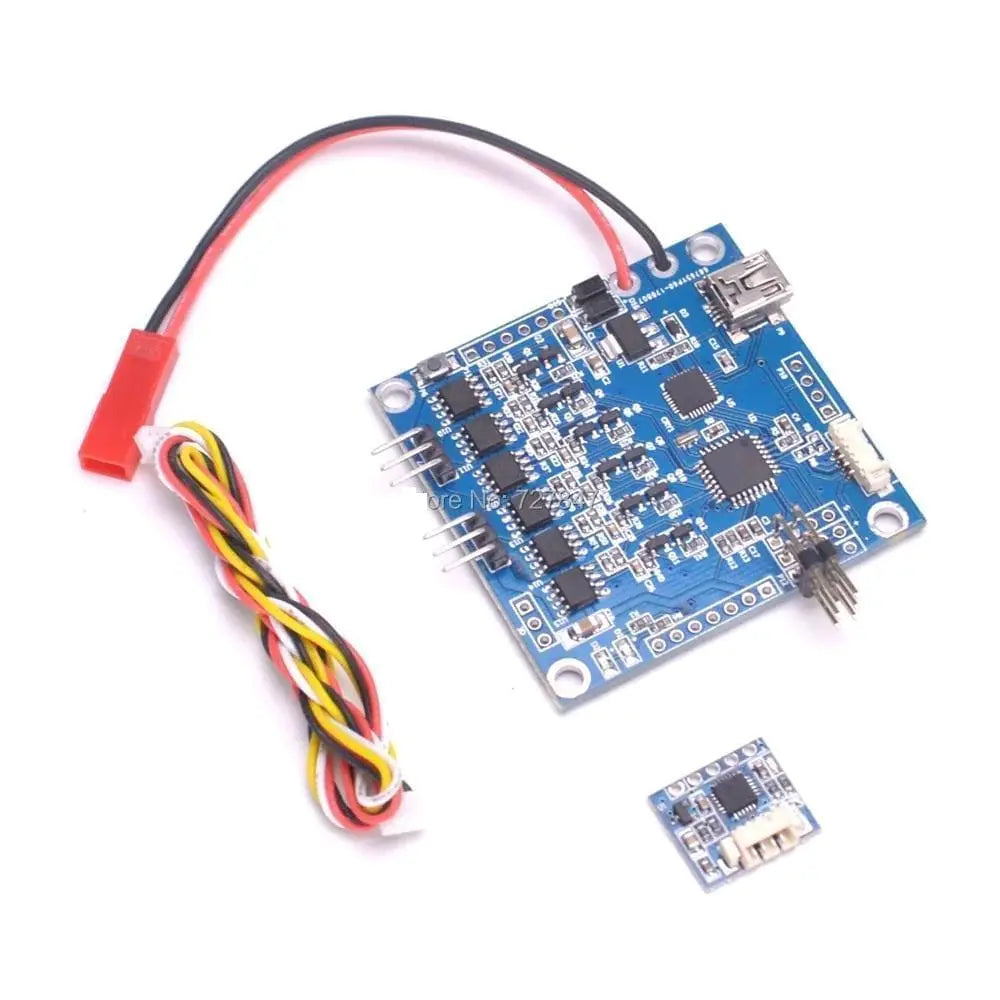

1× Brushless Gimbal Controller Driver
Specification |
Details |
Product Type |
2-Axis Brushless Gimbal Controller Driver |
Axes Supported |
Pitch and Roll |
Power Supply Voltage |
2S to 4S LiPo (7.4V to 16.8V) |
Current Consumption |
50mA to 100mA (excluding motor current) |
Control Board |
Integrated gimbal control board |
Sensor Type |
IMU (Inertial Measurement Unit) with 3-axis gyroscope and accelerometer |
Firmware |
Upgradable via USB or serial interface |
Connectors |
JST connectors for power and motor connections |
Input Interface |
PWM, S.BUS, or serial for remote control input |
Motor Outputs |
2 outputs for brushless motors |
Signal Processing |
High-precision 32-bit microcontroller |
Stabilization Algorithms |
Advanced PID control algorithms |
Tuning Options |
Software-based tuning for optimal performance |
LED Indicators |
Status and error indication |
Operating Temperature |
-20°C to +60°C |
Dimensions |
Approximately 50mm x 40mm x 10mm |
Weight |
Approximately 15 grams |
Mounting |
Holes for screw mounting or double-sided tape |
Protection Features |
Over-current, over-voltage, and over-temperature protection |
Compatibility |
Compatible with various brushless gimbal motors |
Application |
Suitable for stabilizing cameras in drones, handheld gimbals, and other platforms |
Accessories Included |
USB cable for firmware updates, mounting screws |
