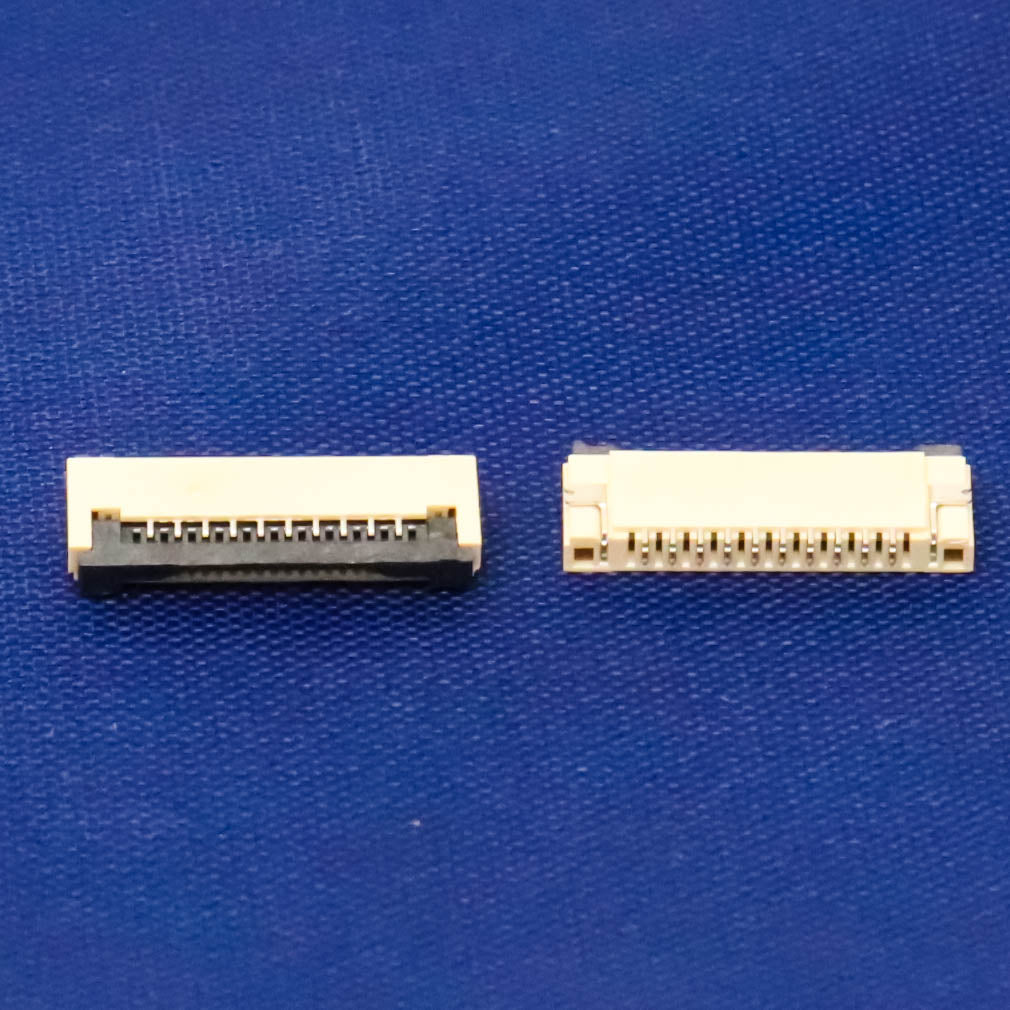

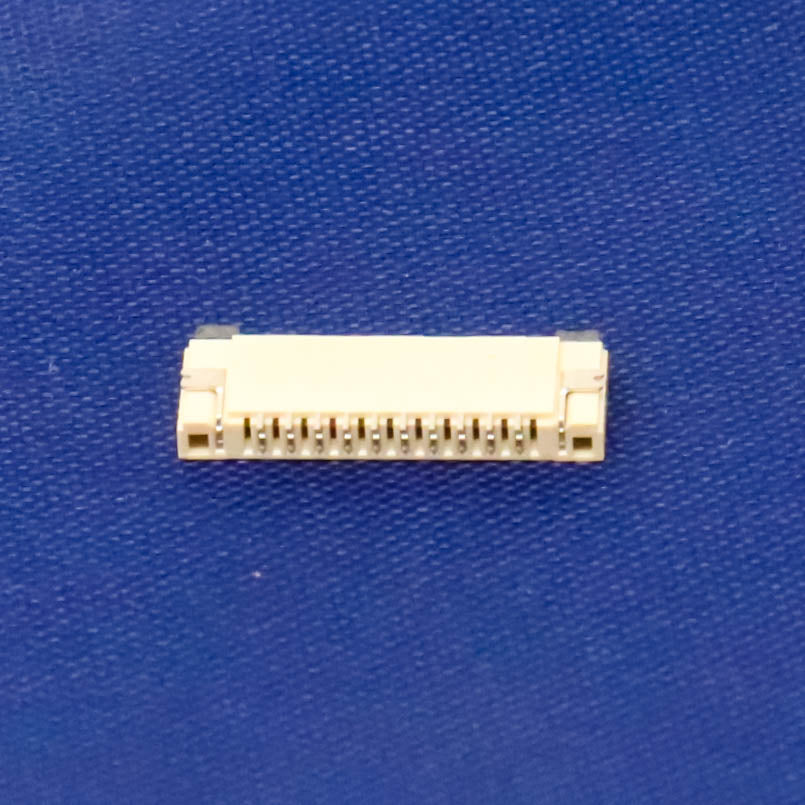

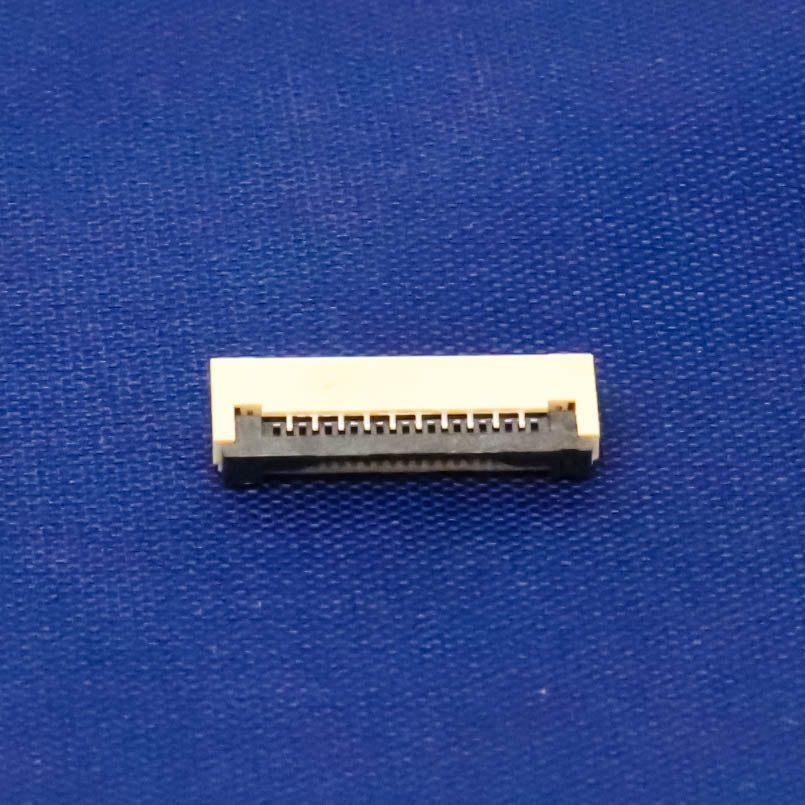

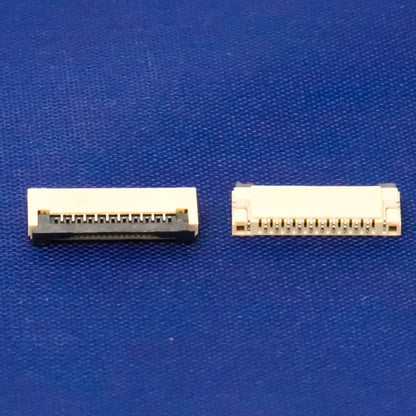

It is a 1mm Pitch 10 Pin FPCFFC SMT Flip Connector. This is useful in terminating the displays and also for supporting board-to-board connections. The connector is a surface mount, which is ideal for applications where space is a factor.
It is ideal for applications where space is a constrain and maneuverability is a necessity like automotive, communications, medical and consumer industries, etc.
Features:
- High corrosion resistance.
- Easy to use.
- Strengthened flip-lock actuator.
Package Includes:
1× 1mm Pitch 10 Pin FPCFFC SMT Flip Connector.
Specifications:-
| Manufacturer: |
Generic |
|---|---|
| Pitch Spacing (mm): |
1 |
| No. of Contacts/Pins: |
10 |
| Voltage(V) |
50 |
| Operating Current (A): |
0.5 |
| Mounting Type: |
SMD/SMT |
| Material: |
Metal and plastic |
| Contact Material |
Phosphor Bronze |
| Insulation Material |
Nylon 46 UL94-V0 |
| Color: |
Beige, Black |
| Contact Resistance |
20MΩ (Max) |
| Insulation Resistance (MOhm) |
800 |
| Operating Temperature (°C): |
-25 to 85 |
| Length (mm): |
15 |
| Width (mm): |
2 |
| Height (mm): |
5 |
| Weight (g): |
1 (approx) (each) |
| Shipping Weight | 0.001 kg |
| Shipping Dimensions | 1 × 1 × 1 cm |
