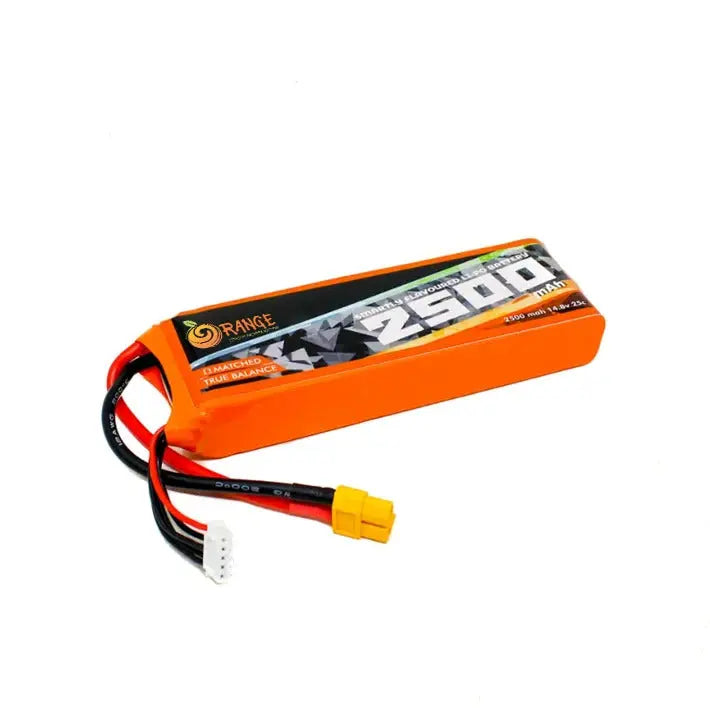

The “14.8V 2500mAh 4S 25C LiPo Battery with XT60 Plug” by the brand “Orange” is a lithium-polymer (LiPo) battery designed for various radio-controlled (RC) applications. Here’s a description of its features:

1. Voltage (Voltage Rating):

Voltage: 14.8V (Volts)
The nominal voltage of 14.8V indicates that this is a 4S (4-cell series) battery. Each cell in the pack provides approximately 3.7 volts, resulting in a total voltage of 14.8V. The actual voltage can vary based on the state of charge.

2. Capacity (Capacity Rating):

Capacity: 2500mAh (milliampere-hours)
This battery has a capacity of 2500mAh, indicating its ability to deliver a continuous current of 2.5 amps for one hour or varying currents for different durations.

3. Cell Configuration:

Cell Configuration: 4S (4 Series)
This battery is configured as a 4S pack, consisting of four individual LiPo cells connected in series, providing the 14.8V nominal voltage.

4. Discharge Rate (C Rating):

Discharge Rate: 25C
The “25C” C-rating denotes the maximum continuous discharge rate. This battery can provide a continuous current of up to 62.5 amps (25 * 2500mAh) without damaging the battery. While not extremely high, this C-rating is suitable for various RC applications.

5. Connector Type:

Connector Type: XT60 Plug
It comes with an XT60 plug, a common and reliable connector used in RC applications to ensure a secure electrical connection.

6. Brand:

Brand: Orange
The battery is manufactured by the “Orange” brand.

7. Physical Characteristics:

Specific dimensions and weight may vary based on the manufacturer’s specifications, but it is designed to fit the standard form factor for batteries of this type.

8. Ideal Applications:

LiPo batteries with these specifications are suitable for a range of RC applications, including drones, airplanes, helicopters, and other vehicles where a balance of power and runtime is required. The 14.8V voltage and 2500mAh capacity provide a good balance for these types of applications.

Orange 2500mAh 4S 25C Lithium polymer battery Pack (LiPo) batteries are equipped with heavy-duty discharge leads to minimize resistance and sustain high current loads. Orange batteries stand up to the punishing extremes of aerobatic flight and RC vehicles. Each pack is equipped with gold-plated connectors and JST-XH style balance connectors. All Orange Lithium Polymer battery packs are assembled using IR match cells.

Safety Precautions:

1. Avoid over-charging or over-discharge batteries
2. Do not put it besides the high-temperature condition
3. Don?t directly expose it to the fire
4. Avoid the contact of water.
5. Do not Short Circuit the Battery Terminals

Features:

1. Product Type: Lithium Polymer Battery Pack
2. The Orange LiPo battery has matched resistance.
3. Good Temperature Control.
4. Minimum weight in Class

Package Includes:

1× 14.8V 2500mAh 4S 25C Lipo Battery with XT60 Plug (Brand Orange)

Specification:
