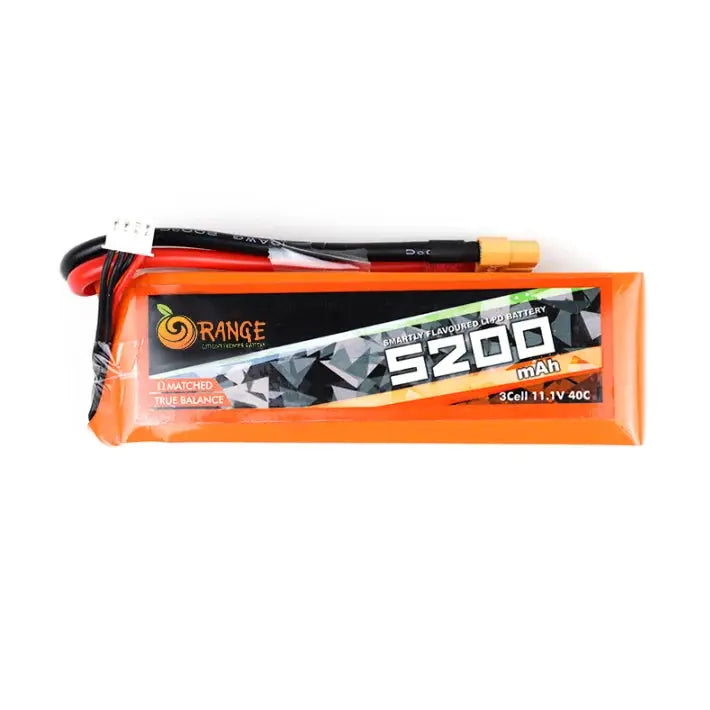

The “11.1V 5200mAh 3S 40C/80C LiPo Battery with XT60 Plug” by the brand “Orange” is another example of a lithium-polymer (LiPo) battery designed for various radio-controlled (RC) applications. Here’s a description of its features:

1. Voltage (Voltage Rating):

Voltage: 11.1V (Volts)
The nominal voltage of 11.1V indicates that this is a 3S (3-cell series) battery. Each cell in the pack provides approximately 3.7 volts, resulting in a total voltage of 11.1V. The actual voltage can vary based on the state of charge.

2. Capacity (Capacity Rating):

Capacity: 5200mAh (milliampere-hours)
This battery has a capacity of 5200mAh, indicating its ability to deliver a continuous current of 5.2 amps for one hour or varying currents for different durations.

3. Cell Configuration:

Cell Configuration: 3S (3 Series)
Like the previous examples, this battery is configured as a 3S pack, consisting of three individual LiPo cells connected in series, providing the 11.1V nominal voltage.

4. Discharge Rate (C Rating):

Discharge Rate: 40C/80C
The “40C/80C” C-rating denotes both the continuous and burst discharge rates. The continuous discharge rate is 40C, which means the battery can provide a continuous current of up to 208 amps (40 * 5200mAh) without damaging the battery. The burst discharge rate is 80C, which indicates it can briefly provide a higher current, potentially up to 416 amps, for short periods.

5. Connector Type:

Connector Type: XT60 Plug
It comes with an XT60 plug, a popular and reliable connector commonly used in RC applications to ensure a secure electrical connection.

6. Brand:

Brand: Orange
The battery is manufactured by the “Orange” brand.

7. Physical Characteristics:

Specific dimensions and weight may vary based on the manufacturer’s specifications. However, it’s typically designed to fit the standard form factor for batteries of this type.

8. Ideal Applications:

LiPo batteries with these specifications are suitable for a wide range of RC applications, including cars, trucks, boats, drones, helicopters, and aeroplanes. The 11.1V voltage and 5200mAh capacity offer a good balance of power and runtime for various RC needs.

Orange 5200mAh 3S 40C/80C Lithium polymer battery Pack (LiPo) batteries are known for performance, reliability and price. It's no surprise to us that Orange? Lithium polymer packs are the go-to pack for those in the know. Orange? batteries deliver the full rated capacity at a price everyone can afford.
Orange 5200mAh 3S 40C/80C Lithium polymer battery Pack (LiPo) batteries are equipped with heavy-duty discharge leads to minimize resistance and sustain high current loads. Orange batteries stand up to the punishing extremes of aerobatic flight and RC vehicles. Each pack is equipped with gold-plated connectors and JST-XH style balance connectors. All Orange Lithium Polymer battery packs are assembled using IR-matched cells.

Precautions :
Avoid over-charging or over-discharging the batteries.
Don't put it beside the high-temperature condition.
Don't throw it into the fire or Water

Features :
Product?Type:?Lithium Polymer?Battery Pack
The Orange LiPo battery has matched resistance.
Good Temperature Control.
Minimum weight in Class
