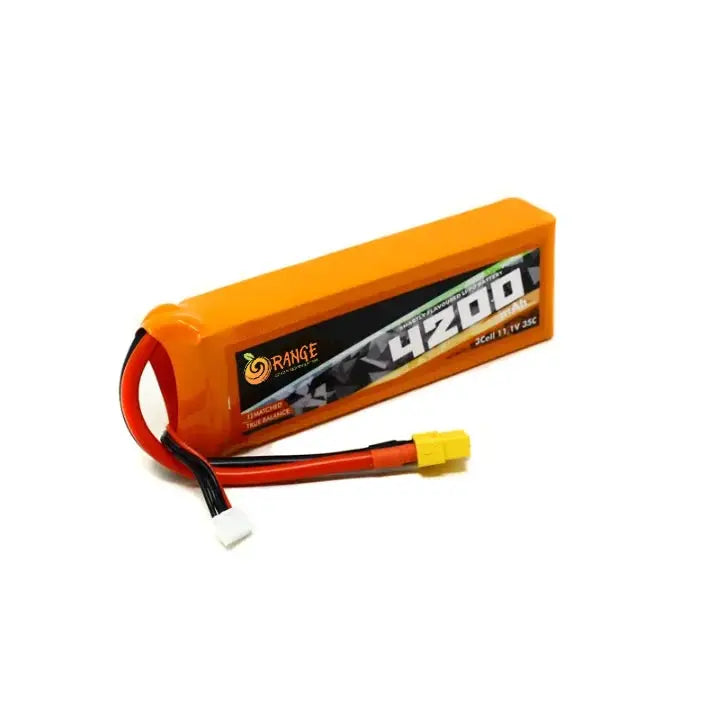

11.1V 4200mAh 3S 35C Lipo Battery with XT60 Plug (Brand Orange).
11.1V 4200mAh 3S 35C Lipo Battery with XT60 Plug (Brand Orange).
SKU:065034
(Including GST)
The “11.1V 4200mAh 3S 35C LiPo Battery with XT60 Plug” by the brand “Orange” is another type of lithium-polymer (LiPo) battery typically used in radio-controlled (RC) applications. Here’s a breakdown of its description and features:
1. Voltage (Voltage Rating):
Voltage: 11.1V (Volts)
This indicates the nominal voltage of the battery. It’s a 3S (3-cell series) battery, with each cell providing approximately 3.7 volts, adding up to 11.1V in total. The actual voltage can vary depending on the state of charge.
2. Capacity (Capacity Rating):
Capacity: 4200mAh (milliampere-hours)
The battery has a capacity of 4200mAh, indicating its ability to provide a continuous current of 4.2 amps for one hour or different currents for varying durations.
3. Cell Configuration:
Cell Configuration: 3S (3 Series)
As with the previous battery, it’s configured as a 3S battery, which means it consists of three individual LiPo cells connected in series, resulting in an 11.1V nominal voltage.
4. Discharge Rate (C Rating):
Discharge Rate: 35C
The “35C” C-rating specifies the maximum continuous discharge rate. In this case, the battery can deliver a continuous current of up to 35 times its capacity, which is 4200mAh. This means it can provide a continuous current of up to 147 amps (35 * 4200mAh) without damaging the battery.
5. Connector Type:
Connector Type: XT60 Plug
It comes with an XT60 plug, a common and reliable connector used in many RC applications for secure electrical connections.
6. Brand:
Brand: Orange
The battery is manufactured by the “Orange” brand.
7. Physical Characteristics:
Specific dimensions and weight may vary based on the manufacturer’s specifications, but it will typically be designed to fit the standard size and form factor for batteries of this type.
8. Ideal Applications:
LiPo batteries with this specification are commonly used in RC cars, trucks, boats, drones, helicopters, aeroplanes, and other RC vehicles. The combination of 11.1V voltage and 4200mAh capacity provides a balance between power and runtime suitable for various RC applications.
The ORANGE 11.1V / 4200mAh 3S 35C LiPo battery pack with HXT 4mm connector is equipped with heavy-duty discharge leads to minimize resistance and sustain high current loads. The ORANGE 11.1V / 4200mAh 3S 35C LiPo battery pack with XT60 output connector and has JST-XH style balance connectors. All Orange Lithium Polymer battery packs are assembled using IR-matched cells. Orange batteries are known for performance, reliability and optimum price also.
It is not surprising to us that Orange Lithium polymer packs are the go-to pack for those in the know. Orange? batteries deliver the full rated capacity at a price everyone can afford. The ORANGE 11.1V / 4200mAh 3S 35C LiPo battery pack have a matched resistance and the true balance. These Orange batteries have good temperature control after high-rate discharge.
Precautions :
Avoid over-charging or over-discharging the batteries.
Don't put it beside the high-temperature condition.
Don't throw it into the fire or Water
Features :
Product?Type:?Lithium Polymer?Battery Pack
The Orange LiPo battery has matched resistance.
Good Temperature Control.
Minimum weight in Class
Package Includes :
1x 11.1V 4200mAh 3S 35C Lipo Battery With XT60 Plug (Brand Orange)
If you are facing any problems in buying or building your drone then you can consult with our drone expert they will guide you on your problem like which parts to choose, and what will be the best drone/parts in your budget.
Why you should consult with our drone experts
i. For any Doubt
ii. For any Advice & others
Overall, consulting with drone experts can help you make informed decisions, mitigate risks, and optimize the performance of your drone for your specific needs and objectives.
Book your slot now:
Consult with Our Drone Expert
Specification:-
Model No.: |
Orange 4200/3S-35C |
---|---|
Capacity (mAh) |
4200 |
Weight (g): |
319 |
Output Voltage(V) |
11.1 |
Charge Rate (C) |
1 ~ 3 |
Discharge Plug |
XT-60 Female |
Balance Plug |
JST-XH |
Length (mm): |
133 |
Width (mm): |
43 |
Height (mm): |
25 |
Max. Burst Discharge (C) |
50 C(400 A). |
Max. Charge Rate |
5 C |
Max. Continuous Discharge |
35 C(147 A). |
Shipping Weight | 0.35 kg |
Shipping Dimensions | 17 × 6 × 5 cm |
