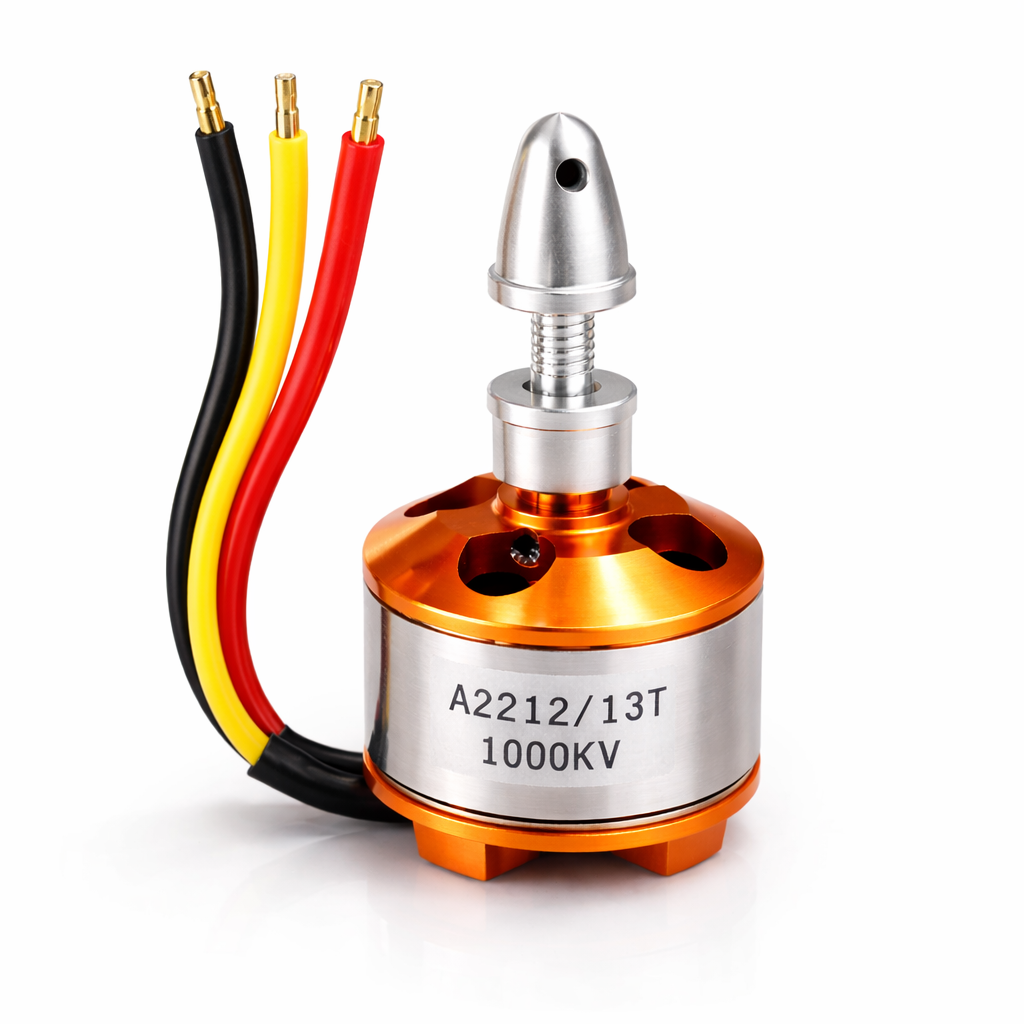

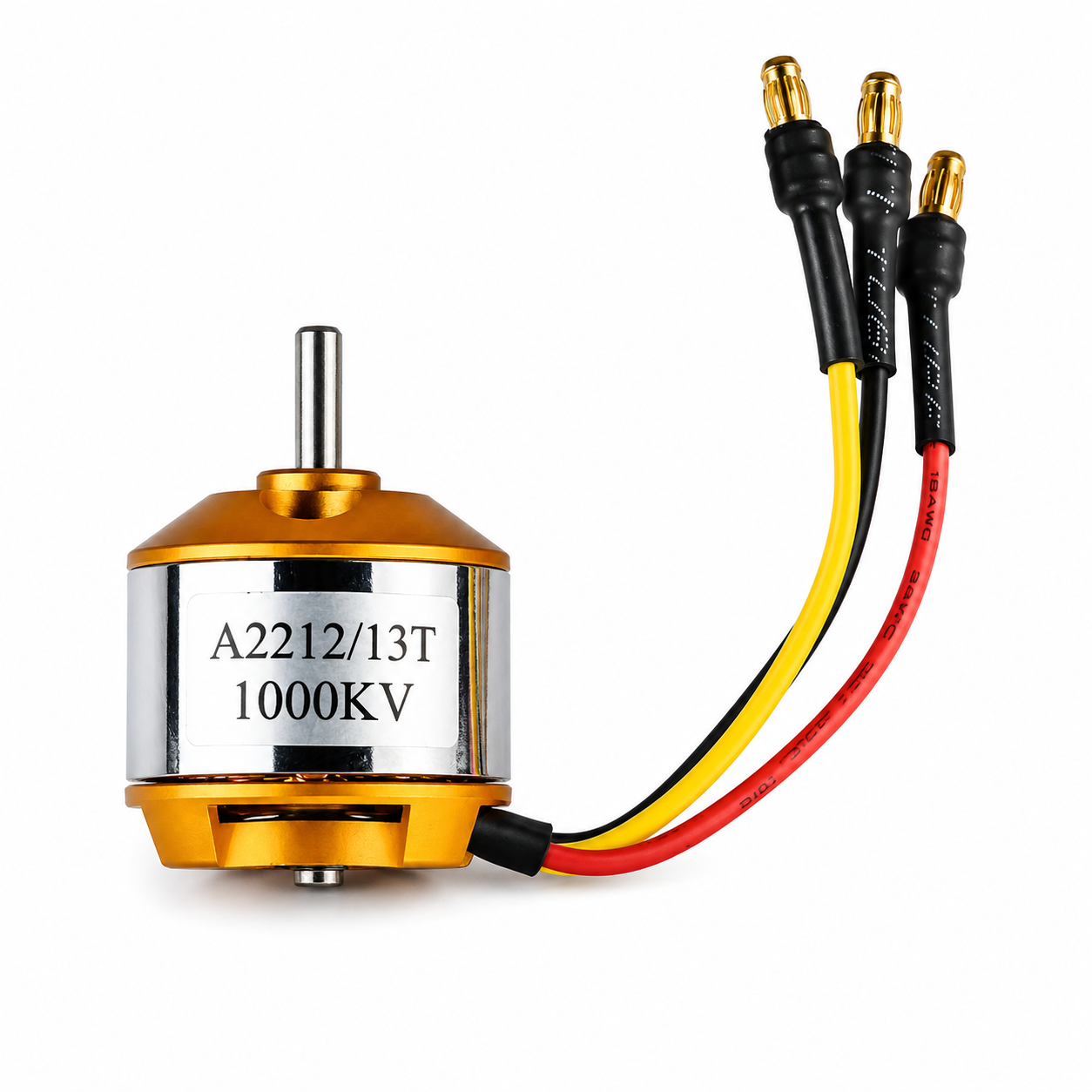

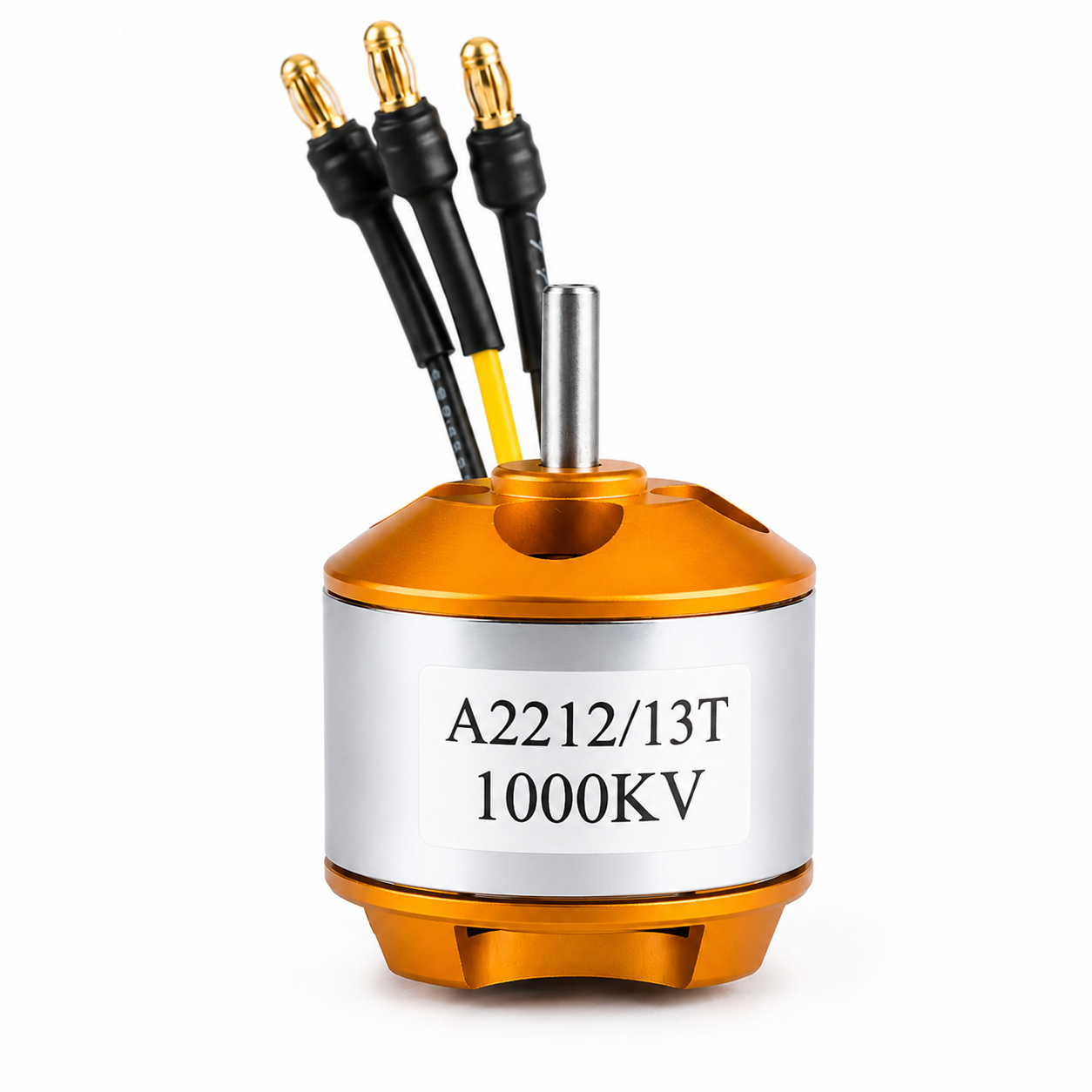

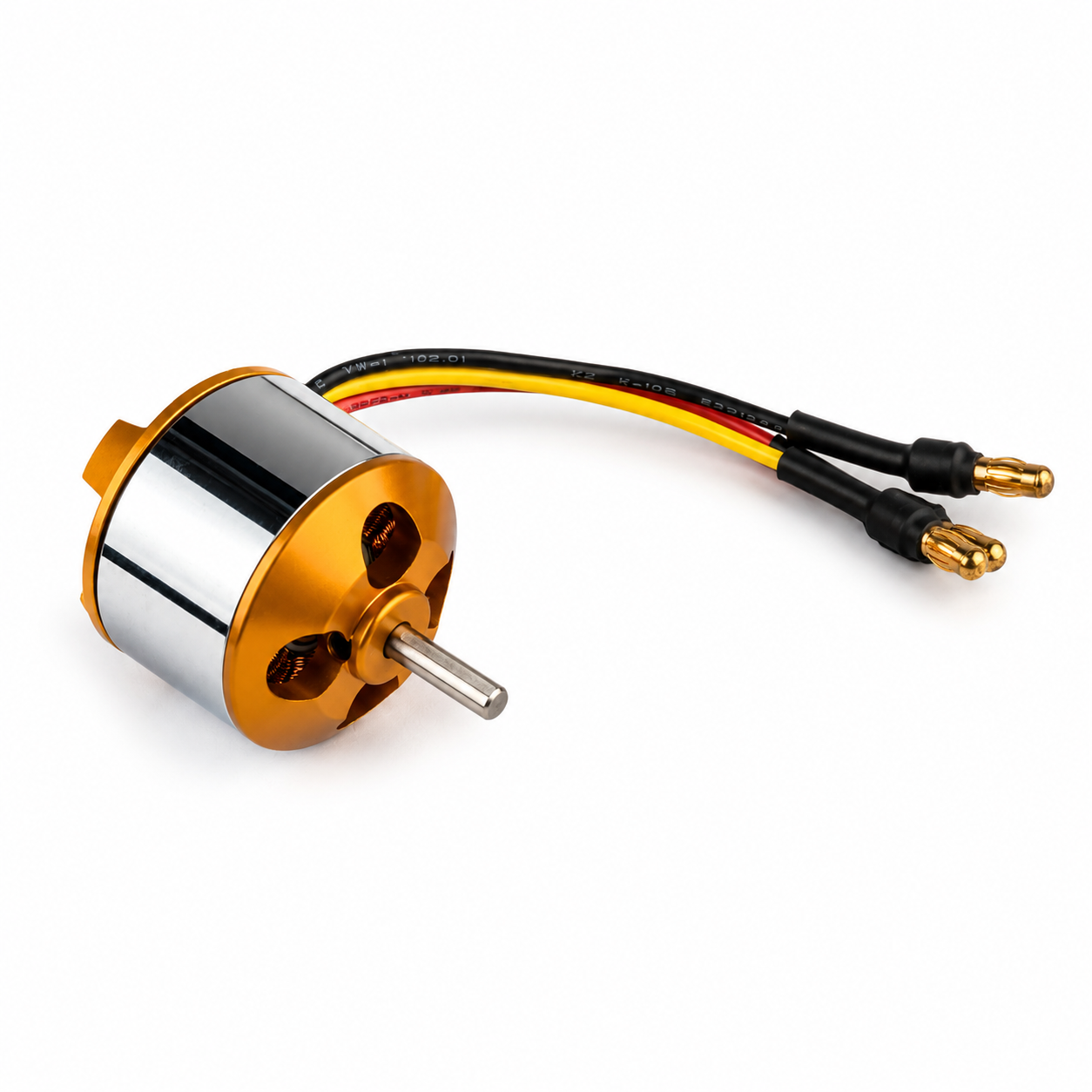

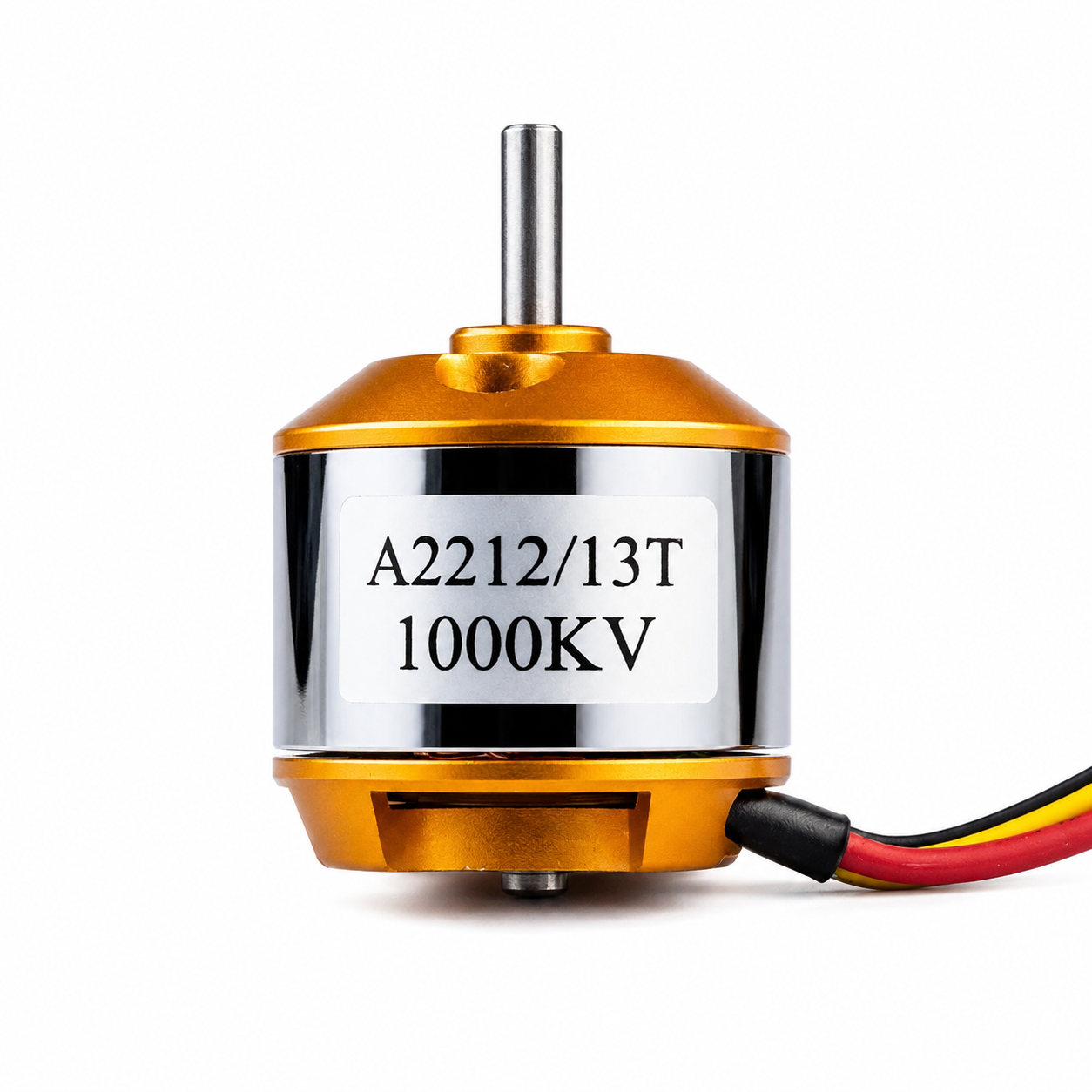

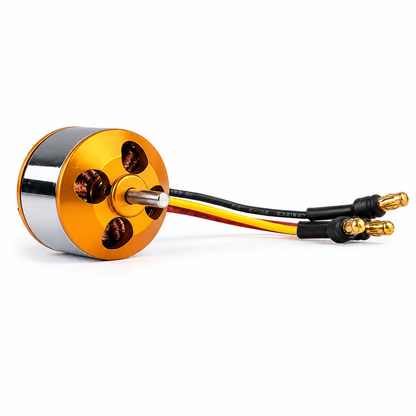

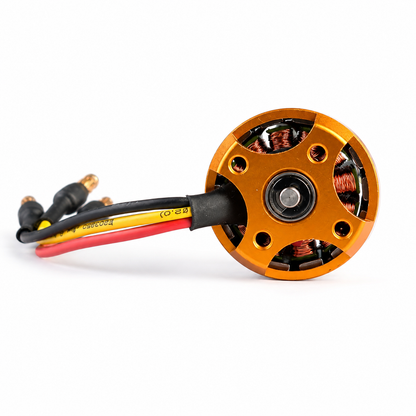

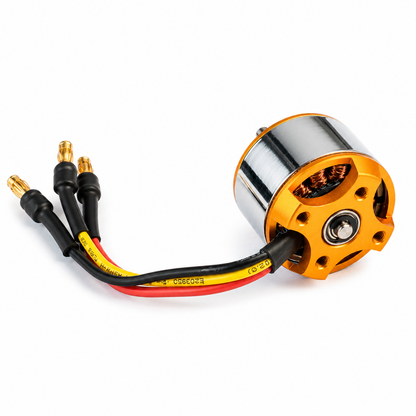

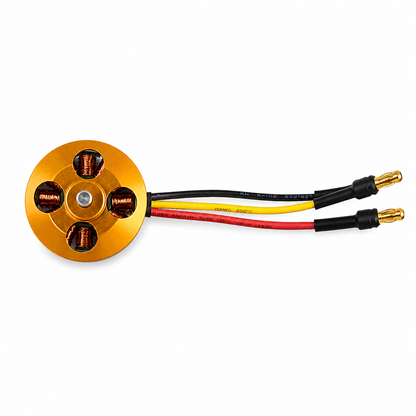

1000KV A2212/13T Brushless Motor With Bullet Connector For Drone & RC Plane

The 1000KV A2212/13T Brushless Motor is designed for use in small to medium-sized drones and RC planes. It belongs to the A2212 series of brushless motors, which are known for their efficiency and reliability. This specific motor has a 1000KV rating, indicating the motor’s rotational speed per volt applied (1000 RPM per volt).

Typical Features:

Brushless Design: Unlike brushed motors, brushless motors have improved efficiency, reliability, and longer lifespan because they don’t have brushes that wear out over time.

KV Rating: The 1000KV rating means that for every volt applied to the motor, it will rotate at 1000 RPM. This rating helps users choose the appropriate battery and propeller combination for their specific application.

Bullet Connector: The motor typically comes with bullet connectors pre-soldered to the motor leads. These connectors make it easy to connect and disconnect the motor from the electronic speed controller (ESC) without soldering.

Versatility: A motor with a 1000KV rating is often suitable for a wide range of small to medium-sized drones, RC planes, and other radio-controlled vehicles. It’s commonly used in quadcopters and planes with a wingspan of around 1 meter or less.

Power and Thrust: The motor can generate a specific amount of thrust depending on the propeller size and battery voltage used. Users can choose different propellers to achieve the desired thrust and flight characteristics.

Efficiency: Brushless motors are known for their energy efficiency, which results in longer flight times compared to brushed motors.

Low Maintenance: Brushless motors require minimal maintenance since they lack brushes that need replacement.

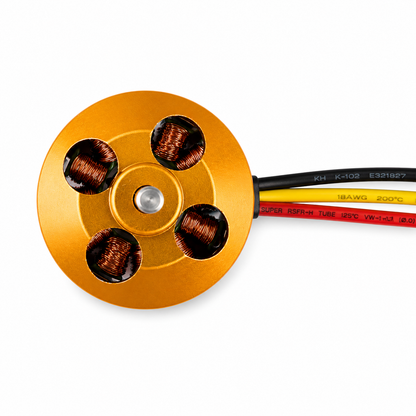

Cooling Design: Many brushless motors, including the A2212 series, have vented and finned designs that help dissipate heat during operation, preventing overheating.

Mounting Holes: The motor typically has mounting holes compatible with standard motor mounts used in drones and RC planes.

Compatibility: The motor is compatible with a variety of electronic speed controllers (ESCs) and can be used with various flight control systems.

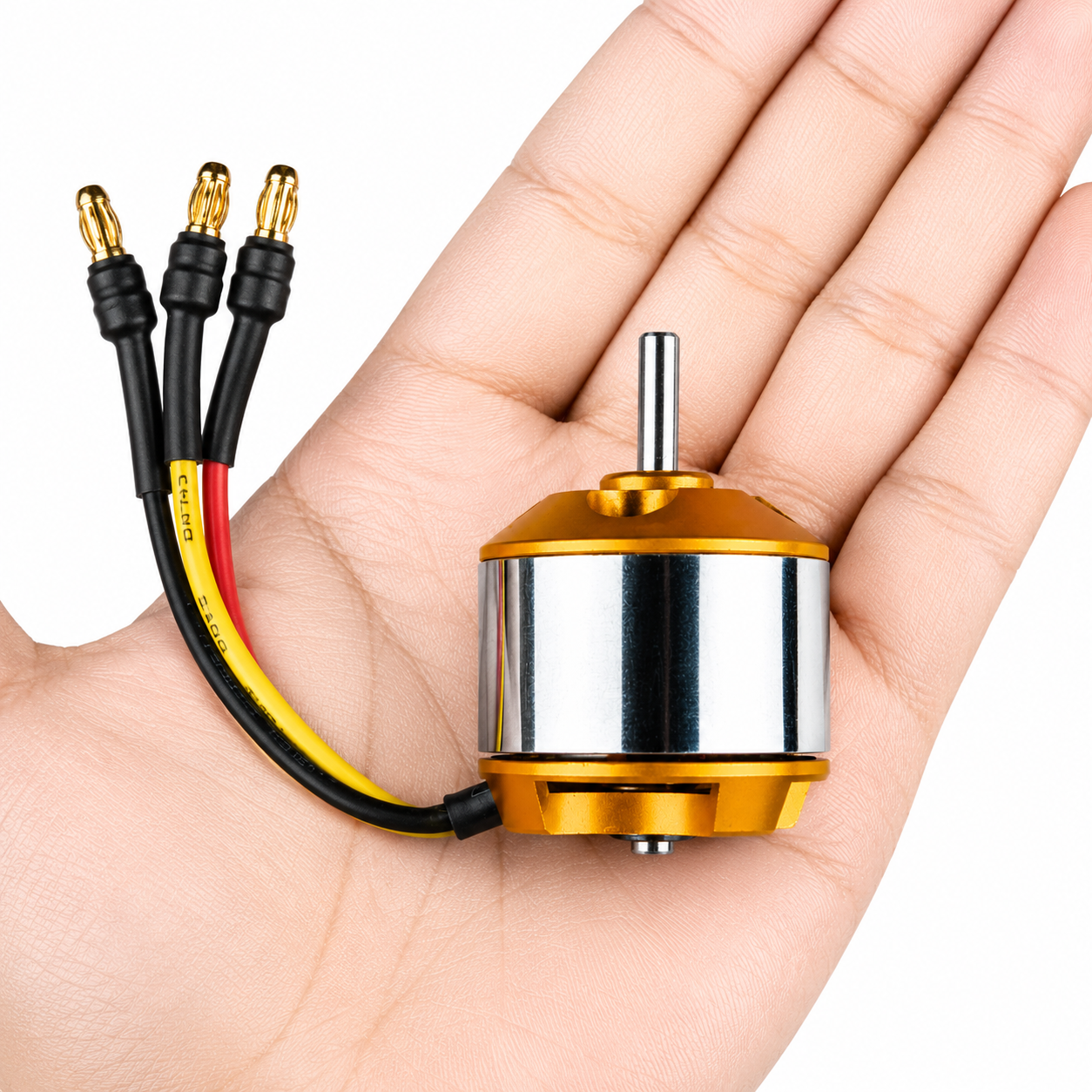

Weight: The motor is lightweight, which is crucial for keeping the overall weight of the drone or RC plane within acceptable limits for optimal flight performance.

Durable Construction: These motors are designed to withstand the vibrations and stresses associated with drone and RC plane flight.

Brand Name: SKY RC
Item Name: Brushless Motor
Model: A2212/13T
Dimension: 27.8*27mm
Shaft diameter: 3.17mm
Current Capacity: 16A
Voltage Capacity: 11.1v
Number of Cell: 2-3s Li-Po
Weight: 65g
KV: 1000
Color: golden
Suitable for the propeller size: 1045
Recommended ESC: 30A

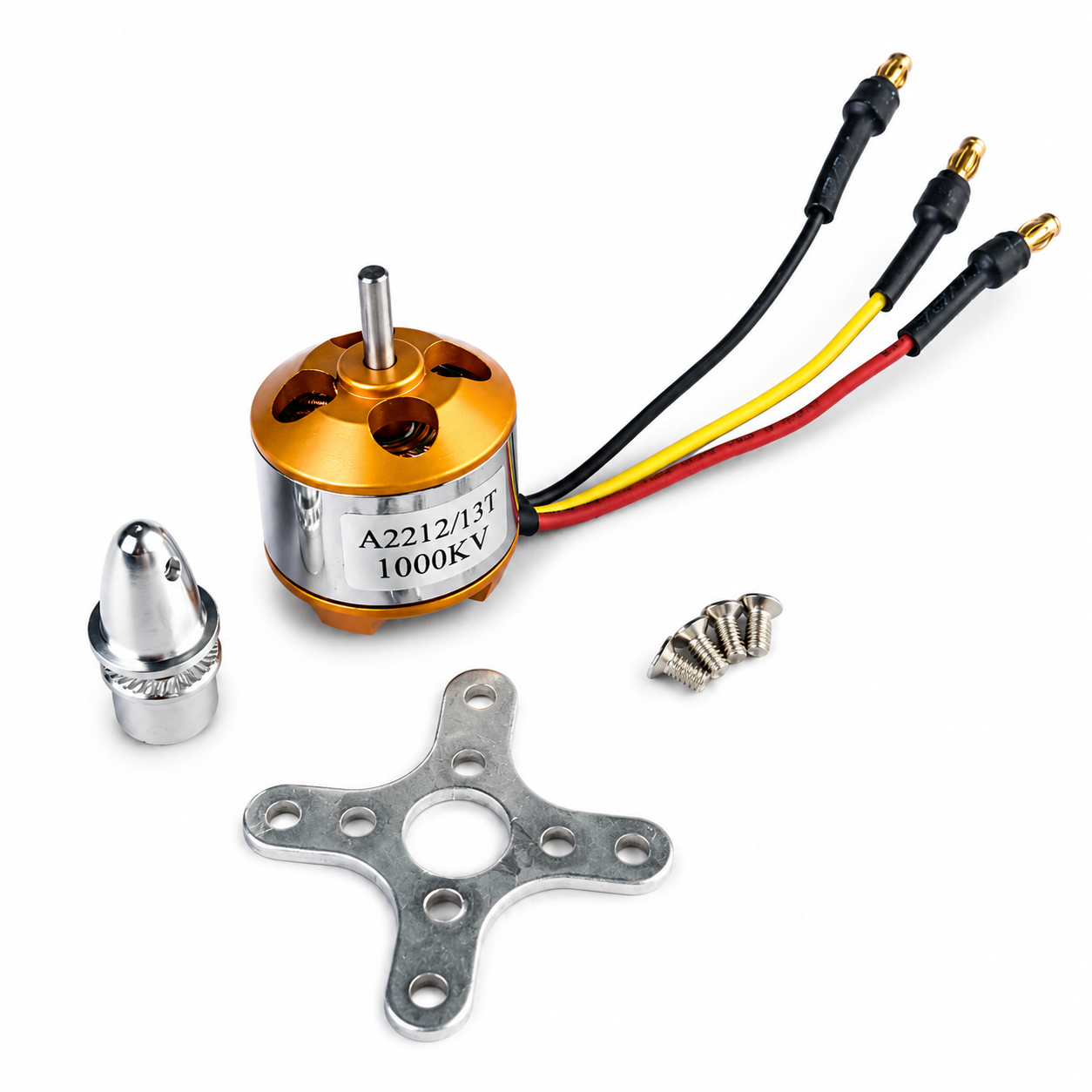

Package Included:
1 x 1000KV A2212 Brushless Motor
1 x motor mount
1 x bullet propeller adapter
4 x screw
