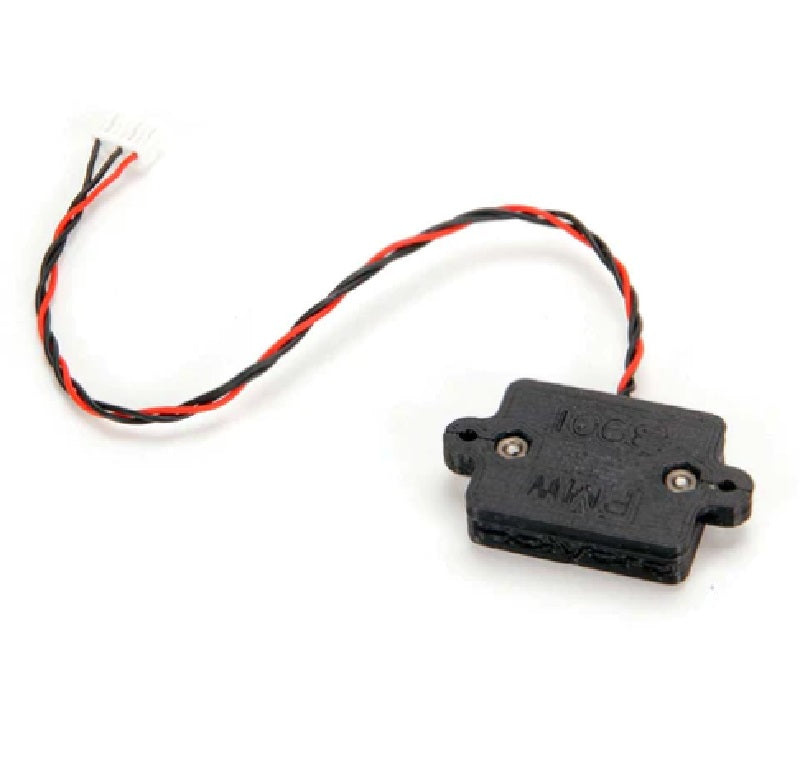

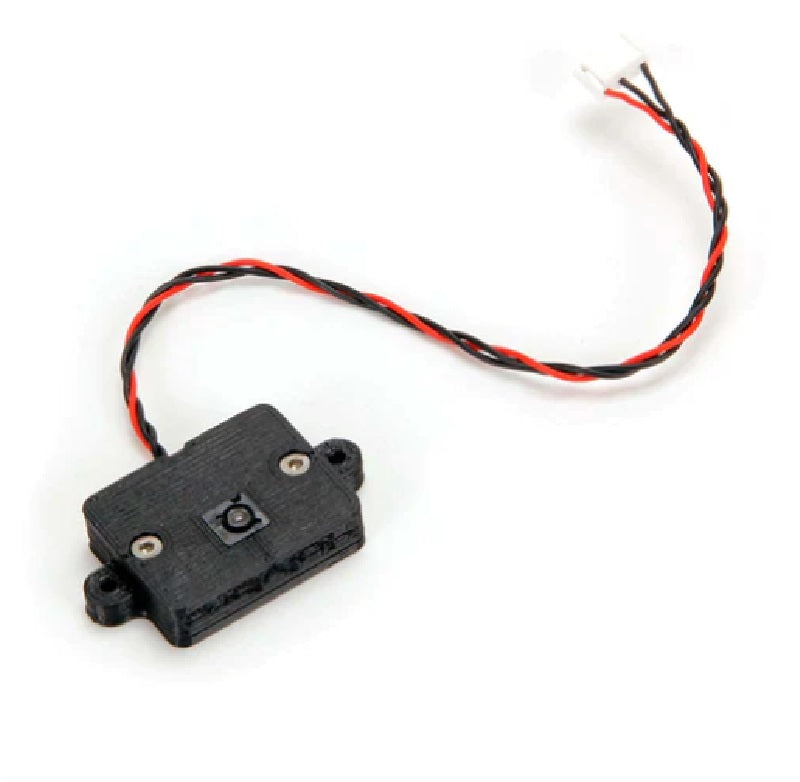

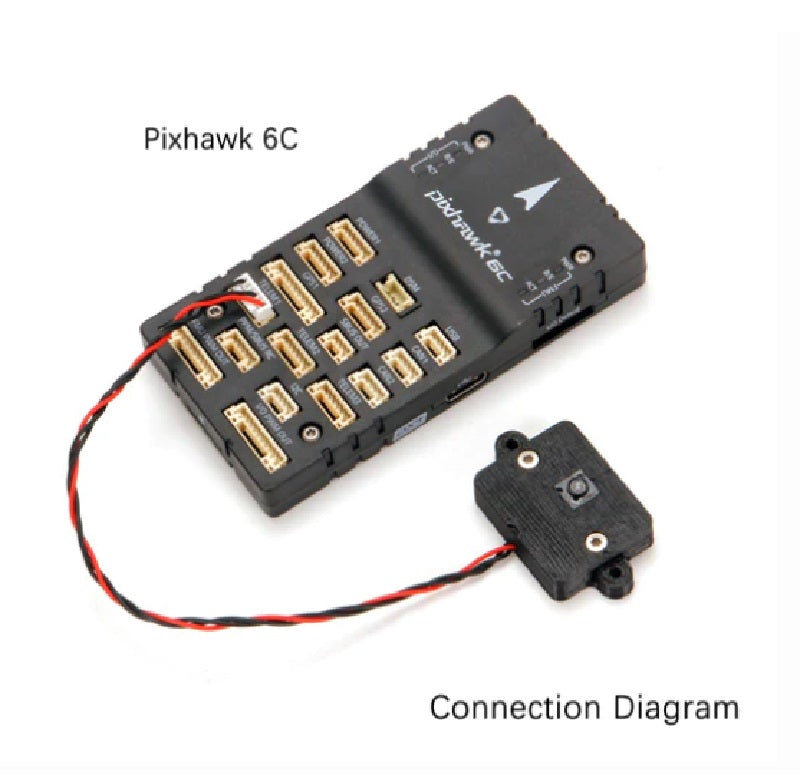

The Holybro PMW3901 Optical Flow Sensor is a UART version of the PMW3901 module with built-in BEC. It comes pre-solder with a 6-pin JST GH connector made to connect right to TELEM ports on most flight controllers. Compatible with PX4 (PX4 Guide) & Ardupilot (Data format same as discontinued product CX-OF).
Features:
- Compact and high-performance optical flow sensor.
- Accurate motion tracking and velocity estimation.
- Utilizes image flow data for enhanced stability.
- Ideal for drones and robotics.
- Lightweight design for easy integration.
- Efficient algorithms for real-time measurements.
- Improves spatial awareness and navigation precision.
Package Includes:
1× Holybro PMW3901 Optical Flow Sensor
Specifications:-
| Item Type: |
Sensor |
|---|---|
| Model: |
Optical Flow Sensor |
| Input Power (W): |
2.0 to 3.6 |
| Current (mA) |
10 |
| Interface: |
UART |
| Baud Rate (bps) |
19200 |
| FPS |
95hz |
| Cable length (mm) |
175 |
| Length (mm): |
37 |
| Width (mm): |
21 |
| Weight (g): |
0.6 |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 10 × 8 × 1 cm |
