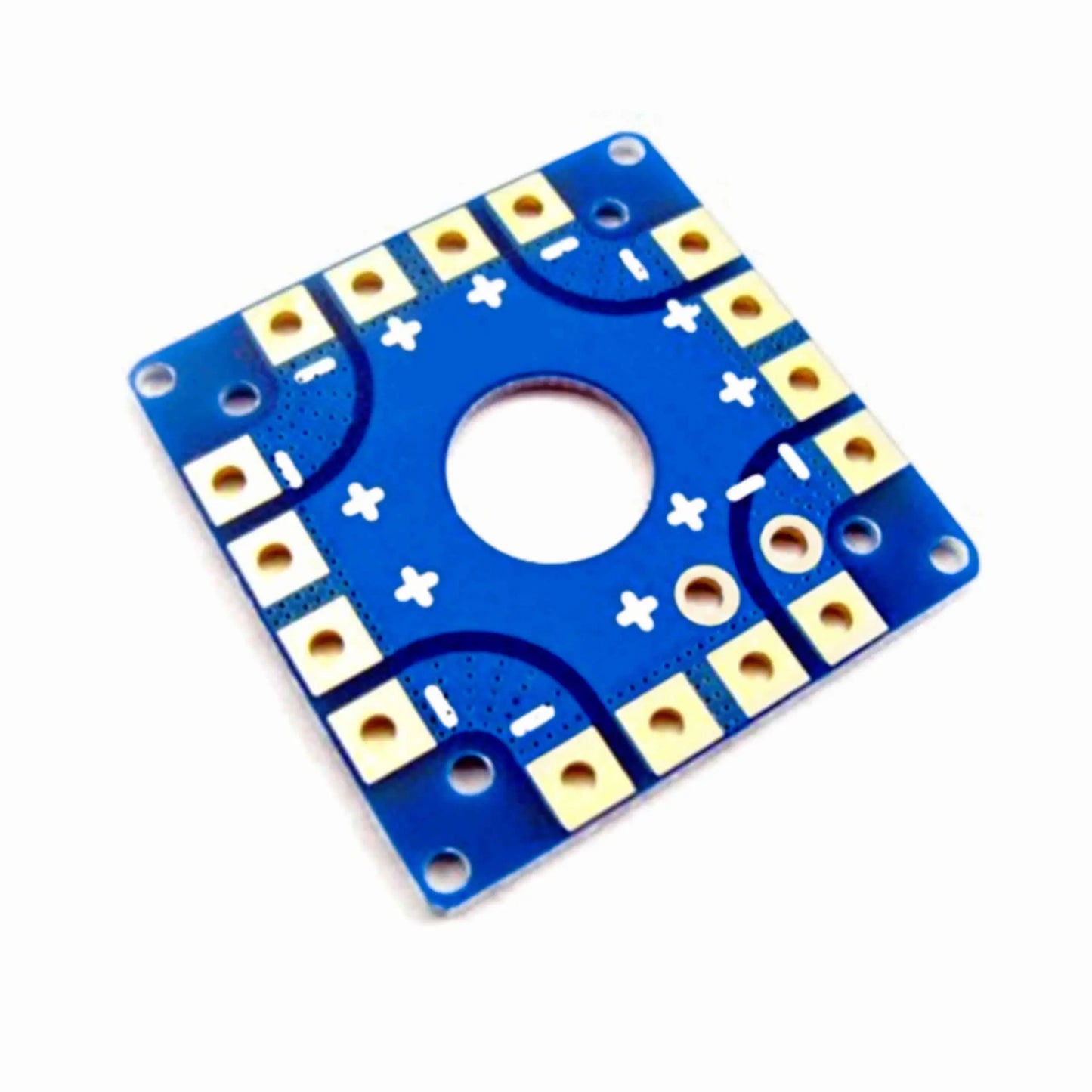

The 100A Multirotor ESC Power Distribution Battery Board For Quadcopter is a lightweight distribution board that will power your multi-rotor aircraft easily.
These boards are great for smaller multirotor builds. They’re compact and lightweight and offer large solder pads – making them easy to work with. These boards can handle some serious current – up to 20A per output for a quadcopter build or drop that down to 10A each for an octocopter.
Features:
- Current Rating: The PDB is rated for a maximum current of 100 amperes (100A). This means it can handle electrical currents up to this level without overheating or causing electrical issues. Such a high current rating is suitable for drones with powerful motors or systems that require a significant amount of power.
- Purpose: The primary purpose of the PDB is to distribute power from the drone’s main battery to various electronic components, including the flight controller, motors, ESCs (Electronic Speed Controllers), LED lights, cameras, and any other electrical accessories. It ensures that each component receives the appropriate voltage and current.
- Input Voltage: The PDB is compatible with the voltage supplied by the drone’s main battery. Common voltage ratings for drones include 3S (11.1V), 4S (14.8V), 6S (22.2V), or even higher, depending on the drone’s design and power requirements.
- Connectivity: The PDB typically features multiple solder pads, connectors, or slots for connecting wires from the battery and to the various electronic components. It may include connections for ESCs, voltage regulators, and other peripherals.
- Current Monitoring: Some PDBs are equipped with current sensors or shunt resistors that allow users to monitor the current draw of the entire drone or individual components in real time. This is valuable for assessing power consumption and diagnosing potential issues.
- ESC Integration: Many PDBs are designed to integrate with the ESCs directly. This simplifies the wiring and reduces clutter within the drone’s frame, improving overall reliability and tidiness.
- Voltage Regulation: Some PDBs also feature built-in voltage regulators or filters to ensure stable and clean power is delivered to sensitive components like the flight controller and other electronics.
- Size and Form Factor: PDBs come in various sizes and shapes to accommodate different drone designs and frame sizes. It’s important to choose a PDB that fits well within the drone’s frame and provides convenient mounting options.
- Materials: PDBs are typically made from high-quality, heat-resistant materials to ensure safe and reliable operation, even under demanding conditions.
- Safety Features: Some PDBs incorporate safety features such as overcurrent protection and short-circuit protection to safeguard the drone’s components and prevent electrical damage.
- Compatibility: It’s crucial to ensure that the PDB is compatible with the specific drone frame and components you intend to use. Compatibility with the flight controller and ESCs is especially important.
A 100A PDB for a drone is a robust and capable power distribution solution suitable for high-performance drones that demand significant power for motors and accessories. It plays a vital role in ensuring the reliability and stability of the drone’s electrical system during flight operations.
Can connect 1-8 ESC.
Hole Spacing: 45mm Square and 35mm Square
If you are facing any problems in buying or building your drone then you can consult with our drone expert. They will guide you on your problem like which parts to choose, and what will be the best drone/parts in your budget.
Why you should consult with our drone experts
i. For any Doubt
ii. For any Advice & others
Overall, consulting with drone experts can help you make informed decisions, mitigate risks, and optimize the performance of your drone for your specific needs and objectives.
Book your slot now:
Consult with Our Drone Expert
Package Includes:
1× 100A PDB Power Distribution Board For Drone
Specification:-
Material | Glass Fiber |
---|---|
Length (mm) | 50 |
Width (mm) | 50 |
Height (mm) | 2 |
Mounting Holes Distance (mm) | 45×35 |
Weight (gm) | 8 |
Shipment Weight | 0.012 kg |
Shipment Dimensions | 6 × 6 × 1 cm |
