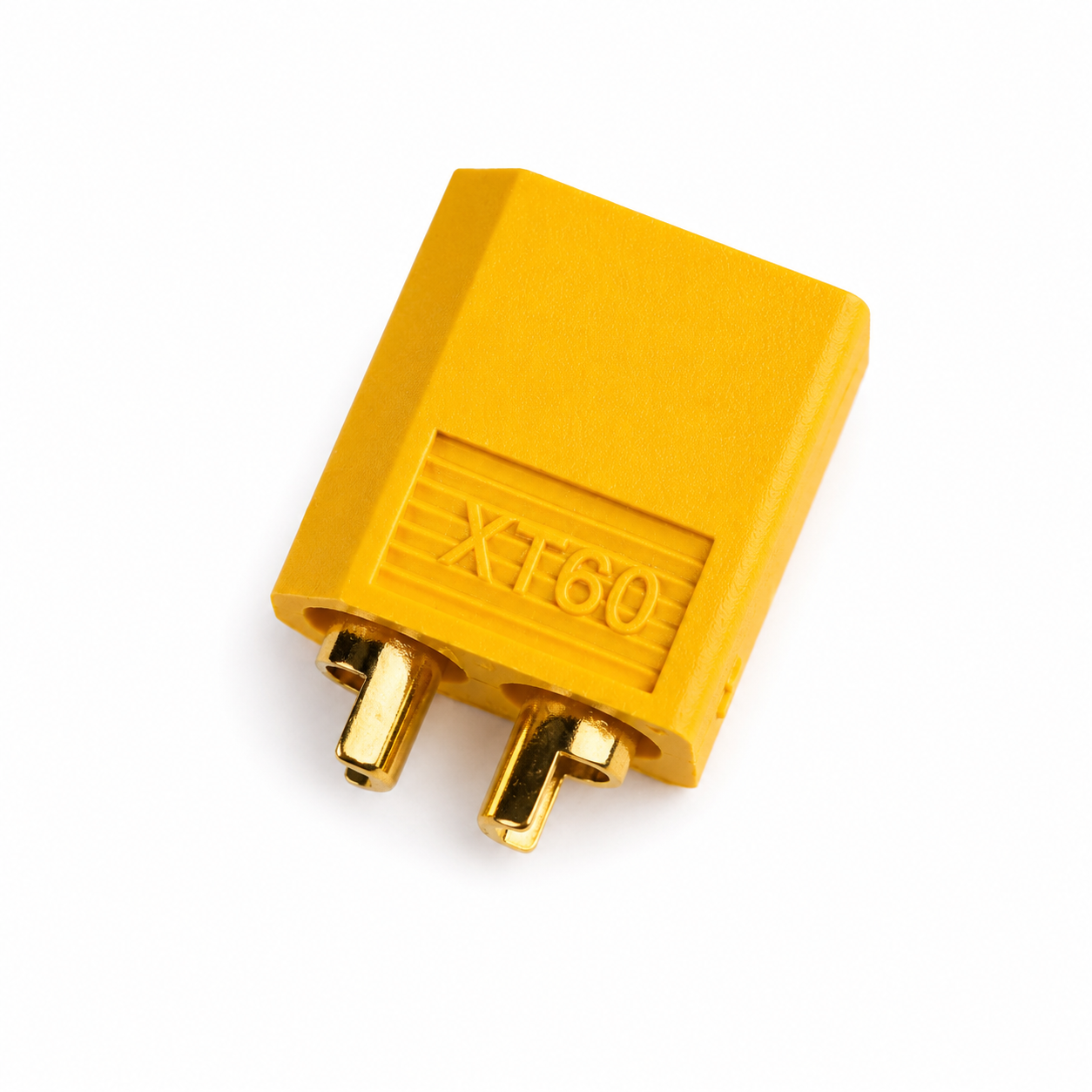

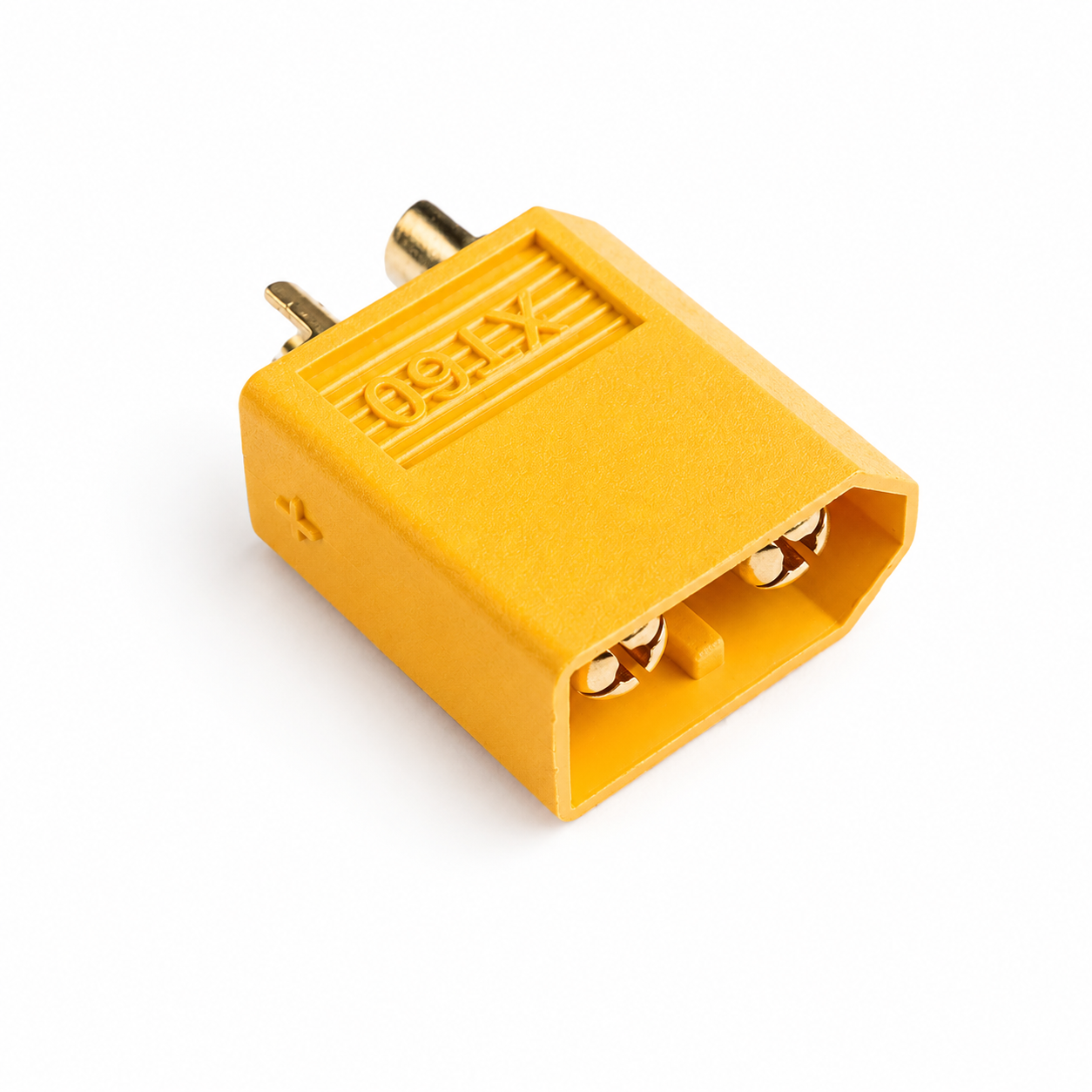

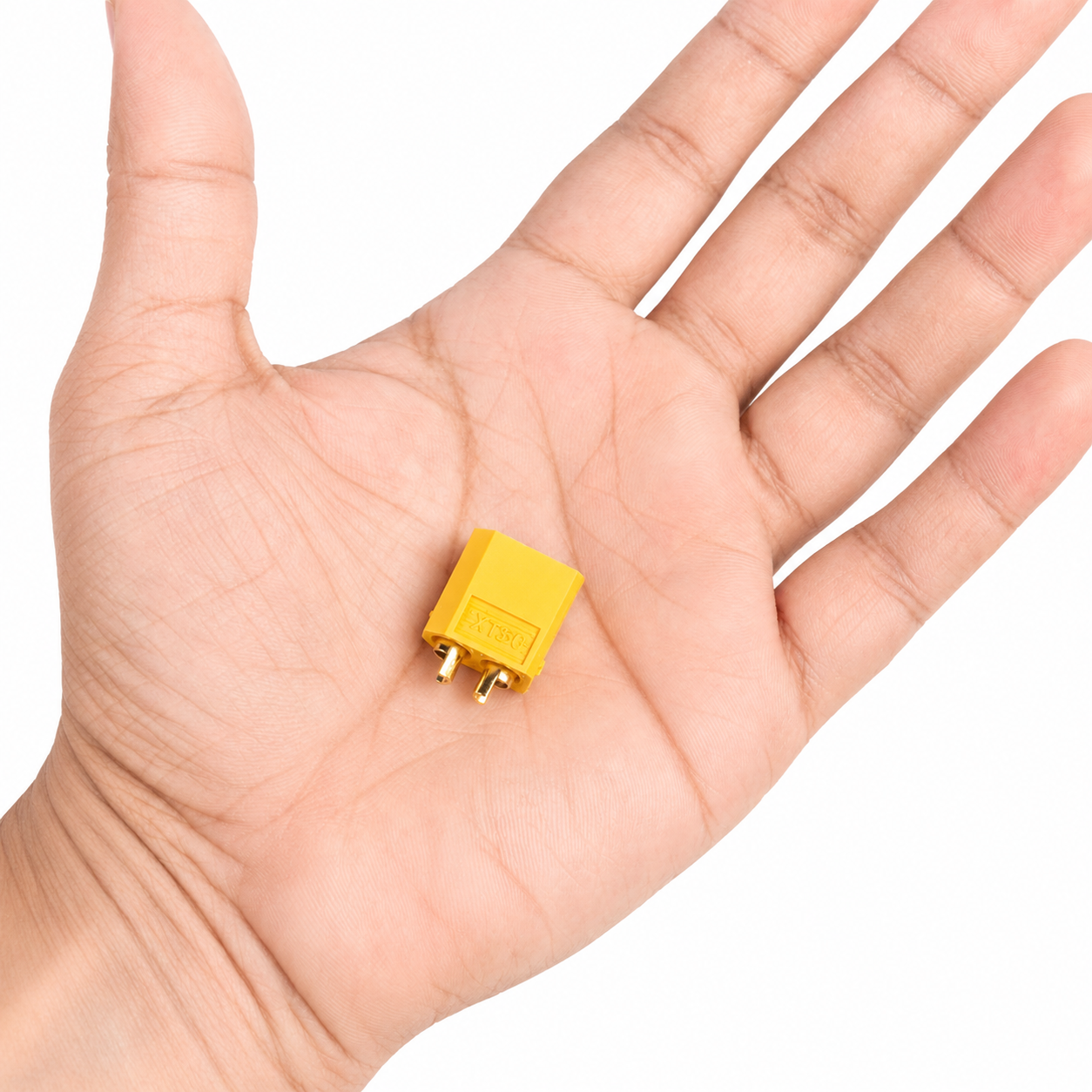

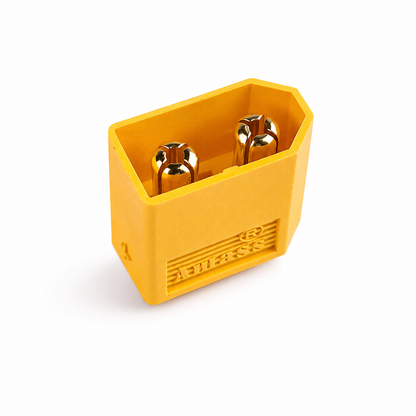

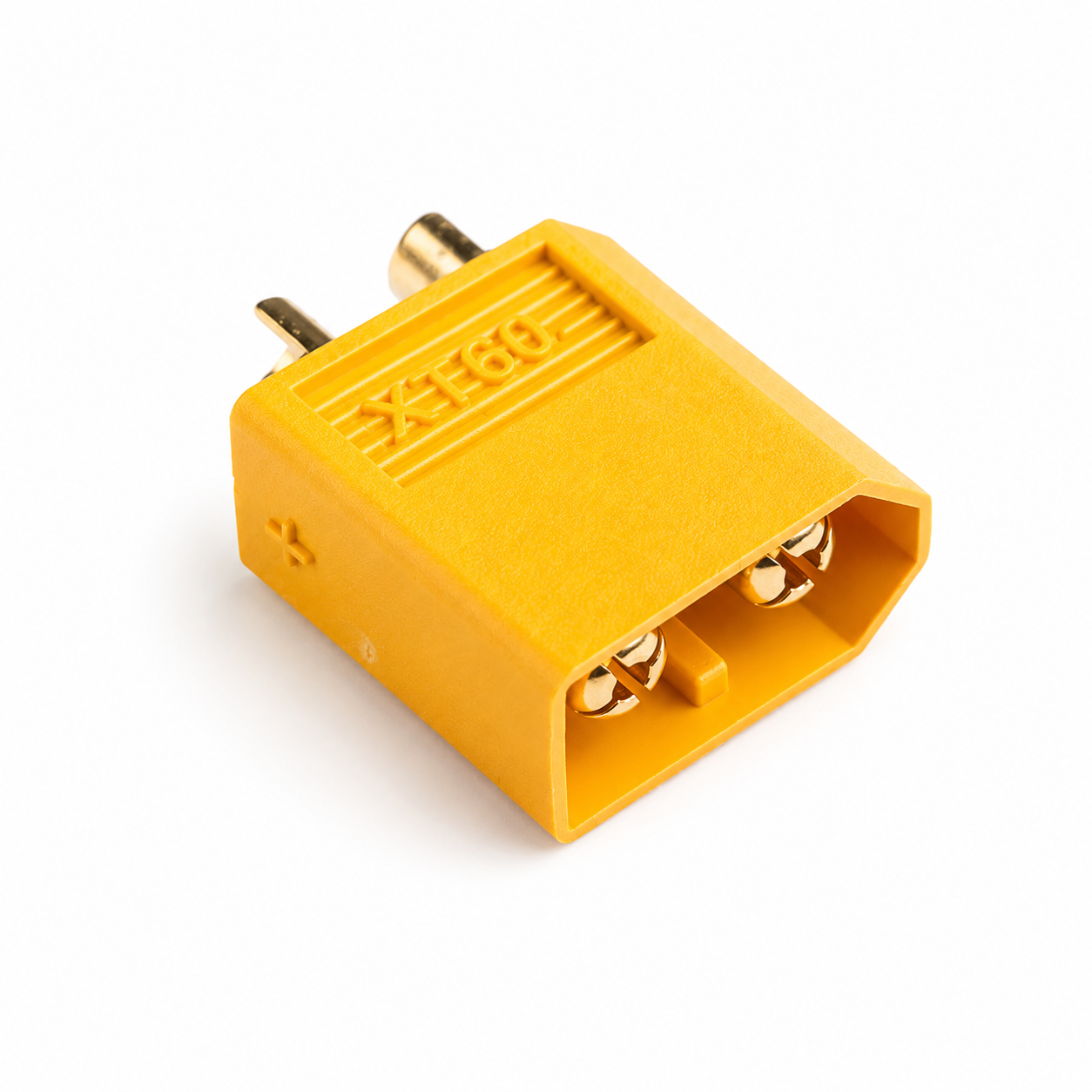

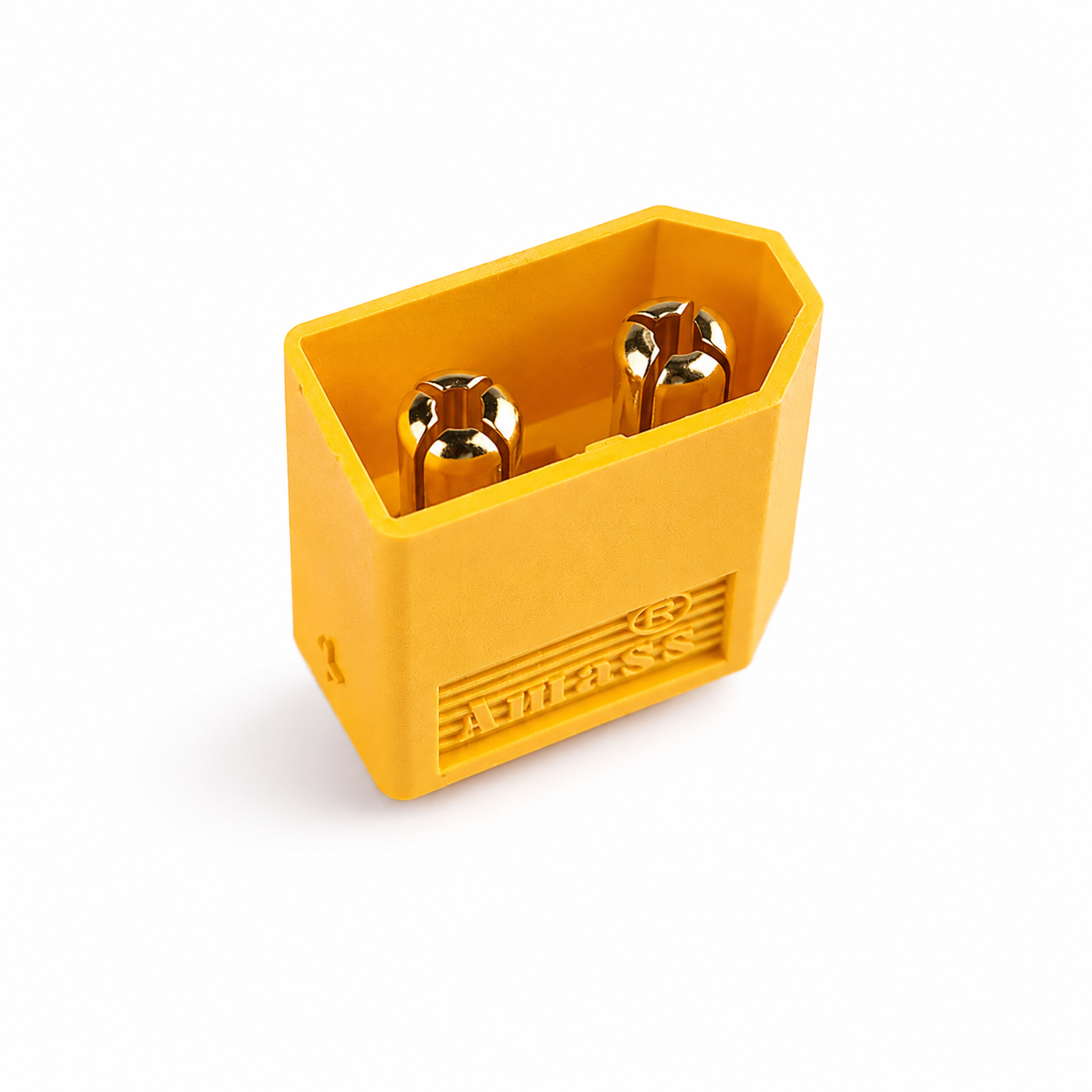

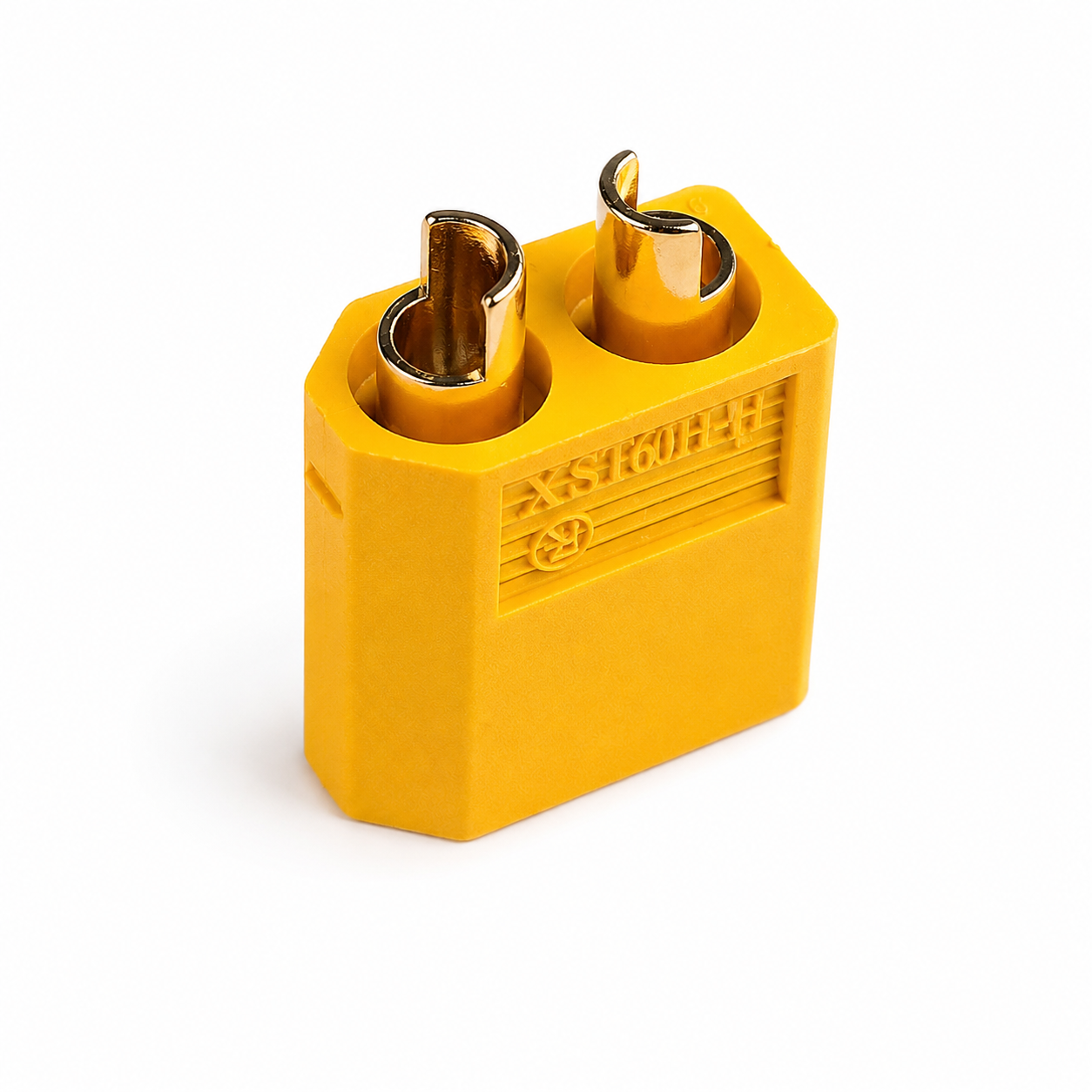

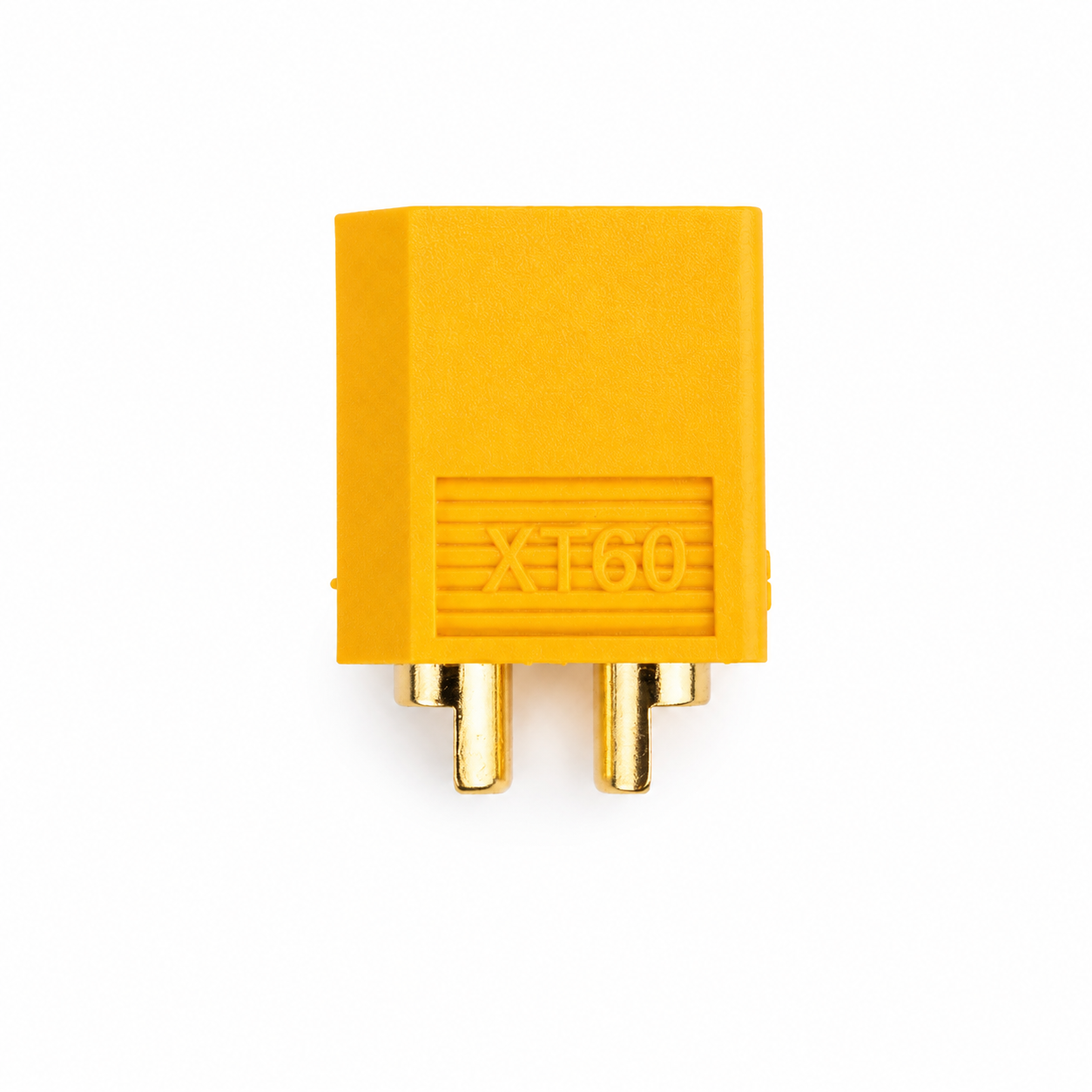

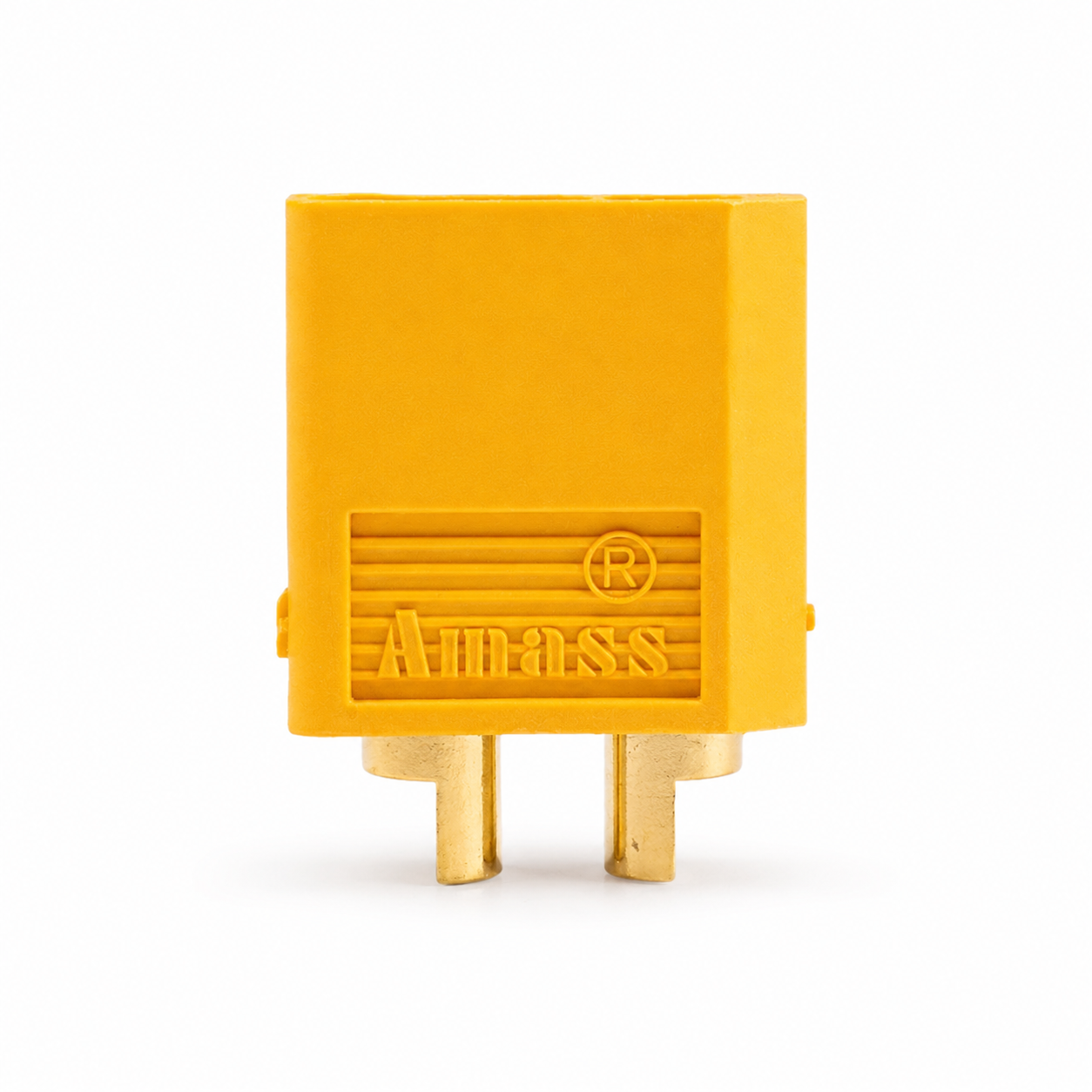

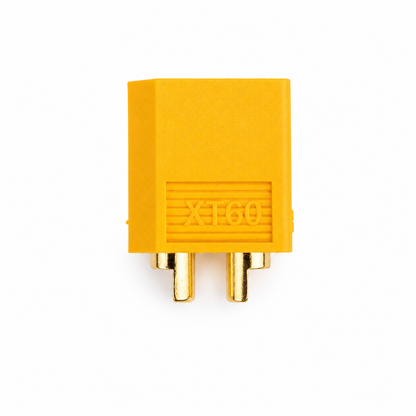

The XT60 Male Connector is a commonly used electrical connector in the world of radio-controlled (RC) hobbyist and drone racing. It is known for its robustness, efficiency, and ability to handle high-current applications. Below is a description of the XT60 Male Connector and its features:
Description: The XT60 Male Connector is a type of cylindrical, gender-specific electrical connector designed to establish a secure and efficient electrical connection between two devices. It is part of the XT (extreme) series of connectors, widely used in the RC hobbyist community for connecting batteries to drones, quadcopters, RC cars, and other remote-controlled vehicles and devices.
Features:
- High Current Handling: The XT60 Male Connector is designed to handle high current loads effectively. It is commonly rated for currents up to 60 amps, which makes it suitable for various high-power RC applications, including racing drones and high-performance RC vehicles.
- Low Resistance: The connector is engineered to minimize electrical resistance. Lower resistance is essential for maintaining efficiency and reducing power loss, especially during high-current operations.
- Secure Connection: XT60 connectors feature a male-female design with polarized connectors, ensuring that they can only be connected in the correct orientation. This helps prevent reverse polarity connections that can damage electronics or batteries.
- Soldering: XT60 connectors are typically soldered onto wires, providing a secure and durable connection. Soldering is a common method used to attach these connectors to battery leads, ESCs (Electronic Speed Controllers), and other electronic components.
- Heat Resistance: The XT60 connector is designed to withstand the heat generated during high-current applications, reducing the risk of melting or deformation.
- Durability: XT60 connectors are known for their durability and robust construction. They are designed to withstand physical stress, making them suitable for demanding RC applications.
- Color Coding: XT60 connectors often come in different colors (e.g., yellow, black, red) to help users identify positive and negative connections easily.
- Compatibility: XT60 connectors are widely used and compatible with various RC devices, chargers, and batteries. However, as with any connector, it’s essential to verify compatibility with your specific devices and components before making connections.
Package included:
1× XT60 Male Connector
| SPECIFICATION | |
| Brand | Amass |
| Gender | Male |
| Rated Operating Voltage (VDC) | 500 |
| Current Handling Capacity (A) | 60 |
| Connector Type | XT60 |
| Contact Material | Brass |
| Operating Temperature (°C) | -20 to 120 |
| Colour | Yellow |
| Weight (gm) | 8 |
| Allowed Wire Size (AWG) | 14 ~ 12 |
| Shipment Weight | 0.012 kg |
| Shipment Dimensions | 4 × 4 × 1 cm |
