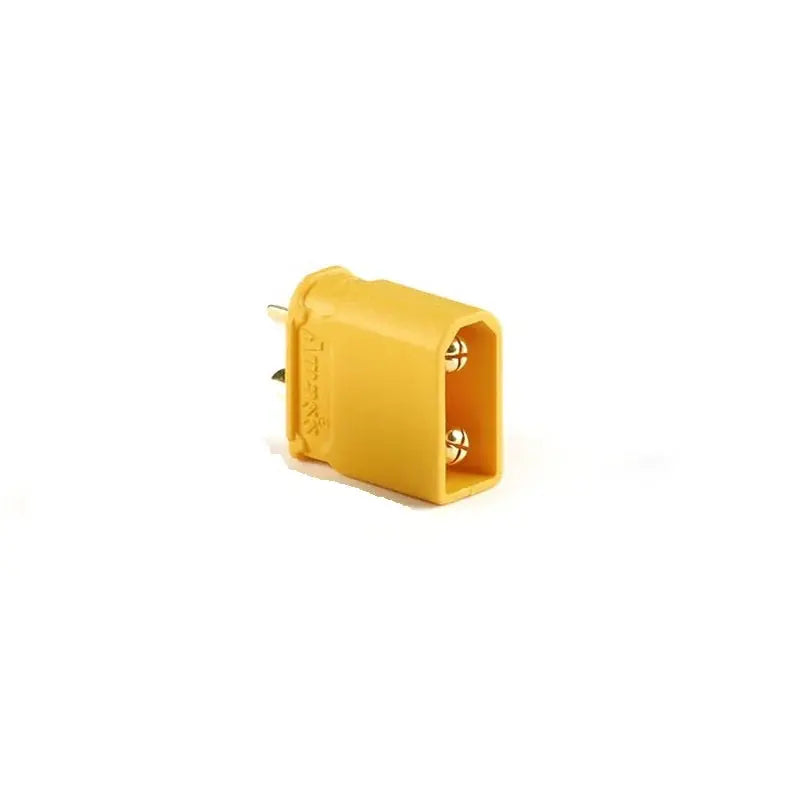

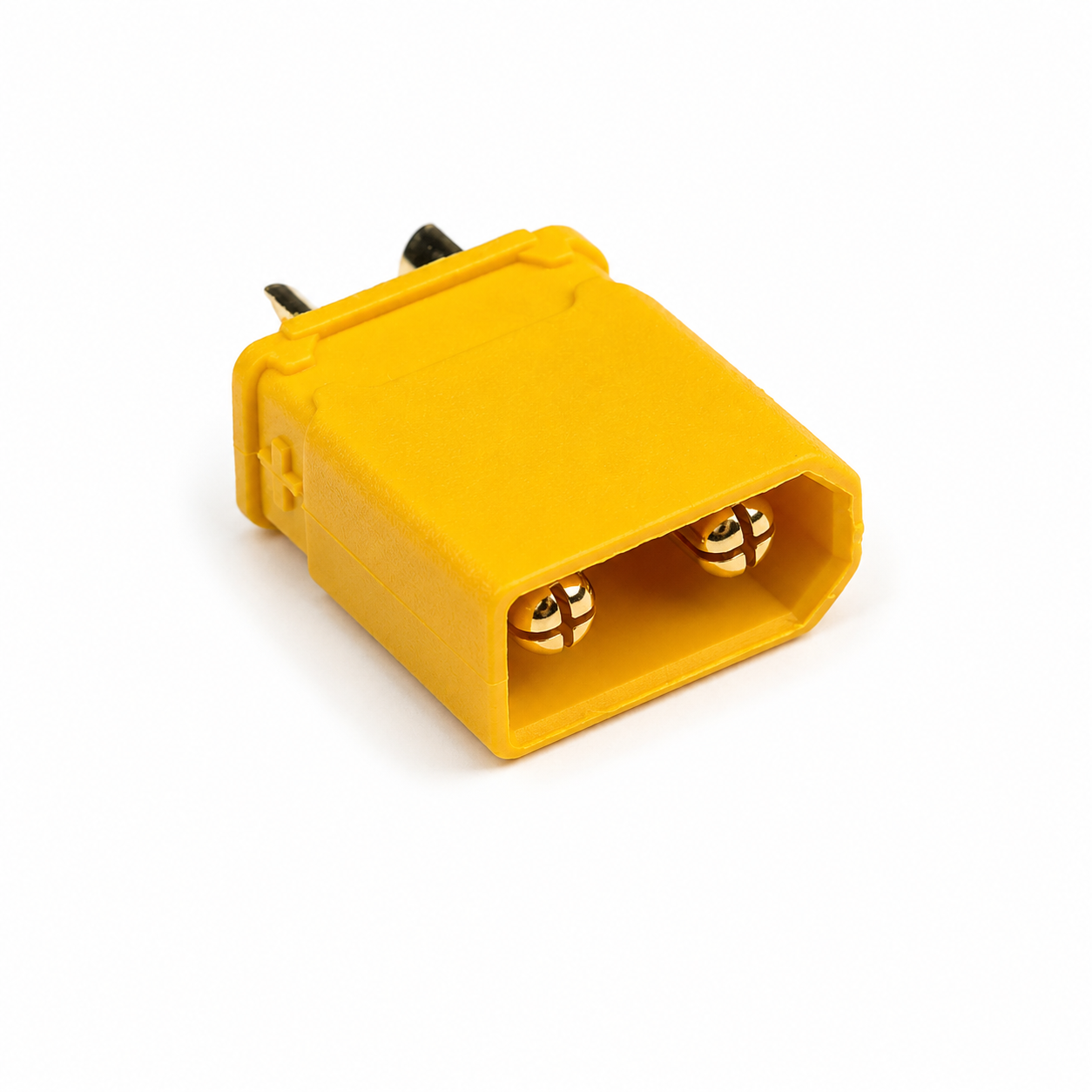

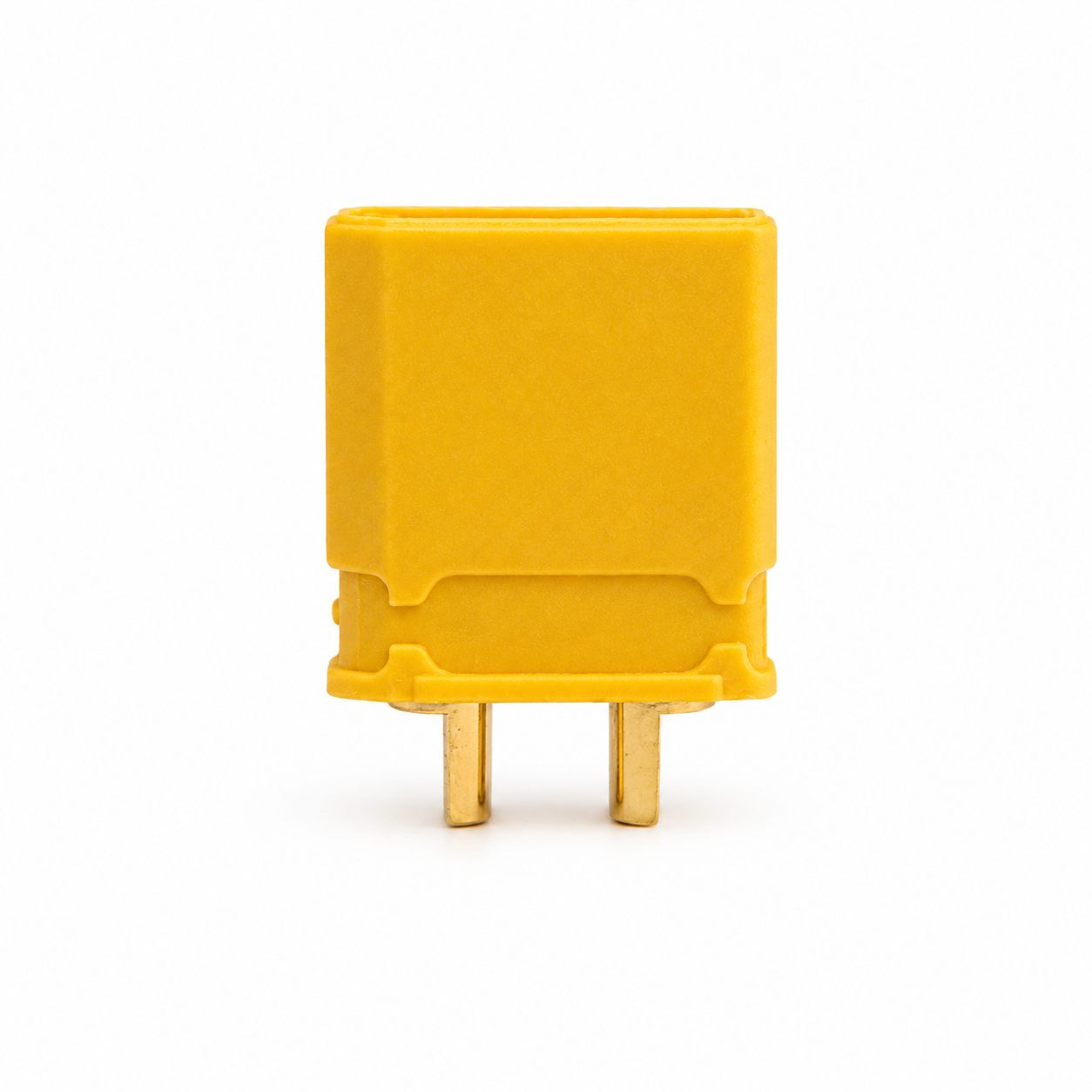

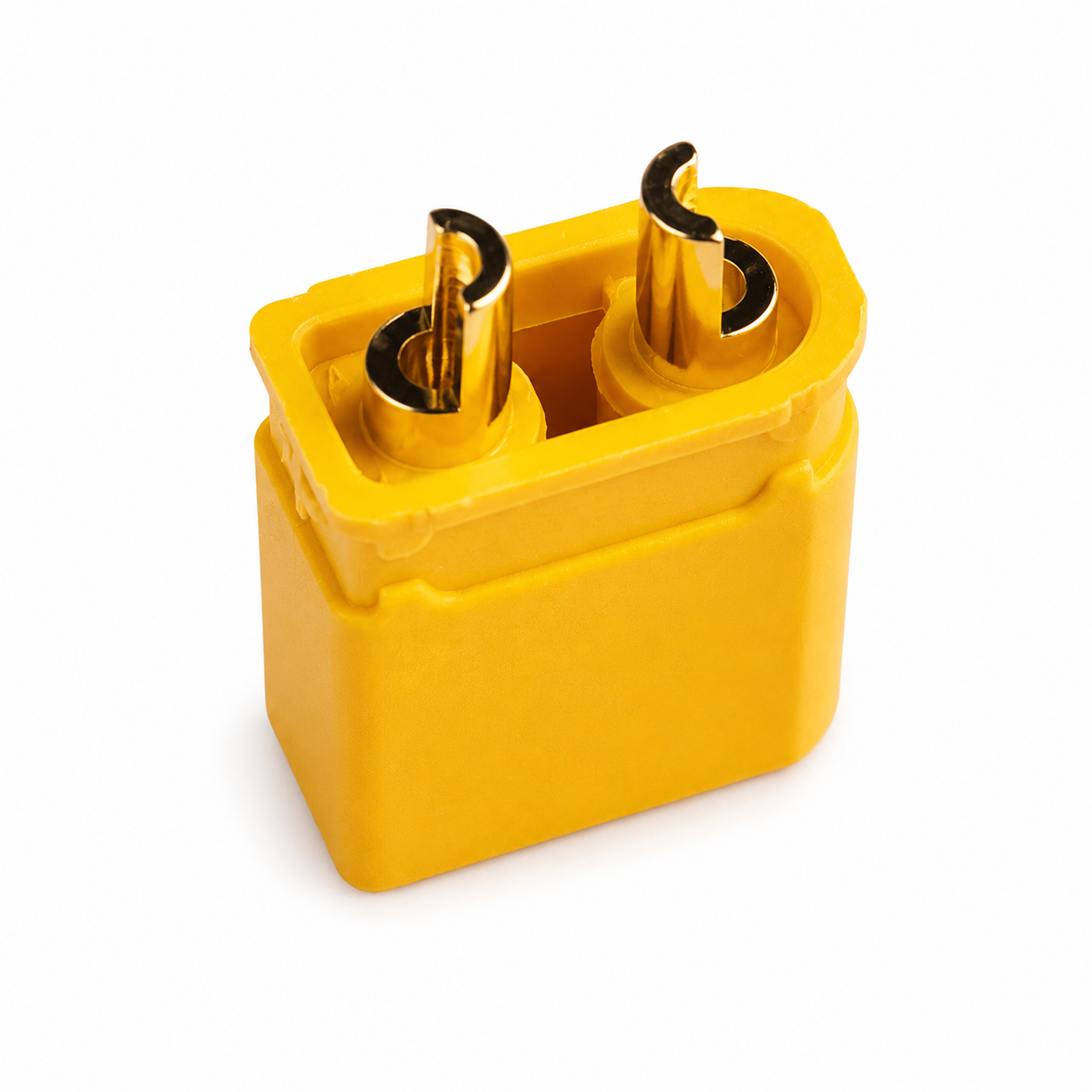

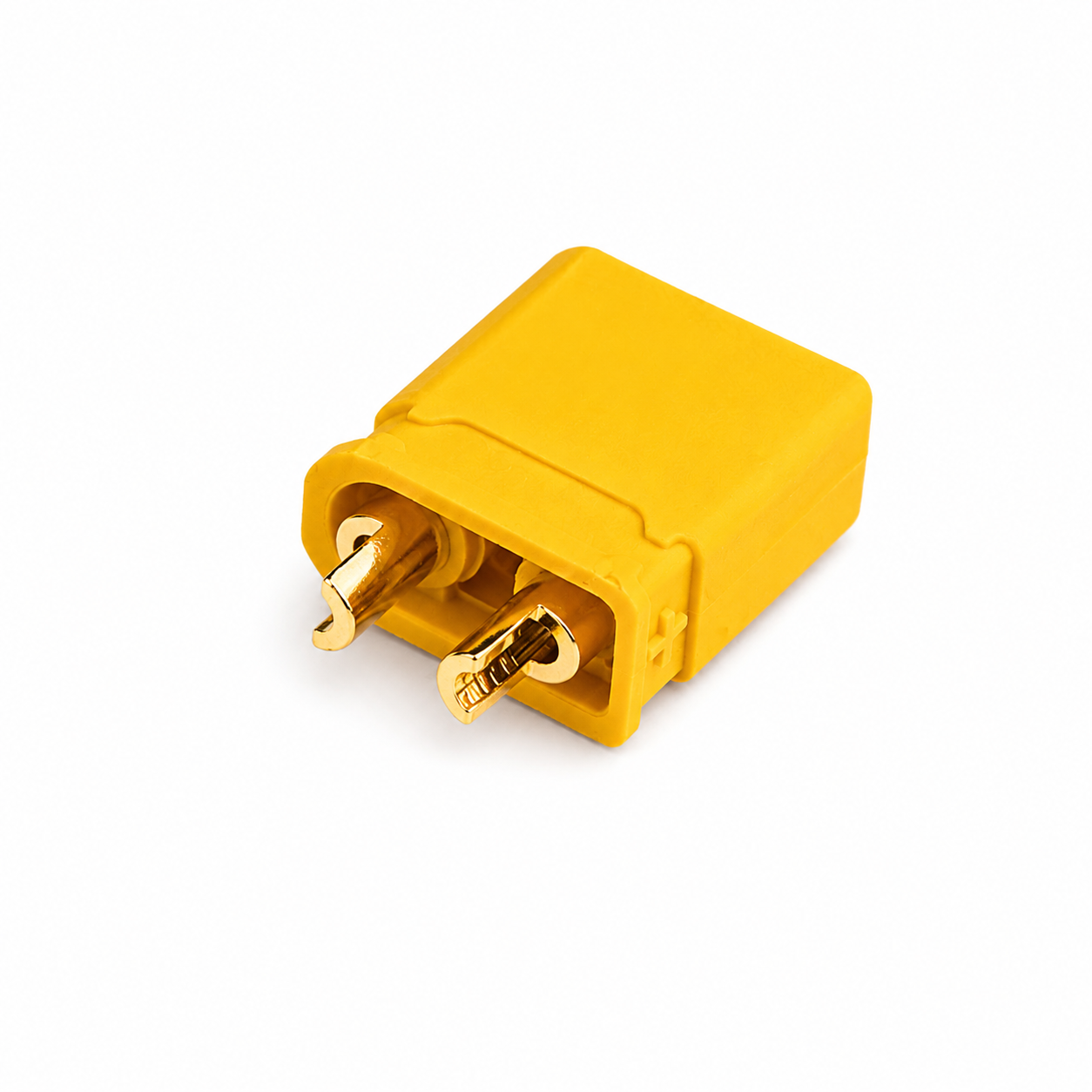

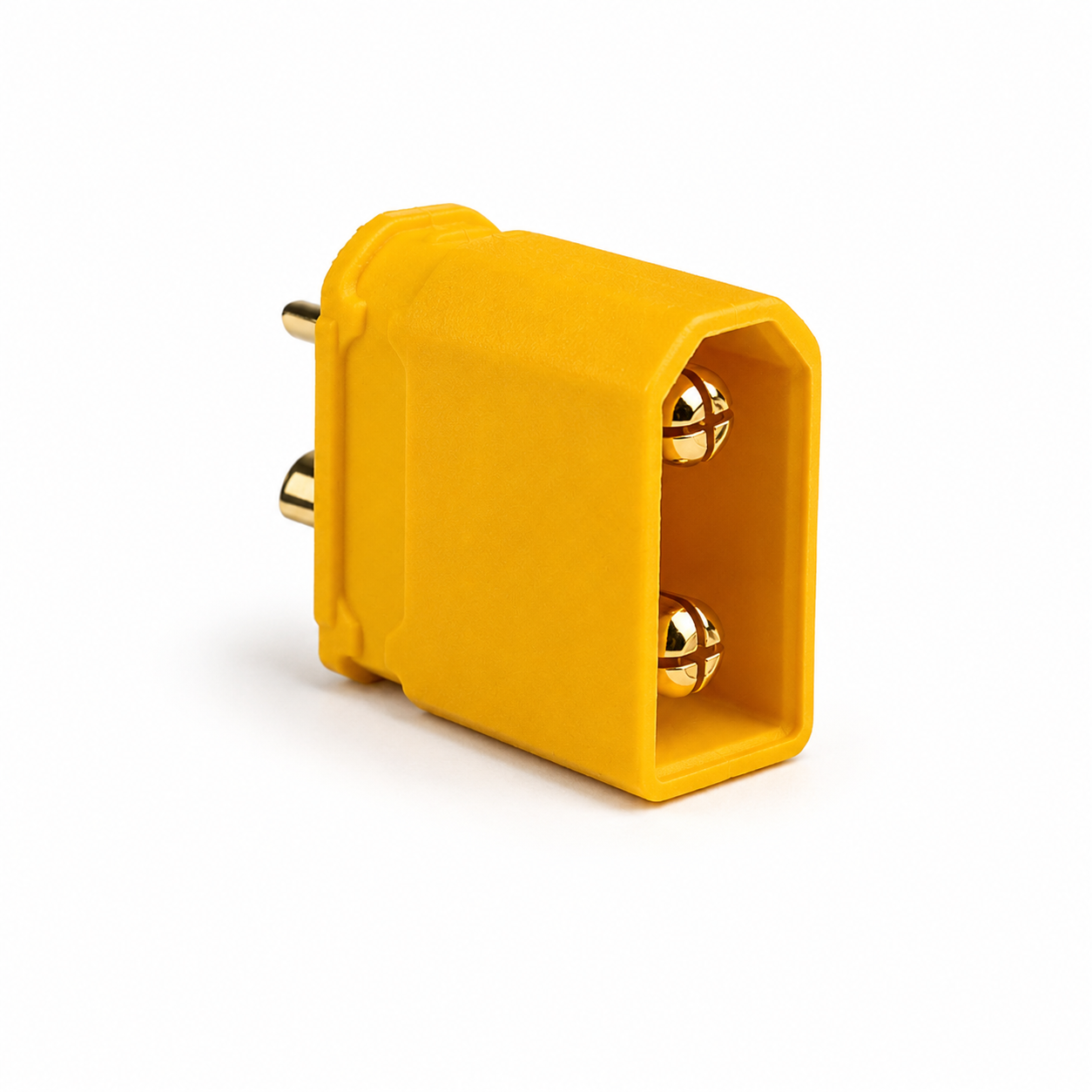

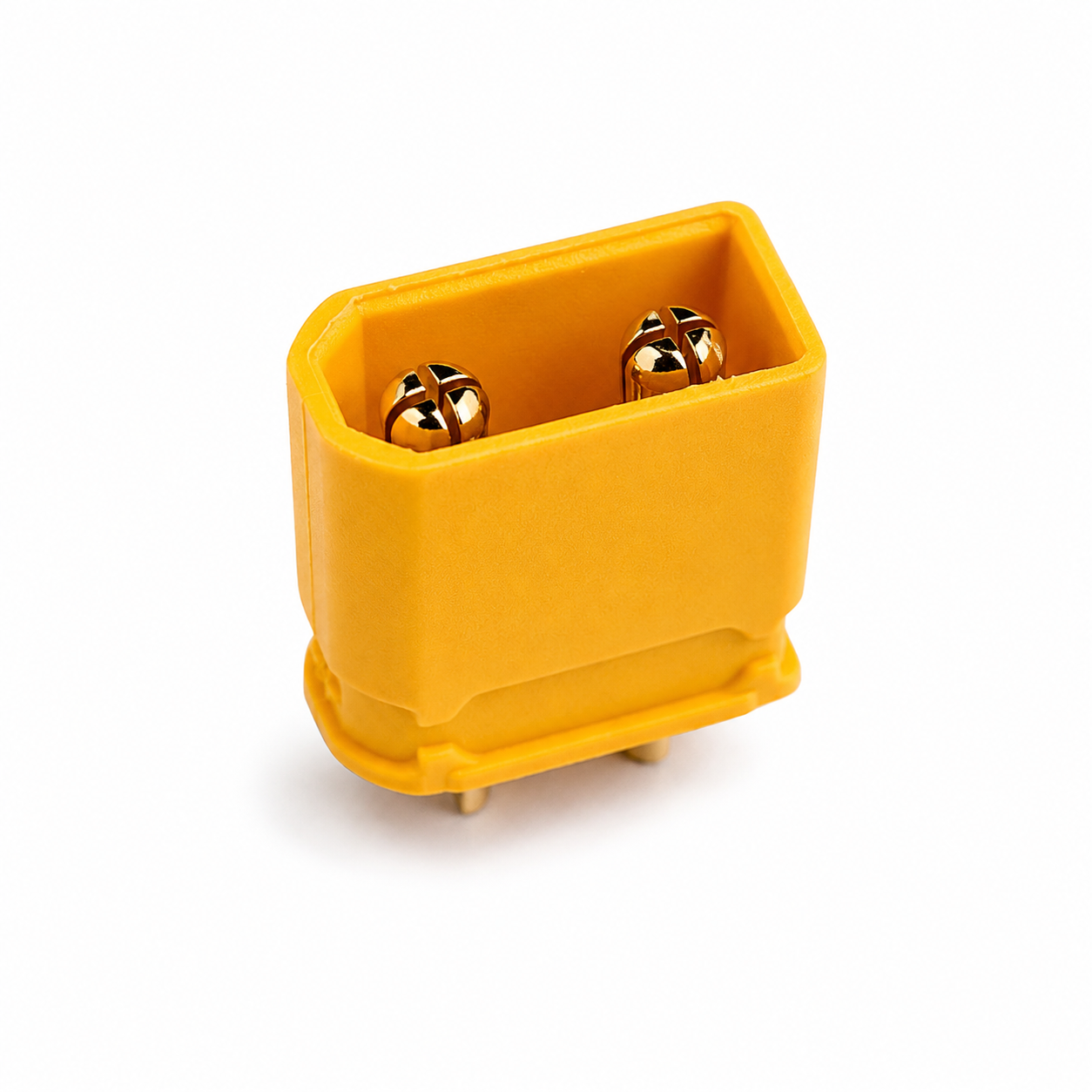

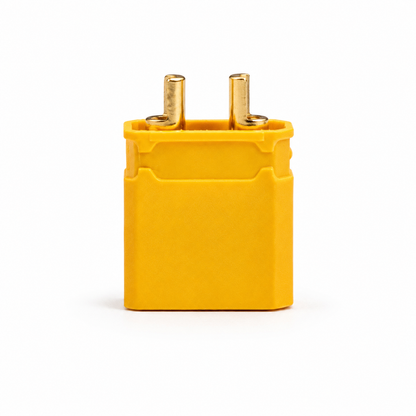

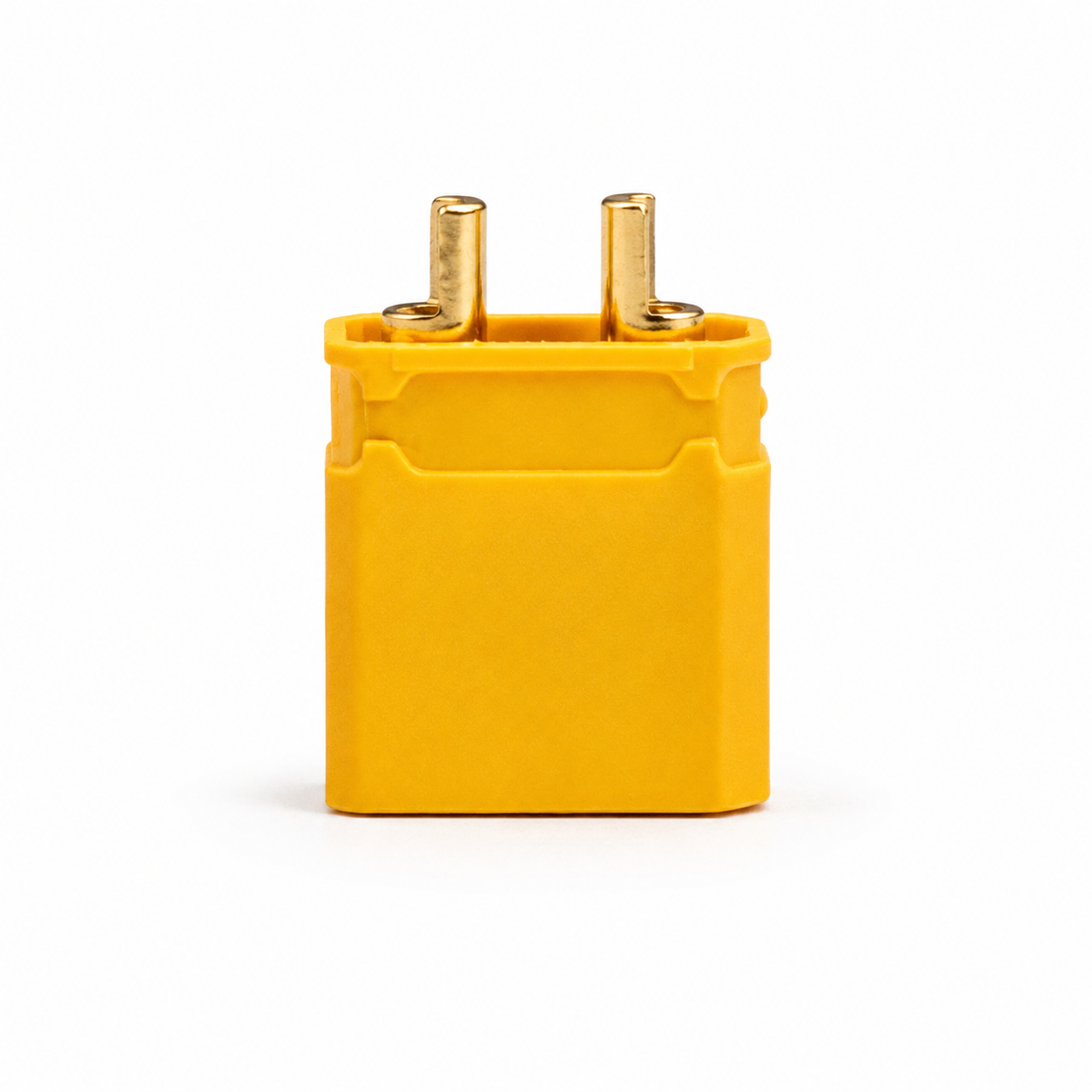

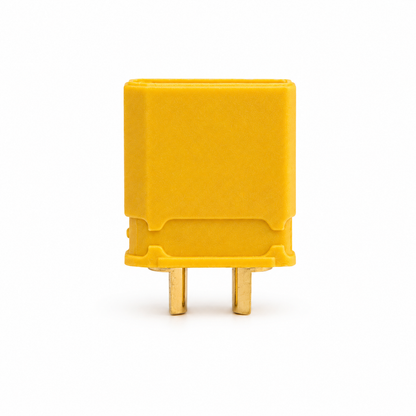

The XT30 Male Connector is a type of electrical connector commonly used in the world of radio-controlled (RC) hobbyist and drone racing. It complements the XT30 Female Connector and is known for its compact size, efficiency, and reliability. Below is a description of the XT30 Male Connector and its features:
Description: The XT30 Male Connector is a small, cylindrical, and gender-specific connector designed to establish an electrical connection between two devices. It is part of the XT (extreme) series of connectors, which are widely used in the RC hobbyist community, particularly for connecting batteries to drones, quadcopters, RC cars, and other remote-controlled vehicles and devices.
Features:

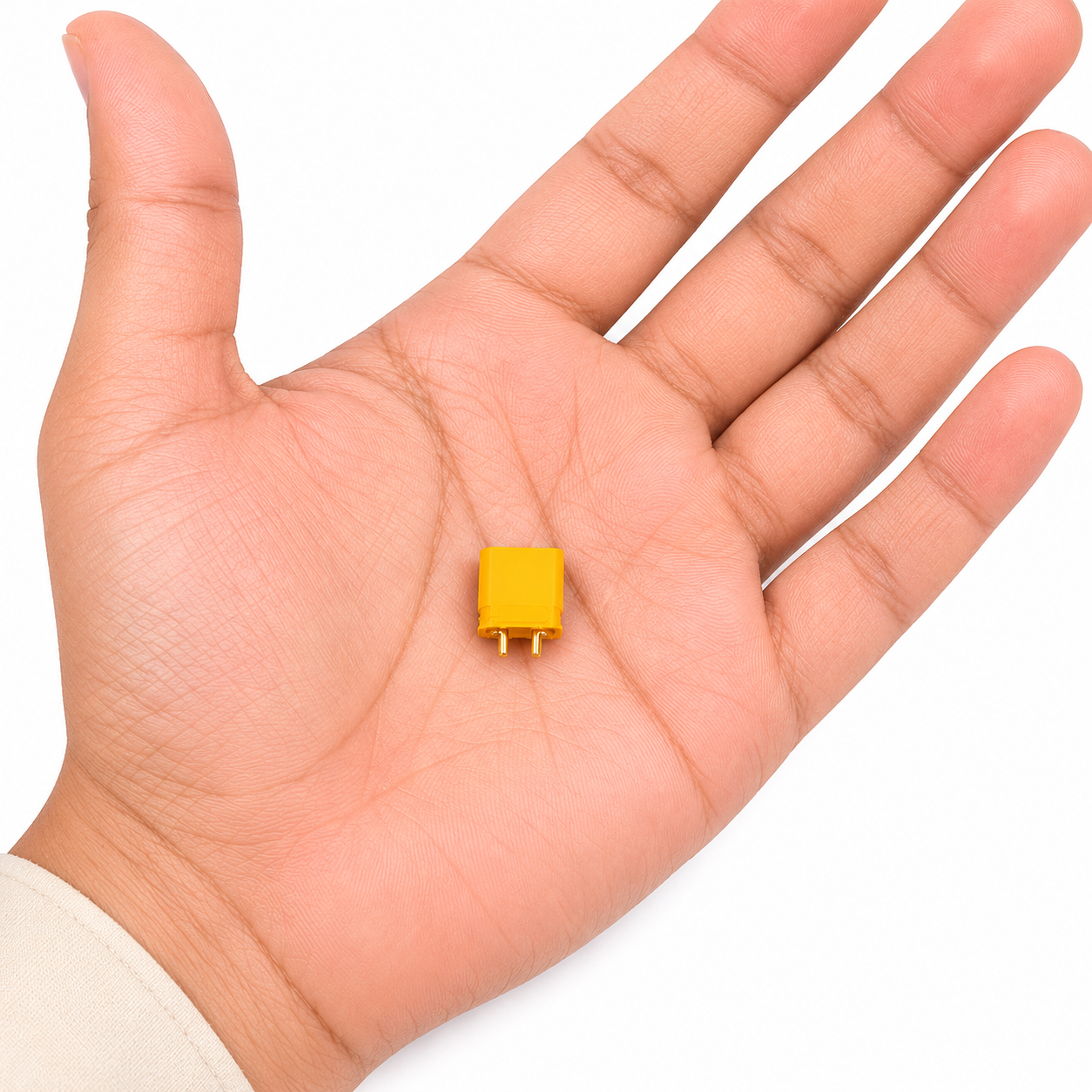

- Compact Size: Like its female counterpart, the XT30 Male Connector is known for its small and lightweight design. It is significantly smaller than older connectors like the XT60 or T-connector, making it ideal for applications where space and weight are critical.
- High Current Handling: Despite its compact size, the XT30 Male Connector is capable of handling high current loads. It is rated for currents up to 30 amps, which is sufficient for many RC applications, including racing drones and high-performance RC vehicles.
- Low Resistance: The connector is designed to minimize electrical resistance, which is essential for maintaining efficiency and reducing power loss, especially in high-power applications.
- Secure Connection: The XT30 Male Connector features a male-female design with polarized connectors, ensuring that you can only connect them in the correct orientation. This helps prevent reverse polarity connections that can damage electronics or batteries.
- Soldering: XT30 connectors are typically soldered onto wires, providing a secure and durable connection. Soldering is a common method used to attach these connectors to battery leads, ESCs (Electronic Speed Controllers), and other electronic components.
- Heat Resistance: The connector is designed to withstand the heat generated during high-current applications, reducing the risk of melting or deformation.
- Colour Coding: XT30 connectors often come in different colors (e.g., yellow, black, red) to help users identify positive and negative connections easily.
- Compatibility: Like the female counterpart, it’s important to ensure compatibility with your specific devices. Some devices and batteries may use different connectors, so it’s essential to verify compatibility before making connections.
Package Included:
1× XT30U Male Bullet Connector
| SPECIFICATION:- | |
| Gender | Male |
| Current handling capacity(A) | 30 |
| Connector Type | XT30U |
| Contact Plating | Gold Brush |
| Colour | Yellow |
| Operating Temperature Range (°C) | -20 to 120 |
| Shipment Weight | 0.004 kg |
| Shipment Dimensions | 7 × 4 × 1 cm |
