Q: Can moonlight vtx use other WS cameras?A: No, but other vtx can use moonlight camera
Q: Where to download the manual?A: You can check it on the Download Center page.

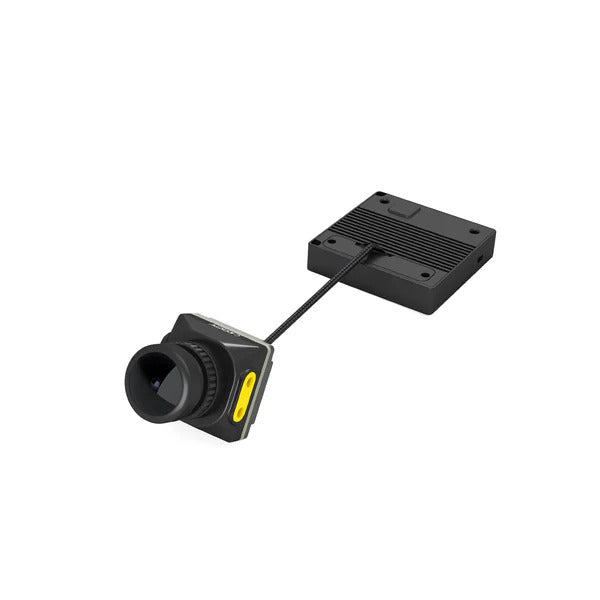

Q: How to install the Moonlight Camera (With video board) on other VTX?A: View Moonlight Camera Installation Guide, compatible with VTX V2 Module, Mini VTX V3 Module, Mini 1s And Mini 1s Lite Module.
Specification |
Details |
|---|---|

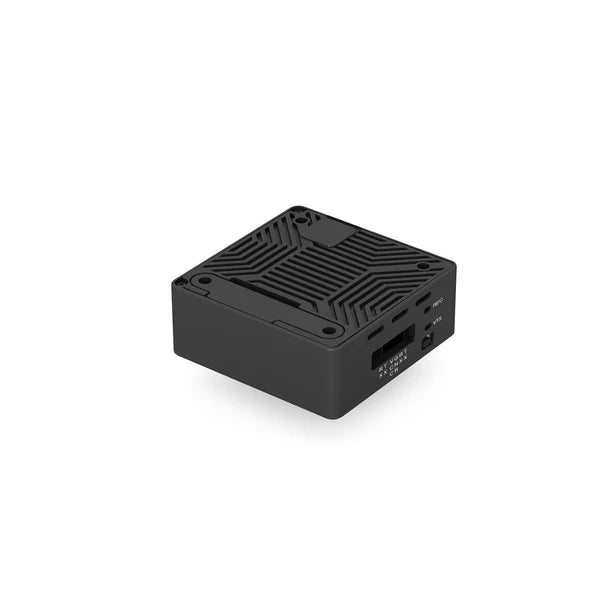

| Model | Moonlight VTX |
| Firmware Name | AvatarMoonlight_Sky_X.X.X |
| Communication Frequency | 5.725 - 5.850GHz |
| Transmitter Power (EIRP) | FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |
| I/O Interface | JST1.0×4 (Power In) JST0.8×6 (USB) Micro SD Card Slot IPEX-1 |
| Recording Resolution | 4K@30/60fps 2.7K@30/60fps 1080P@100/60fps 720P@60fps |
| Max Mbps | 150Mbps |
| Video Format | MP4 (H.264) |
| Wide Power Input | 7.4V - 25.2V |
| Power Consumption | 12V @ 1.4A 8V @ 2.2A |
| Memory Card Type | U3 MicroSD, Max 256G |
| VTX Size | 15.3mm × 34.5mm × 34.5mm |
| VTX Installation Hole Distance | 20×20mm / 25×25mm (M2) |
| Weight | Gross Weight: 38.5g (Antenna not included) |
| OSD | Canvas Mode |
| Latency | Average Delay 22ms |
| Antenna | 2 (IPEX) |
