HD Decoding, Pure Flow
Equipped with a powerful core, the VRX supports 1080P/60fps HD decoding and high-frame-rate 720P/120fps fast decoding. It ensures a clear, smooth, lag-free image, maintaining your absolute edge in high-speed and competitive flight.
Extreme Long-Range Ready
Pairs with Ascent VTX systems. Higher output power helps extend range and maintain a stable, clear video feed.

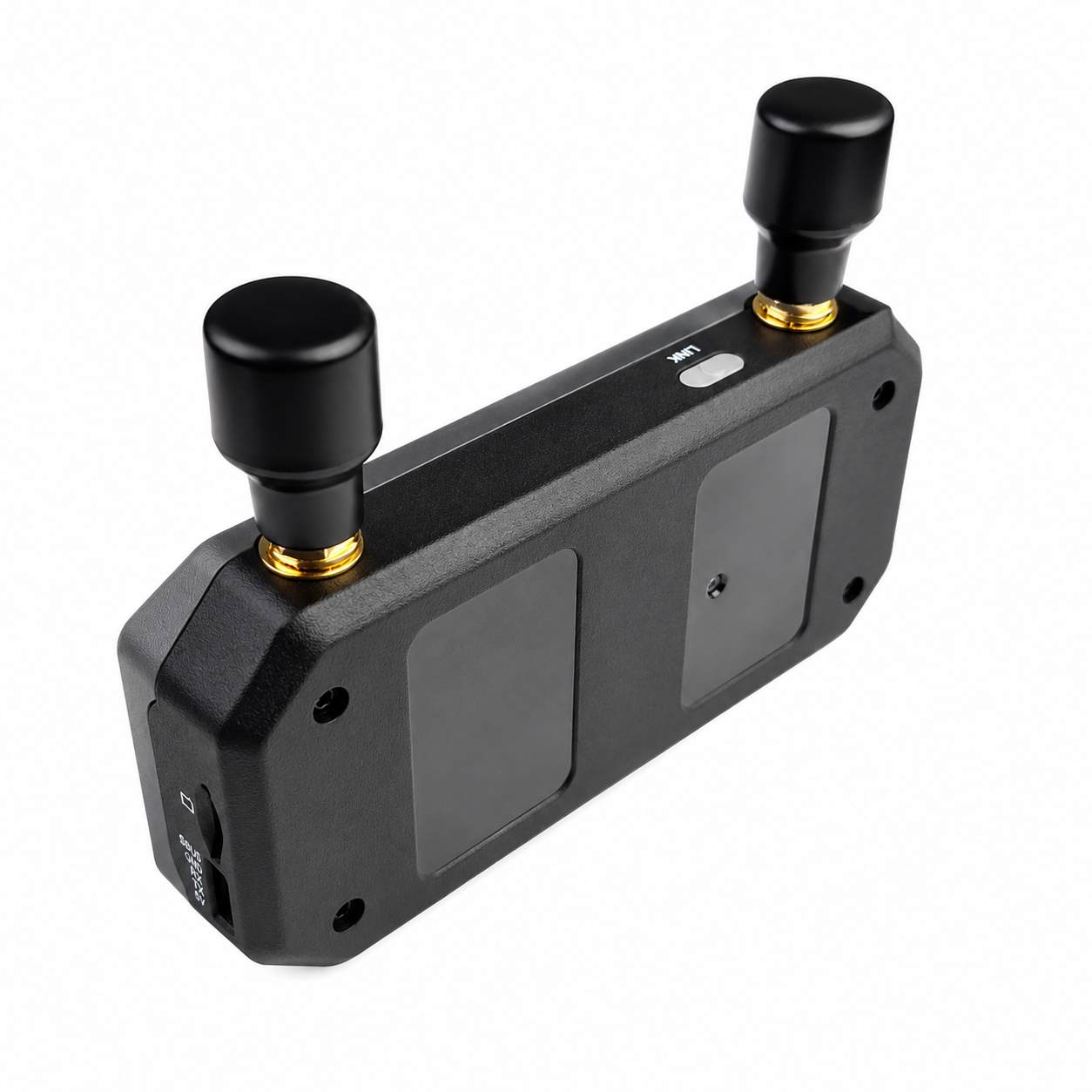

Dual Antennas, Rock-Solid Connection
Signal drops are a thing of the past. Equipped with Dual Circular Polarized Antennas (≥97% efficiency), the Ascent VRX delivers a stable, unwavering link up to 6km away. Fly further, fly bolder, fly worry-free.
Compatibility & Control
Universal Compatibility, Plug and Play

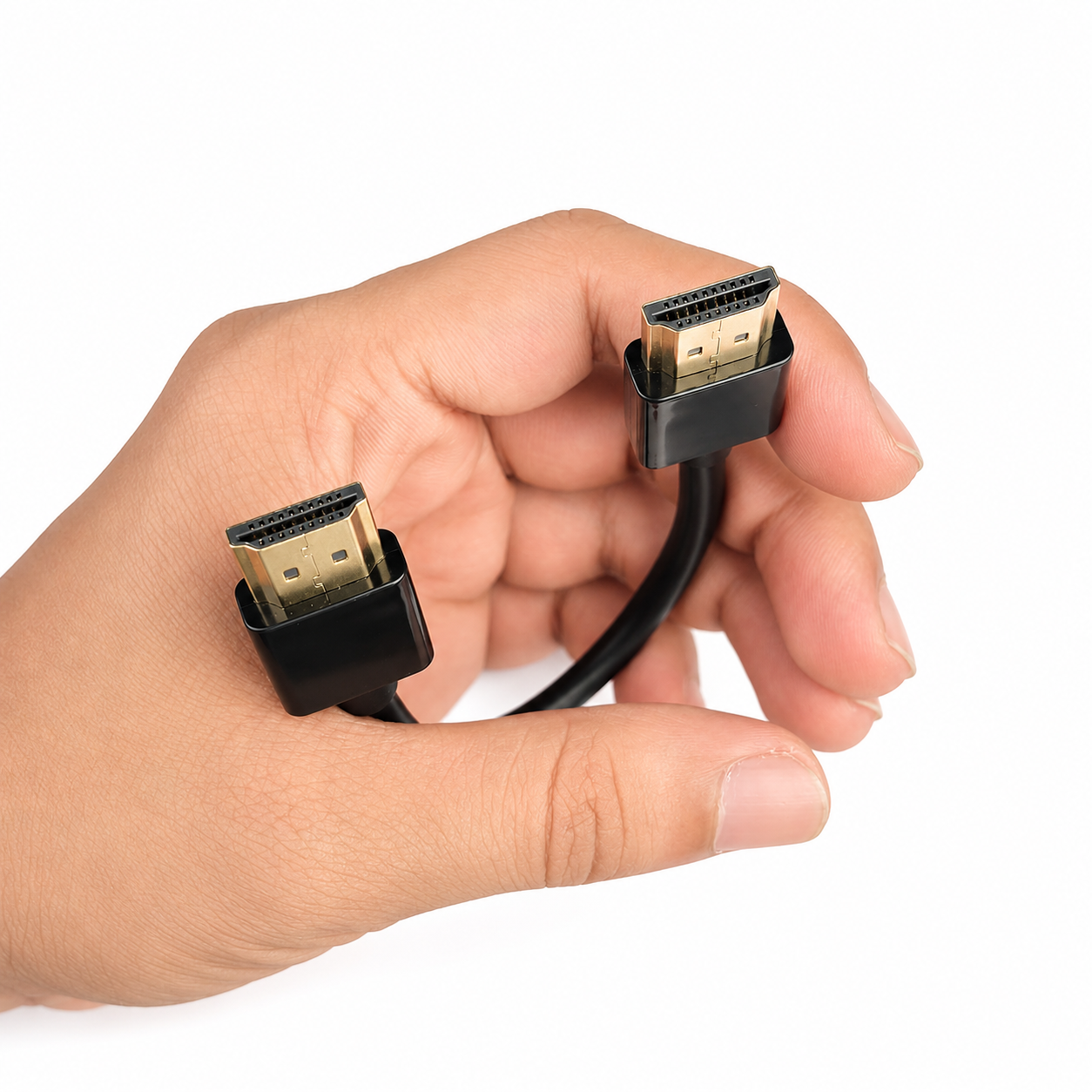

Compatible with any FPV goggles, monitors, or TVs with an HDMI port. True plug-and-play support makes multi-screen viewing easy for training, sharing, or race broadcasting.
Your World, Customized
Supports Canvas Mode for seamless OSD integration with mainstream flight controllers like Betaflight and INAV, giving you easy access to personalized settings and a tailored FPV interface.
Adaptive Frequency Hopping
Runs on 3 standard channels, with up to 8 channels in Debug mode. Frequency Hopping automatically scans and switches to the cleanest channel for stable, uninterrupted video.
Portability & Reliability
Efficient Storage, Relive the Rush
Features a built-in SD card slot supporting up to 256GB of storage. Record HD flight footage with a single click, capturing every detail of your flights and making content creation effortless.
Wide Voltage, All-Weather Stable
Designed for reliable operation across a wide 7.4~25.2V input range. Helps maintain stable performance and effective thermal management during extended outdoor use.

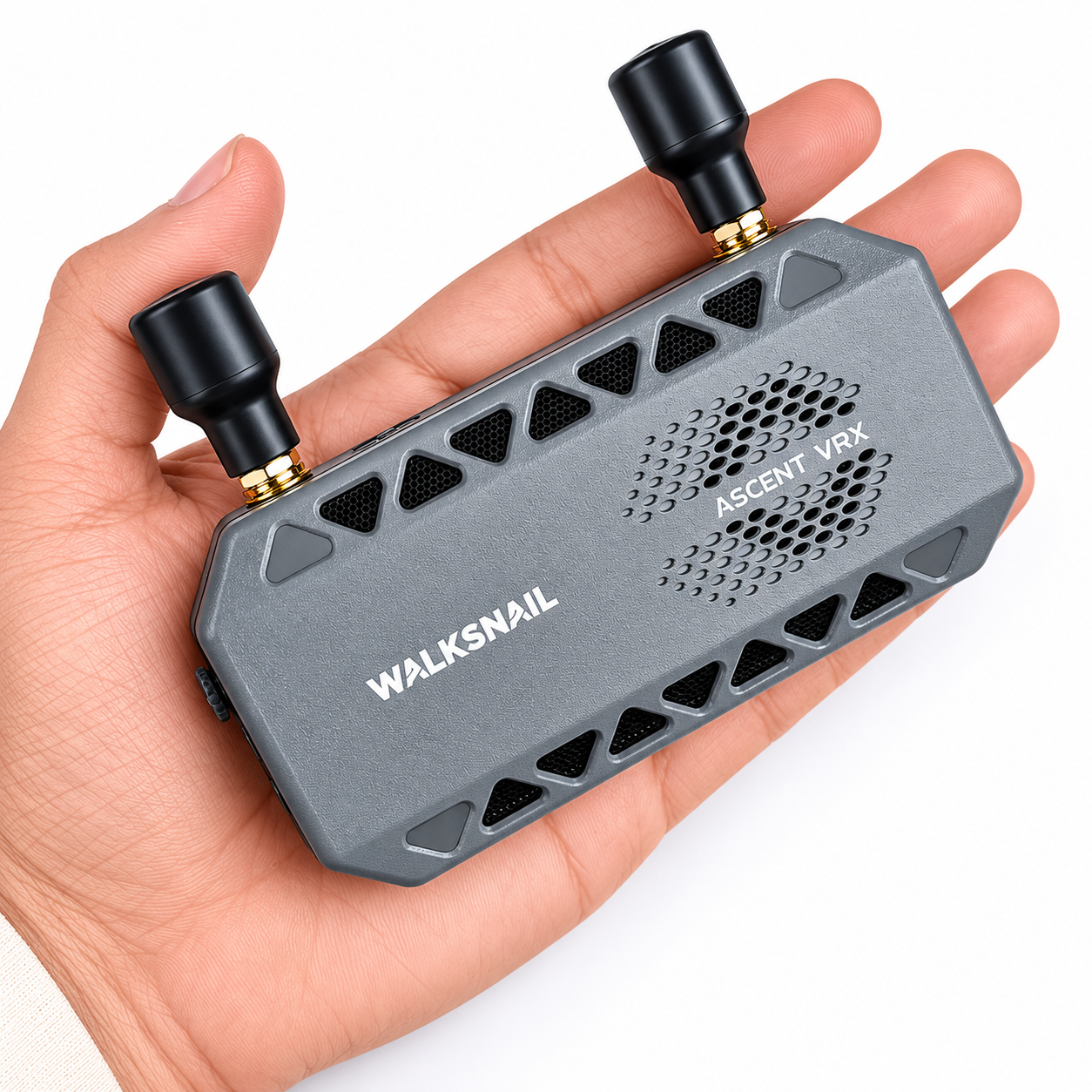

Pocket-Sized, Ultra-Portable
Pro-grade performance that fits in your palm. Weighing just 118g with a sleek, ultra-thin profile, the Ascent VRX is the ultimate travel companion for every pilot. Pack light, fly heavy.
Multi-Platform Application
The ultimate FPV powerhouse for Drones, Fixed-wings, and RC cars. Whether you're racing for the podium, filming a cinematic masterpiece, or teaching the next generation, the Ascent VRX dominates every scene.
Specification |
Details |
|---|---|
| Ascent VRX | |
| Name | Ascent VRX |
| Communication Frequency | 5.725 - 5.829 GHz |
| Transmitter Power (EIRP) | FCC/SRRC:<30dBm, CE:<14dBm |

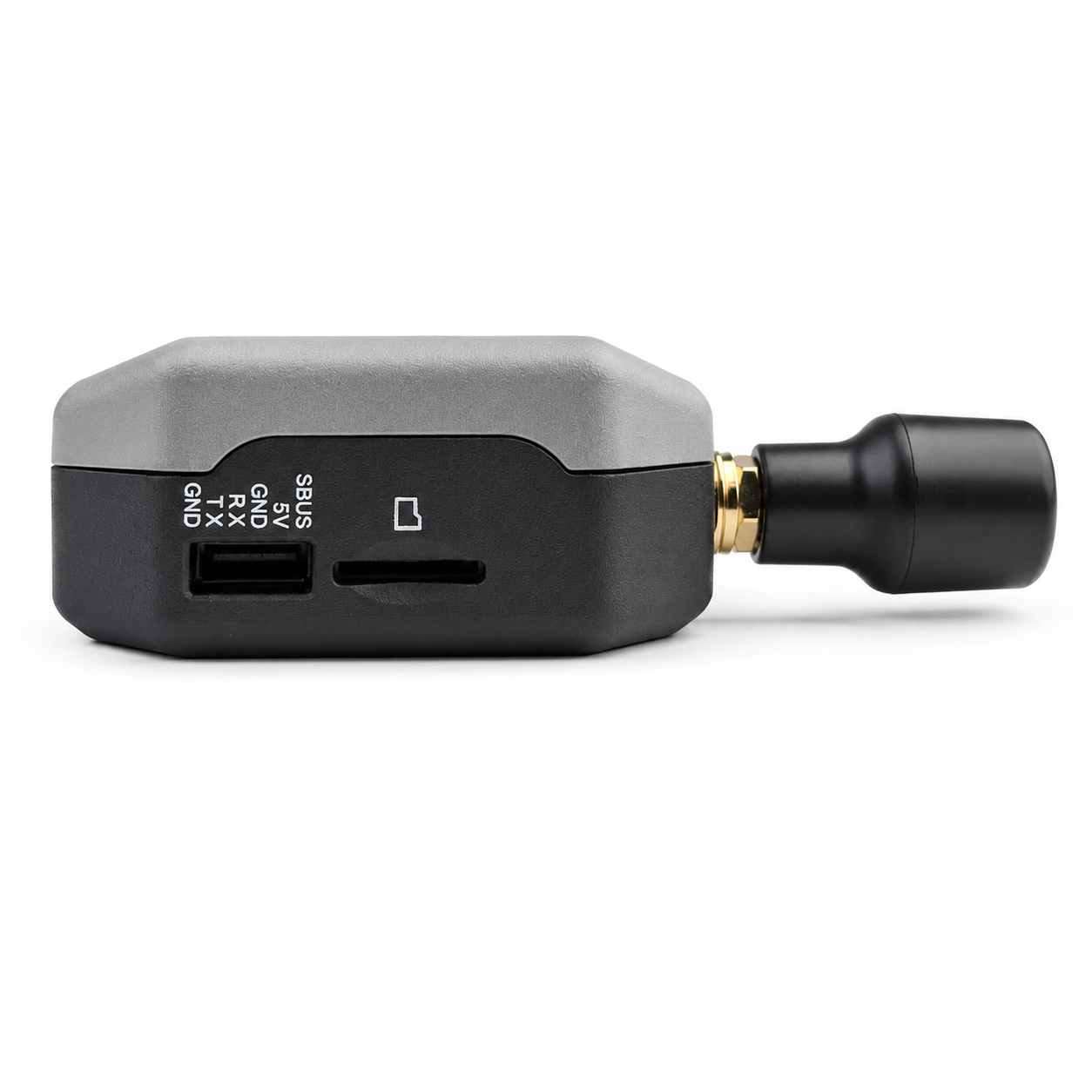

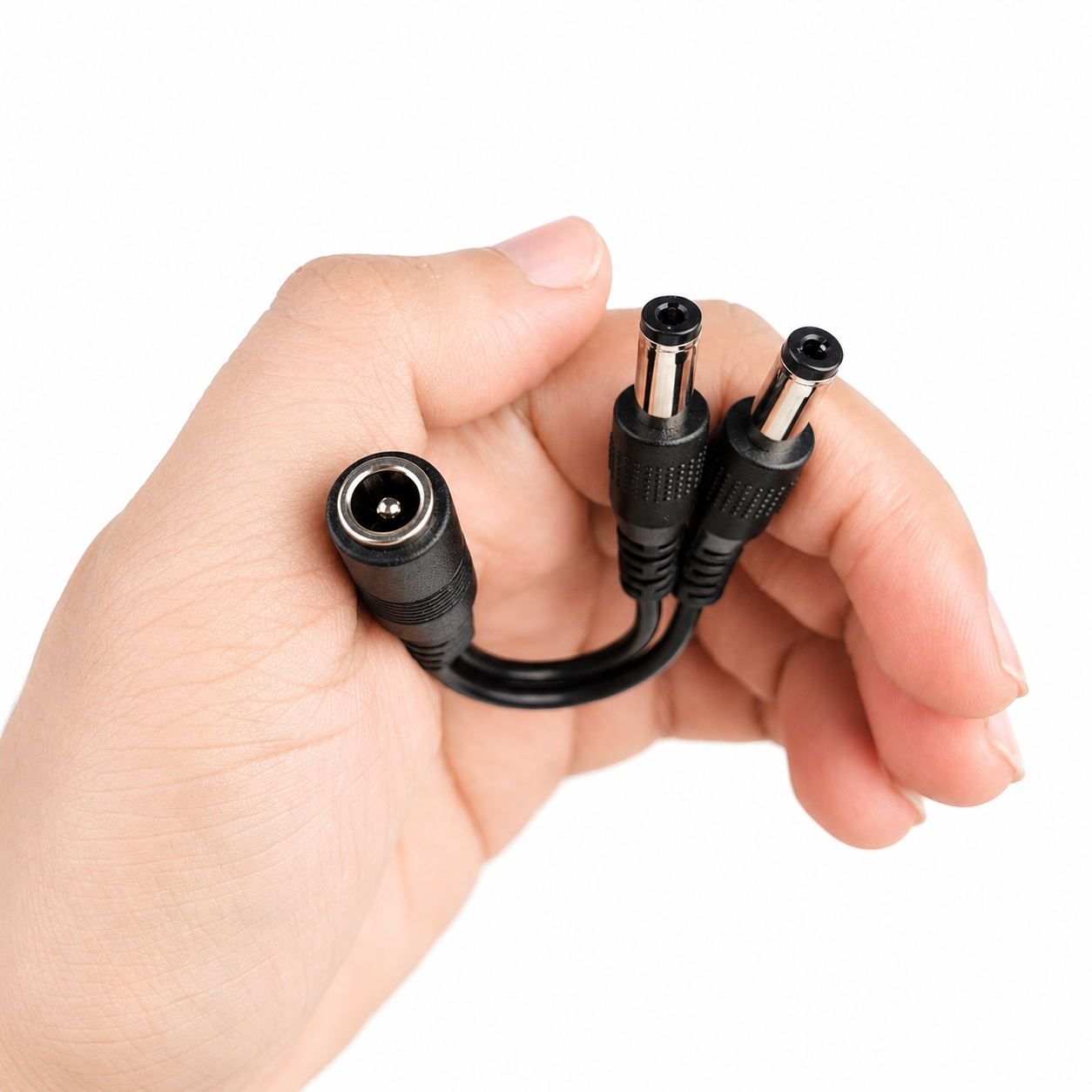

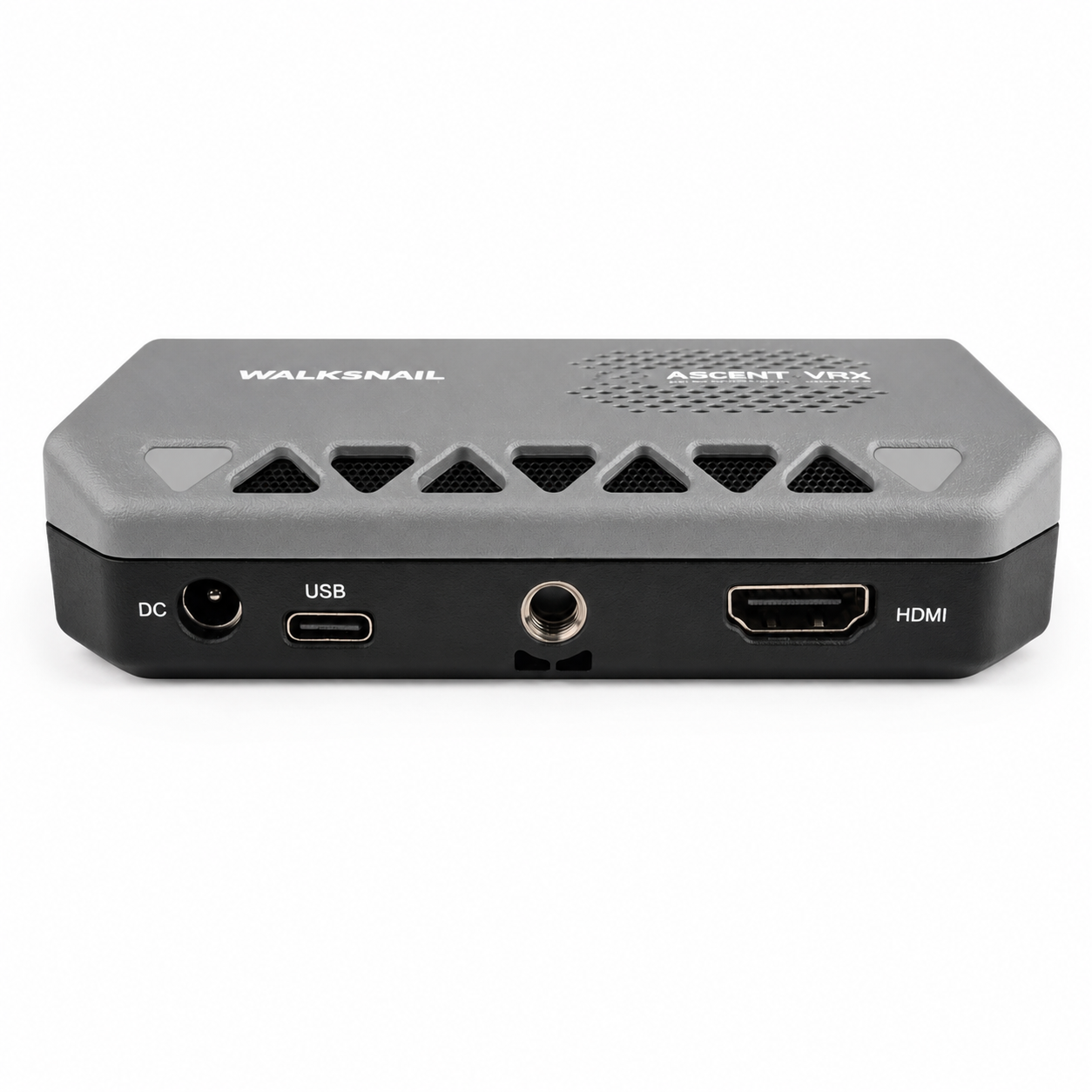

| I/O Interface | HDMI, Micro SD Card, DC5.5×2.1mm, SH1.0×6PIN, Type-C |
| HDMI Out | 1080P50fps, 1080P60fps, 720P50fps, 720P60fps, 720P100fps, 720P120fps |
| Power Input | 7.4V ~ 25.2V |
| SD Card | Support Micro SD up to 256G |
| System | Ascent HD System |
| Bandwidth | 5M / 10M / 20M / Auto |
| Recording Format | MP4 (H.264) |
| Weight | 118g |
| Dimension | 114.5 × 64 × 24mm |
| Red Bird Antenna | |
| Name | Red Bird |
| Polarization | LHCP |
| Bandwidth | 5.725 - 5.829 GHz |
| Average Gain | 2dBi |
| Radiation Efficiency | ≥97% |
| VSWR | ≤1.3 |
| Cross-Polar Rejection | -15 to -30dB |
| Connector | RP-SMA ×2 |
| Dimension | 25 × 15.5mm |
