TowerPro Servo Motors are optimum-quality and affordable cost servos.! They are suitable for a wide range of applications, including RC aircraft, automobiles, and robotics, Or just to have some fun with whatever crazy project you’re working on.
Features:
- High resolution
- Accurate positioning
- Fast control response
- Constant torque throughout the servo travel range
- Excellent holding power
Package Includes:

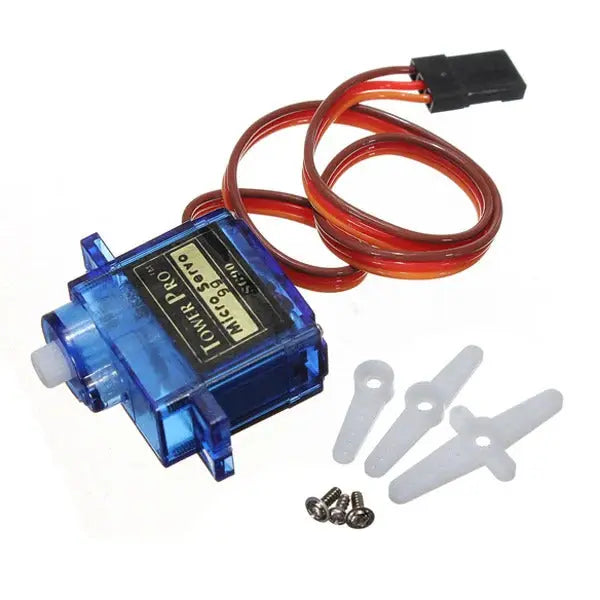

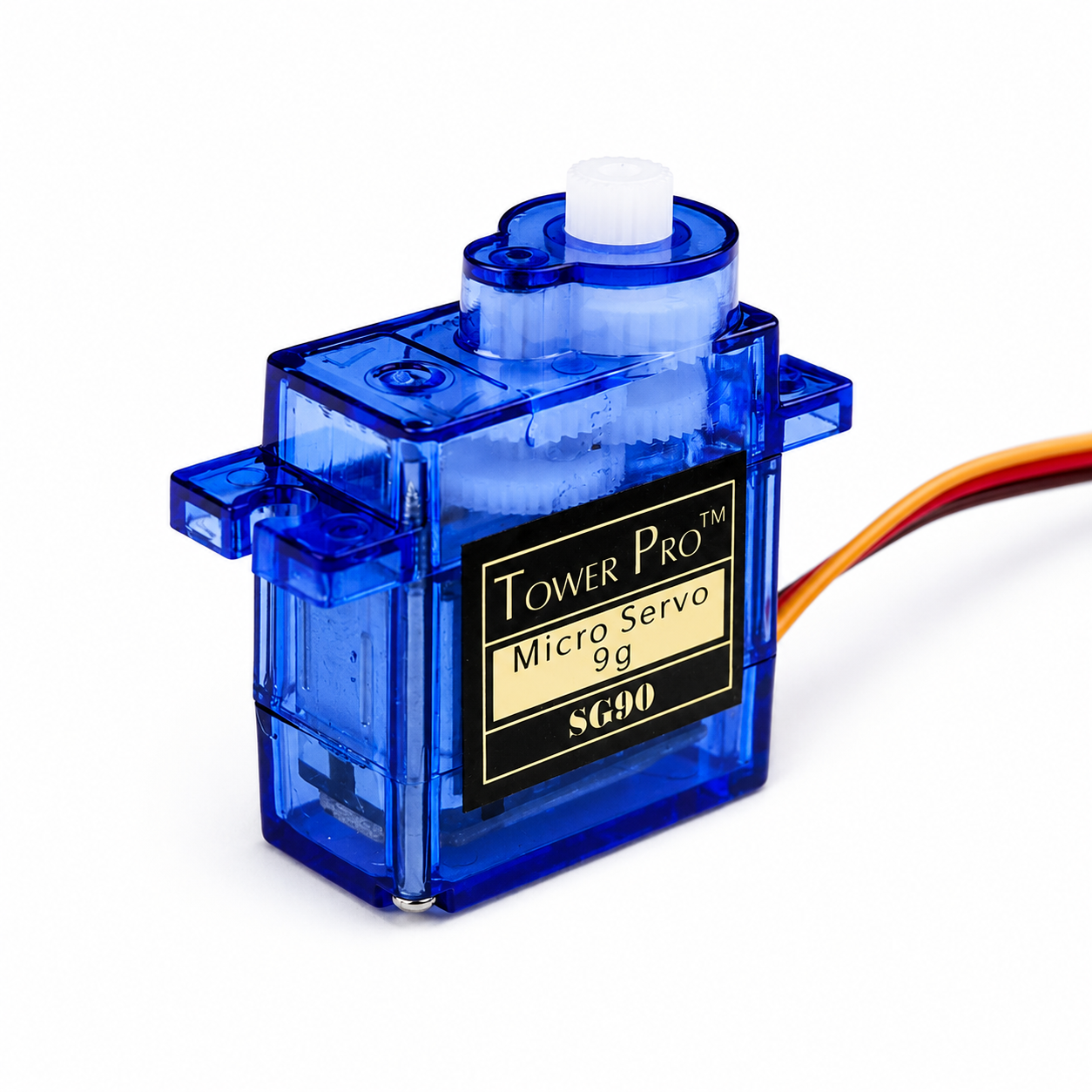

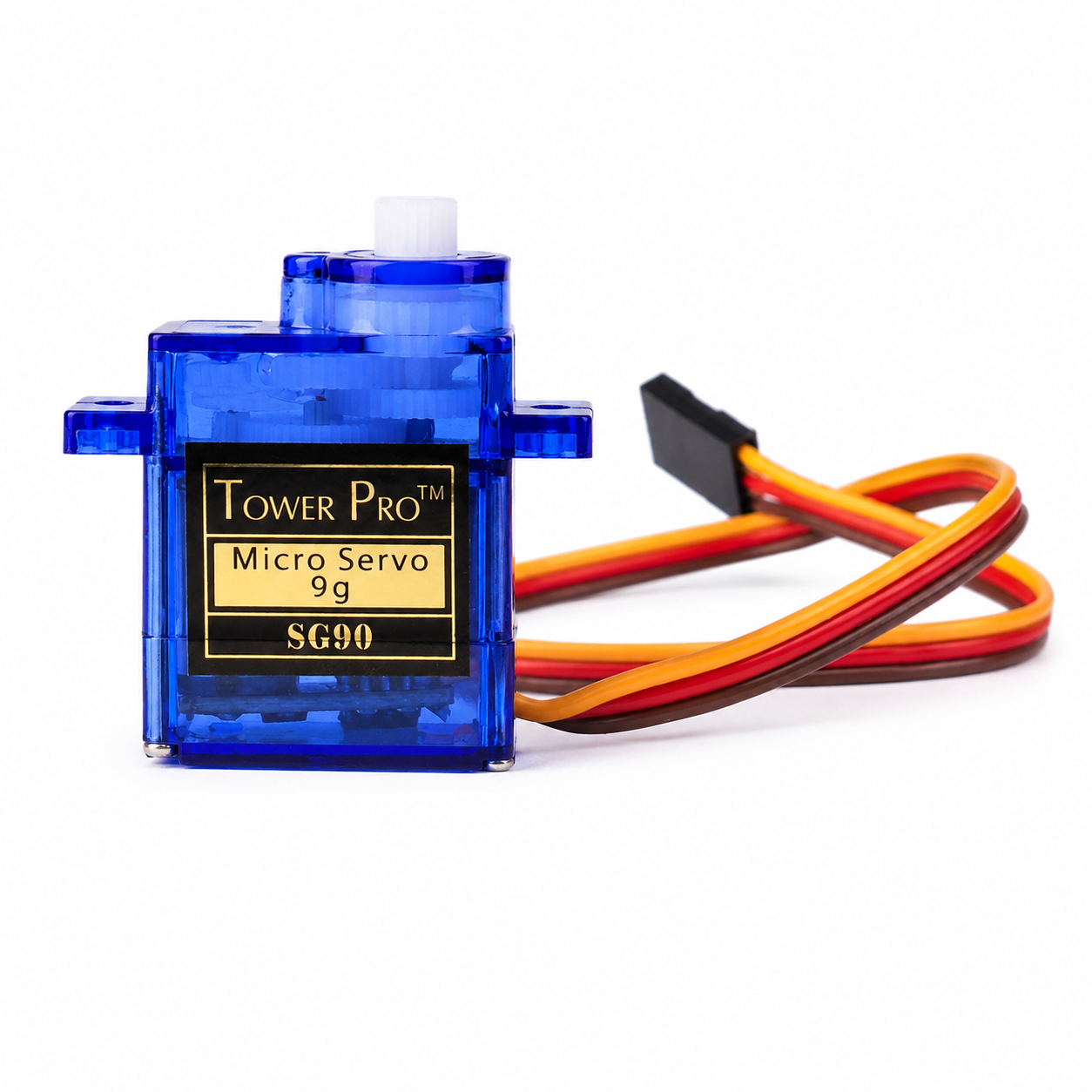

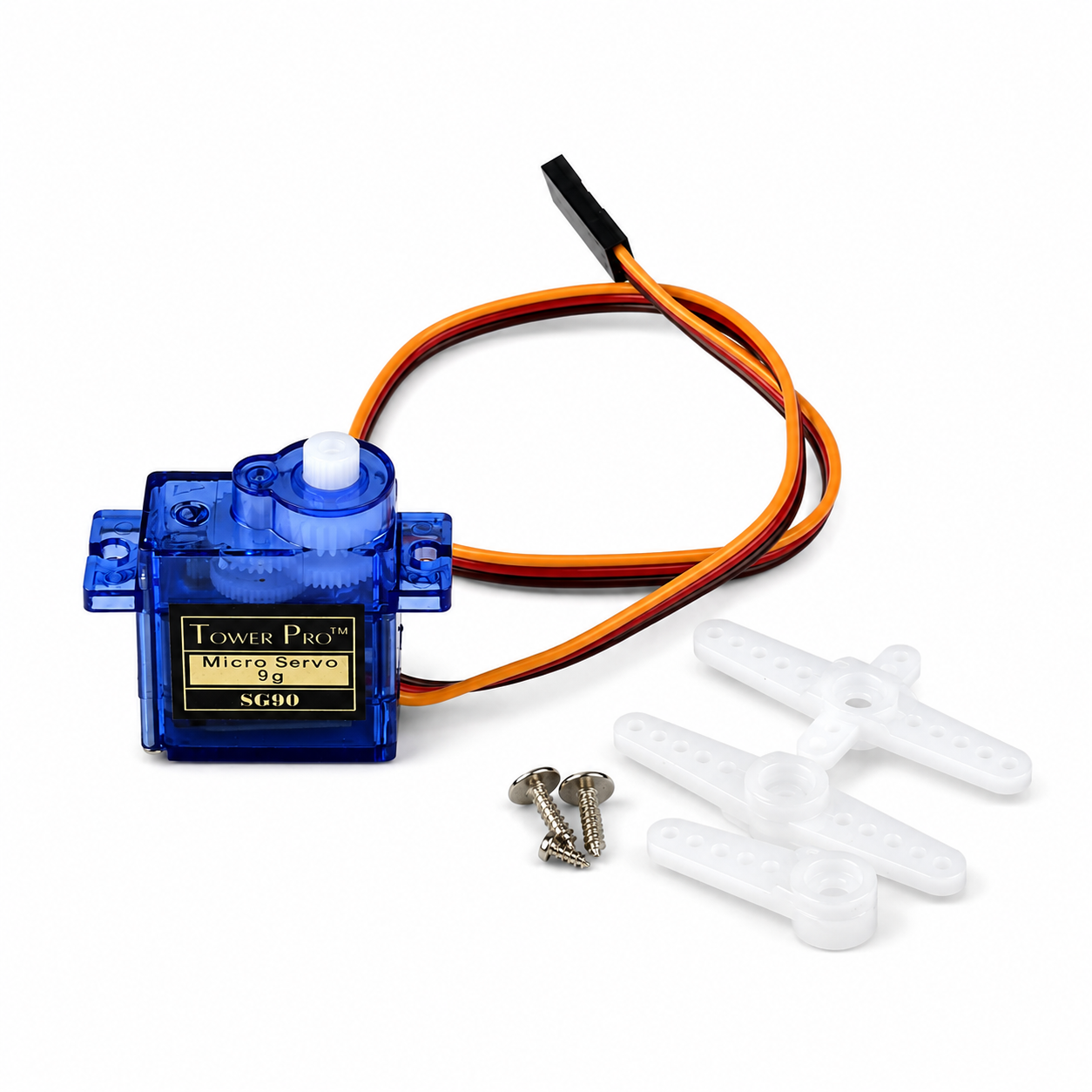

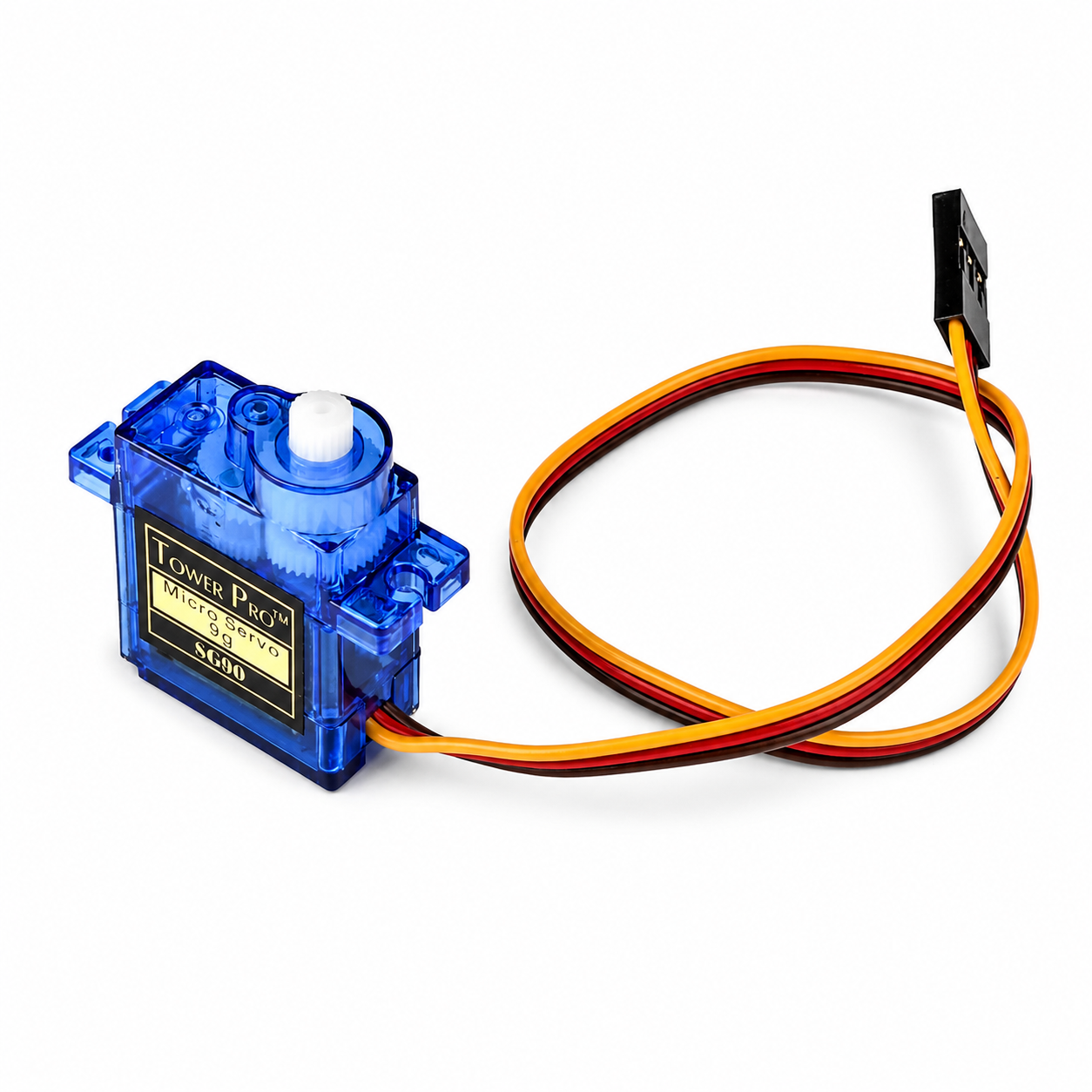

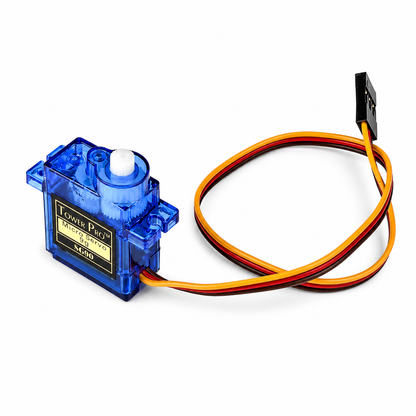

1× TowerPro SG90 Servo Motor 360 Degree rotation with Cable
Specification:-
| Item Type: |
TowerPro Servo Motor |
|---|---|
| Model Series: |
SG Series |
| Rotation (Degree): |
360 |
| Torque Rating (kg-cm): |
1.2 |
| Model No.: |
SG90 |
| Operating Voltage (VDC): |
3.0 ~ 7.2 |
| Operating Speed @4.8V |
0.12sec/60° |
| Operating Speed @6.6V |
0.1sec/60° |
| Stall Torque @ 4.8V (Kg-Cm) |
1.2 |
| Operating Temperature (°C) |
-30 to 60 |
| Dead BandWidth (μs) |
5 |
| Gear Type |
Glass Fiber |
| Servo Plug Type |
JR |
| Cable Length (cm): |
25 |
| Length (mm): |
23 |
| Width (mm): |
12.6 |
| Height (mm): |
30 |
| Weight (g): |
9 |
| Shipping Weight | 0.014 kg |
| Shipping Dimensions | 8 × 6 × 4 cm |
