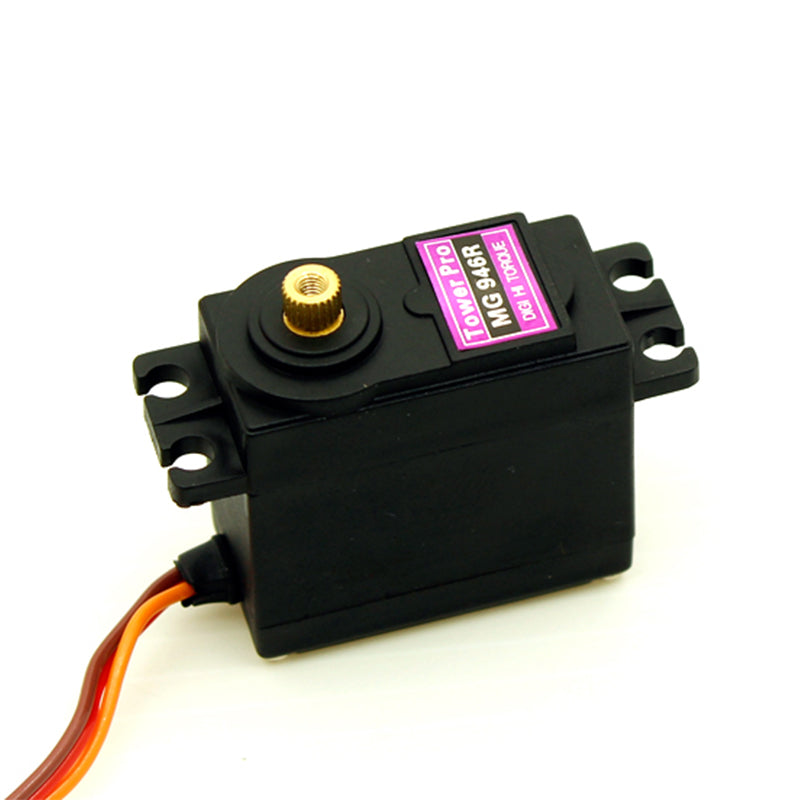

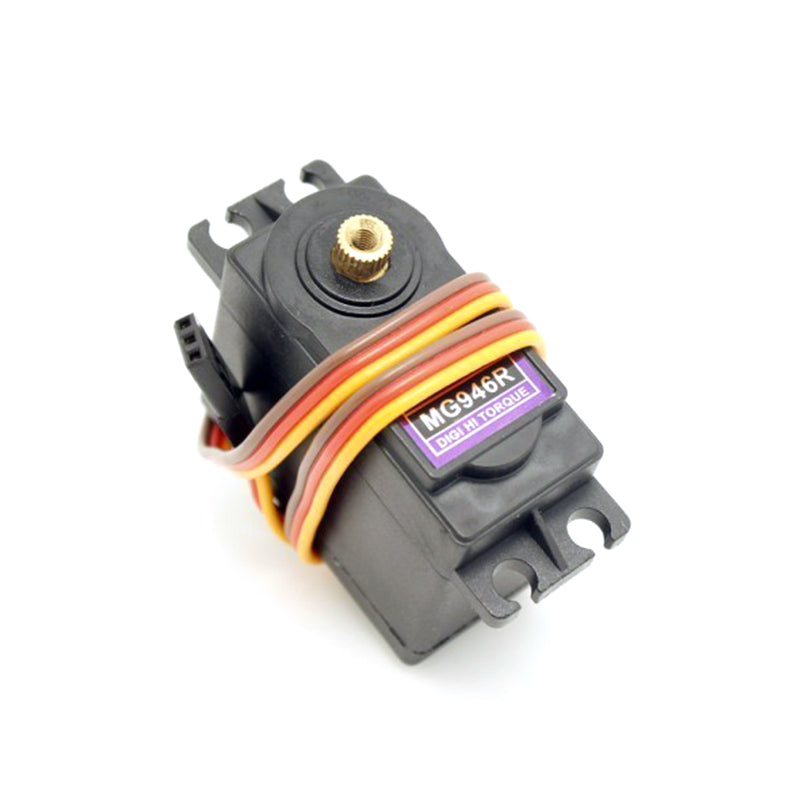

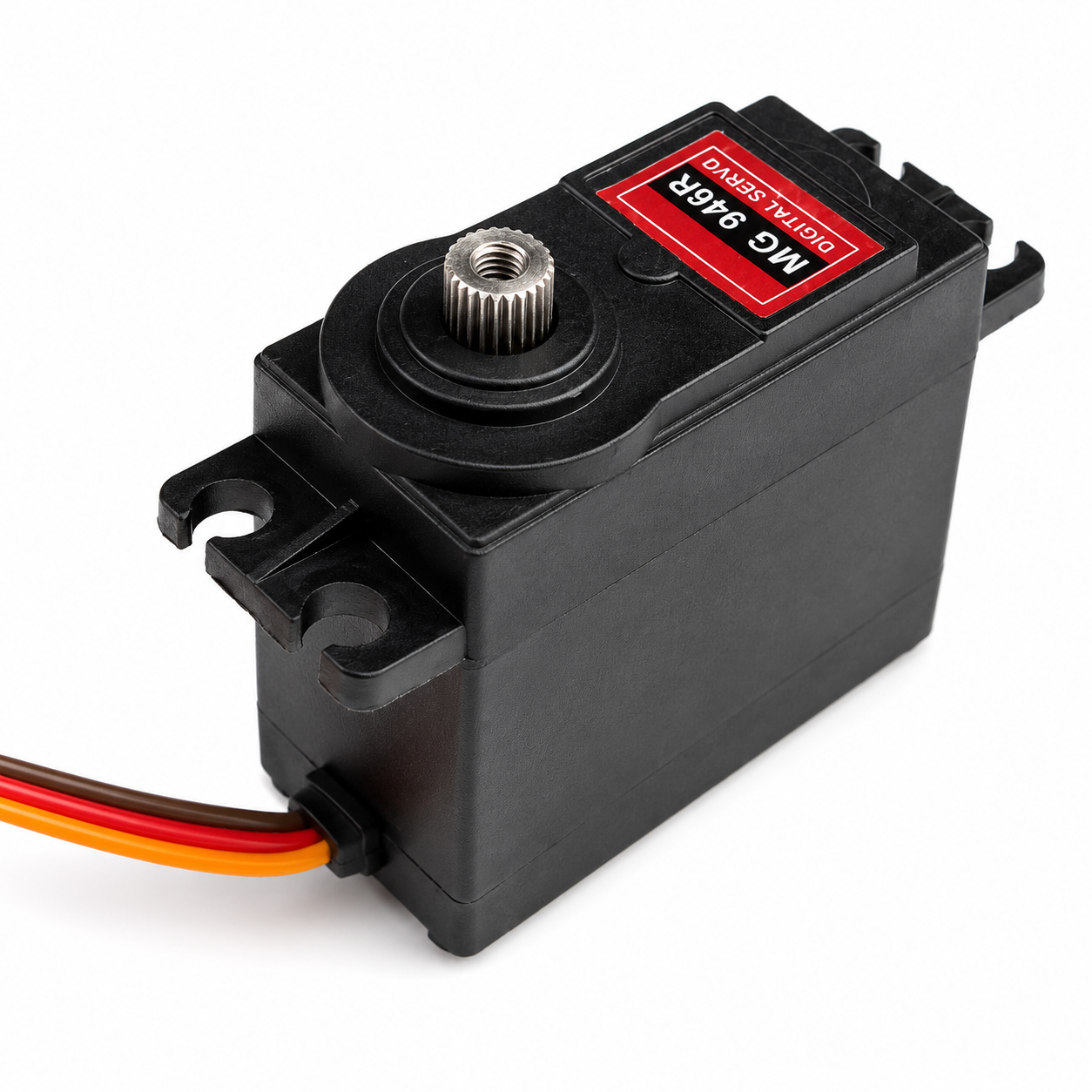

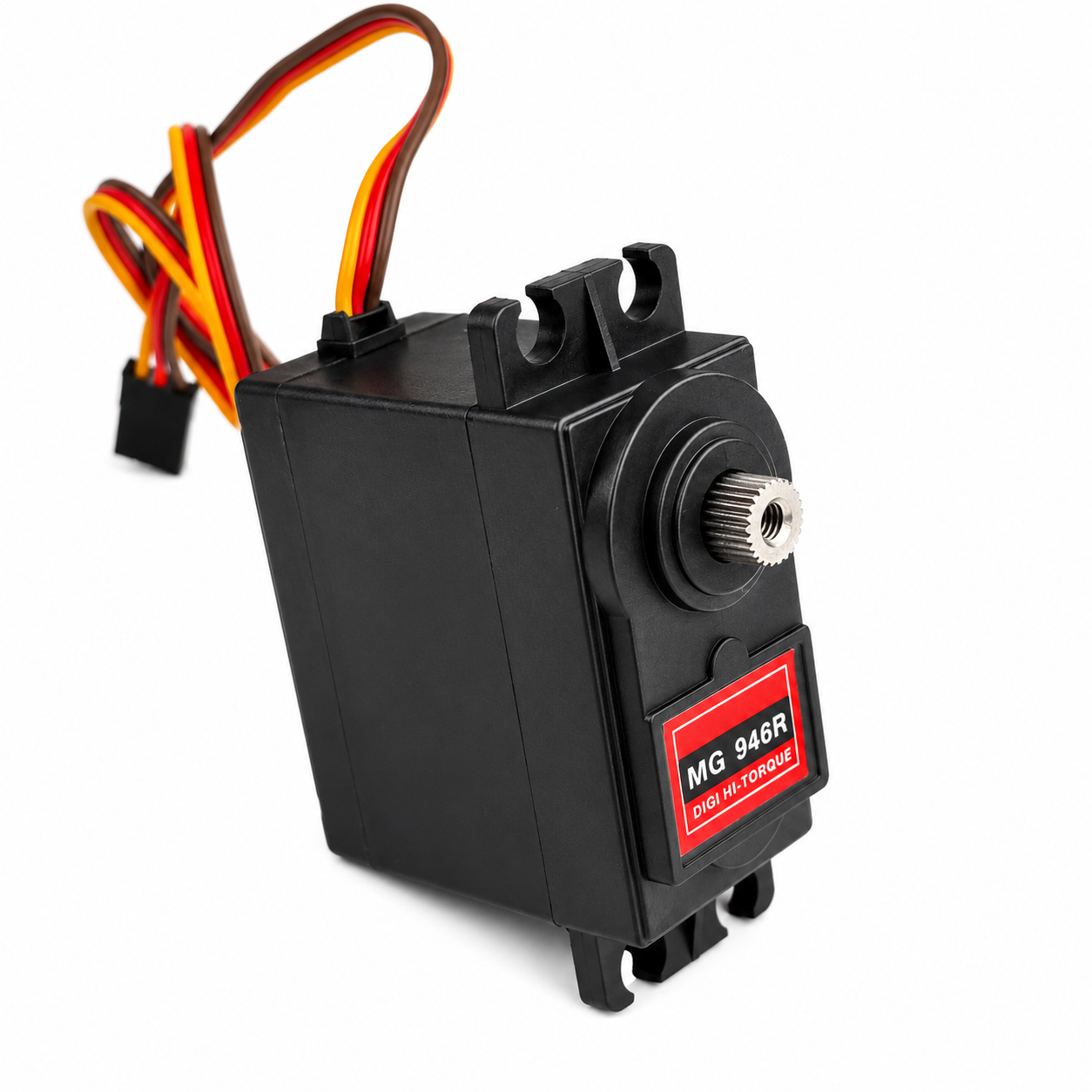

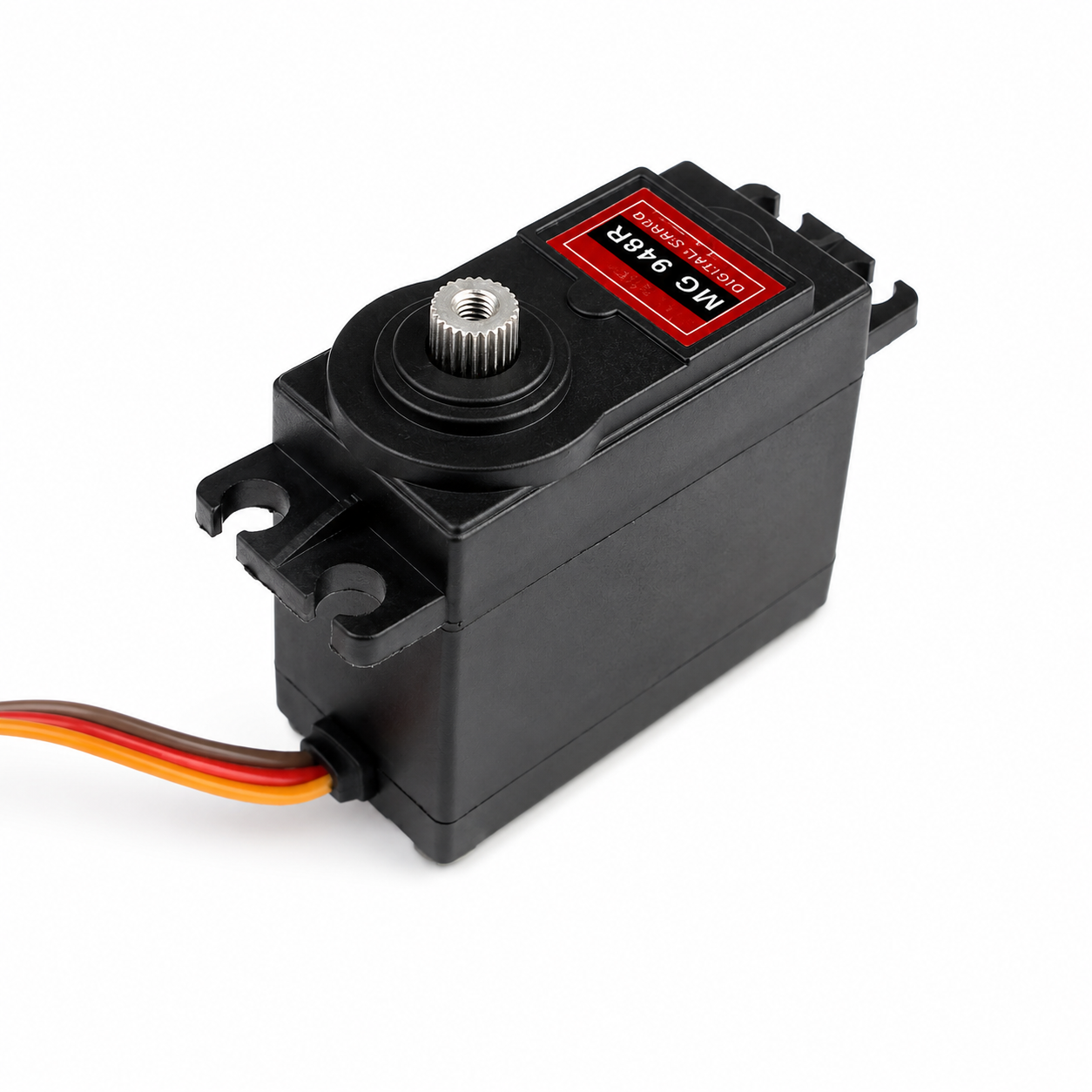

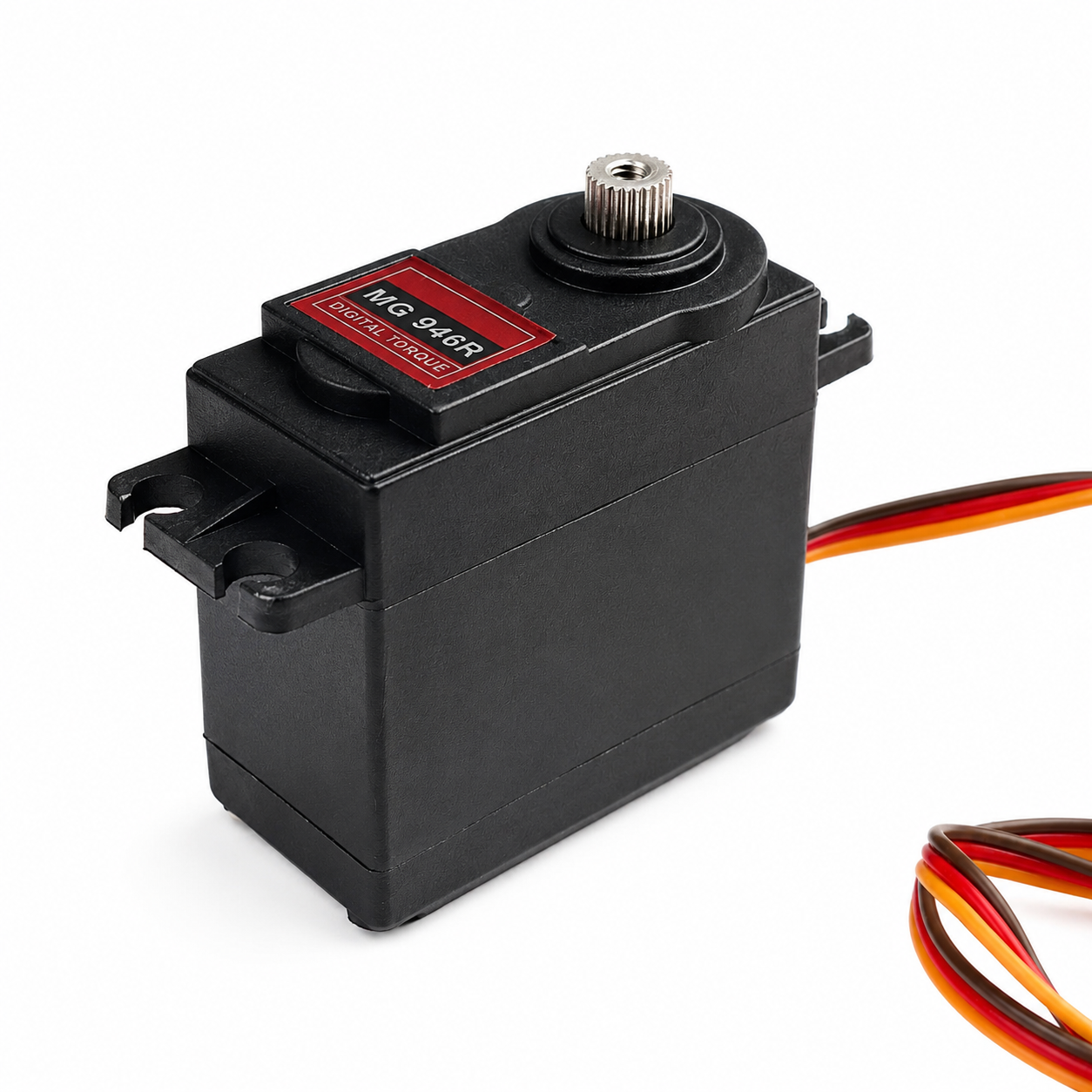

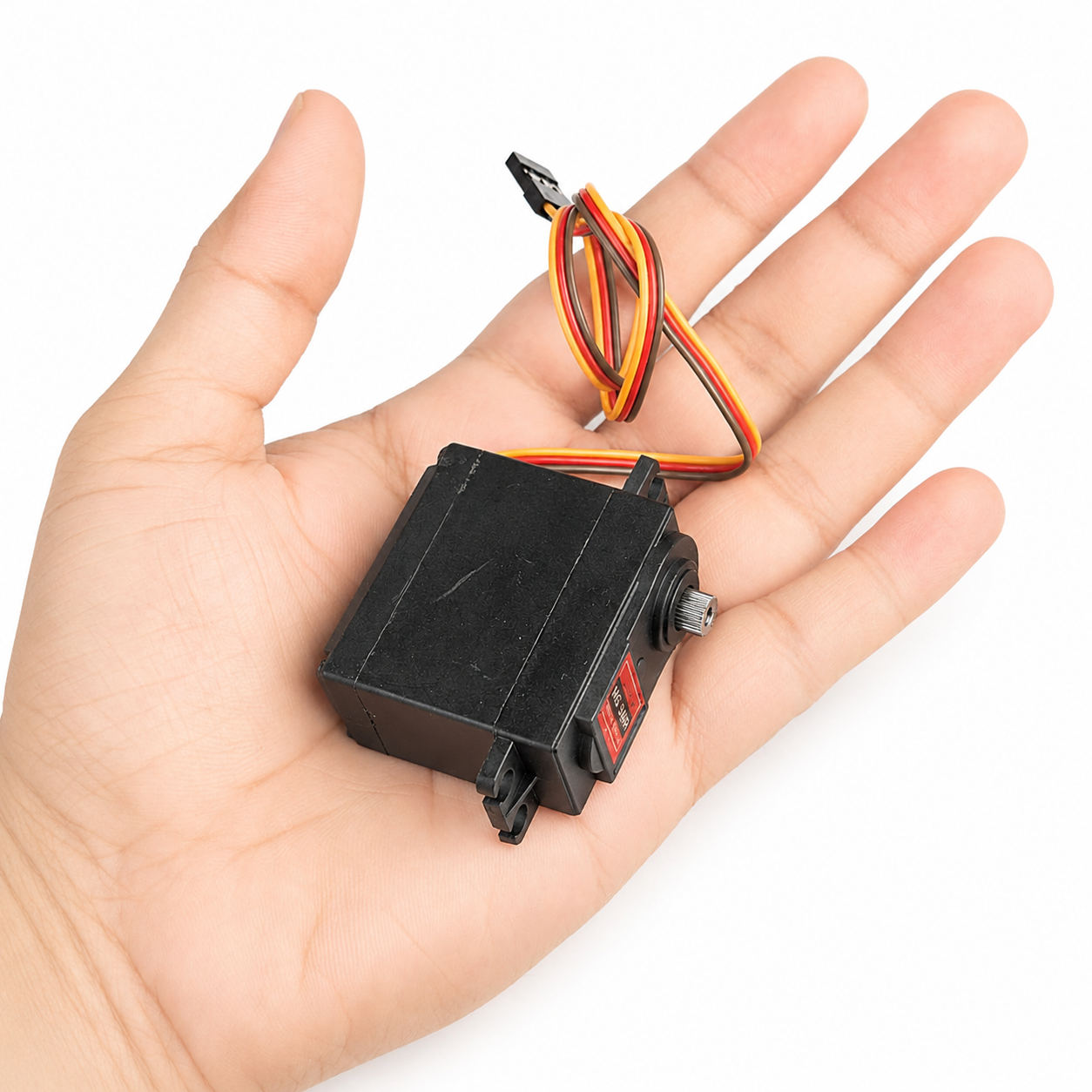

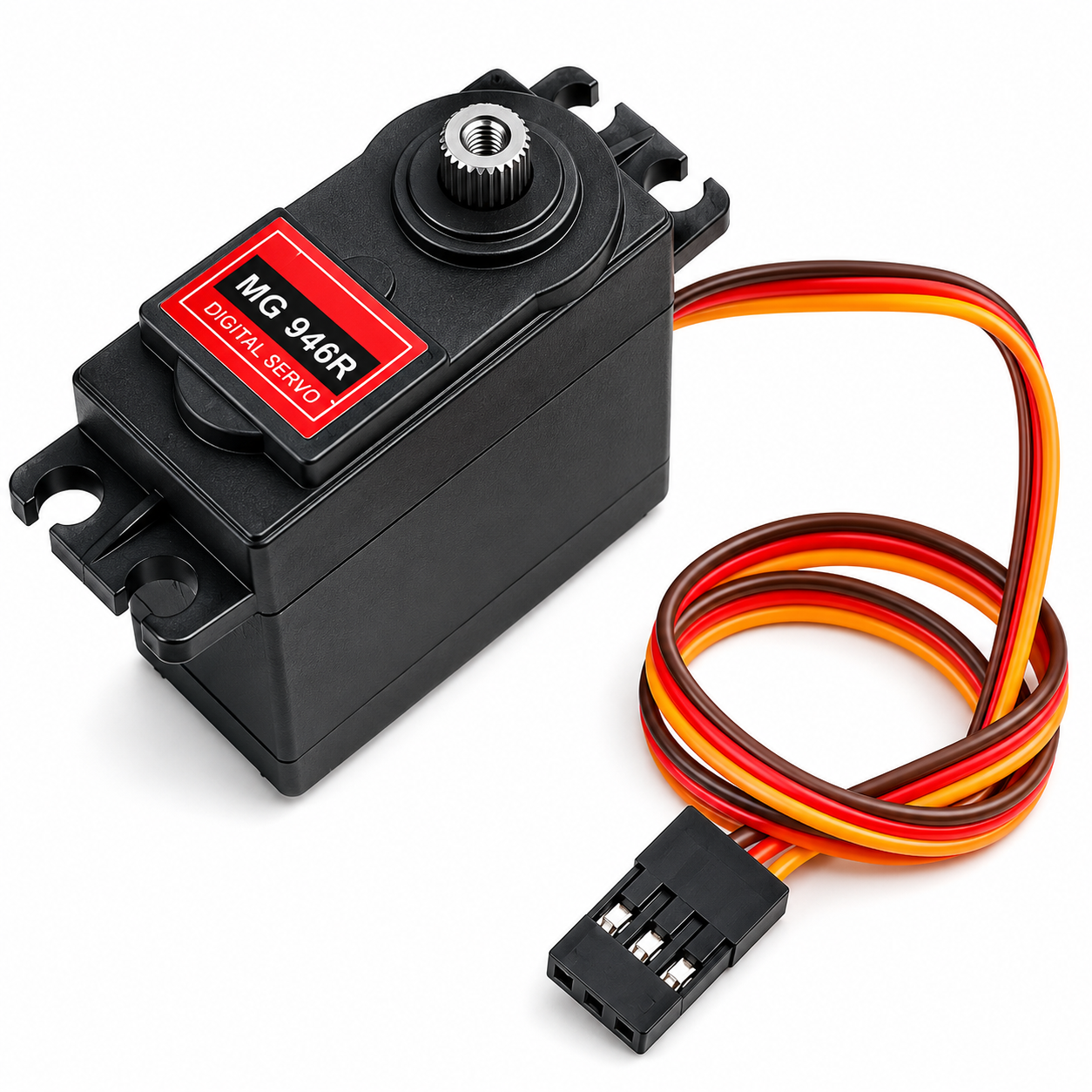

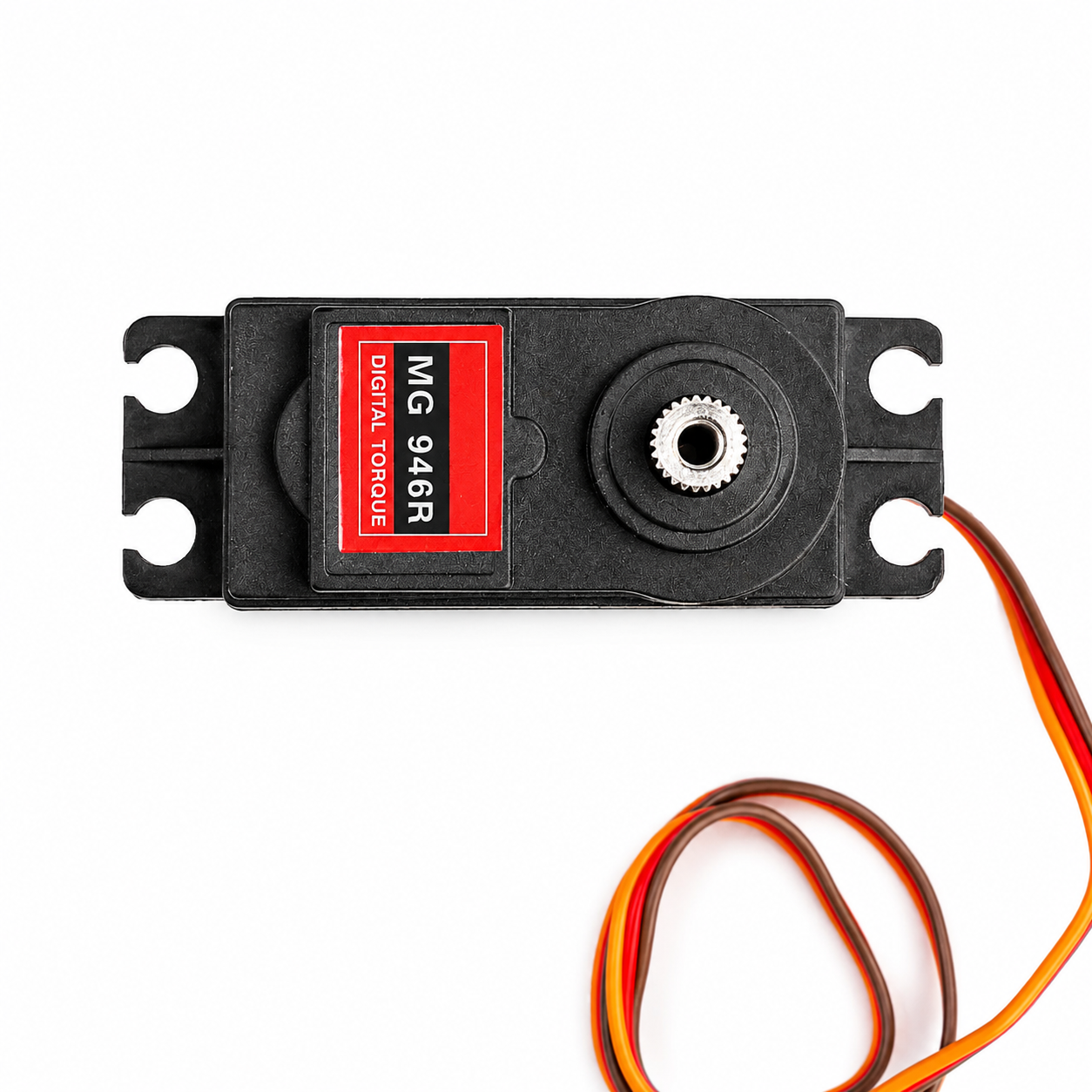

This is a TowerPro MG946R Digital High Torque Metal Gear Servo Motor.
TowerPro Servo Motors are optimum-quality and affordable cost servos.! They are suitable for a wide range of applications, including RC aircraft, automobiles, and robotics, Or just to have some fun with whatever crazy project you’re working on.
When you purchase TowerPro motors in India, they are almost usually NOT ORIGINAL, and these are no exception… These are NOT ORIGINAL Tower Pro Servos, either. However, they are dead cheap and serve the purpose. We put them to the test and found them to be of good quality for the price.
You can buy Emax Servos OR Orange servos if you’re seeking high-quality servos.
Wire Description
- Red – Positive
- Brown – Negative
- Orange – Signal
For your one-stop solution we have added a wide range of Servo Motor accessories, Check them now here. Servo Motors and Accessories
Features:
- Servo Plug: JR (Fits JR and Futaba)
- Gear Type: Metal gear
- Power Supply: Through External Adapter
- Servo arms & screws included and fit with Futaba servo arm
- It is a universal “S” type connector that fits most receivers, including Futaba, JR, Hitec, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, and Spektrum.

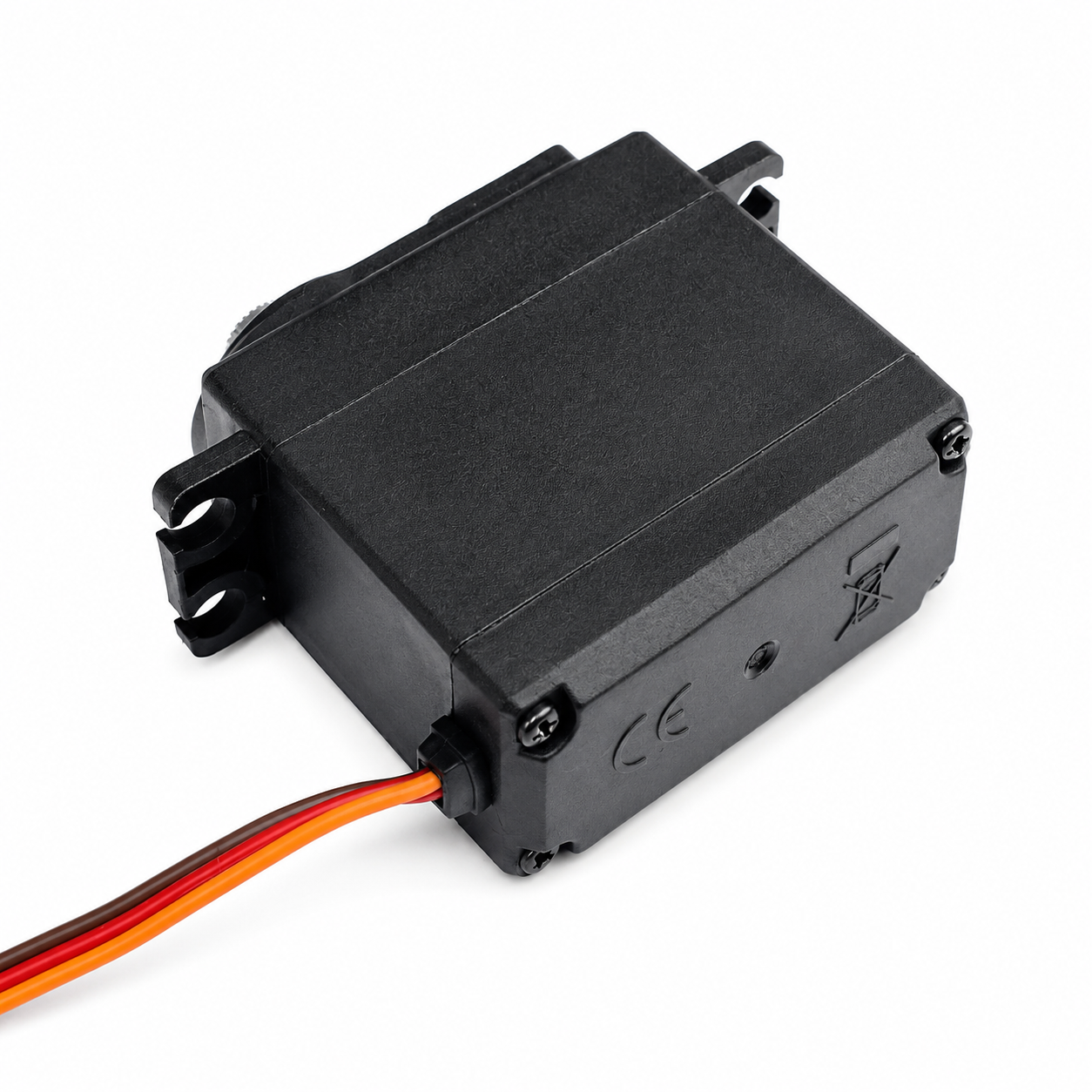

- CE & RoHS approved.
- Upgraded servo gear set and shaft to aluminum 6061-T6. It is stronger and lighter than copper.
Package Includes:
1× TowerPro MG946R Digital High Torque Metal Gear Servo Motor

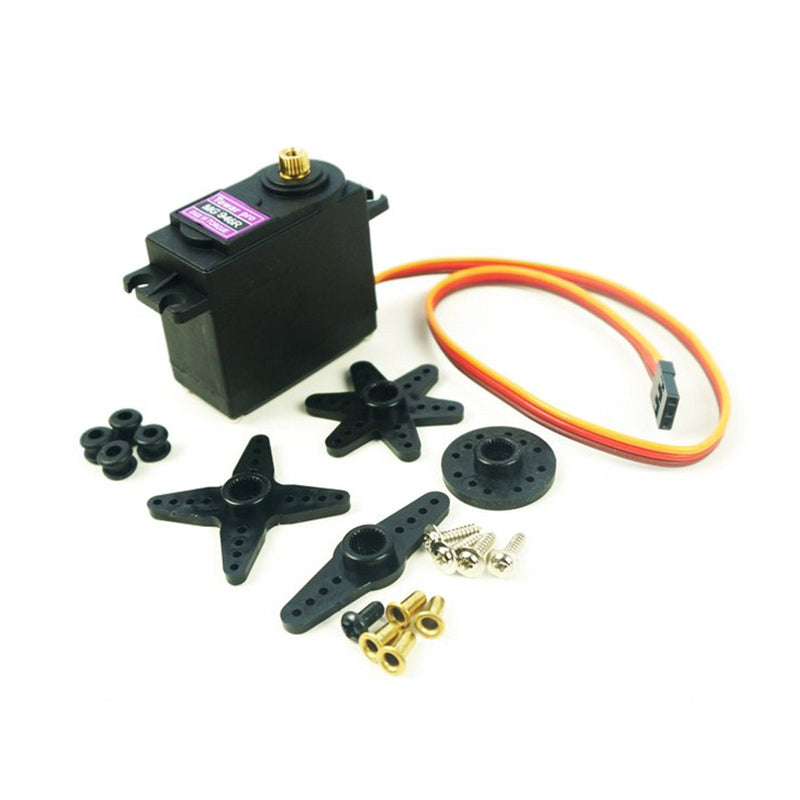

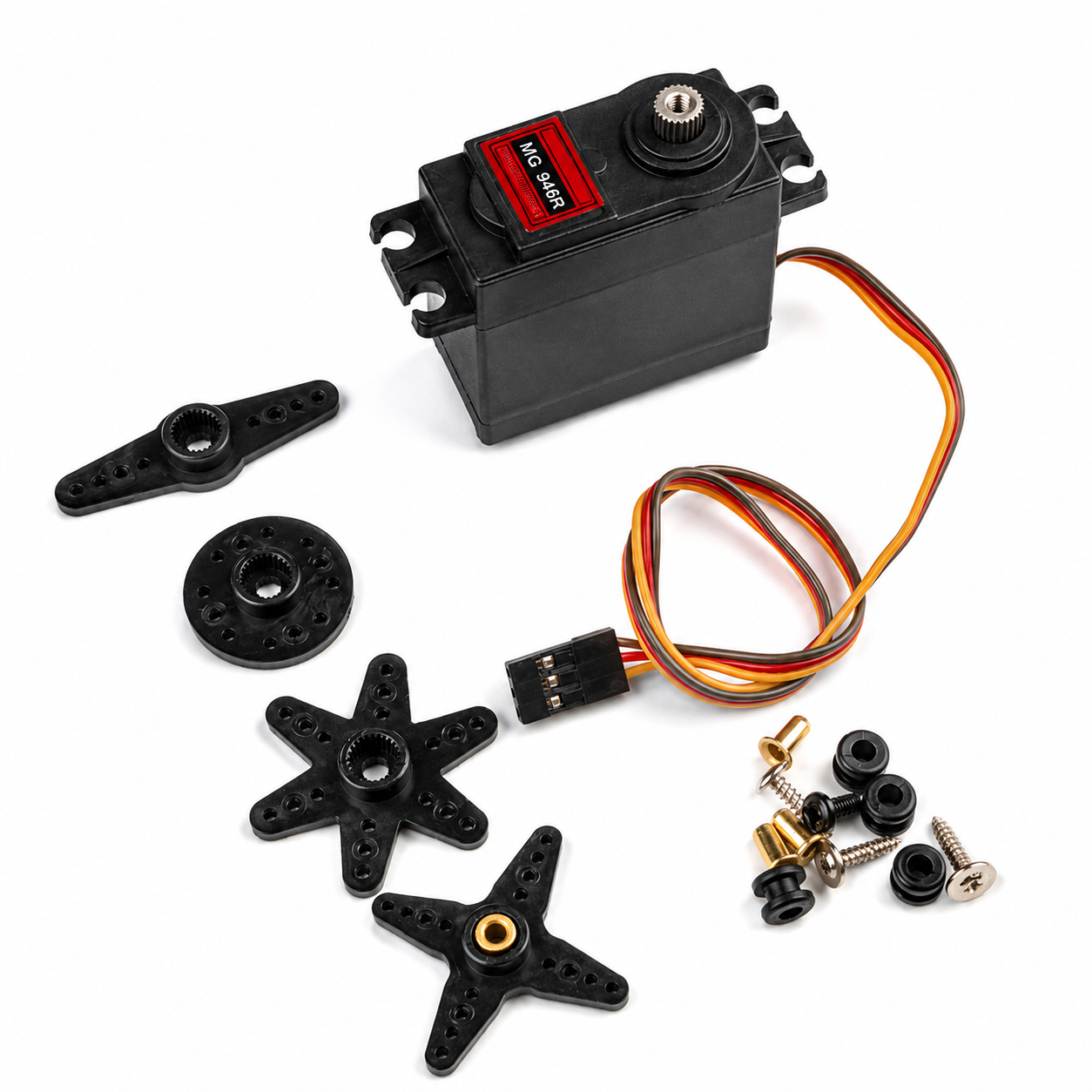

1× Accessories Set (as shown in Image)
Specification:-
| Item Type: |
TowerPro Servo Motor |
|---|---|
| Model Series: |
MG Series |
| Torque Rating (kg-cm): |
10.5 to 13 |
| Model No.: |
MG946R |
| Stall Current Draw (mA): |
1200mA |
| Operating Speed @4.8V |
0.20sec/60° |
| Operating Speed @6V |
0.17sec/60º |
| Stall Torque @ 4.8V (Kg-Cm) |
10.5 |
| Stall Torque @6V (Kg-Cm) |
13kg/cm |
| Operating Temperature (°C): |
0- 55º |
| Cable Length (cm): |
32cm |
| Pulse Cycle |
1 mS |
| Current Draw at Idle(mA) |
10mA |
| Current at No Load |
170mA |
| Length (mm): |
40.7 |
| Width (mm): |
19.7 |
| Height (mm): |
42.9 |
| Weight (g): |
65 |
| Shipping Weight | 0.07 kg |
| Shipping Dimensions | 12 × 8 × 2 cm |
