Tune Flight controller and ESC wirelessly!
Power the quad, connect the SpeedyBee app via Bluetooth, configure the UART Ports,PID,OSD and every other settings on this flight controller. Also, every parameter of the BLHeli_S ESC in this stack can be set via the app.
With this Bluetooth stack, even micro drones become easy to tune—no need to worry about the hassle of inserting USB cables into the flight controller. Simply tune your drone wirelessly through the App, and say goodbye to wires and worries!

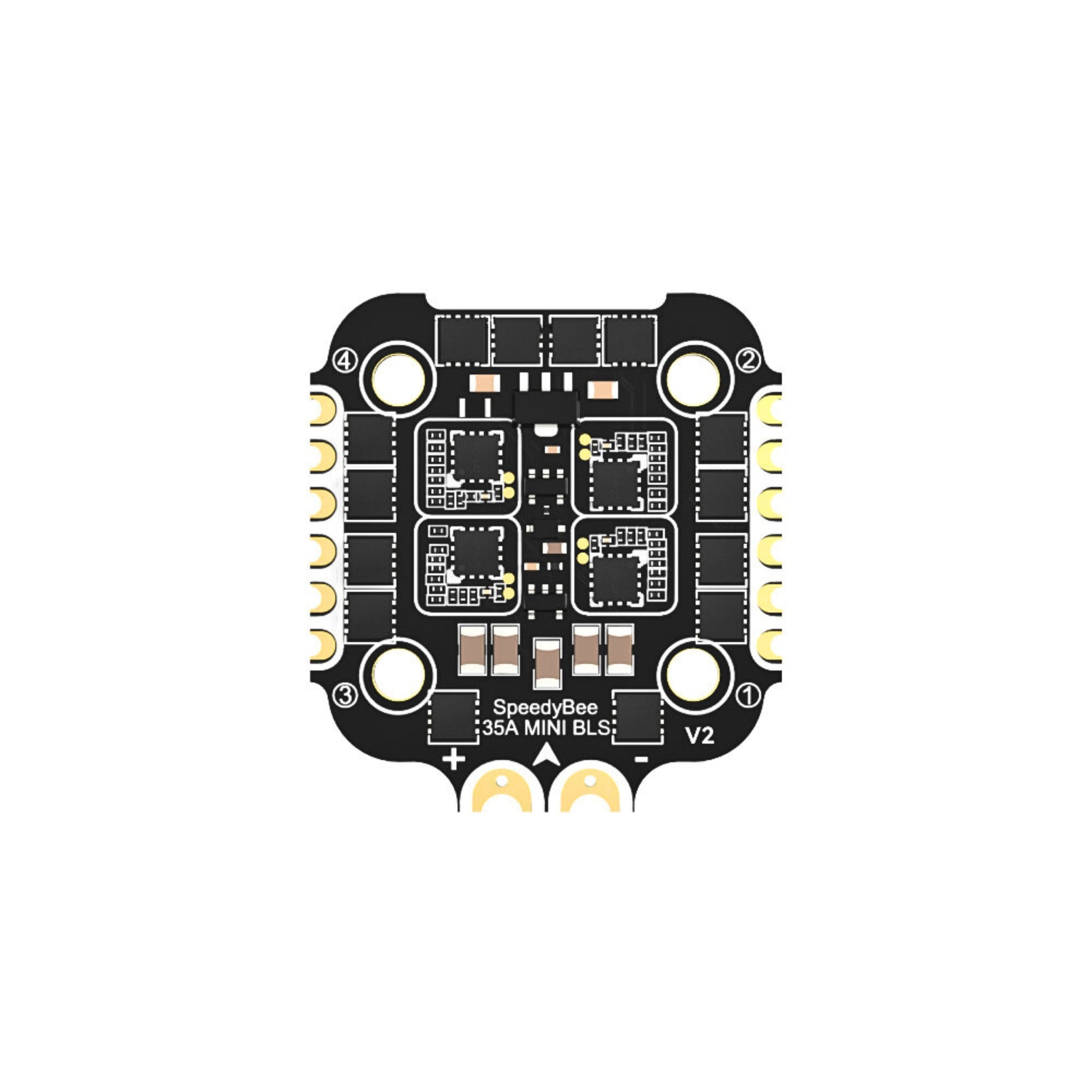

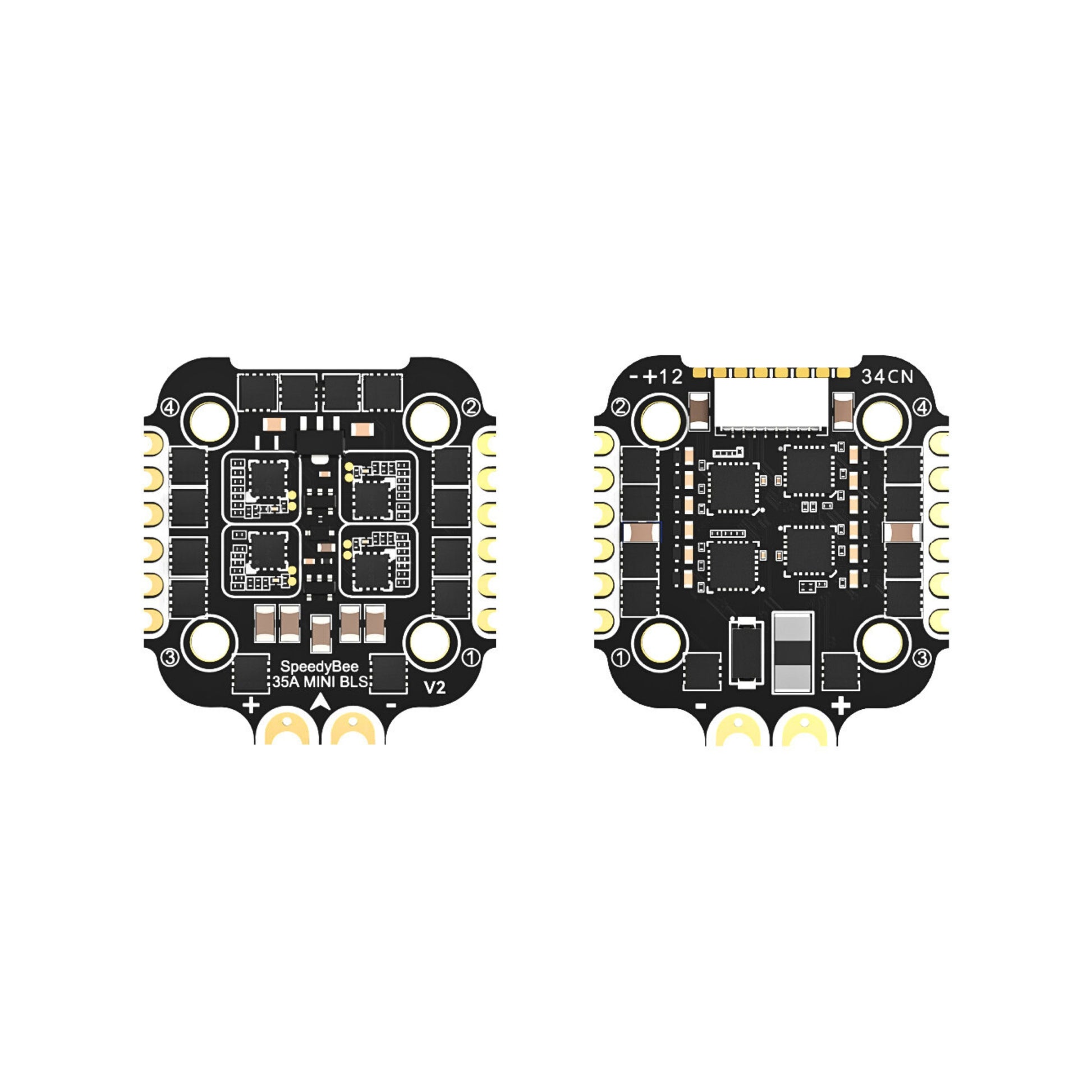

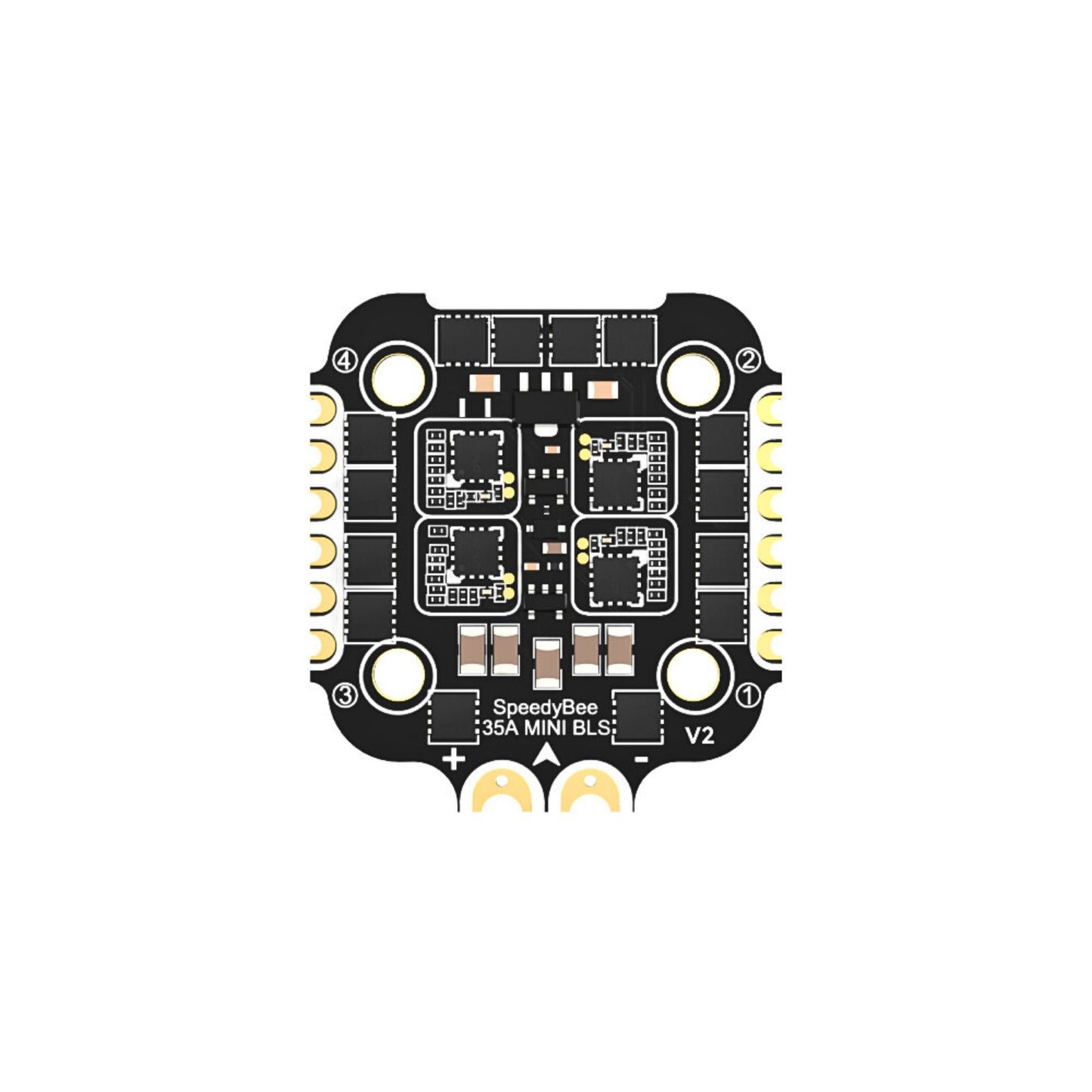

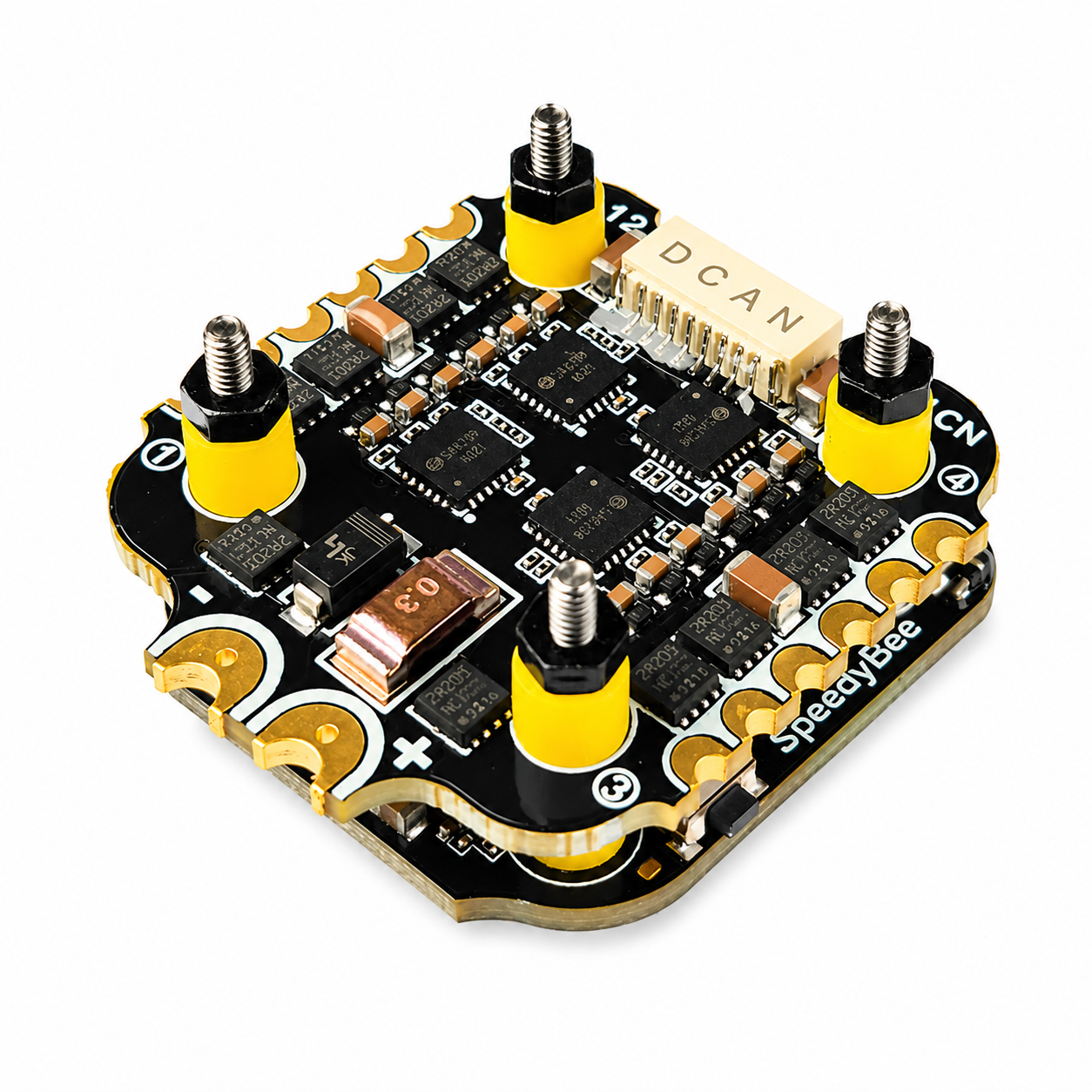

Powerful Real 35A 4-in-1 ESC!
6-layer 2oz PCB plus optimized circuit design equals stable and strong current output. The four-channel continuous 140A output can reach 30 seconds*.
The use of Japanese TDK filtering SMT capacitors and the onboard TVS protective diode, further enhances your flight experience, providing a seamless and reliable performance. The stack underwent rigorous pressure testing with various 5-inch freestyle and racing drones, confirming its powerful capability to effortlessly drive any 2-4 inch and lightweight 5-inch drones.

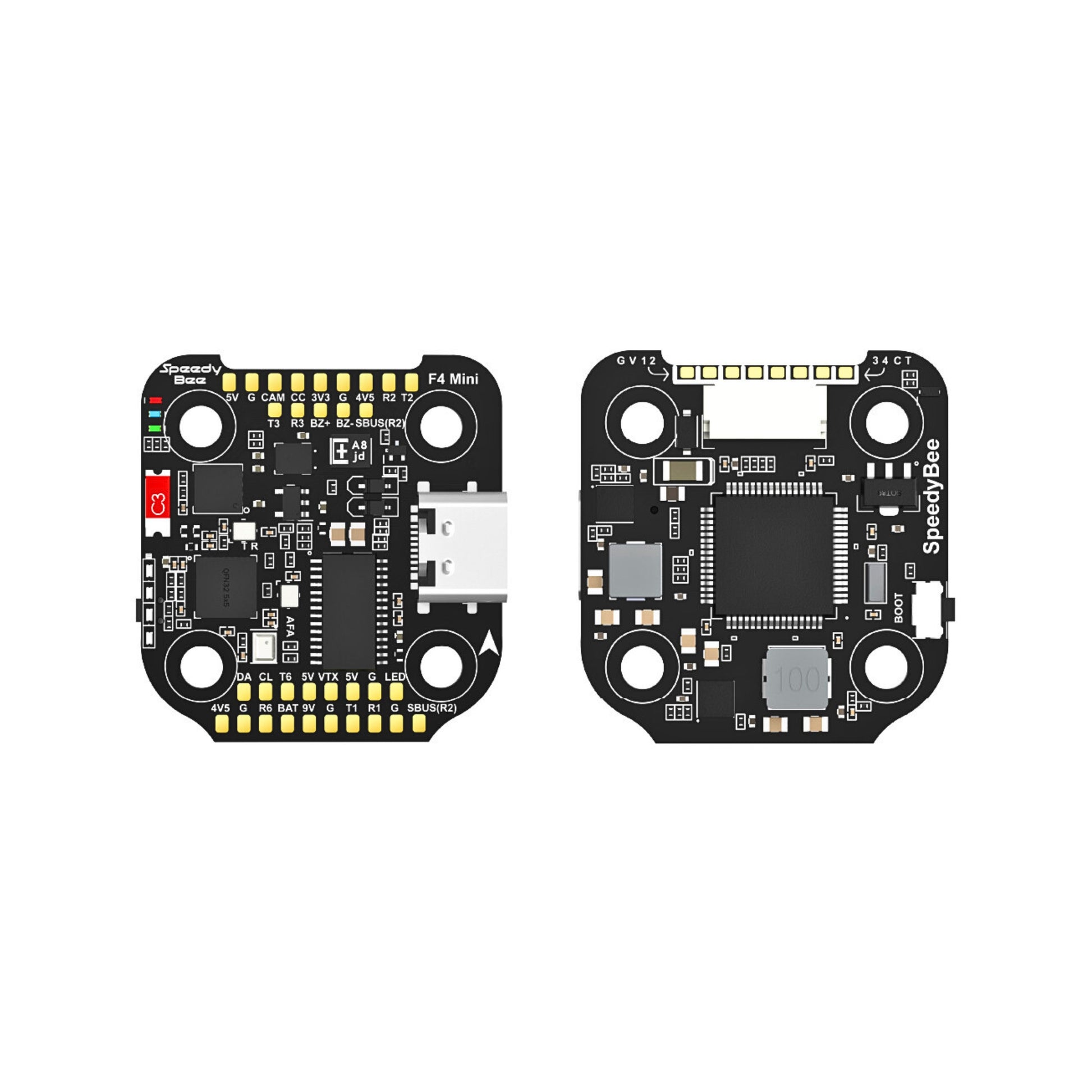

Clean Gyroscope Power Supply, Smoother Flight
Equipped with the renowned brand MaxLinear’s LDO power supply chip, the gyroscope receives independent power, boosting surge protection capacity by 320%. Additionally, built with a 100uF ultra-large filtering tantalum capacitor, guarding the gyroscope’s data from interference caused by the power source. Each posture and movement during flight receives precise responsiveness, allowing you to fully experience the pure beauty of flying!

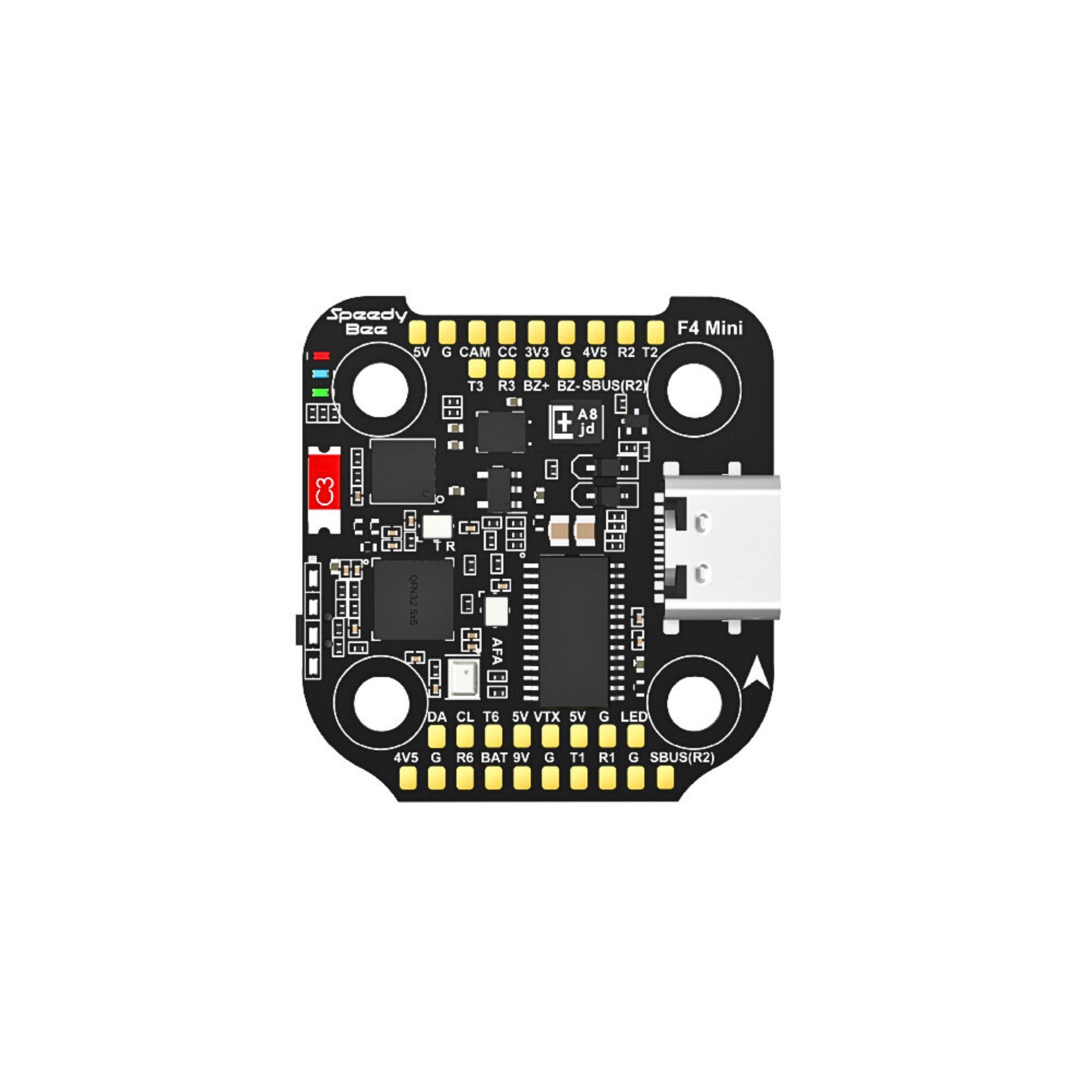

Forgot your LiPo checker? Just look at the FC!
On the side of the flight controller, you will find a 4-level battery capacity indicator. As soon as you connect the battery, you can instantly see the battery level, saving you the hassle of needing to put on goggles to check the battery status.
Change motor directions wirelessly!
Are you still using a computer to change motor directions? With this stack, when you finish your build, connect to the SpeedyBee app, change the motor directions just in a few simple steps*. Then take off.
* To use this feature, go to the App > Motors > Motor Direction Settings.
Support DJI Digital Video Transmitter
The flight controller has two independent 9V 3A BEC and 5V 2A BEC, supports various analog image transmissions above 5V, and also supports DJI O3 Air Unit/Link / Vista/Air Unit V1
M2 or M3? Why not both?

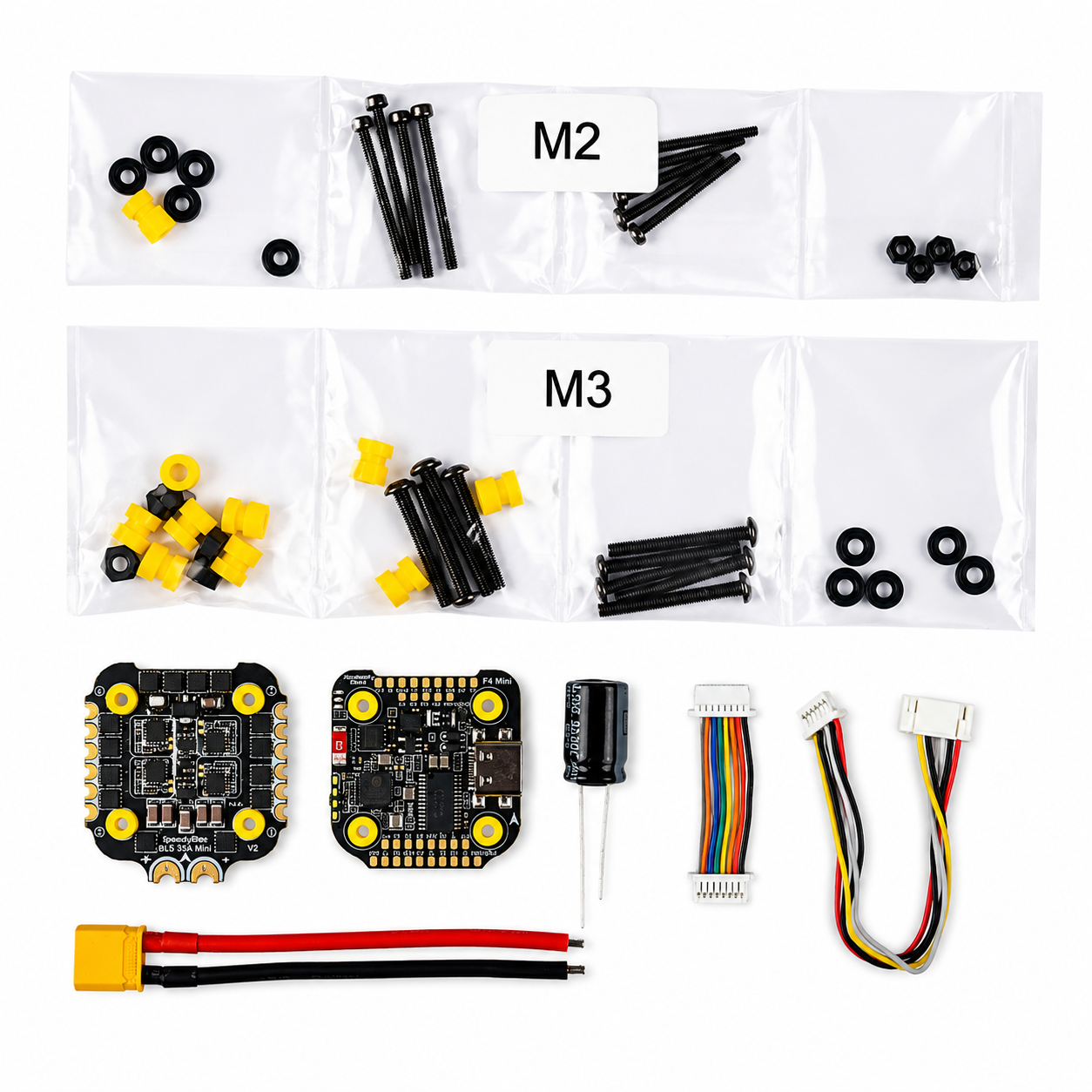

Have you ever experienced that the stack holes of your frame did not fit the stack you got? This stack is perfectly compatible with M2/M3 screws. What’s more, two sets of M2 and M3 screws + silicone grommets are included in the package!
TVS Protective Diode + 470uF Low-ESR Capacitor = Upgraded ESC Protection
The ESC is built with TVS protective diode to absorb the voltage spike when you plug in the battery, or during crashes that block your props. We also provide a Rubycon 470uF Low-ESR capacitor, ensuring clean data from the gyro to the FC.
And packaged with more useful features
● Sufficient 4 x UARTs for your receiver + VTX + camera + GPS.
● Two independent 5V 2A BEC and 9V 3A BEC.
● Power your GPS with a USB cable – no battery needed. No extra heat, no worries
● 17mm cutouts for FPV camera in your tight build
● Onboard barometer for real-time altitude sensing
● Onboard 8MB Blackbox storage
| SPECS OVERVIEW | |
|---|---|

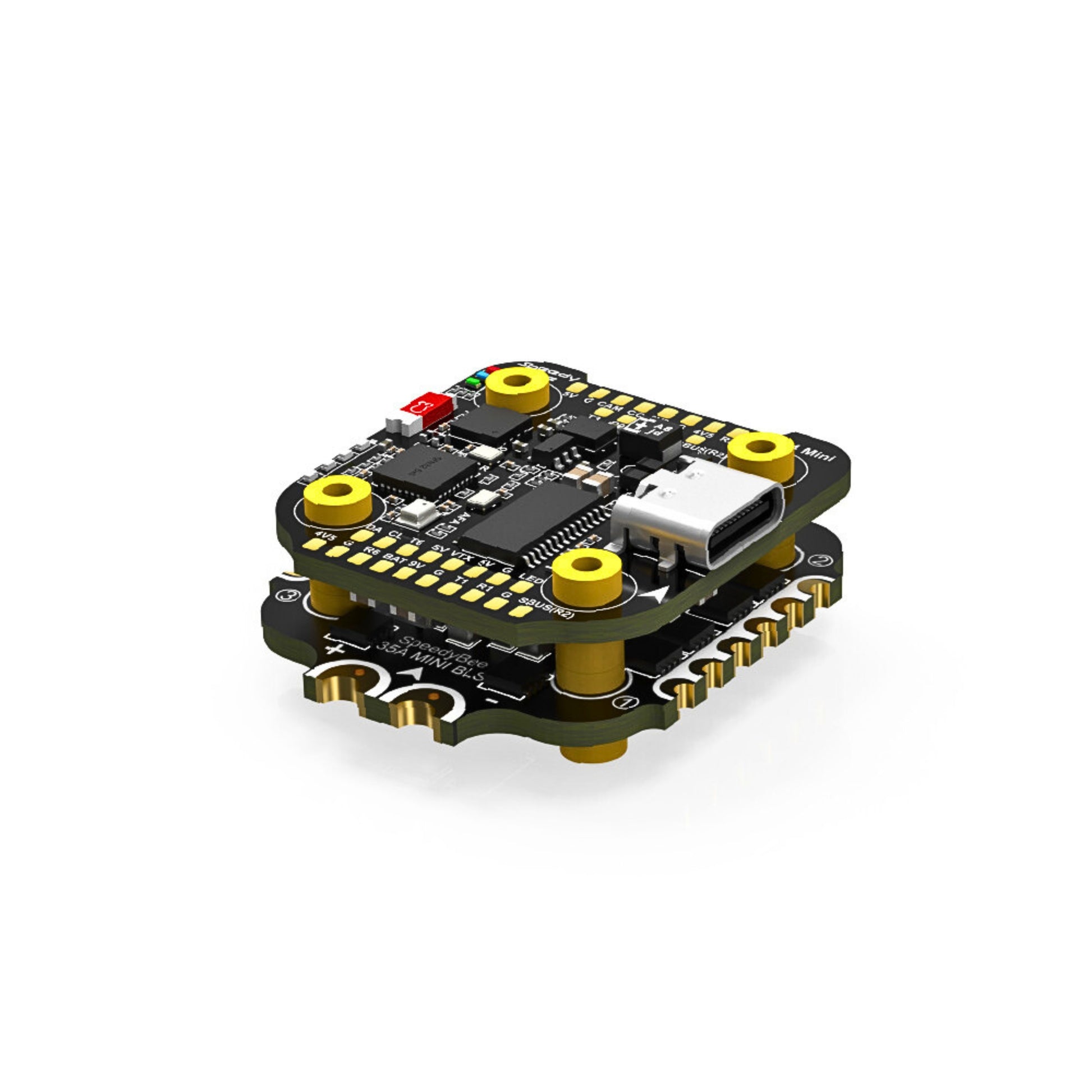

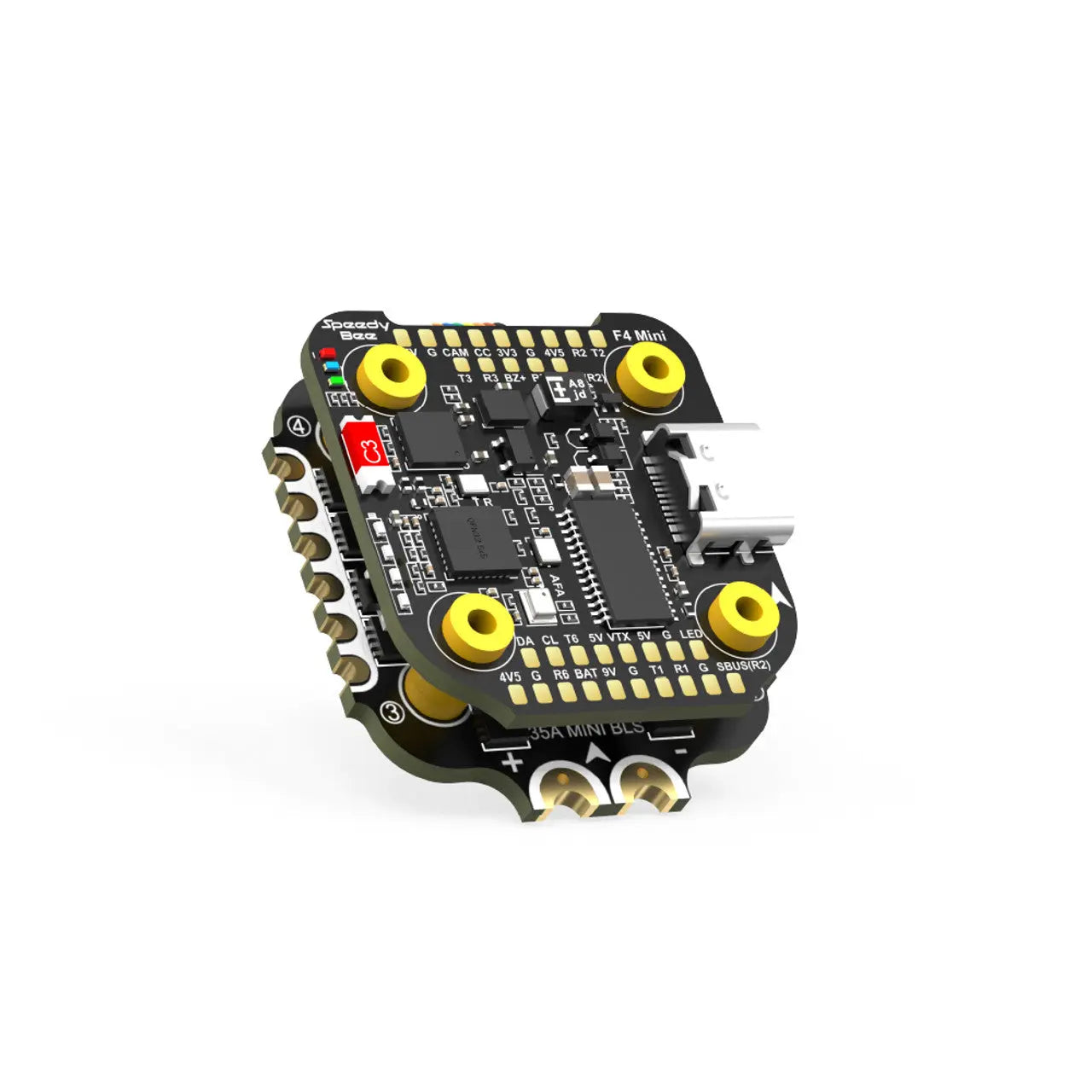

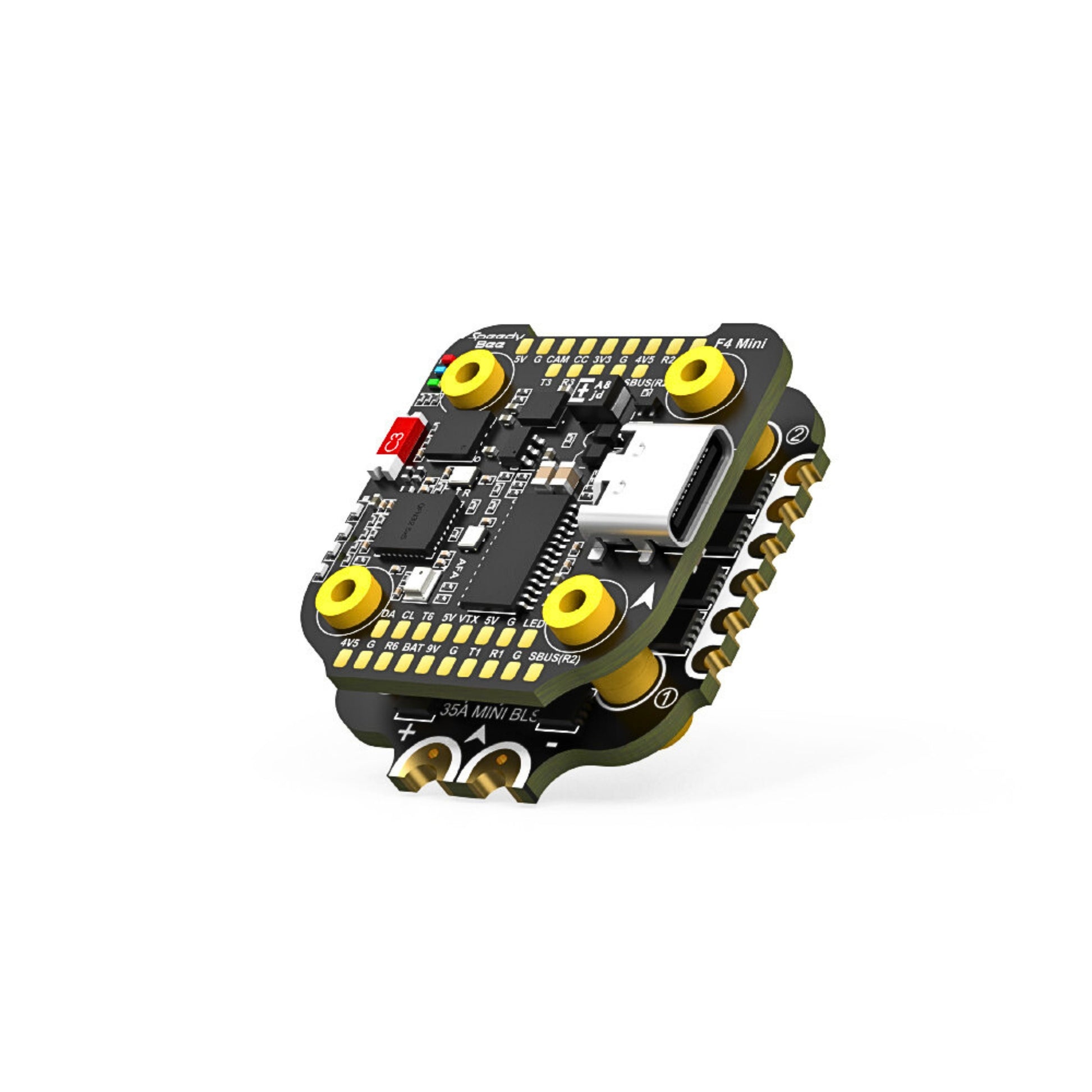

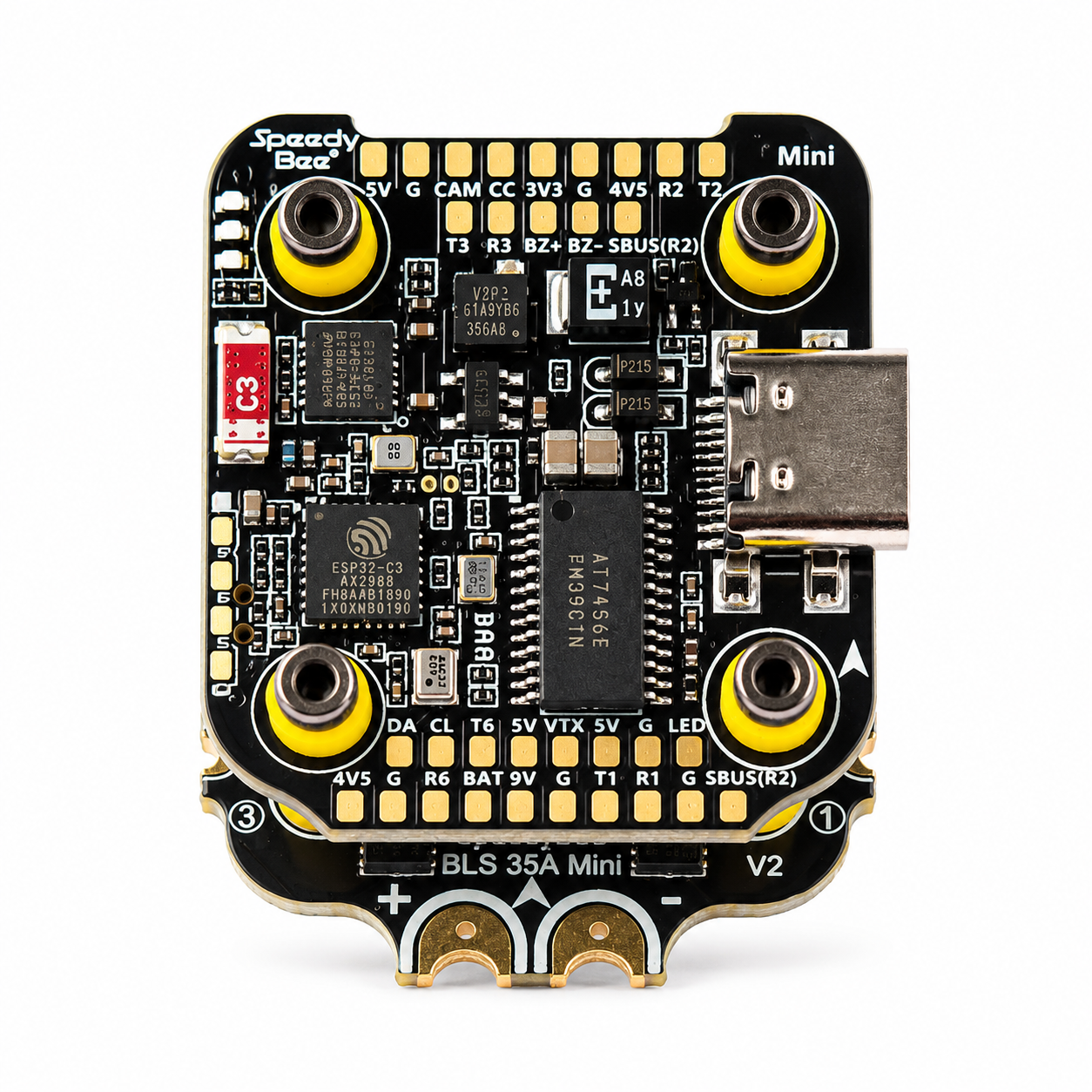

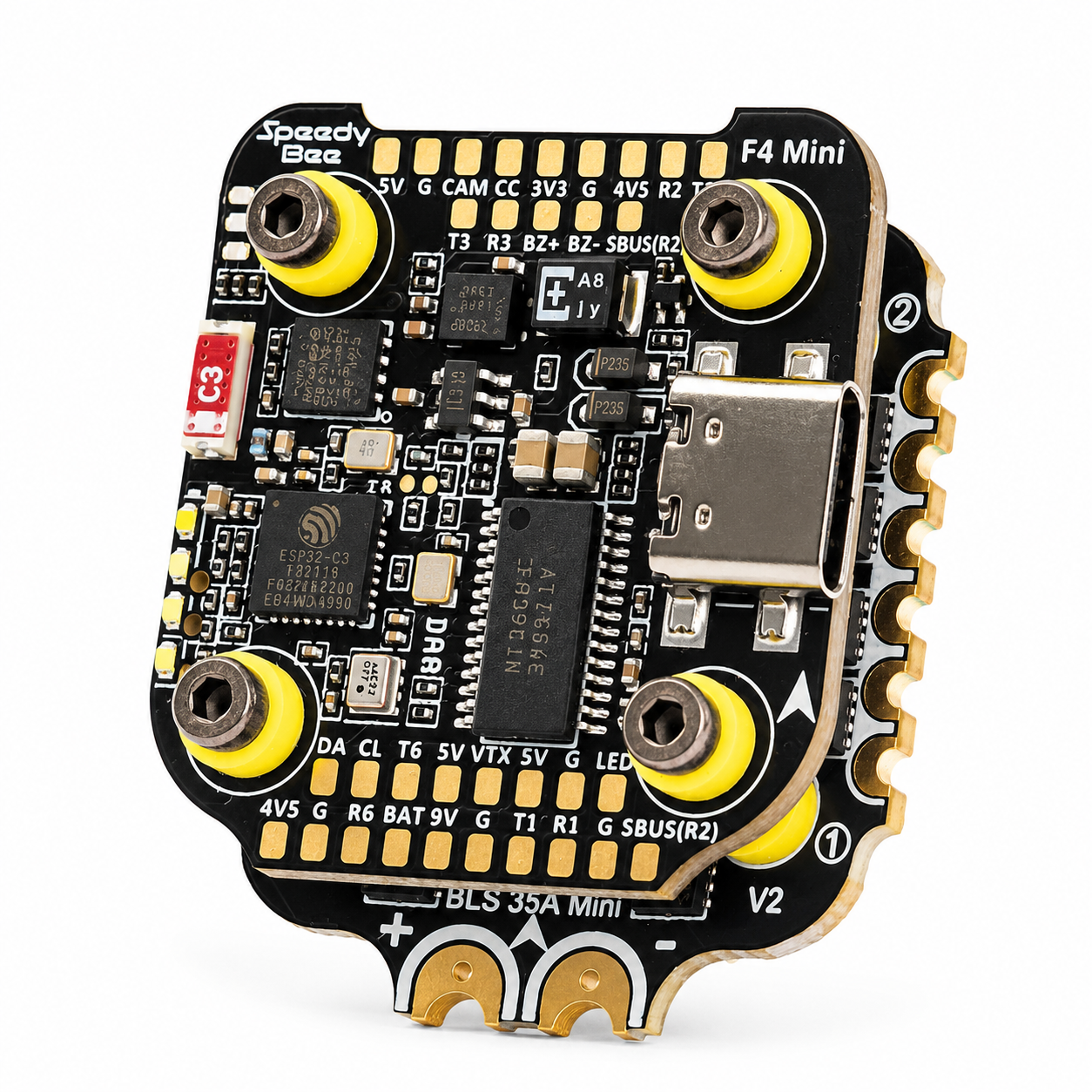

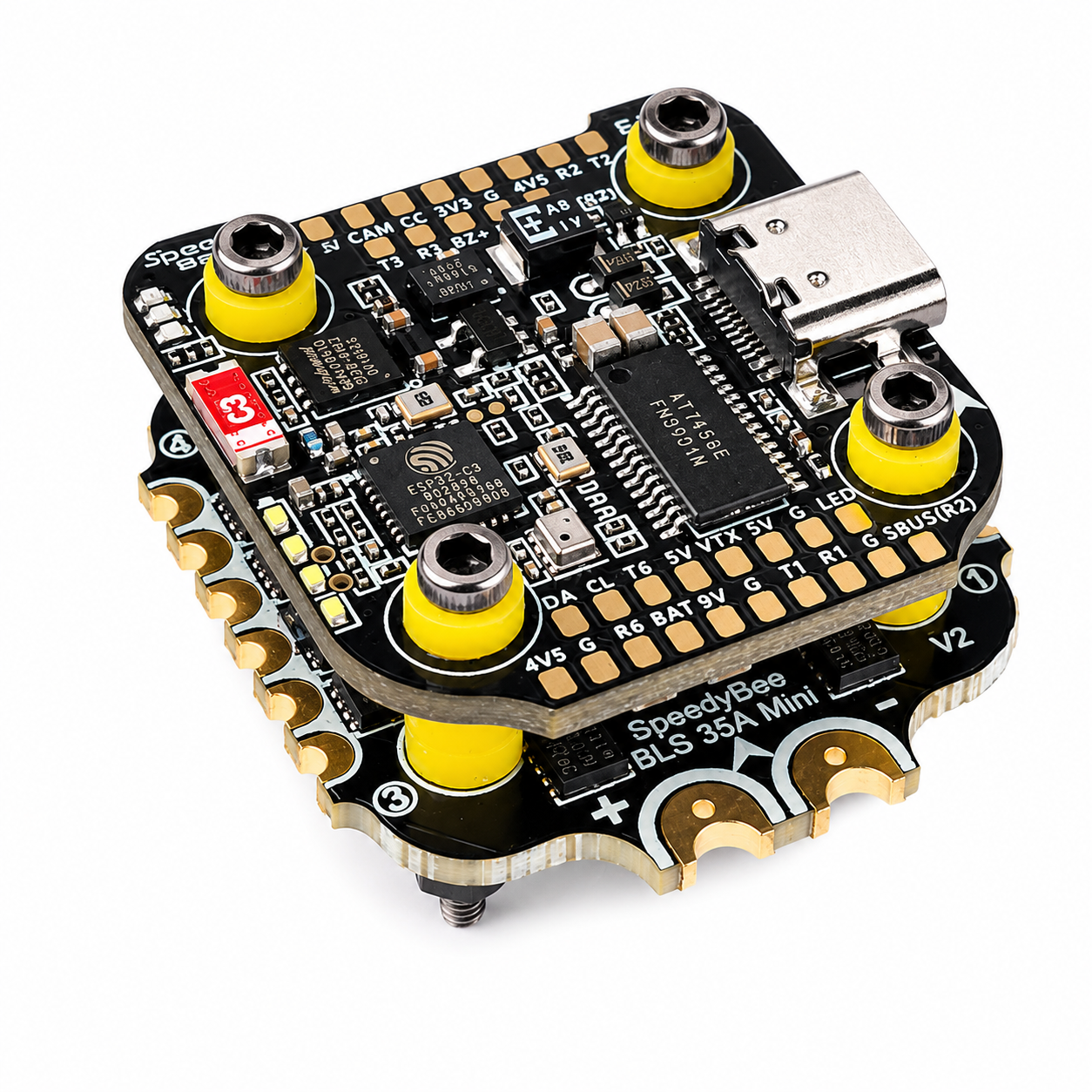

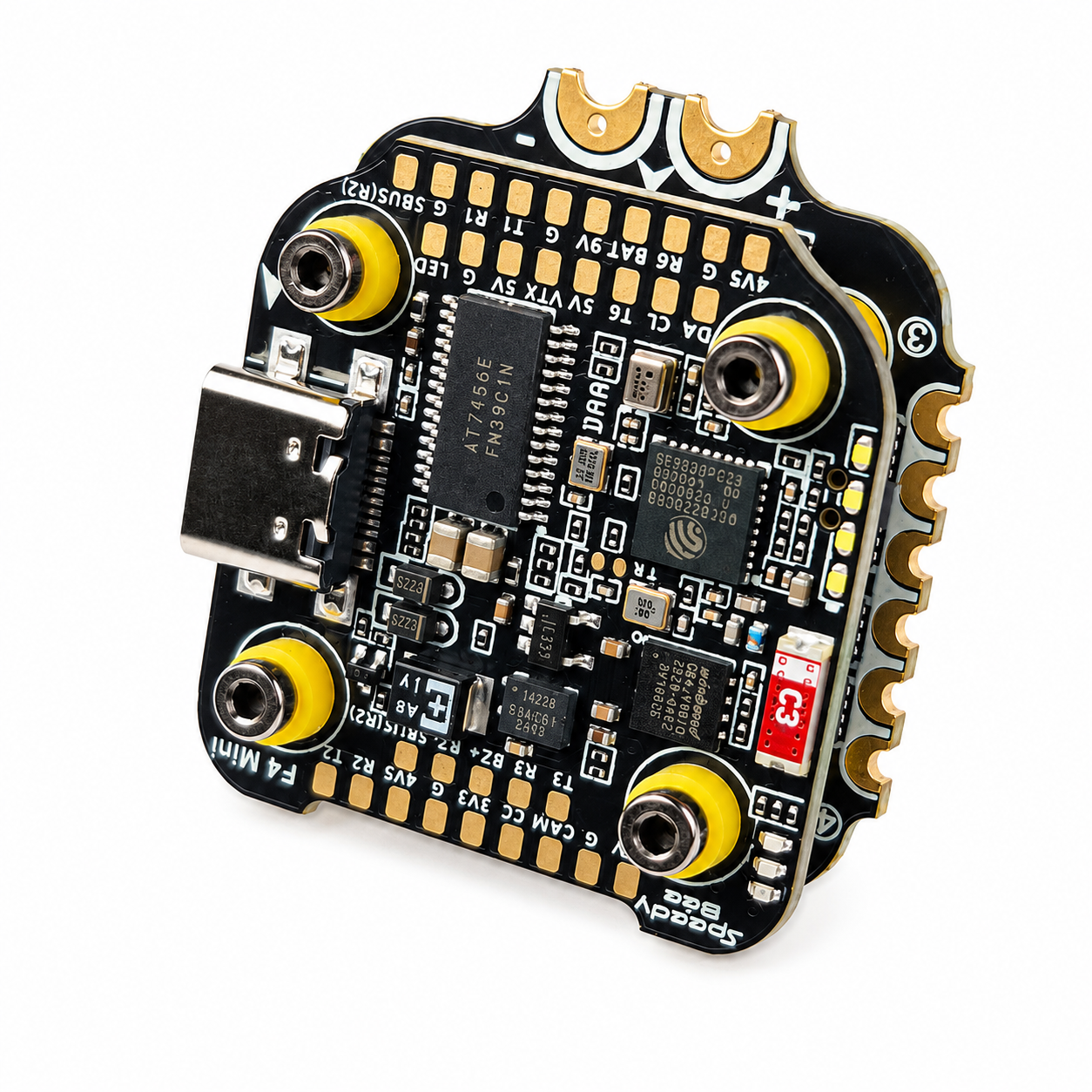

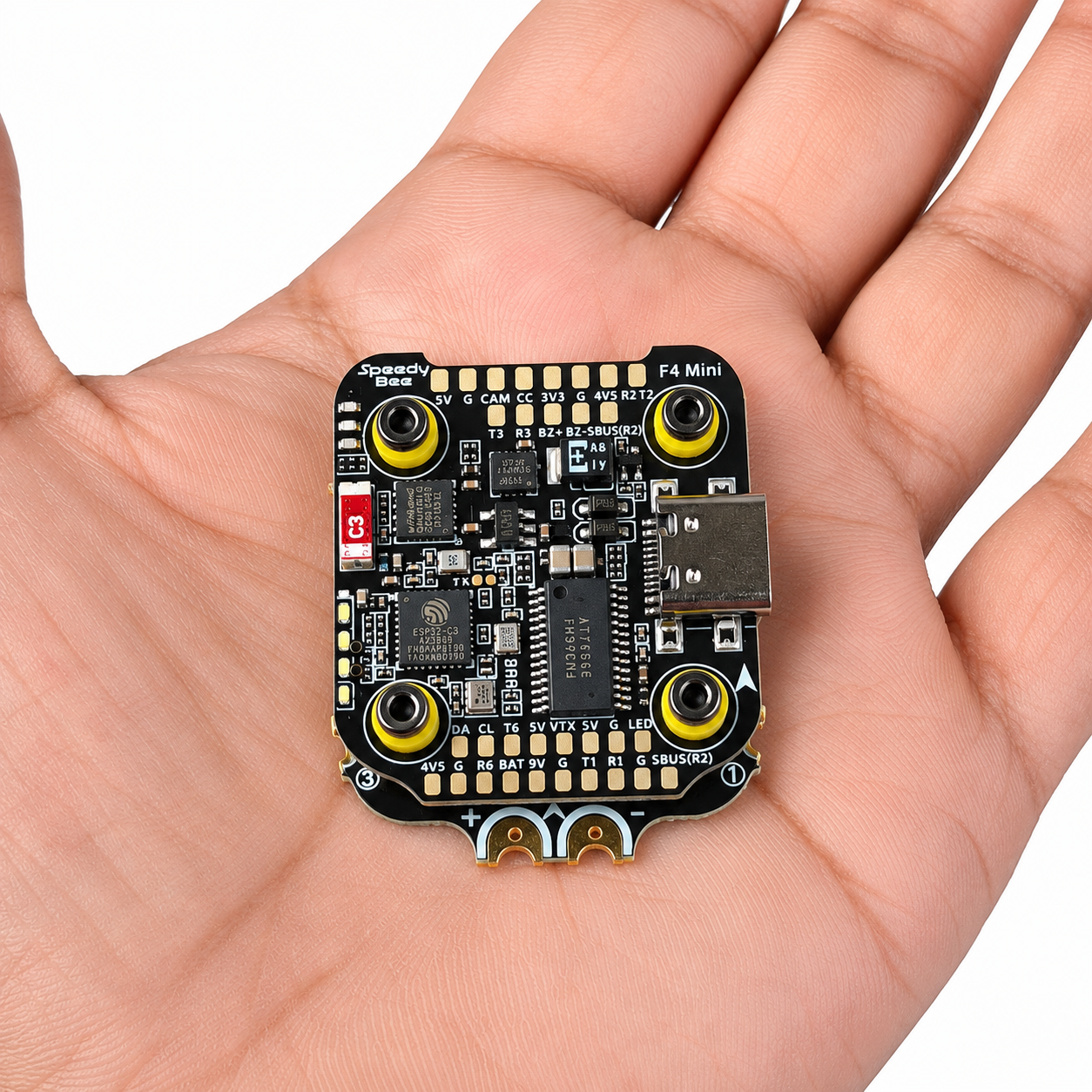

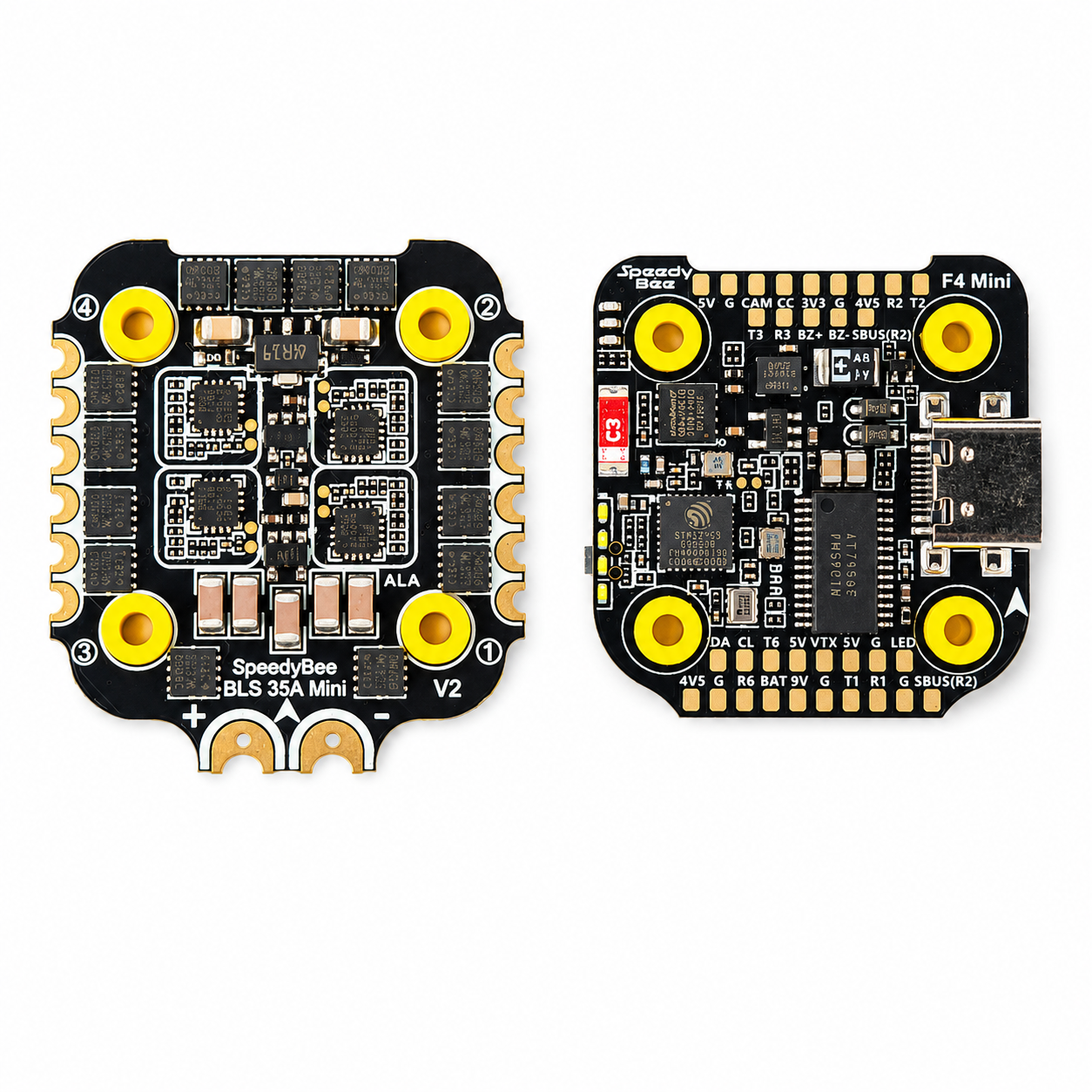

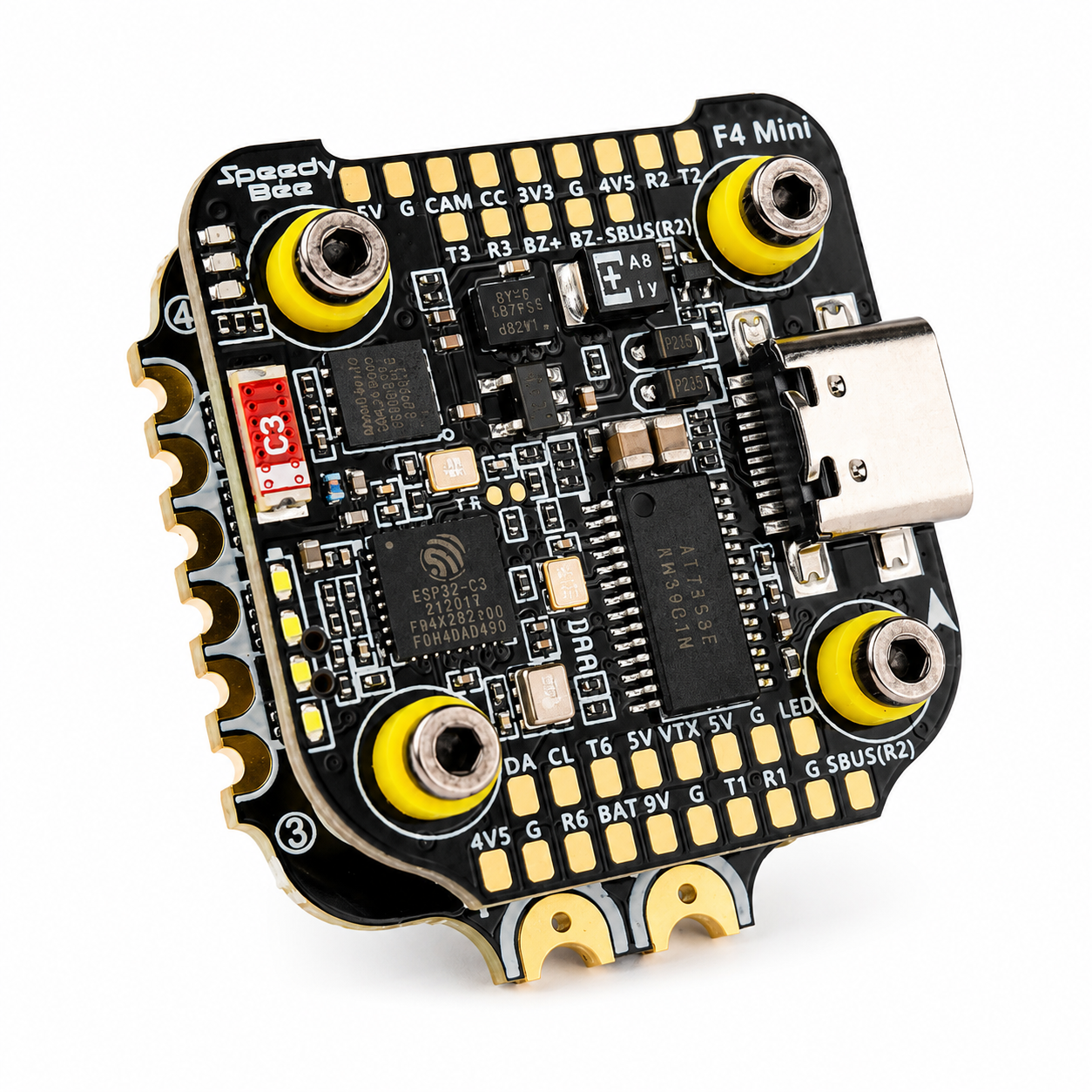

| Product Name | SpeedyBee F405 Mini BLS 35A 20x20 Stack |

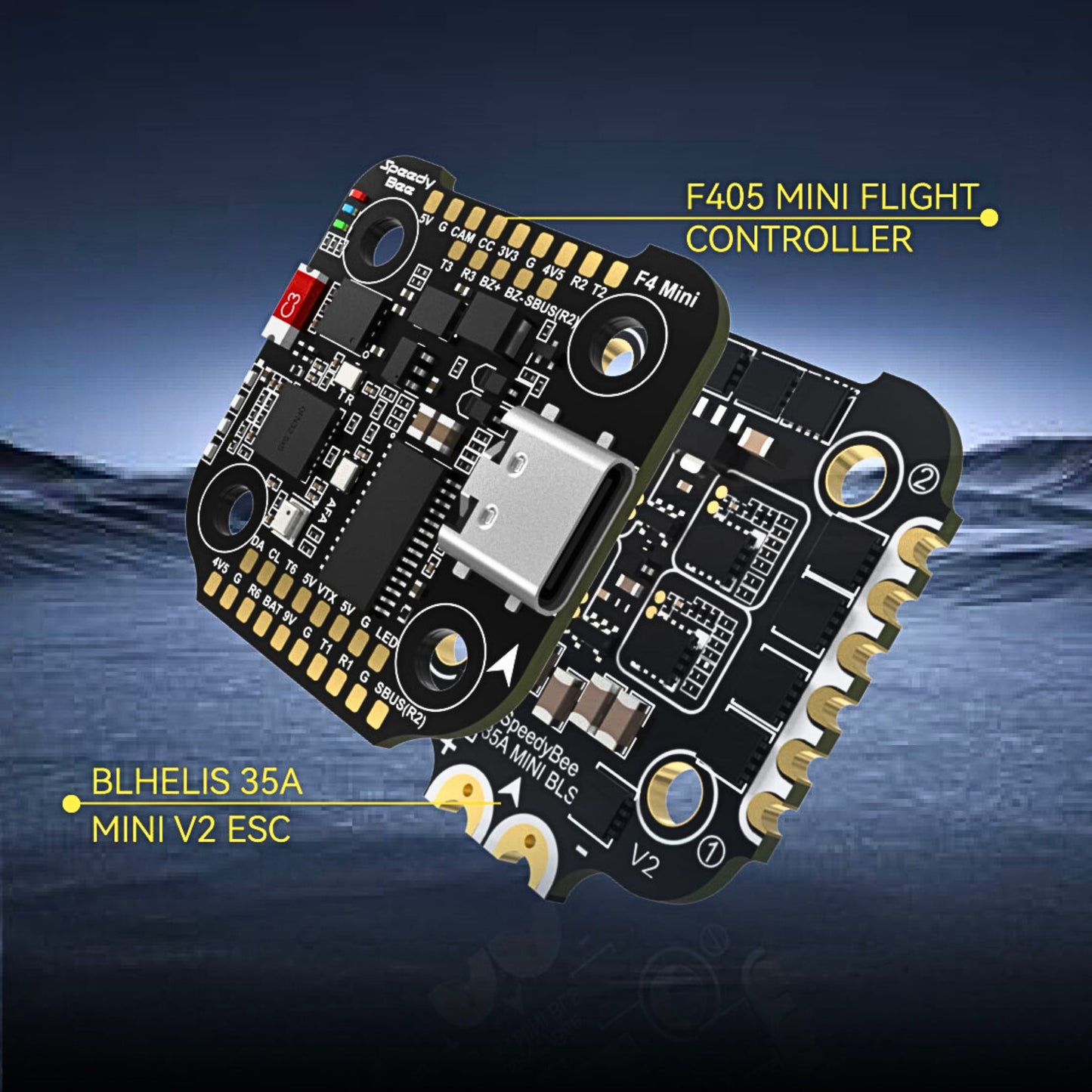

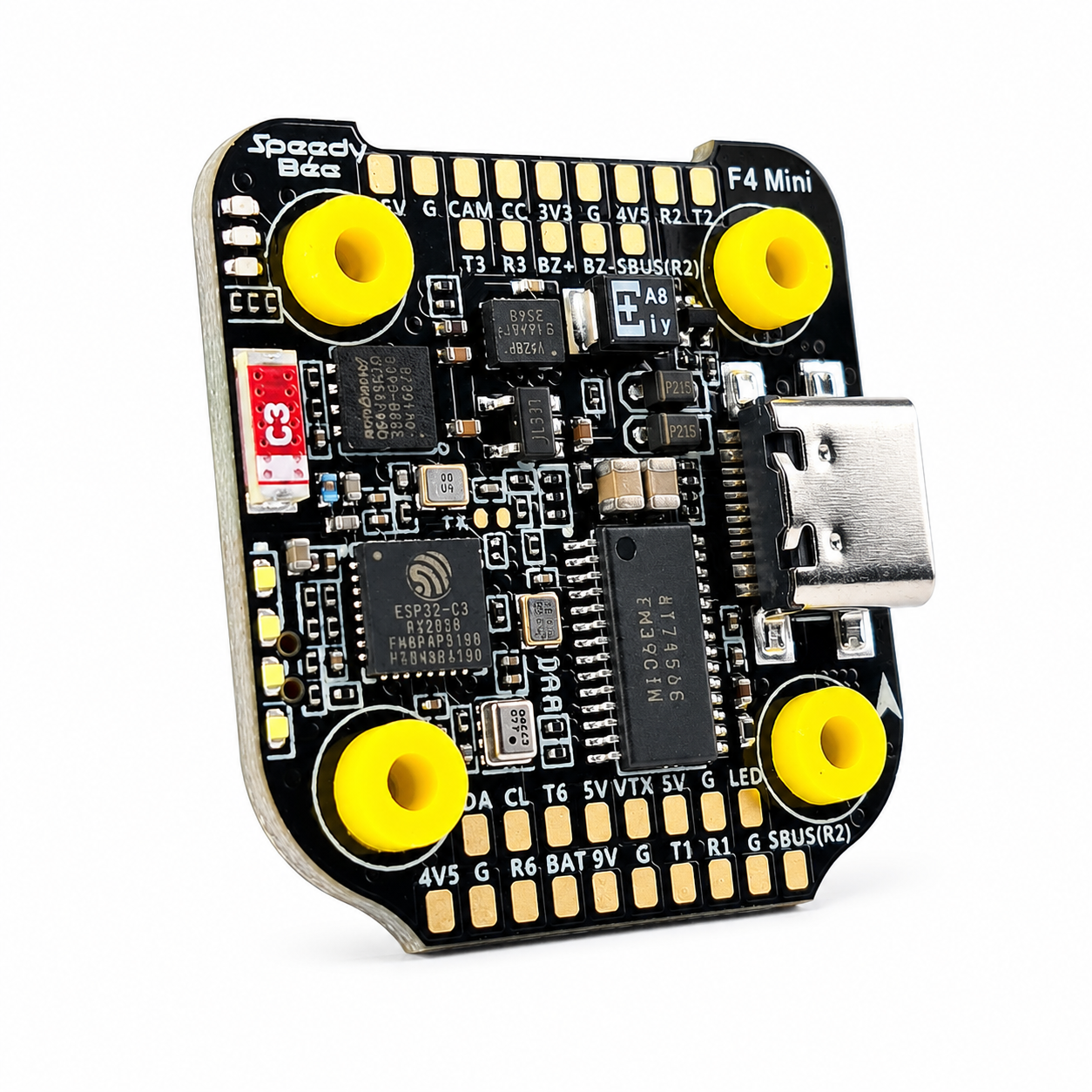

| Flight Controller | SpeedyBee F405 Min |

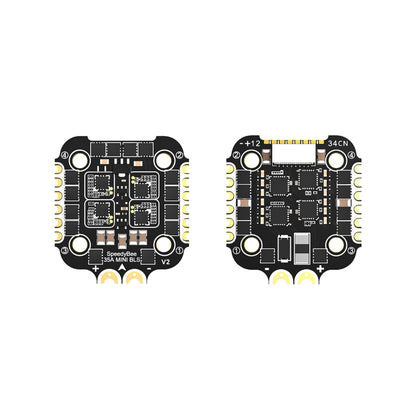

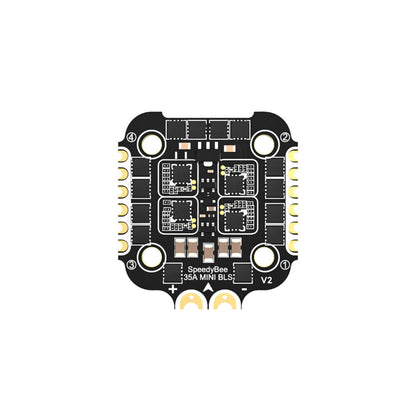

| ESC | SpeedyBee BLS 35A Mini V2 4-in-1 ESC |
| Bluetooth | Supported. Used to connect with the SpeedyBee App for flight controller and ESC parameter configuration. Please make sure the MSP switch on UART 4 is turned on and set to a baud rate of 115200, otherwise Bluetooth functionality will not be available. |
| WiFi | NOT Supported |
| Wireless FC Firmware Flashing | NOT Supported |
| Wireless Blackbox Dwonload & Analysis | NOT Supported |
| Power Input | 3-6S LiPo |
| Mounting | 20 x 20mm 3.5mm hole size，Compatible with M2 and M3 screws/Silicone grommets |

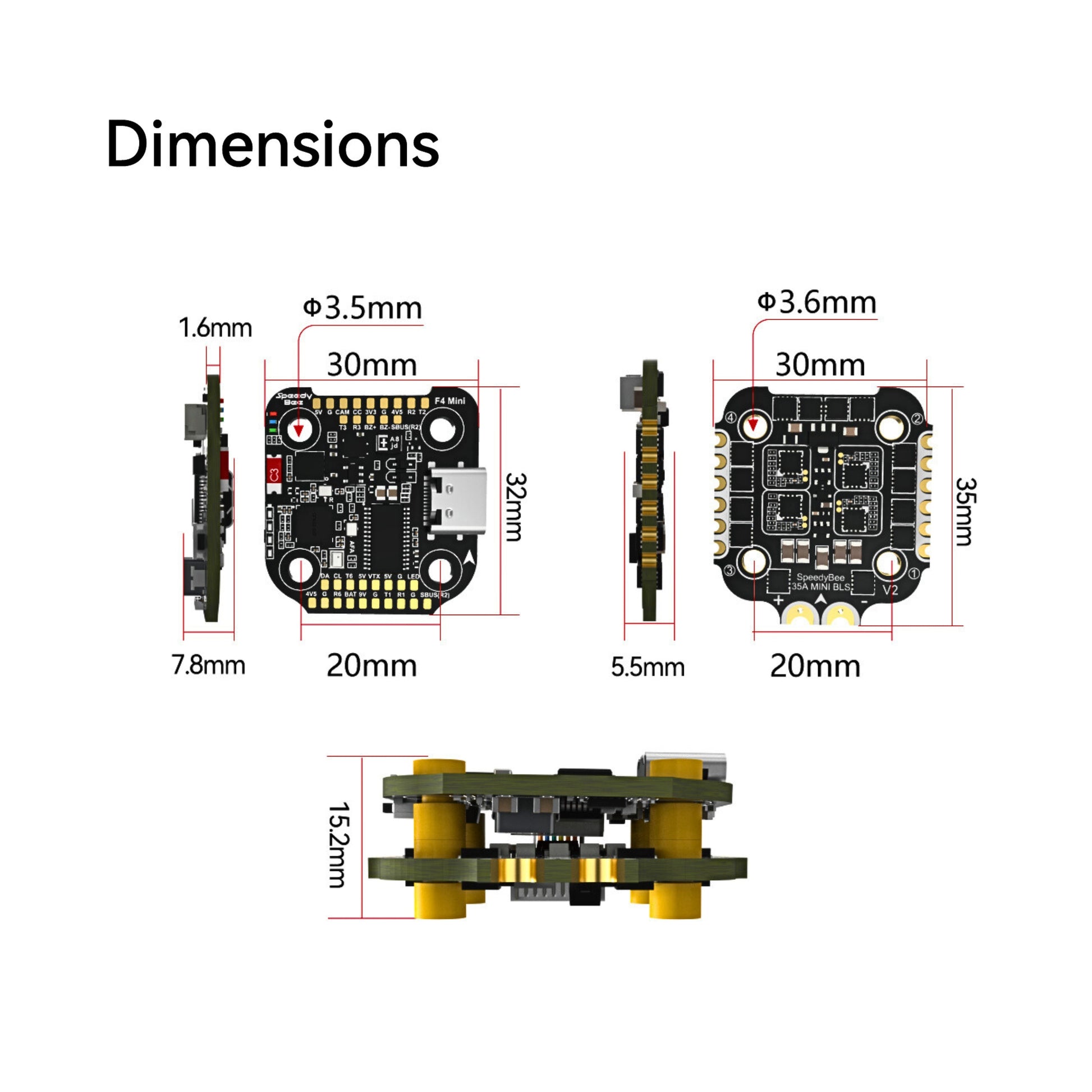

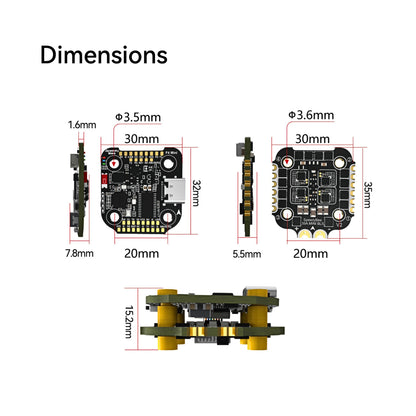

| Dimension | 32mm(L) x 35mm(W) x 14.2mm(H) |
Package includes:
SpeedyBee F405 Mini BLS 35A Stack
