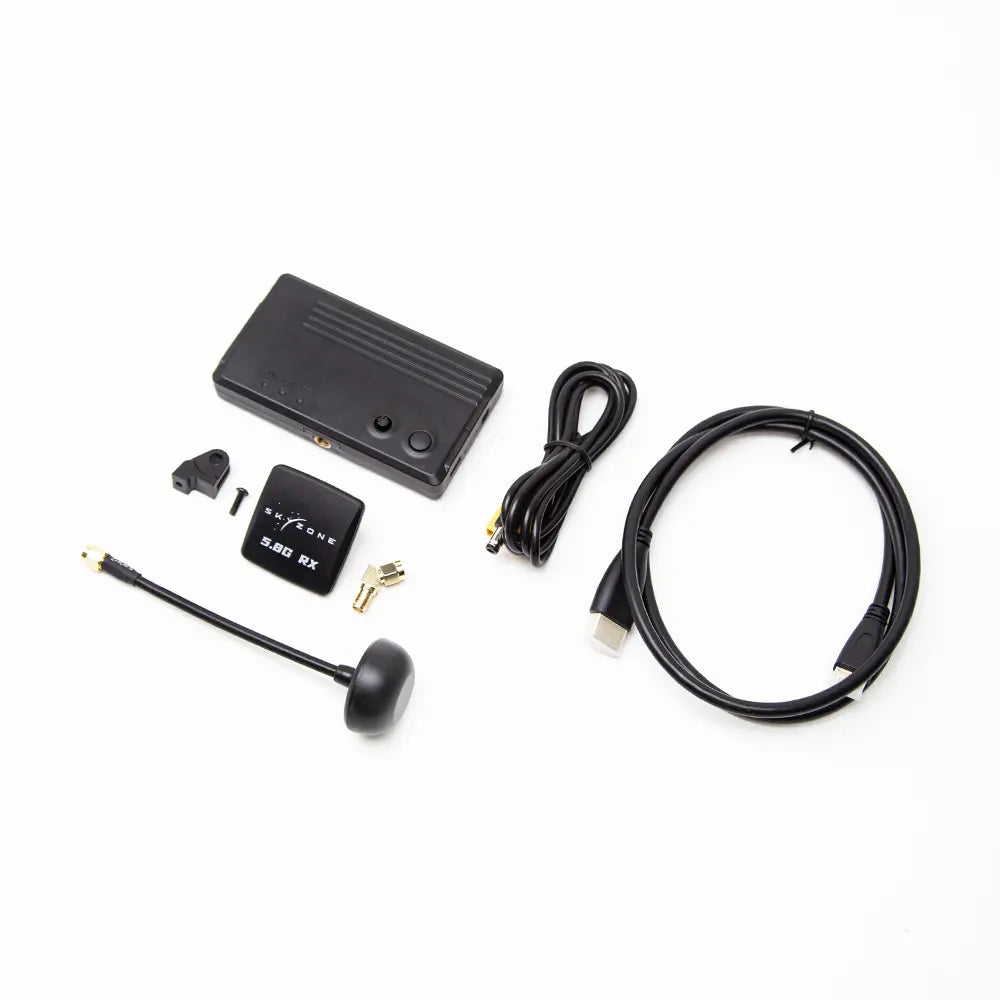

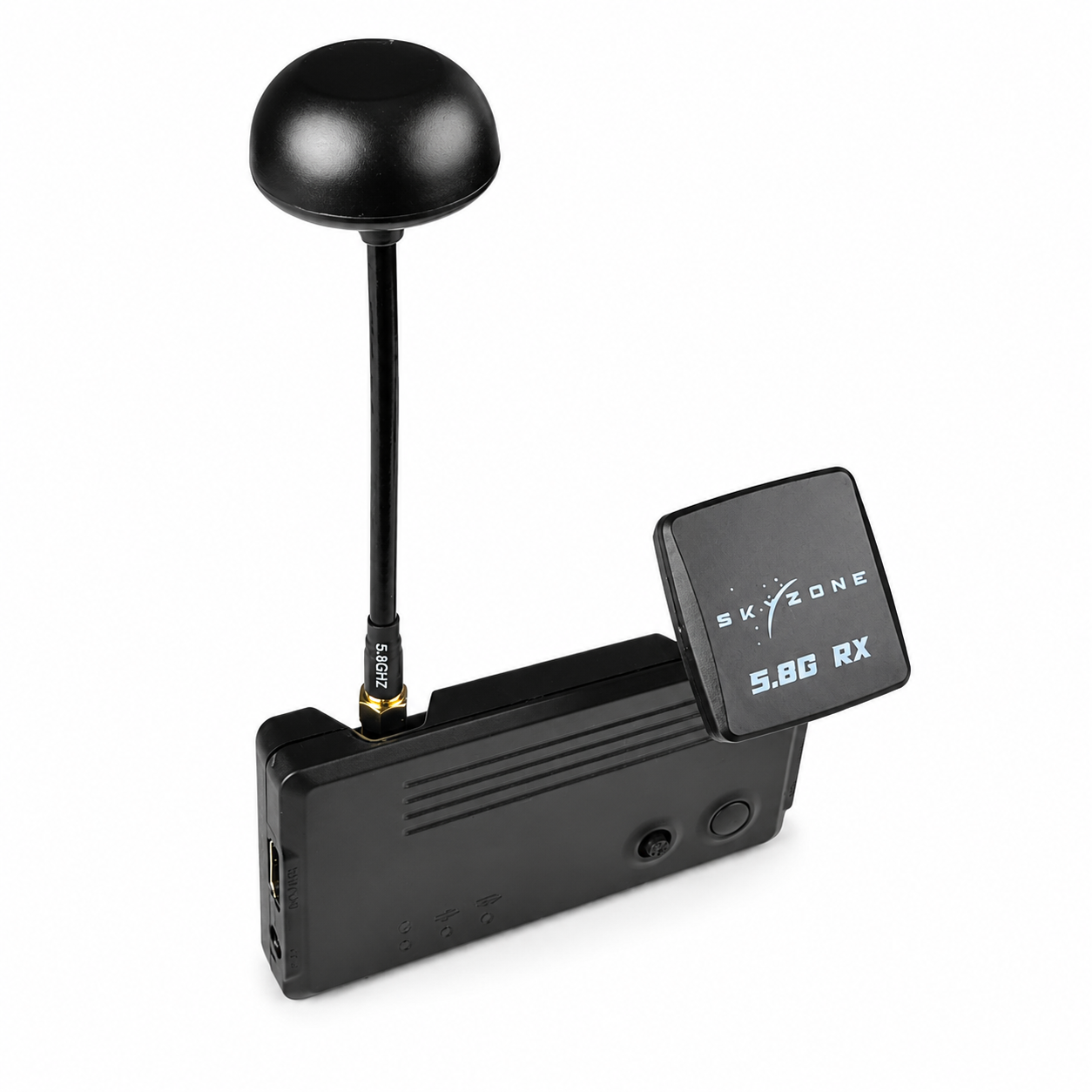

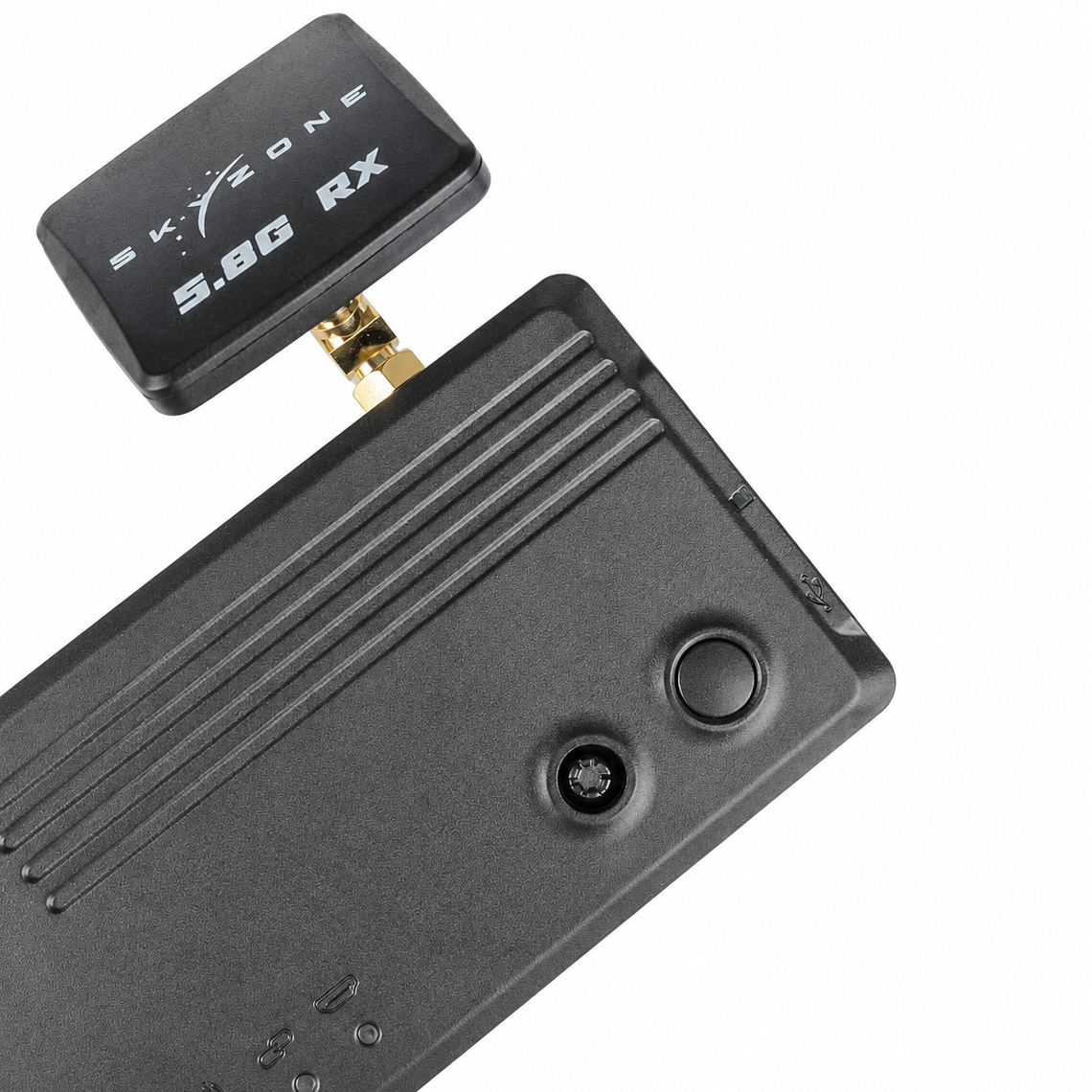

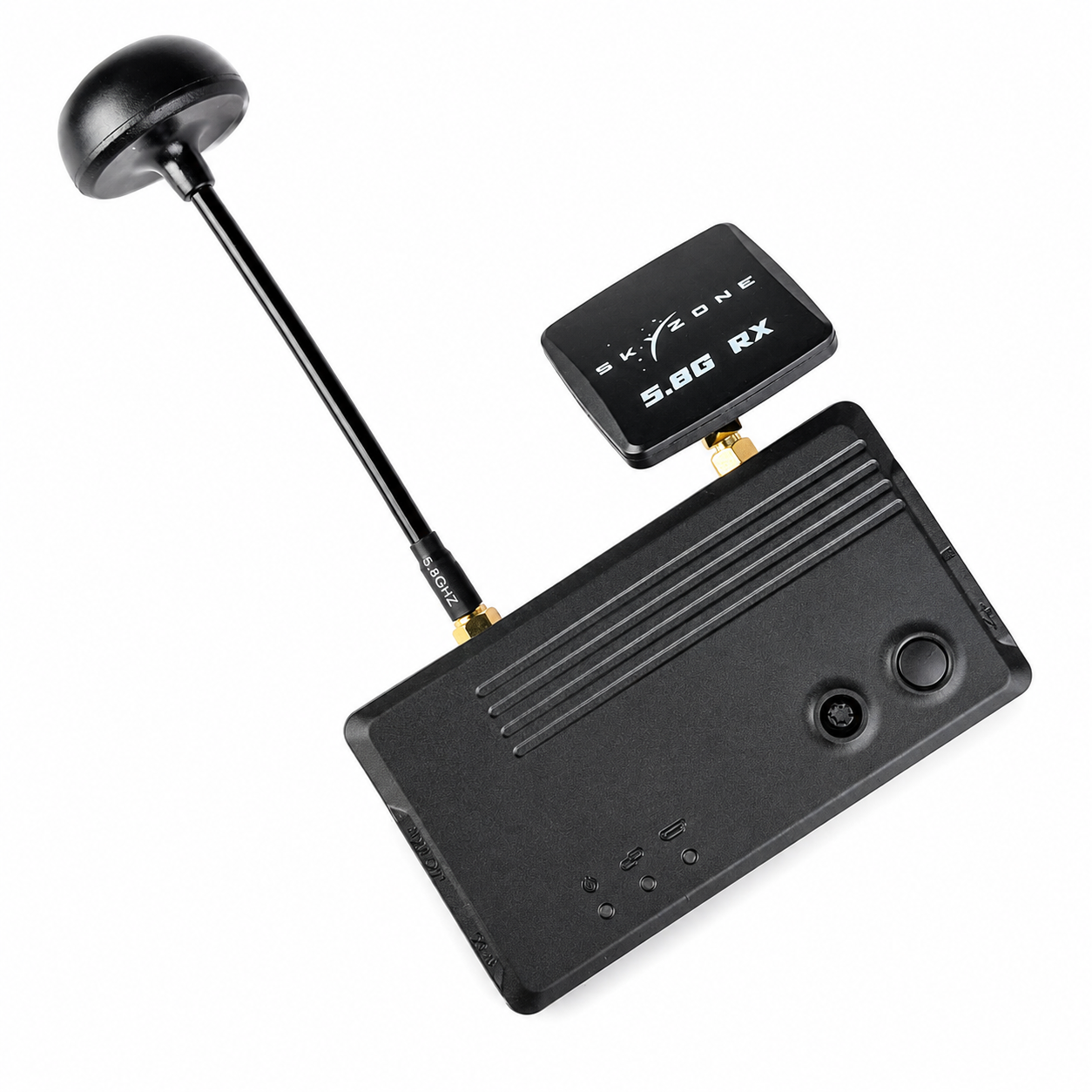

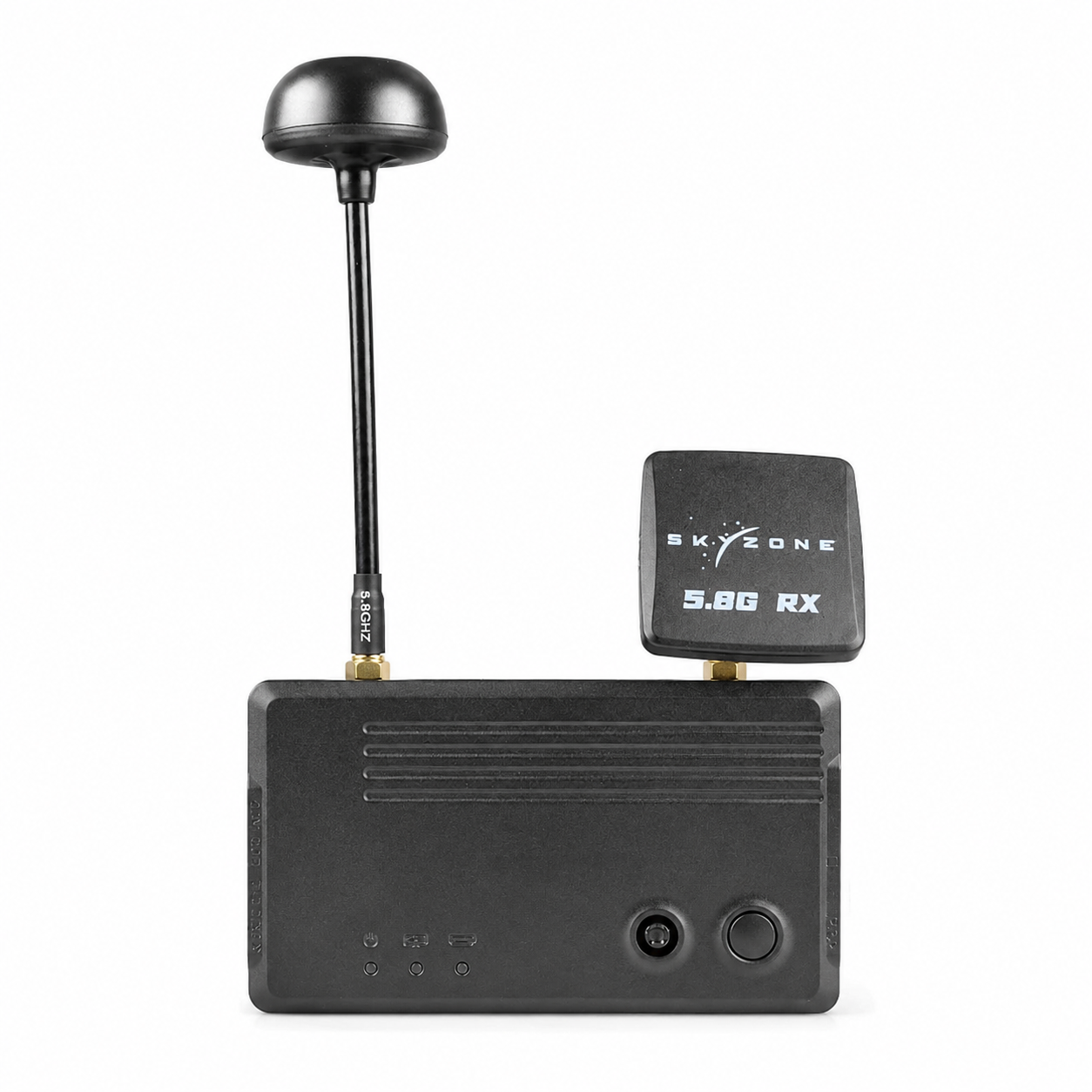

The SteadyDigital 10 PRO 5.8G VRX Module is Skyzone’s first flagship digital FPV video receiver, built to deliver ultra-stable, low-latency HD video reception for professional FPV drone pilots. As the cornerstone of Skyzone’s expanding digital ecosystem, it is fully compatible with a full range of Skyzone digital goggles, displays, and multiple air units for seamless pairing and cross-device integration.
Key Specifications:
Communication Frequency: 5.340GHz – 5.917GHz wideband coverage
Communication Bandwidth: 5MHz
Storage Support: SD card slot, compatible with up to 1TB capacity for on-ground DVR recording

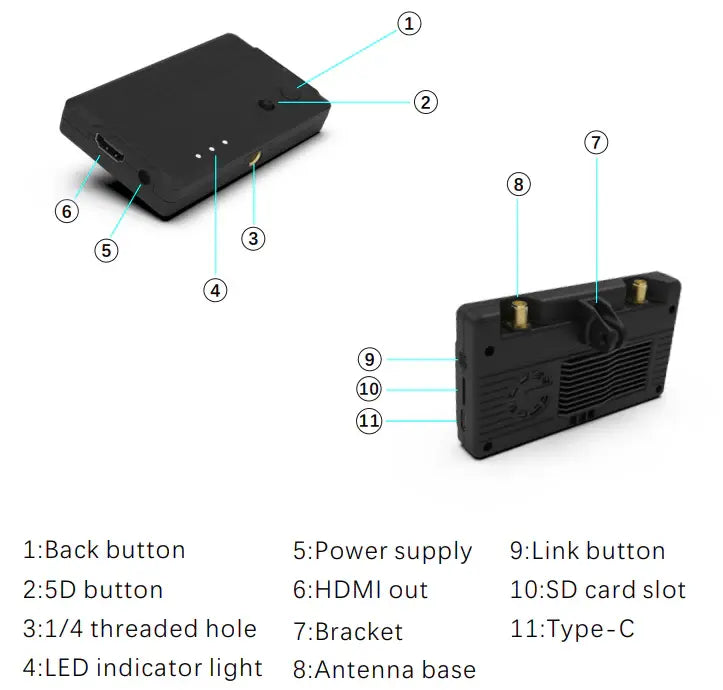

Interface:

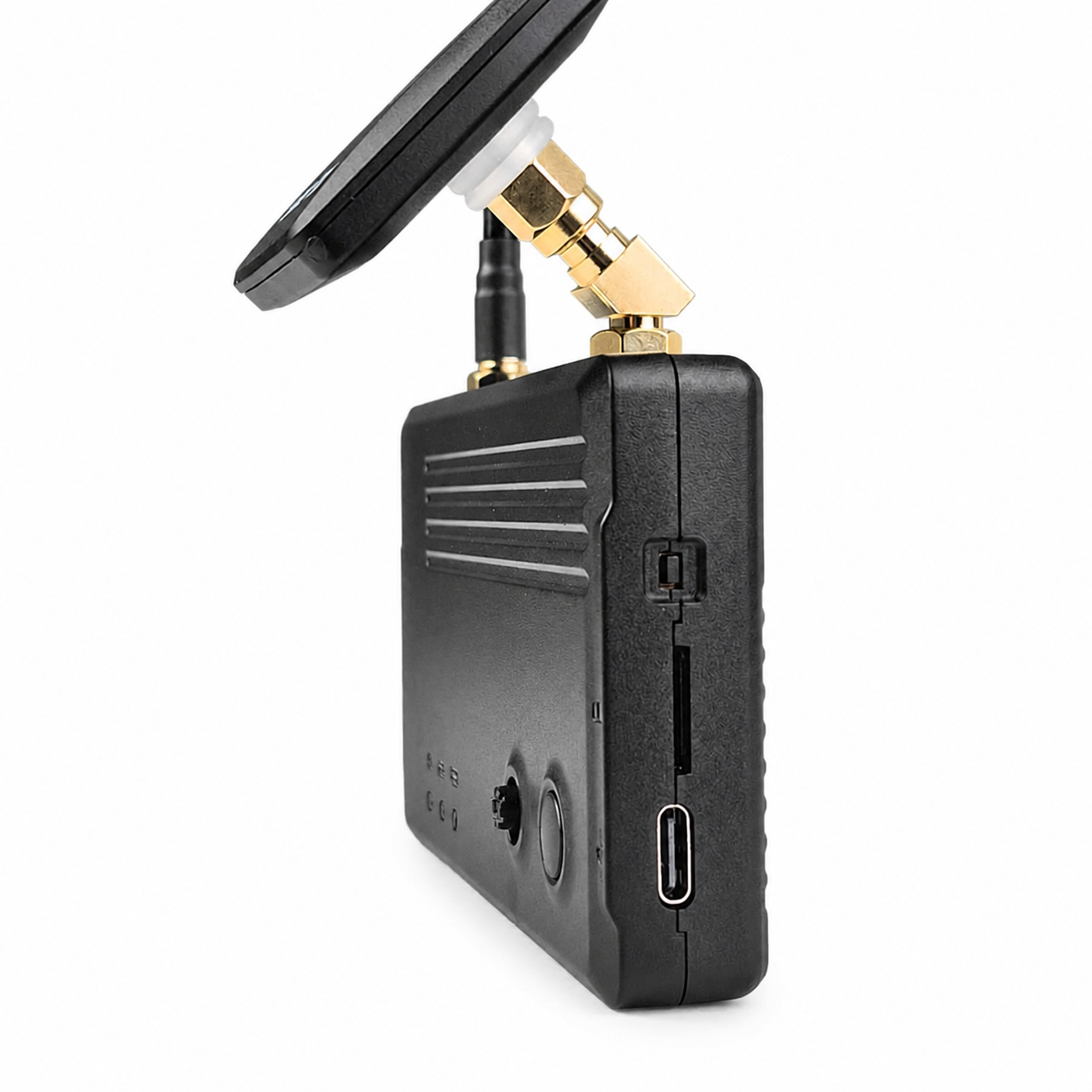

---Type-C port for firmware upgrades

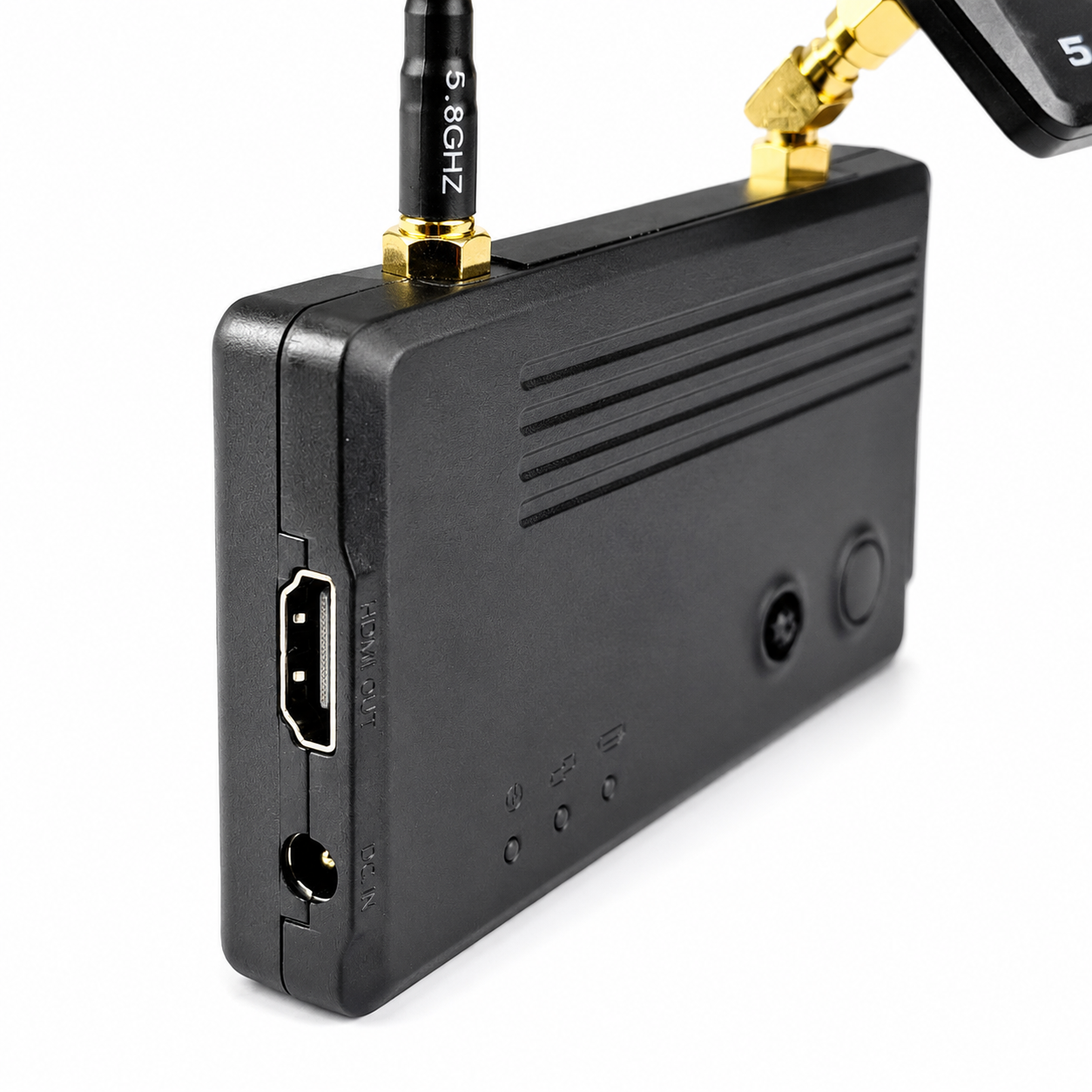

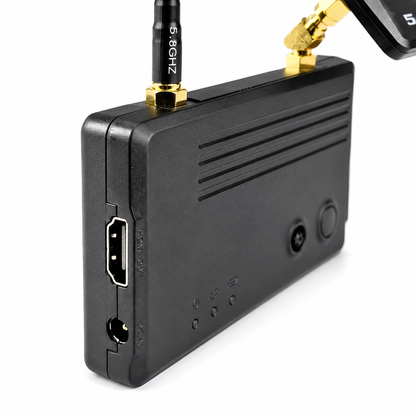

---Standard HDMI output for direct connection to displays, goggles, or monitors
Power Input: 8V-30V wide voltage input, compatible with most FPV drone power systems

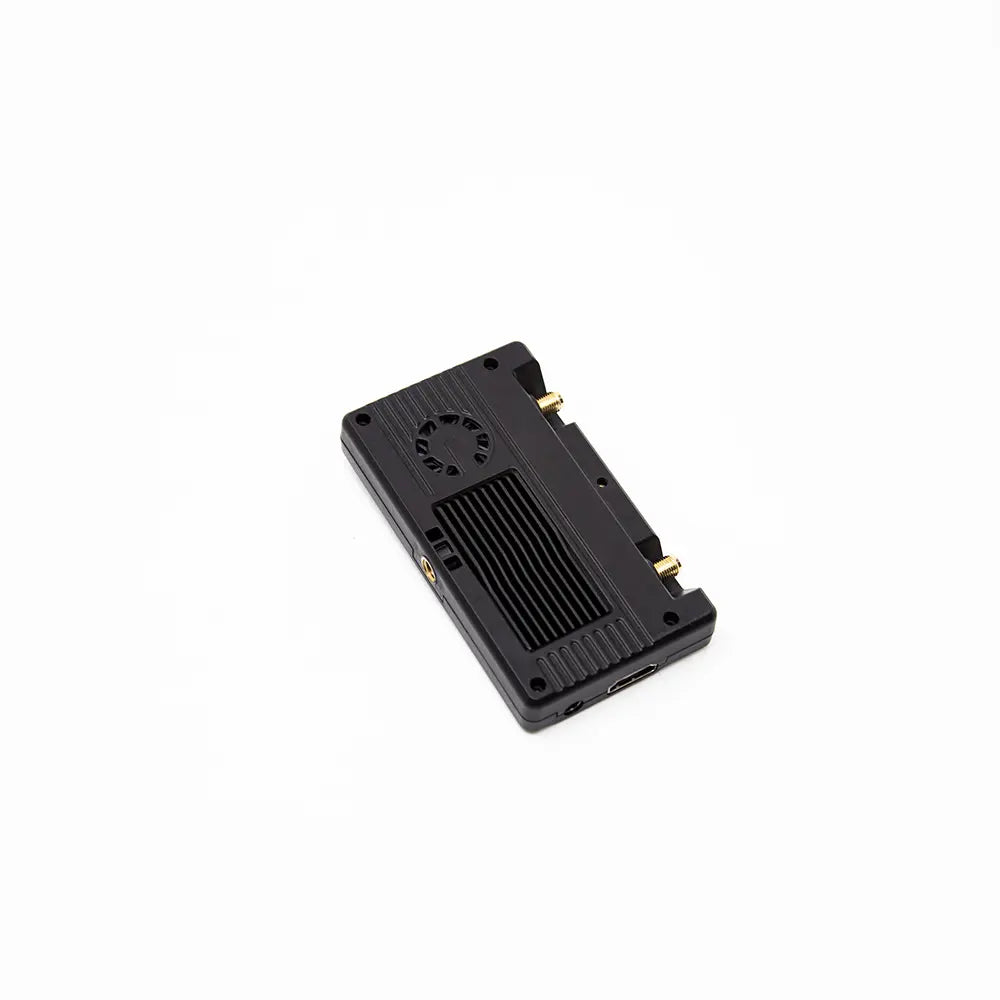

Physical Specs: 80.1g lightweight design, dimensions 104.4mm × 16.4mm × 59.1mm for easy installation
ArtLynn Video Transmission

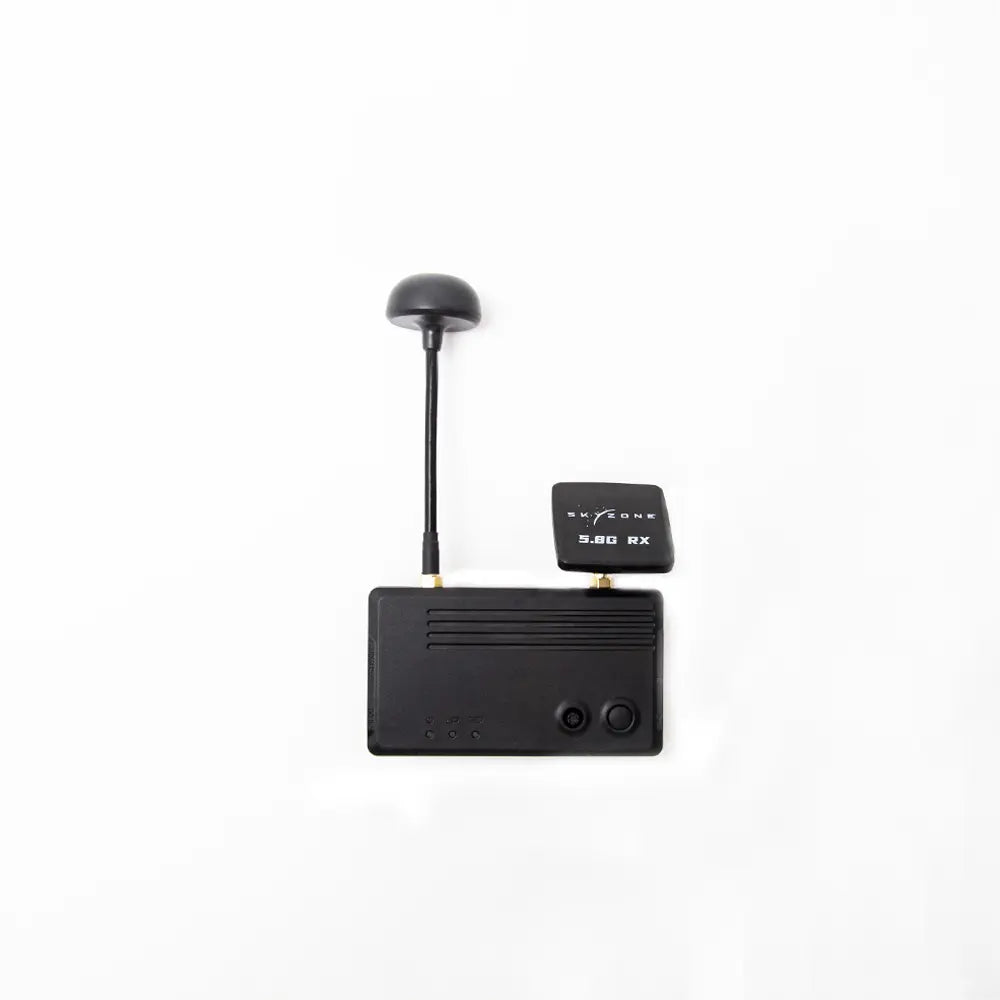

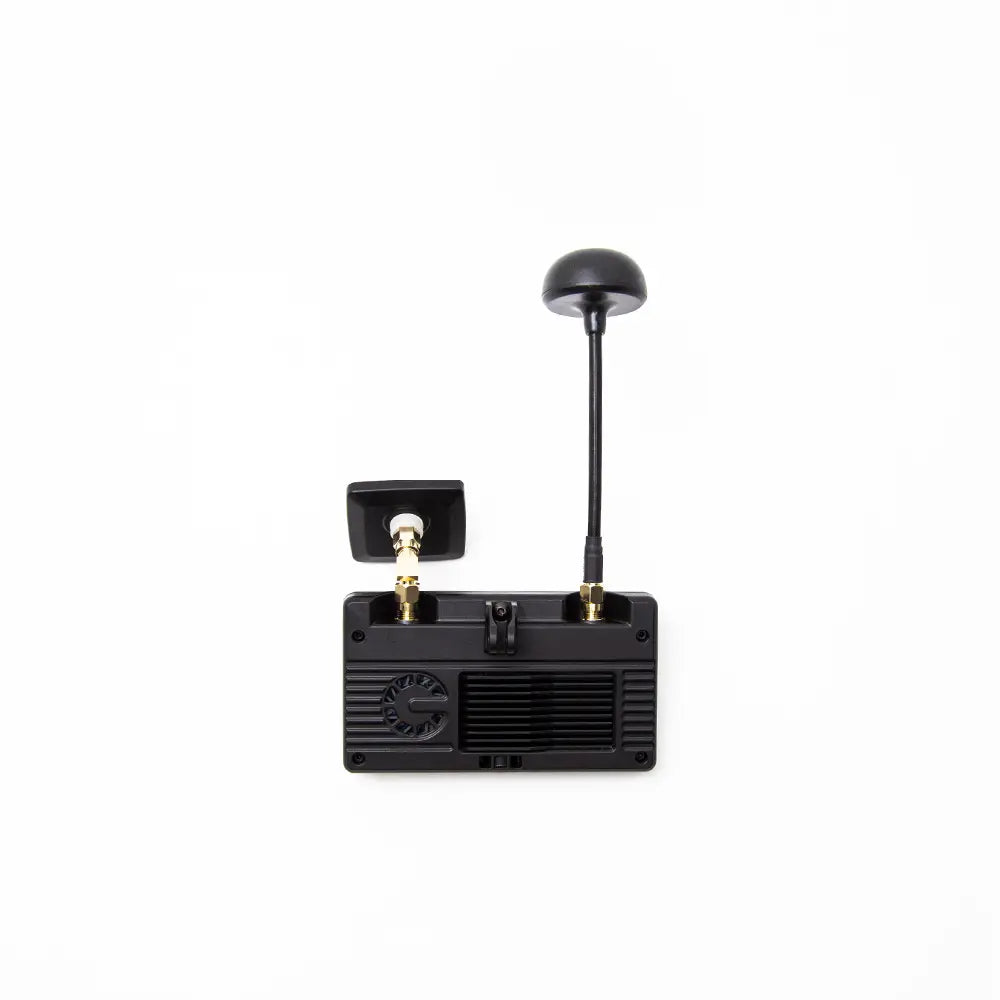

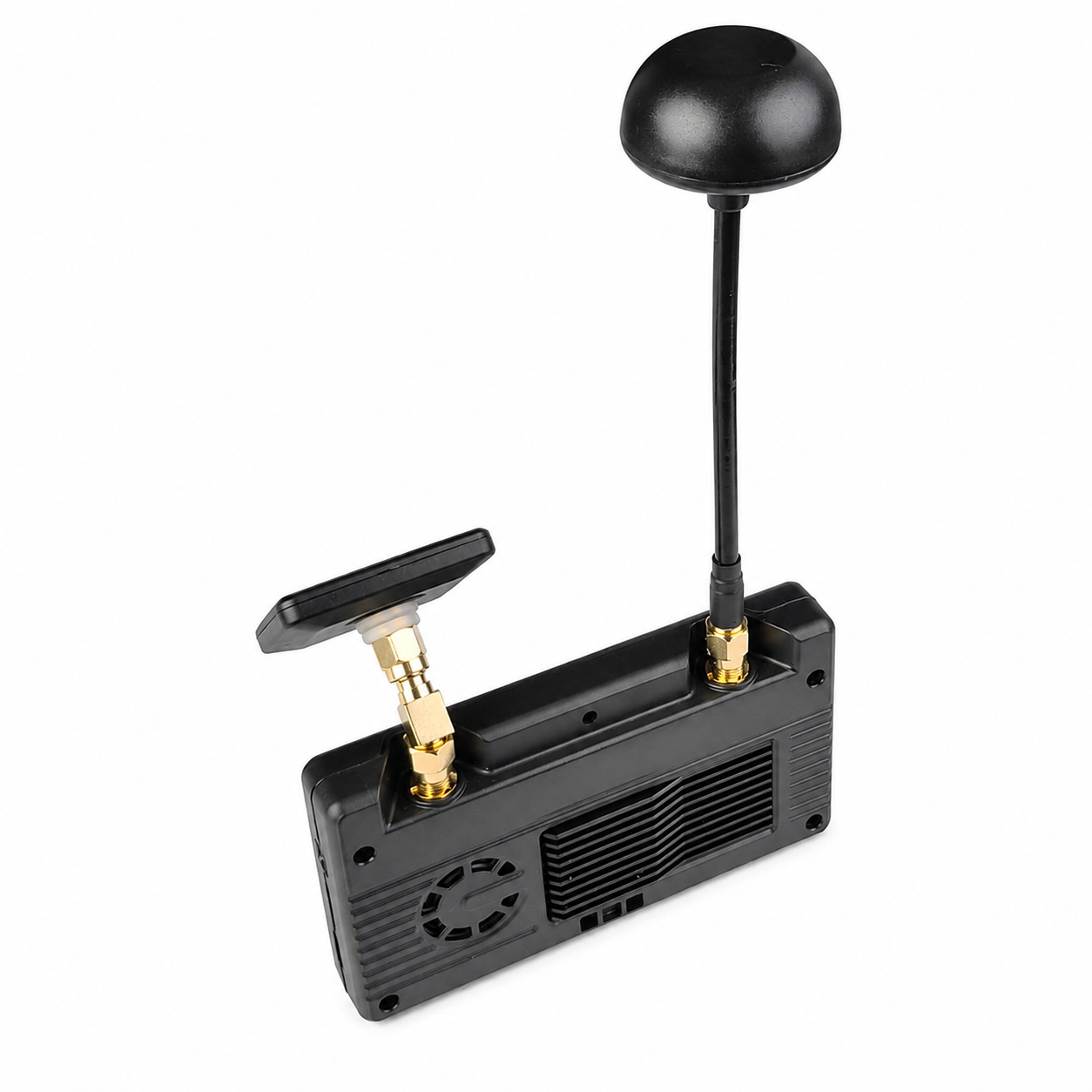

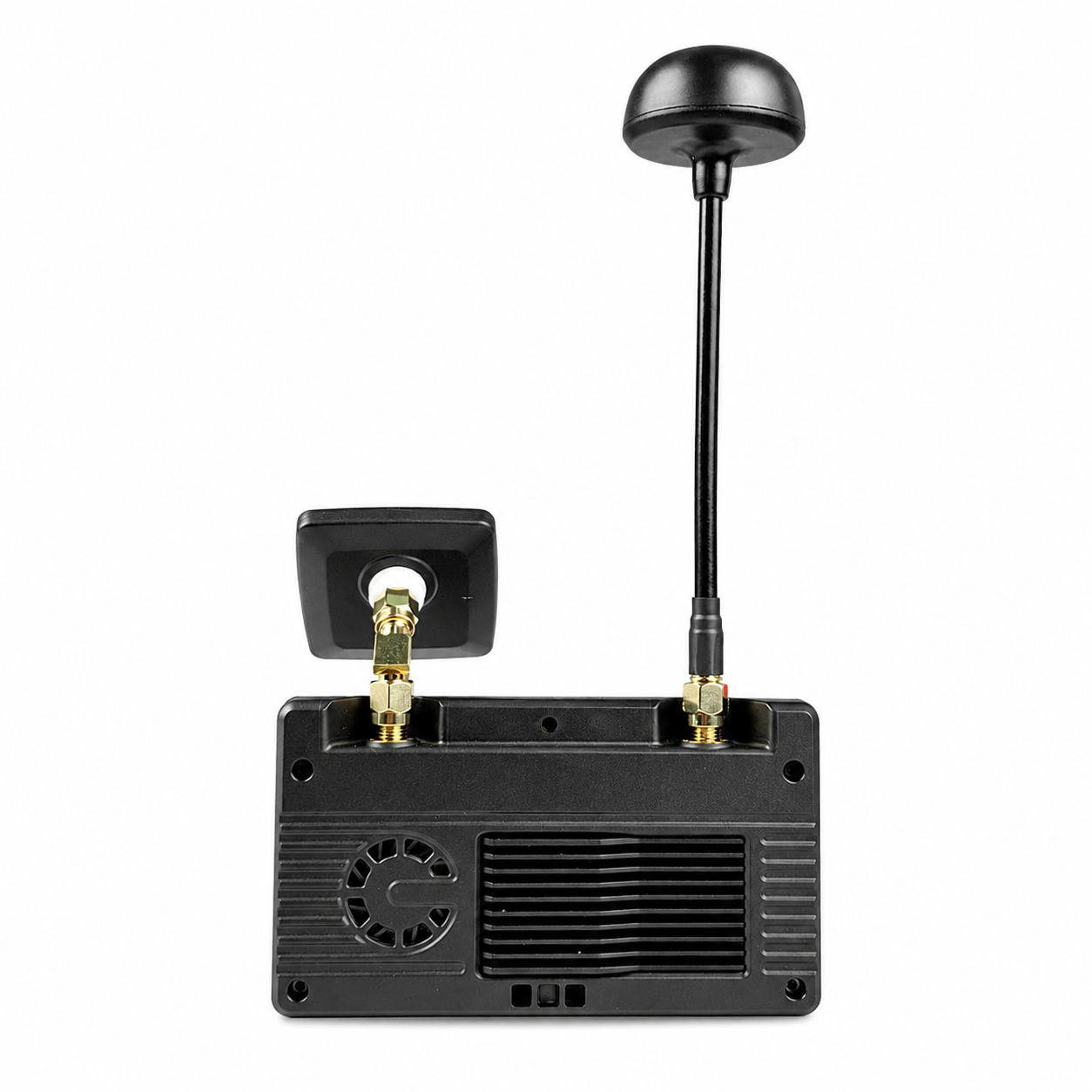

SystemDual‑Antenna Receiver
Supports HDMI Output
Supports Ground Station Recording
