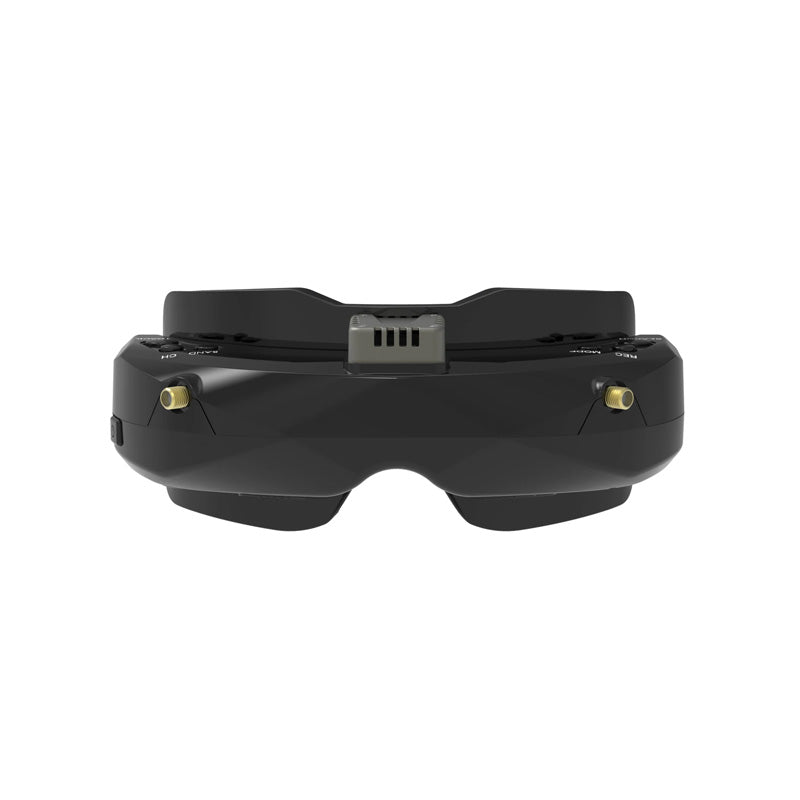

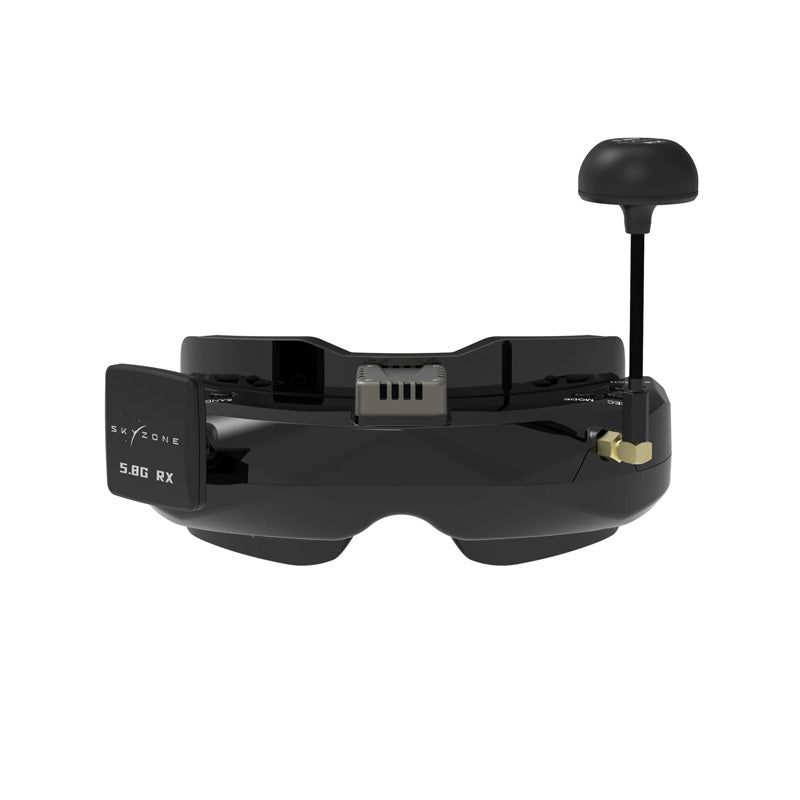

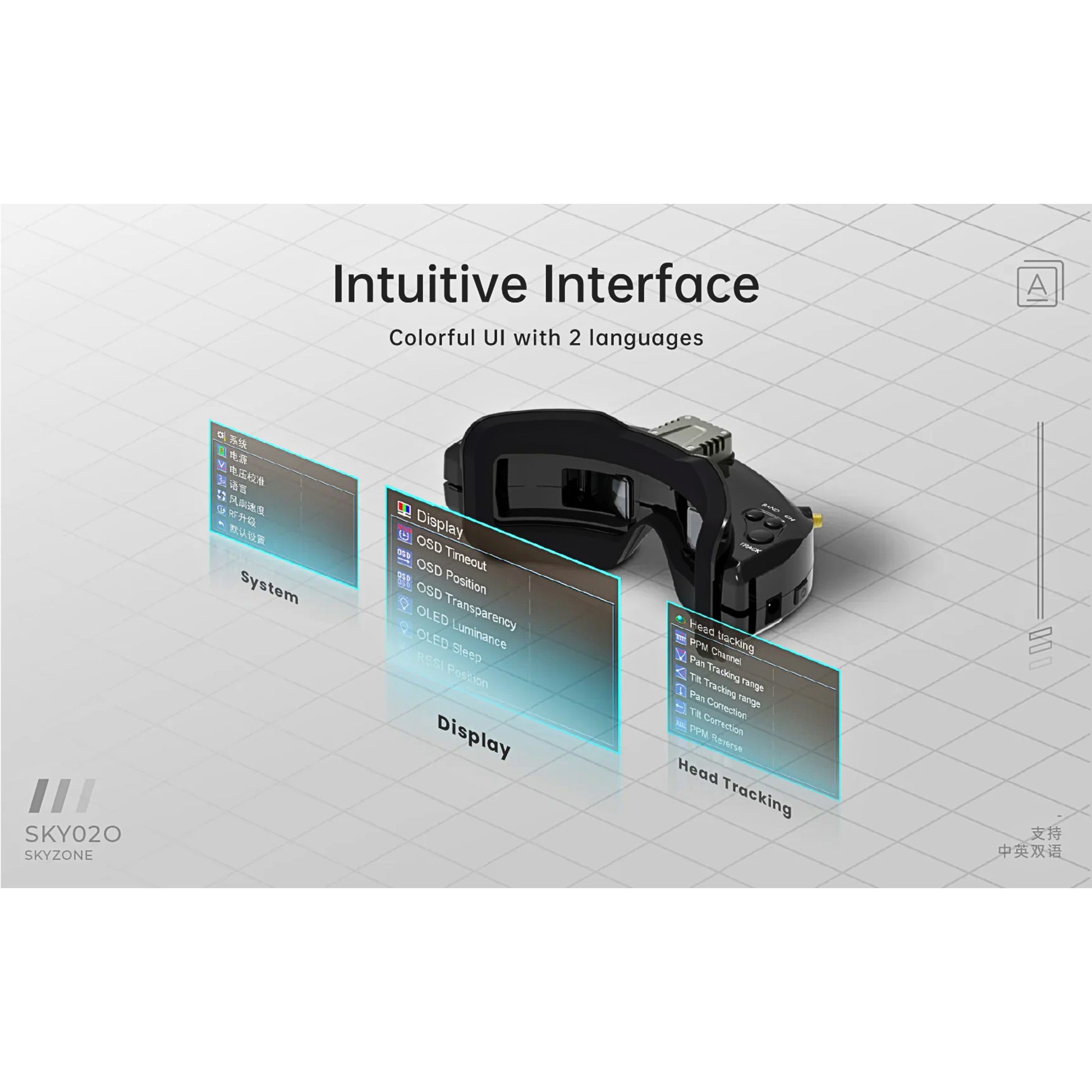

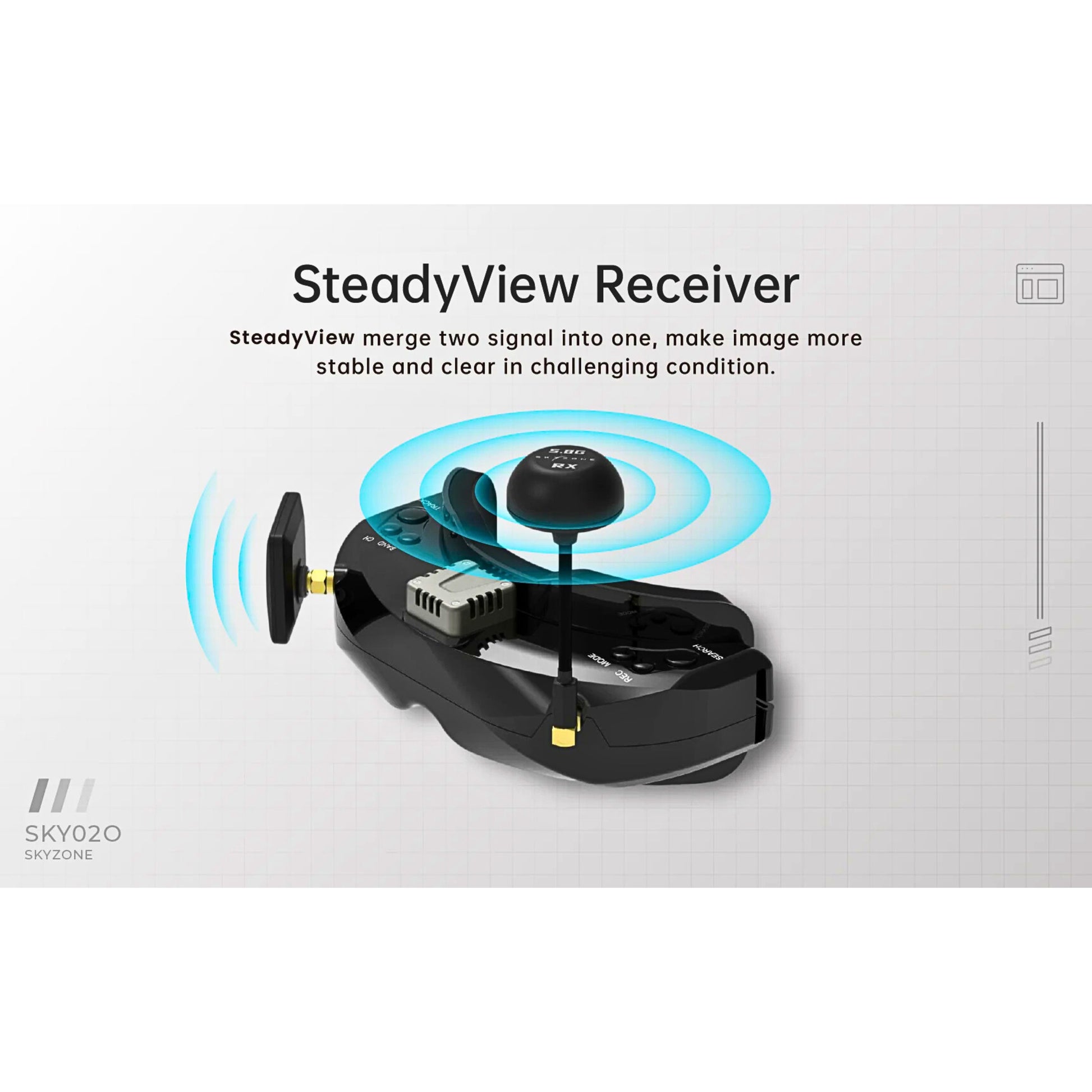

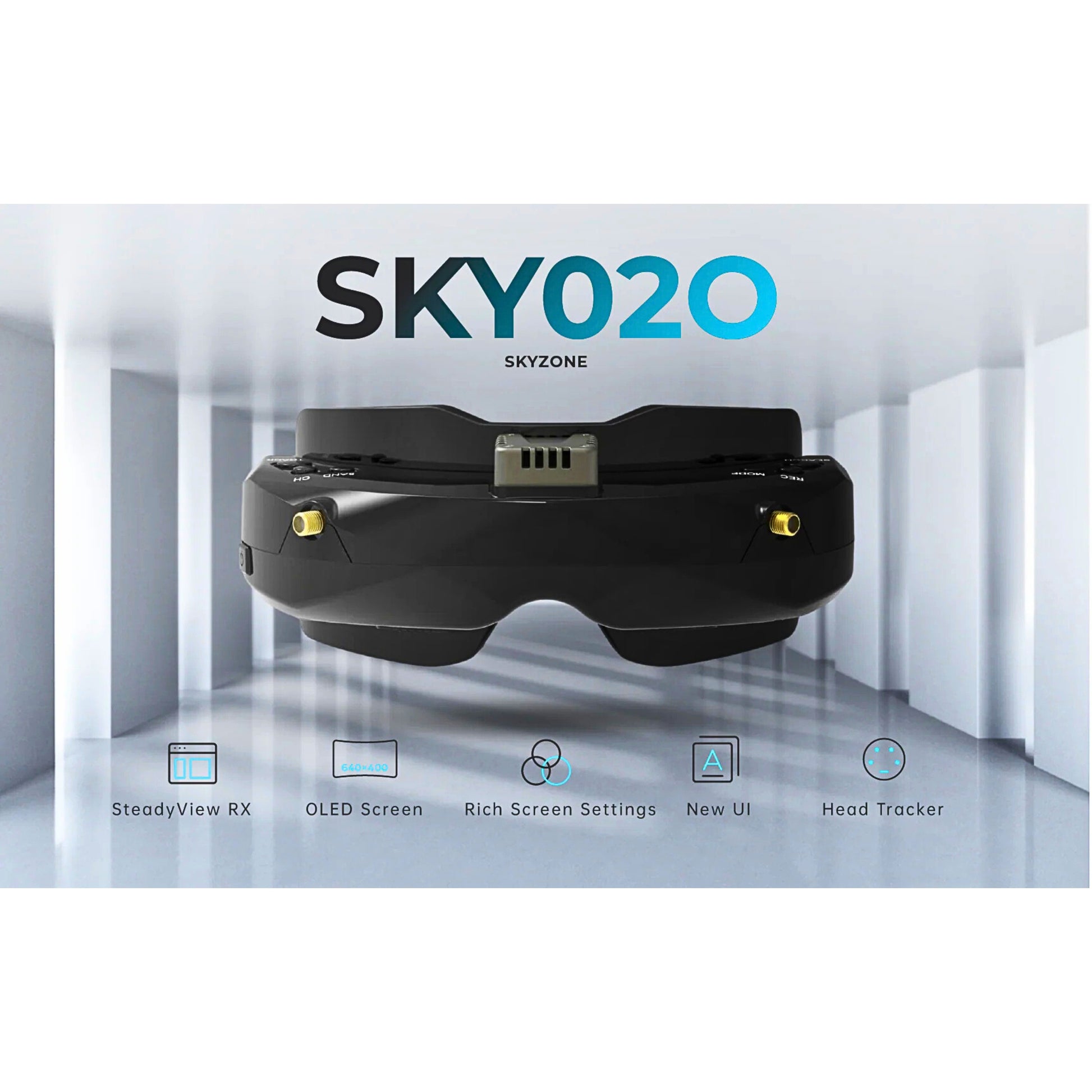

SKYZONE SKY02O FPV Goggle is the upgraded version of the classic SKY02 series, with 640*400 high OLED screen, the 02o FPV goggle has vivid colour and high contrast ratio, so the pilot can see more details in the racing. SKYZONE SKY02O FPV Goggles offer an immersive flying experience with their OLED displays, 5.8GHz SteadyView Diversity RX, and built-in head tracker. Along with AV IN/OUT for RC Racing Drones, these goggles have an integrated DVR to record your flight data. Experience the ultimate in FPV technology. With a steady view receiver, the receiver of the 020 FPV goggle merges two signals into one, avoiding image tearing and rolling, and making the image more stable and clear in challenging conditions. 7 DBI of the patch antenna comes with 02O. The new user of the Skyzone 020 FPV goggle interface has better logic, and the user can easily navigate in the menu.
Features:
- Channel Scanning: Automatic scanning for available channels.
- Language Support: Menu available in both Chinese and English.
- Voltage Support: Compatible with 2S-6S LiPo batteries for flexibility.
- Head Tracker: Built-in head tracker for enhanced control.
- Video Support: Supports MJPEG, 30 fps, AVI format, and SD cards up to 64GB.
- Antenna Options: Comes with both patch and omni antennas for versatile reception.
Package Include:
1× SKY02O V2 Goggles
1× Carry Case
1× Data Cable
1× JR Data Cable
2× 5.8Ghz Antenna(Patch and Ommi)
1× Sponge with Velcro
1× AV Cable
1× DC to XT60 Power Cable

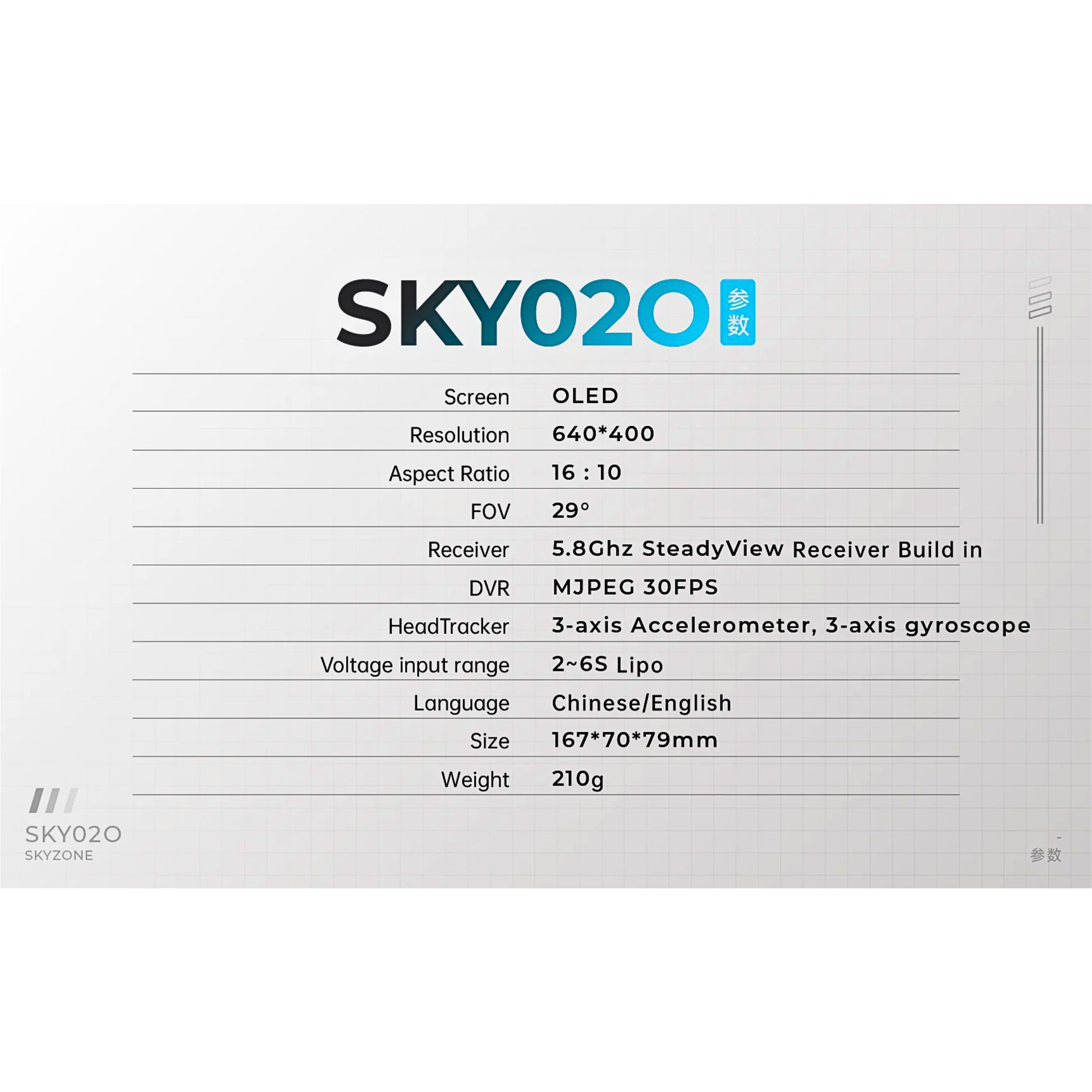

Specification:-
Display Type |
OLED |
---|---|
Display Resolution |
640×400 |
Field of view (FOV) |
29° (diagonal) |
Aspect Ratio |
4:3 / 16:9 |
Focus |
-6 to +2 (adjustable) |
IPD Visual Range |
59-69 mm |
Receiver |
5.8Ghz 48CH V3.3 SteadyView Receiver |
Voltage Input |
2~6SLiPo |
HDMI |
720P at 100 FPS |
Built-in sensors |
3-axis Accelerometer, 3-axis gyroscope |
SD Card Support |
Up to 64GB |
Video Format Supported |
MJPEG, 30 fps, AVI |
Antenna Type: |
Patch and Omni |
Shipping Weight | 0.69 kg |
Shipping Dimensions | 24 × 16 × 10 cm |
