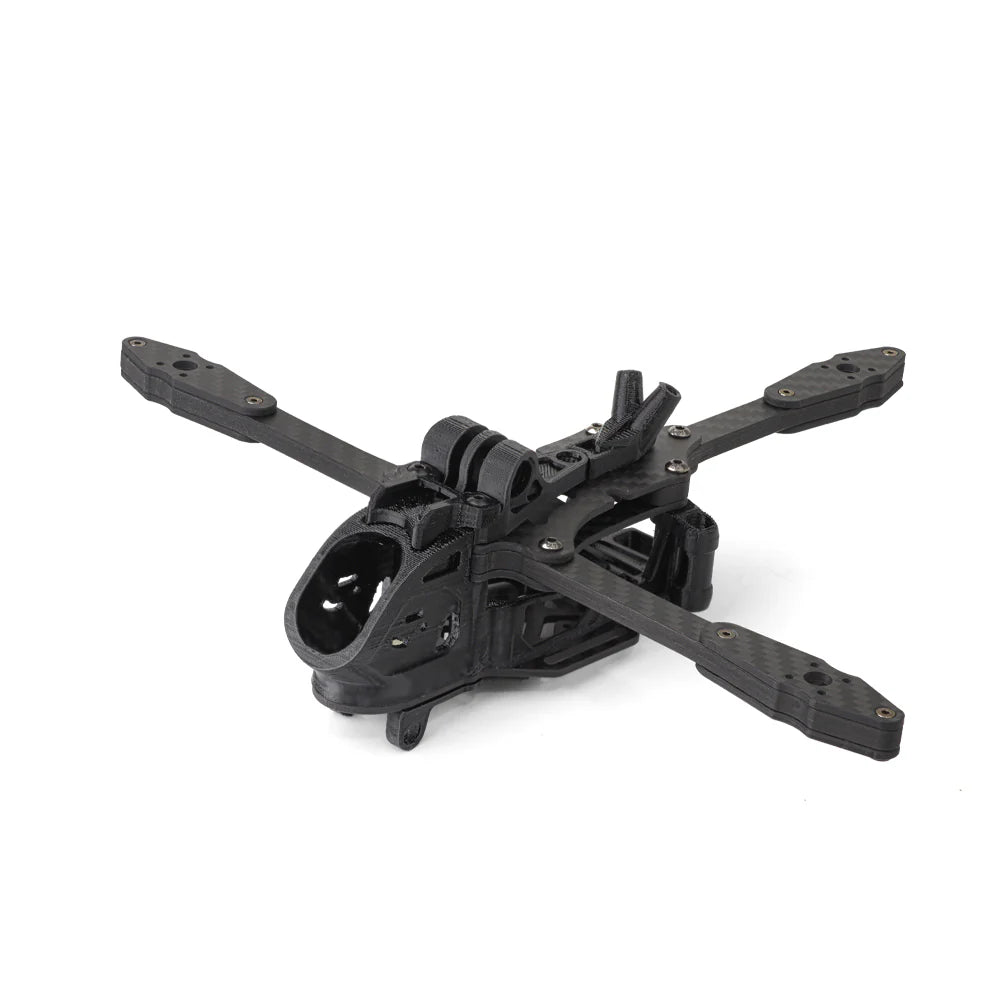

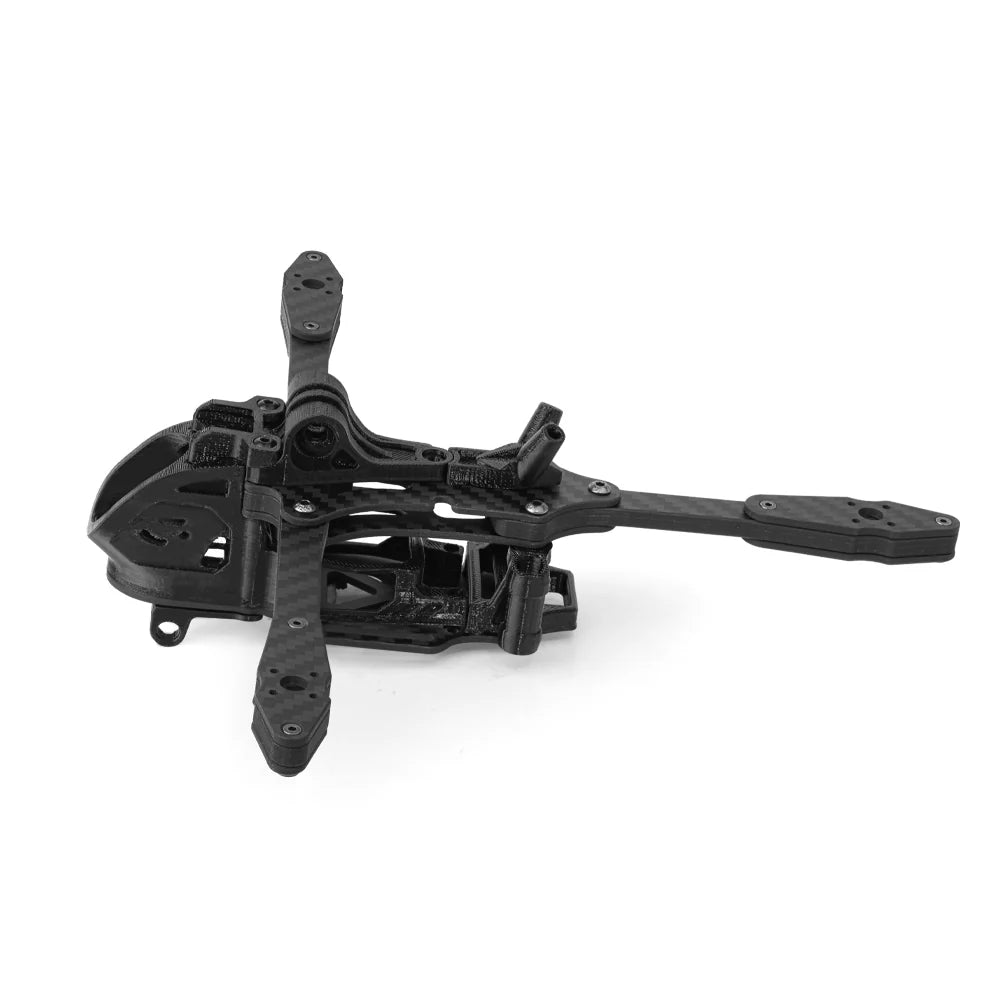

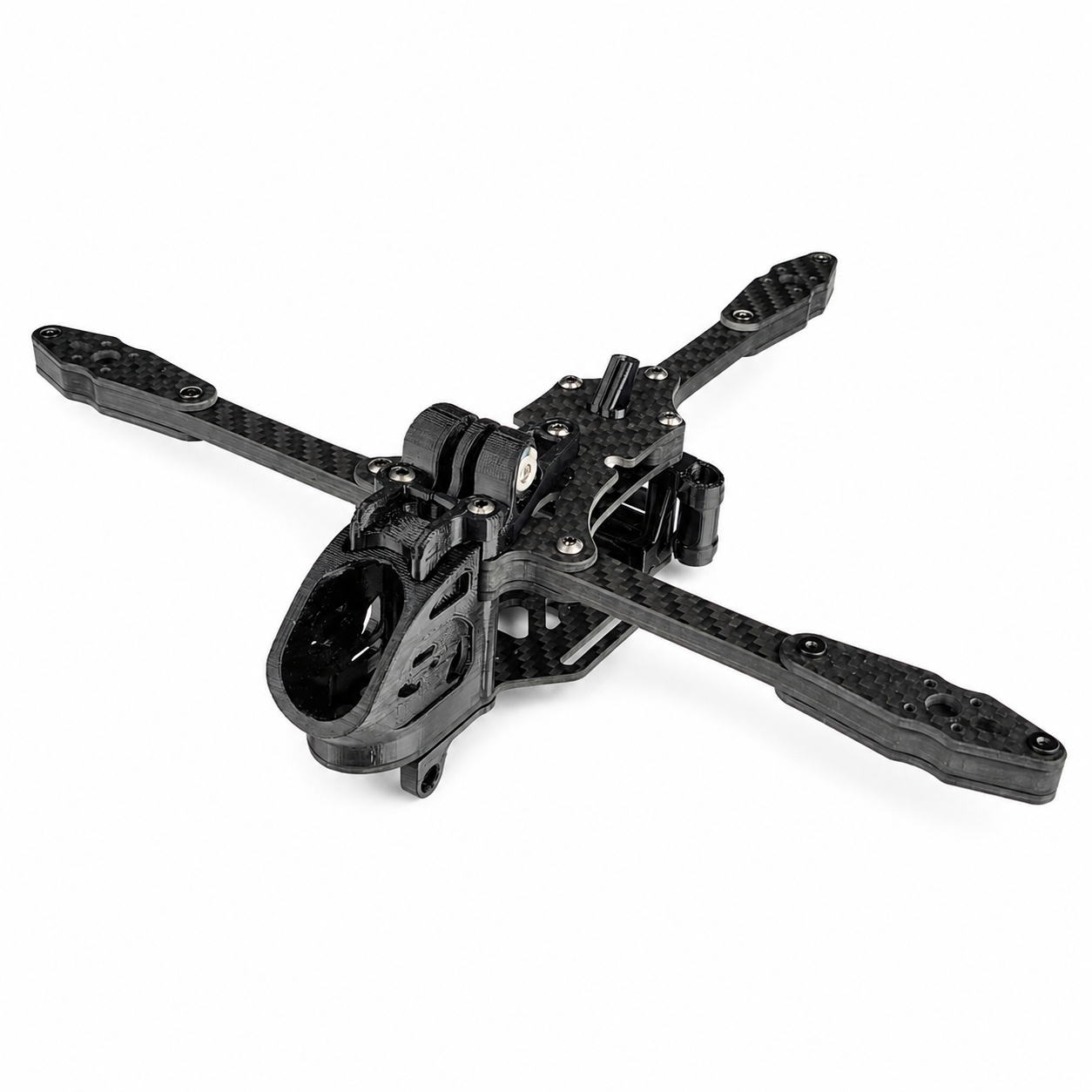

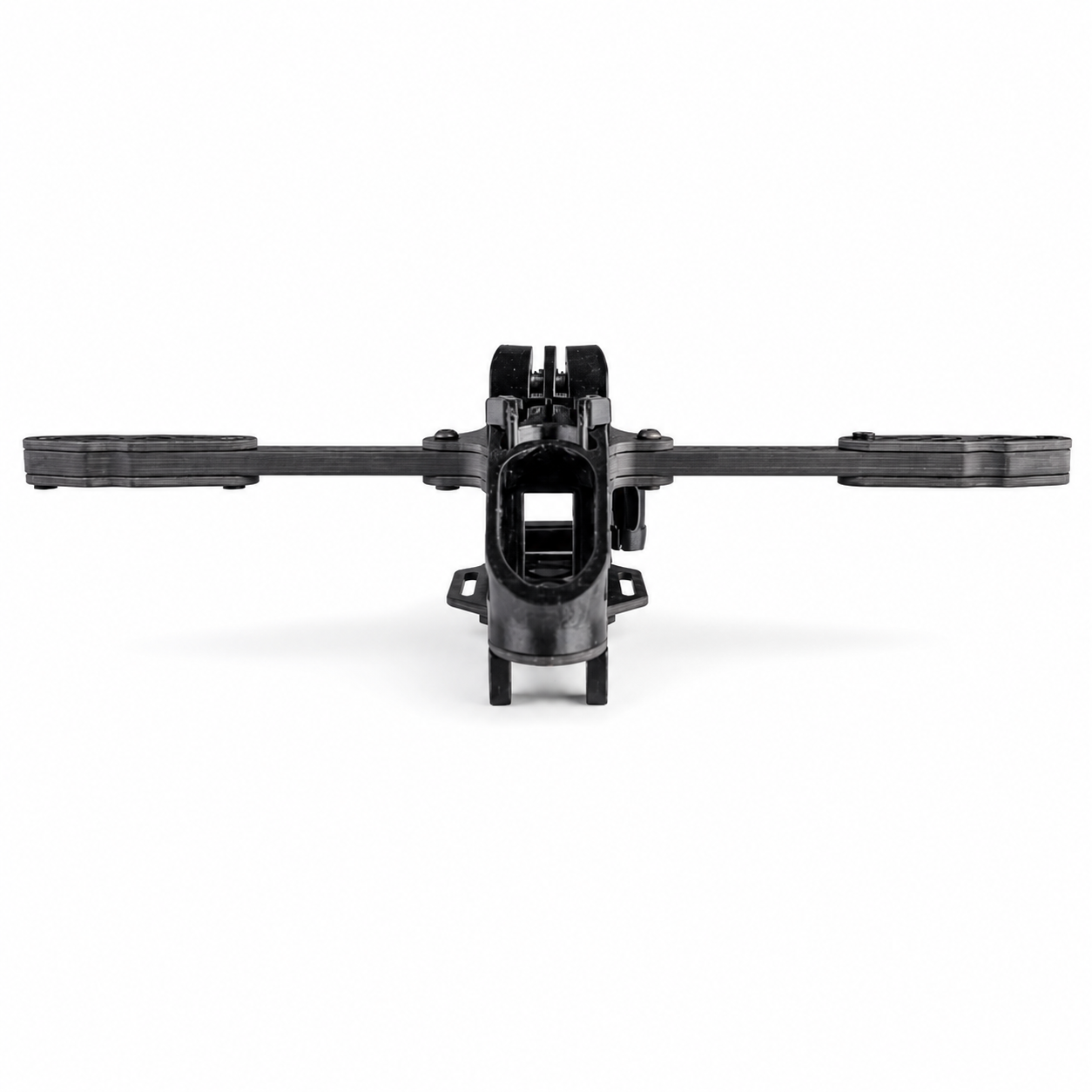

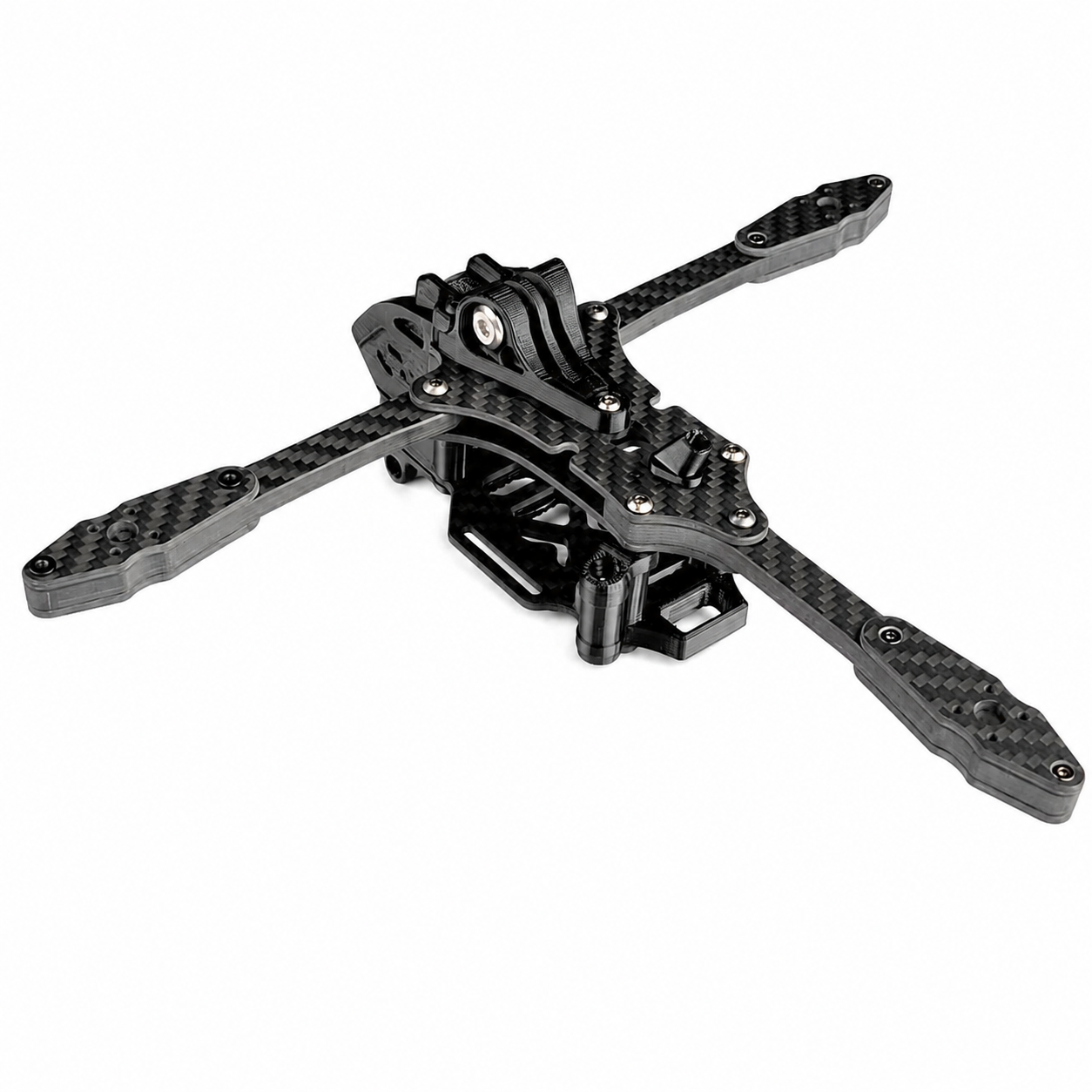

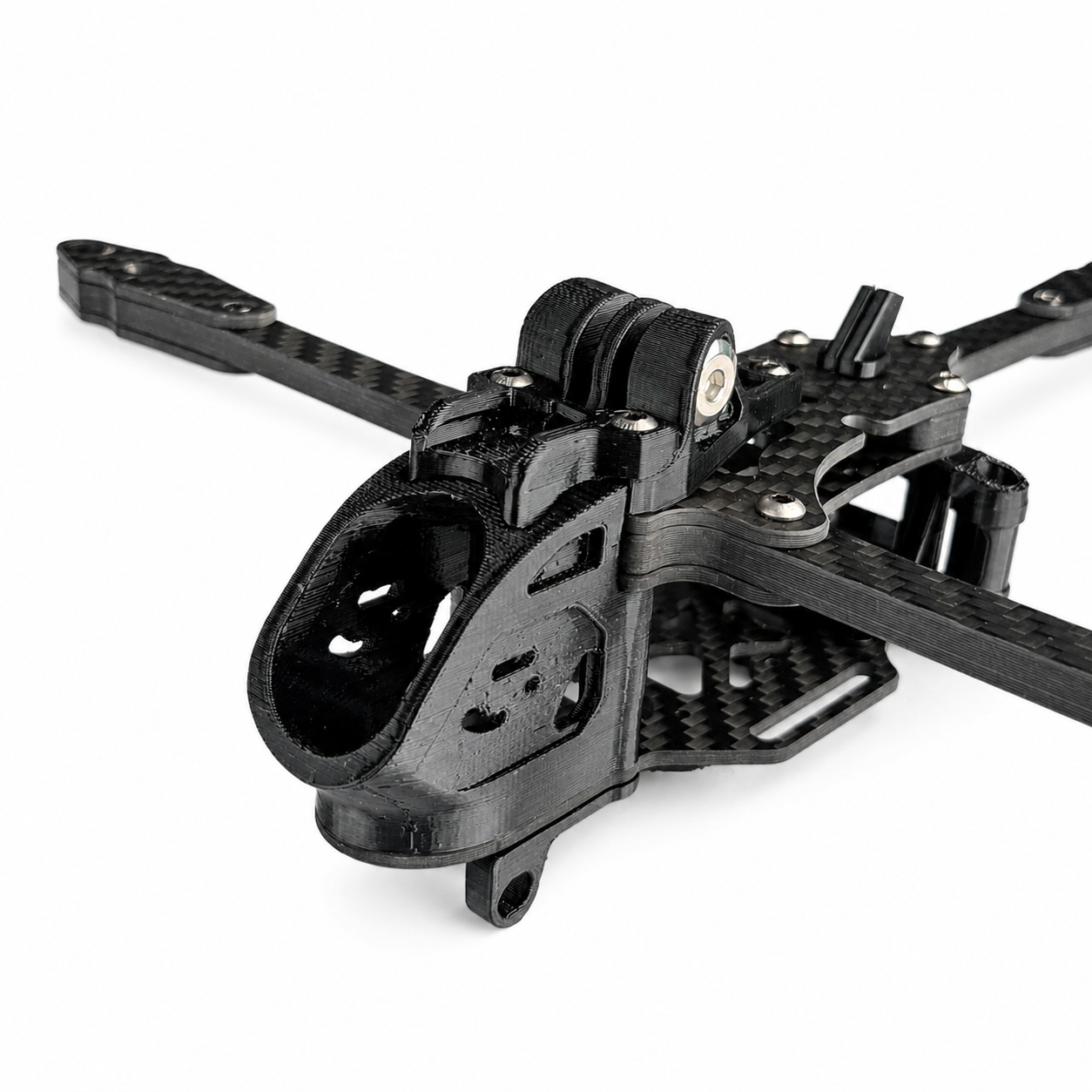

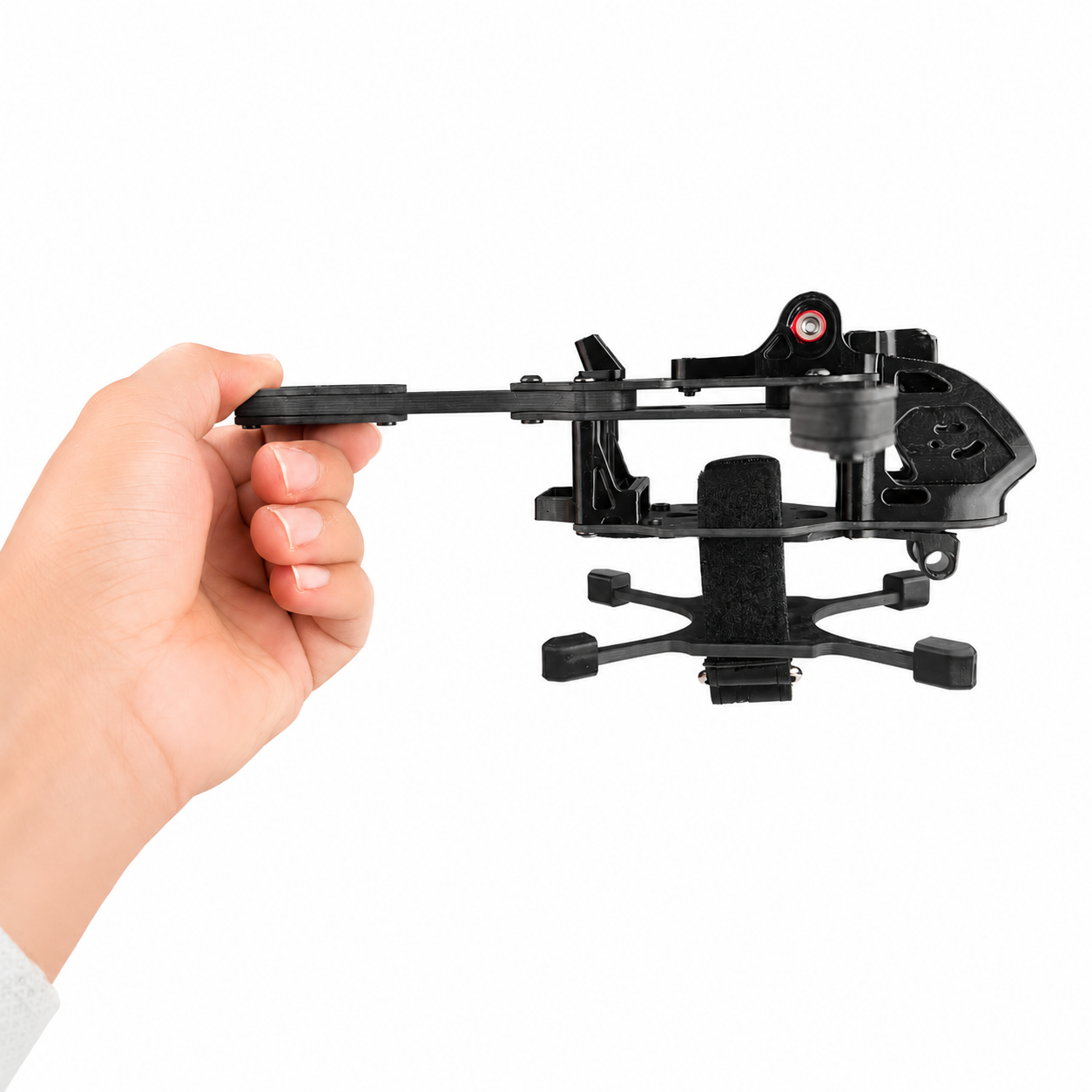

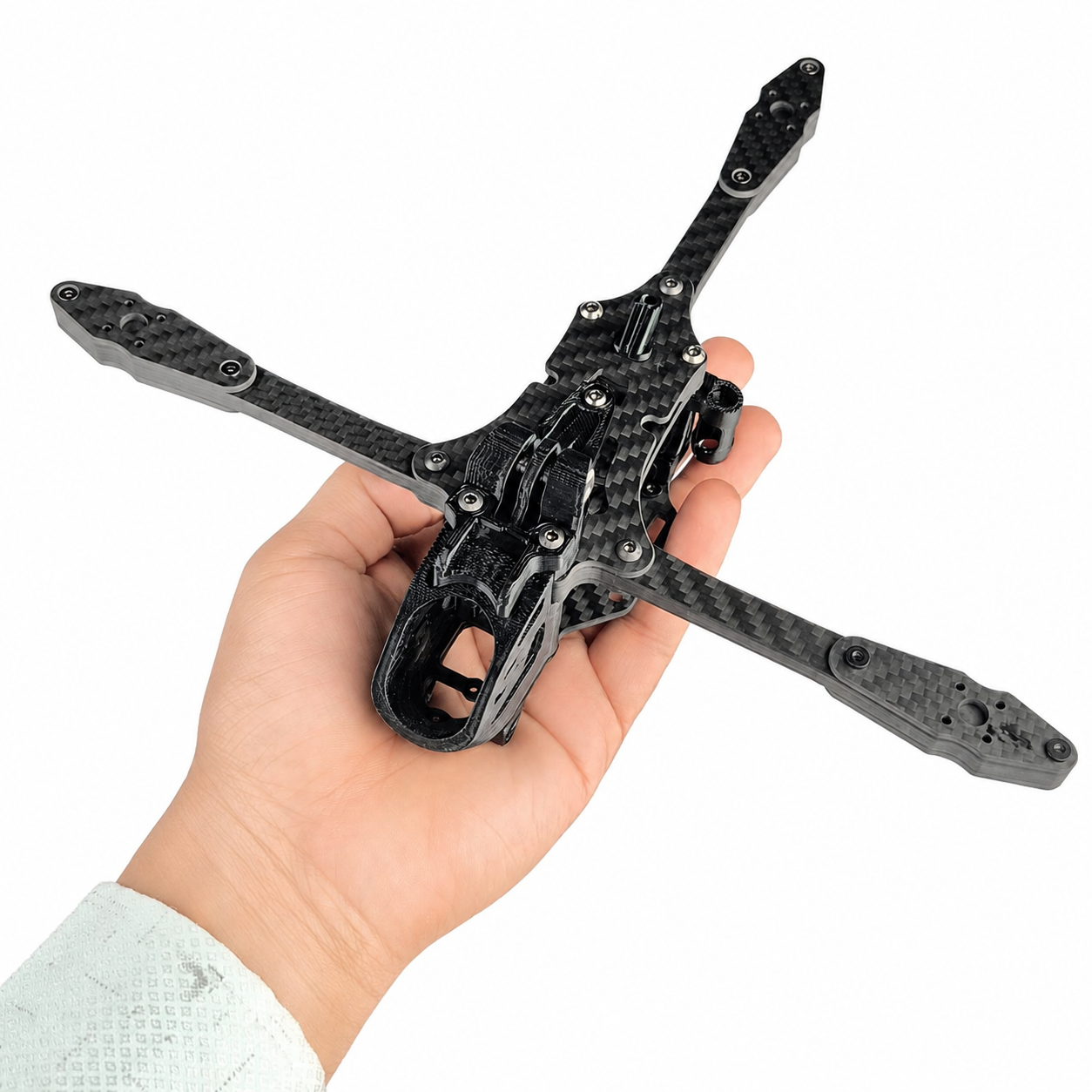

Rekon Y6 5-Inch FPV Frame Kit (Analog / O3 / O4 / Moonlight Compatible)
Product Overview
The Rekon Y6 5-Inch Frame Kit is designed for long-range FPV enthusiasts seeking a powerful yet compact setup. With a 50% increase in propeller area compared to a standard 5-inch quadcopter, this frame provides superior lift and stability — capable of carrying a full-sized action camera while maintaining a sleek, portable design.
Key Features:
Increased Propeller Area
50% larger prop area compared to a standard 5-inch quad for enhanced thrust and load capacity.
Fixed Power Connector
Reduces vibration and prevents connection instability during flight, ensuring smoother performance.
Side Antenna Mount Option
Flexible antenna installation — supports dual-antenna receiver setup to eliminate signal dead zones.
Unobstructed Camera View
Propeller positioning ensures a clear field of view for action cameras — no more prop blur in your footage.
GPS Compatibility
Comes with an M100 Mini GPS holder for precise positioning and stable flight performance.
Specifications:-
| Specification | Details |
|---|---|
| Product Name | Rekon Y6 Frame Kit |
| Material | 3K Carbon Fiber |
| Frame Type | 5-Inch |

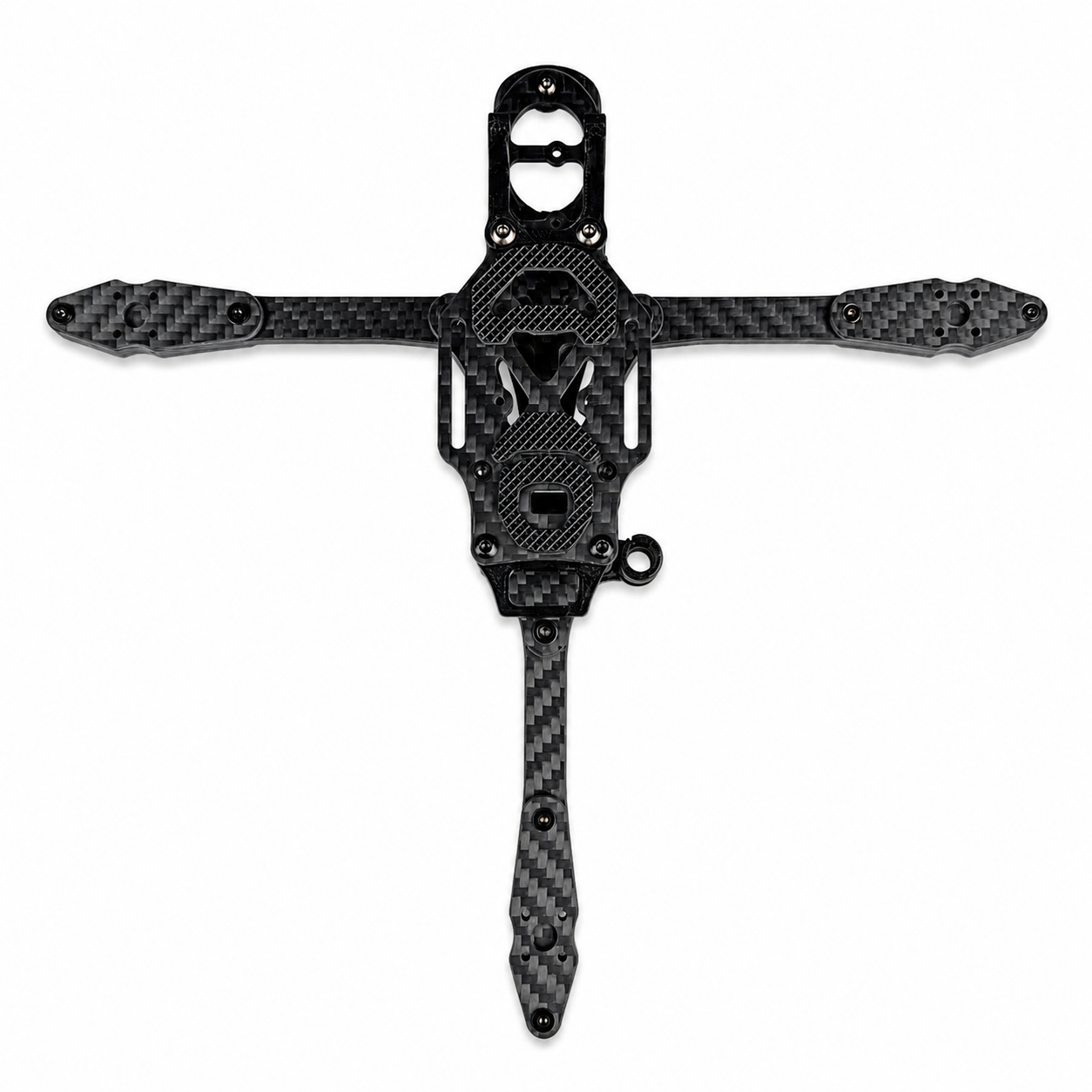

| Wheelbase | Front: 200mm / Rear: 170mm |
| Top Plate Thickness | 2mm |
| Bottom Plate Thickness | 2mm |
| Middle Plate Thickness | 2mm |
| Front Arm | 5mm |
| Rear Arm | 5mm |

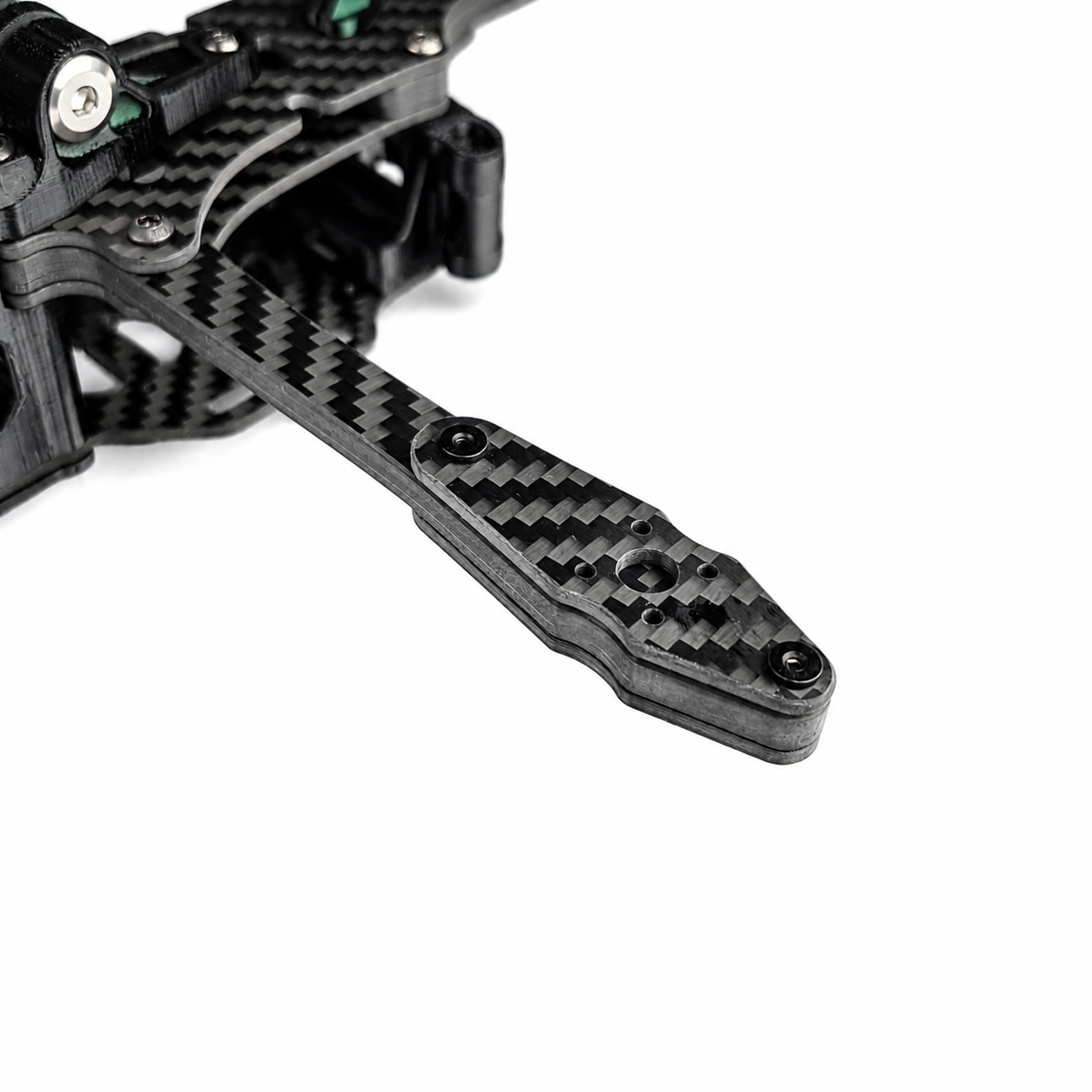

| Motor Mount Plates (A/B) | 2mm each |
| Bottom Plate Support | 3mm |
| Top–Middle Plate Spacing | 25mm |
| Flight Controller Mounting | 25.5×25.5mm |
| Camera Mount | 19×19mm / 20×20mm |
| Motor Mounting Hole | 12×12mm |
| Weight | 119g |
