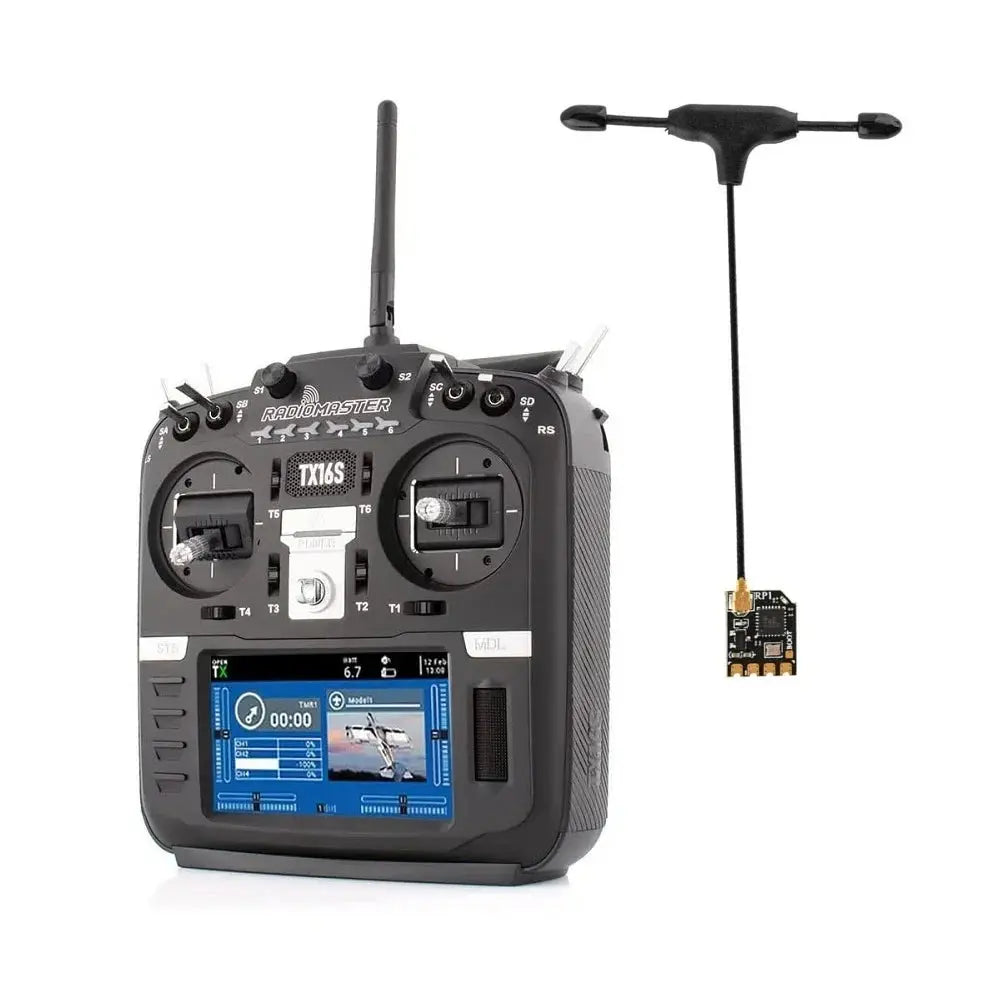

The Radiomaster TX16S MKII HALL V4.0 is a popular radio transmitter designed for radio-controlled models, and it’s often used in the RC hobby community. ExpressLRS is an open-source, low-latency, long-range RC link firmware, and RP1 is one of the ExpressLRS receiver options.
Features:
- Improved internal circuitry and optimized power supply.
- New charge circuitry with integrated reverse-polarity protection.
- Optimized charge IC now allows up to 2.2A internal USB-C charge current.
- Rear-mounted audio jack provided headphone output.
- V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01).
- Optional high/low rear grips are included for improved ergonomics.
- Improved S1/S2 knobs with clear center detents.
- Improved LS/RS Sliders with a smoother feel and better center detents.
- Redesigned battery cover for improved battery access.
- Retooled body shell with improved fit and finish.
- Trainer socket changed to standard TRS 3.5mm socket.
- Rear DIY Socket added for personalized mods.
- Improved internal plastics for better longevity.
Package Includes:
1× TX16S Mark II Radio Controller
1× USB-C Cable
1× Screen Protector
1× Pair of flat grips
1× Pair of raised grips
1× TX16S Key Chain
1× User Manual
| Specification | Details |
|---|---|
| Model | Radiomaster TX16S MKII HALL V4.0 ELRS |
| Receiver Included | RP1 ExpressLRS 2.4GHz Nano Receiver |
| Radio Protocol | ExpressLRS 2.4GHz |
| Gimbals | Hall Sensor Gimbals (Upgraded for precision) |
| Screen | 4.3” Color IPS LCD |
| Operating System | OpenTX/EdgeTX Compatible |
| Antenna | Detachable, 2.4GHz Antenna |
| Channels | 16 (expandable up to 24 with module) |
| Internal RF Module | ExpressLRS 2.4GHz |
| External Module Bay | JR-style, supports various protocols like Crossfire |
| Battery | 2 x 18650 or 2S LiPo (not included) |
| Charging Port | USB-C for internal charging |
| USB Support | USB-C (Firmware updates, simulator, and charging) |
| Build Material | Plastic (with rubber grips) |
| Audio Output | Speaker and 3.5mm headphone jack |
| Telemetry | Yes (via ELRS) |
| Compatibility | Supports many protocols through external modules |
| Weight | Approx. 750g (without batteries) |
| Size | 287 x 183 x 129 mm |
