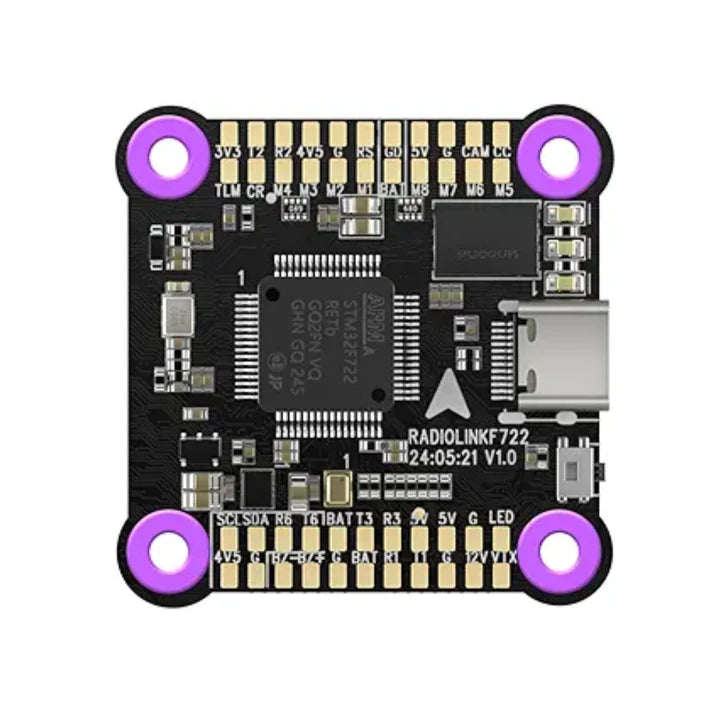

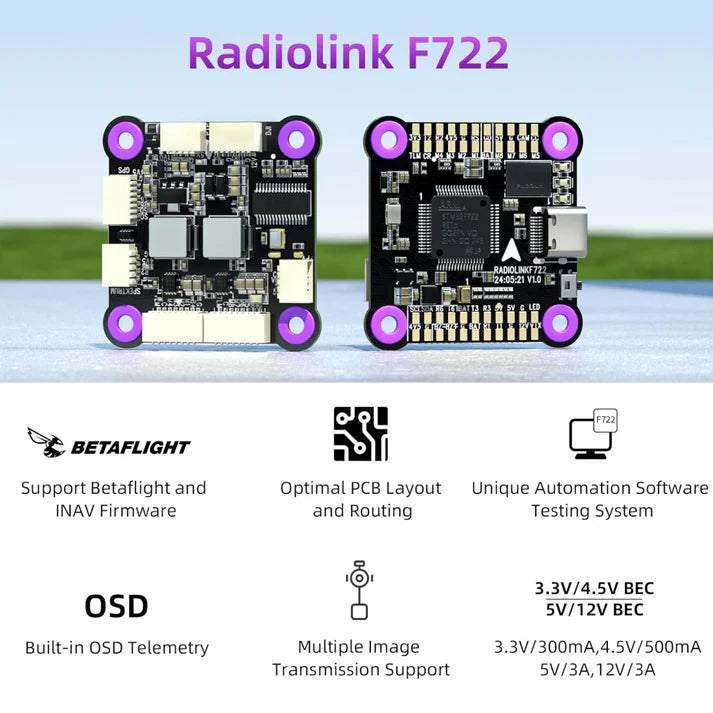

Description:
The Radiolink F722 Flight Controller is a high-performance, versatile control unit designed for use in various drone and RC vehicle applications. Whether you’re piloting a multi-rotor drone, fixed-wing aircraft, or even land or water-based vehicles, the F722 provides exceptional ease of installation, parameter setting, and a seamless user experience. With nearly a decade of research and development behind its design, this flight controller is engineered to deliver smooth, reliable control, ensuring optimal performance in a wide range of scenarios.
Specifications:-
|
Hardware
|
Processor
|
STM32F722RET6
|
|
Sensor
|
Gyro
|
ICM42688
|
|
Barometer
|
SPL06-001
|
|
|
Blackbox
|
128MB, record and store flight logs
|
|
|
OSD Module
|
AT7456E
|
|
|
Connector
|
Channel Output
|
M1 - M8
|
|
HD Digital Video Transmission
|
Support HD digital video transmission plug-and-play
|
|
|
Analog Video Transmission
|
Support analog video transmission plug-and-play
|
|
|
Betaflight Camera Parameter Setup Soldering Pads
|
Support
|
|
|
Battery Scale
|
110
|
|
|
UART Port
|
5
|
|
|
ESC Features
|
Support
|
|
|
I2C
|
Support
|
|
|
LED Strip
|
Support, have LED strip soldering pads
|
|
|
Buzzer
|
Support, have a buzzer soldering pads
|
|
|
RSSI Output
|
Support, have RSSI soldering pads
|
|
|
Firmware Type
|
Betaflight, INAV
|
Features:
- User-Friendly Setup: Installing and adjusting the F722 is simple and intuitive, making it accessible for both beginners and experienced users.
- Comprehensive Compatibility: The F722 supports a wide variety of vehicles, including helicopters, multi-rotors, fixed-wing planes, boats, and cars.
- Betaflight Integration: Compatible with both PC and mobile versions of the Betaflight Ground Station for easy parameter adjustments and firmware upgrades.
- Reliable Technical Support: Access a wealth of tutorials, manuals, and FAQs available on multiple platforms like Bilibili, Youku, and Weibo, and consult the official forums for direct support from the community.
- Firmware Updates: Stay up-to-date with the latest firmware by downloading from the official Ledi website. Regular updates ensure continued functionality and improvements.
- Wide-Ranging Documentation: Comprehensive guides, tutorials, and FAQs are provided to help users understand everything from basic setup to advanced tuning, including PID parameter adjustments and log viewing.

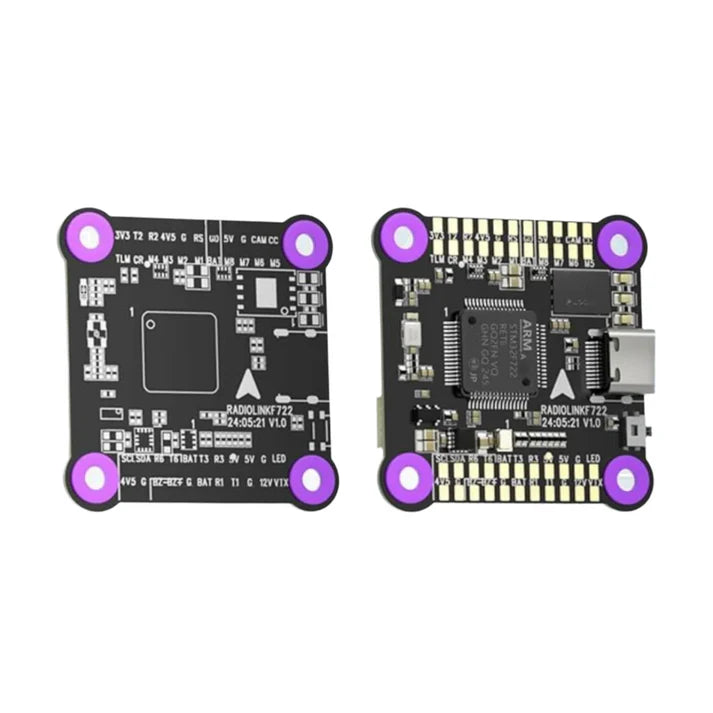

Product Interface:
Package Included:
- 1× Radiolink F722 Flight controller
- 1× Camera Connect Cable
- 2× ESC Connect Cable
- 1× ELRS Receiver Connect Cable
- 1× Analog Video Transmission Connect Cable
- 1× TS100 Connect Cable
- 1× Receiver Connect Cable(3pin)
- 1× R8SM Receiver Connect Cable
- 1× user manual
