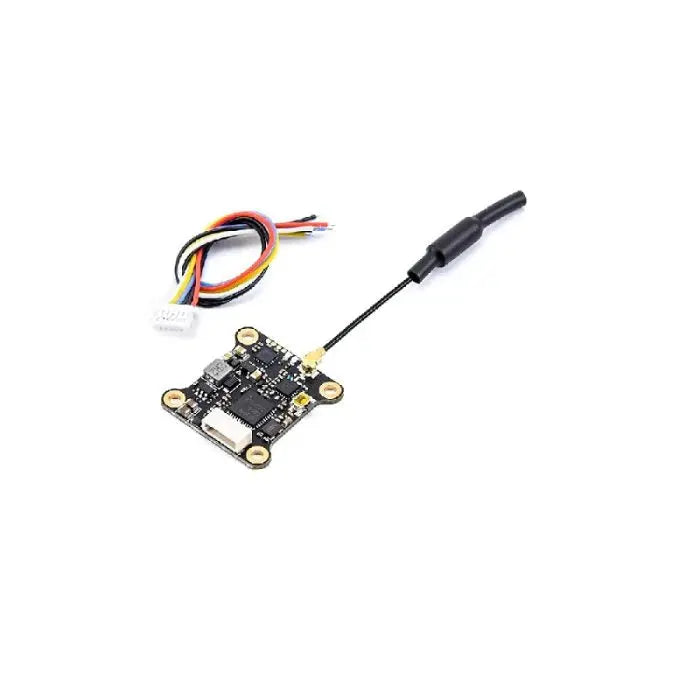

MINI XF5805 5.8G Transmitter 600mw Video Transmitter.

The factory standard includes IPEX connector wire antenna. VT58 Series Map Transfer is 5.8G ISM Band Analog Map Transfer. It has the characteristics of stable output power, long transmission distance, strong power filter, and can ensure that the image under the maximum throttle has no snowflakes, no cross stripes and so on.Not only that, but also the XF58 series image transmission has the remote control OSD interface remote frequency control, no interference with peers at boot-up moment, and the super function of supporting more than eight people flying at the same time.

Features:
The output power is stable and the transmission distance is long.
Self-checking function with output power
Fast frequency locking and no interference with peers
Transmitting power 4 gear switching and PIT maintenance station mode
Output 37 Frequency Points (in accordance with U.S. law)

Specifications:
transmission distance: 0.5km@25mW, 1km@200mW, 2km@600mW
Frequency point: 37CH
Video format: NTSC/PAL
Input voltage: 7V~26V
7V~26V: 12V/180mA@200mW

Package Includes:
MINI XF5805 5.8G Transmitter 600mw Video Transmitter

Pinout Diagram:
