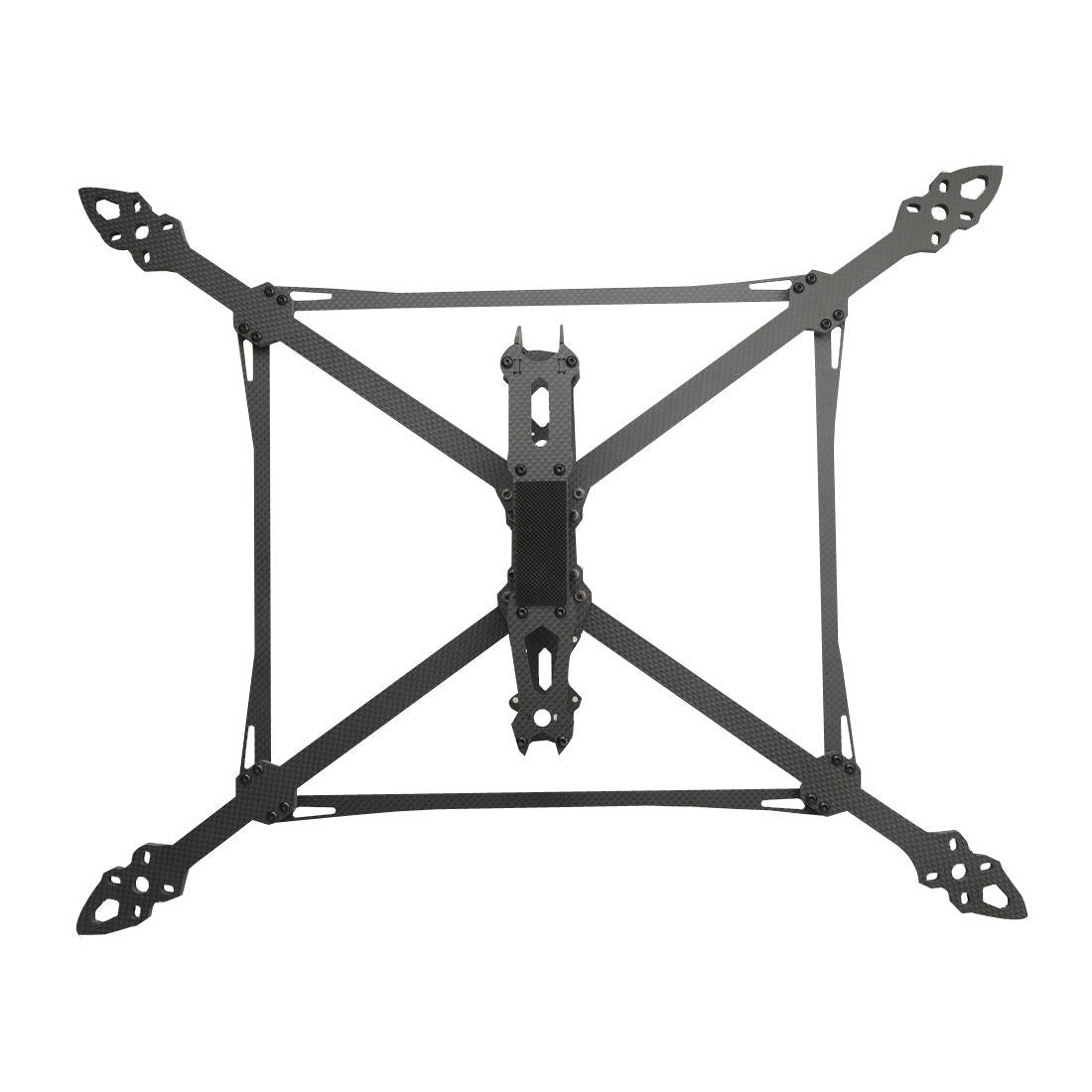

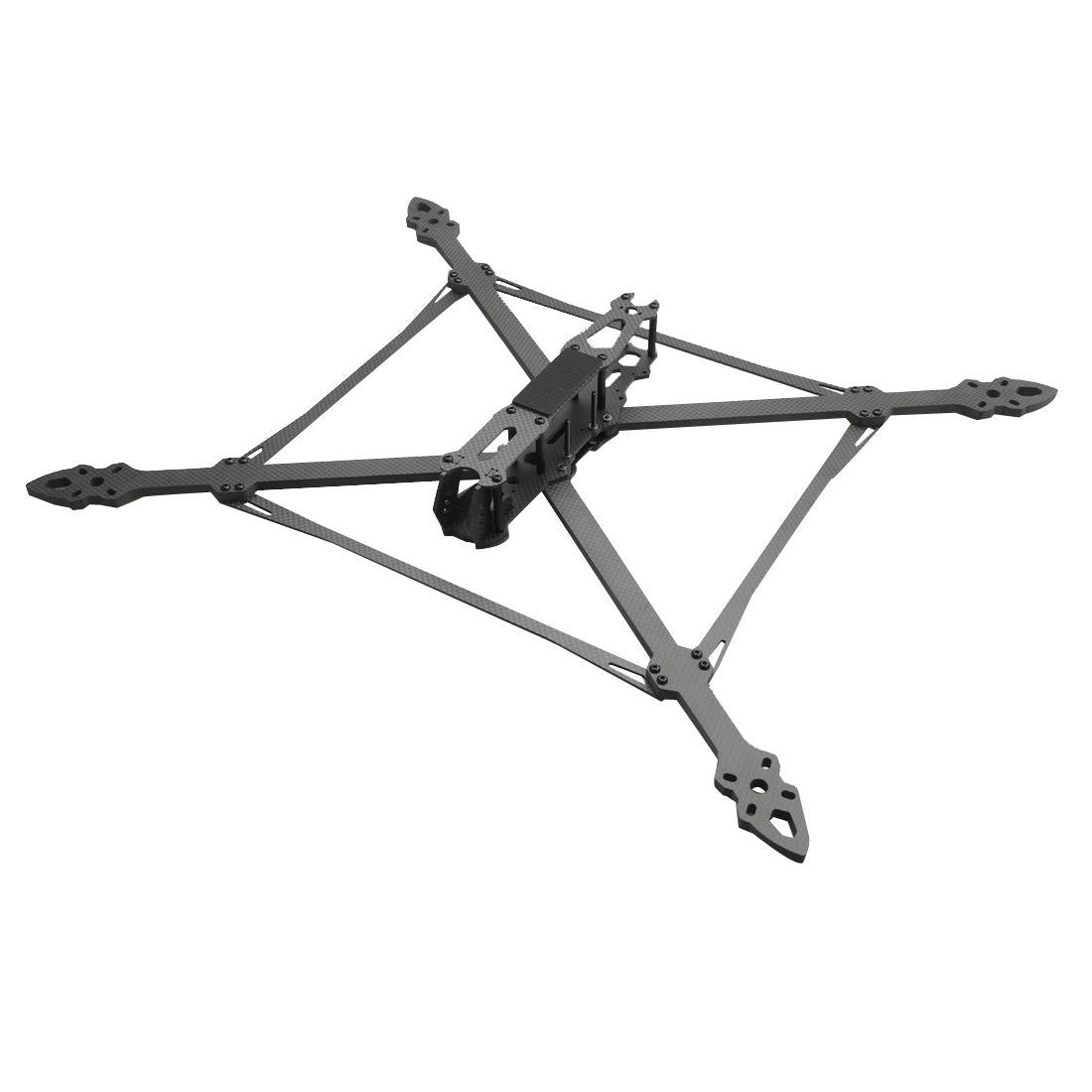

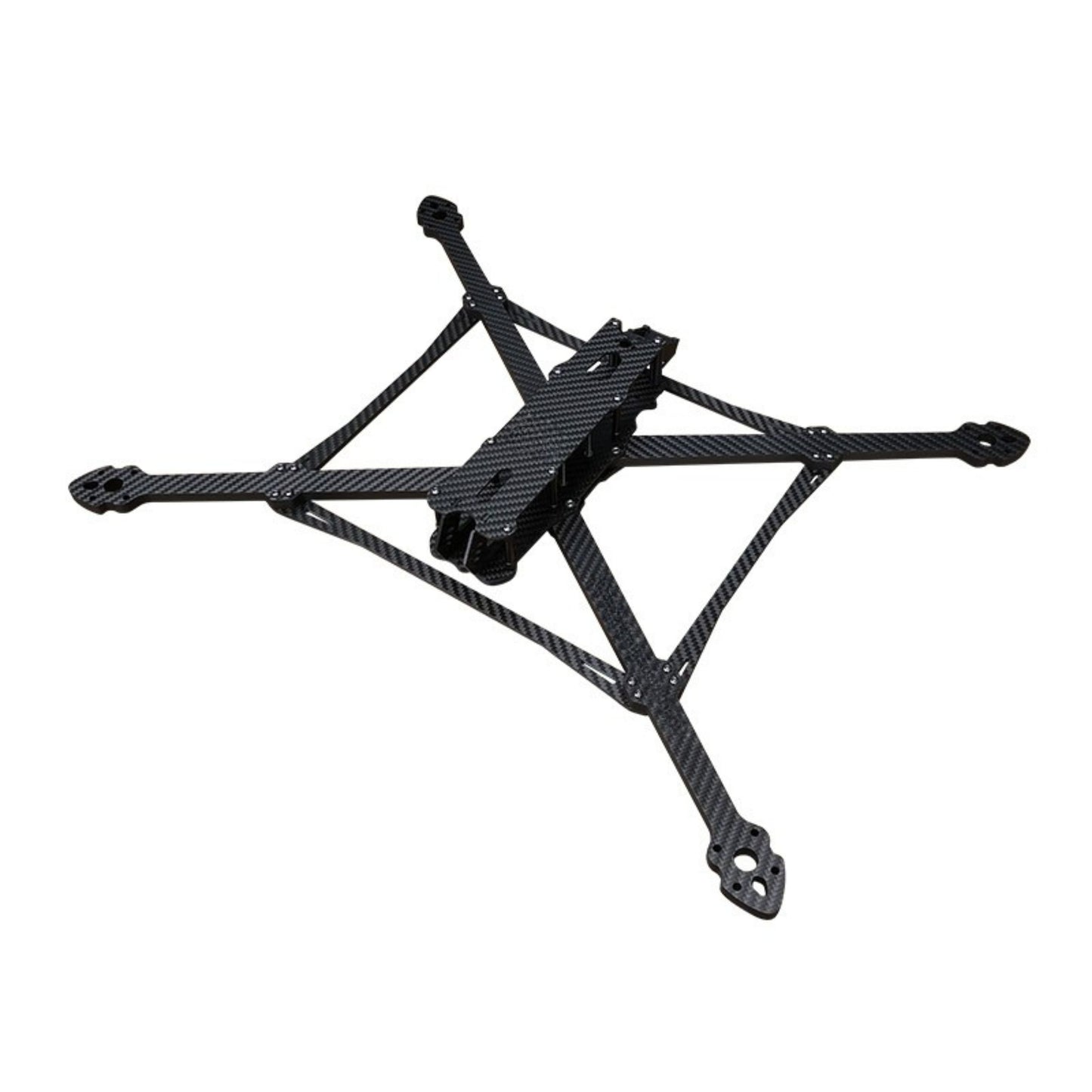

Mark4 13 Inch 570mm Carbon Fiber Frame

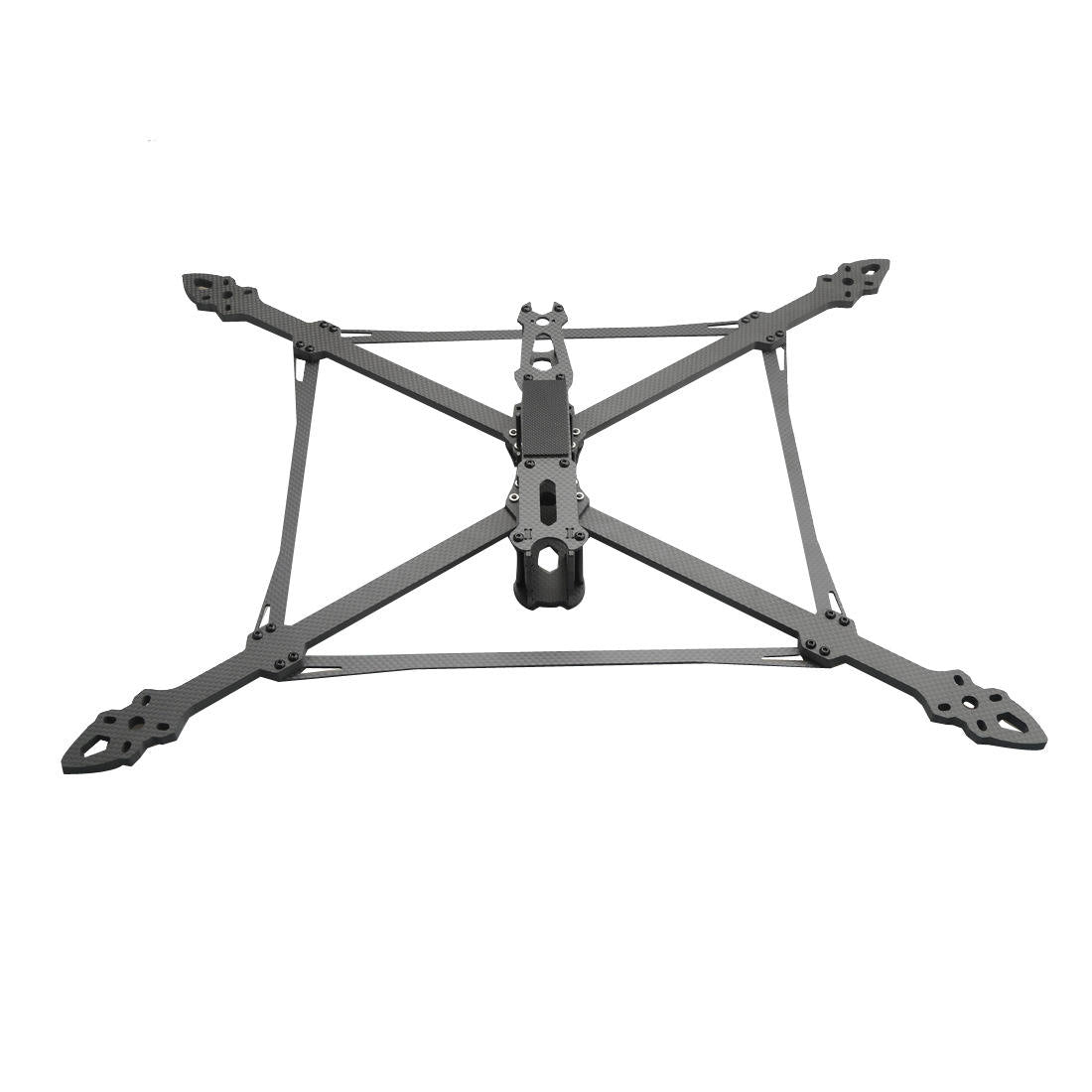

Mark4 13 V2 Inch 570mm Carbon Fiber Frame

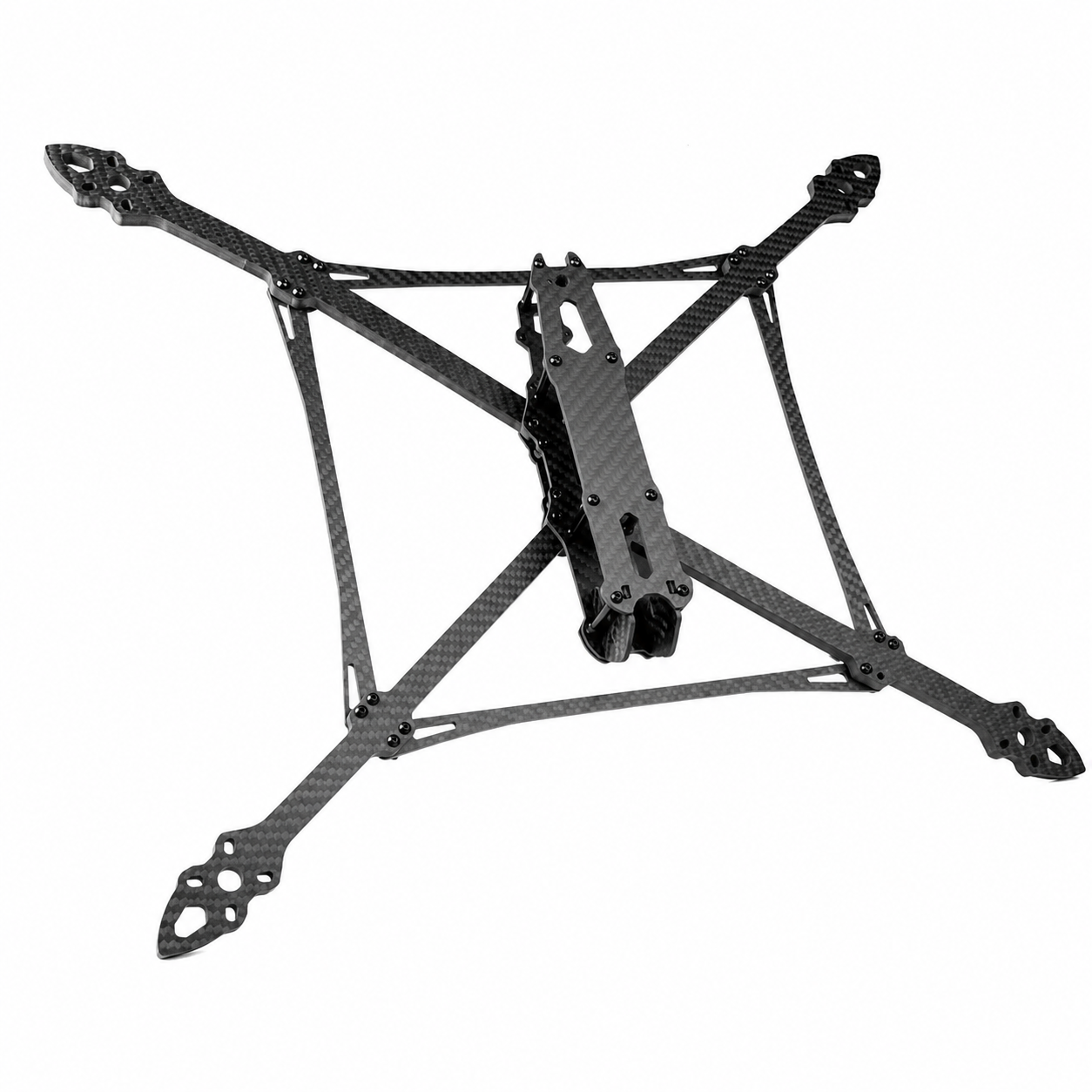

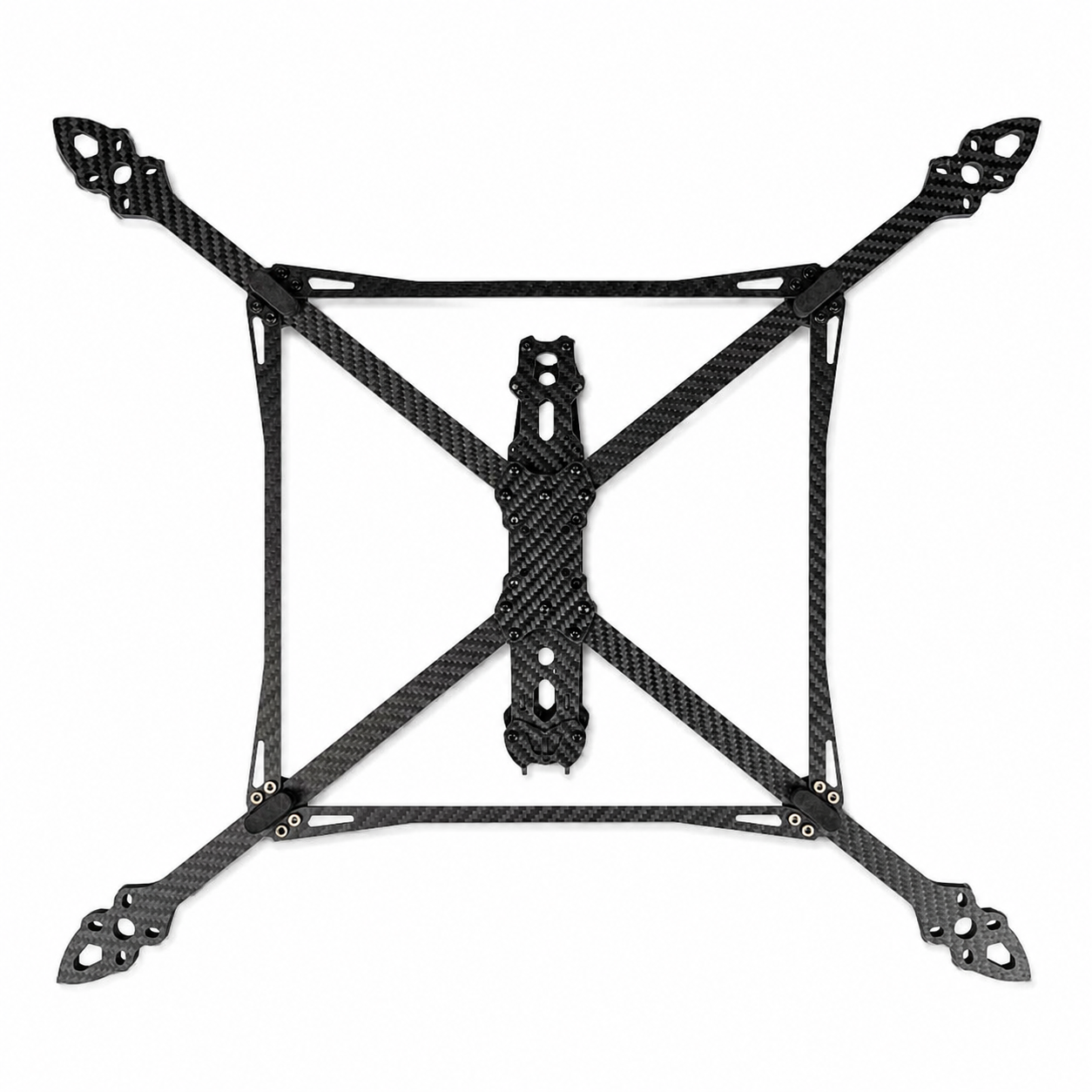

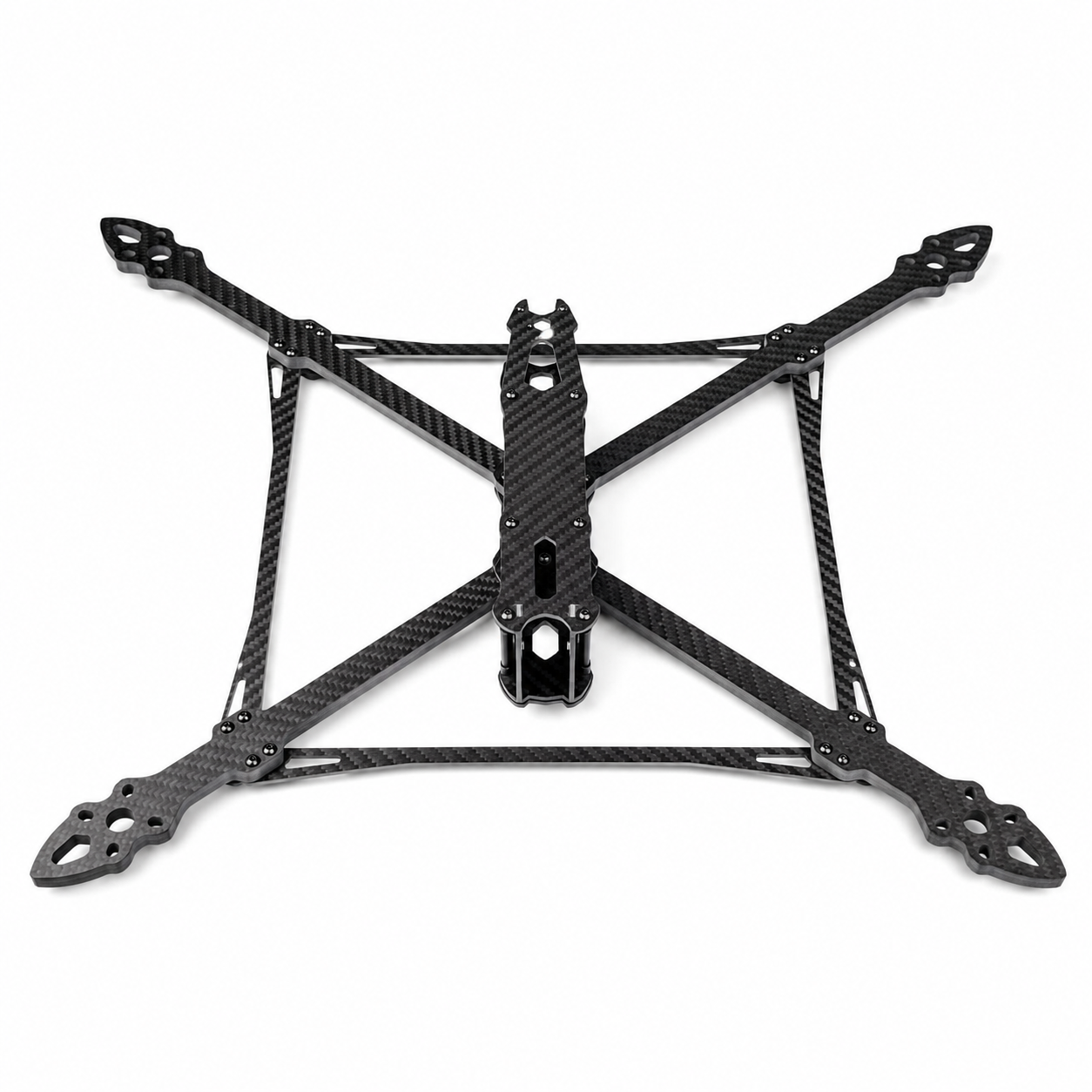

The Mark4 V3 13-Inch 570mm Carbon Fiber Frame is a high-performance drone frame specially designed for freestyle and long-range FPV flying. Its 570mm wheelbase is perfect for large-size motors and 13-inch propellers.

This frame is constructed from high-quality carbon fiber, making it both strong and lightweight — reducing the risk of damage during high-speed flights or accidental crashes. It features 8 mm-thick arms, which provide excellent stability and vibration resistance.

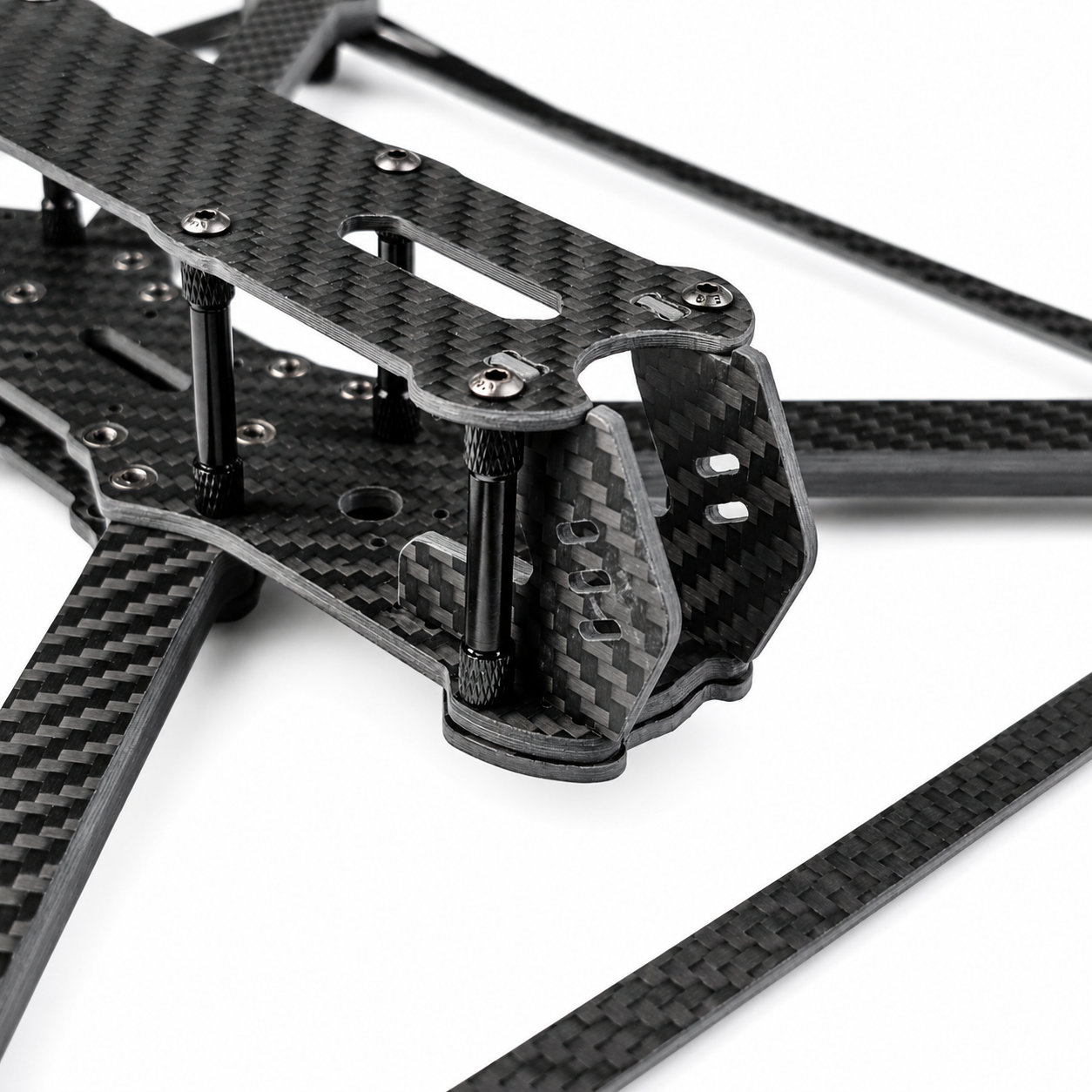

The frame offers multiple mounting options inside — including 20x20mm and 30.5x30.5mm flight controller stack mounts. The motor mounts are 21x21mm, making them suitable for 42xx-size motors. It also supports a micro-size FPV camera (19mm) with a side-mounted design for added protection.

Key Features:

• 570mm wheelbase (supports 13-inch propellers)

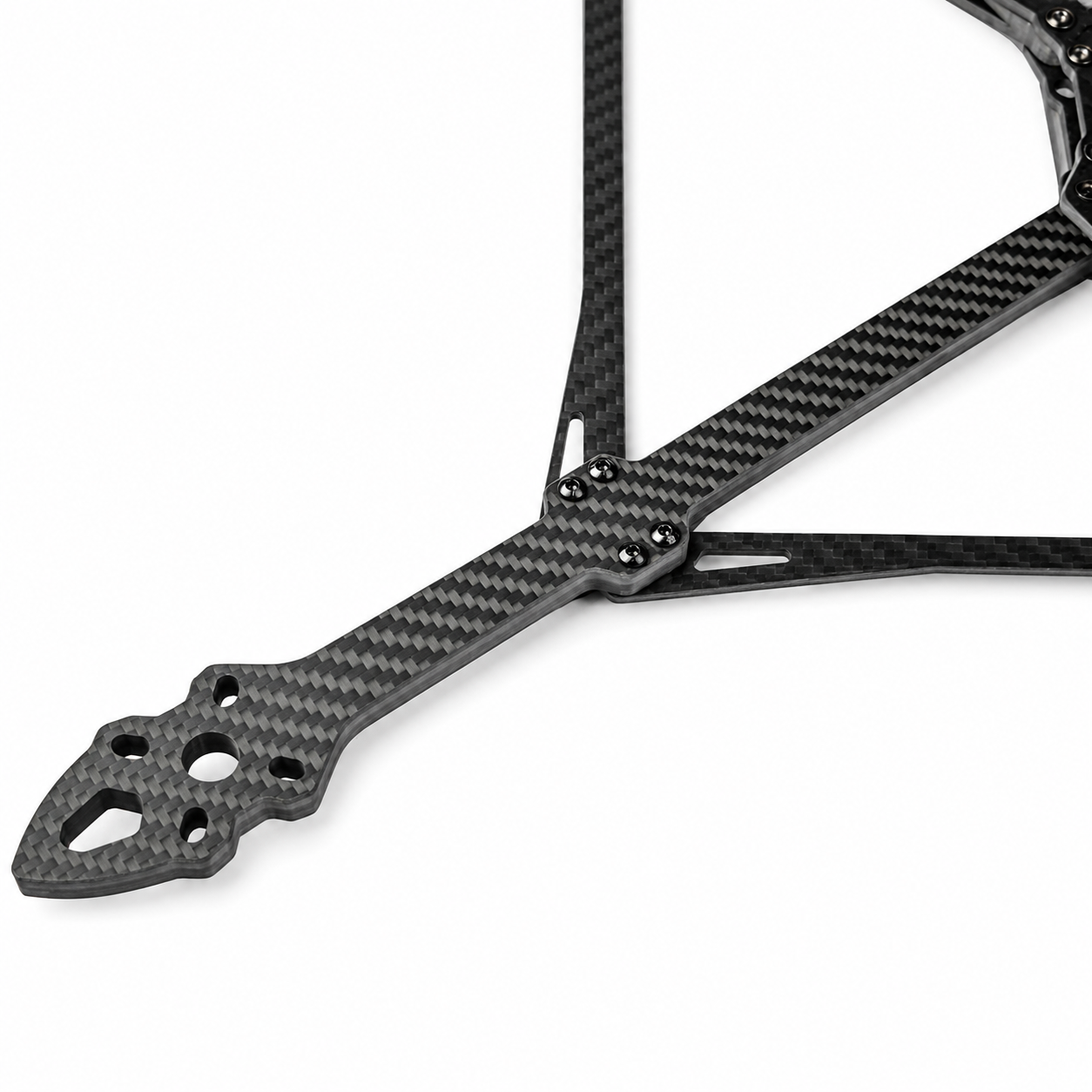

• Strong 8mm carbon arms
• Lightweight yet highly durable design
• Supports 42xx motors and large propellers
• 20x20mm & 30.5x30.5mm mounting patterns
• Compatible with 19mm micro FPV cameras (side-mounted for protection)

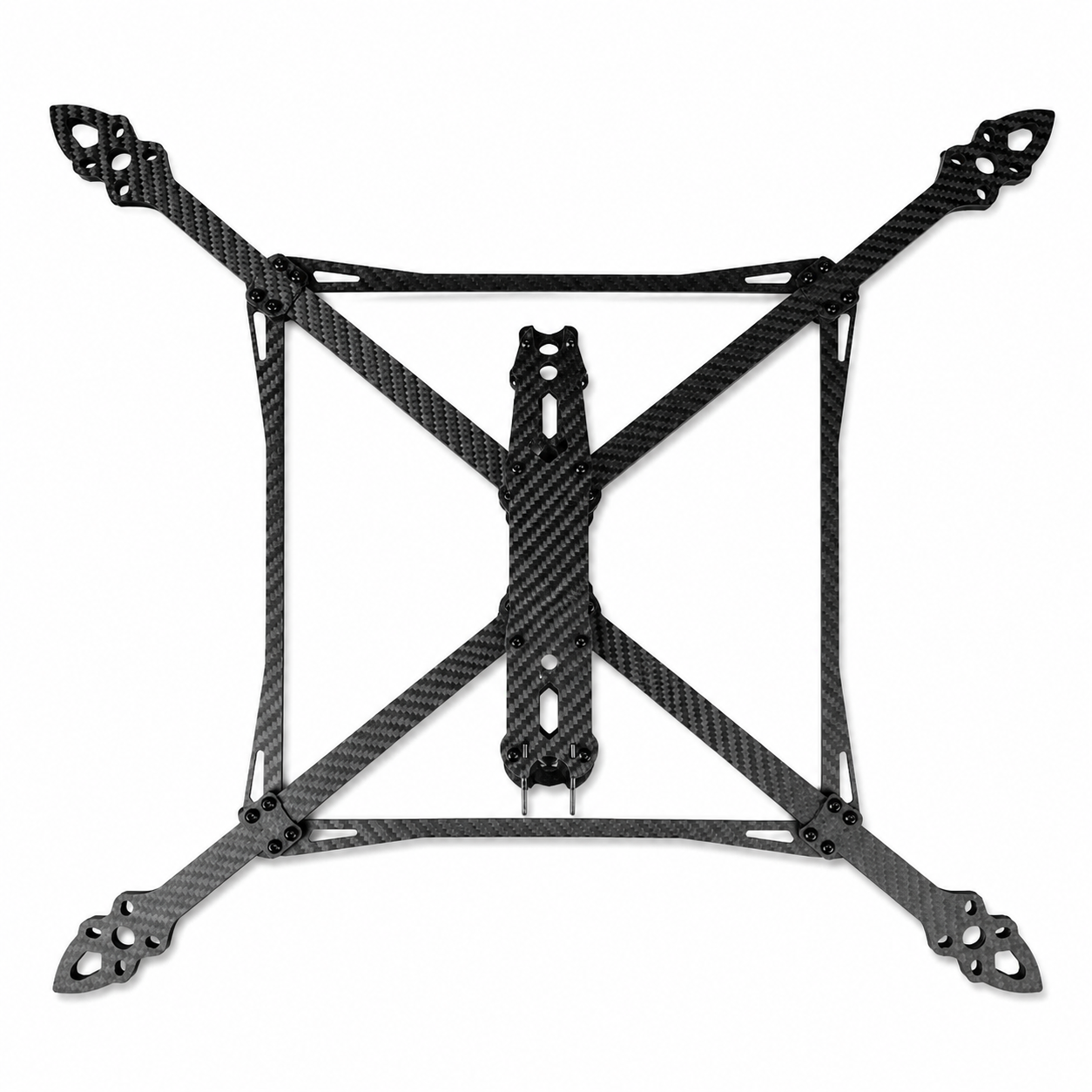

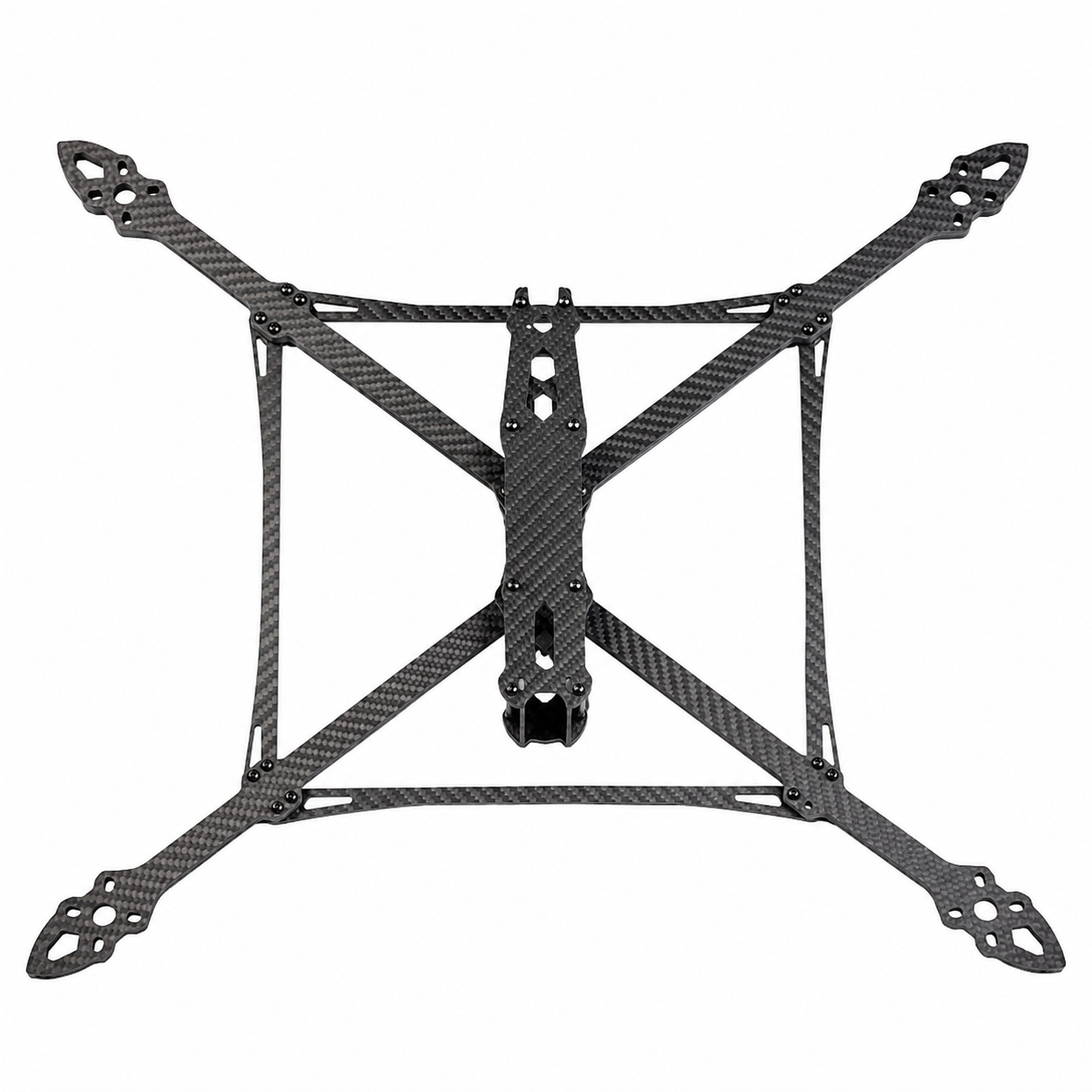

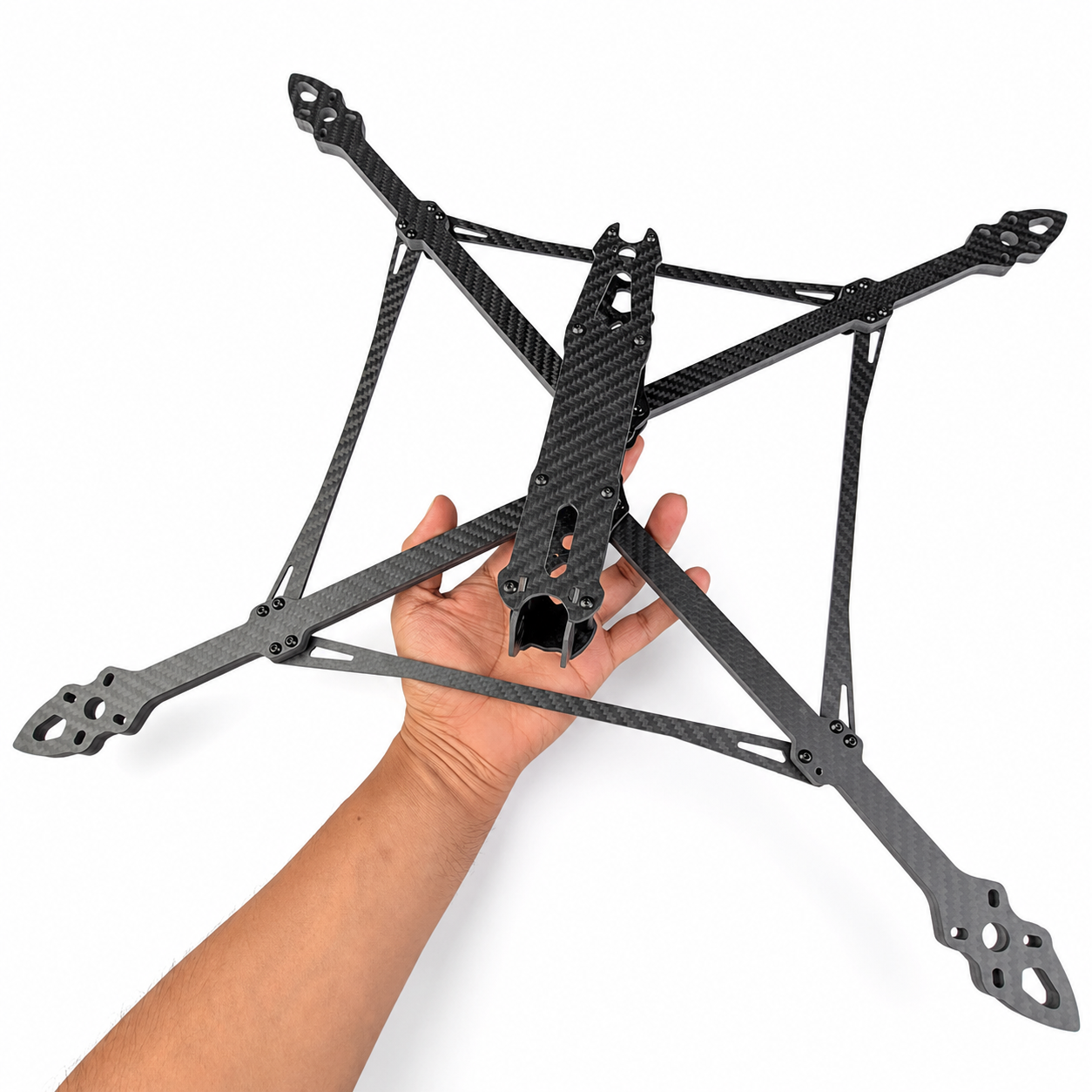

Mark4 13 V3 Inch 570mm Carbon Fiber Frame

Wheelbase 570MM.
Thickness of upper plate 1.5MM.
Thickness of bottom plate 3MM.
Thickness of lower fixed plate 3MM
Thickness of camera side plate 2.5MM.
Front lip plate 2.5MM thick.
Rear lip 2.5MM thick
Camera arm 8MM
Surrounding reinforcement 3MM
Camera mounting spacing 19MM.
Flight control mounting hole spacing 20*20MM/30.5*30.5MM
Motor mounting hole spacing 21*21MM
The distance between the mounting holes of the graphic transmitter is 20*20MM or 30.5*30.5MM.
