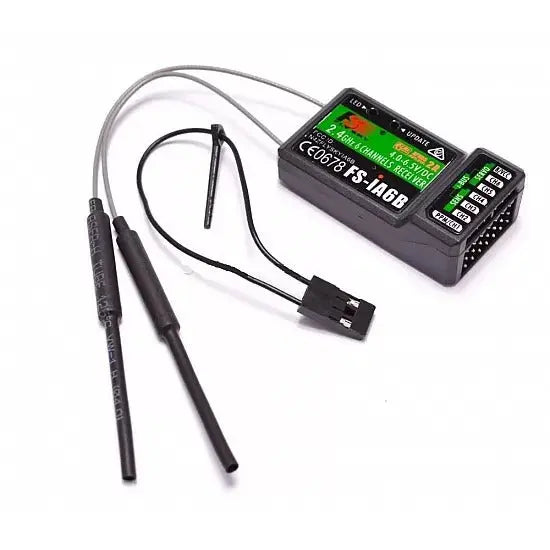

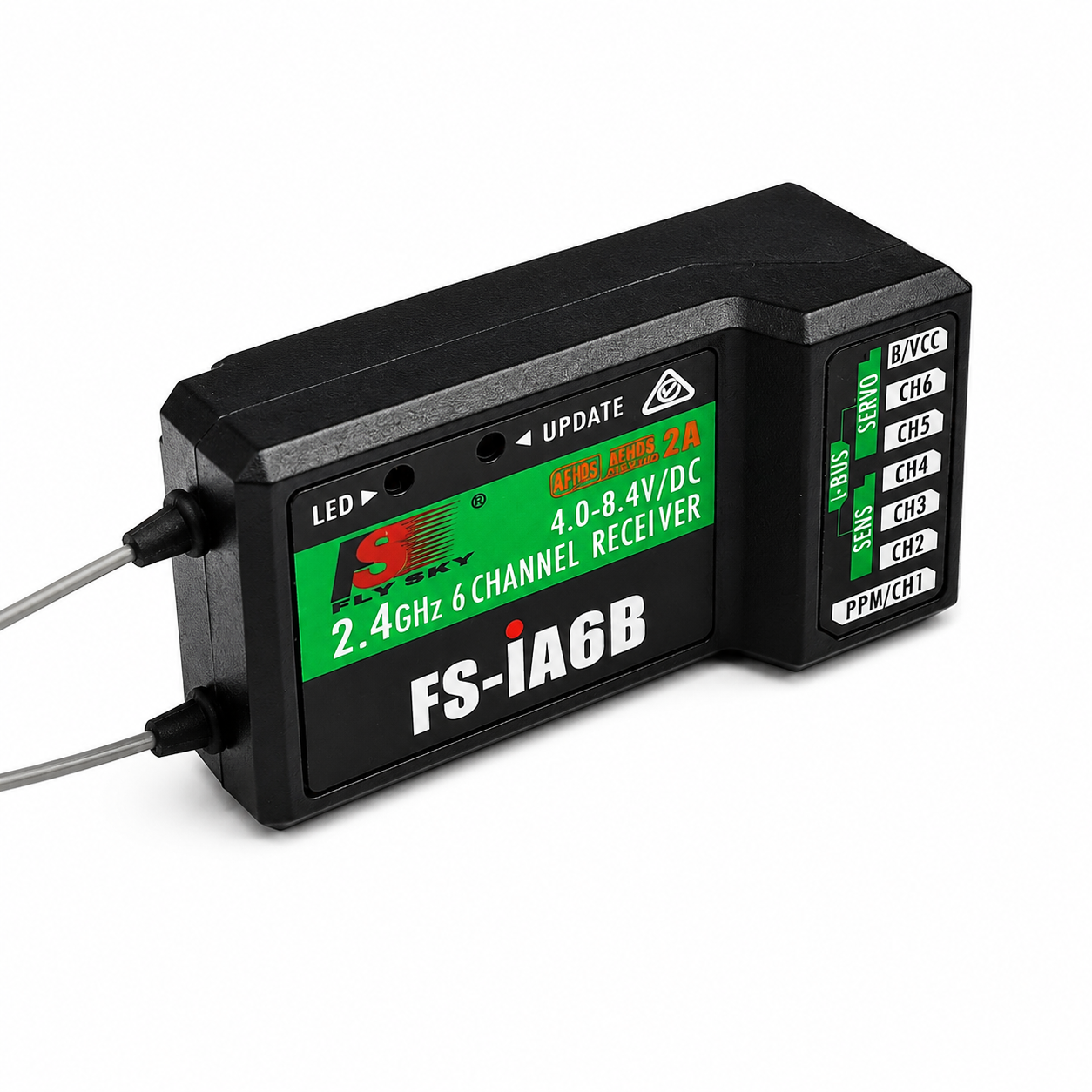

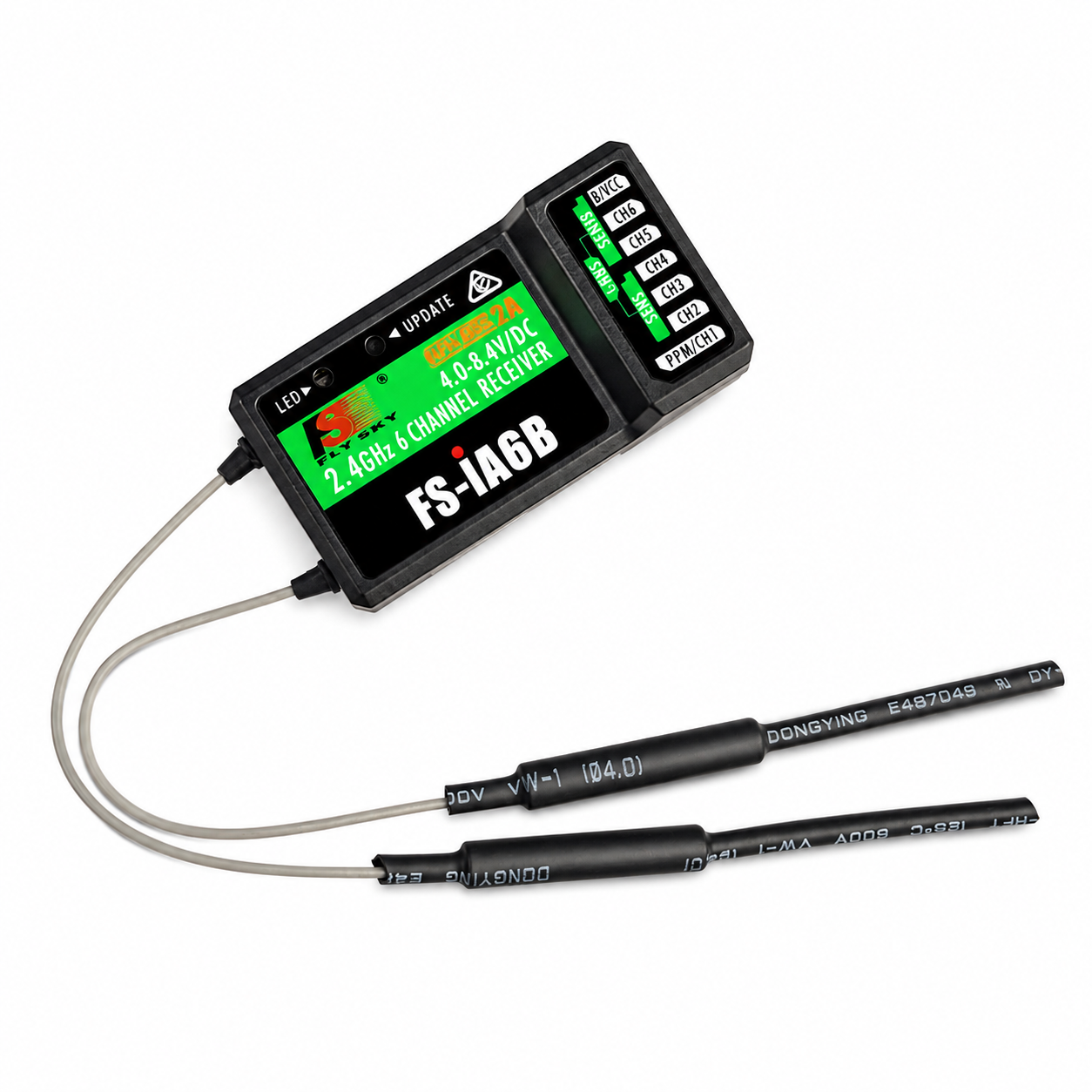

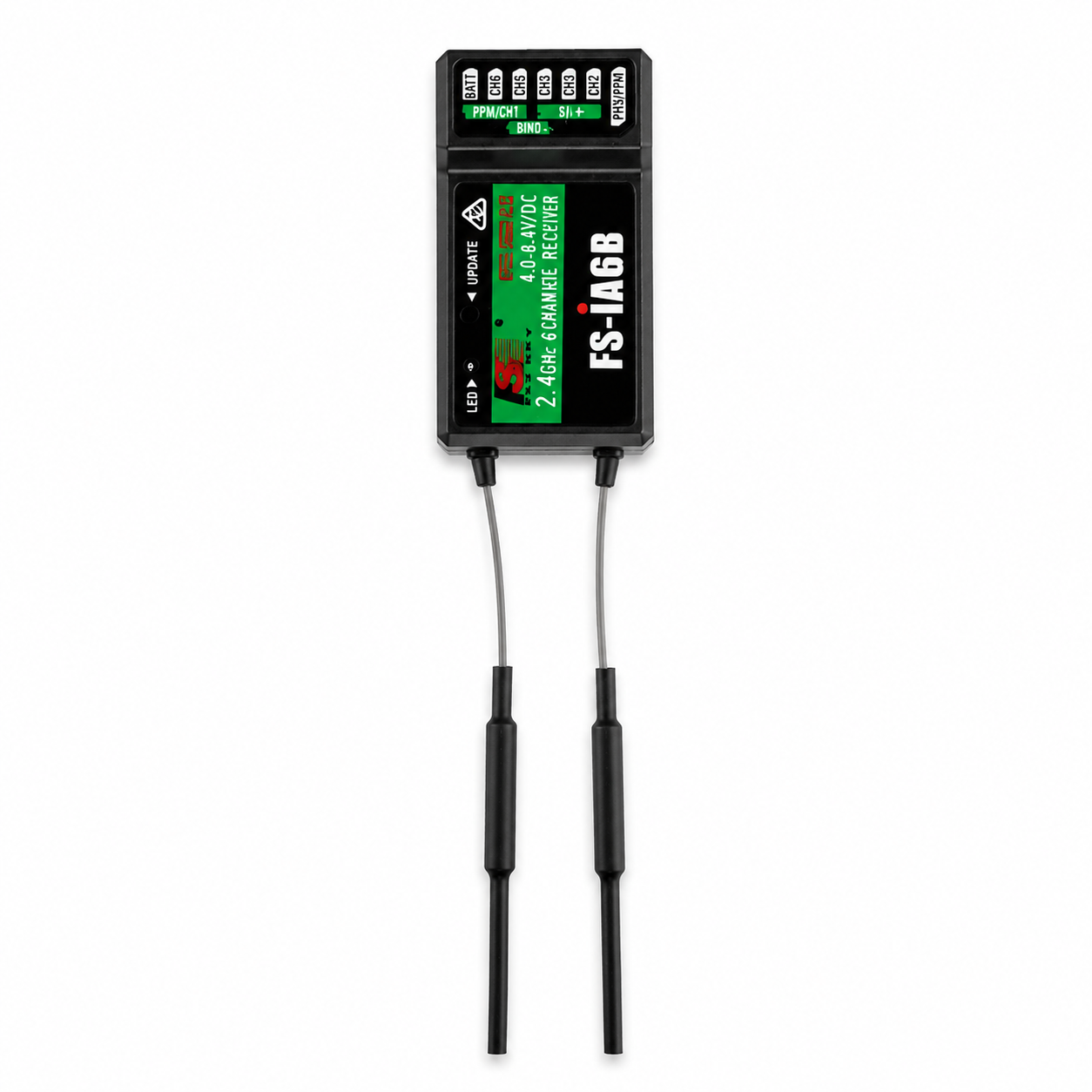

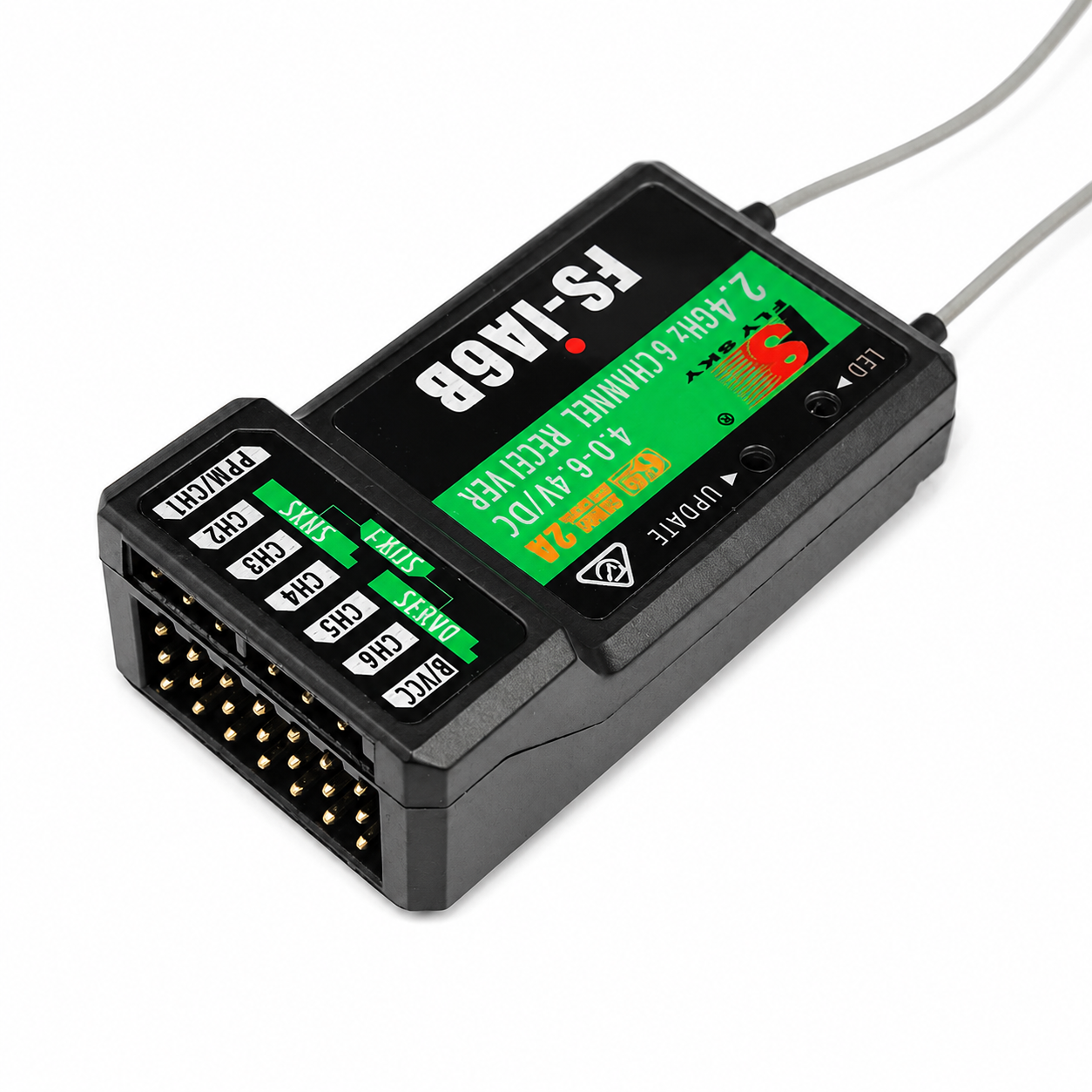

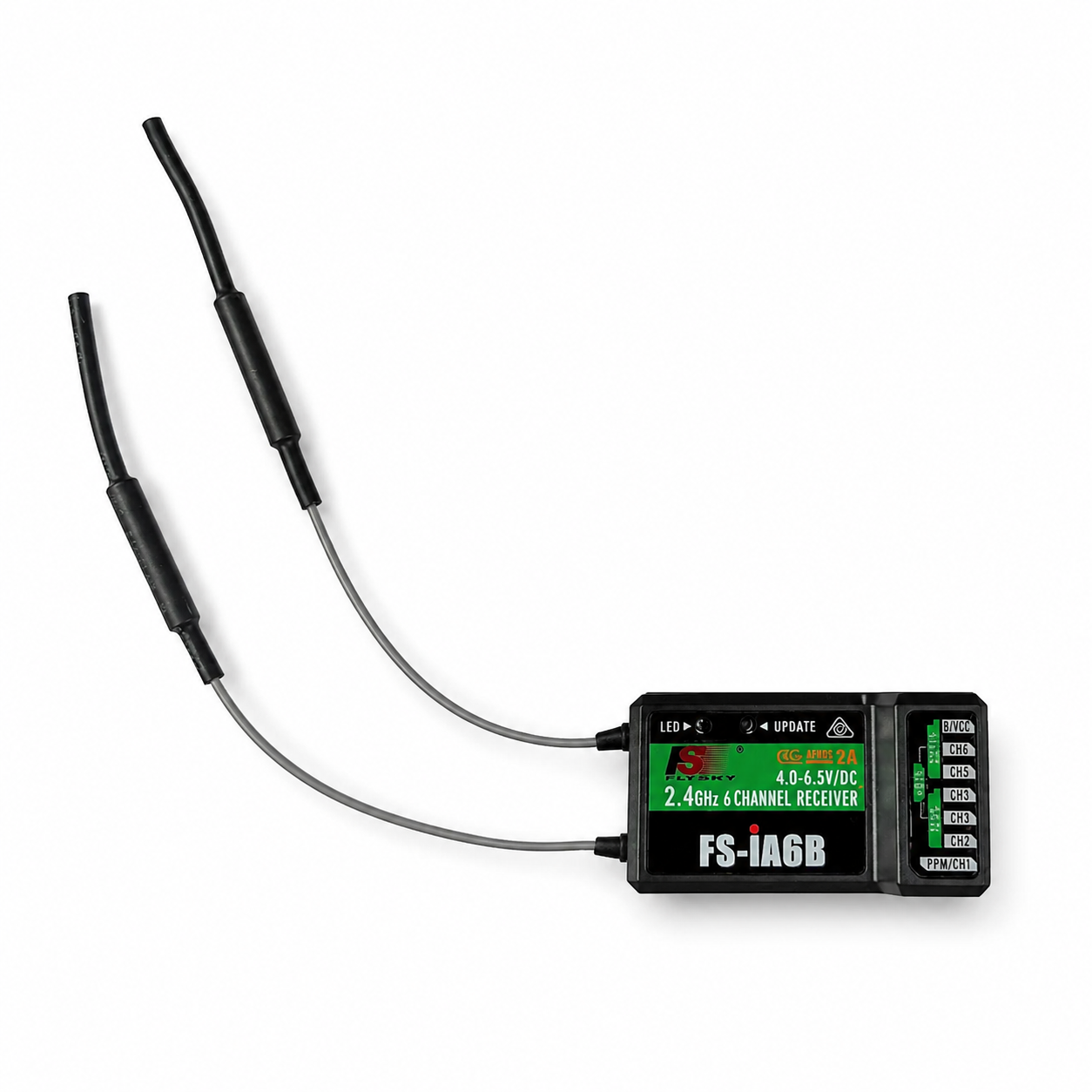

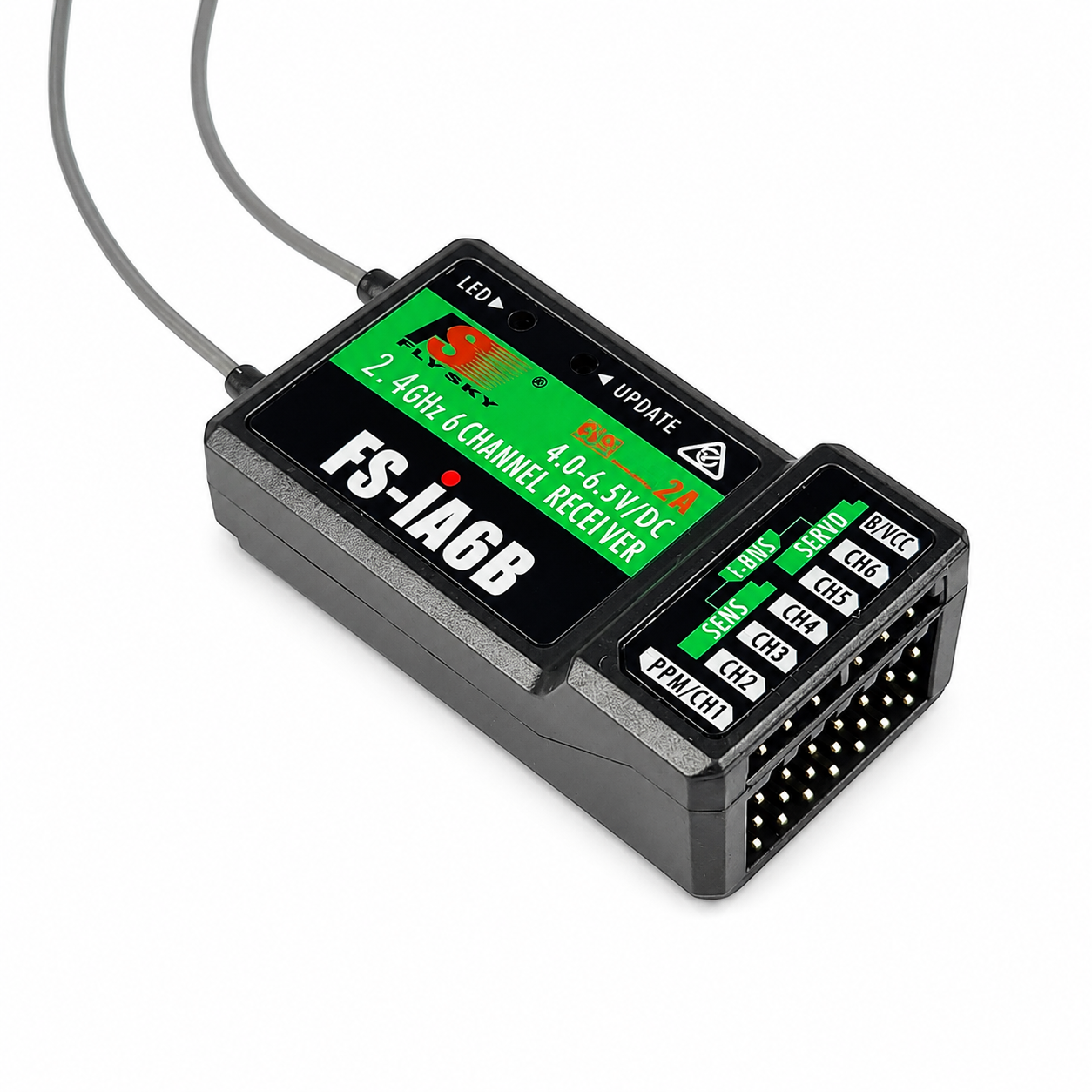

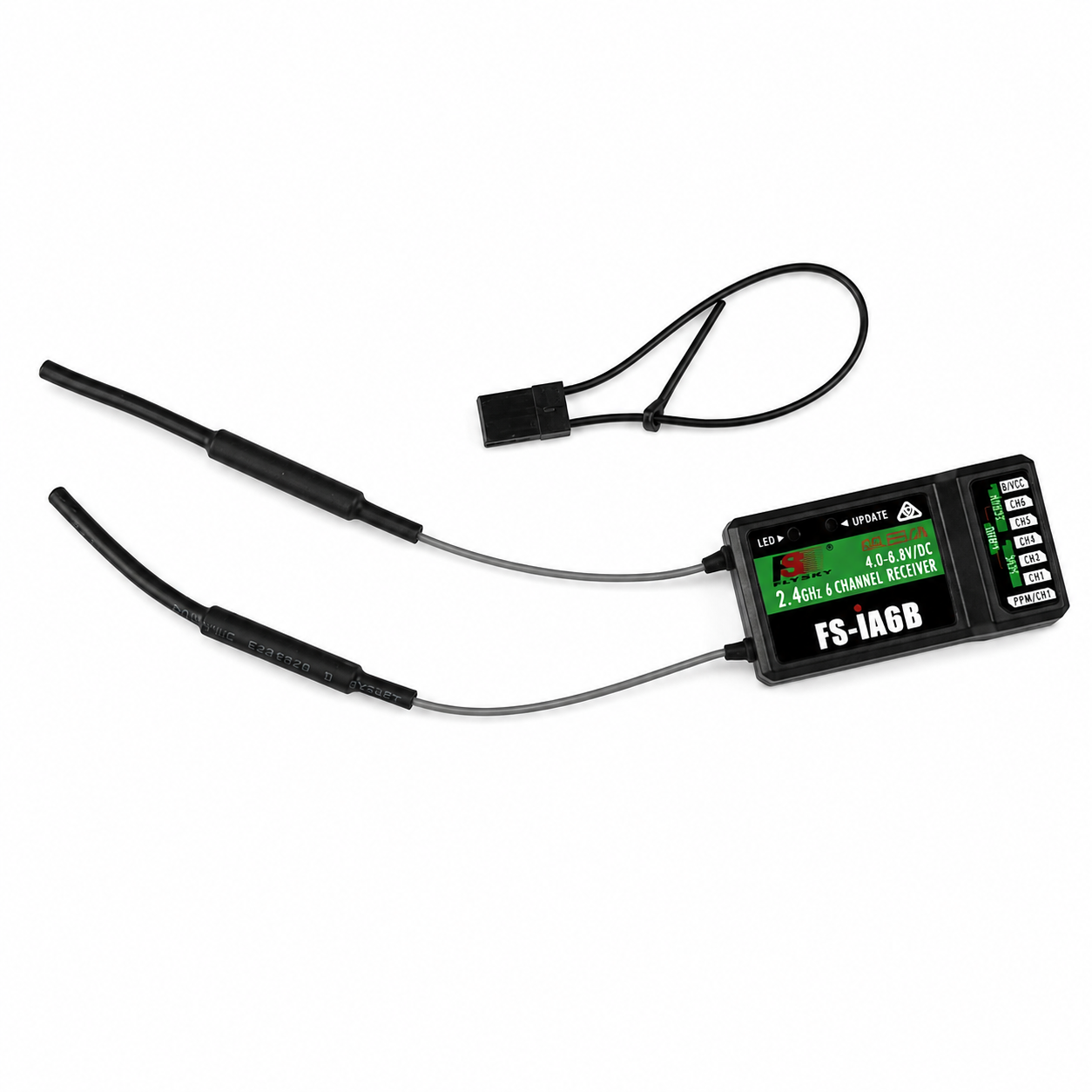

The Flysky FS-IA6B receiver is designed to provide reliable and precise signal reception and communication between the transmitter and your RC model. It offers multiple channels for controlling and monitoring various functions, making it suitable for a wide range of applications.
Features:

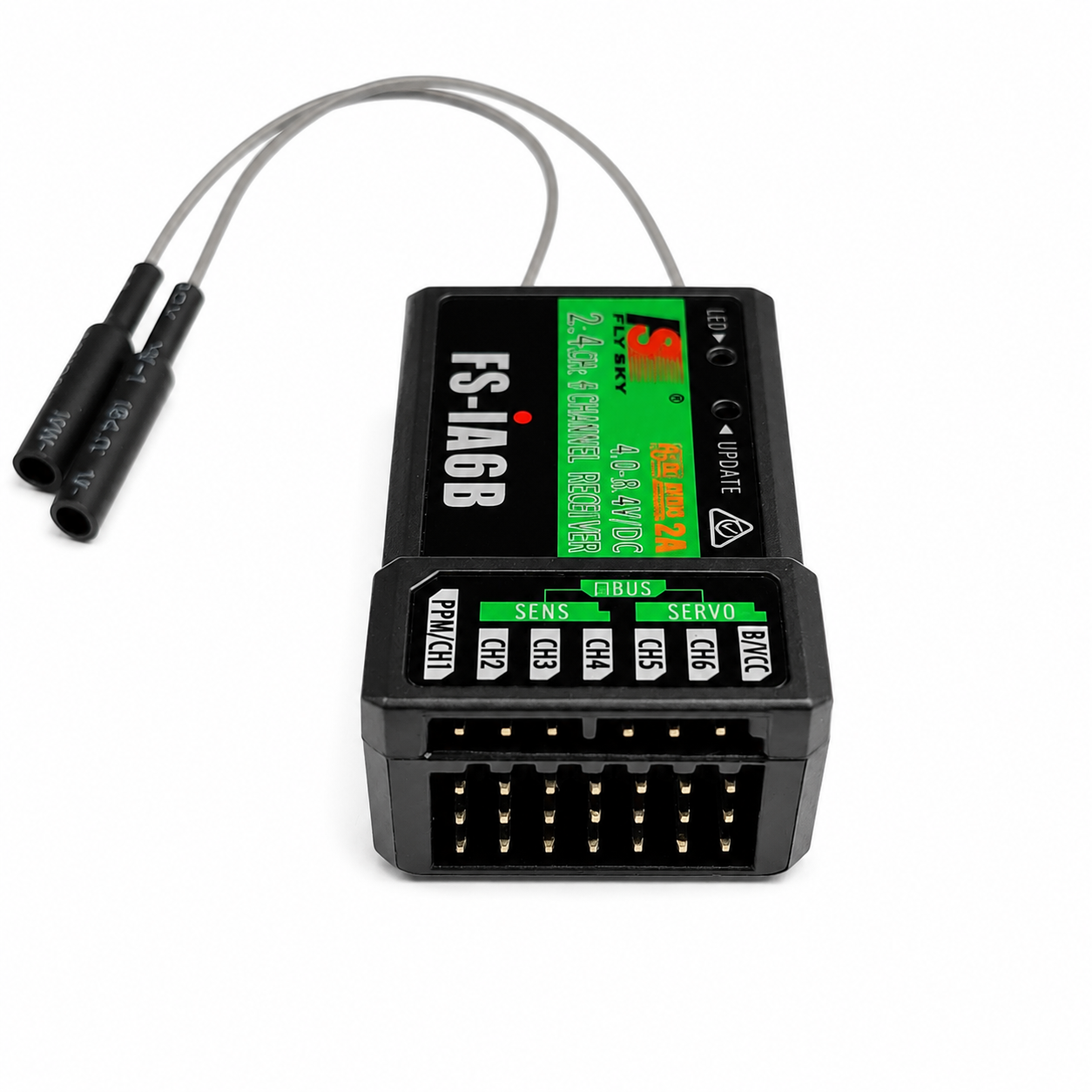

6 Channels: The FS-IA6B receiver provides six channels, offering flexibility for controlling and monitoring various functions on your RC model. These channels can be used to control servos, motors, lighting systems, landing gear, or other accessories.
2.4GHz Frequency: The receiver operates on the 2.4GHz frequency, which is known for its stable and interference-free signal transmission. This technology minimizes the risk of signal interference from other radio systems or external sources.

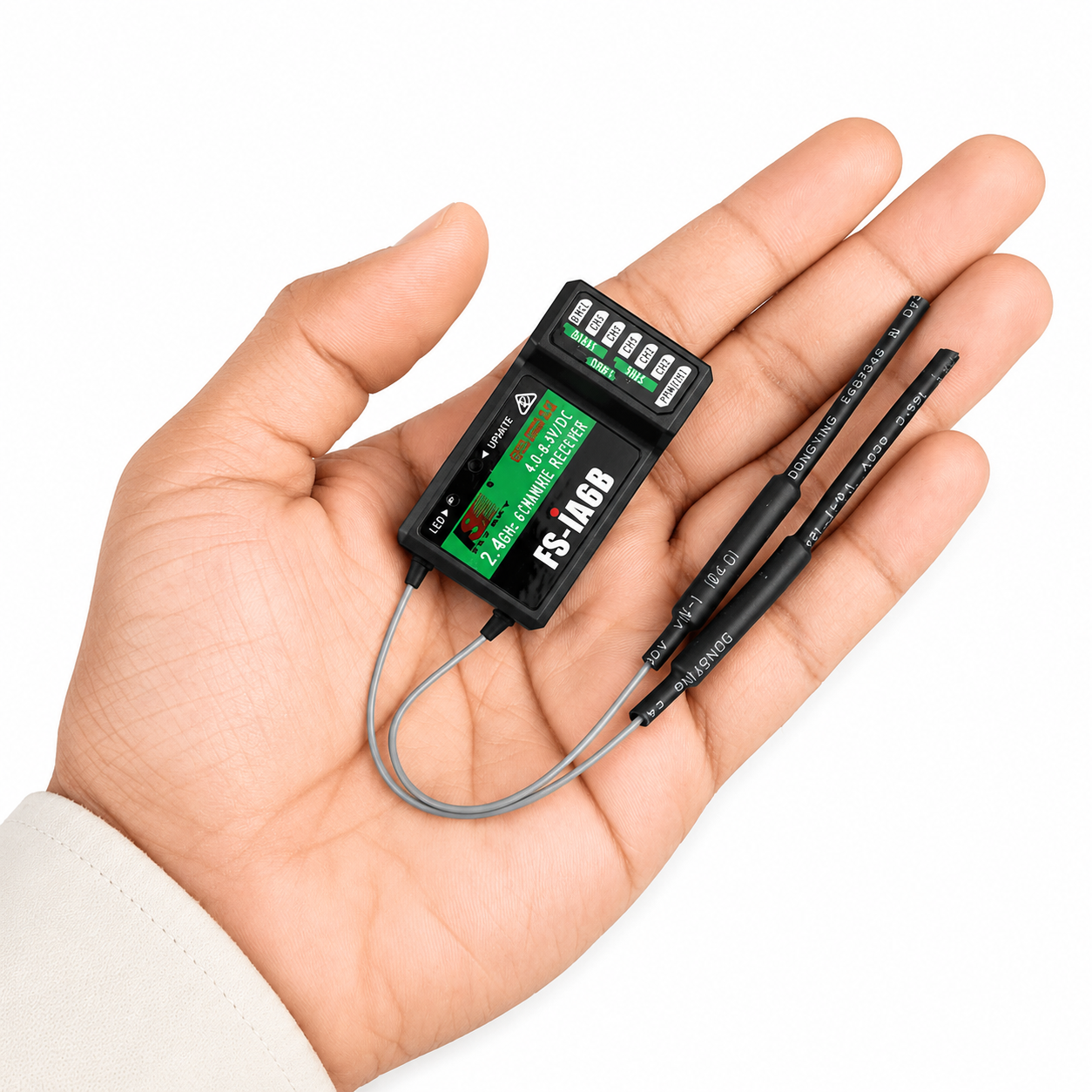

Compact Design: The receiver is designed to be compact and lightweight, allowing it to be easily installed in a variety of RC models without adding significant weight or bulk.

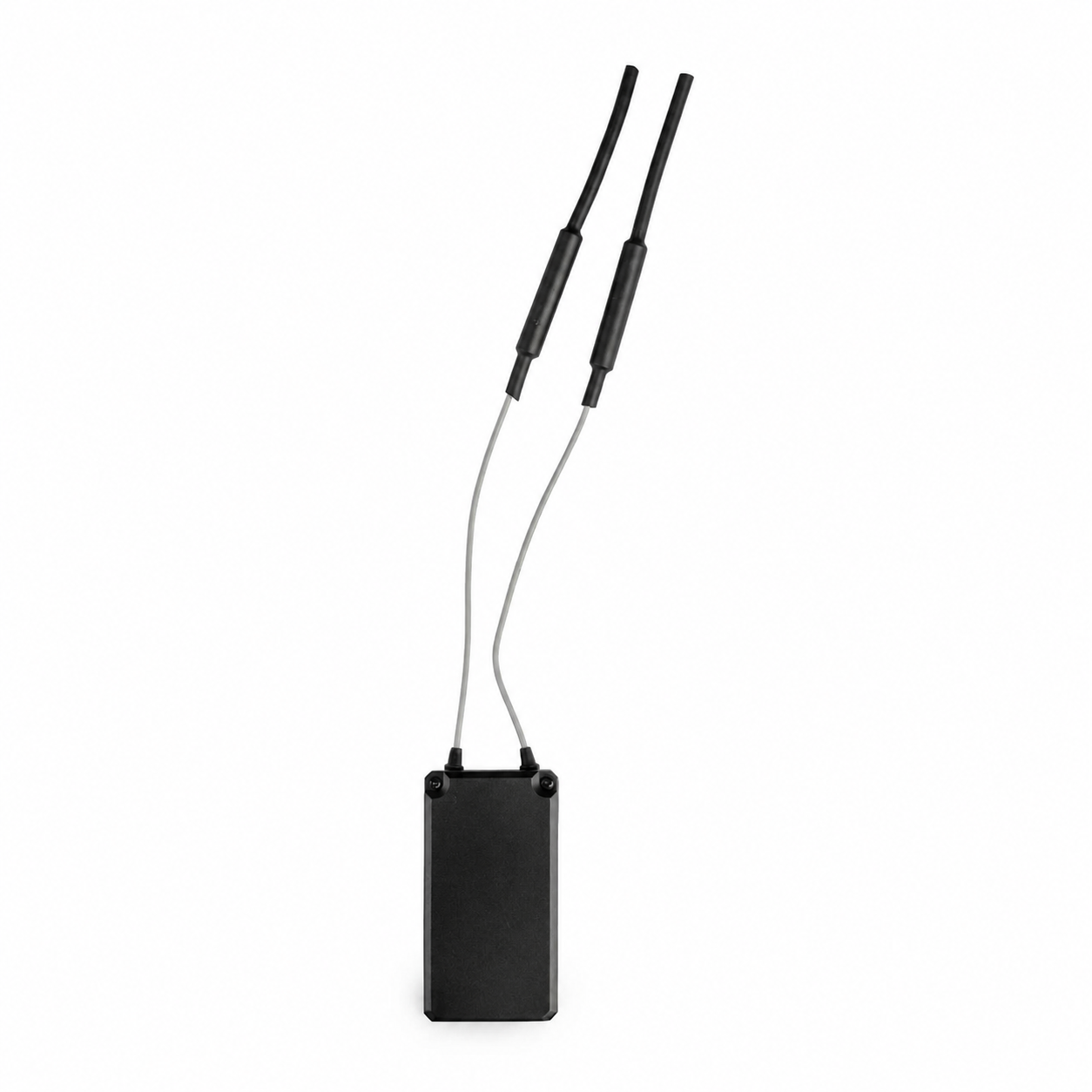

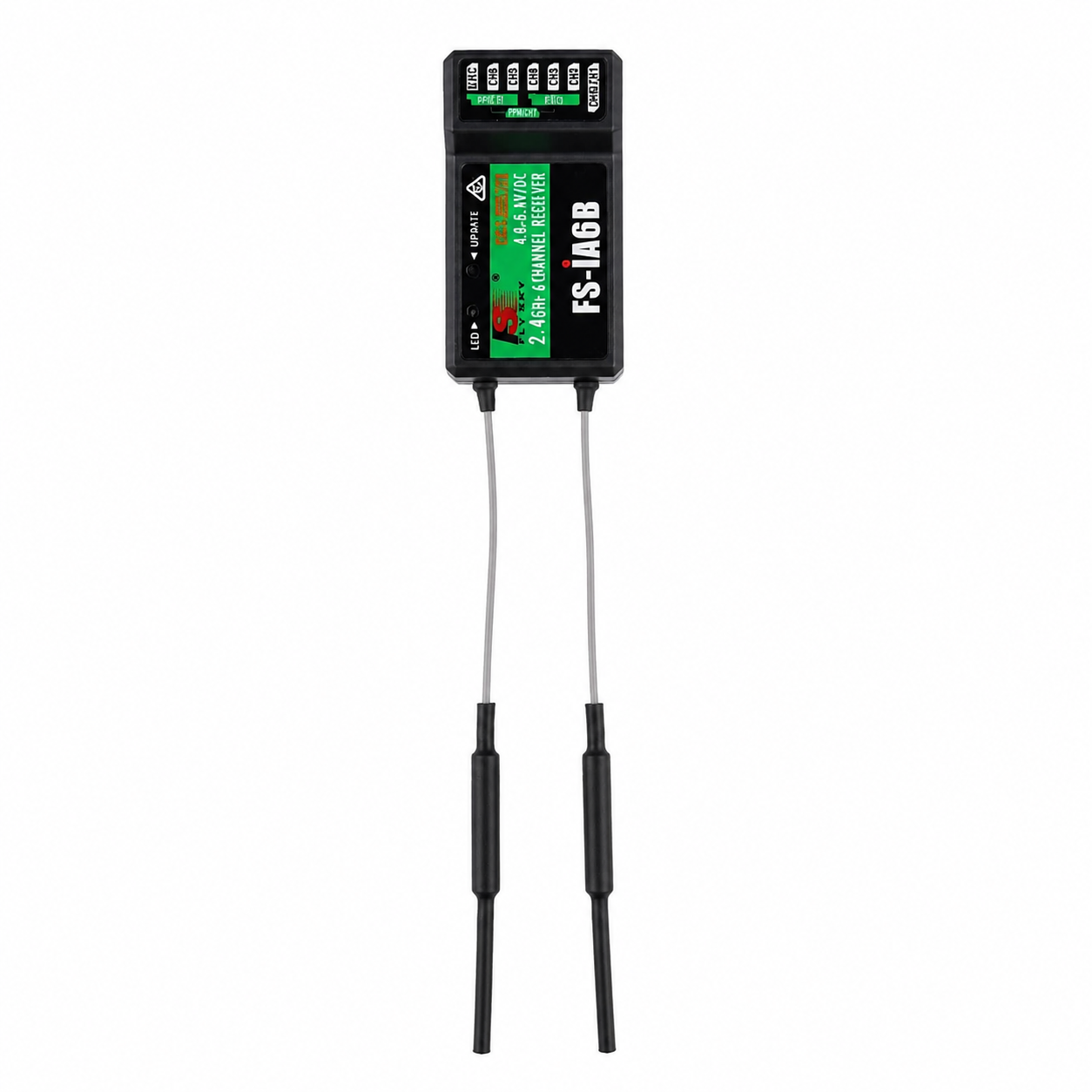

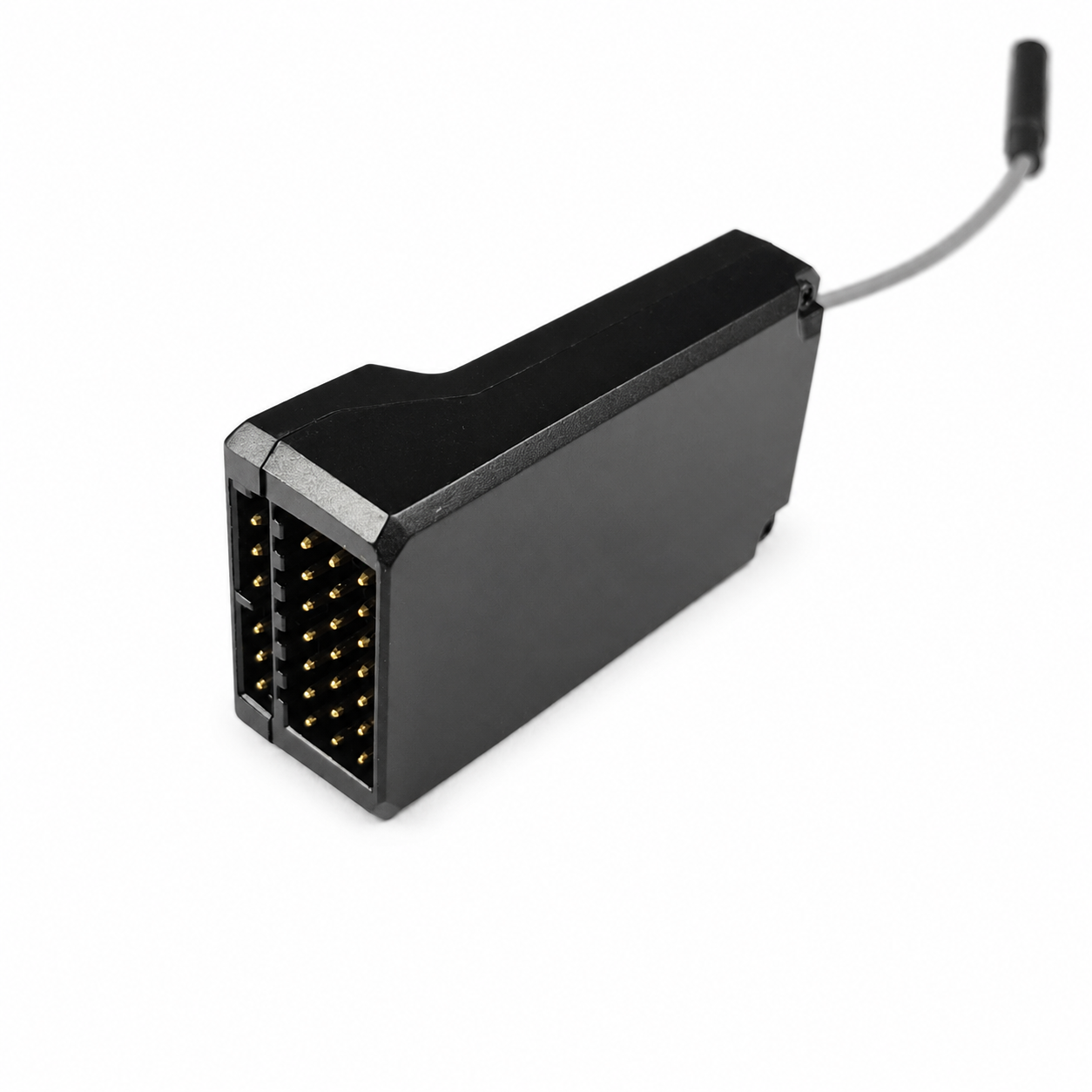

Dual Antennas: Many models of the FS-IA6B come with dual antennas for improved signal reception. This diversity antenna system helps reduce the chances of signal loss and improves reliability.
Easy Binding: The receiver typically supports easy binding with the transmitter, simplifying the initial setup process. Binding is the process of establishing a secure connection between the receiver and transmitter.
Fail-Safe Function: The receiver includes a fail-safe function that can be programmed to automatically return your RC model to a predefined position or perform another predefined action in the event of signal loss. This ensures the safety of your model if the signal is interrupted.
Compatibility: The FS-IA6B receiver is designed to be compatible with a range of Flysky transmitters, making it easy to integrate into your existing radio control system.
Wide Voltage Range: The receiver typically supports a wide voltage input range, making it suitable for use with different types of power sources, including LiPo batteries and other power supplies used in RC models.
Lightweight and Durable: The receiver is designed to be lightweight, preventing unnecessary strain on the RC model. It is also built to withstand the rigors of RC applications, ensuring durability and long-lasting performance.

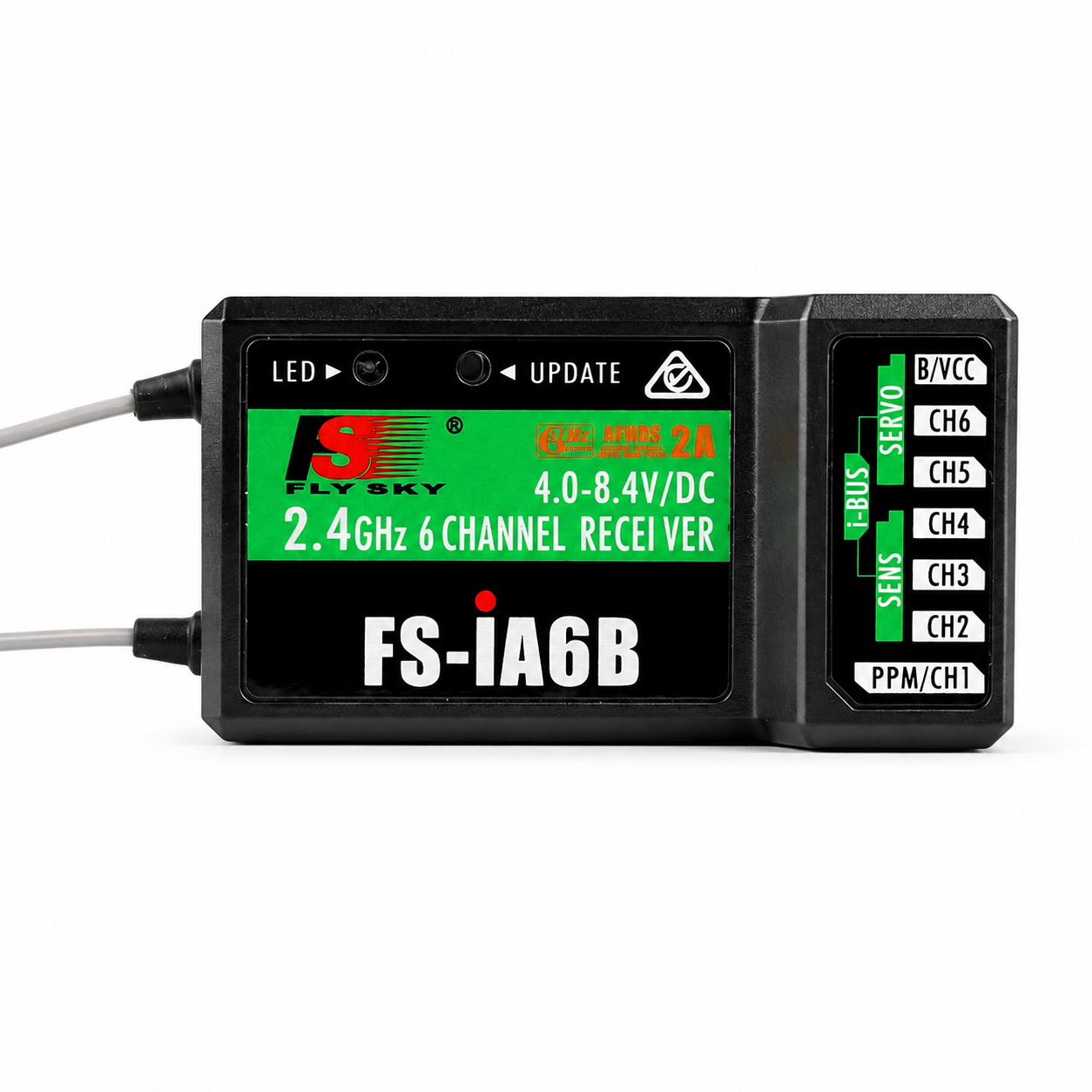

LED Status Indicator: Some models include an LED status indicator to provide visual feedback on the receiver’s status, such as power and signal reception.
Telemetry Support: Some models of the FS-IA6B receiver offer telemetry support, enabling you to receive real-time information about the state of your RC model, such as battery voltage, signal strength, and more.
FS-iA6B Specifications:
| Item Name | FS-iA6B |
| Channel | 6 |
| Frequency Range | 2.4055–2.475GHZ |
| Band Width Number | 140 |
| Transmitting Power | ≤ 20dBm |
| RF Receiver Sensitivity | -105dbm |
| 2.4G Mode | The second generation of an enhanced version of the automatic FM digital system |
| Encoding | GFSK |
| Antenna Length | 26mm * 2 (dual antenna) |
| Input Power | 4.0-6.5V DC |
| Dimension | 47 x 26.2 x 15mm |
| Color | Black |
| i-Bus Interface | Yes |
| Data Acquisition Interface | Yes |
| Model Type | Airplane / Glider / Helicopter |
| Compatible Transmitter | Compatible with FS-i4,FS-i6,FS-i10,FS-GT2E,FS-GT2G |
Package included:
1× Flysky FS-IA6B 2.4ghz 6Ch Receiver

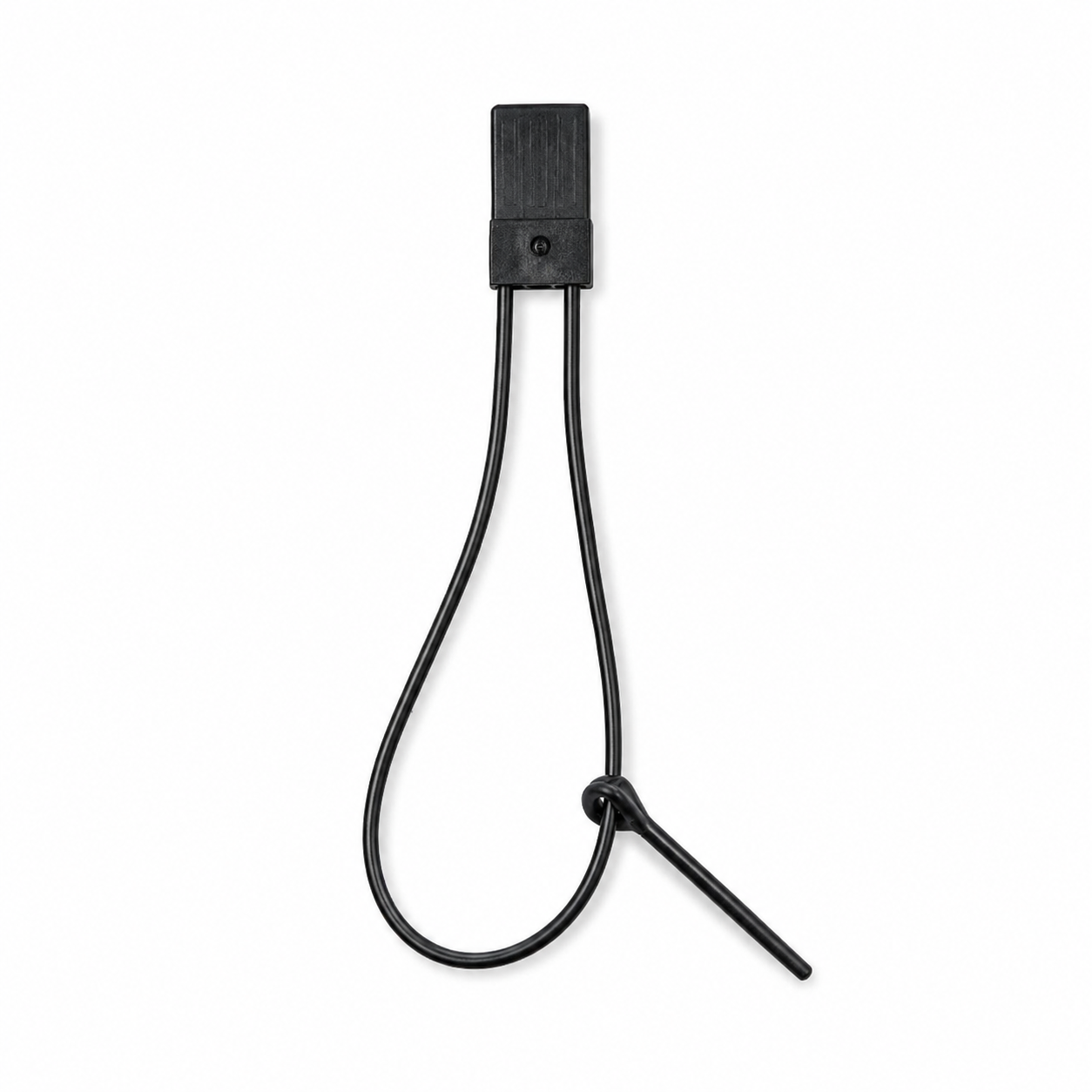

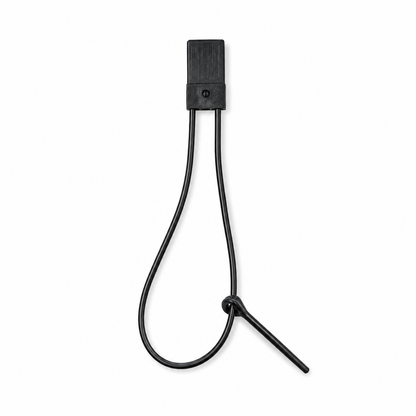

1× Binding Key
