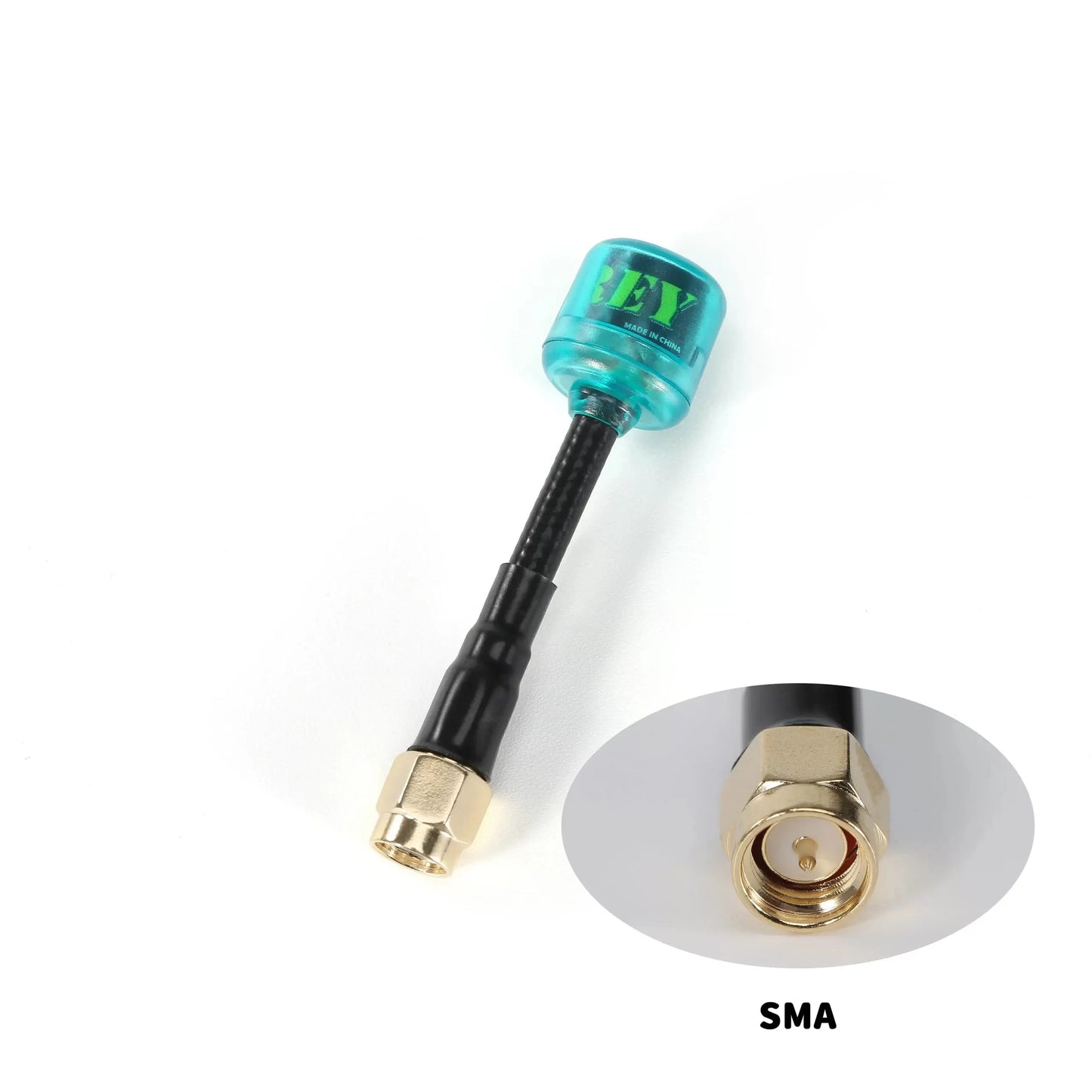

FlyFishRC Osprey 5.8Ghz RHCP SMA Antenna 60mm - Cyan.

FlyFishRC Osprey 5.8Ghz RHCP SMA Antenna 60mm - Cyan.

SKU:055048

Regular price Rs. 549.00
Regular price Sale price Rs. 549.00
Sale Sold out
Shipping calculated at checkout.

(Including GST)

View full details

Description
With its lightweight design, and new 4-leaf construction, the FlyFishRC Osprey Antenna offers superb penetration, signal strength and clarity, and is now available to pilots at an incredibly attractive price.
The Osprey Antenna features a transparent casing, and unique hybrid network, and is smaller than other 5.8GHz CP antennas, Dimensions(head): 14.1mm diameter. X 14mm height.
Although the Osprey Antenna is both small and light, it does not sacrifice any performance with a high gain of up to 2.8dBi and 99% radiation efficiency. Moreover, it outperforms most other antennas in all categories. Sophisticated engineering gives this antenna a near-perfect circular shape for better range and penetration.
Its bandwidth covers the mainstream FPV 5.8GHz band with a 5.6GHz-6.0GHz frequency range. Regardless of the frequency you’re on, you are guaranteed to have a signal as clear and strong as it’s possible.
The Osprey Antenna casing is made of impact-resistant polycarbonate material that is hermetically sealed to protect the antenna elements inside.

Package Includes
1× FlyFishRC Osprey 5.8Ghz RHCP- SMA Antenna 60mm (Cyan)


           SPECIFICATIONS:-
Gain 2.82dBi
Frequency 5.8GHz
V.S.W.R ≤1.2:1
Radiation Efficiency 99%
Polarization RHCP
Connector Gold plated SMA
Dimensions(head) 14.1mm dia. X 14mm height.
Length 60mm
Cable Resilient RG141 coax.
Colors Cyan
Weight 6.9g
