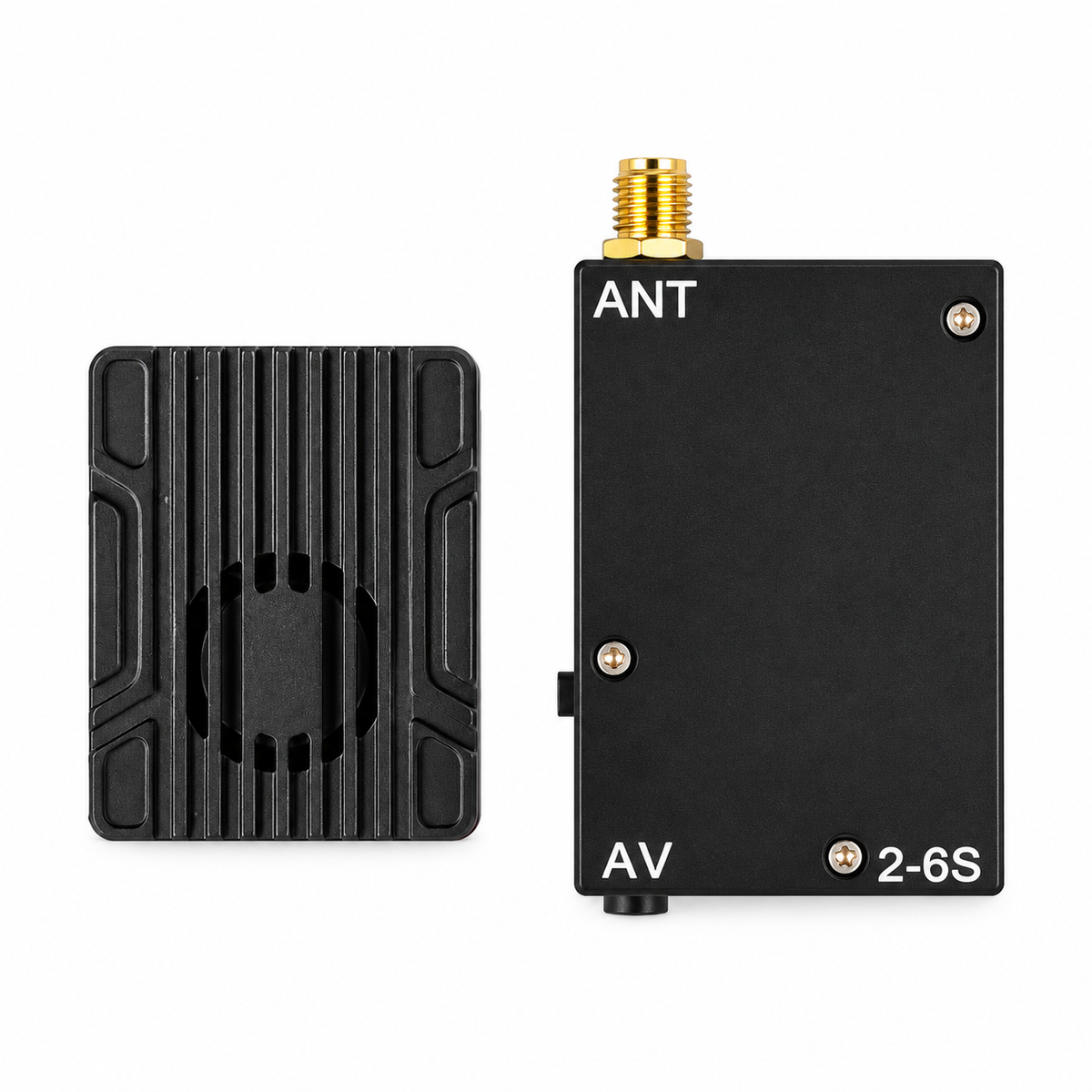

DAKEFPV VRX 7.5G 64CH FPV Video Receiver for Long Range FPV
DAKEFPV VRX 7.5G 64CH FPV Video Receiver for Long Range FPV
SKU:055267
(Including GST)
Couldn't load pickup availability
Share

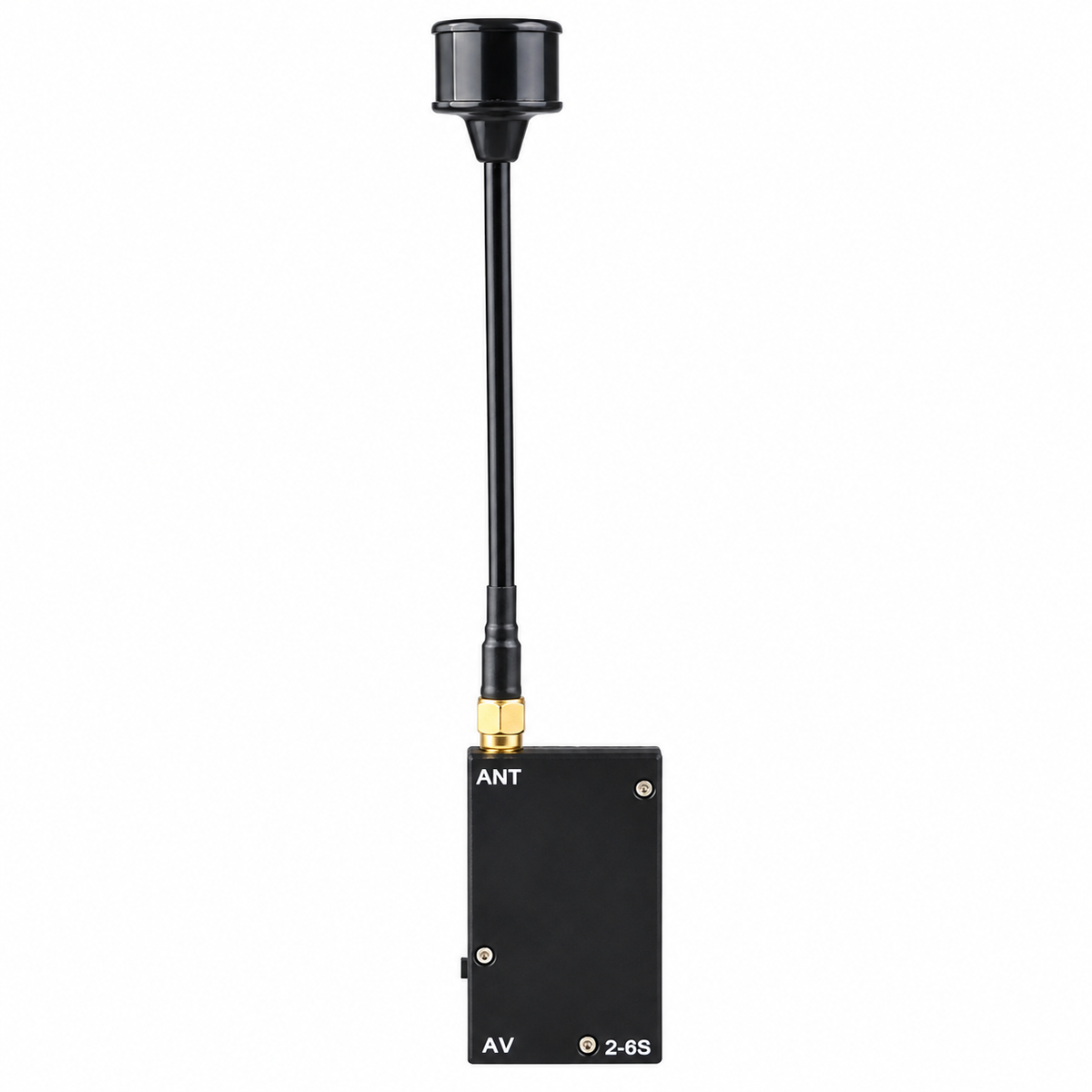

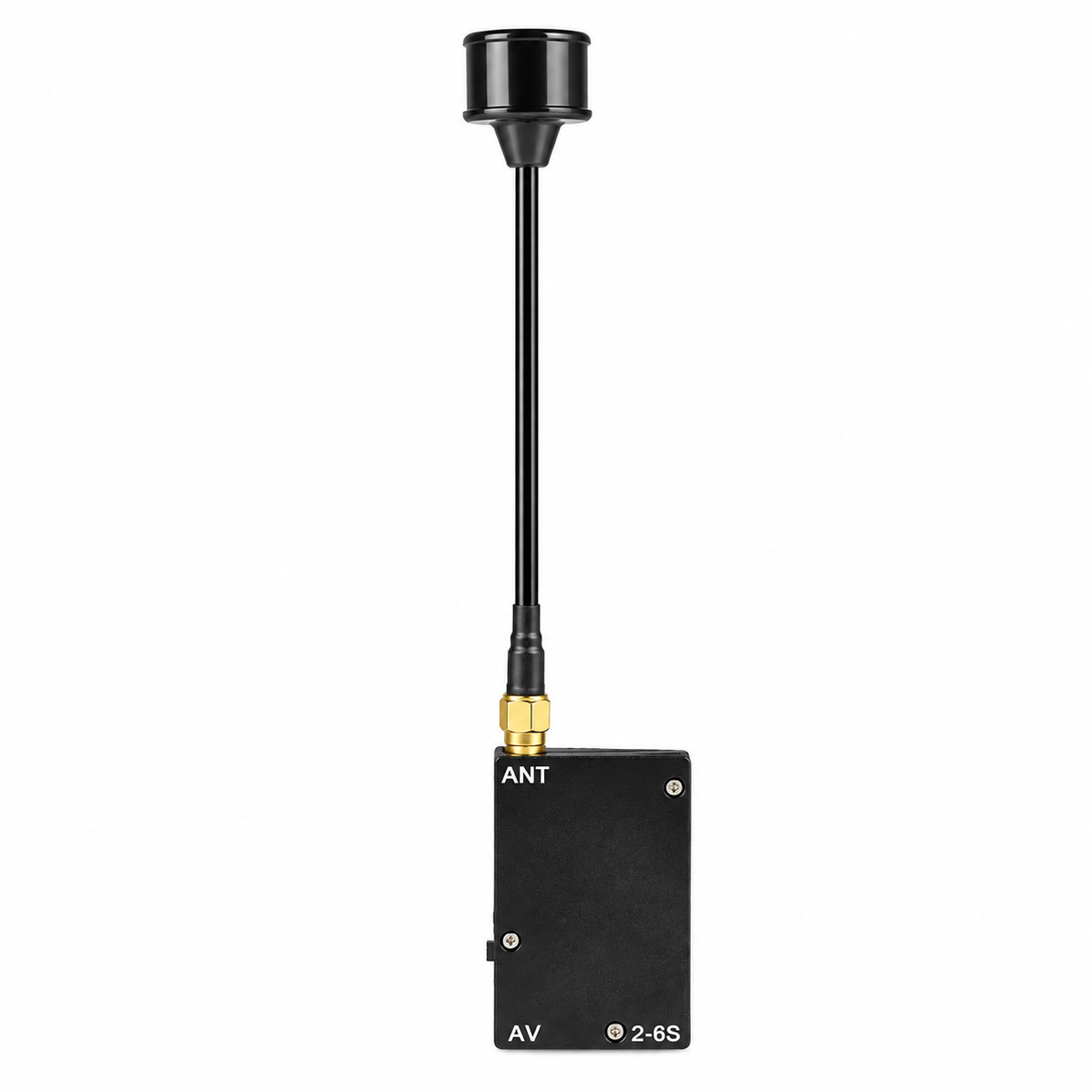

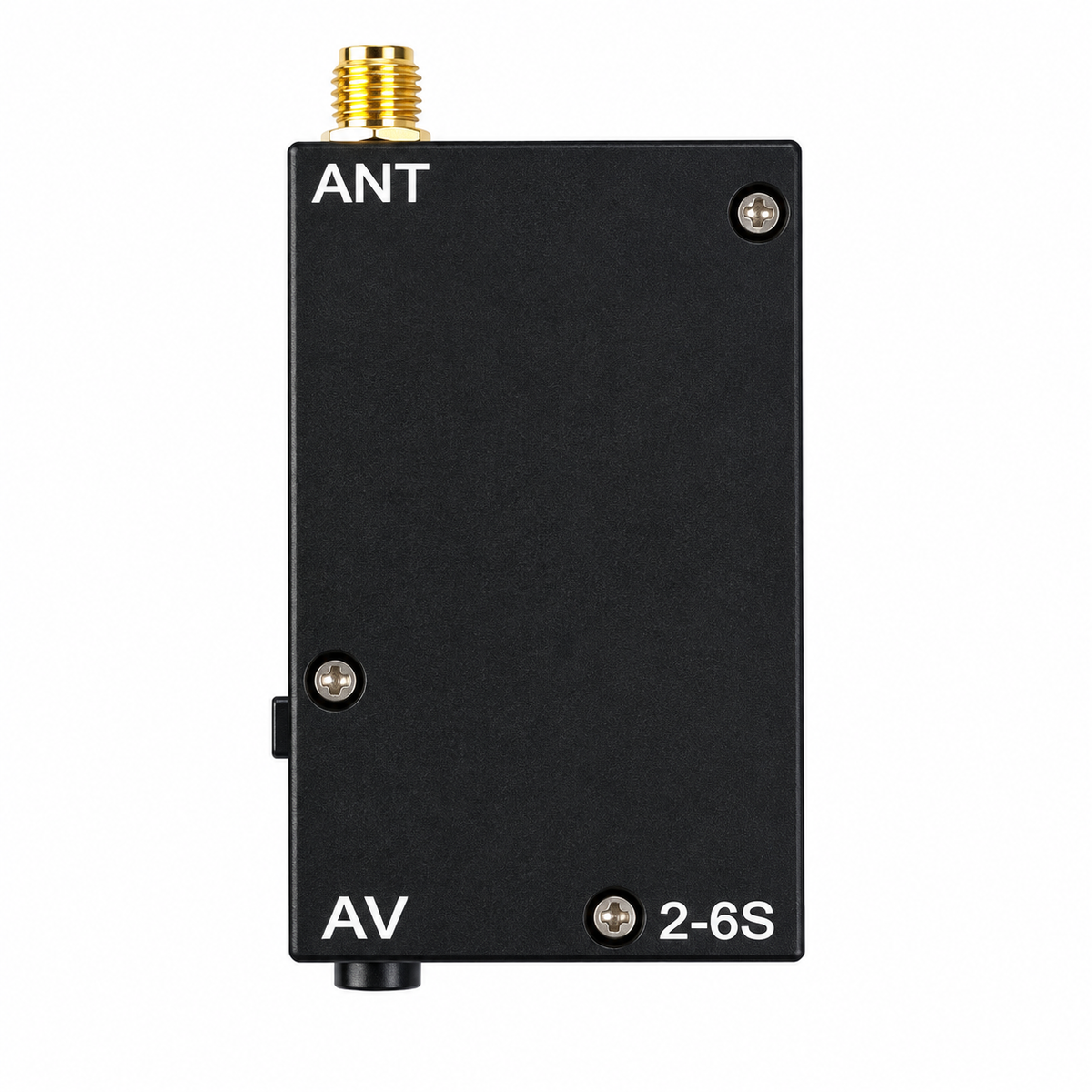

DAKEFPV VRX 7.5G 64CH FPV Video Transmission Receiver for Long Range FPV Drones

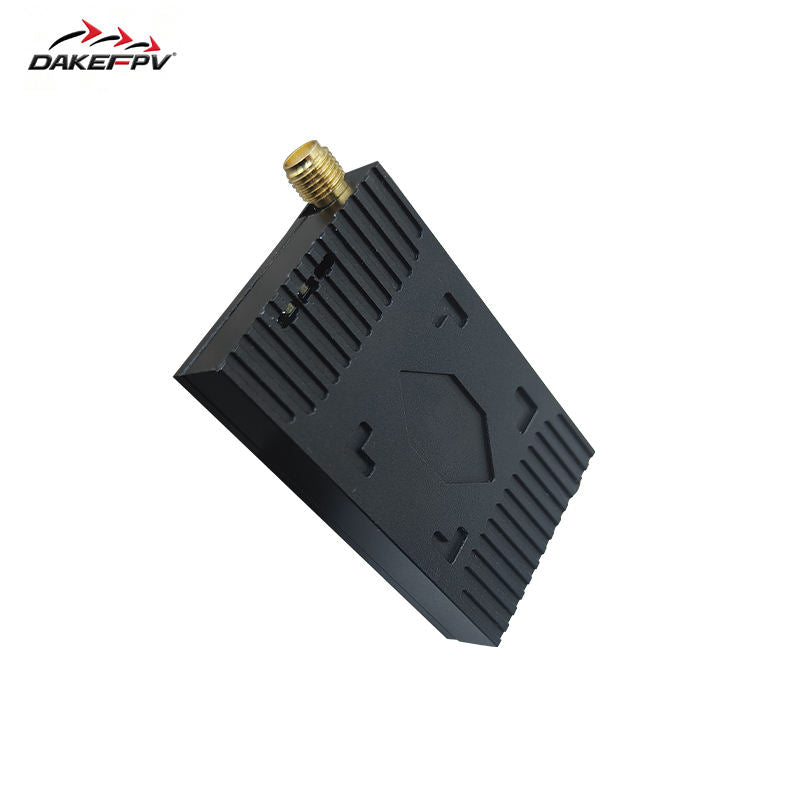

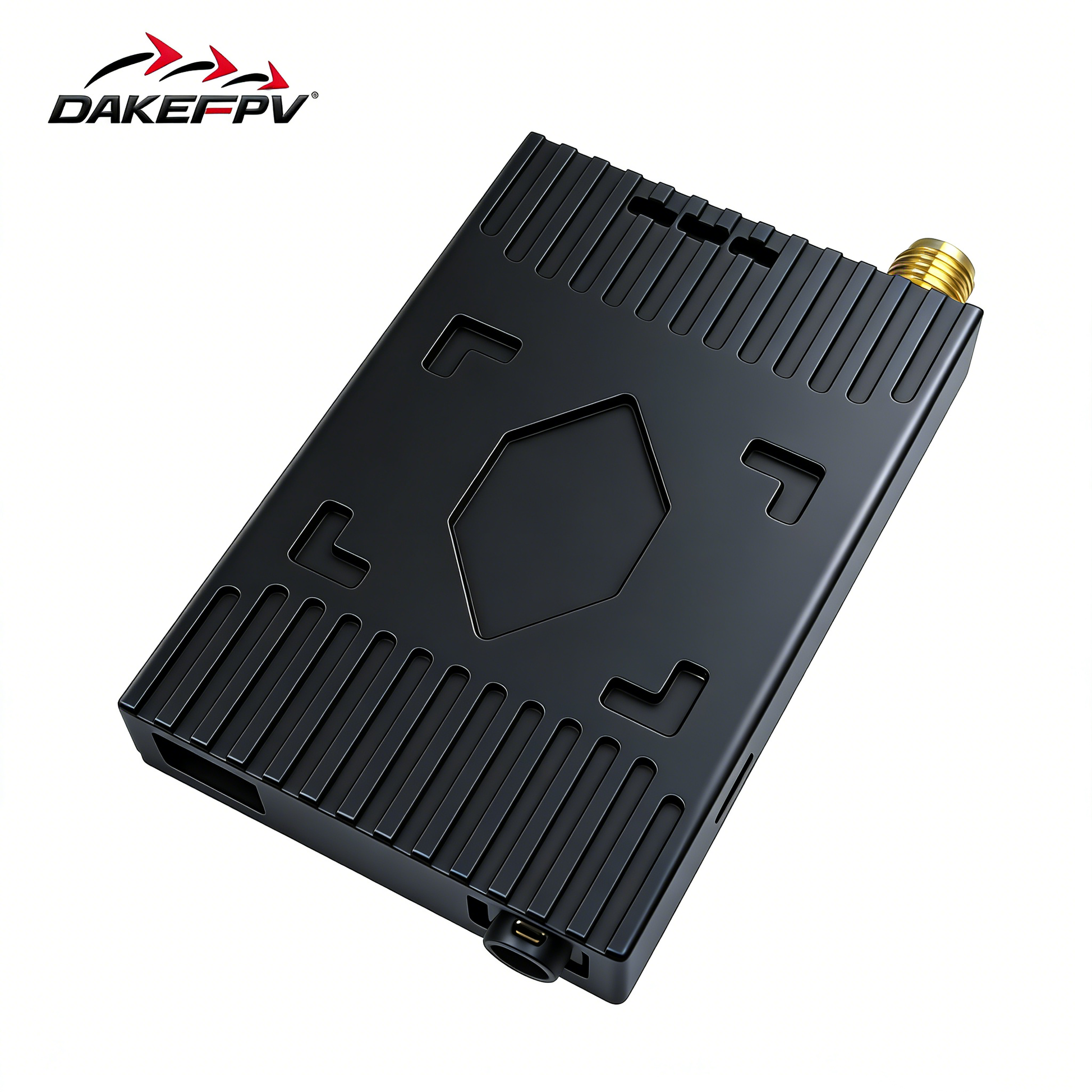

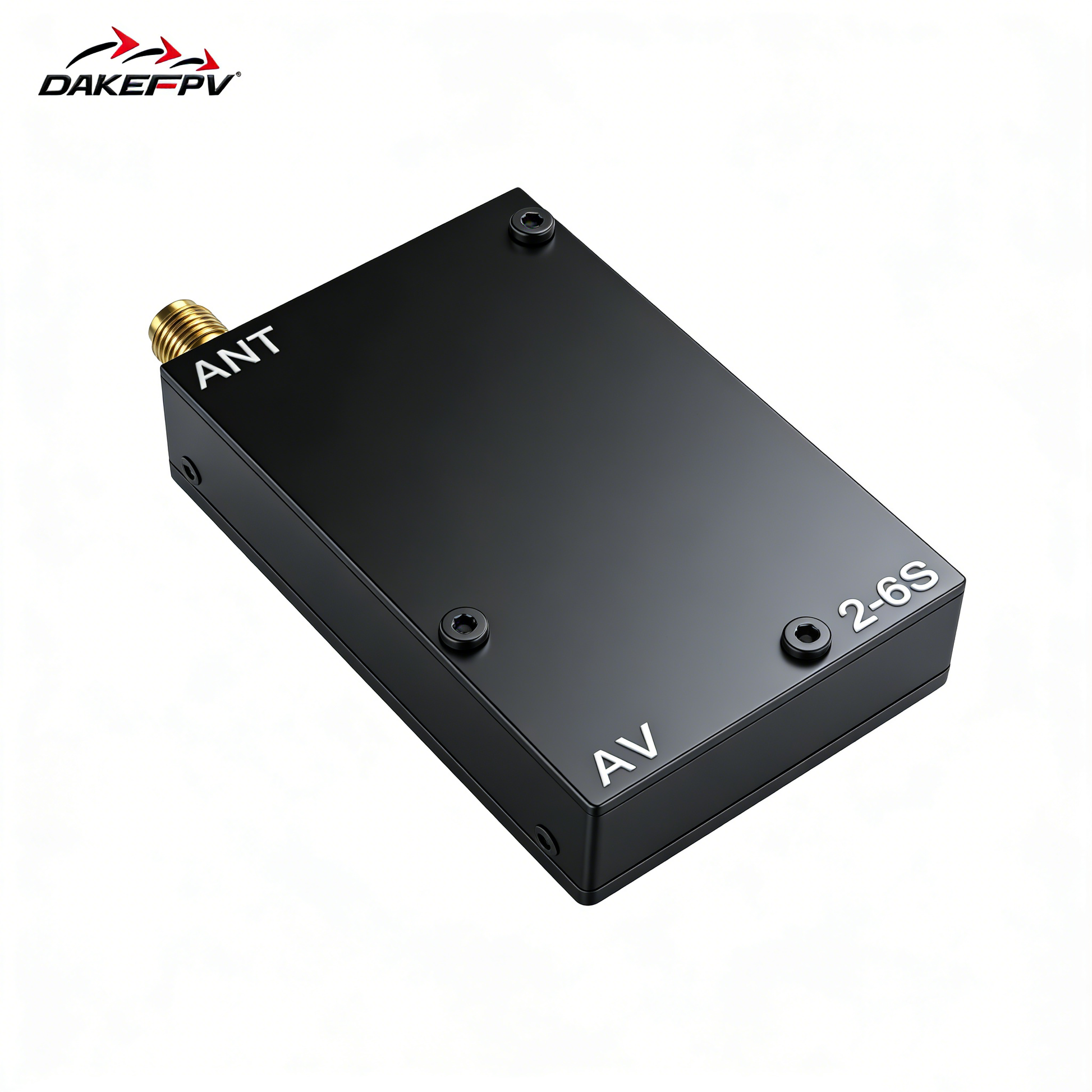

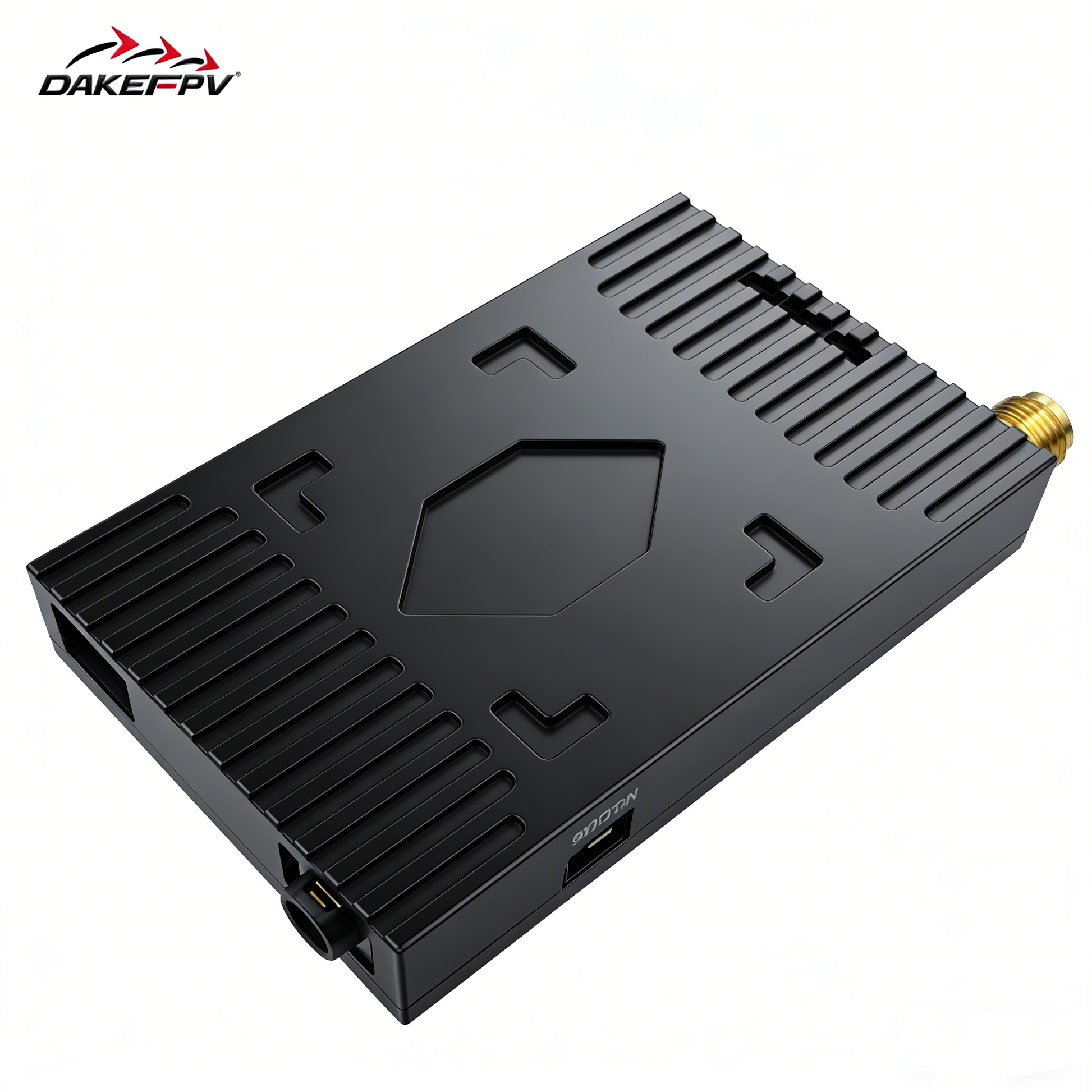

The DAKEFPV VRX 7.5G 64CH FPV Video Receiver is a high-performance analog video receiver designed for 6GHz–7.5GHz FPV video transmission systems. Built for long-range FPV drones, UAV ground stations, robotics, and wireless video monitoring, this compact receiver delivers stable video reception with excellent sensitivity and low power consumption.

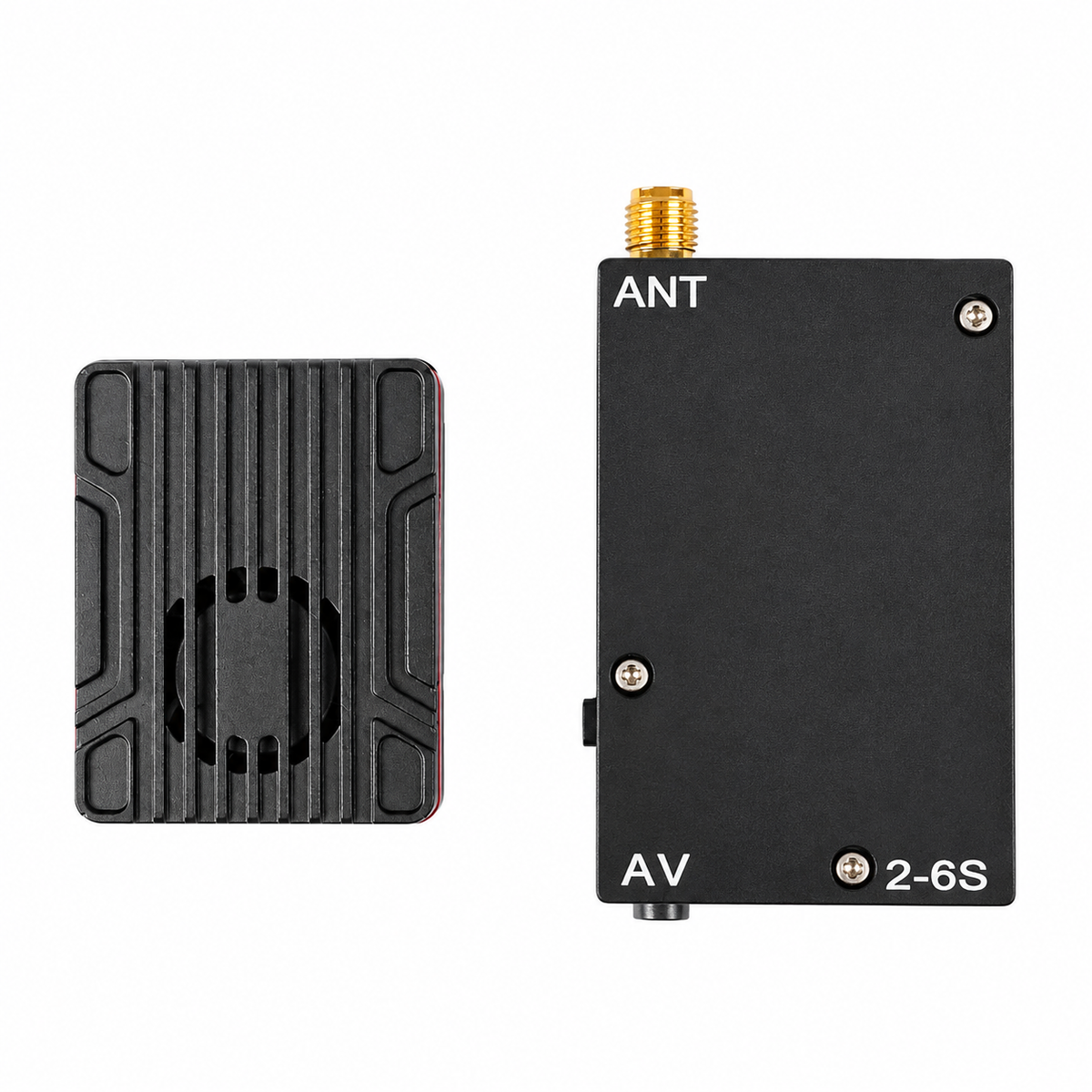

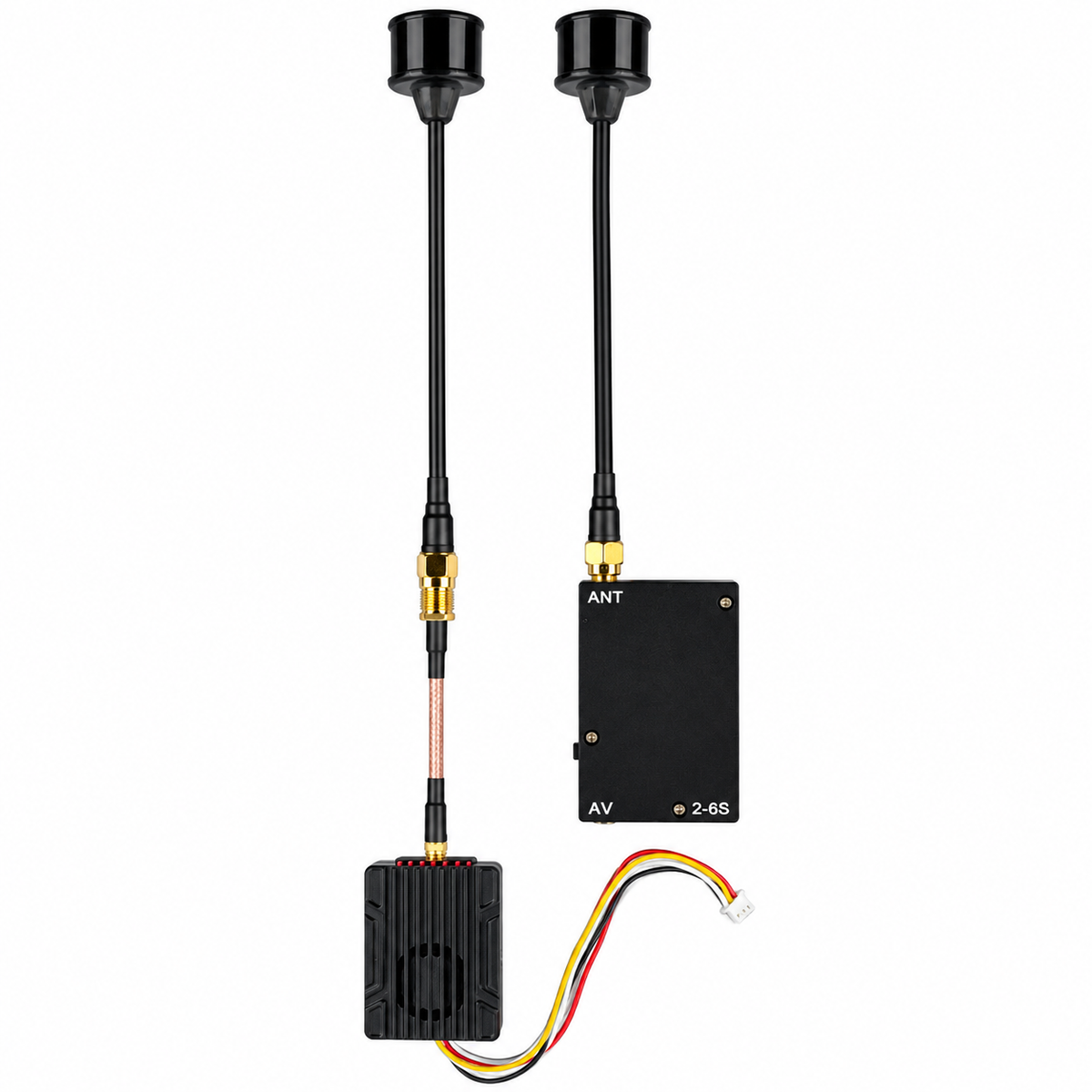

Supporting 72 selectable working channels with convenient button-based channel selection, the VRX allows pilots to quickly switch frequencies and minimize interference during flight. With a high receive sensitivity of better than -90dBm, it provides stable and reliable analog video reception over extended distances when paired with compatible 7.5GHz video transmitters. Video receivers are the ground-side component that receives the wireless analog signal from the aircraft's VTX and outputs it to FPV goggles or displays.

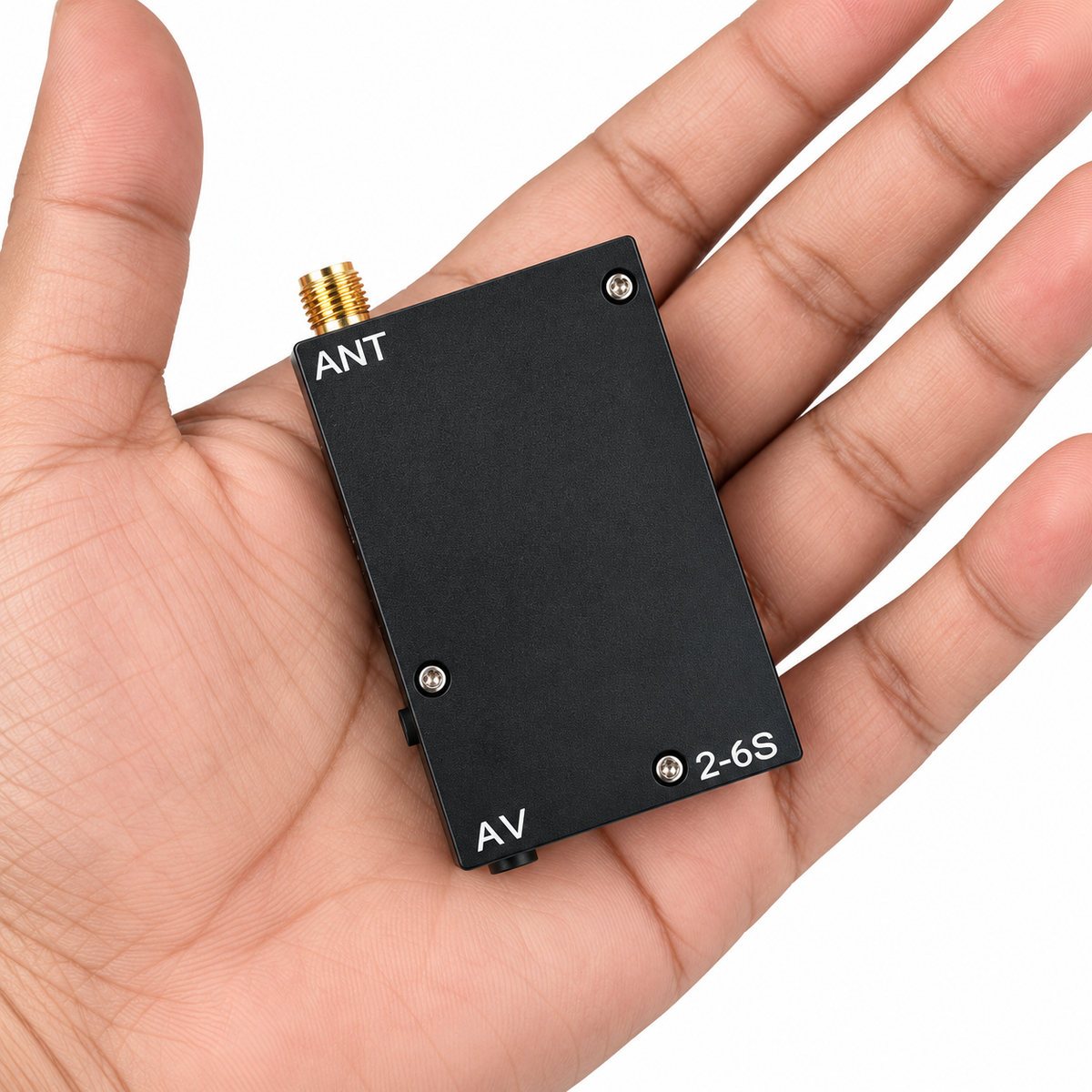

Operating from a 7V–25V DC input (2S–6S LiPo) and consuming only 2W of power, the receiver is suitable for portable FPV stations, field monitors, and custom ground control systems. Its lightweight 16g design makes it easy to integrate into any FPV setup.
Key Features
- 6GHz–7.5GHz Analog FPV Video Receiver
- Supports 72 Selectable Channels
- High Receive Sensitivity > -90dBm
- Compatible with 7.5GHz Analog Video Transmitters
- Wide Input Voltage: DC 7V–25V (2S–6S LiPo)
- Low Power Consumption (2W)
- Compact and Lightweight Design

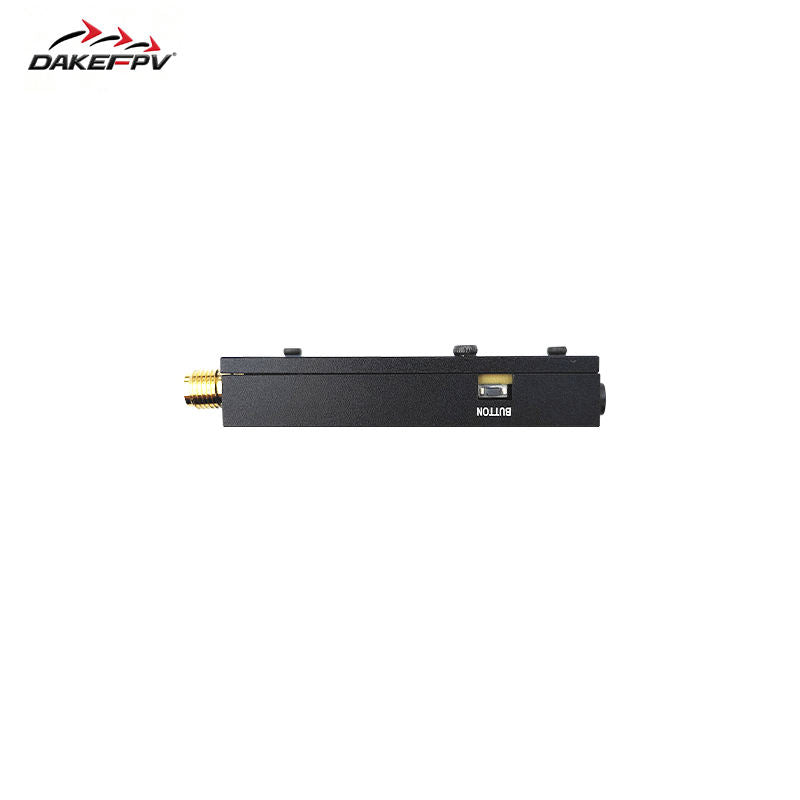

- Button-Based Channel Selection
- Stable Long-Range Video Reception
- Suitable for FPV Goggles, Ground Stations & FPV Monitors
Specifications
| Specification | Details |
|---|---|
| Product | DAKEFPV VRX 7.5G FPV Video Receiver |
| Frequency Band | 6GHz–7.5GHz |
| Channels | 72 Working Channels |
| Input Voltage | DC 7V–25V (2S–6S LiPo) |
| Power Consumption | 2W |
| Receive Sensitivity | > -90dBm |
| Maximum Input Power | 10dBm to -20dBm |
| Dimensions | 37 × 28.7 × 14mm |
| Weight | 16g |
| Channel Selection | Button Control |
Package Includes
- 1 × DAKEFPV VRX 7.5G 64CH FPV Video Receiver
Ideal Applications
- Long-Range FPV Drones
- FPV Racing & Freestyle
- Fixed-Wing UAVs
- Ground Control Stations
- FPV Monitors & Goggles
- Robotics & Wireless Video Systems
- Industrial UAV Video Transmission
This receiver is an excellent choice for pilots and professionals who need stable analog video reception, wide voltage compatibility, and reliable long-range FPV performance with compatible 6GHz–7.5GHz VTX systems.
