Description:

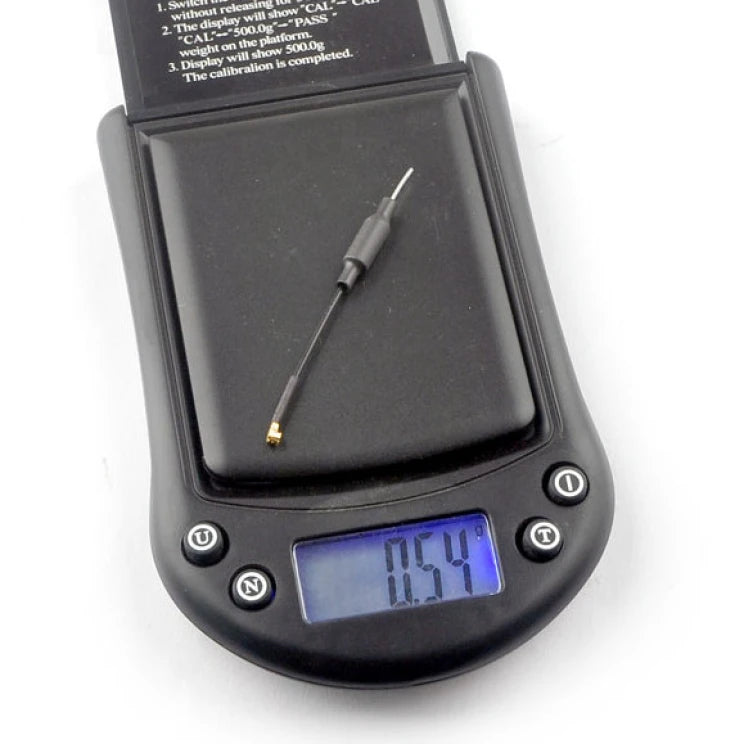

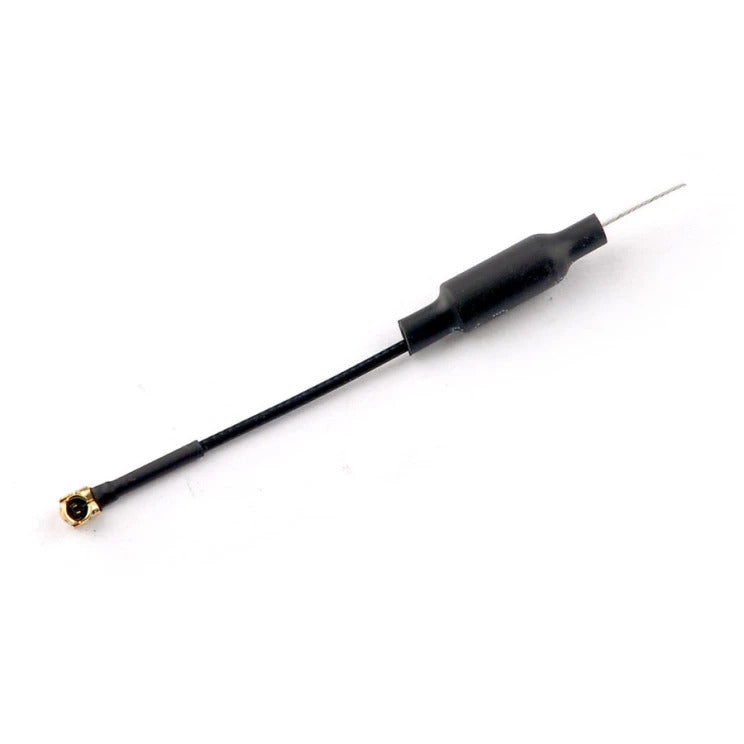

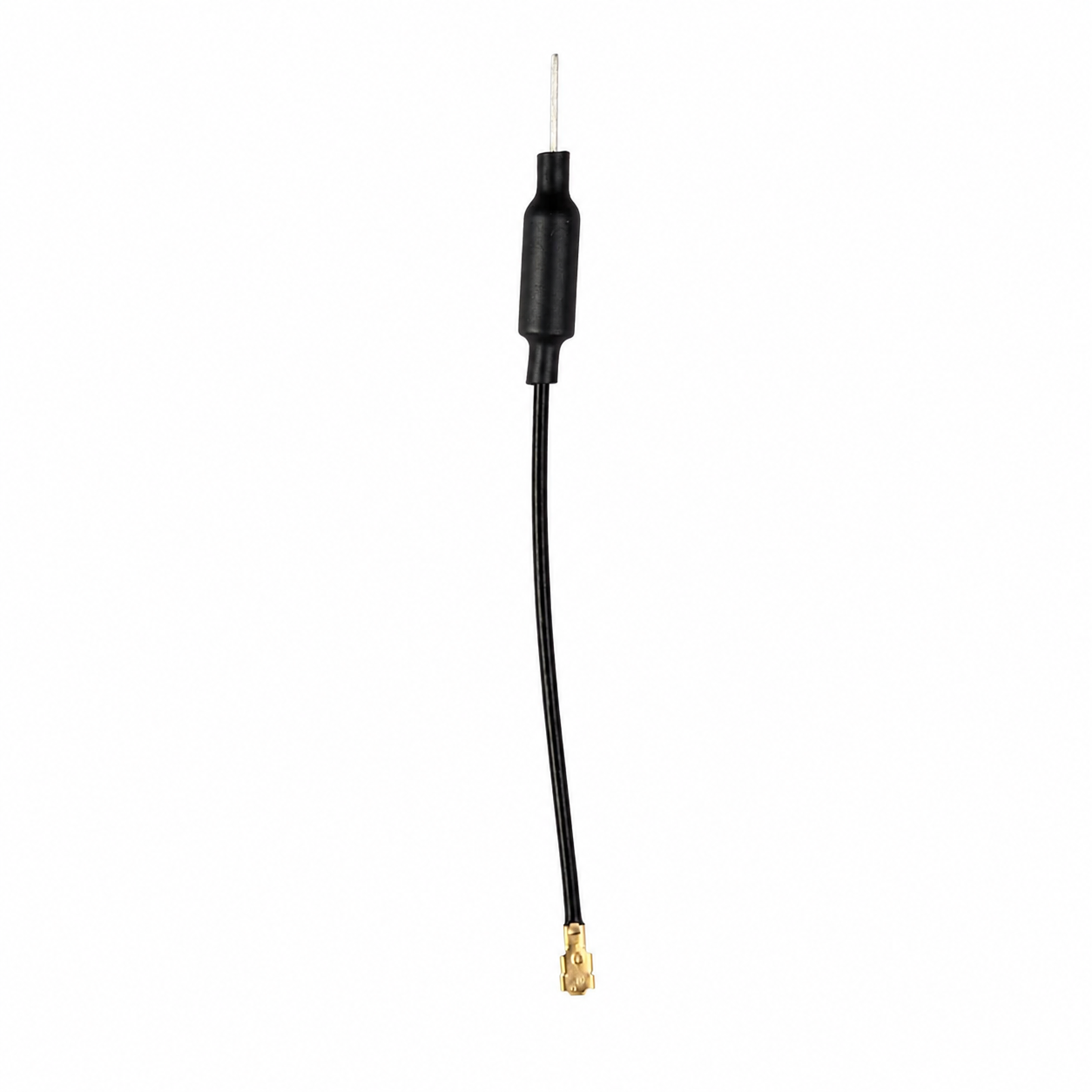

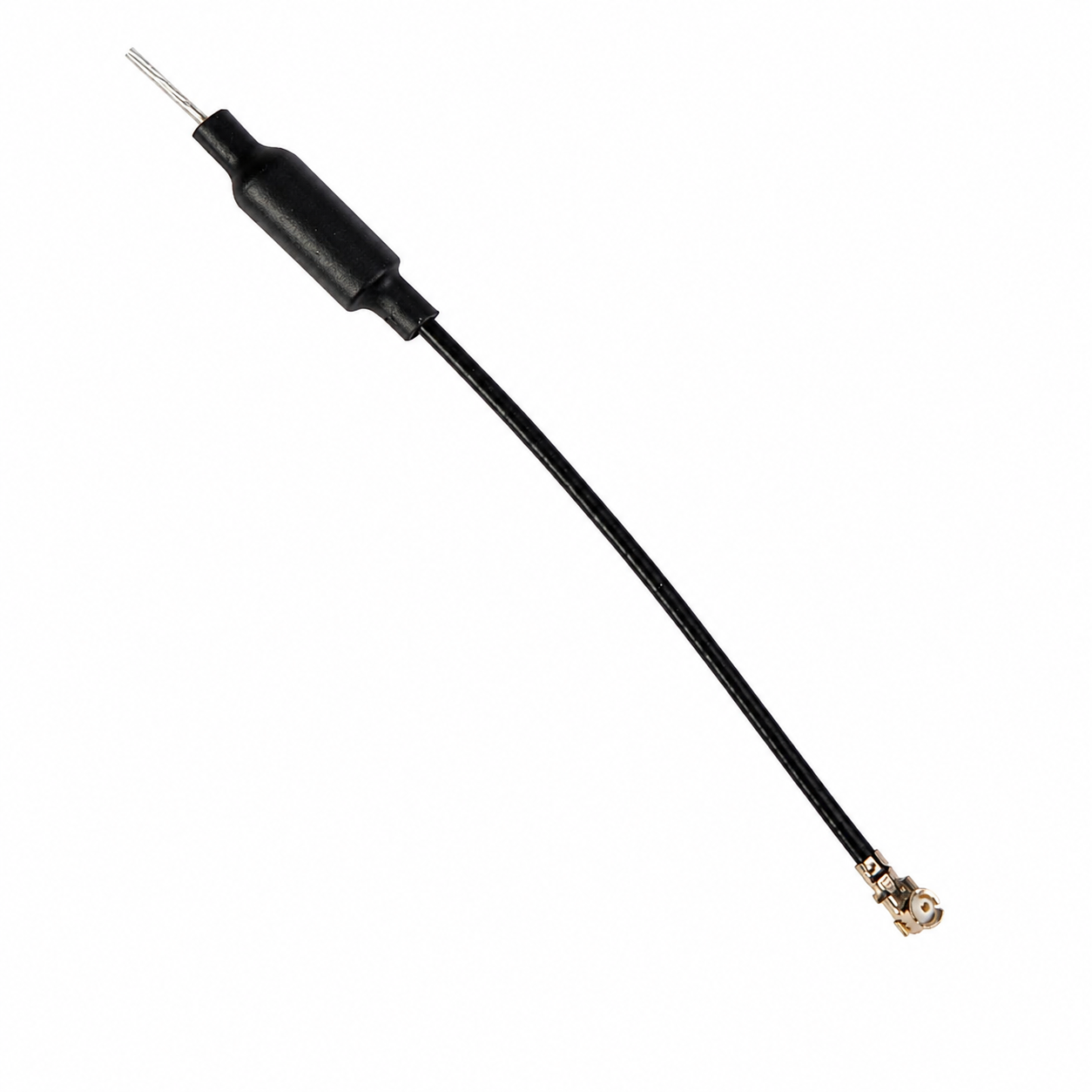

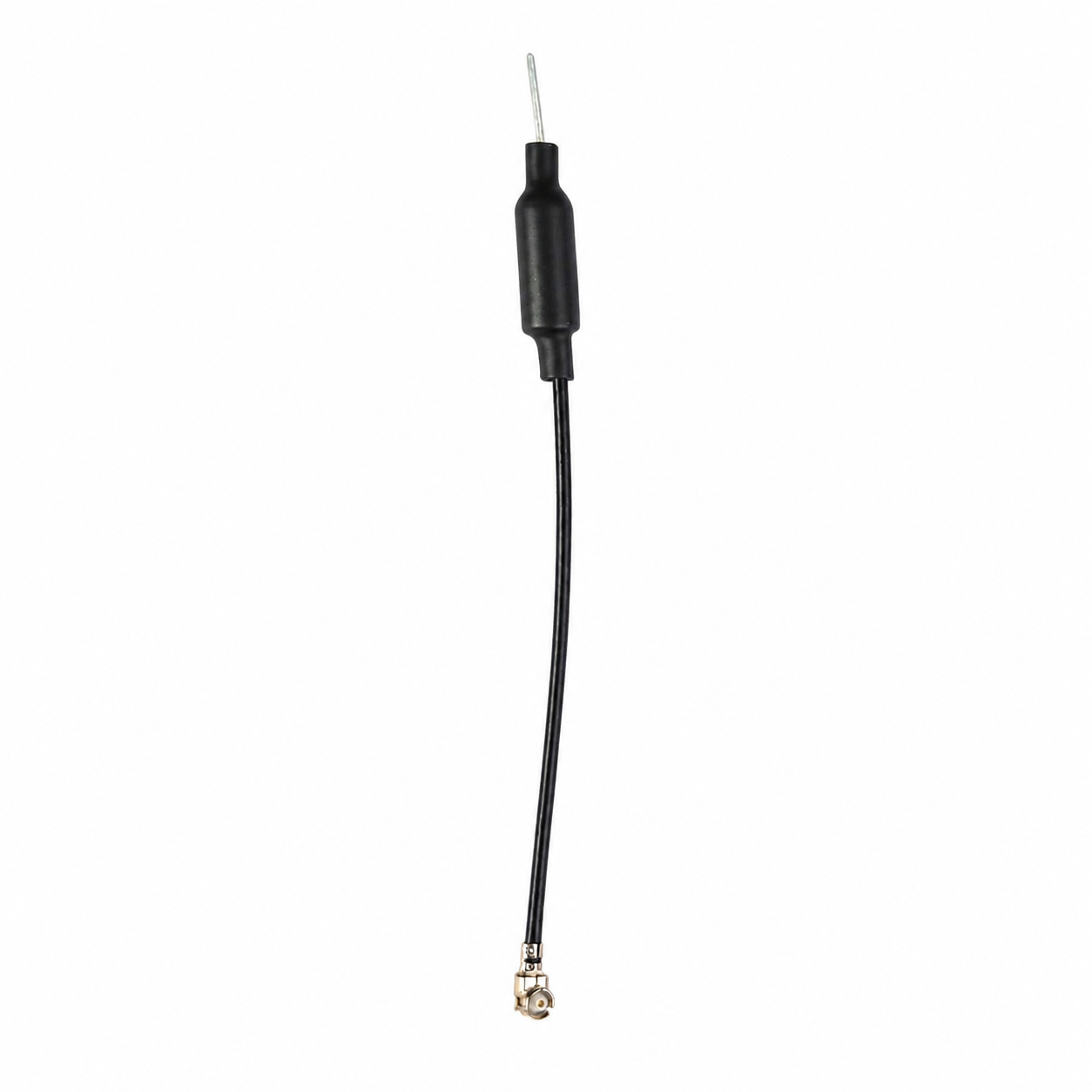

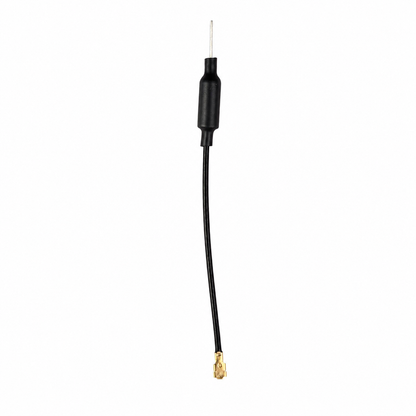

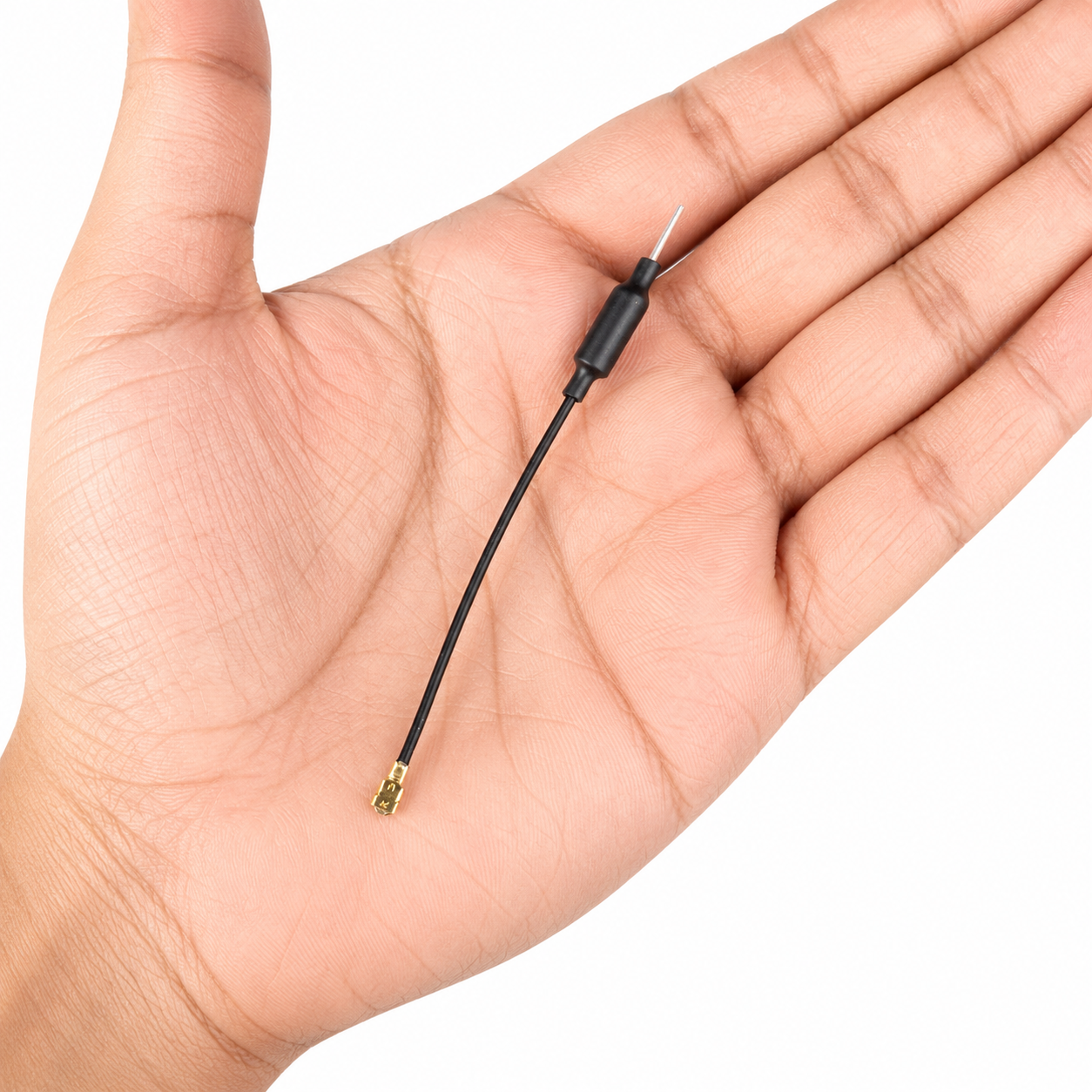

Weighing about 0.54g, DakeFPV Linear Dipole VTX Antenna Cable is an antenna that connects to the 5.8G VTX on the flight controller, and designed for optimal performance without adding unnecessary weight. The IPX/U.FL connector provides versatile connectivity, making it compatible with Mobula7, Mobula7 HD 1S, Mobula8 and other micro fpv quadcopter. It also utilizes RG113 cable and high-gain Omni-directional technology, offering superior signal directivity for an immersive FPV experience.
Package Includes:
1× DakeFPV Linear Dipole VTX Antenna Cable
Specification:-
| Parameter | Specification |
|---|---|
| Application | VTX |
| Cable | RG113 |

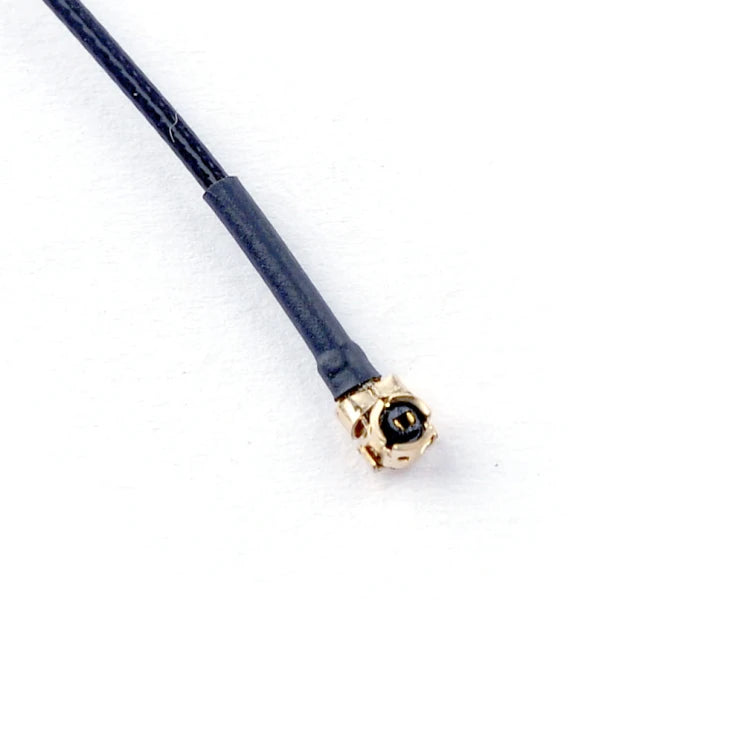

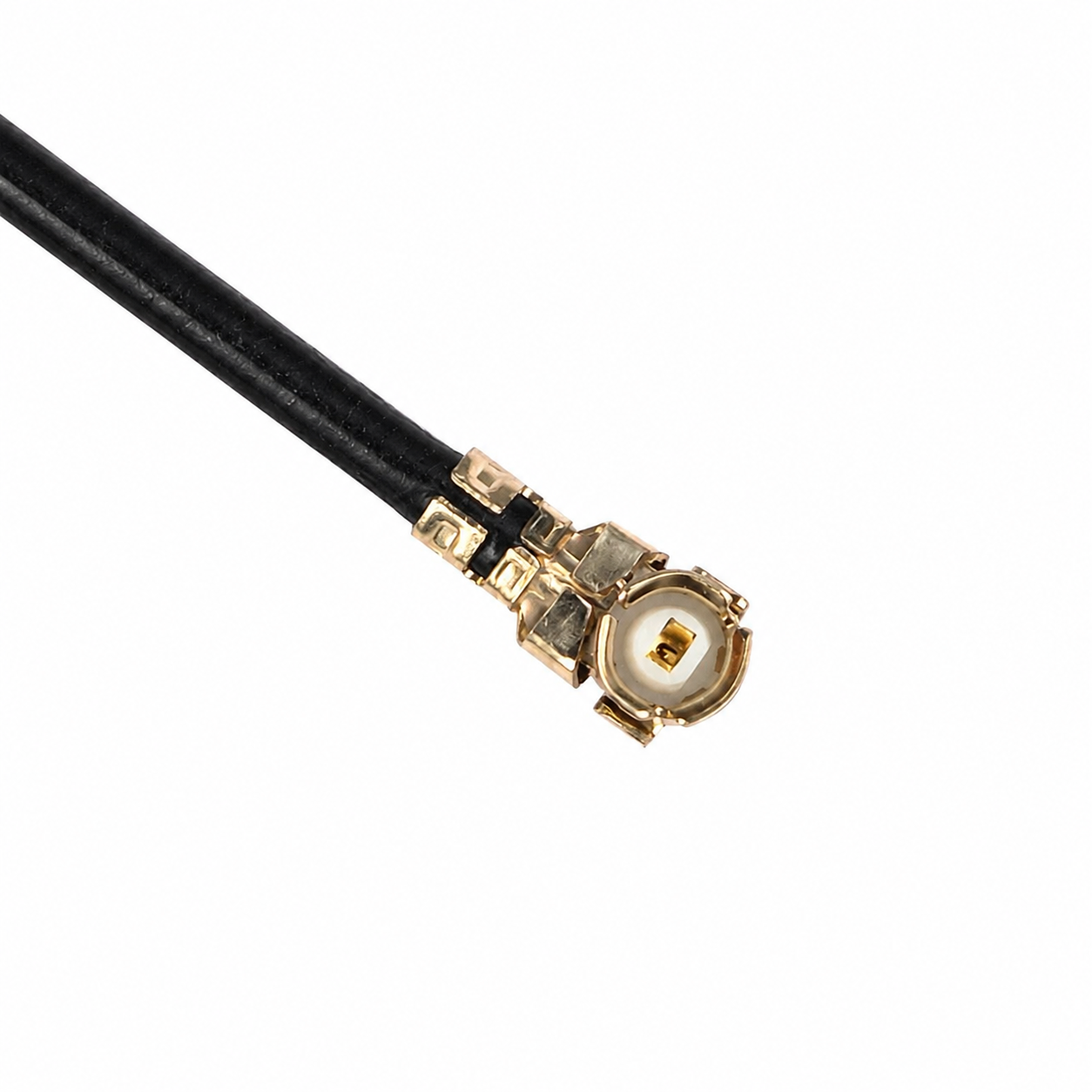

| Connector | IPX / U.FL |
| Frequency Range | 4900 ~ 5900MHz |
| Gain | 2dBi |
| Impedance | 50Ω |
| Length | 47mm / 60mm |
| Signal Directivity | Omni-directional Antenna |
| Standing Wave Ratio (S.W.R.) | ≤ 2.0 @ 5700 ~ 5900MHz |
| Weight | 0.5g |
