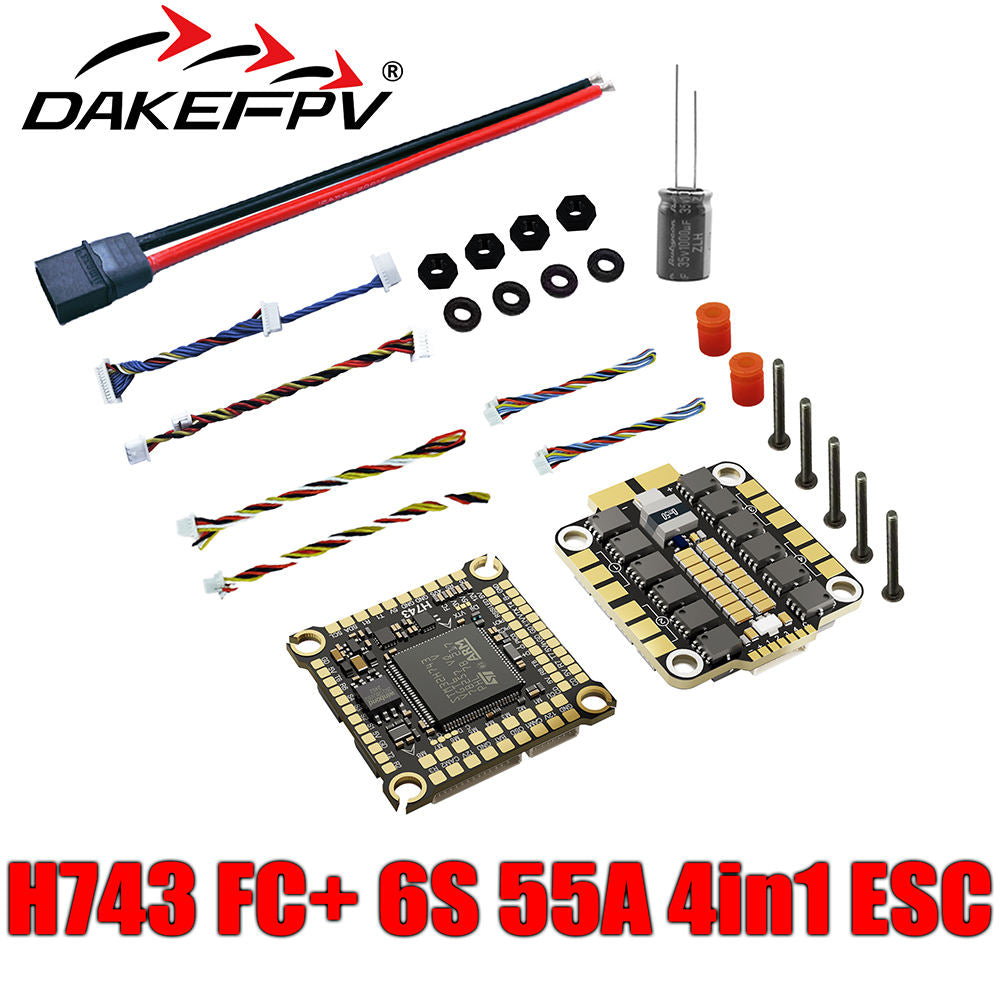

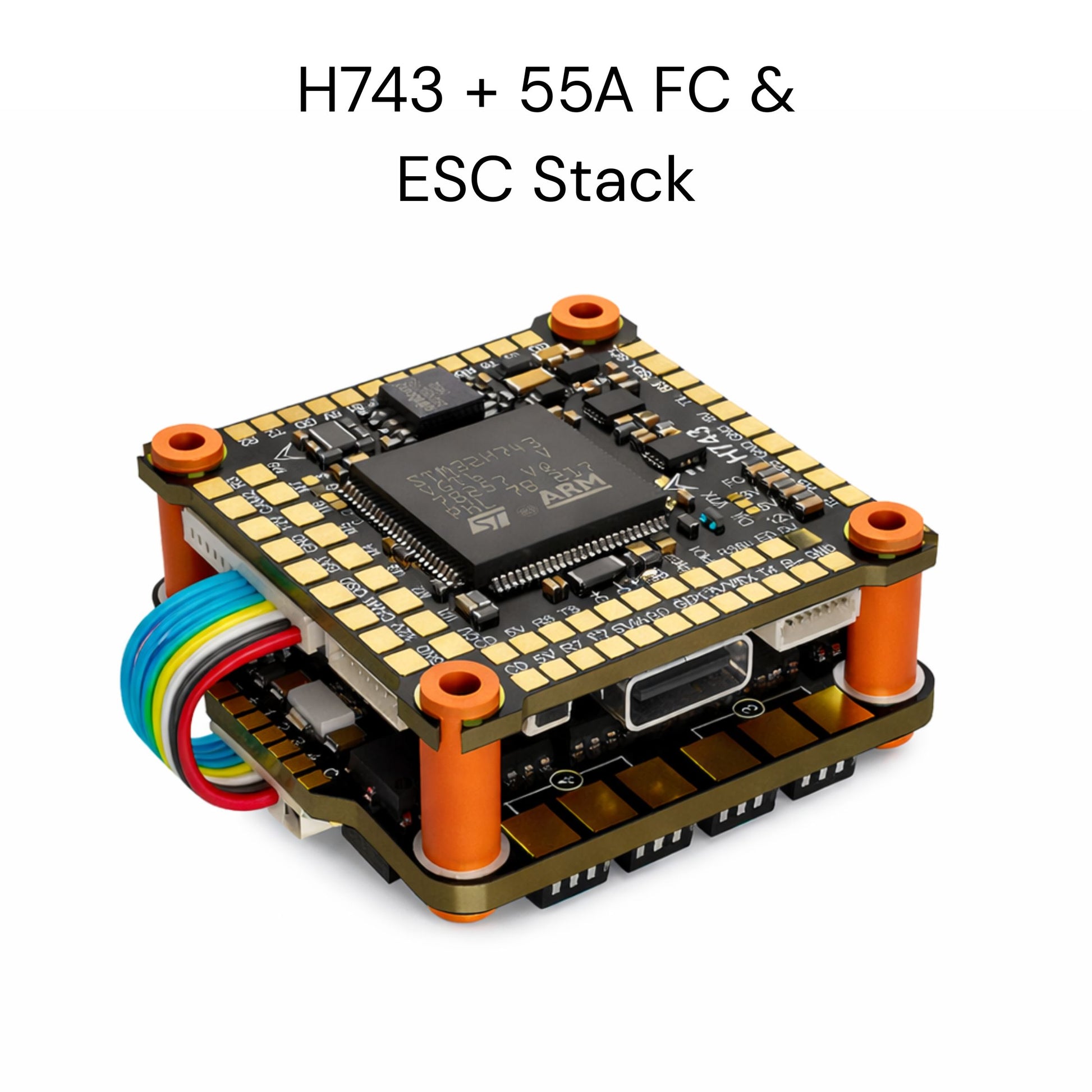

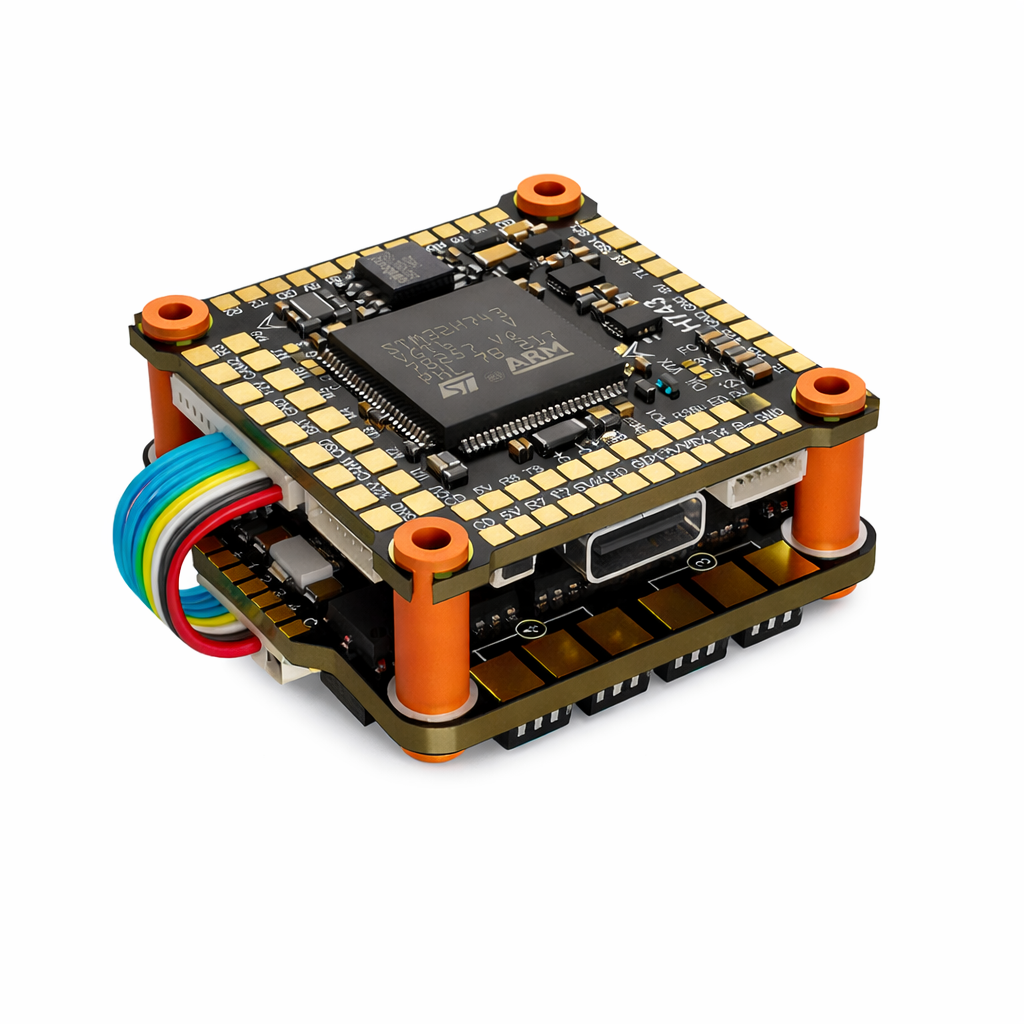

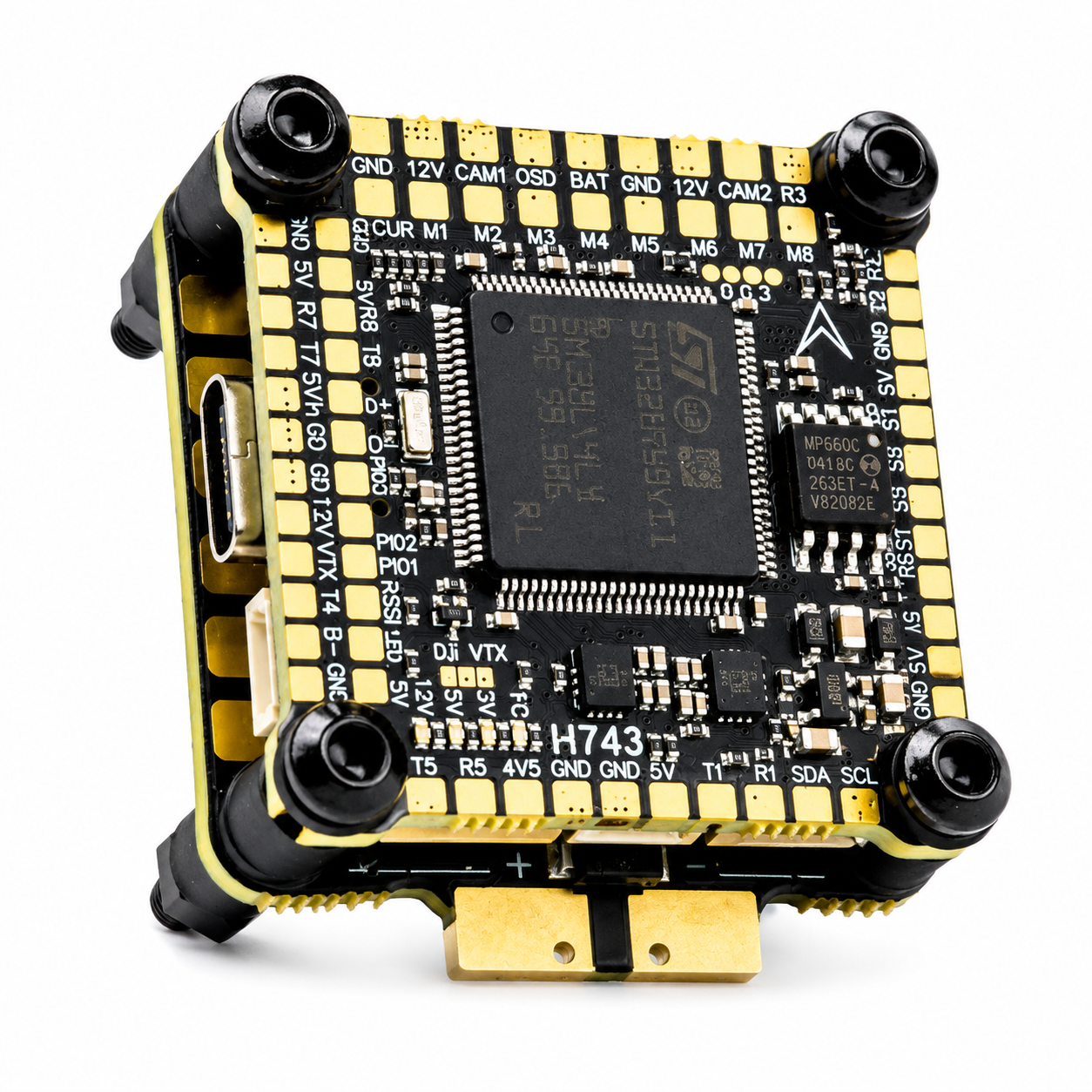

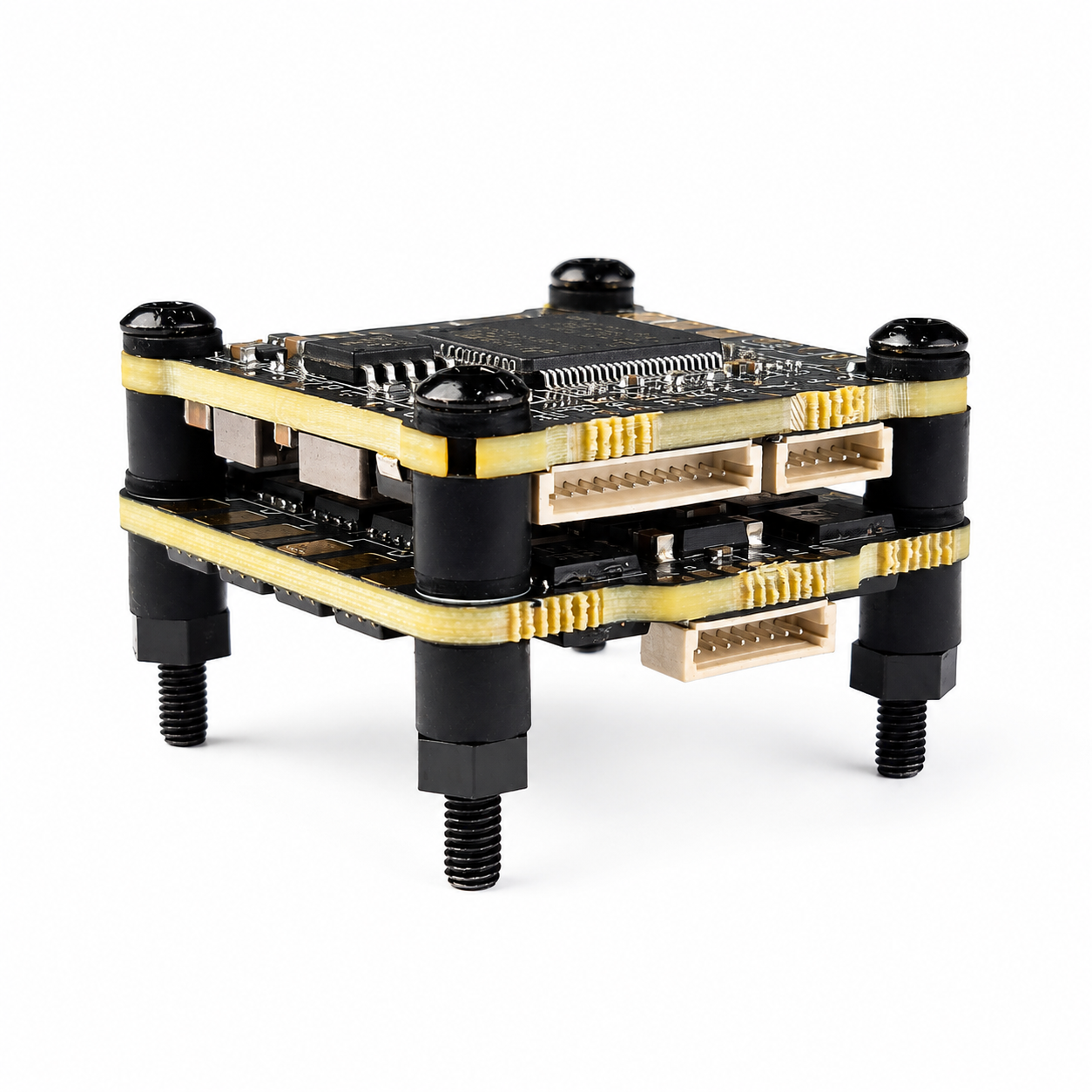

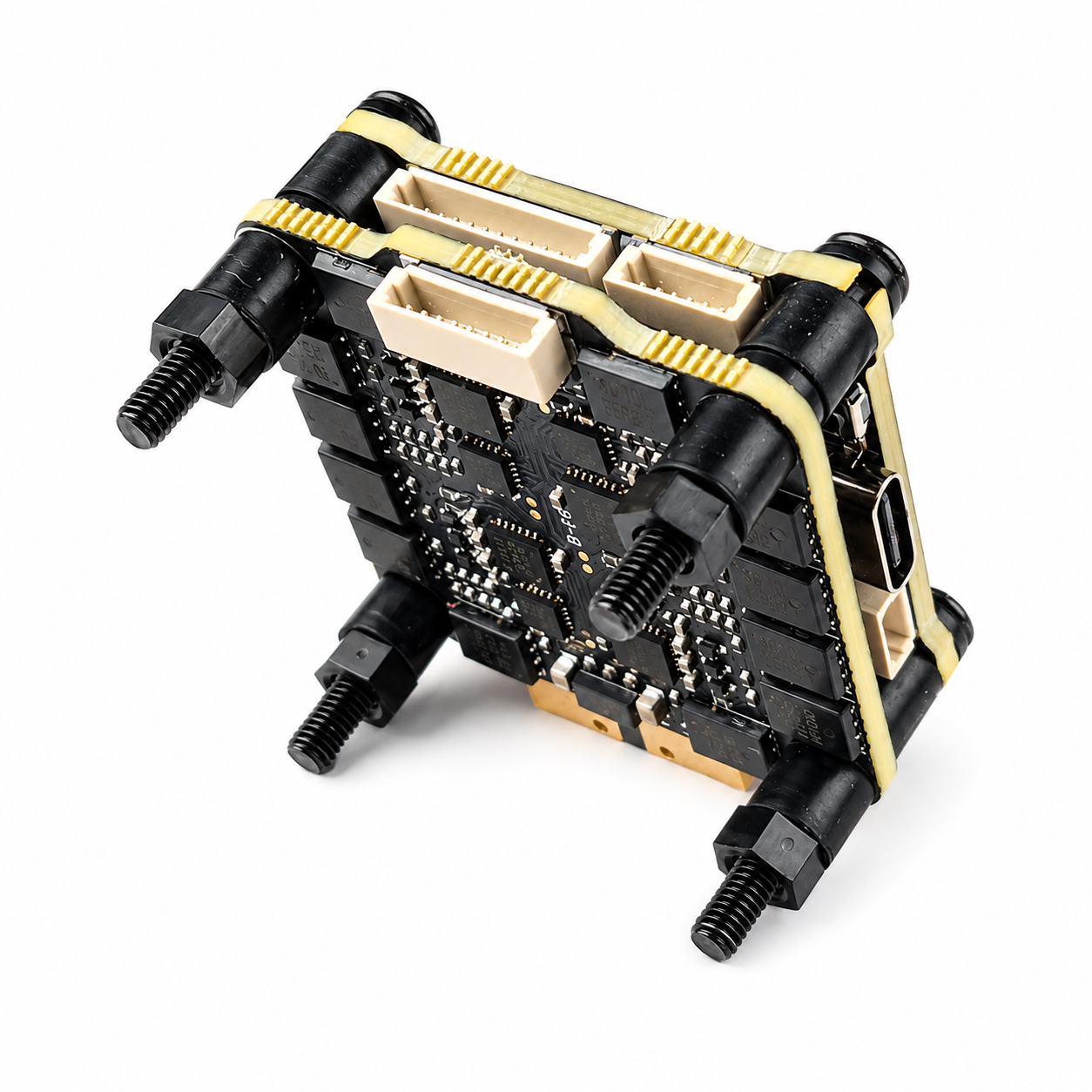

DakeFPV H743 Flight Controller with BX 6S 55A 4 in 1 ESC 30×30 FC & ESC Stack

Name: DakeFPV H743 Flight Controller with BX 6S 55A 4 in 1 ESC 30×30 FC & ESC Stack
Brand: Hi Tech xyz
SKU: 040107
Price: 4899.0 INR
Availability: InStock

SKU:040107

Rs. 4,899.00

~~Rs. 5,999.00~~ Rs. 4,899.00

Sale Sold out

Shipping calculated at checkout.

(Including GST)

Product variants

Quantity

View full details

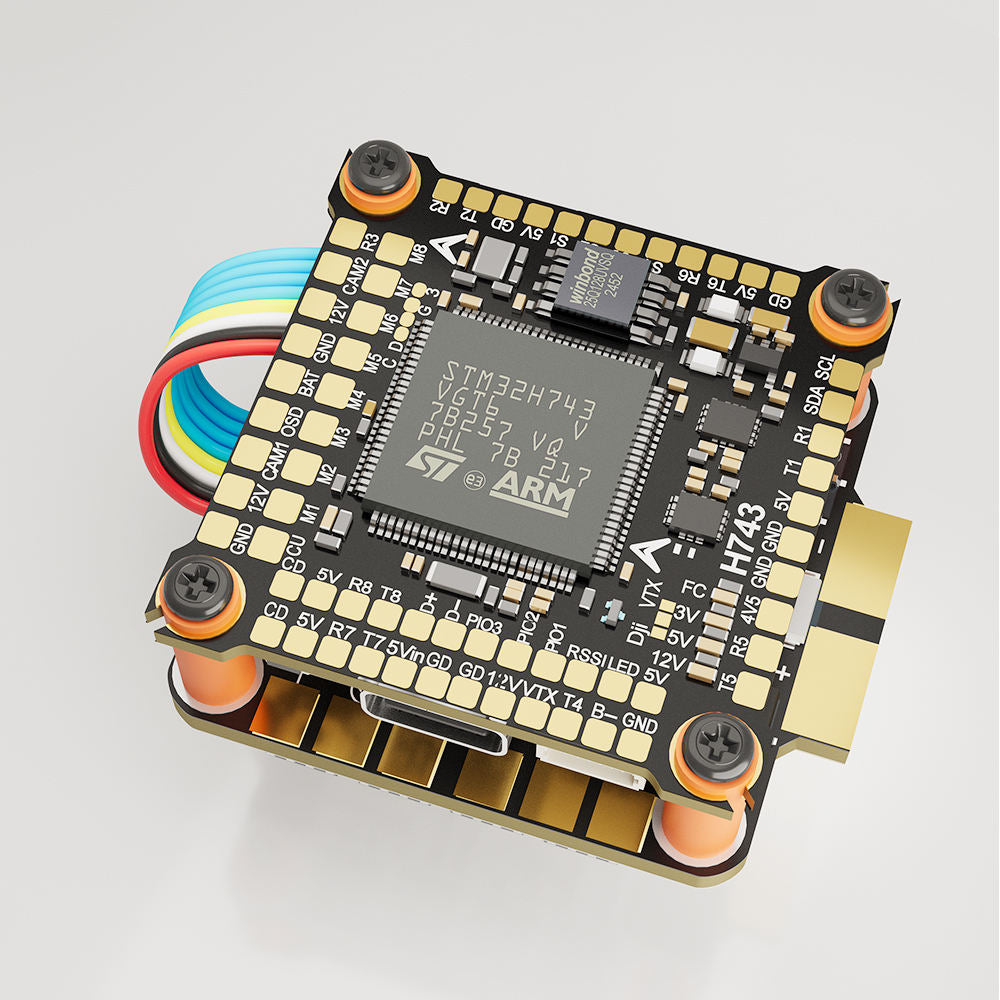

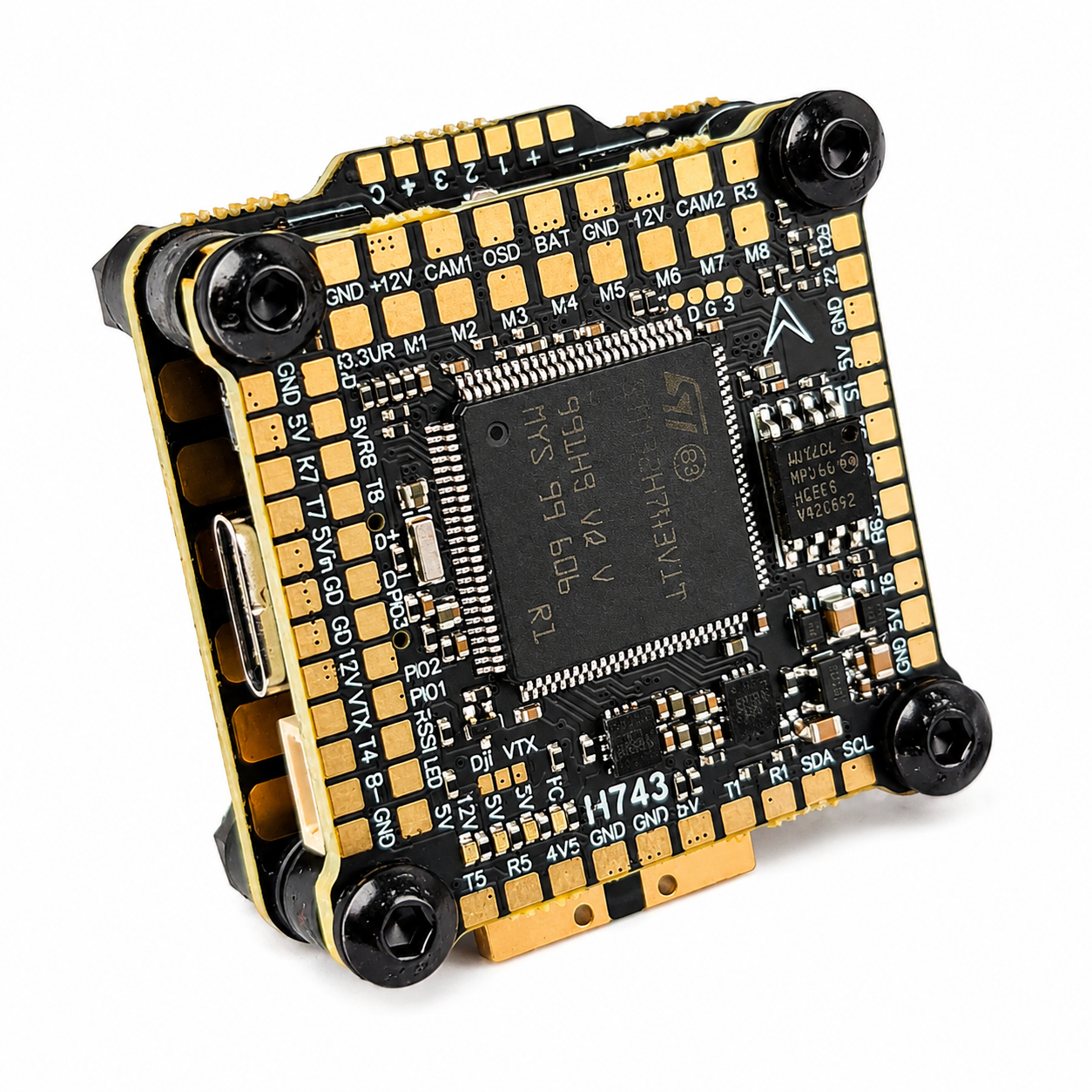

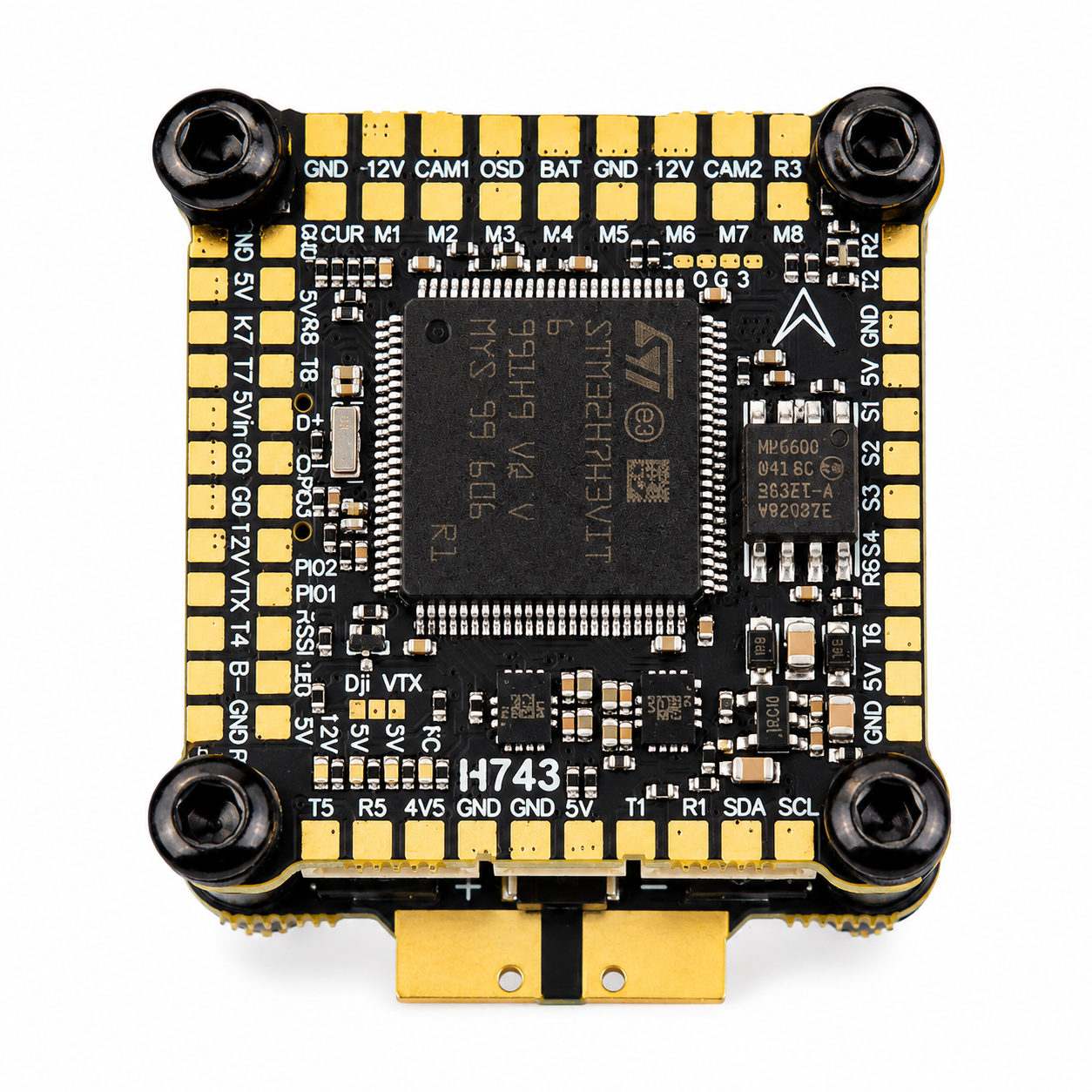

H743 Flight Controller

Feature	Specification
Firmware Support	Betaflight / INAV
Firmware Target	DAKEFPVH743
Controller Chip	STM32H743VIT6
Gyroscope	ICM42688P
Barometer	SPL06-001
OSD Chip	AT7456E
USB Interface	USB Type-C
Blackbox Memory	16MB
Digital FPV Support	DJI Air Unit / Caddx Vista / Walksnail
Motor Outputs	Up to 8 Motors + 4 Servos
Solder-free Ports	Receiver (4P), Analog Camera (3P), Analog Mapping (4P), Digital Mapping (6P), Brushless ESC (8P)
Frame Support	X4 / X8 / Y6
Receiver Protocols	ELRS, CRSF, S.BUS, FrSky, Futaba, FlySky, TBS Crossfire, DSMX
Serial Ports	8 UARTs
Output Power	3.3V / 1A, 5V / 2.5A, 12V / 3A
Buzzer	Supported
LED Support	Supported

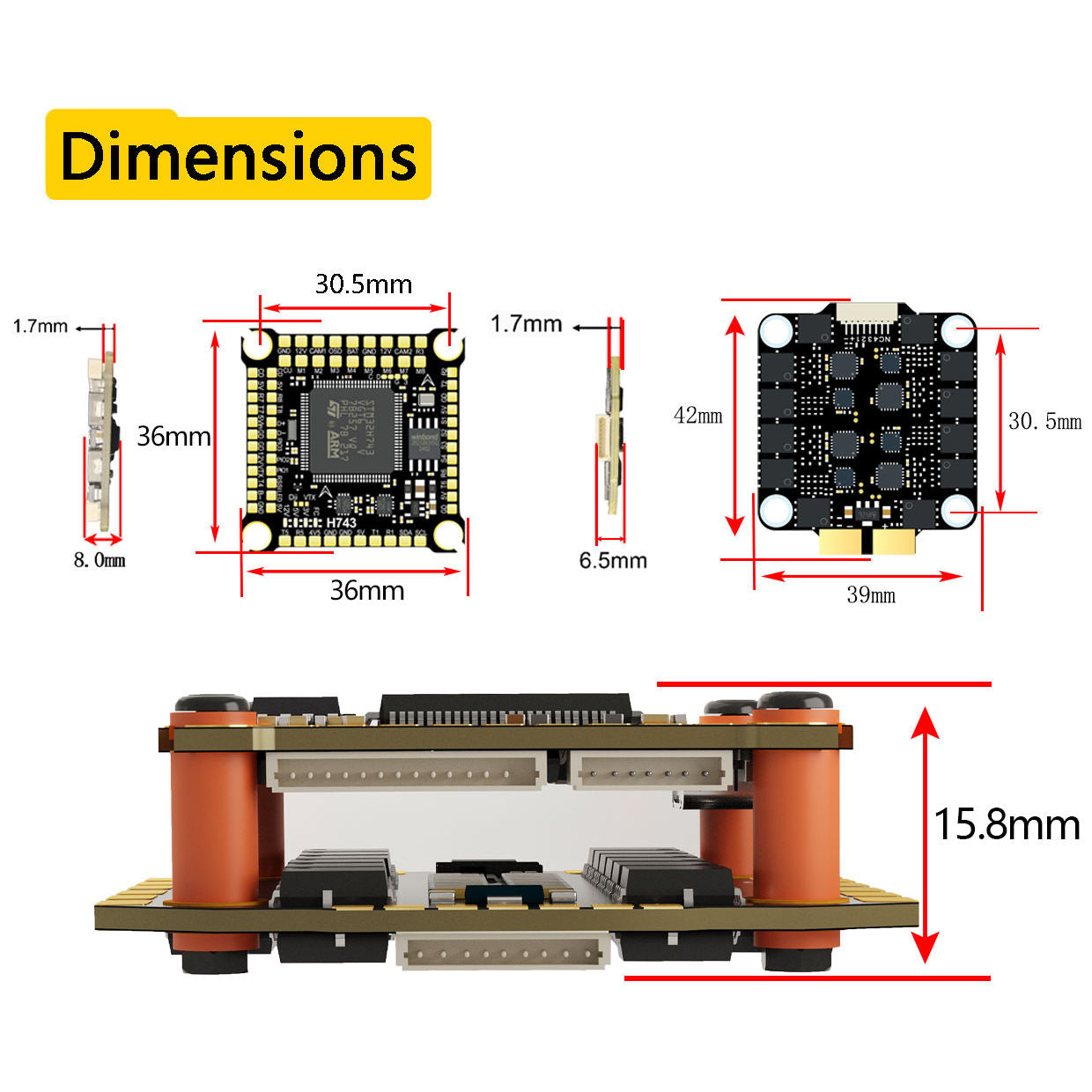

Dimensions	36 × 36 mm
Mounting Pattern	30.5 × 30.5 mm
Weight	8 g
