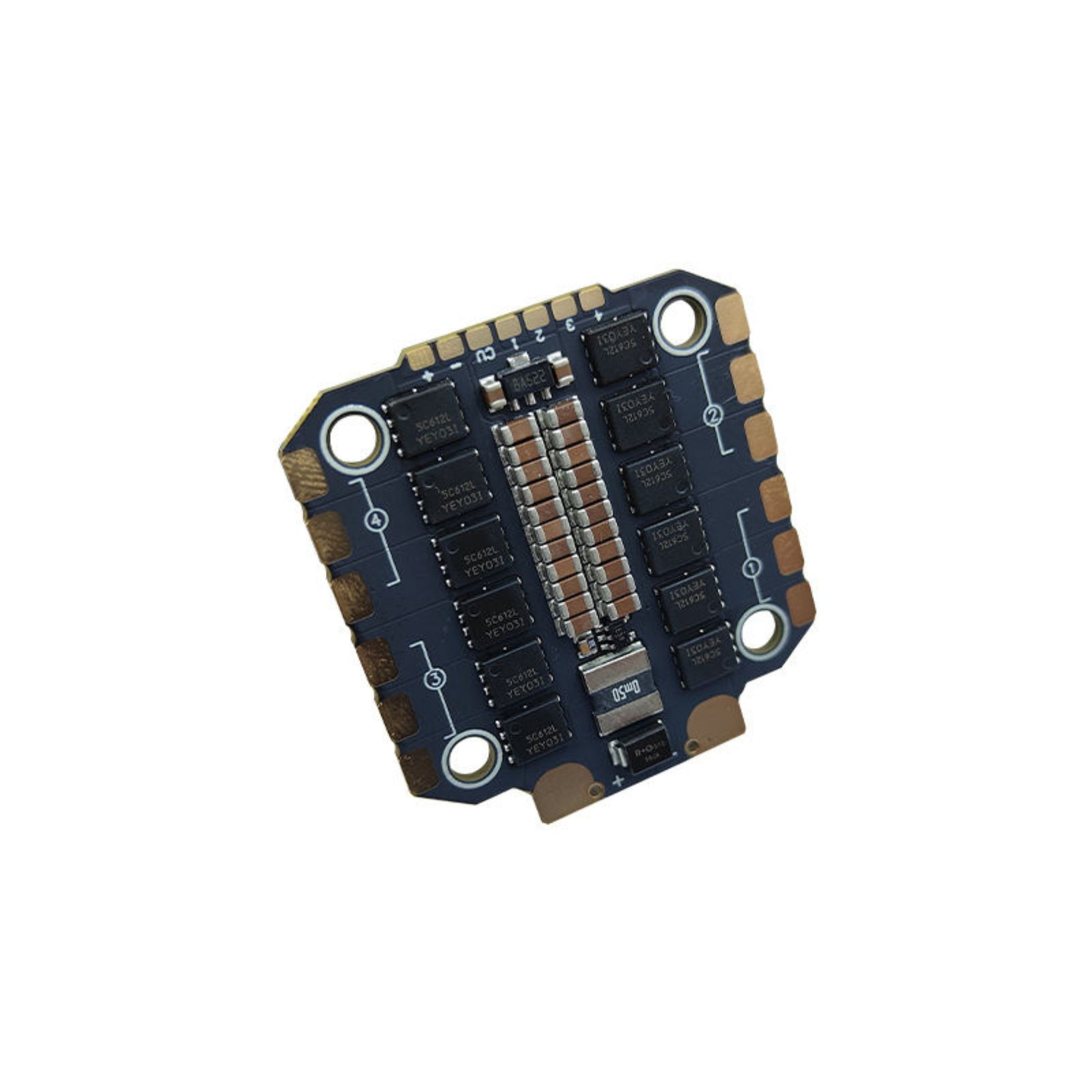

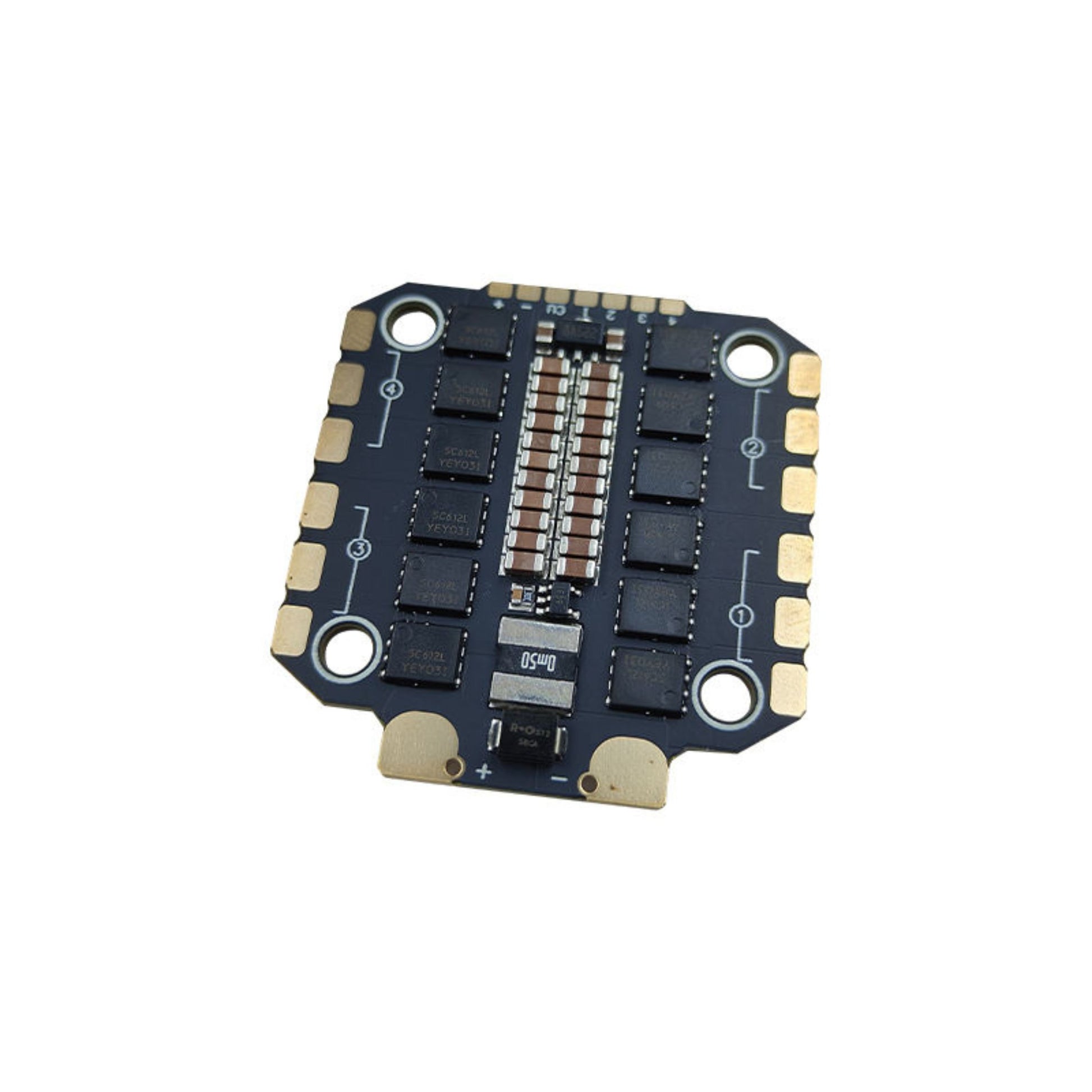

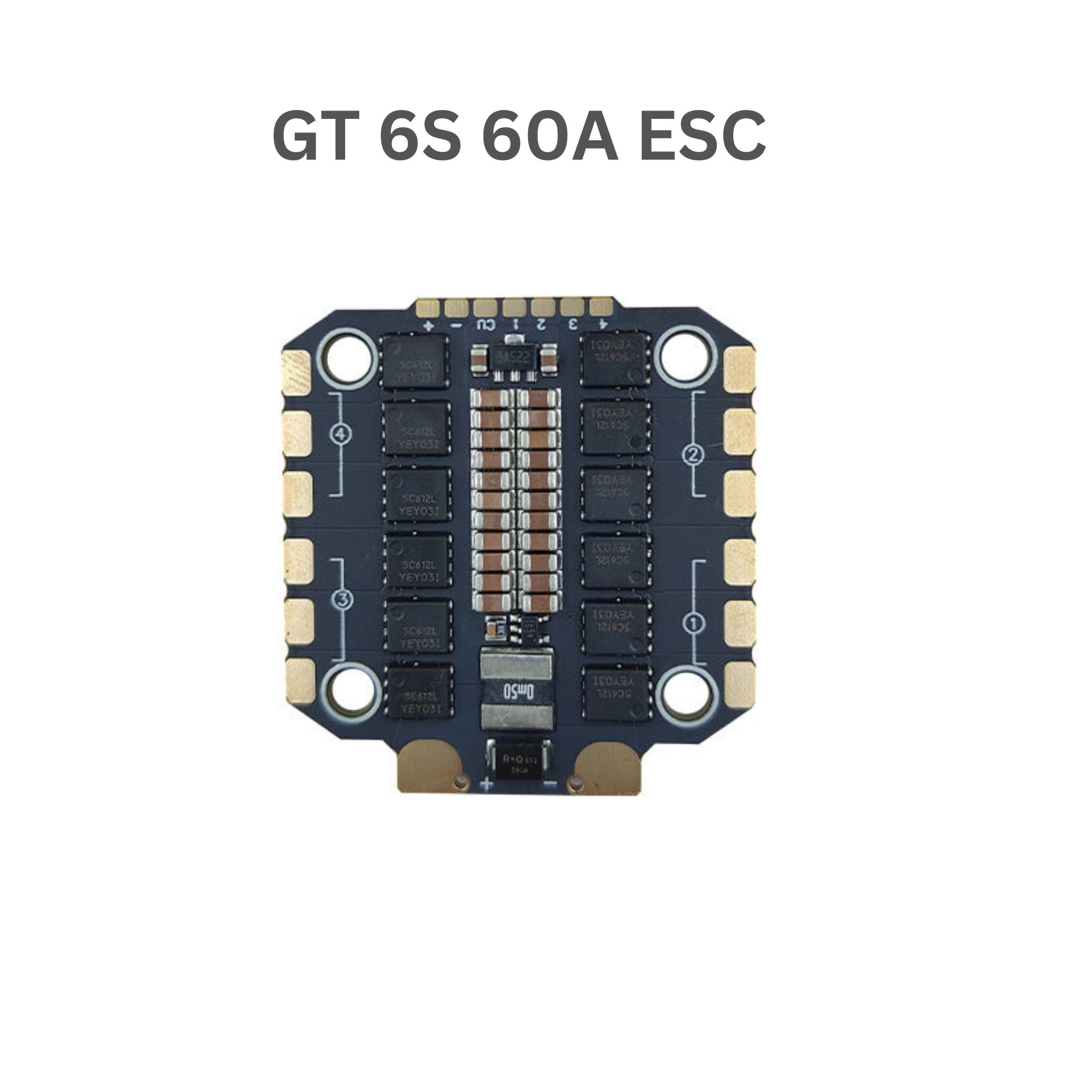

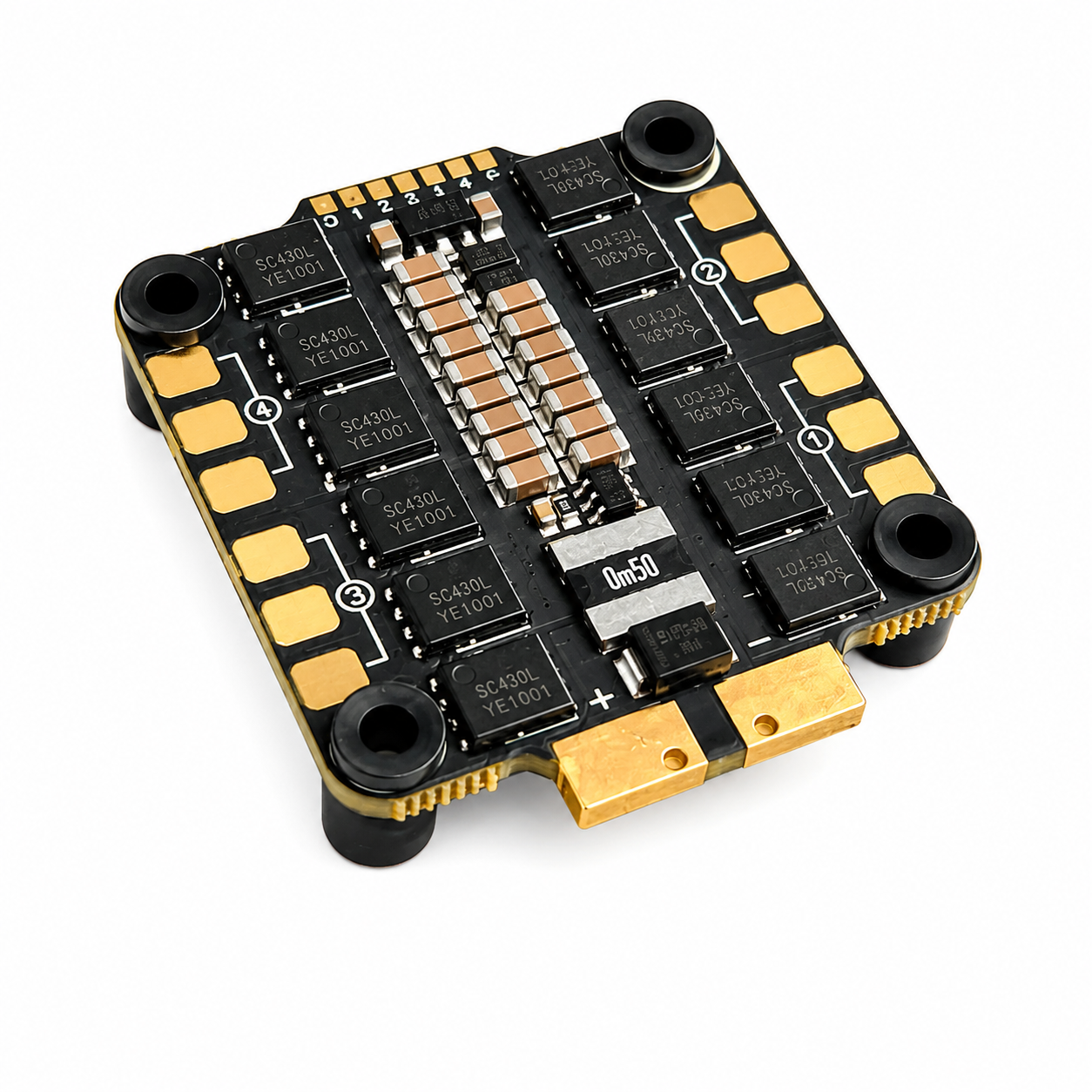

GT 6S 60A ESC (4-in-1) – Product Description
The GT 6S 60A ESC is a reliable 4-in-1 electronic speed controller designed for smooth and stable performance in multirotor drones. It runs on BLHeli_S / Bluejay firmware and supports modern motor protocols for precise control and efficient power delivery.

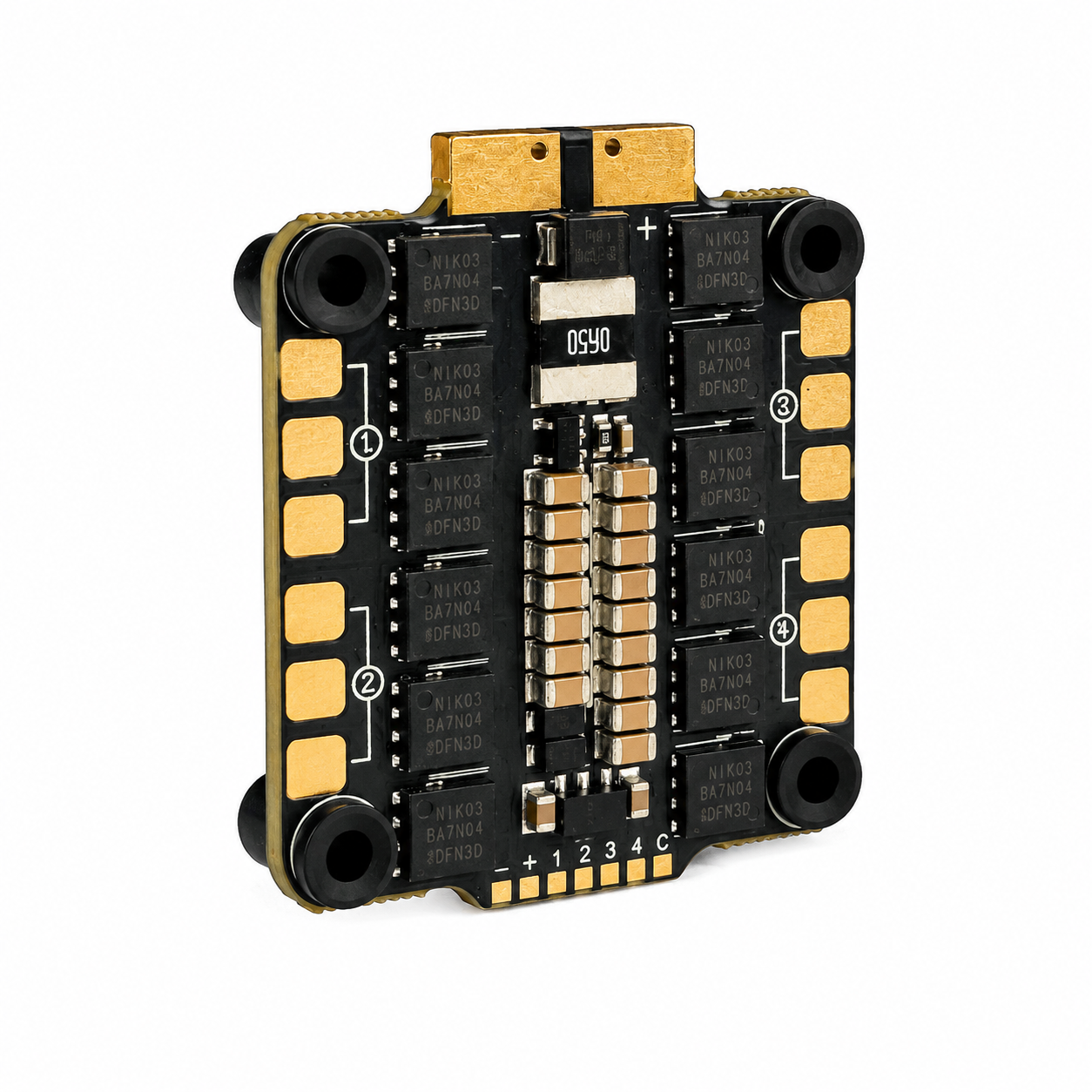

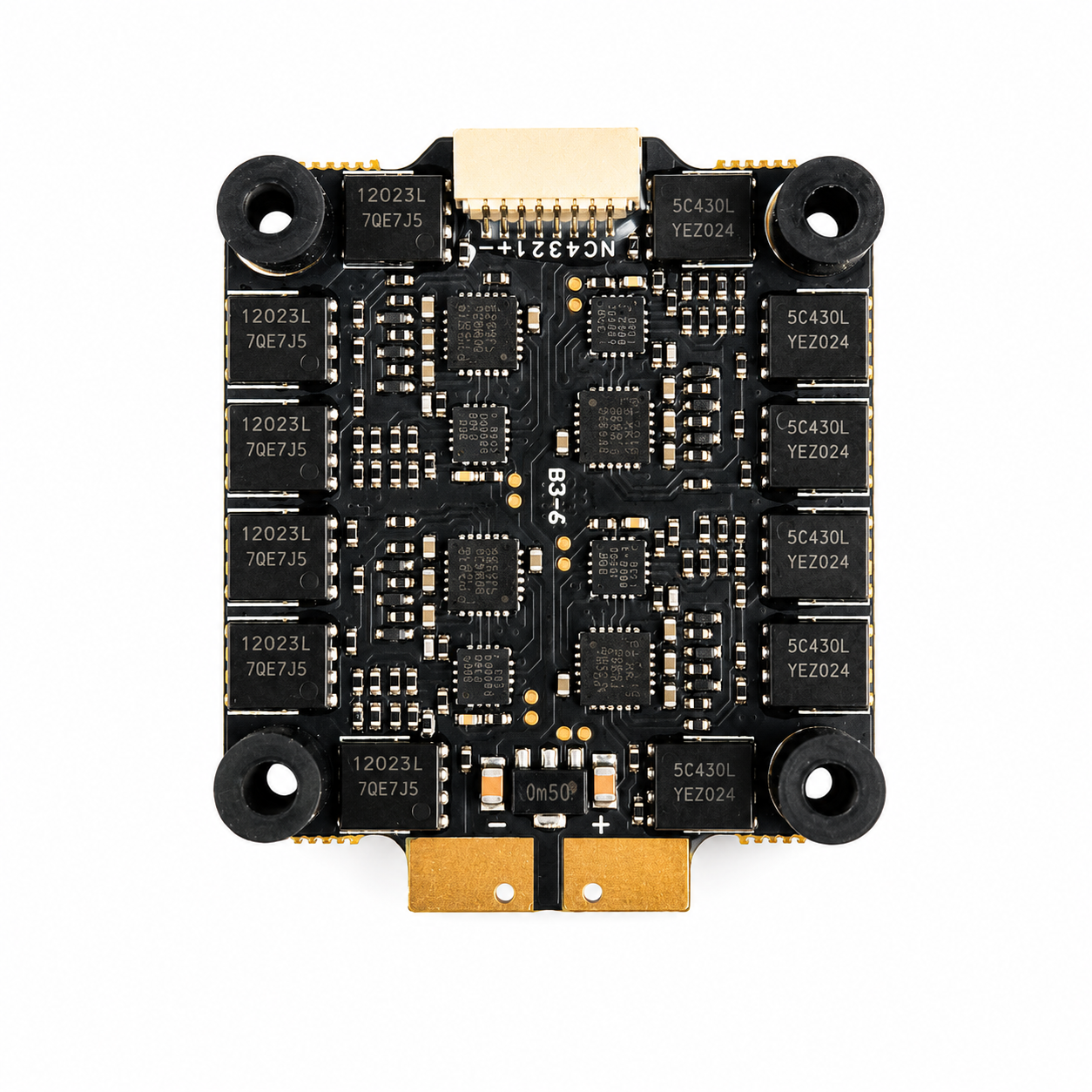

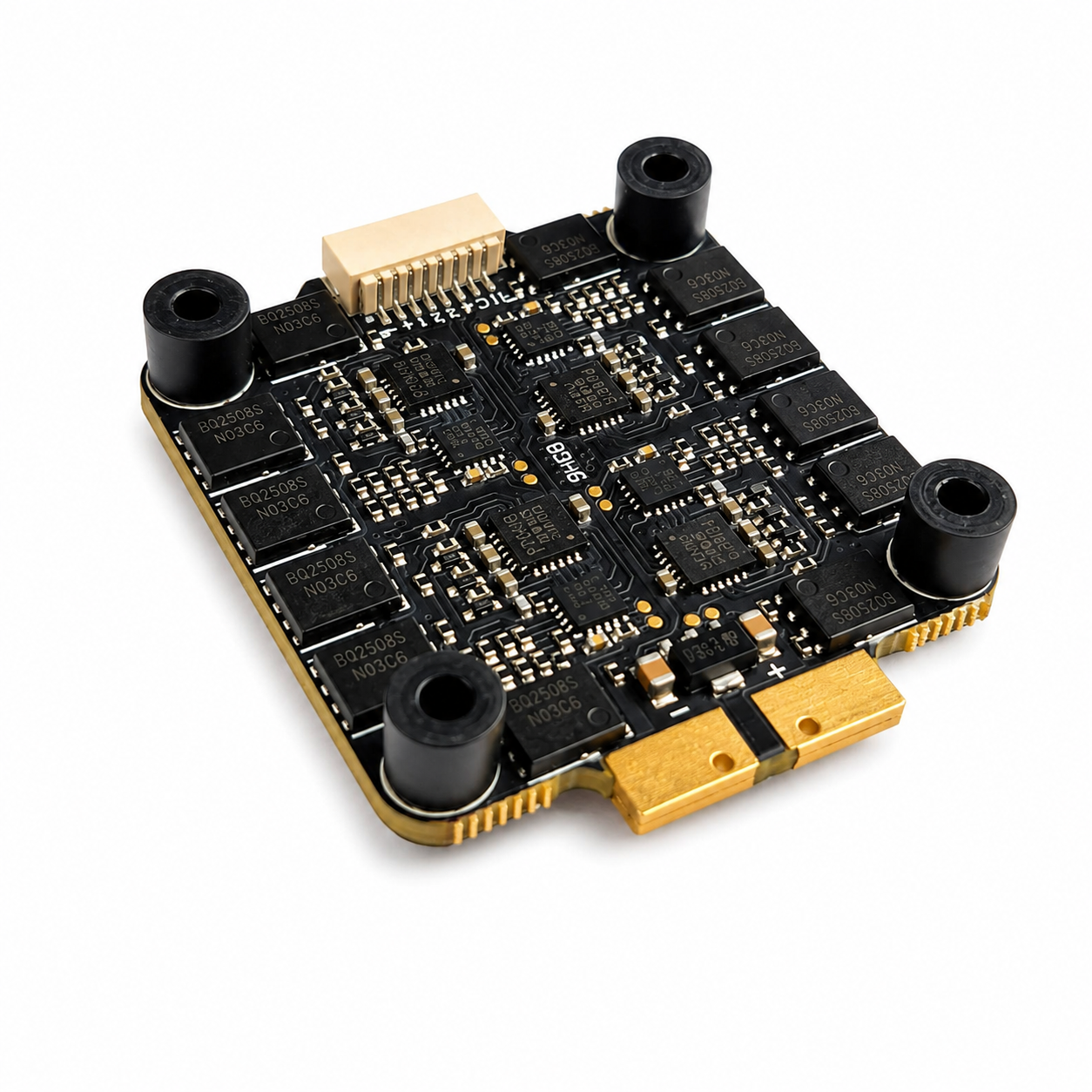

Built with the EFM8BB51F16G-C-QFN20R MCU and ON3109NL MOSFETs, this ESC provides consistent output with 60A continuous current per channel and up to 65A peak current (10 seconds). It supports 3S to 8S battery input, making it suitable for a wide range of builds.
The ESC includes TVS protection and a 35V 1000µF low-ESR capacitor for improved voltage stability. It supports DShot300, DShot600, PWM, and bi-directional DShot, ensuring compatibility with modern flight controllers and RPM filtering setups.

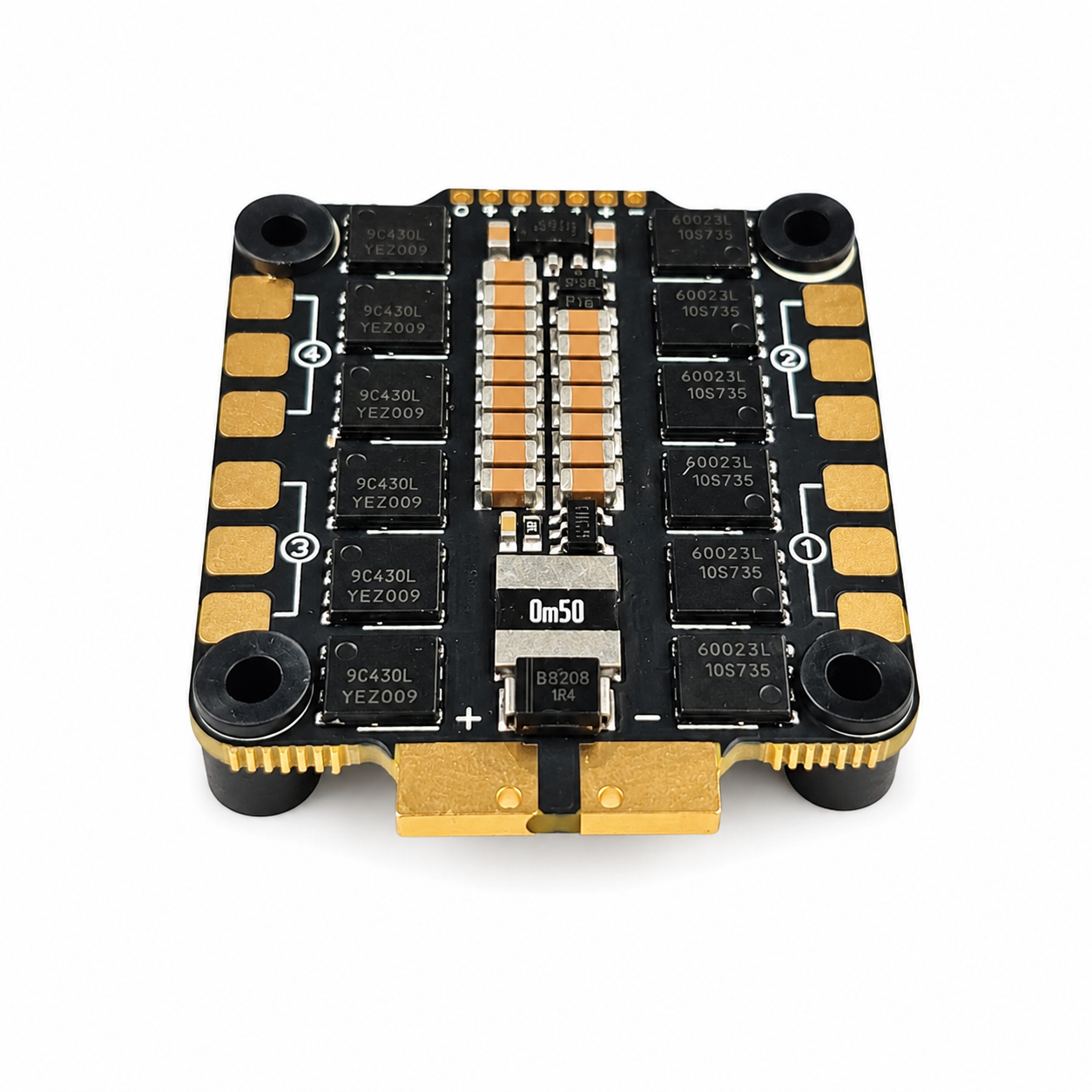

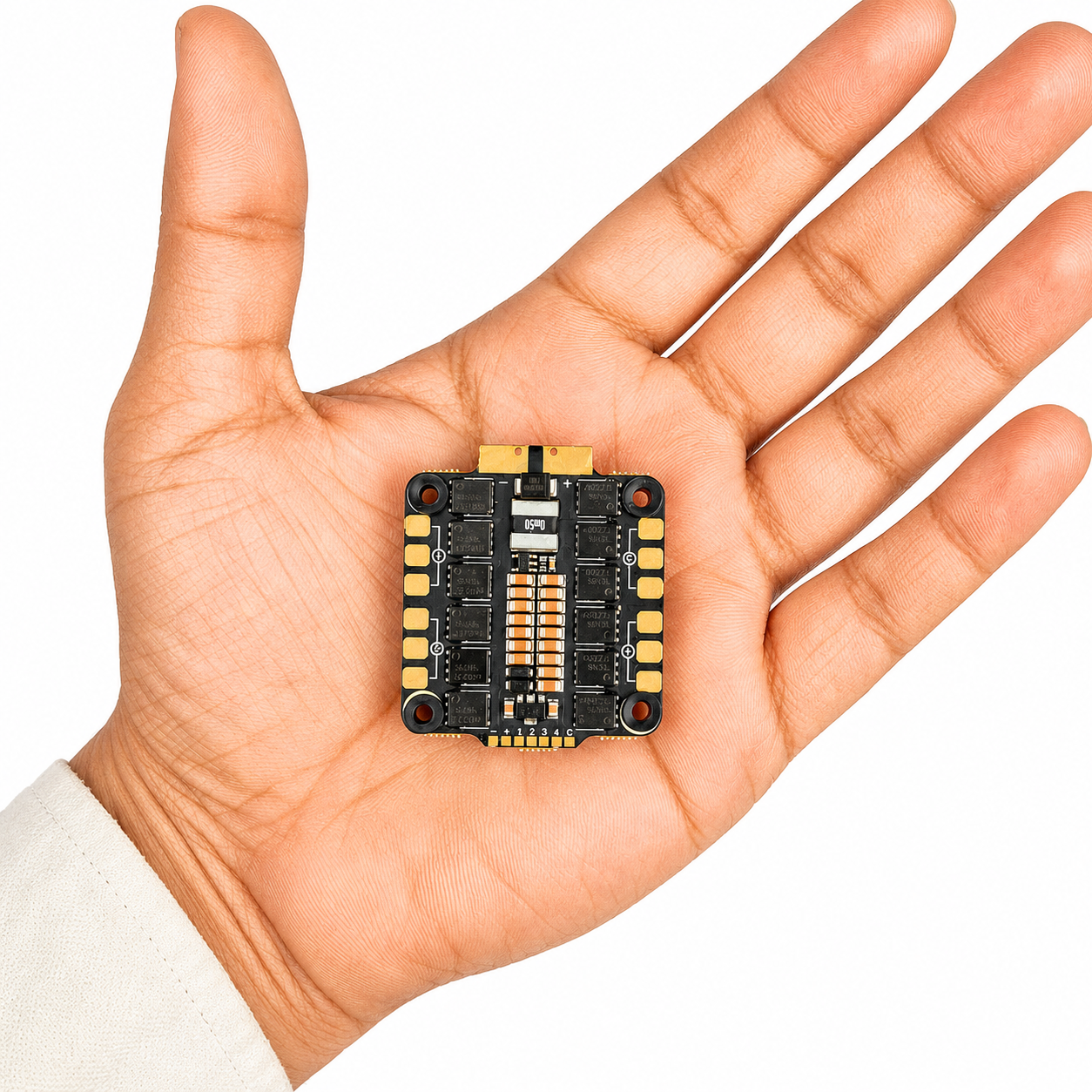

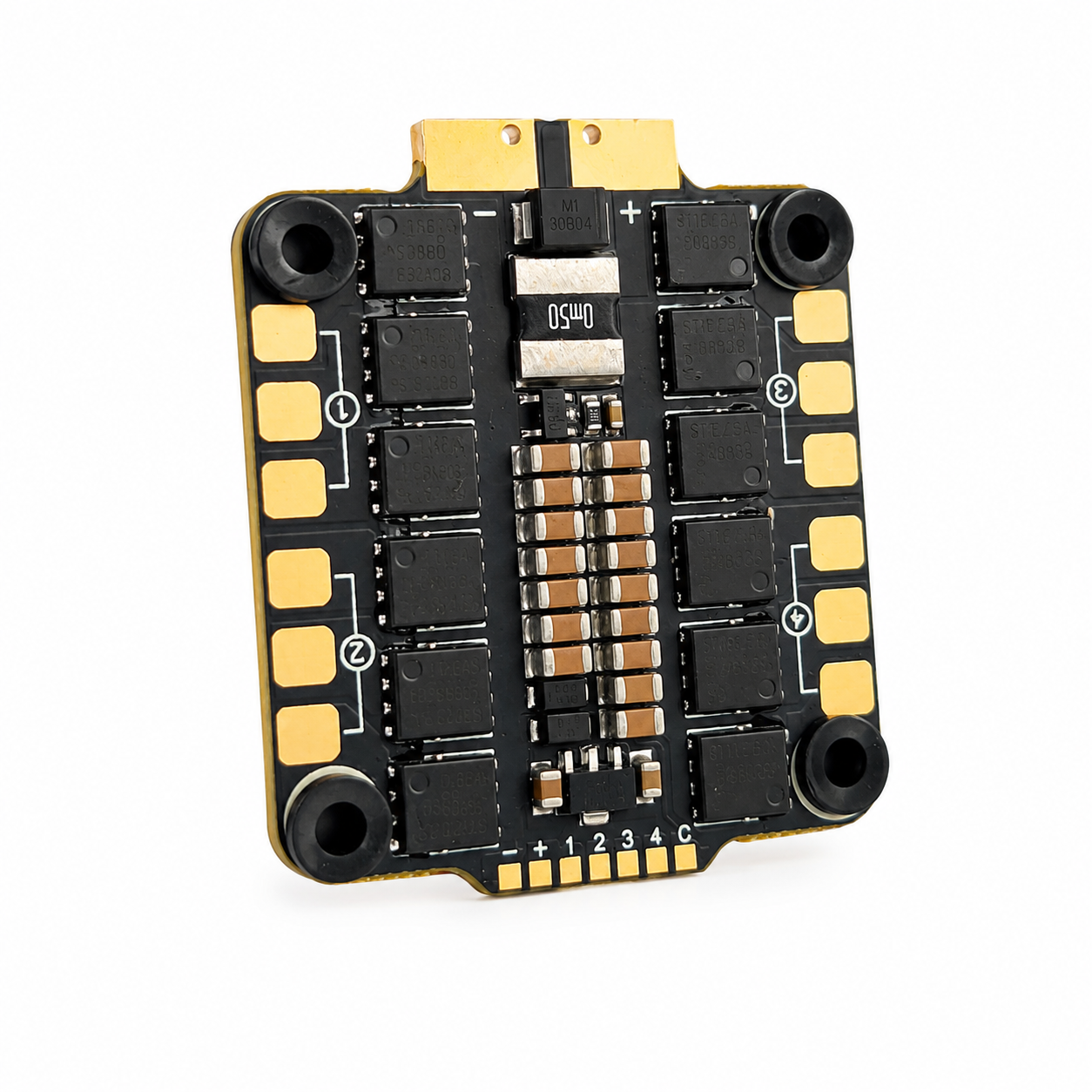

With a compact size of 45 × 43 × 7 mm, lightweight 12 g design, and 30.5 × 30.5 mm (M4) mounting, it fits easily into standard frames. The operating range of 20°C to +70°C and humidity tolerance of 20–95% make it suitable for regular flying conditions.
Key Specifications:-
- Firmware: BLHeli_S / Bluejay
- Continuous Current: 60A × 4
- Peak Current: 65A × 4 (10s)
- Battery Input: 3–8S
- Motor Protocols: DShot300 / DShot600 / PWM / Bi-directional DShot
- Capacitor: 35V 1000µF Low ESR
- Size: 45 × 43 × 7 mm
- Weight: 12 g
- Mounting: 30.5 × 30.5 mm (M4)
