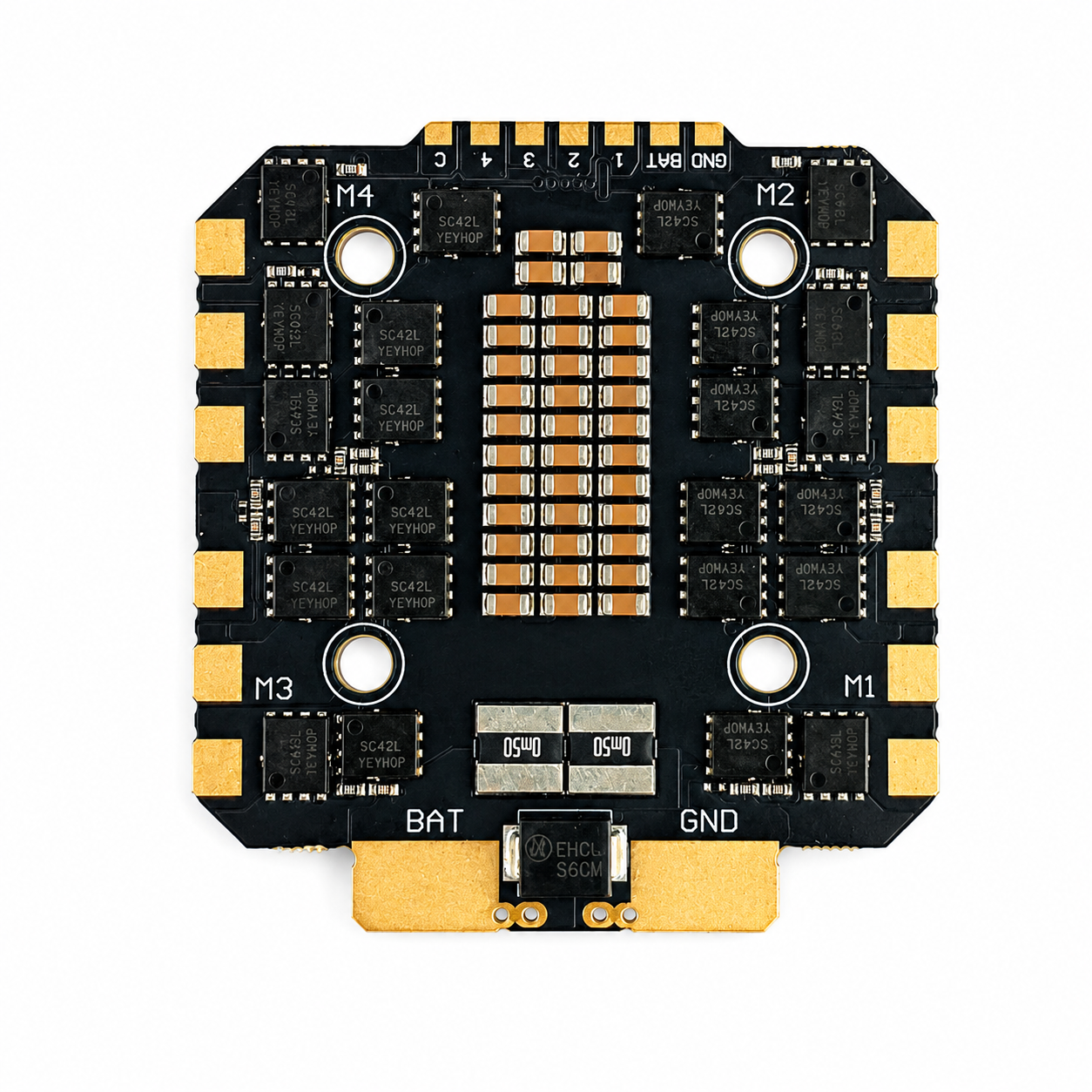

DakeFPV BLHeli S 8S 100A 4-in-1 ESC for FPV (Electronic Speed Controller)

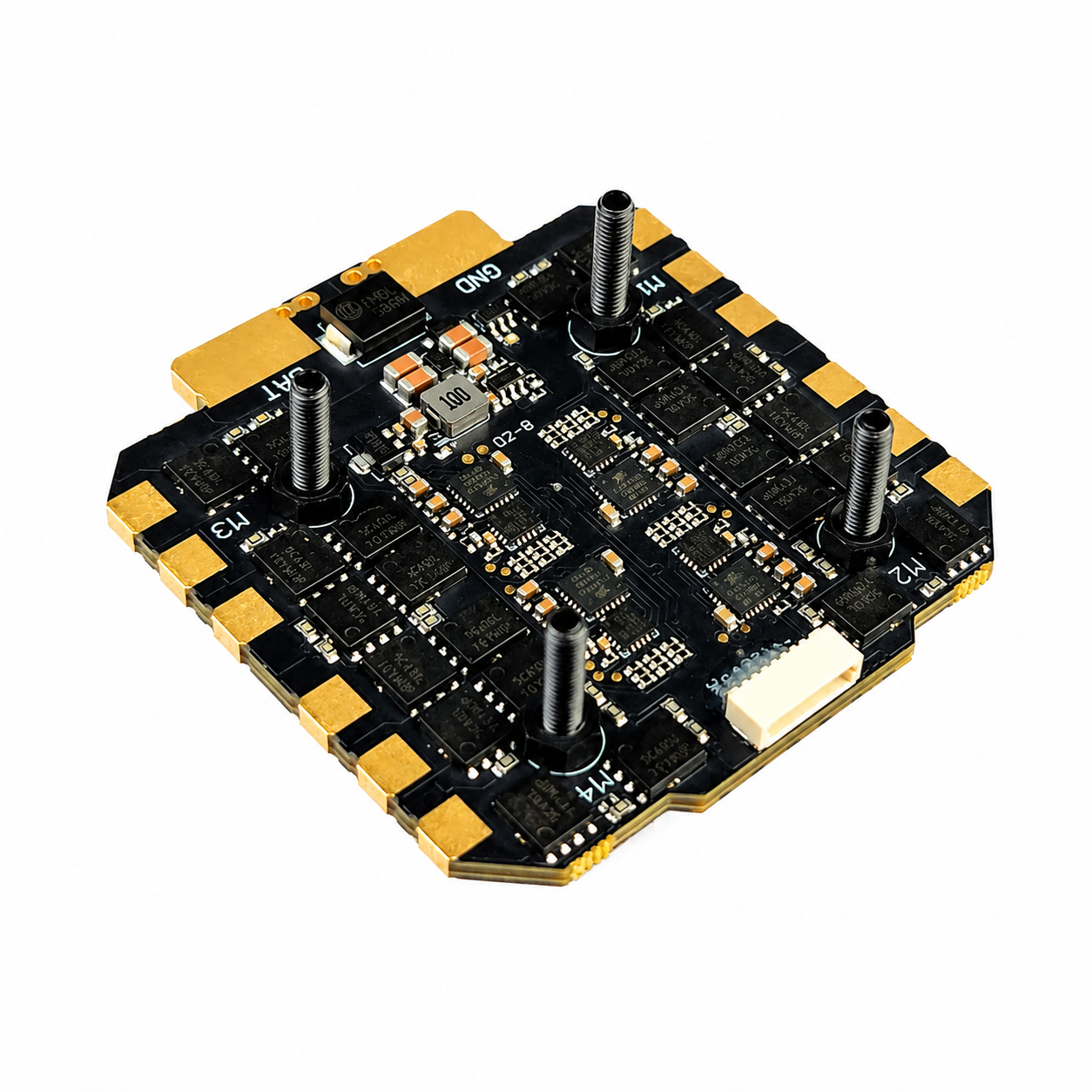

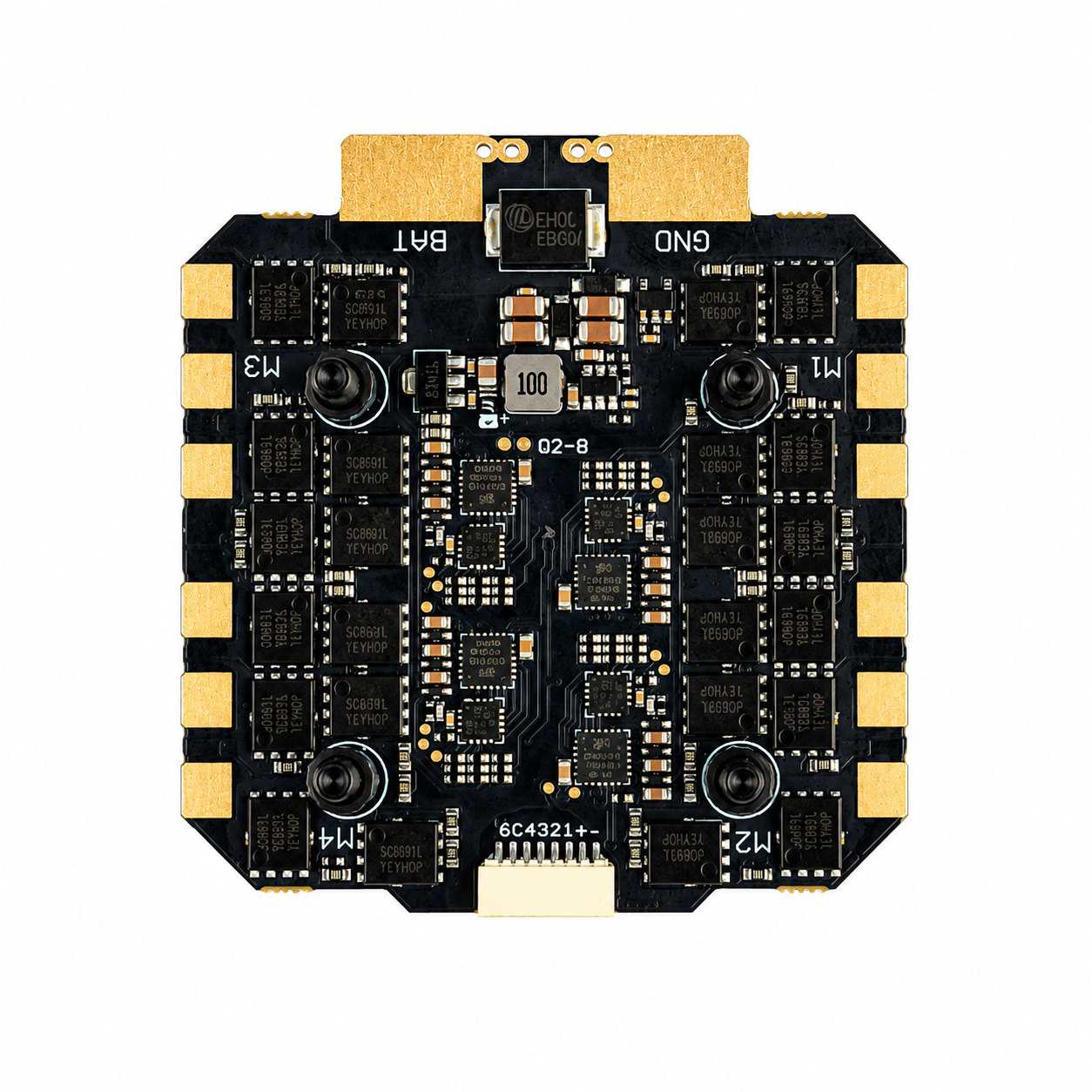

BLHeli_32 8S 100A 4-in-1 ESC – High-Performance Brushless Speed Controller

Take your drone’s power and stability to the next level with this high-performance 8S 100A ESC. Built on the advanced BLHeli_32 firmware platform, this ESC delivers ultra-smooth throttle response, improved efficiency, and support for modern flight features. With high-quality MOSFETs, a reliable capacitor design, and support for up to 8S (33.6V) batteries, it is an ideal choice for heavy-lift, FPV, cine-lifting, and industrial drone applications.

Key Features:

BLHeli_32 Firmware

• Latest BLHeli_32.9 version
• Smooth motor control with advanced tuning options

Powerful MCU for Reliable Performance

• STM32G071G8U6 32-bit MCU
• Fast signal processing for enhanced flight stability

High-Efficiency MOSFET Design

• ON5C410NL MOSFETs
• 100A continuous current × 4 ESC channels
• 105A peak current × 4 (up to 10 seconds)
• Designed for demanding high-power drone builds

Wide Battery Compatibility

• Supports 3S to 8S LiPo batteries
• Perfect for high-performance drone systems

Motor Signal Support

• DShot300
• DShot600
• PWM
• Bidirectional DShot (RPM telemetry supported)

Safety & Stability Features

• Built-in TVS protection
• 2 × 35V 1000µF Low ESR capacitors
• Reduced electrical noise and improved voltage protection

Ammeter Support

• Supported
• Ammeter ratio: 120

Physical Specifications

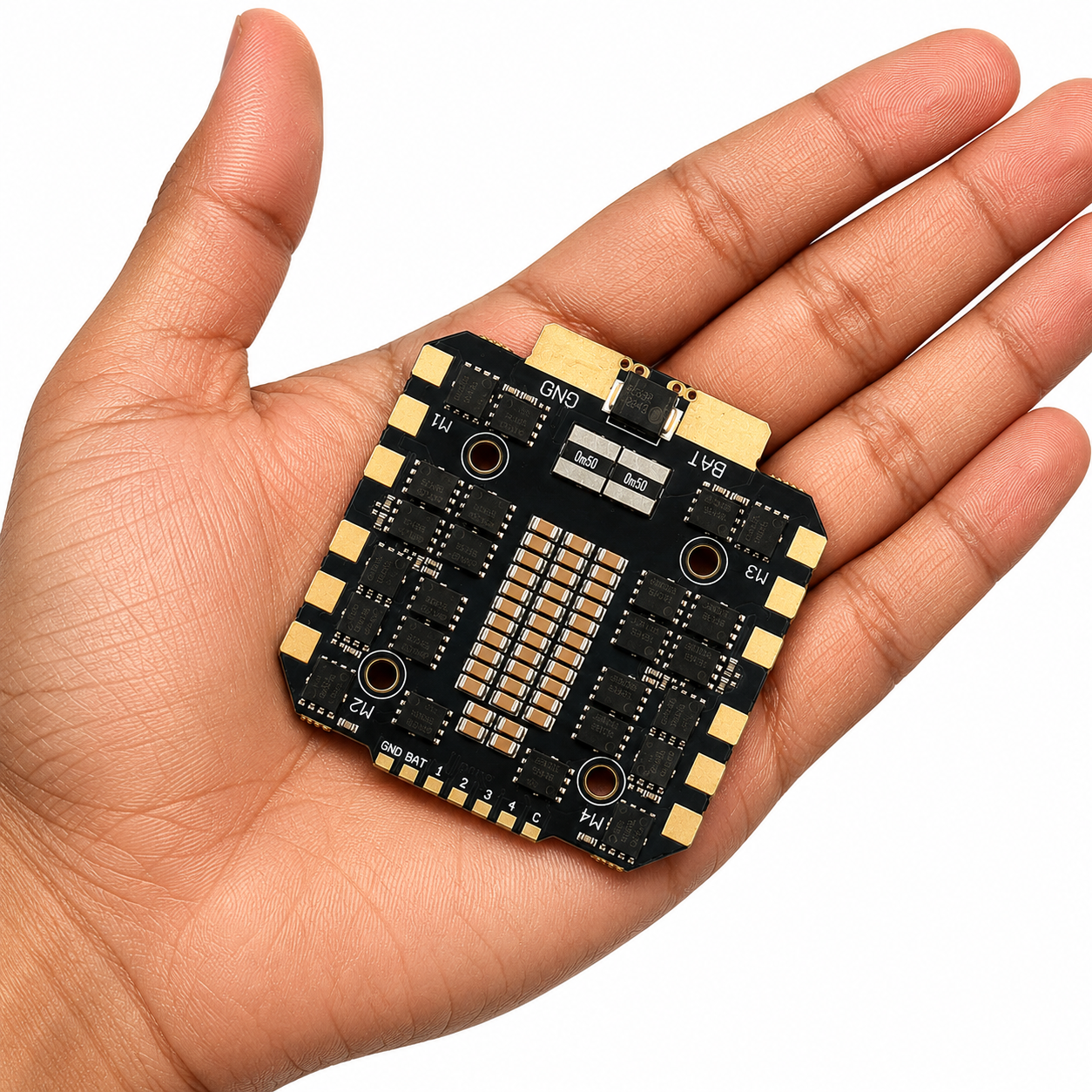

• Size: 56mm × 59mm × 7mm
• Mounting holes: 30.5mm × 30.5mm (M4)
• Weight: 30g
• Operating temperature: 20°C to +85°C
• Humidity tolerance: 20% – 95%
• Power Output Pad: VBAT

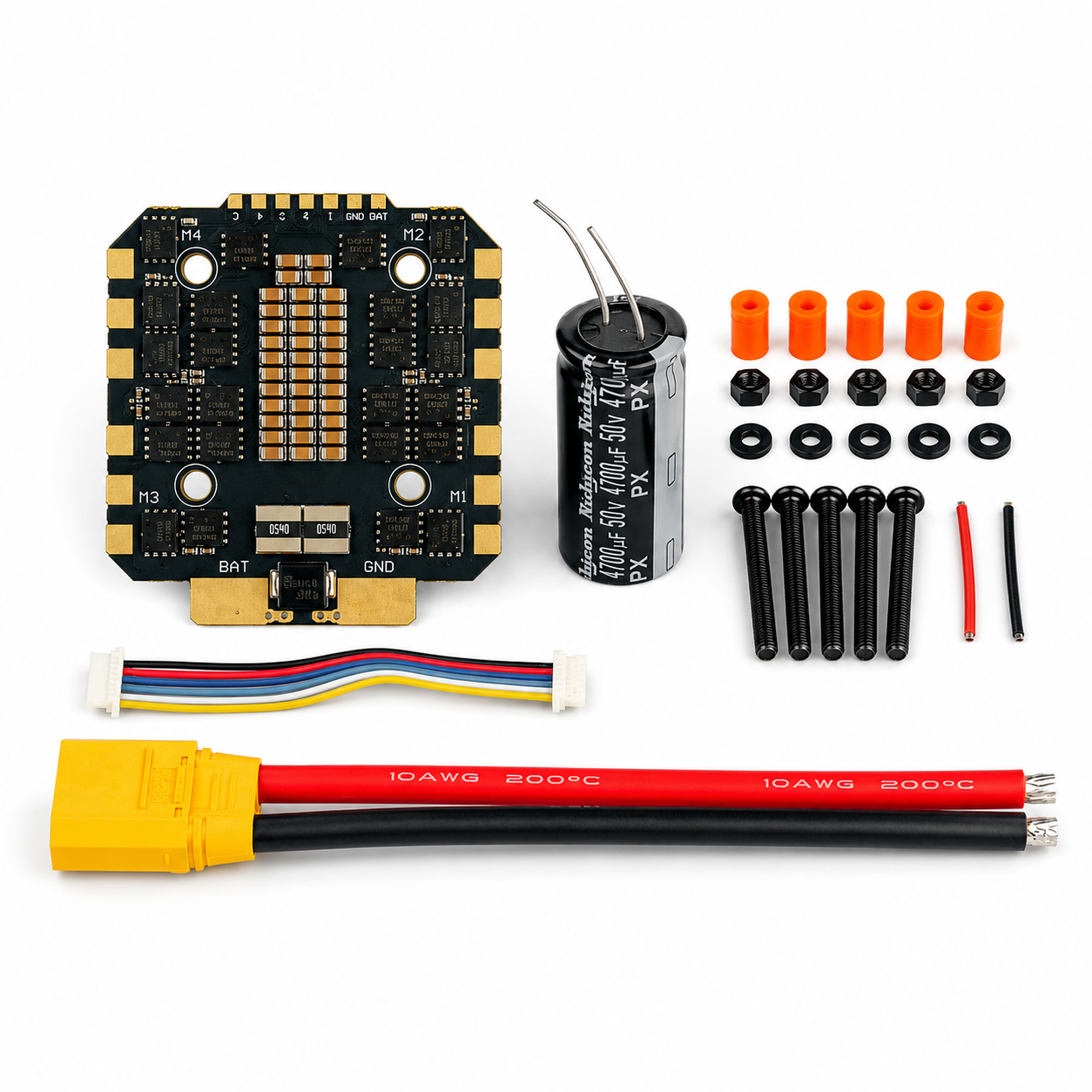

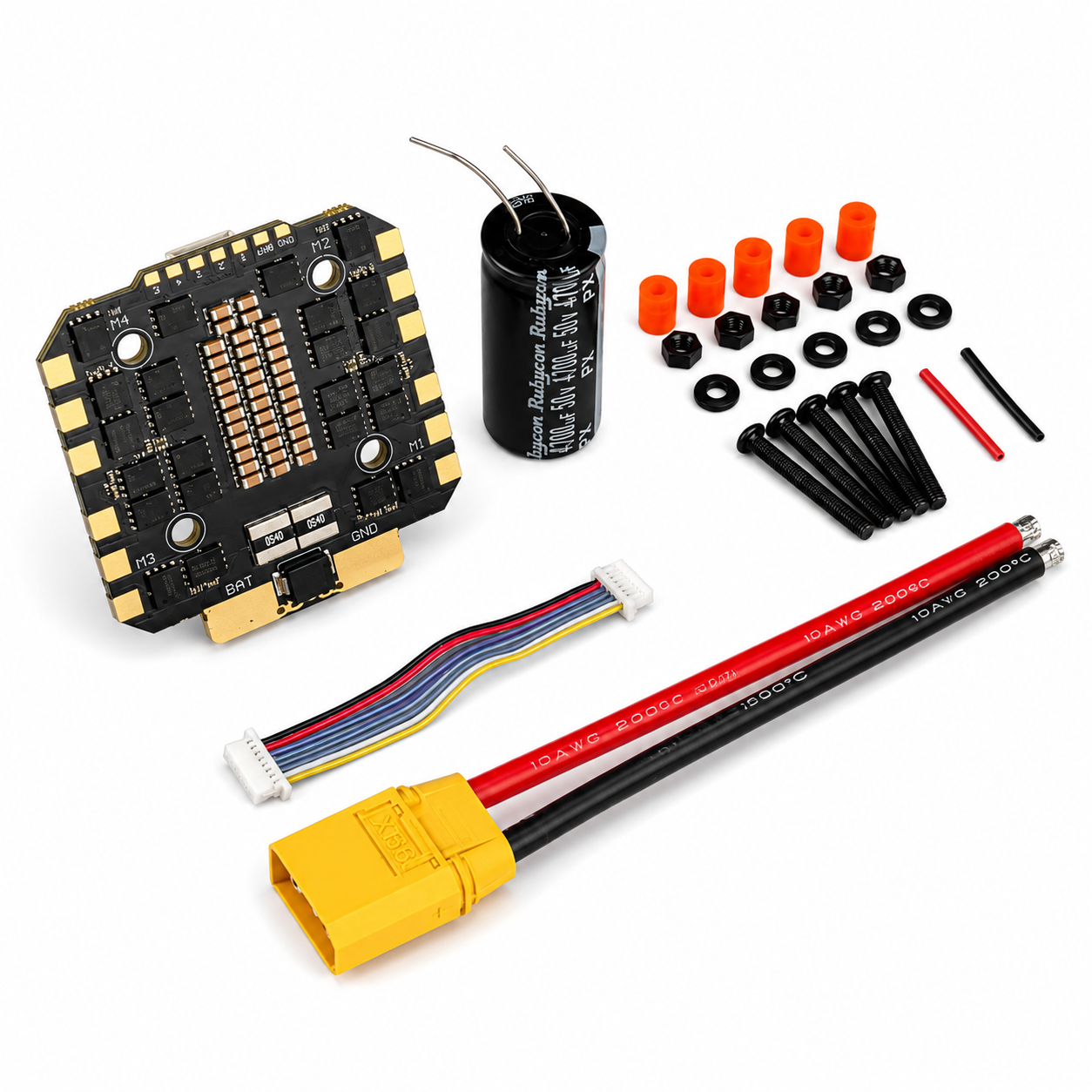

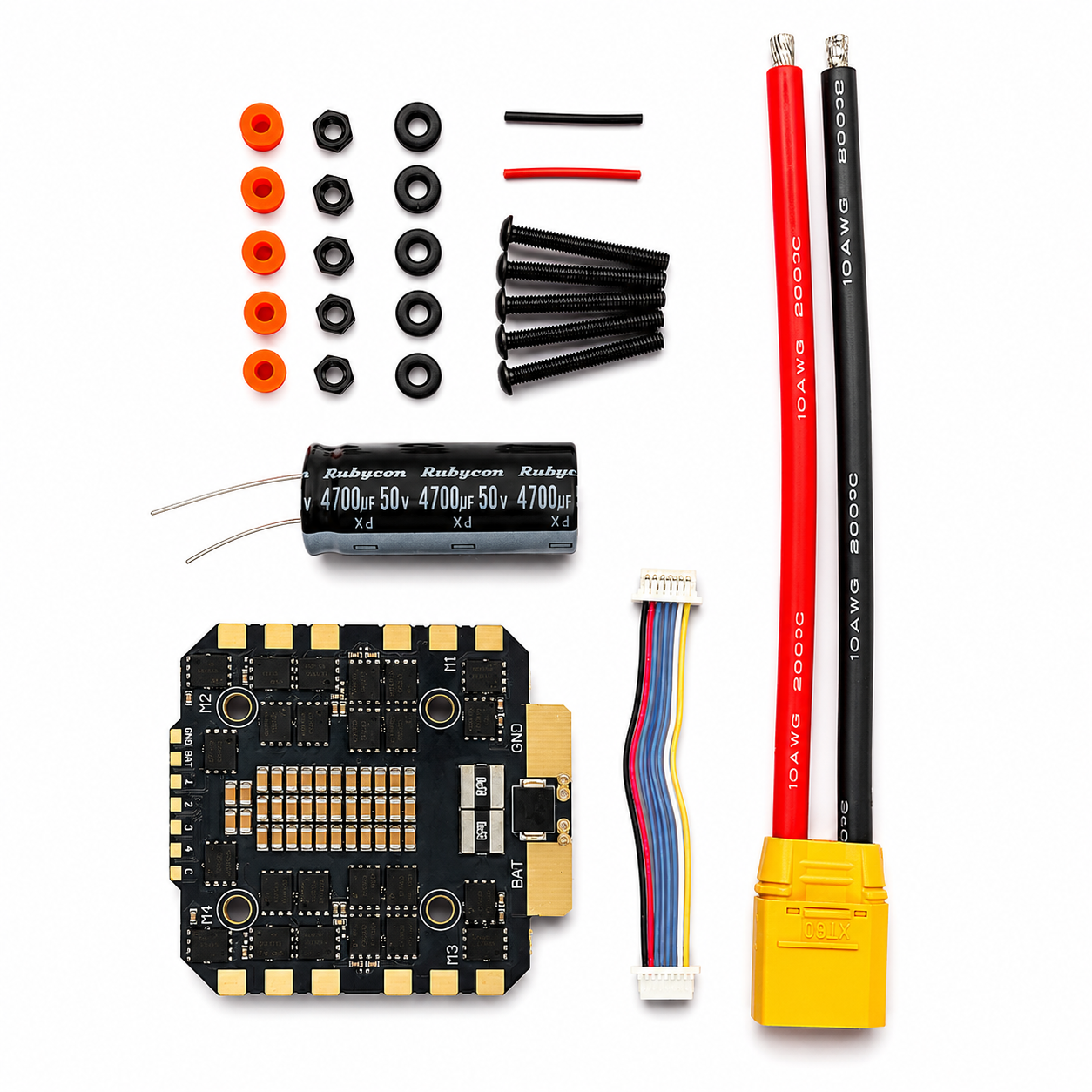

Package Include:

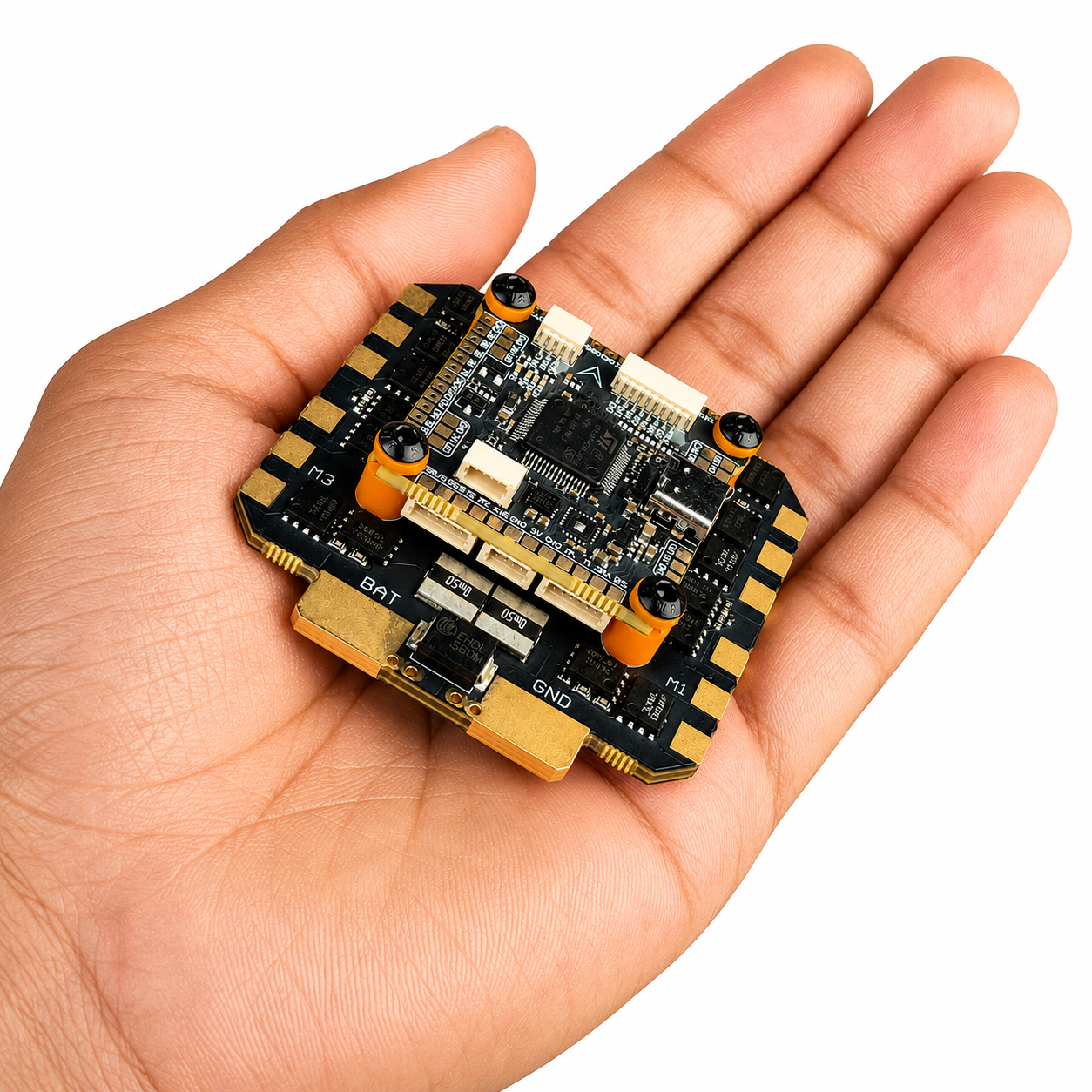

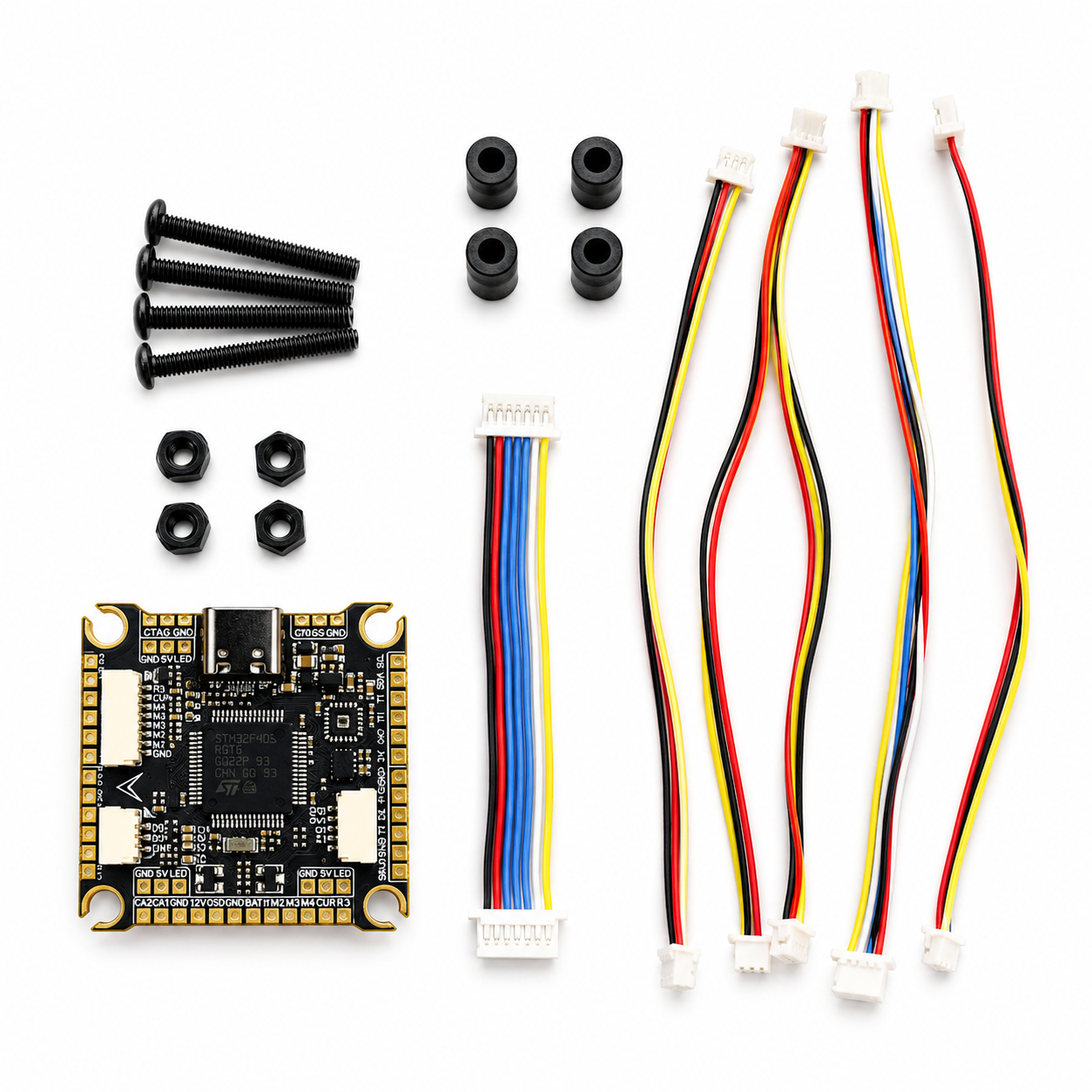

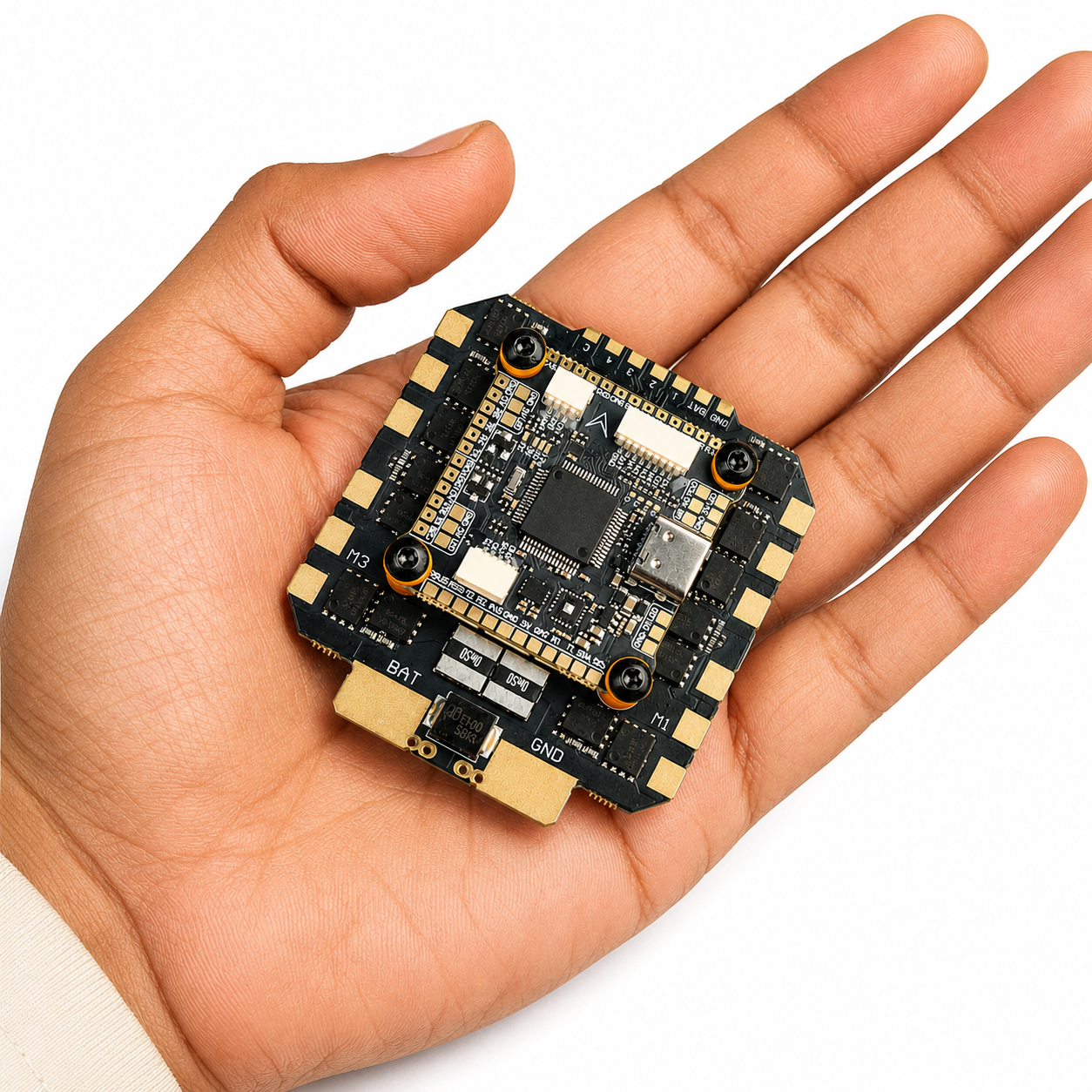

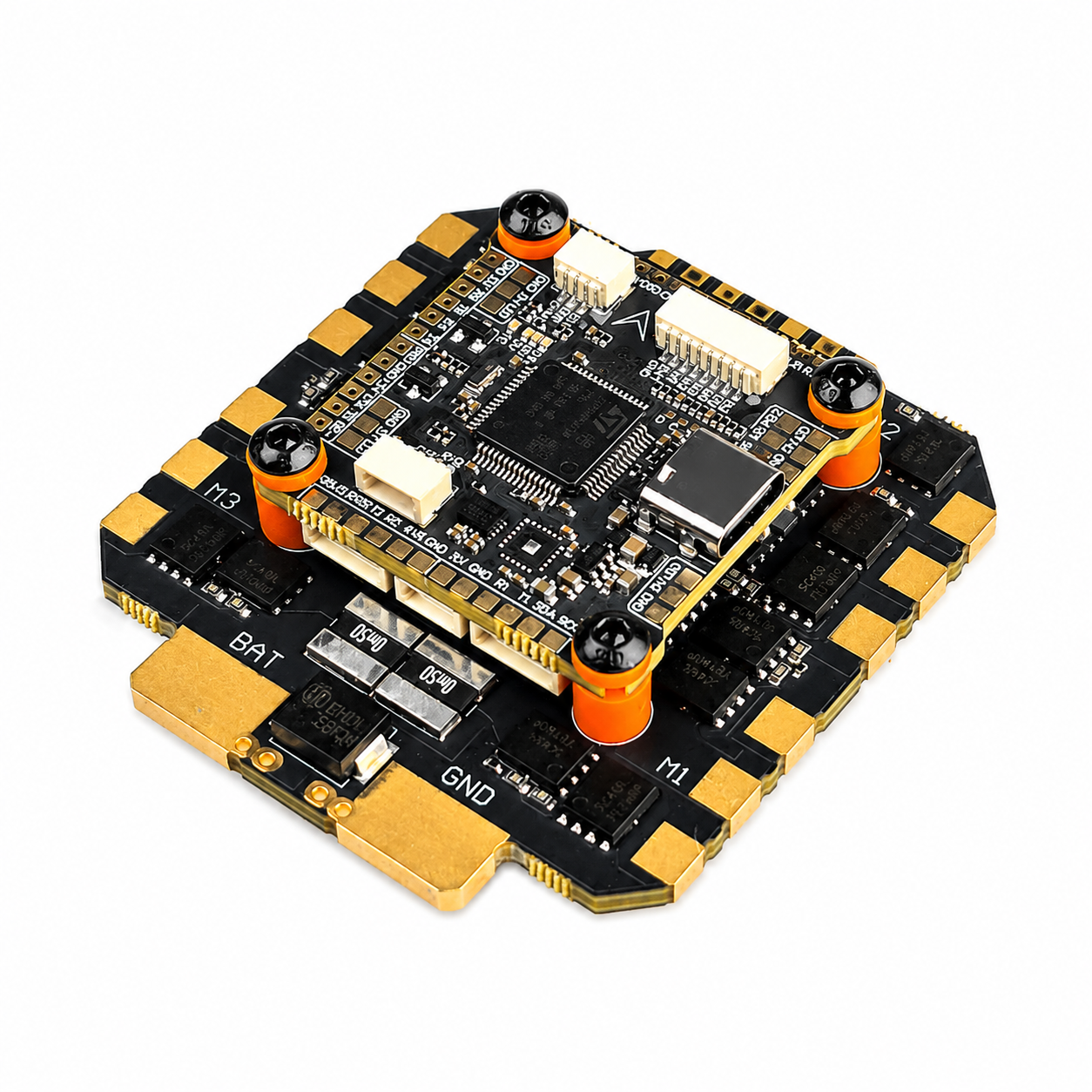

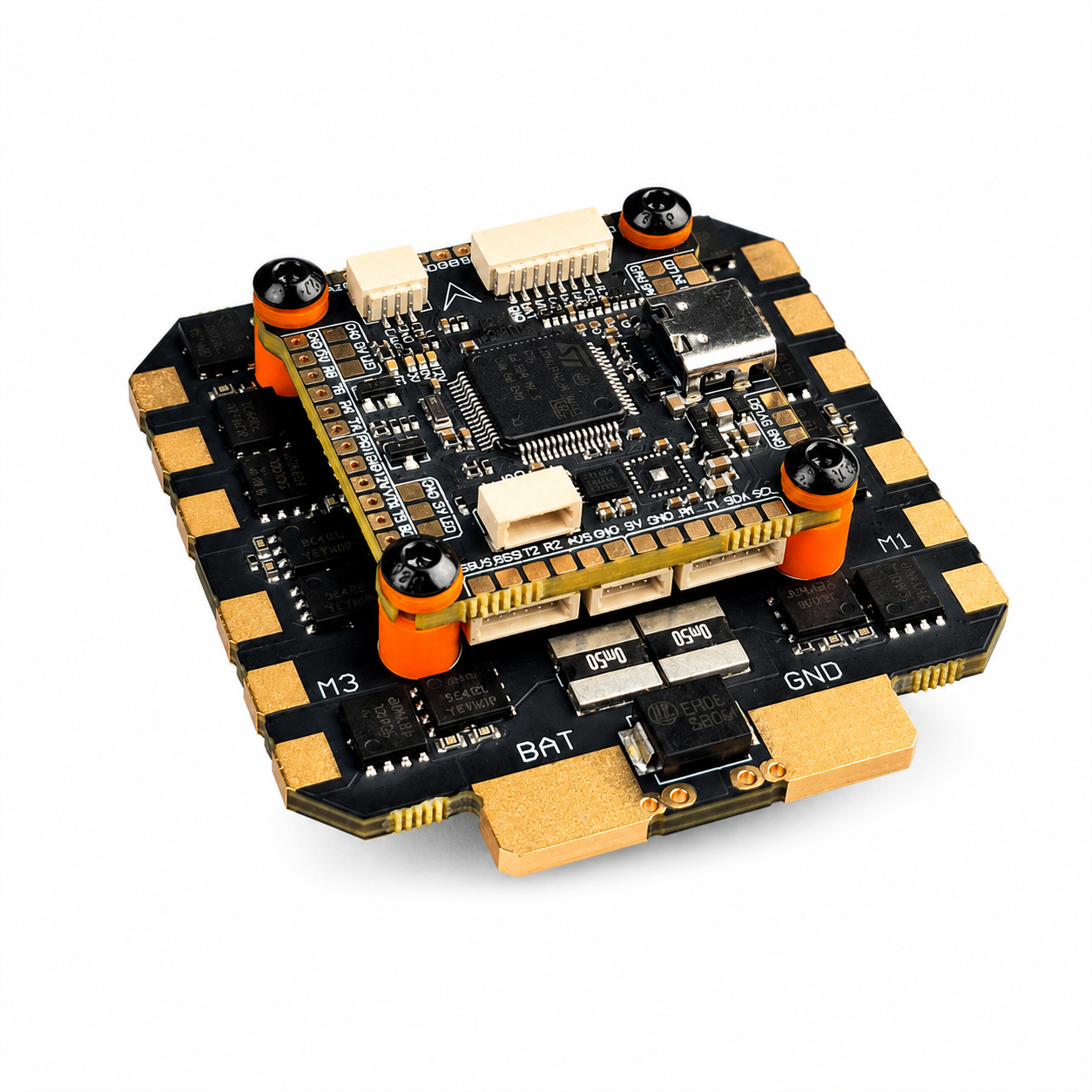

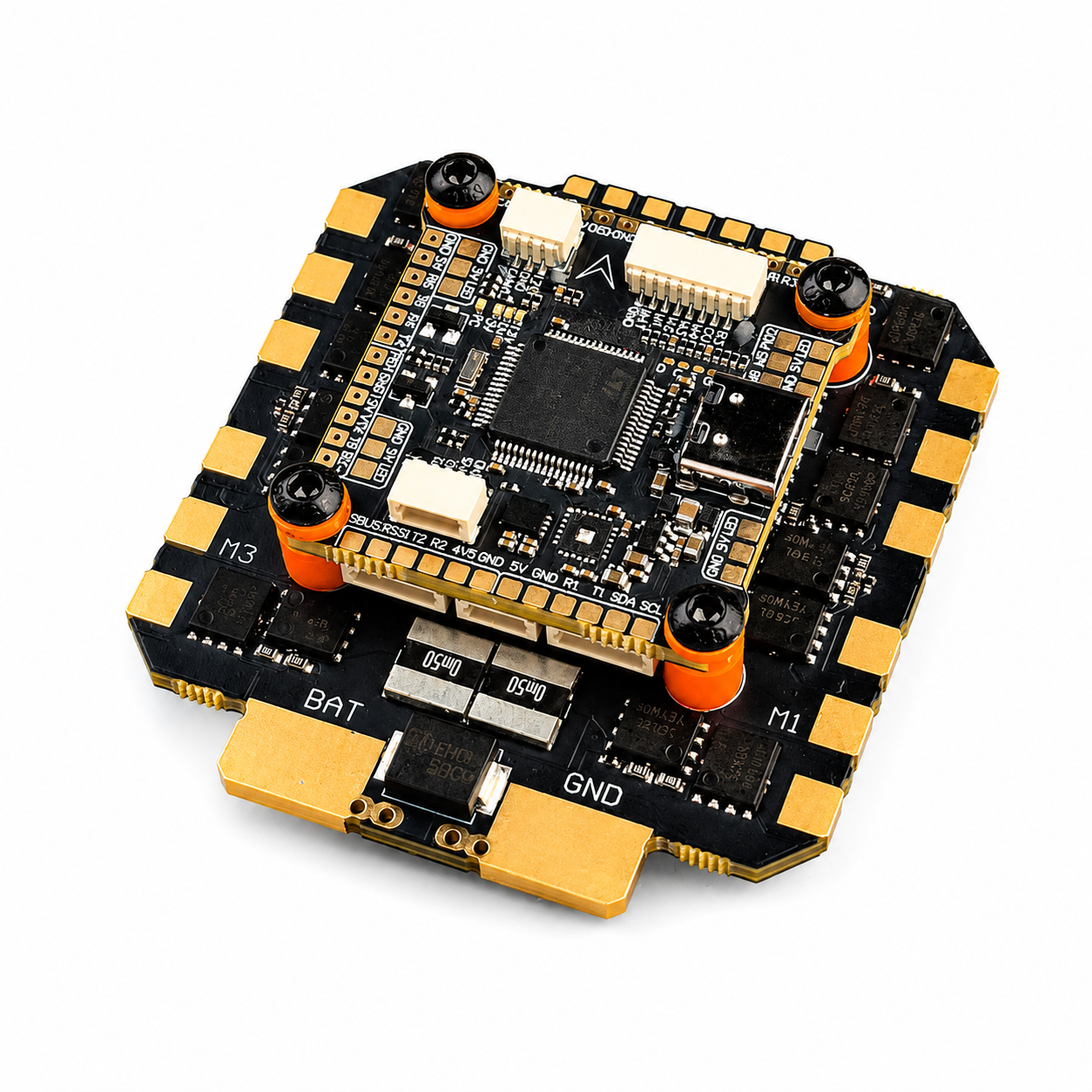

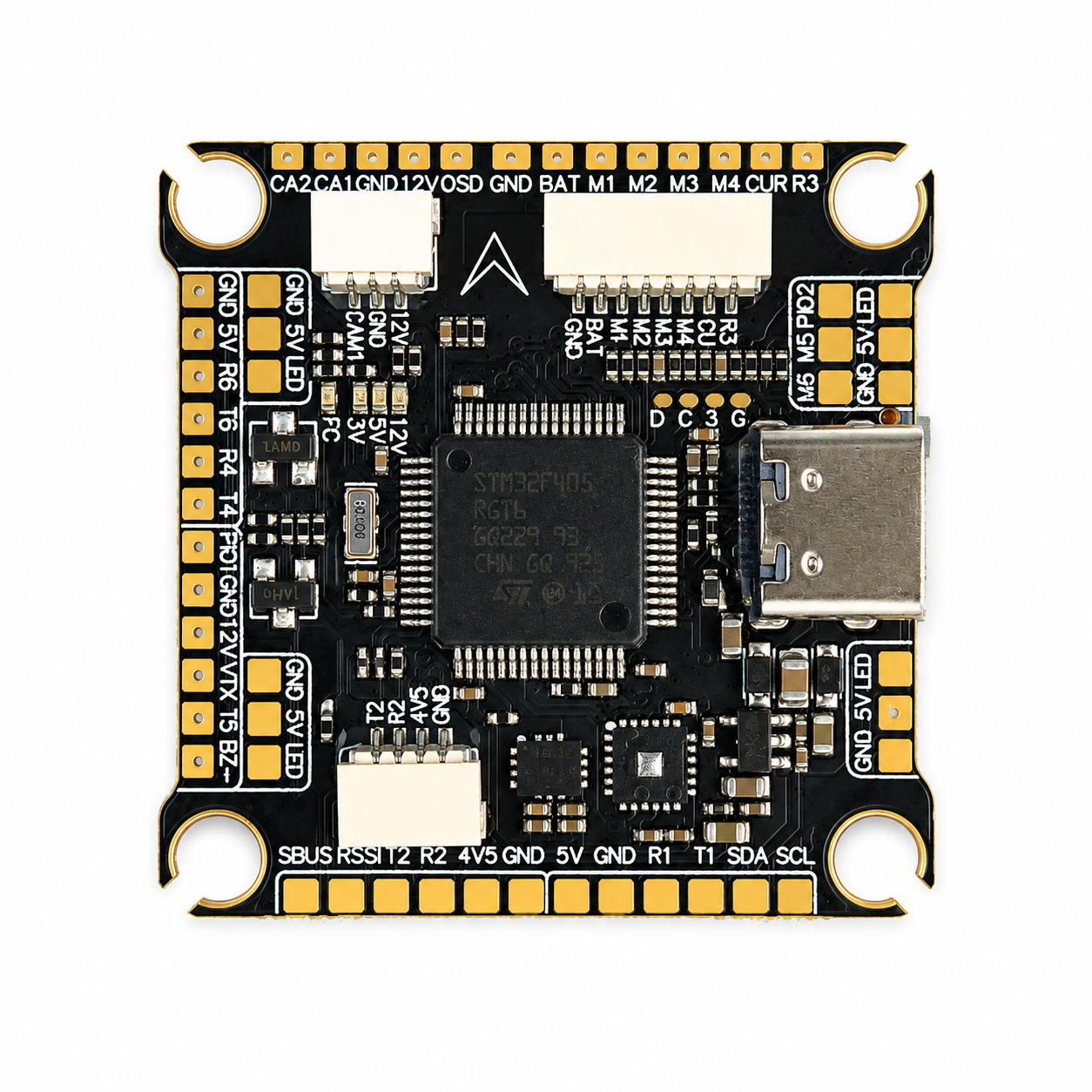

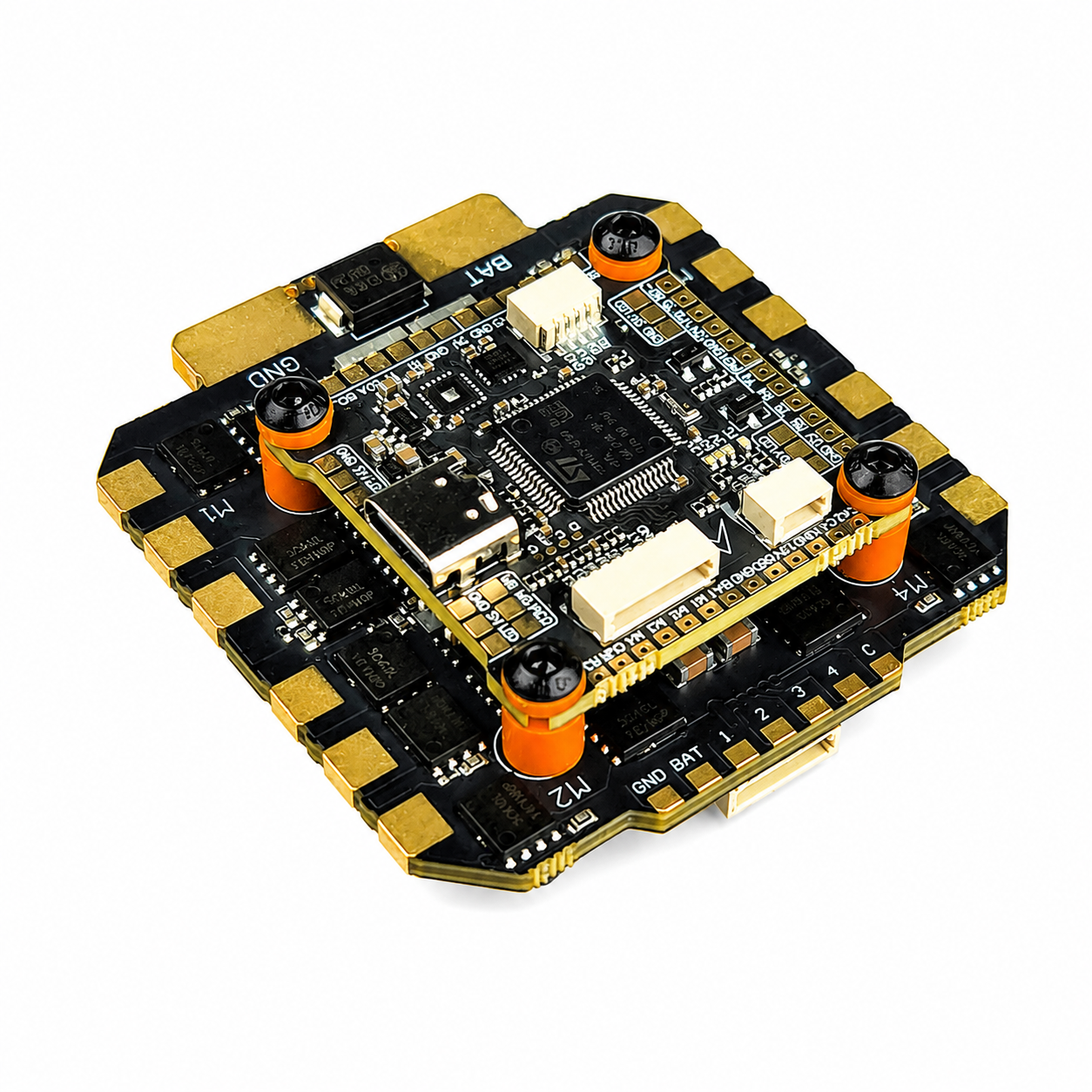

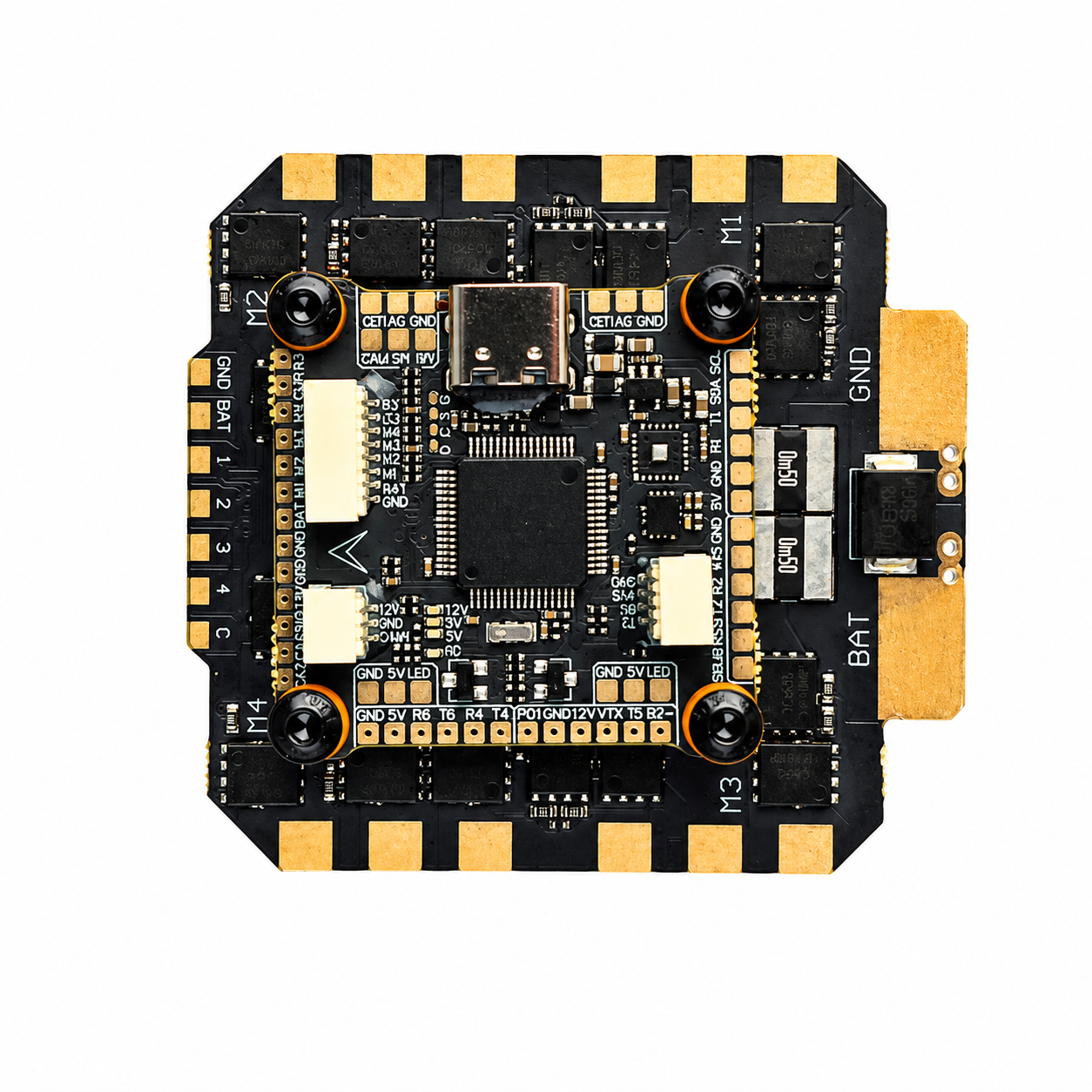

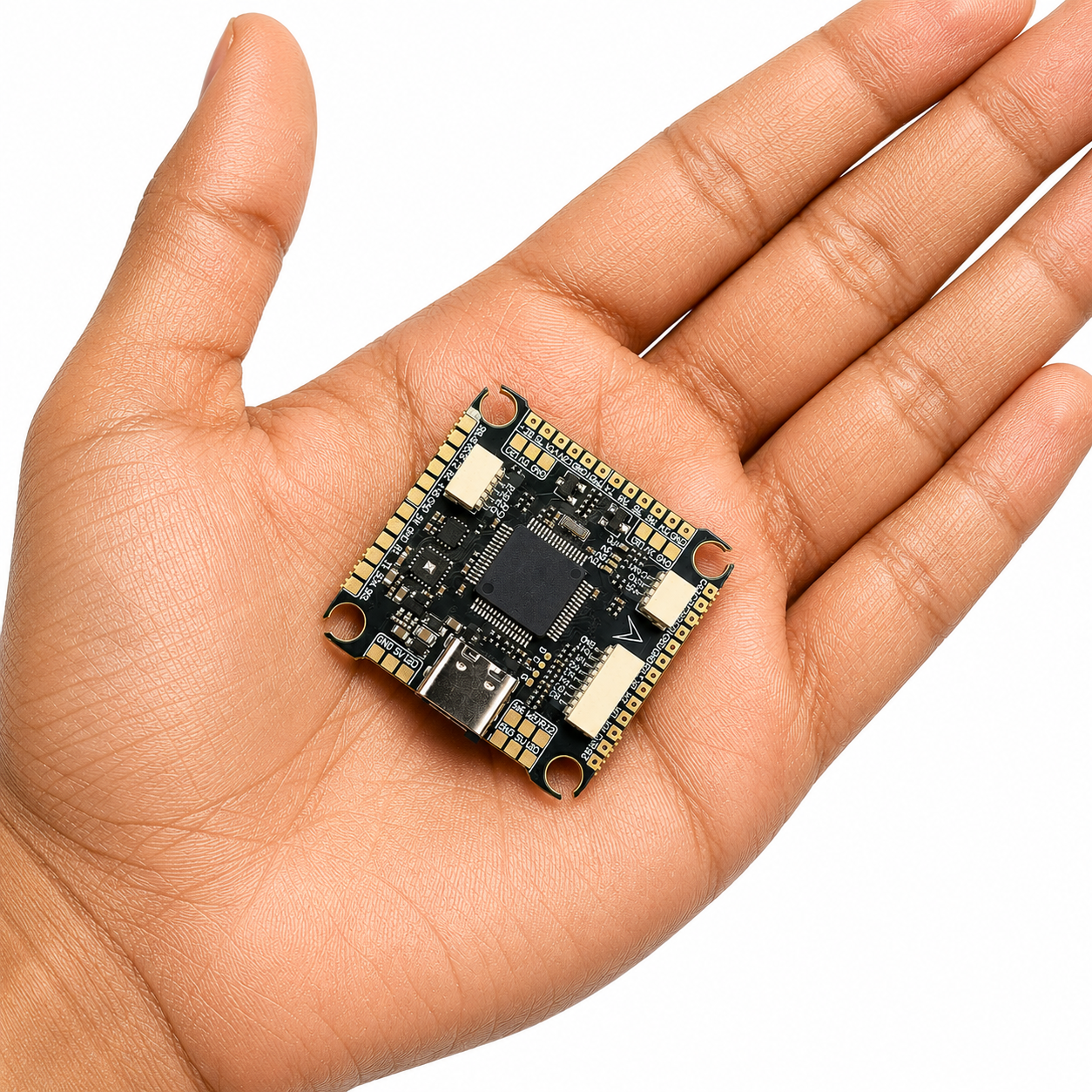

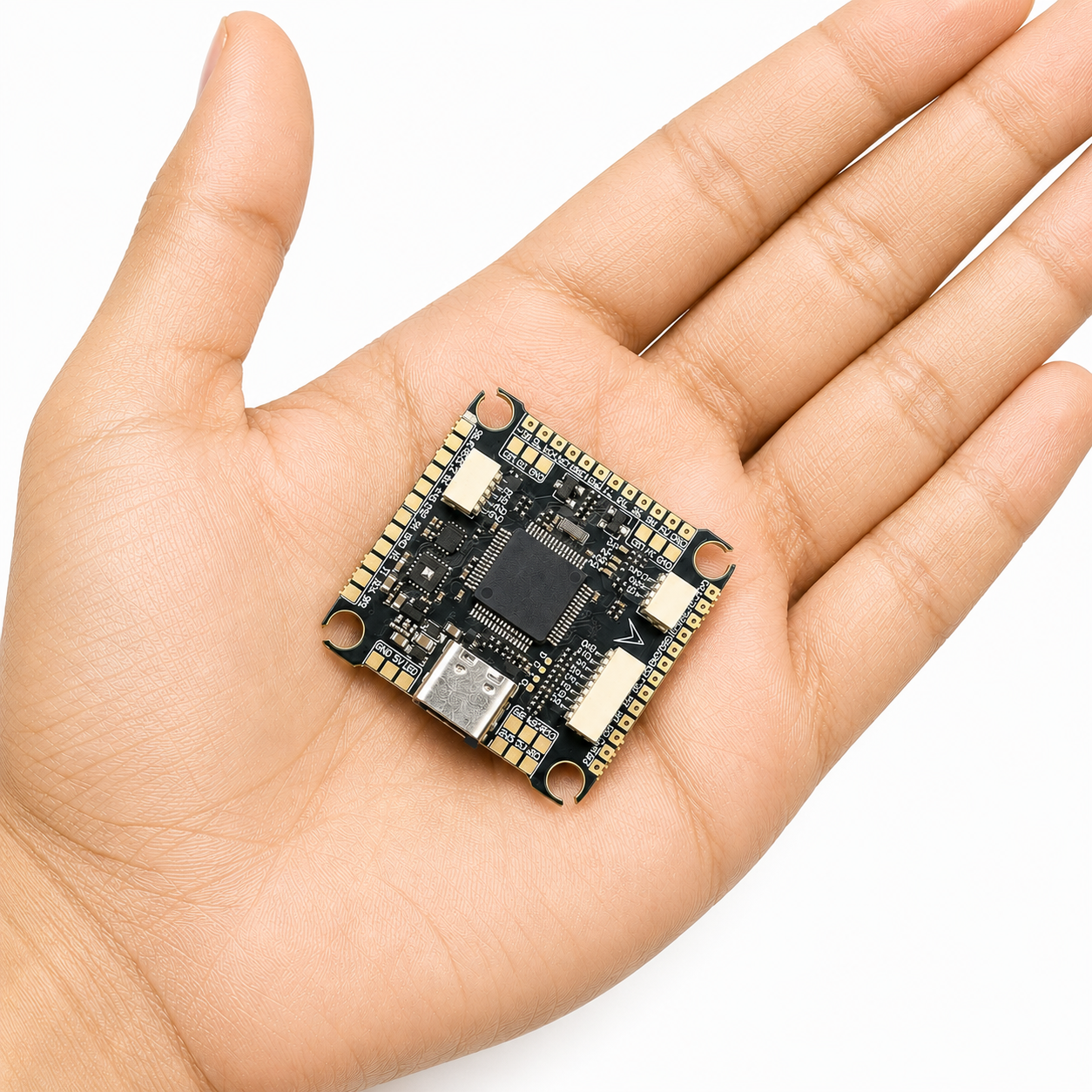

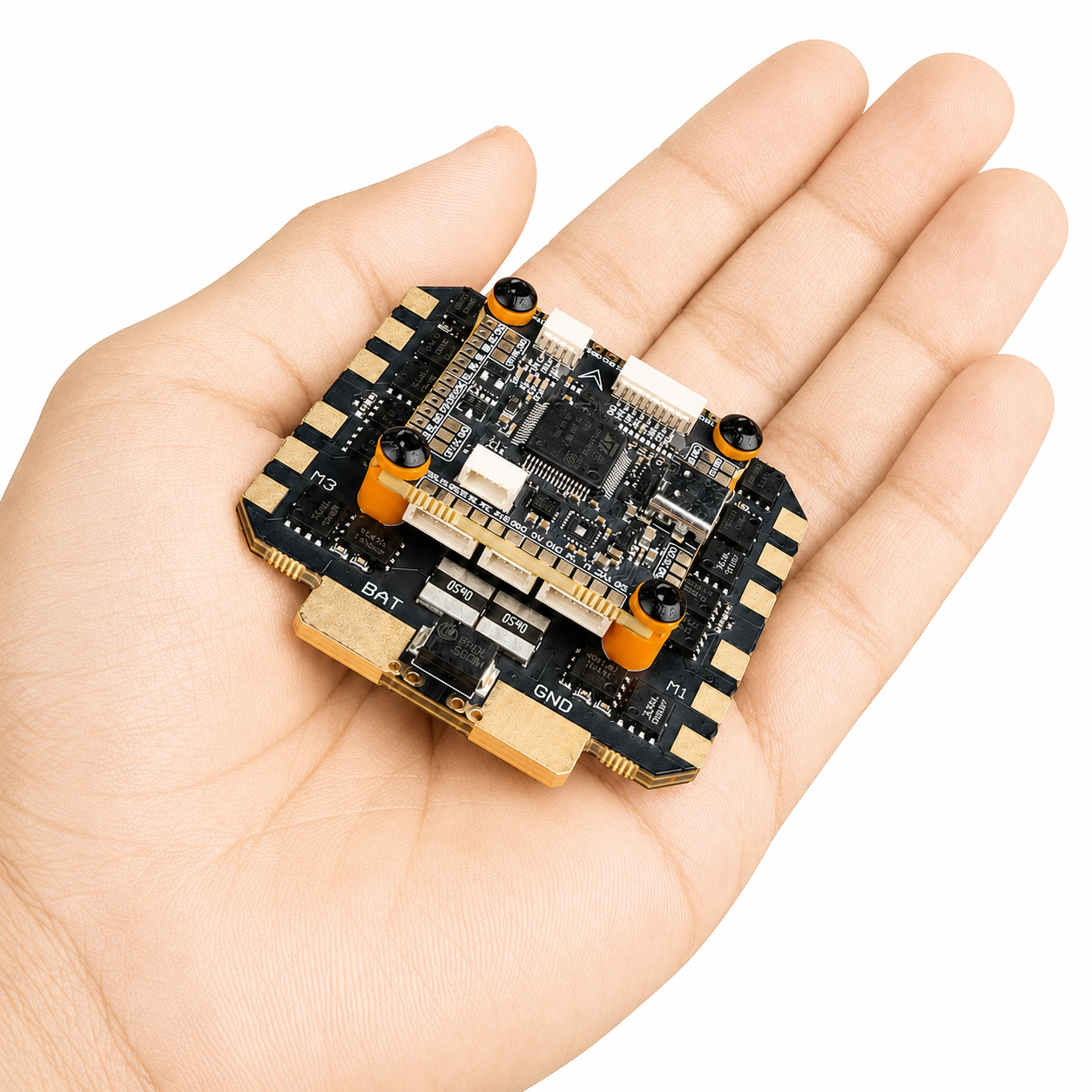

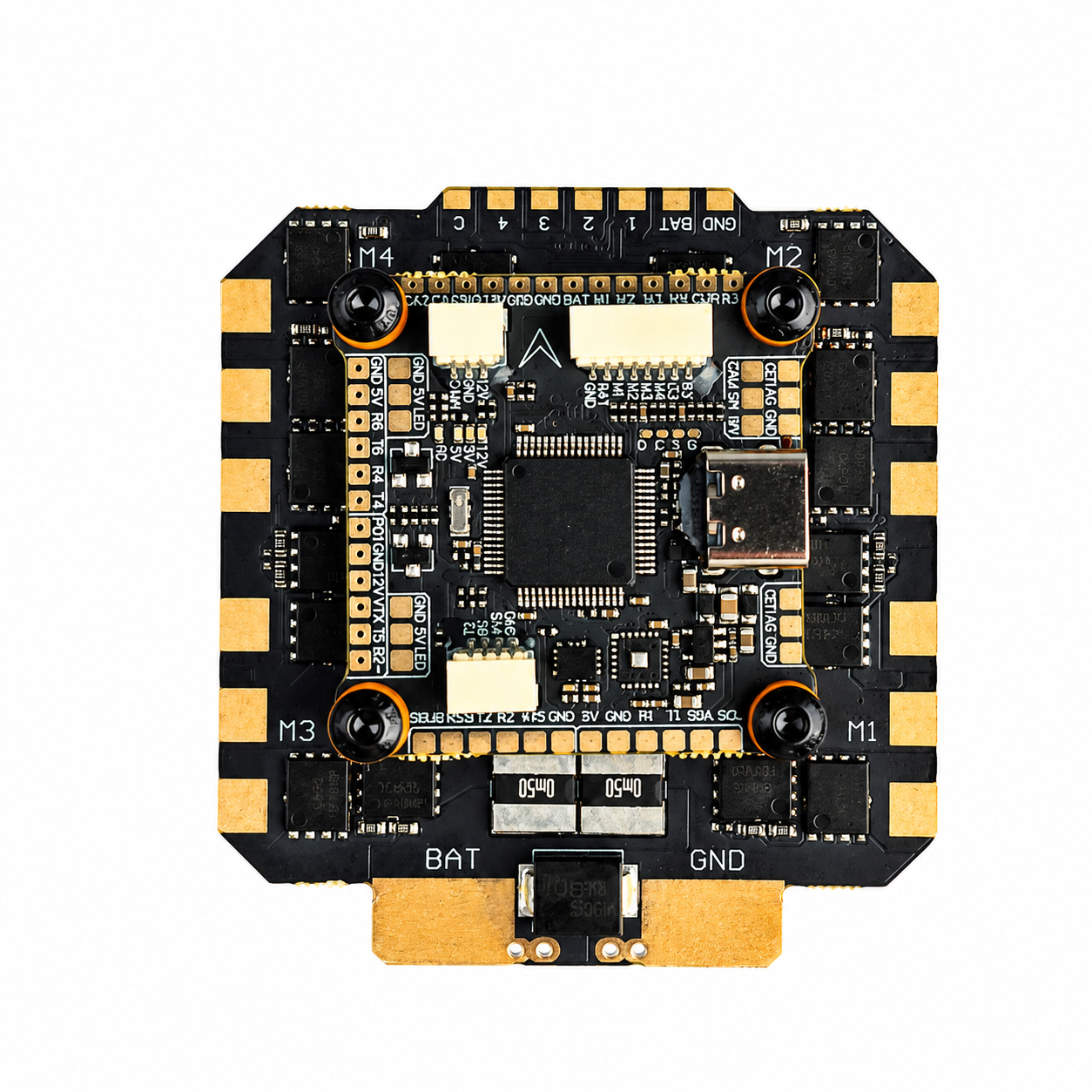

1× DakeFPV F405 FC

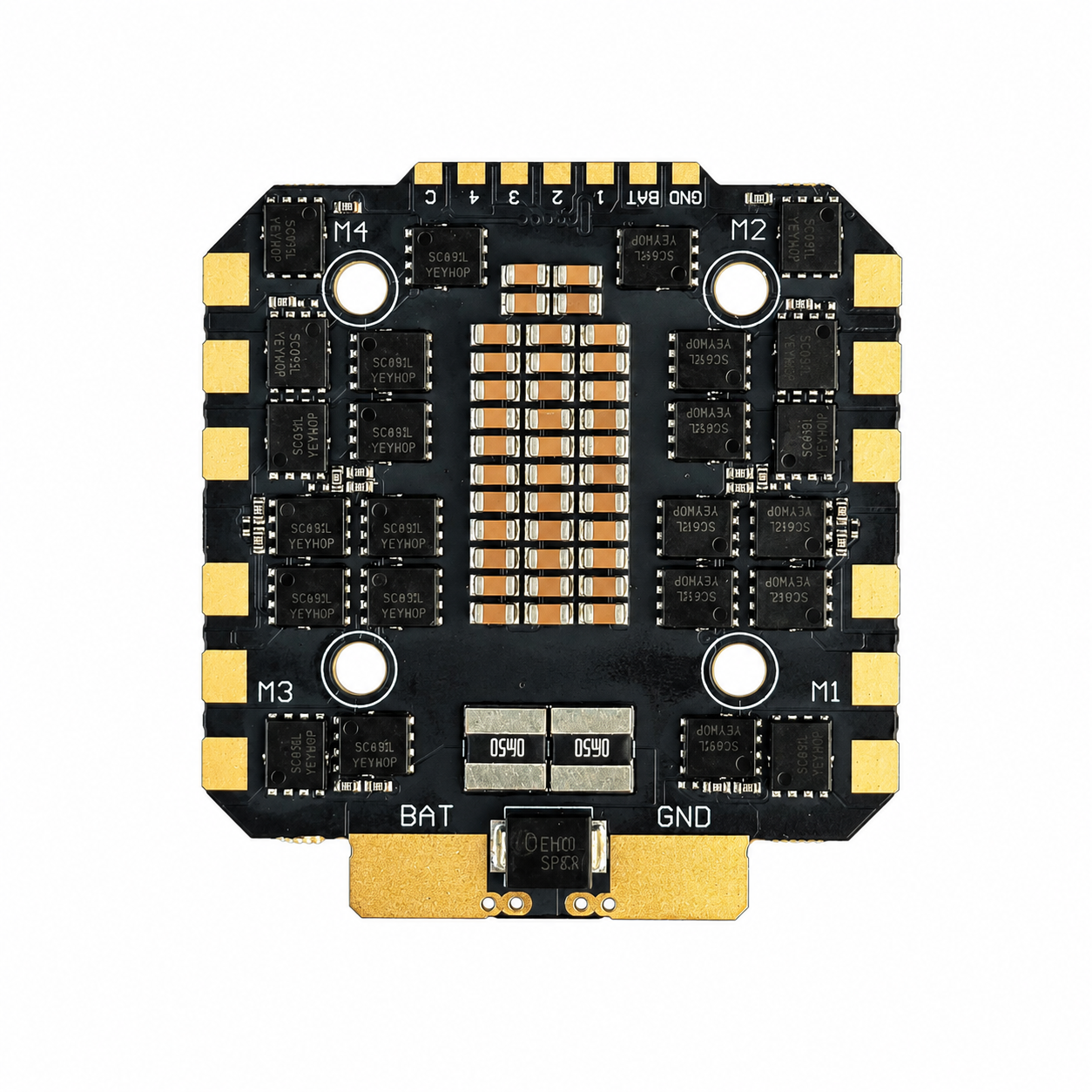

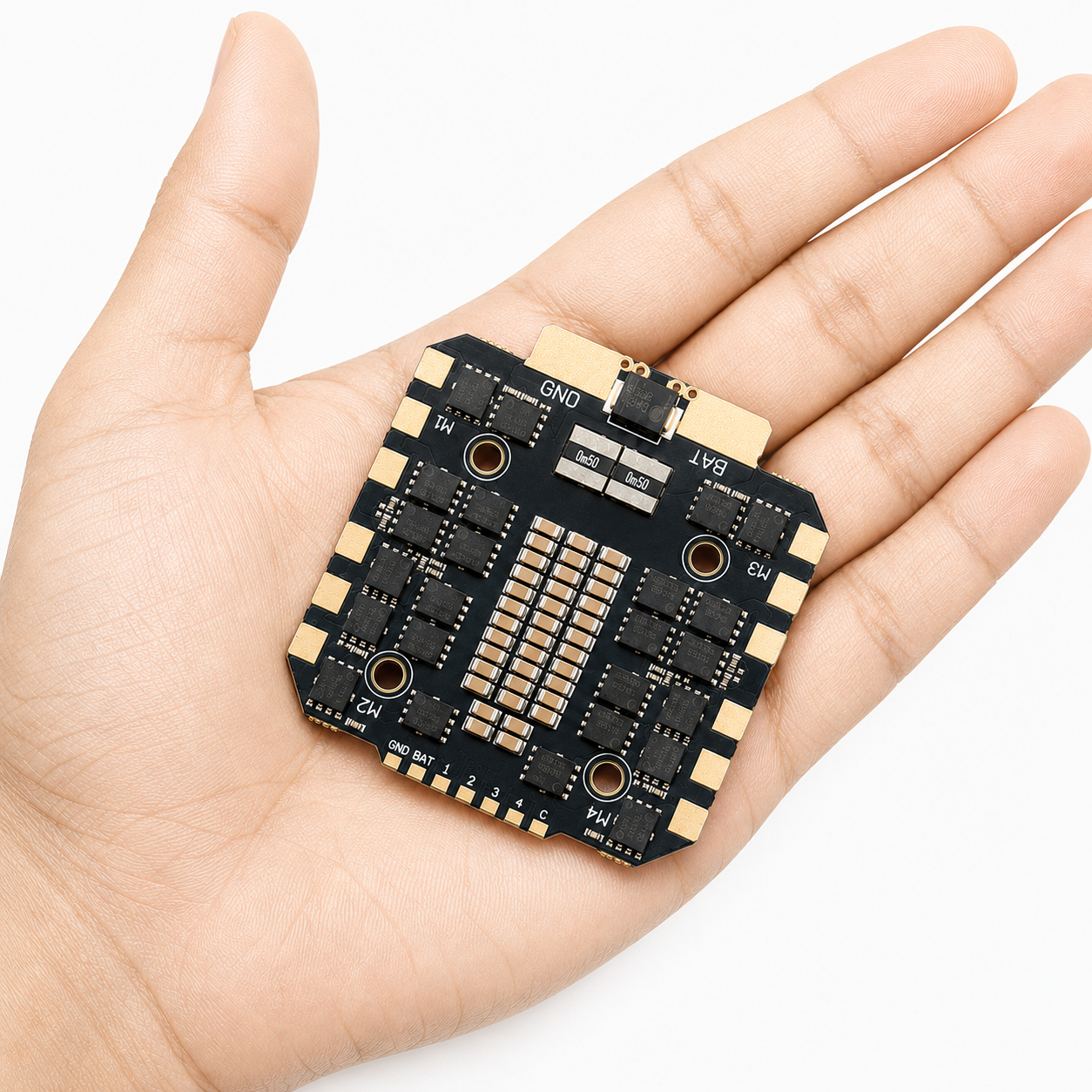

1× DakeFPV 8S 100A 4 in 1 ESC
1× Accessories
