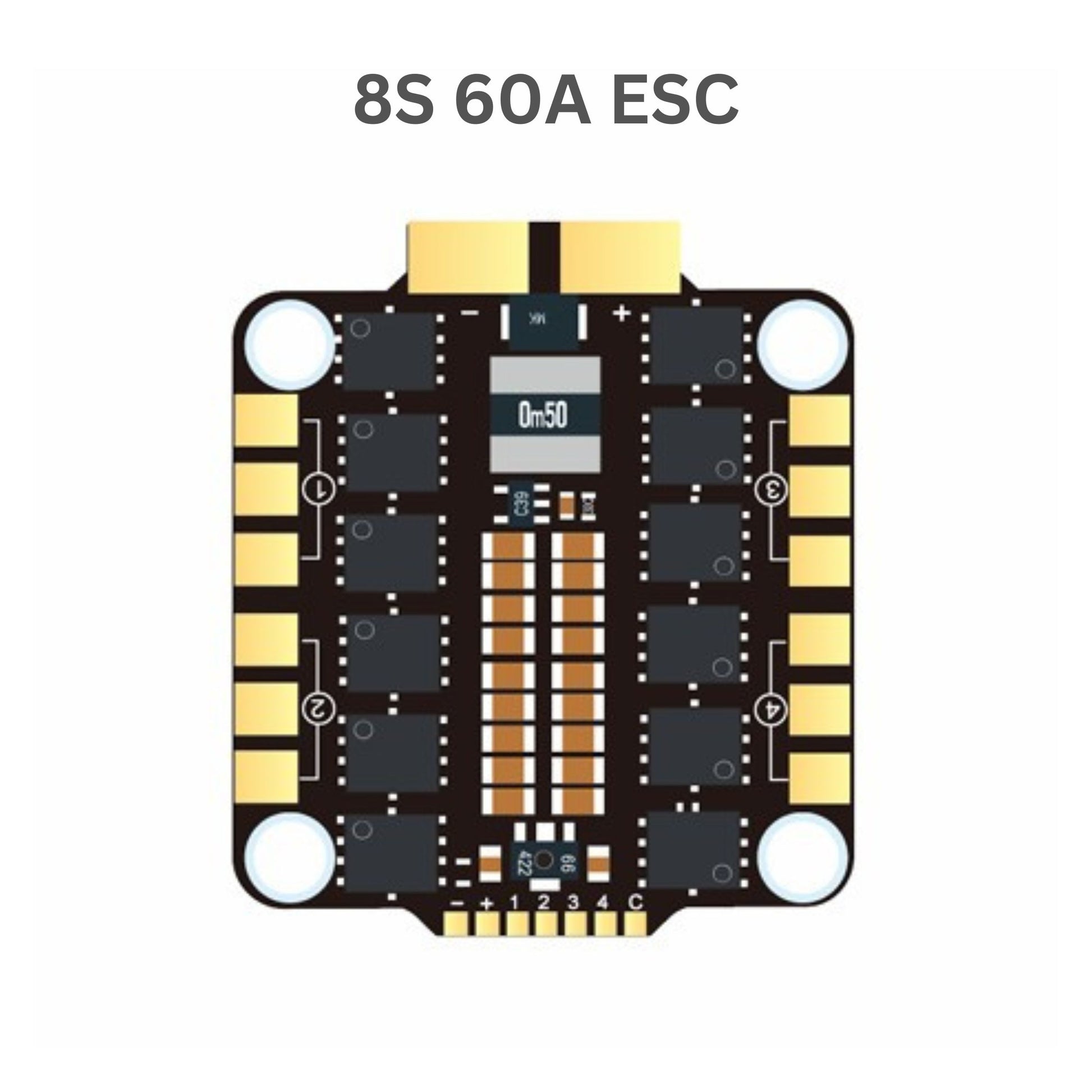

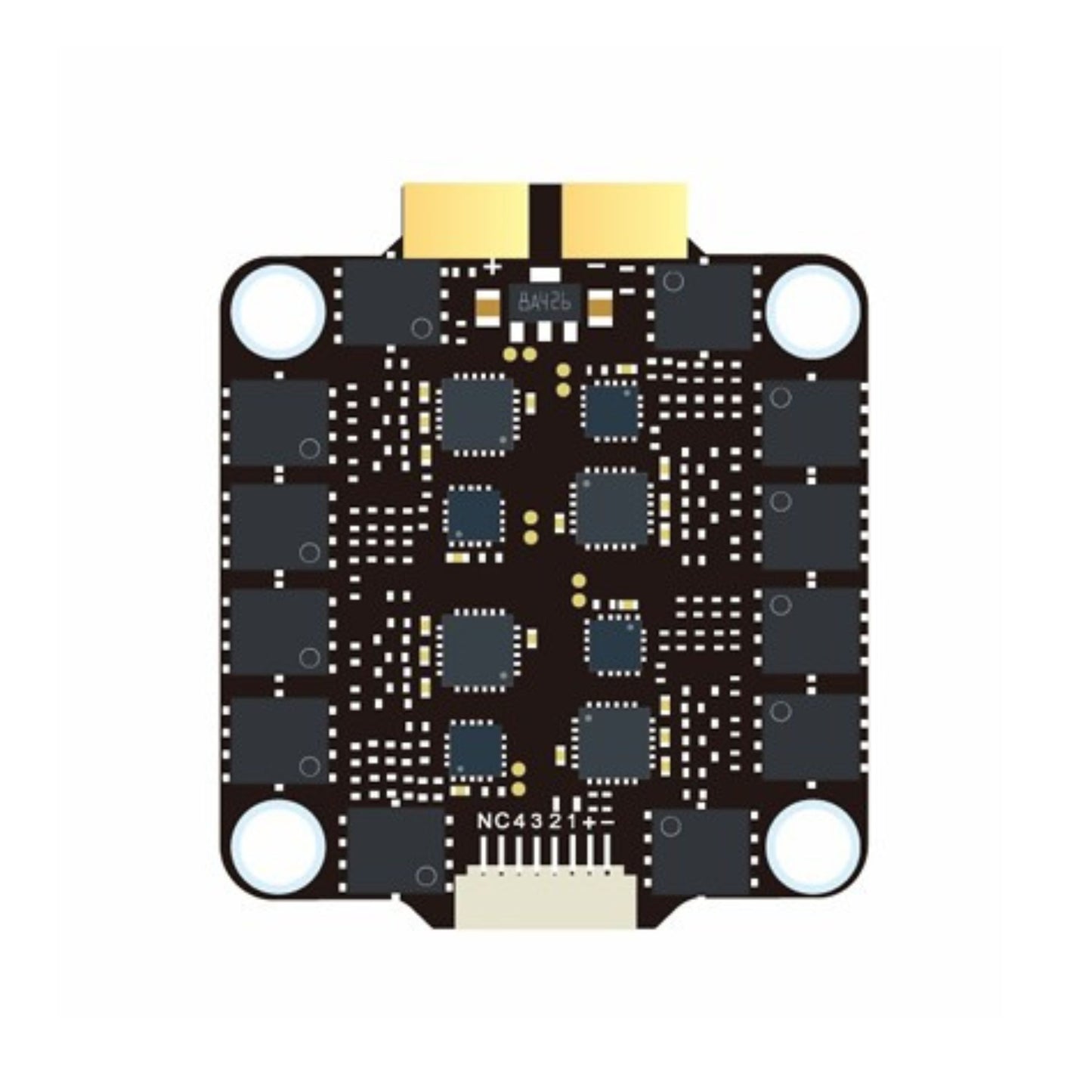

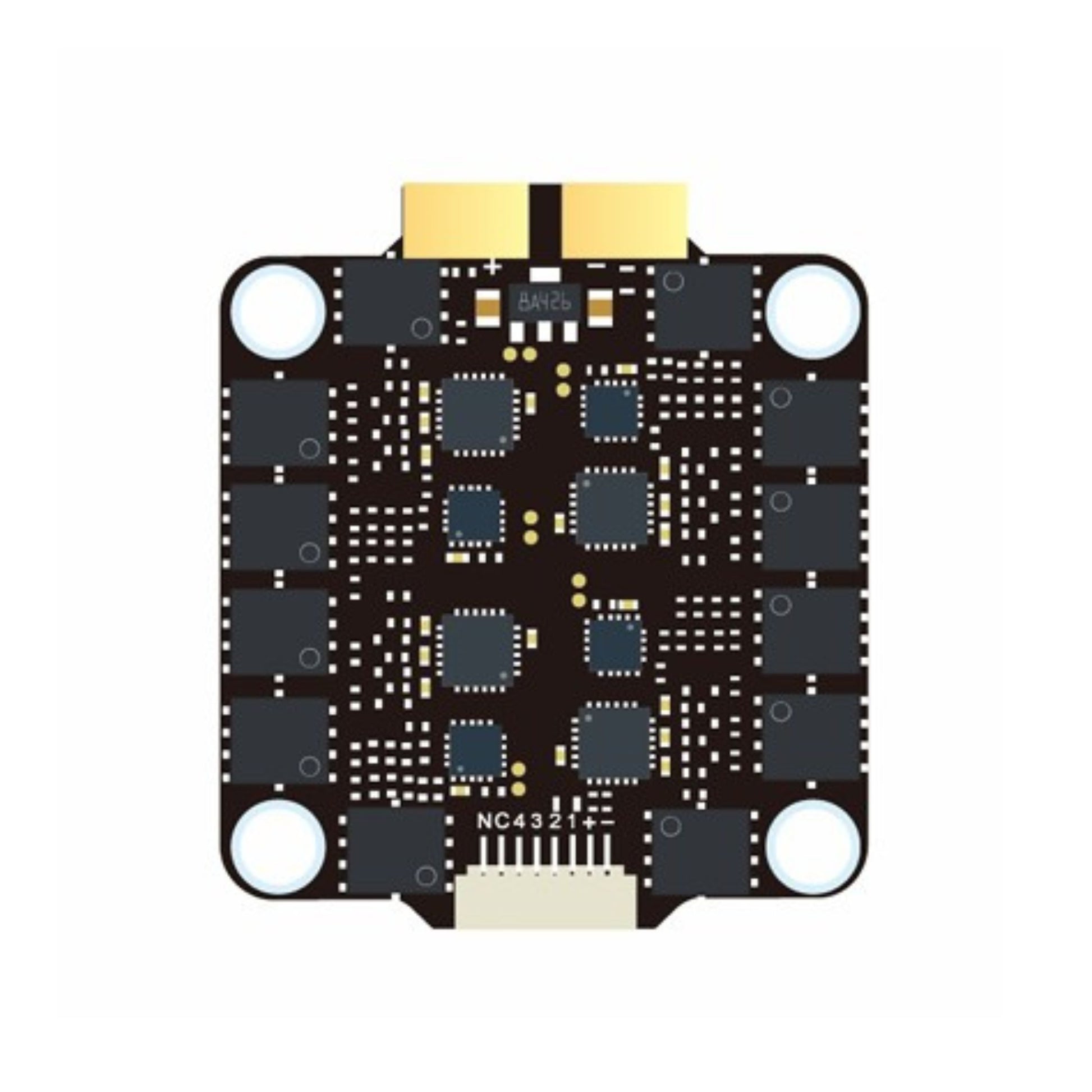

BX 8S 60A ESC – Stable & Efficient Power Control
The BX 8S 60A ESC is designed for high-power multirotor and drone applications where reliability and precise motor control are required. It runs on BLHeli_S / Bluejay firmware, providing smooth throttle response and consistent performance.
This ESC uses the EFM8BB51F16G MCU along with ON5C430NL MOSFETs, enabling efficient current handling and stable operation under load. Each channel supports 60A continuous current with a 65A peak current (3–10S) capability.
Supporting 3S to 8S LiPo batteries, the BX 8S 60A ESC is suitable for a wide range of drone setups. Built-in TVS protection and a 35V 1000µF low-ESR capacitor help minimize voltage spikes and improve overall system stability.
For motor communication, it supports DShot300, DShot600, PWM, and Bi-Directional DShot, allowing accurate RPM feedback and smooth motor response. The ESC also includes current sensor (ammeter) support with ratio 120.
With its compact size and lightweight design, this ESC is ideal for space-constrained builds without compromising performance.
Specifications:-
