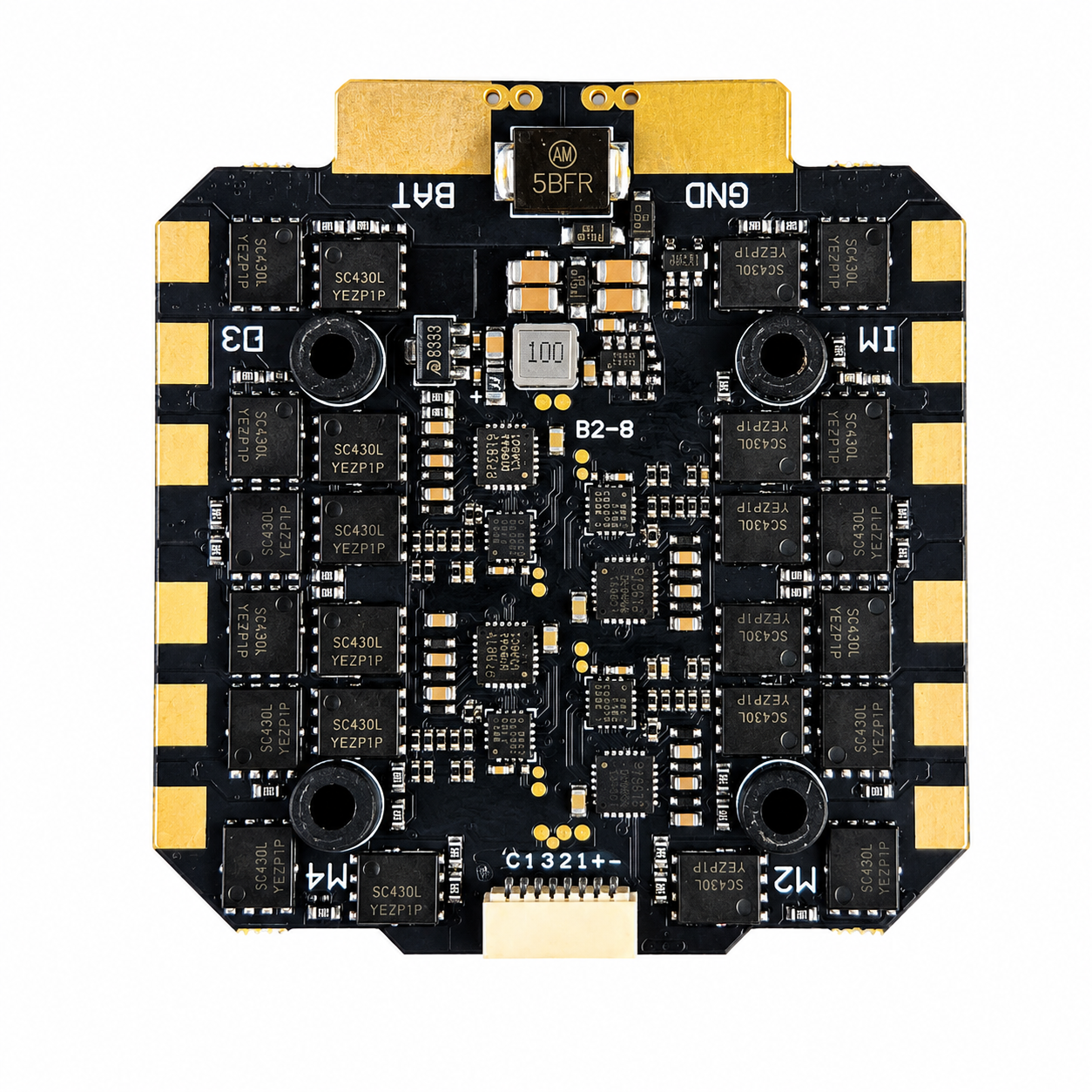

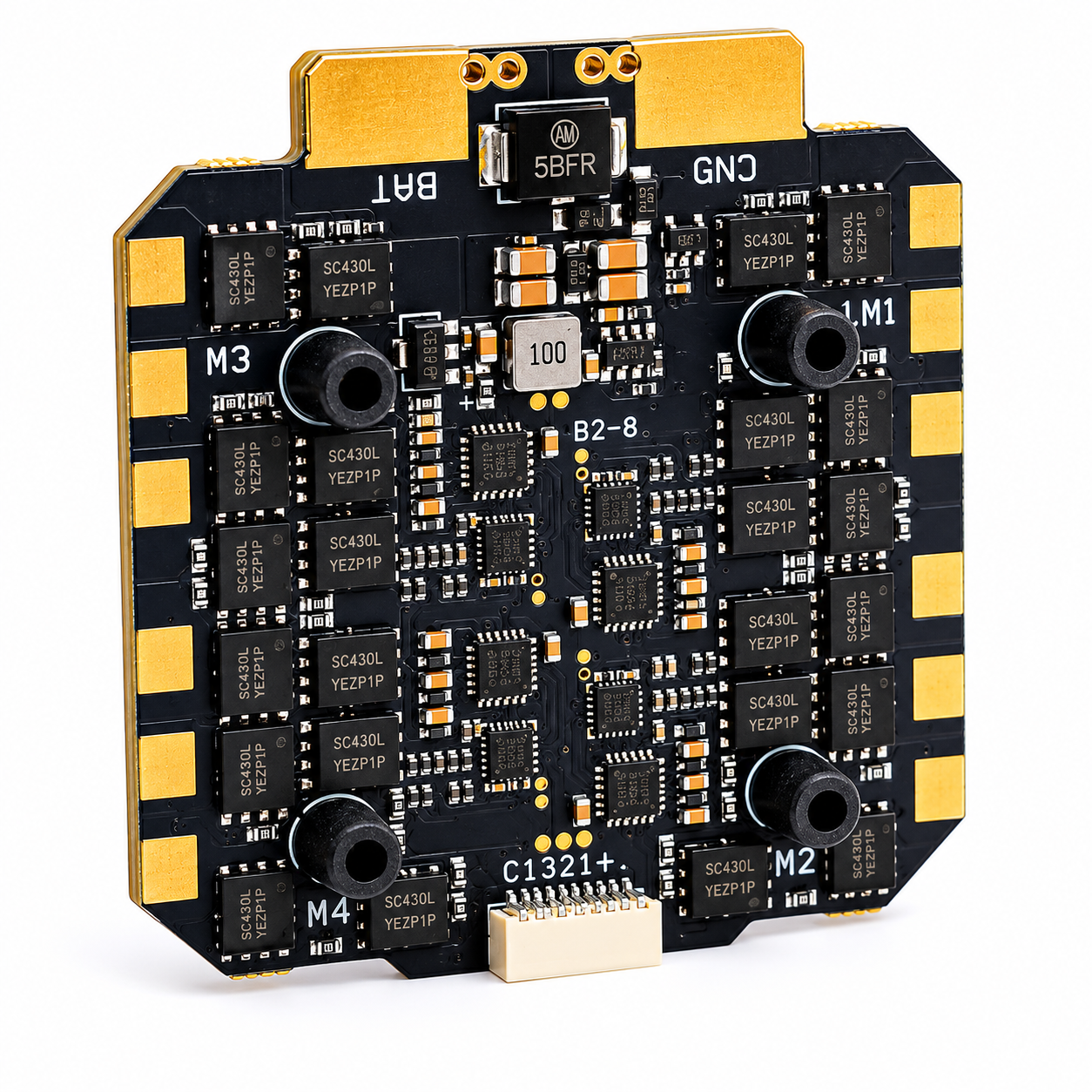

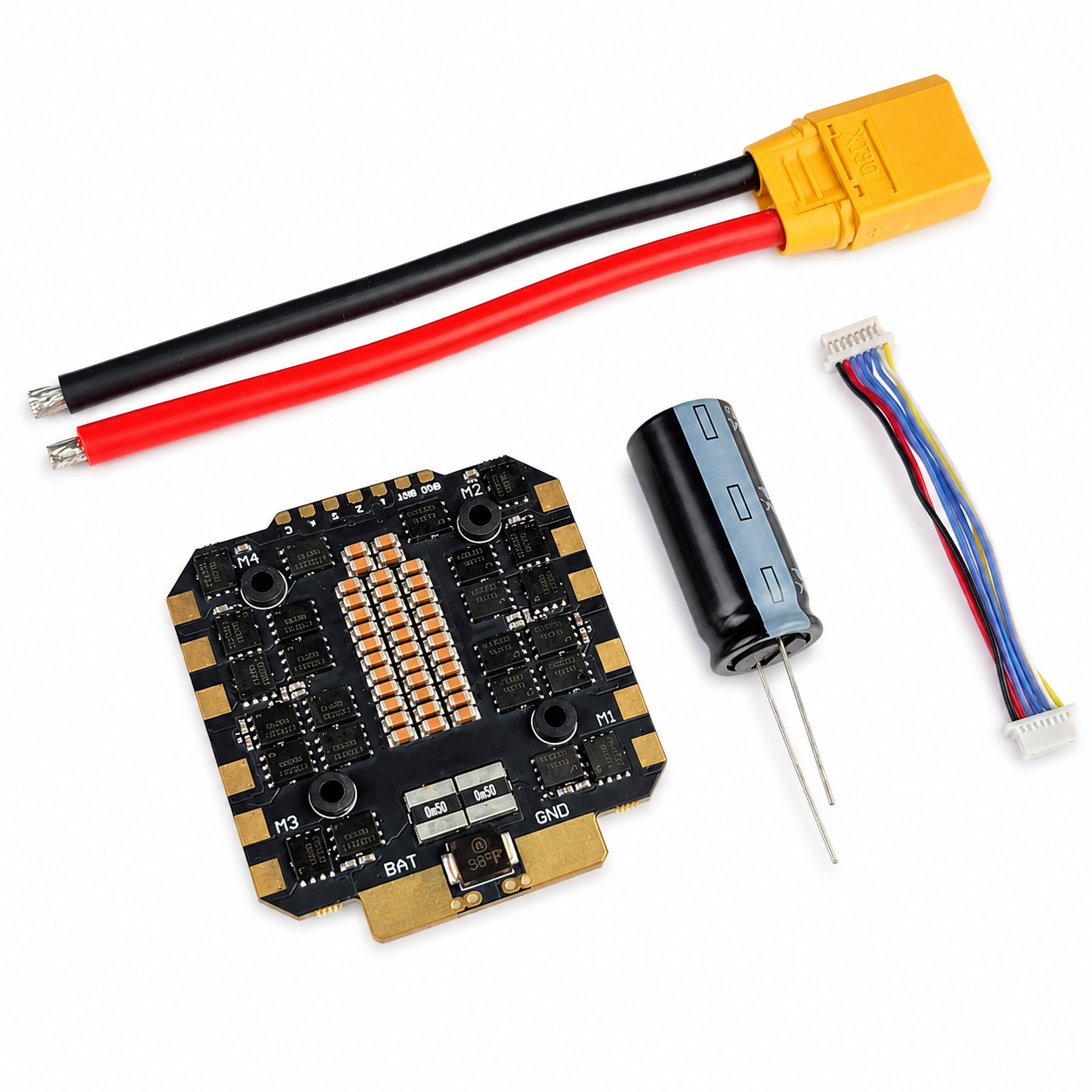

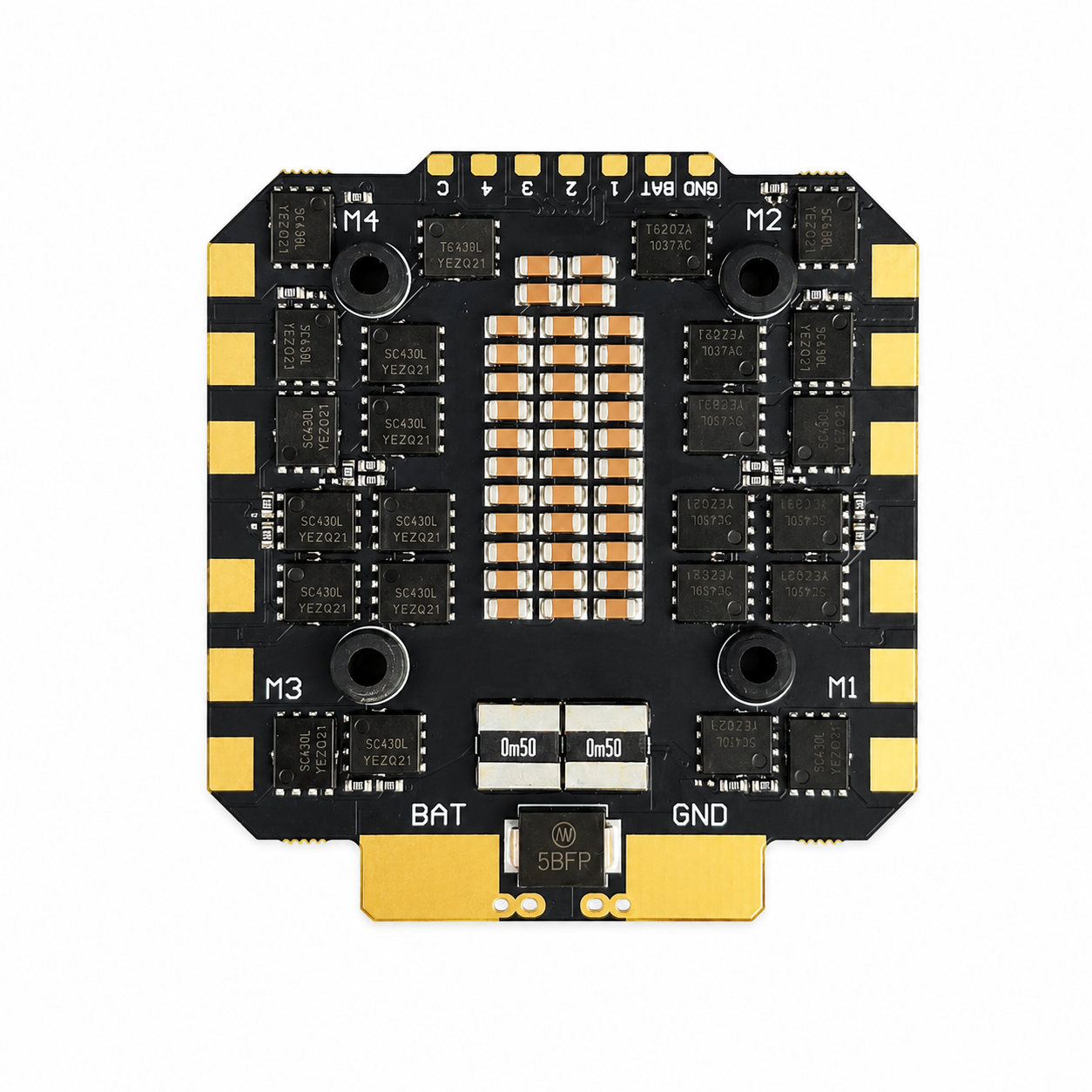

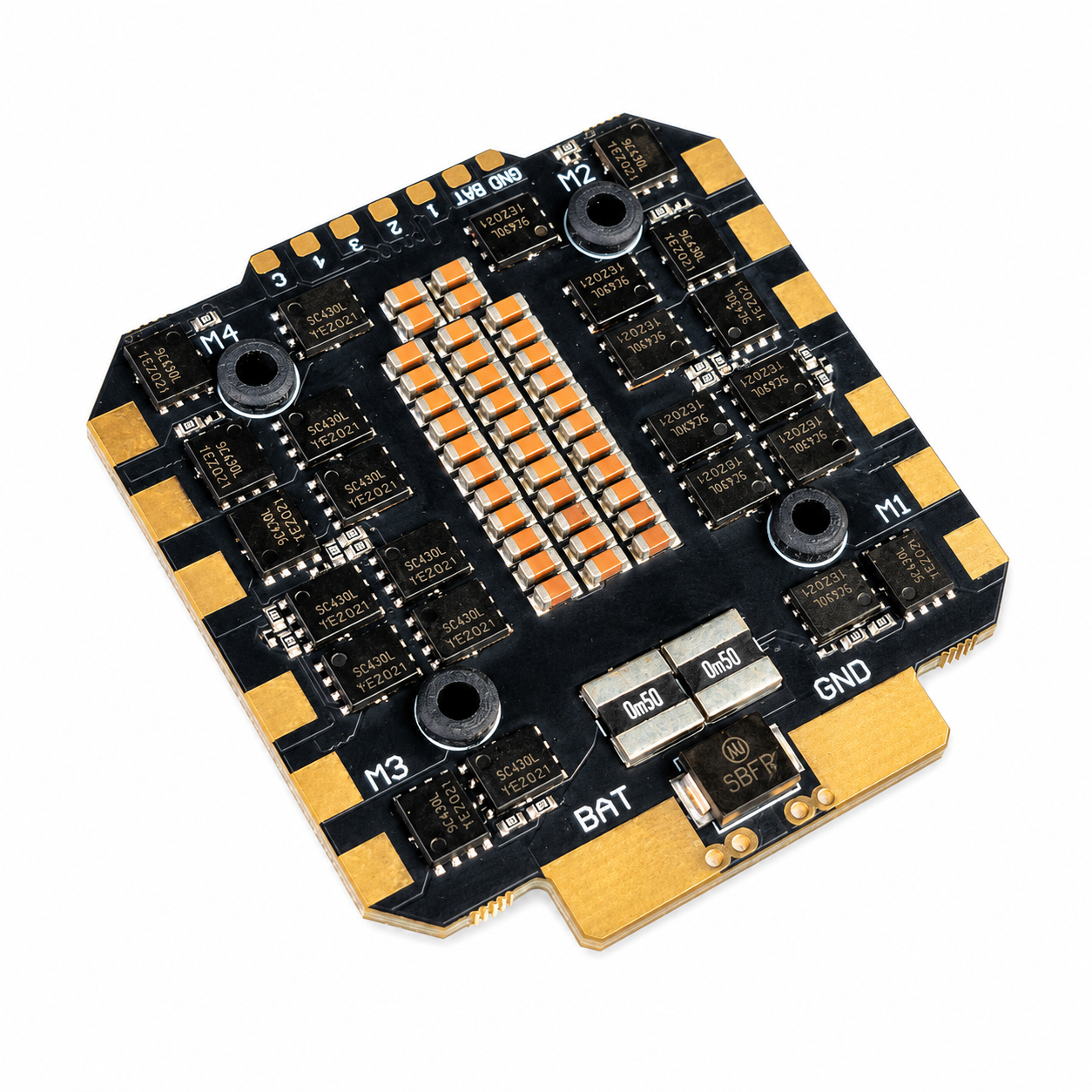

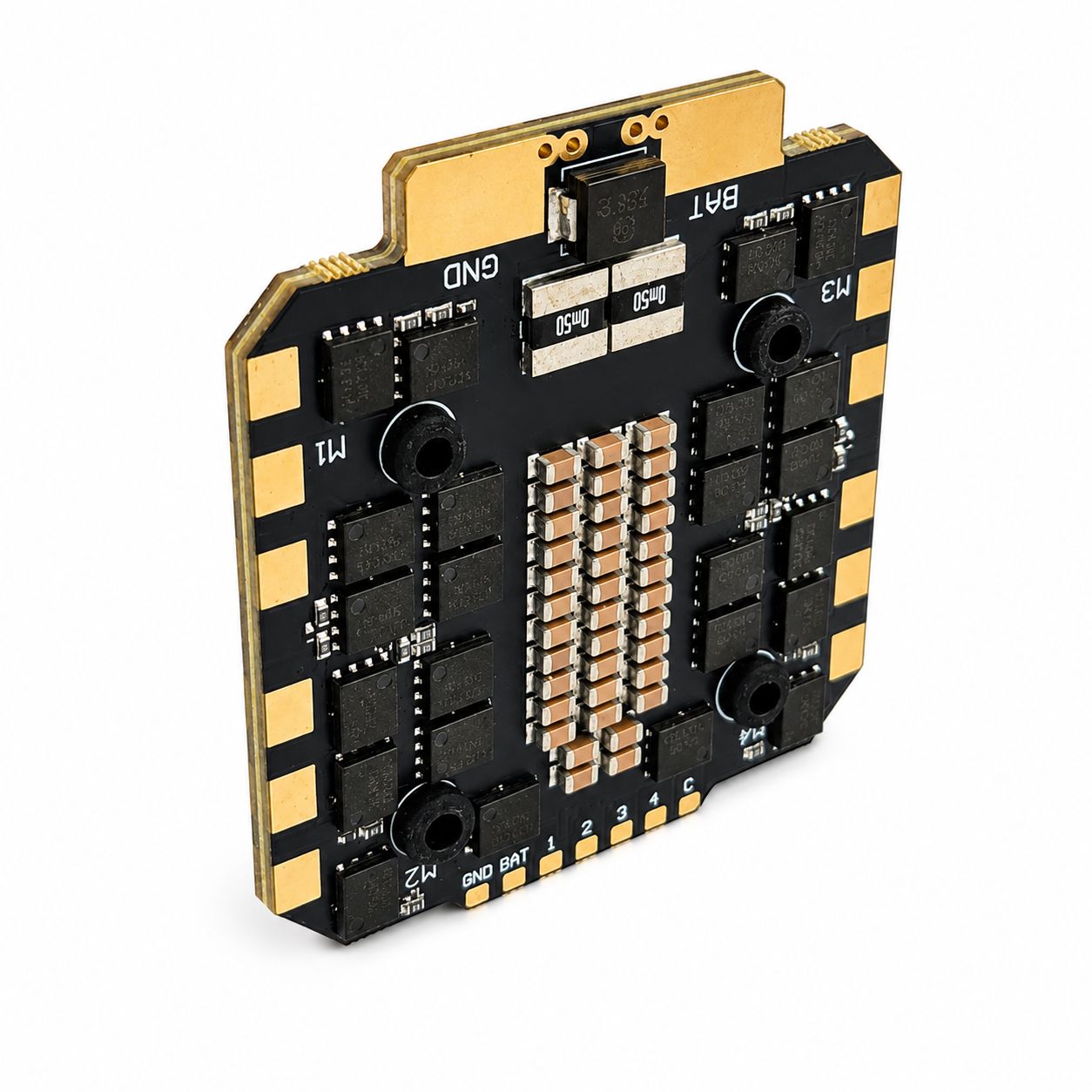

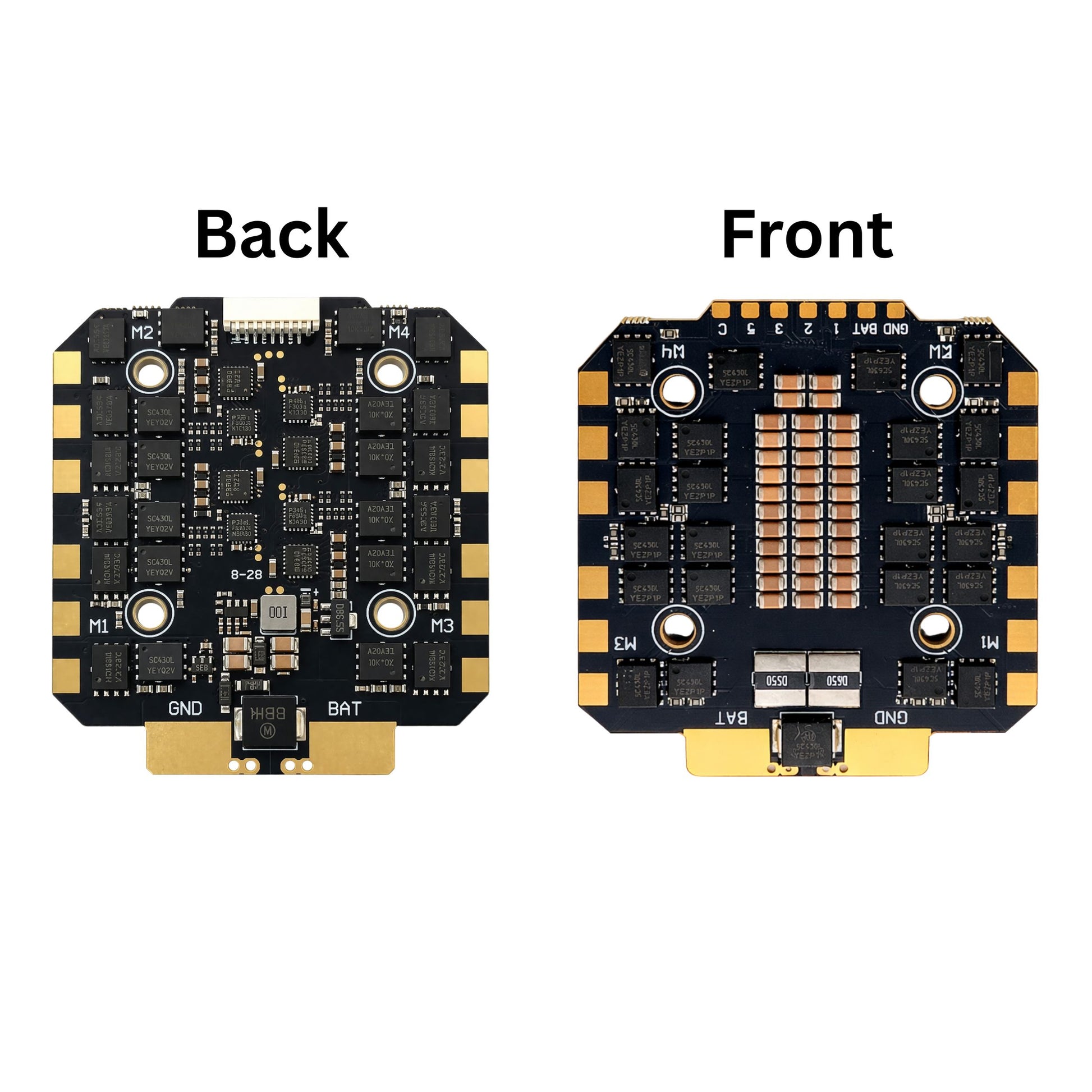

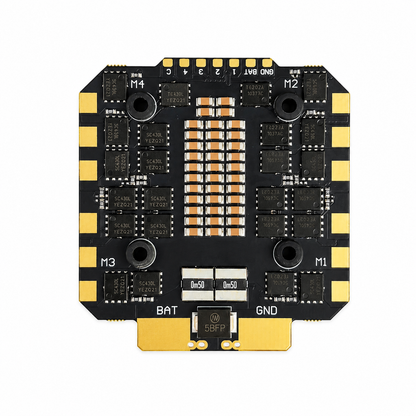

BLHeli_32 8S 100A 4-in-1 ESC – High-Performance Brushless Speed Controller
Take your drone’s power and stability to the next level with this high-performance 8S 100A ESC. Built on the advanced BLHeli_32 firmware platform, this ESC delivers ultra-smooth throttle response, improved efficiency, and support for modern flight features. With high-quality MOSFETs, a reliable capacitor design, and support for up to 8S (33.6V) batteries, it is an ideal choice for heavy-lift, FPV, cine-lifting, and industrial drone applications.
Key Features
BLHeli_32 Firmware
- Latest BLHeli_32.9 version
- Smooth motor control with advanced tuning options
Powerful MCU for Reliable Performance
- STM32G071G8U6 32-bit MCU
- Fast signal processing for enhanced flight stability
High-Efficiency MOSFET Design
- ON5C410NL MOSFETs
- 100A continuous current × 4 ESC channels
- 105A peak current × 4 (up to 10 seconds)
- Designed for demanding high-power drone builds
Wide Battery Compatibility
- Supports 3S to 8S LiPo batteries
- Perfect for high-performance drone systems
Motor Signal Support
- DShot300
- DShot600
- PWM
- Bidirectional DShot (RPM telemetry supported)
Safety & Stability Features
- Built-in TVS protection
- 2 × 35V 1000µF Low ESR capacitors
- Reduced electrical noise and improved voltage protection
Ammeter Support
- Supported
- Ammeter ratio: 120
Physical Specifications

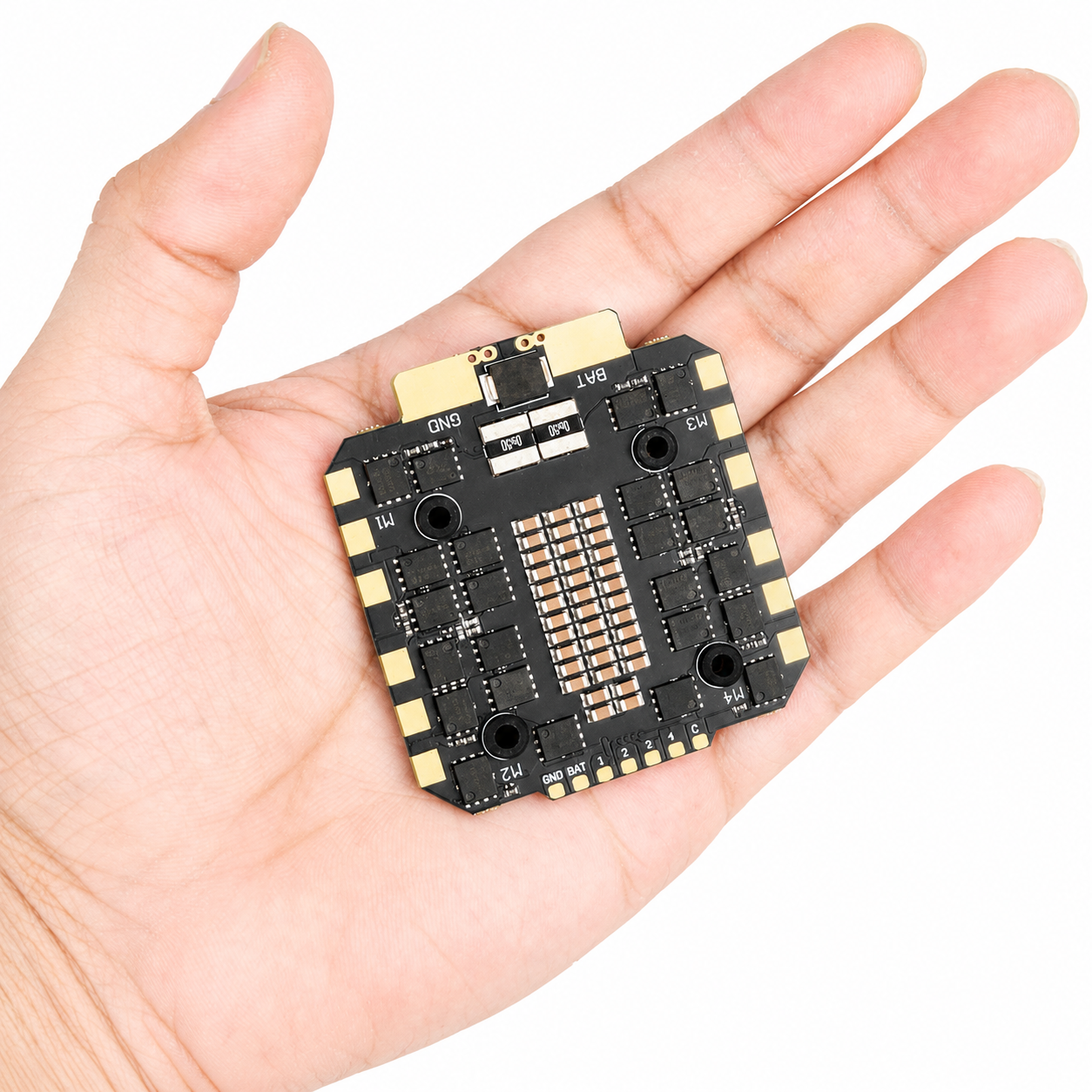

- Size: 56mm × 59mm × 7mm
- Mounting holes: 30.5mm × 30.5mm (M4)
- Weight: 30g
- Operating temperature: 20°C to +85°C
- Humidity tolerance: 20% – 95%
- Power Output Pad: VBAT
