Note: Product Images/videos are shown for illustrative purposes only and may differ from the actual product.

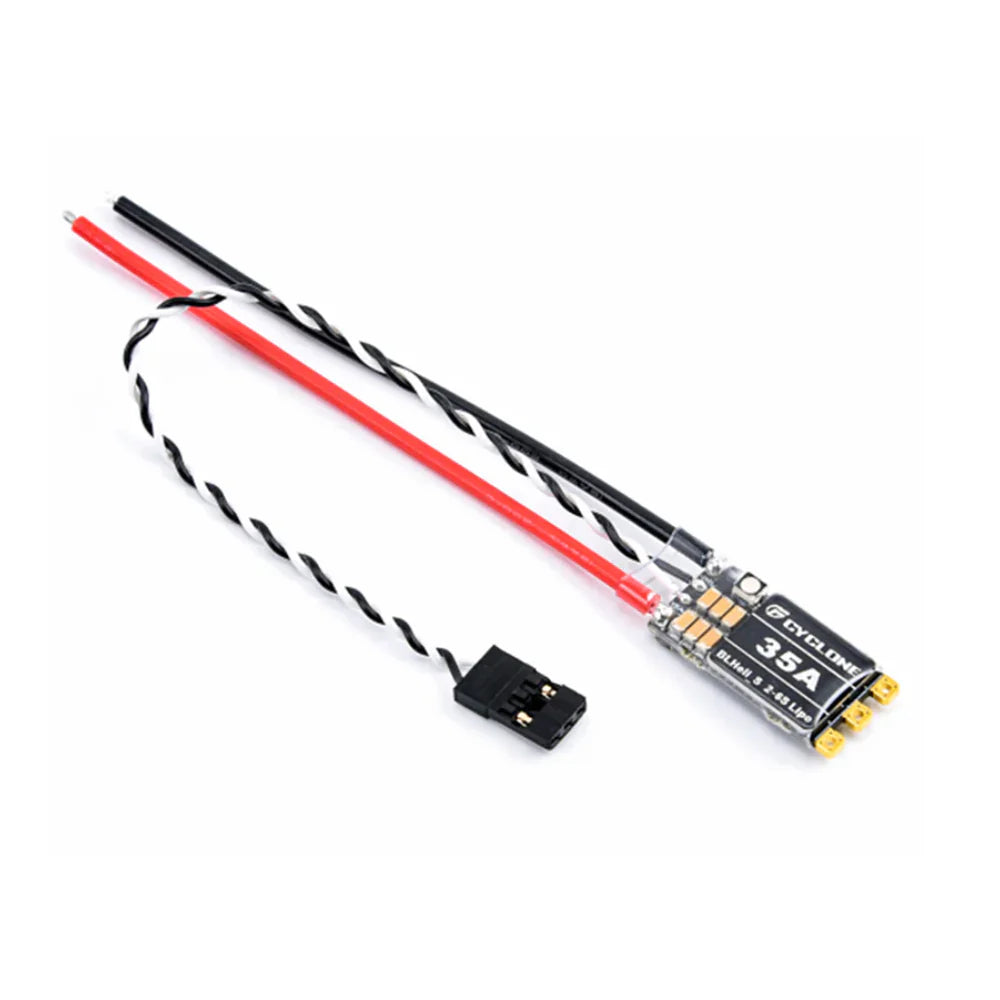

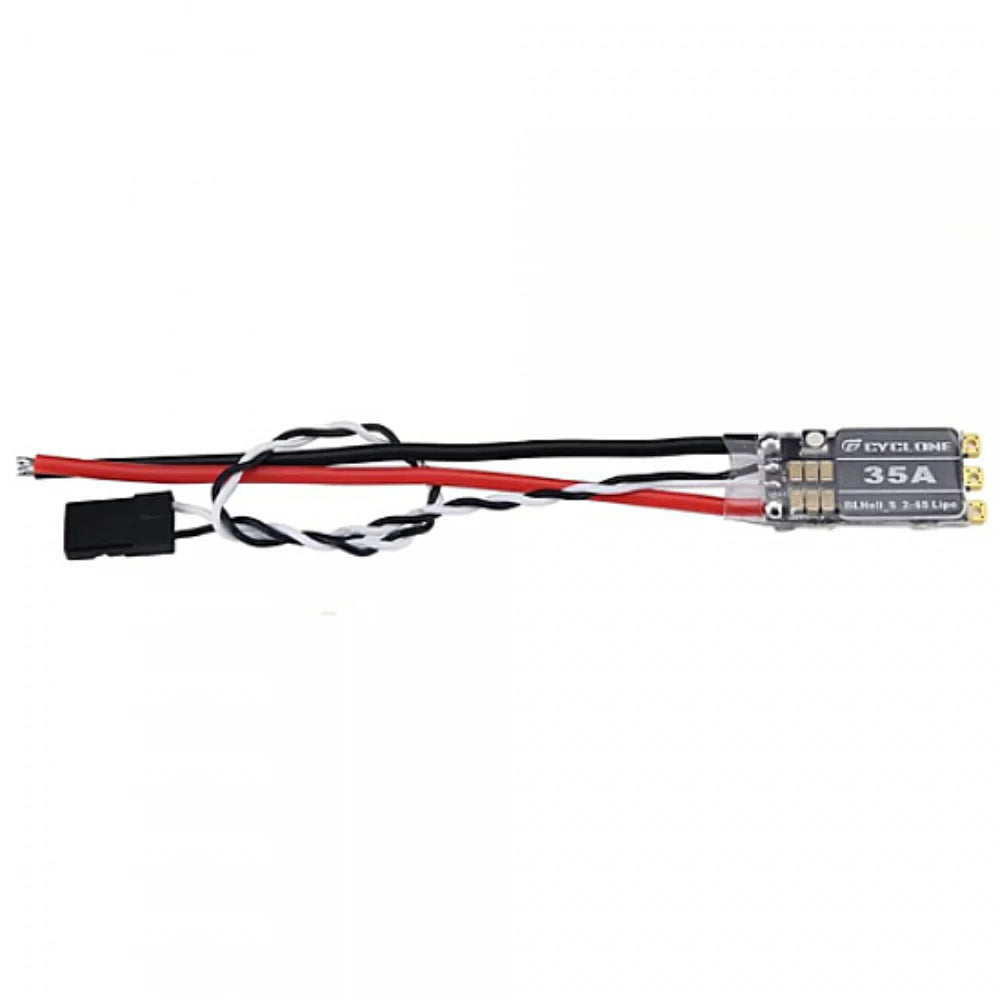

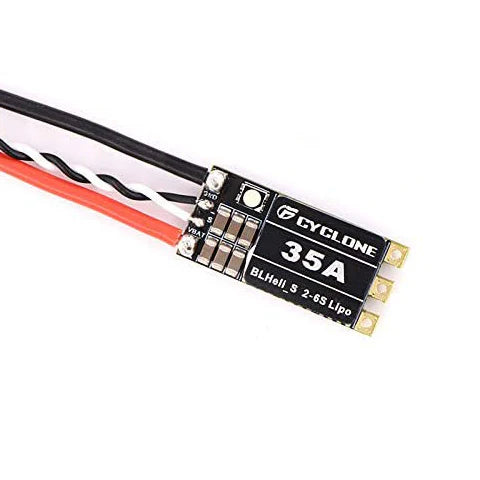

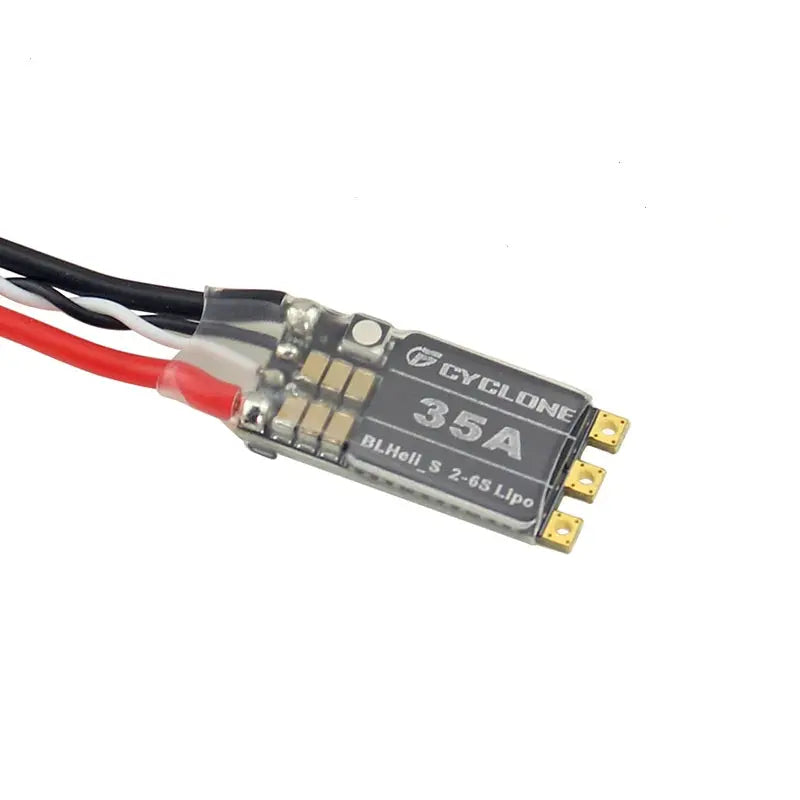

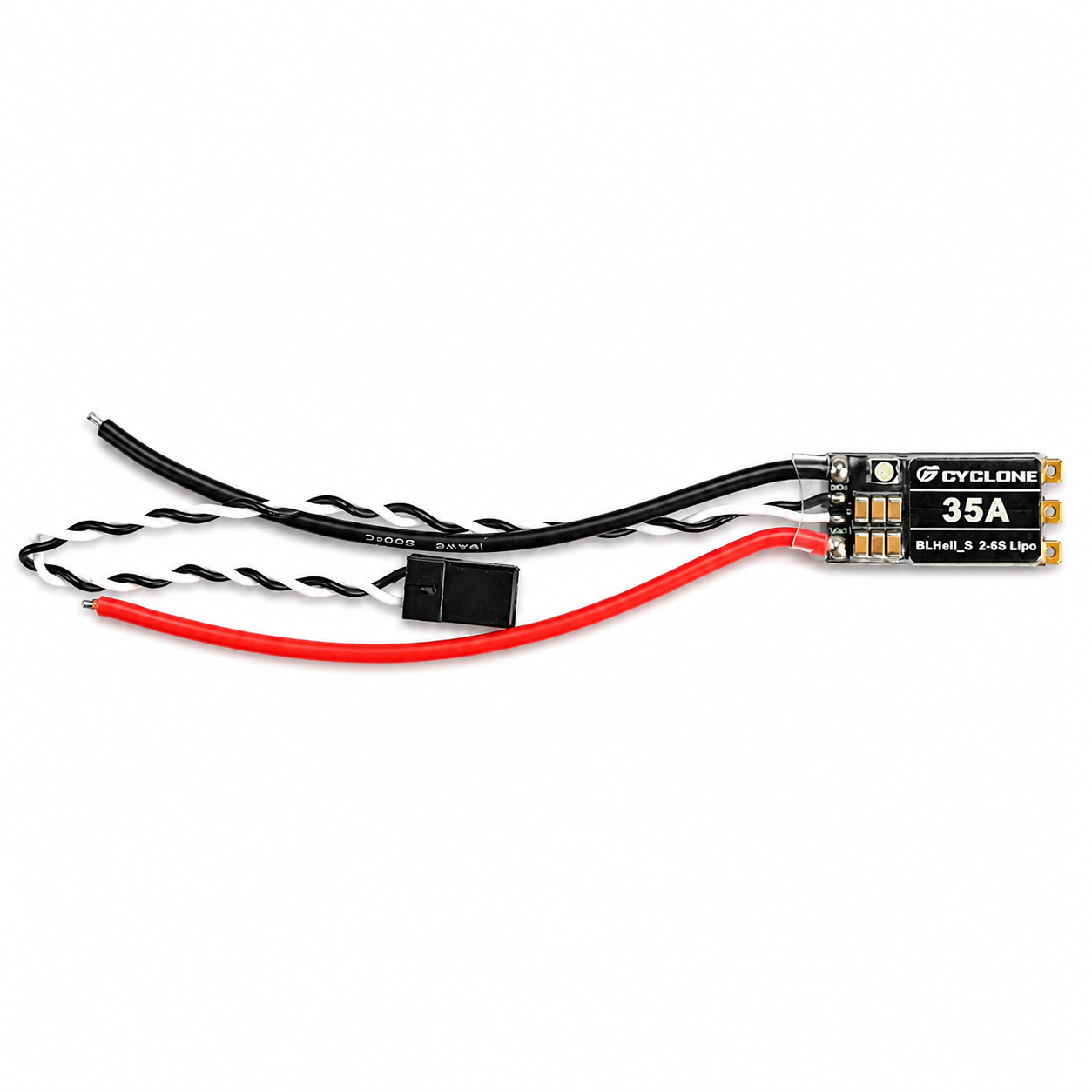

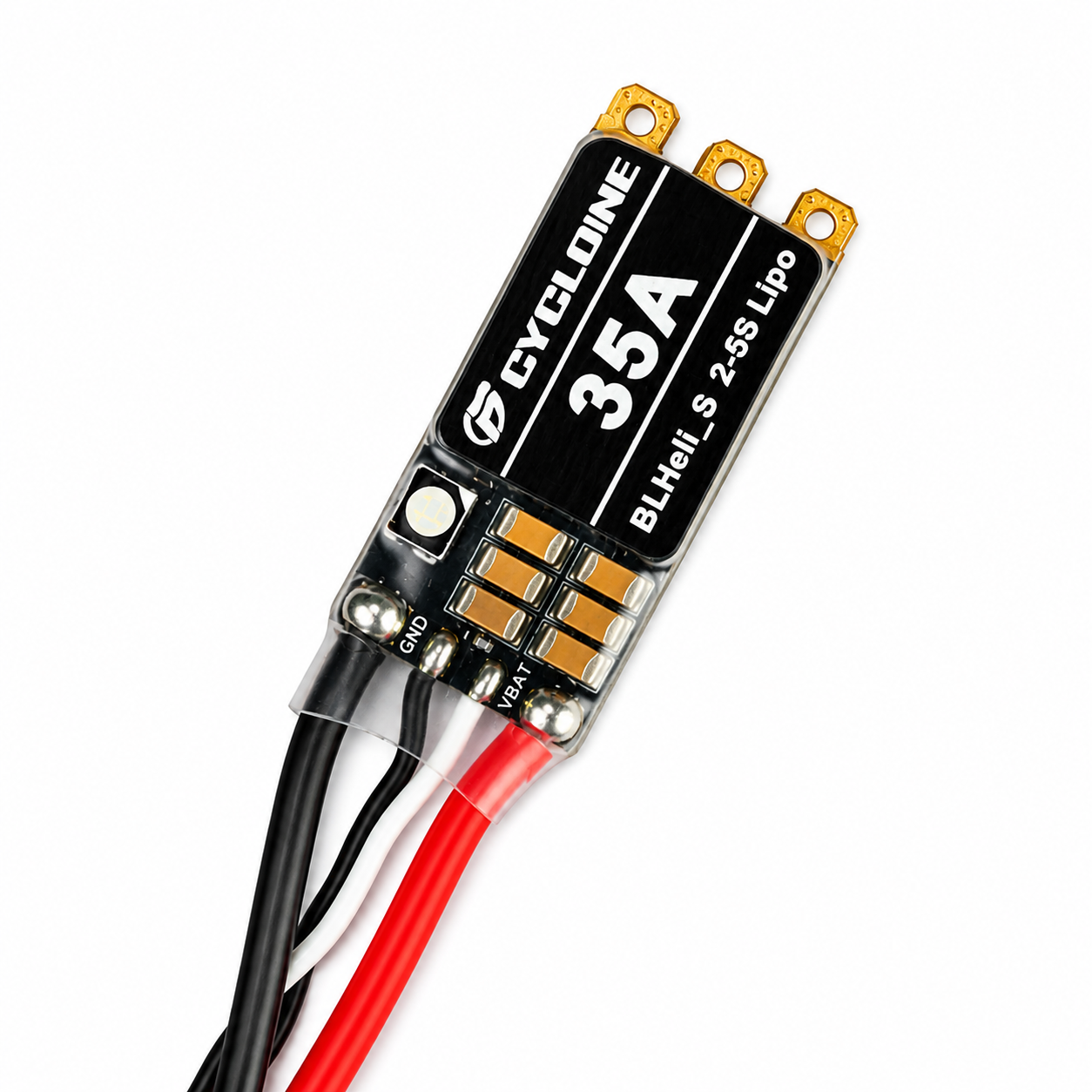

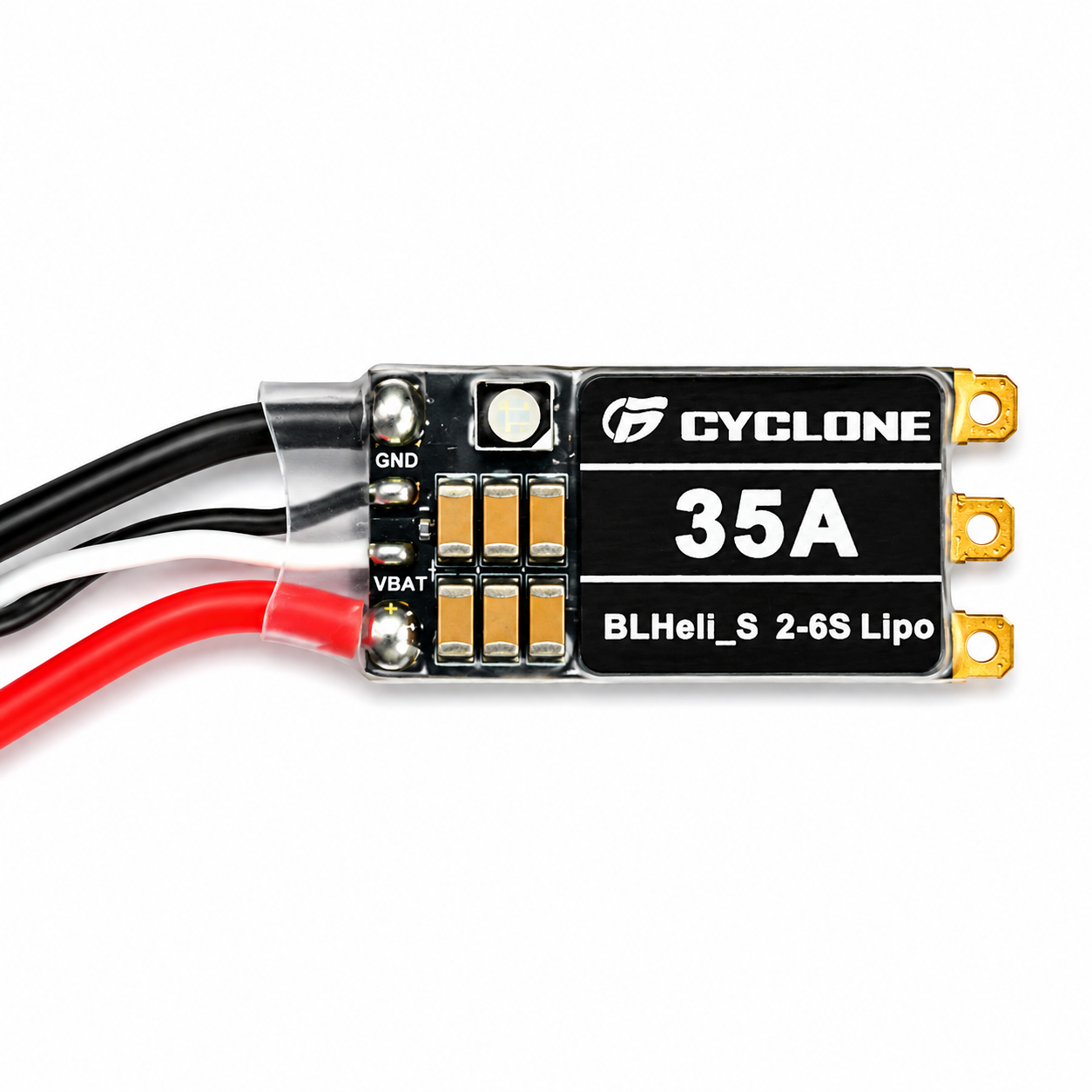

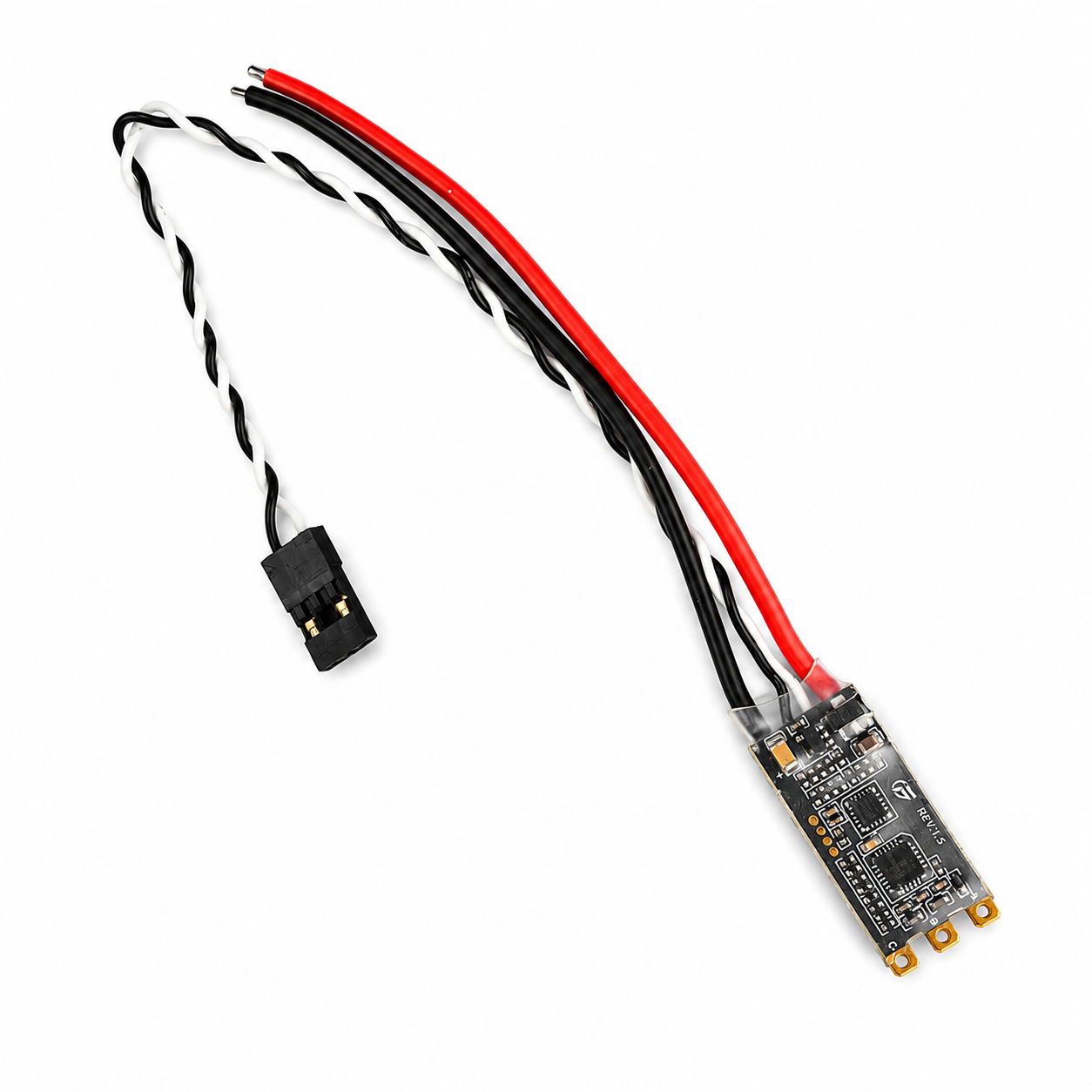

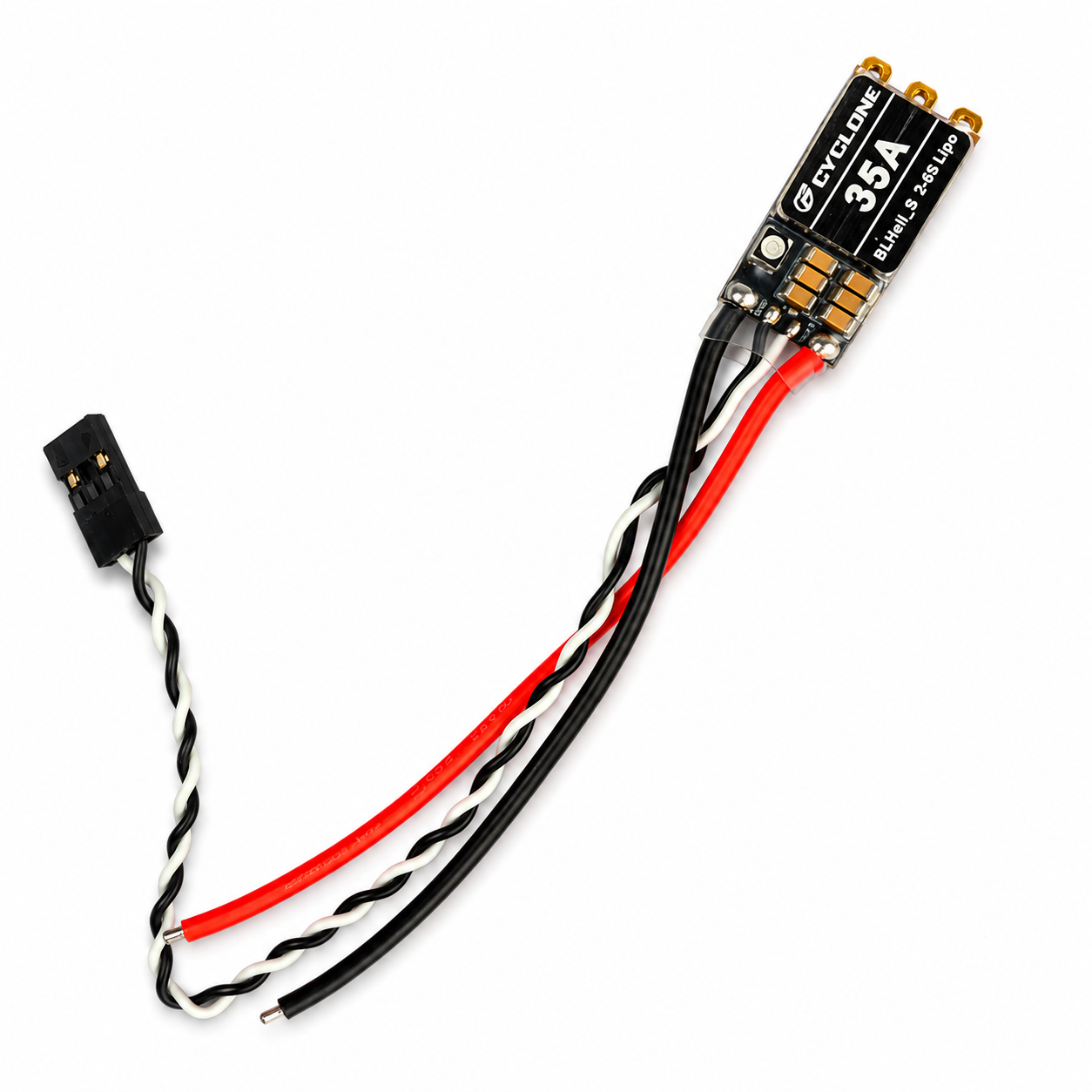

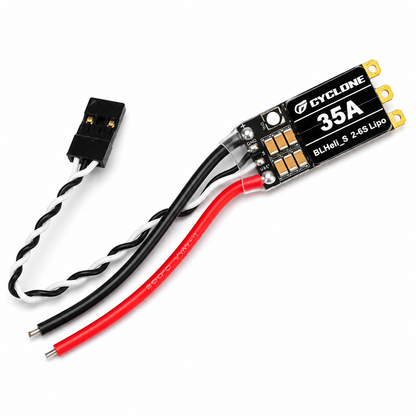

The Cyclone 35A 2-6S Blheli_S DSHOT600 OPTO ESC is a compact and powerful electronic module that is integrated into the power distribution system of a drone. It is specifically designed to provide precise control over the speed and performance of the drone’s motors. The “OPTO” designation typically means that it lacks a built-in Battery Eliminator Circuit (BEC) to regulate and supply power to the flight controller and other onboard electronics. Instead, it’s designed to be used in setups where power distribution and regulation are handled separately.

The 35A 2-6S Blheli_S Brushless ESC is mainly used for RC Drone FPV Racing. BLHeli is an ESC firmware, and BLHeli_S is the 2nd generation after BLHeli. An electronic speed control or ESC is an electronic circuit that controls and regulates the speed of an electric motor. It may also provide reversing of the motor and dynamic braking.

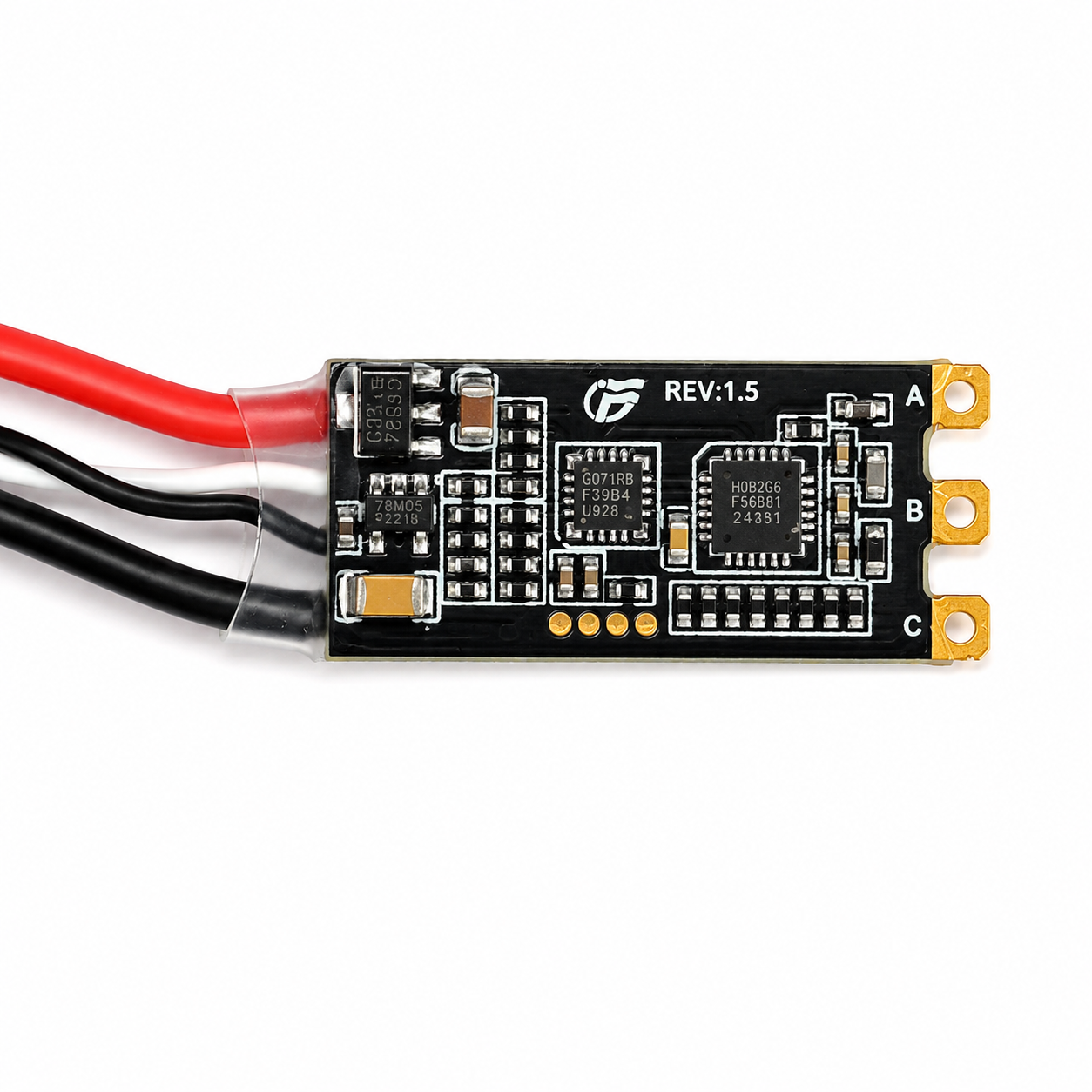

The circuit with 12 ESR capacitors can effectively reduce the interference to the picture transmission equipment and improve the stability of the system.

 Features:

Input Voltage Range: The ESC is compatible with input voltages ranging from 2S to 6S, making it suitable for a wide range of LiPo battery configurations. This flexibility allows users to adapt the ESC to different drones and voltage setups.

BLHeli_S Firmware: The BLHeli_S firmware is known for its reliability and performance. It offers advanced features like active braking and rapid response times, ensuring smooth and precise motor control.

Current Rating: This ESC has a 35A current rating, which represents the maximum continuous current that each of its four ESC channels can handle. The 35A rating allows it to power motors with varying current requirements.

DSHOT600 Support: The ESC is compatible with the DSHOT600 communication protocol, which provides fast, digital communication between the flight controller and the ESC. DSHOT offers precision and efficiency in transmitting motor control commands.

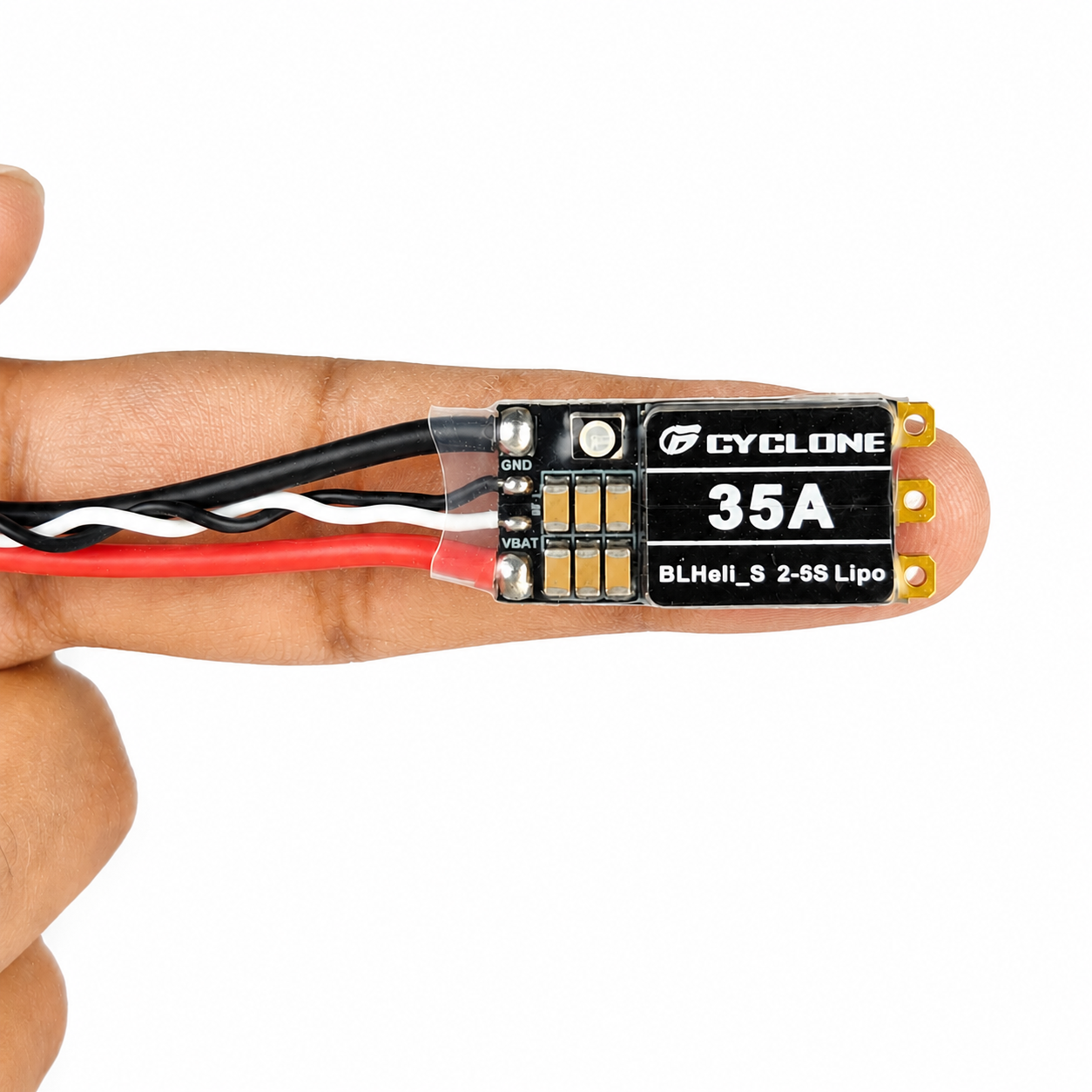

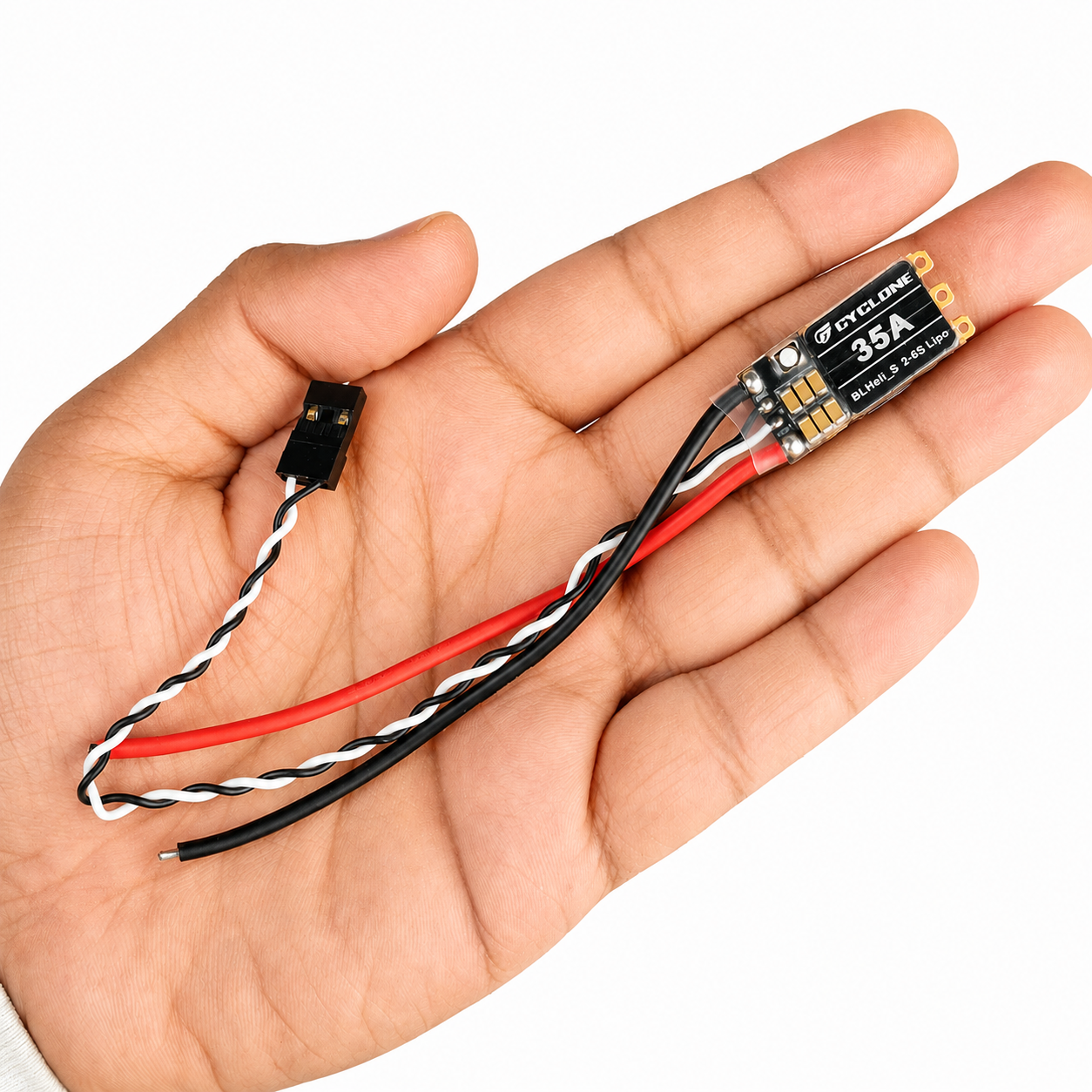

Compact Form Factor: The compact size of the ESC is suitable for smaller drone frames with limited space. Its small footprint allows for easier integration into the drone’s frame.

OPTO Design: The OPTO designation means that this ESC doesn’t have a built-in Battery Eliminator Circuit (BEC) for powering the flight controller and onboard electronics. This design is preferred in setups where a separate BEC or voltage regulator is used for providing power to the flight controller and accessories.

On-Board Protection: Many modern ESCs include protection features like over-current protection, thermal protection, and motor lock-up detection to safeguard the ESC and motors from damage in the event of a malfunction.

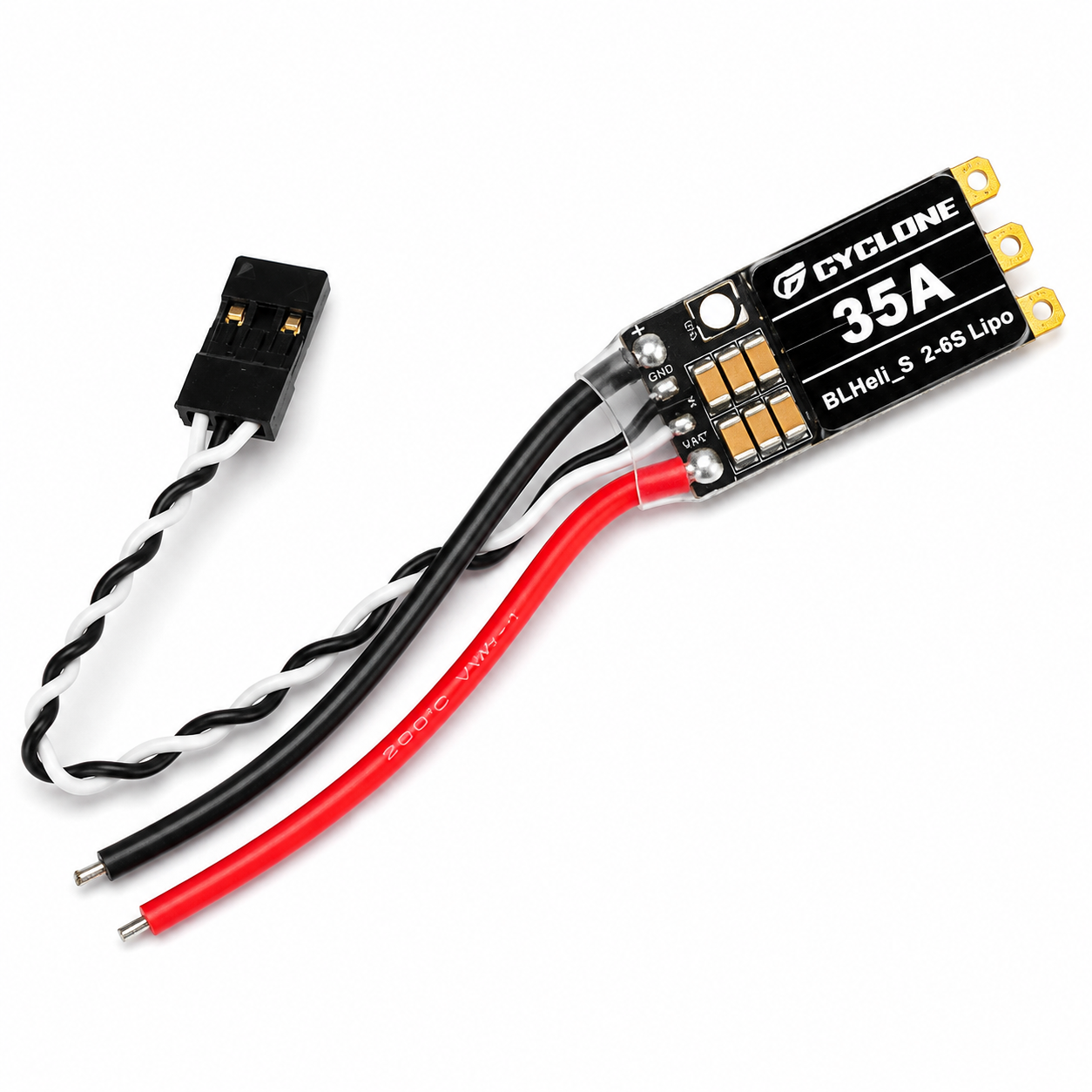

Motor Connectors: The ESC typically includes connectors for attaching the motor wires and a power input lead to connect to the drone’s battery.

Signal Input: The ESC receives control signals from the flight controller through a compatible signal input connection, such as a PWM (Pulse Width Modulation) or DSHOT input.

More Features:

1. Programmable PWM frequency of up to 48KHz
2. Power supply: 2-6S (7.4-16.8V)
3. Continuous current: 25A
4. Burst current: 35A (5S)
5. Auto-timing for higher efficiency and reliability
6. PCB+ power cord length: 12CM
7. PCB+ signal line length: 16CM

Package Includes:

1×  Cyclone 35A 2-6S Blheli_S DSHOT600 OPTO ESC For Drone

Specification:-
