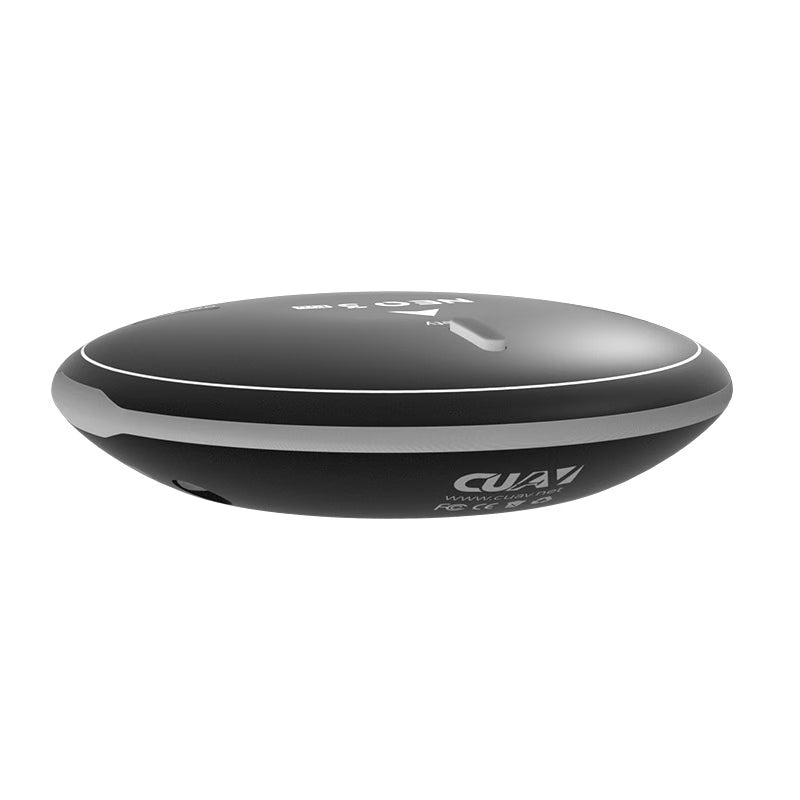

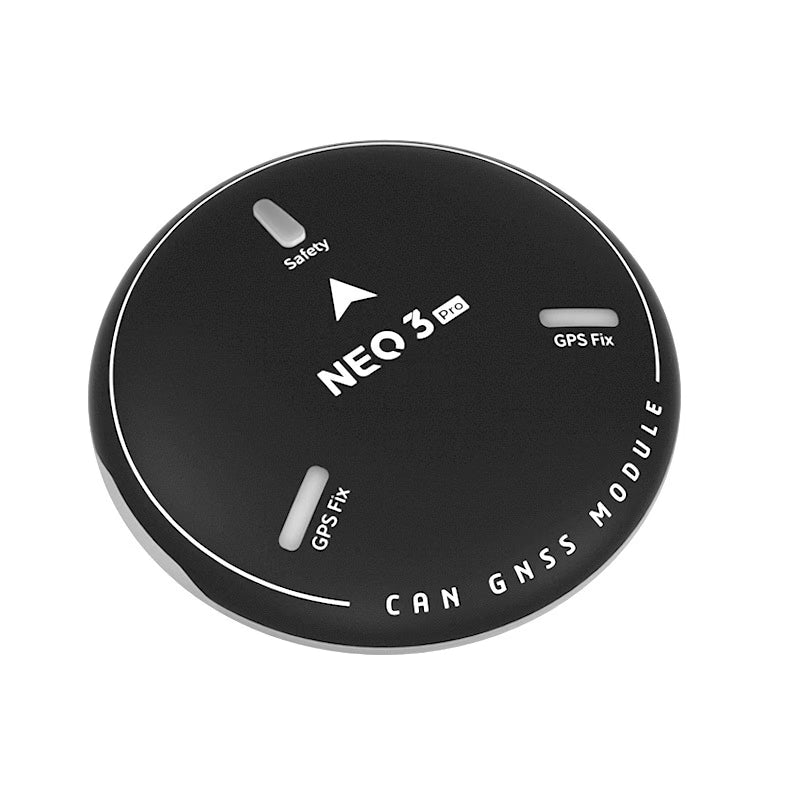

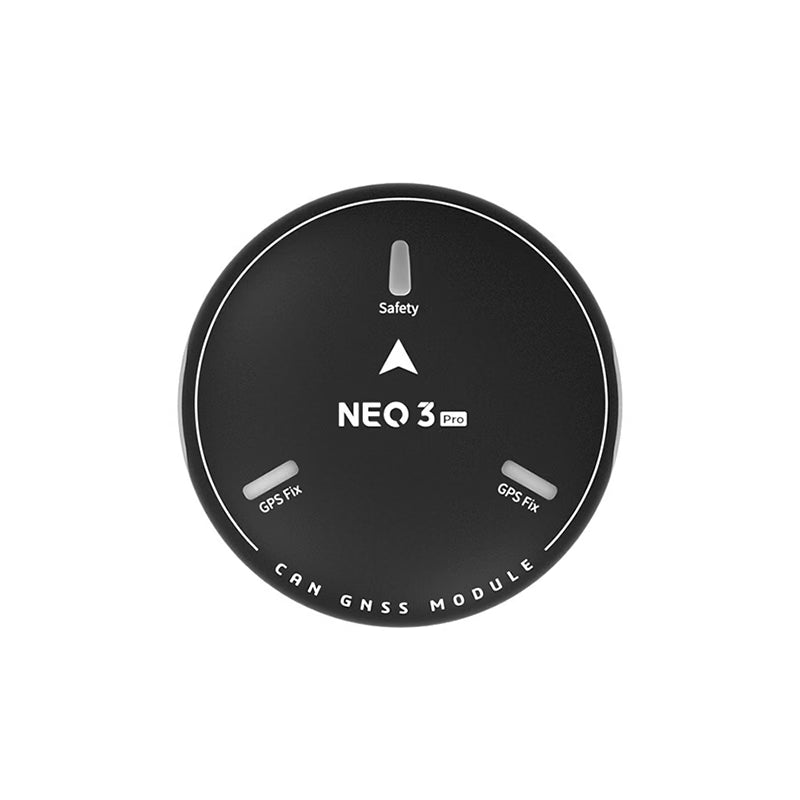

CUAV NEO 3 Pro GPS Module | GNSS U-BLOX M9N CAN BUS is a new product from the CUAV brand. NEO 3 Pro continues the hardware design of NEO V2, upgrades the GNSS module to Ublox NEO M9N, supports Beidou, Galileo, Glonas and GPS receive the same time, and the horizontal positioning accuracy is up to 0.7m. Integrated with safety switch, buzzer, and RGB light.
Features:
Easy to use
Industrial-Grade Electronic Compass
RGB Surround Light
Buzzer Prompt
Safety Switch
Barometer
CAN BUS
Easy to install
Good quality product

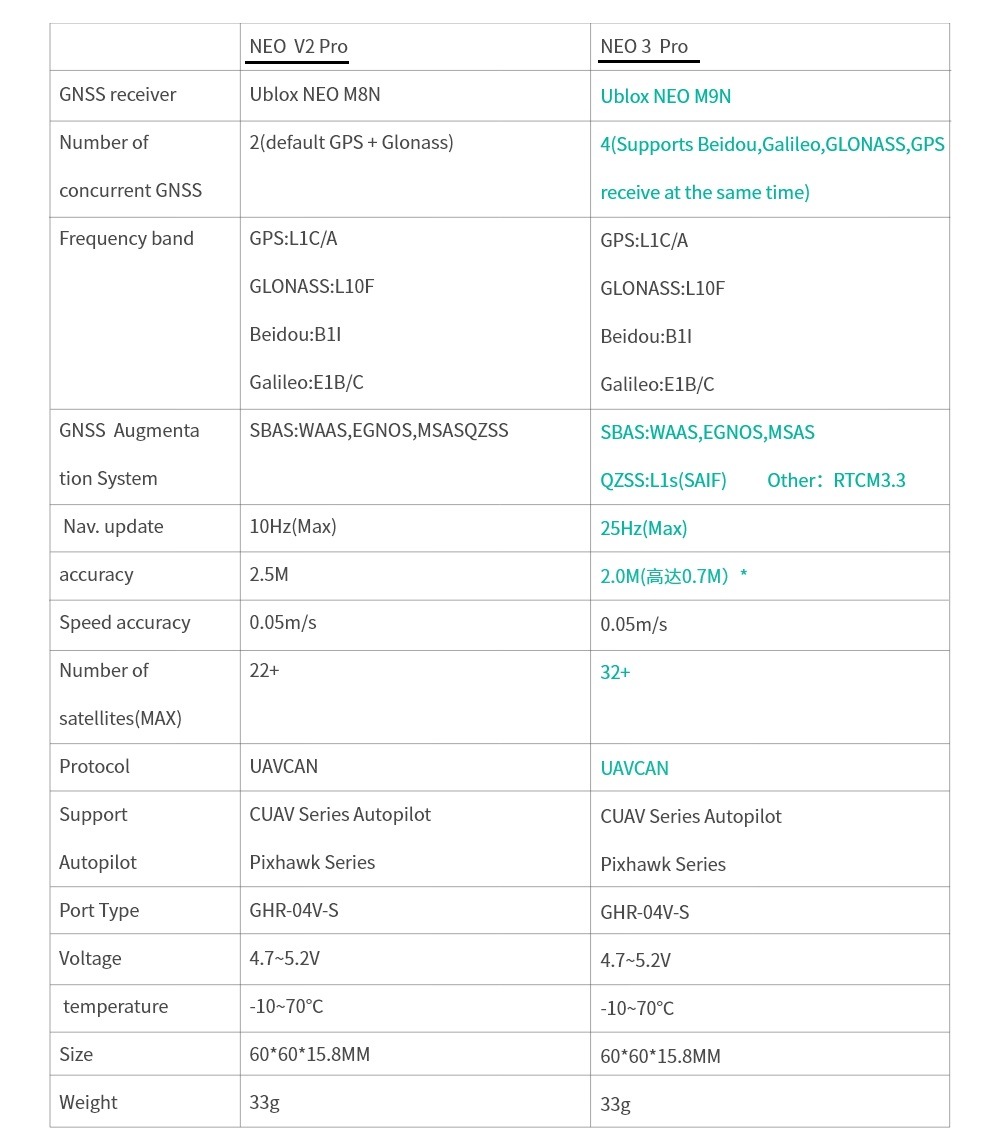

Comparison between NEO v2 Pro & NEO 3 Pro:
Package Includes:
1× CUAV NEO 3 Pro GPS Module | GNSS U-BLOX M9N CAN BUS

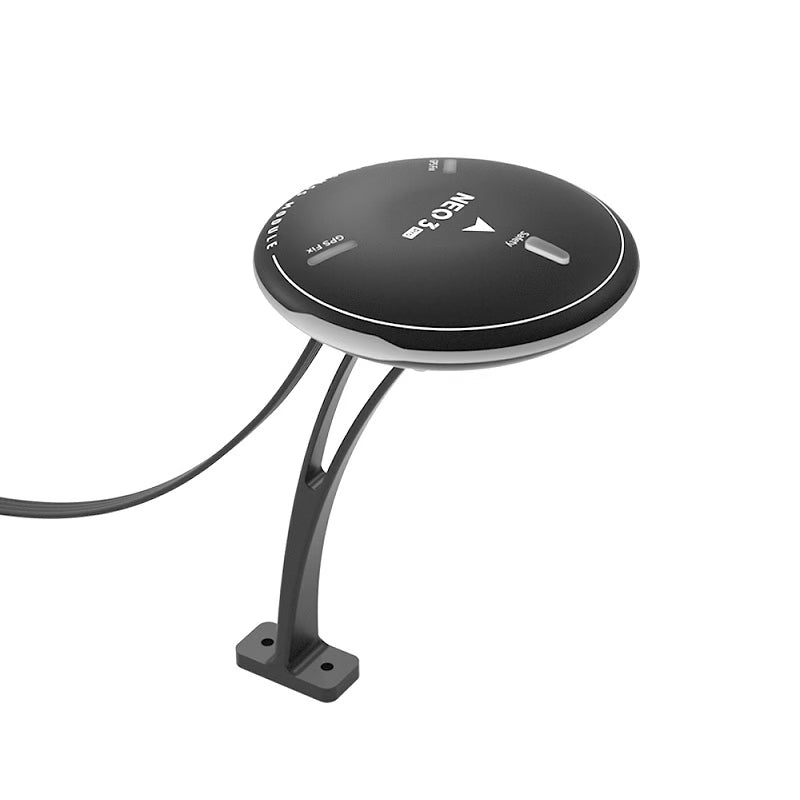

1× stand and cable
Specification:-
| Item Type: |
GPS Module |
|---|---|
| Number of concurrent GNSS |
4 (Supports Beidou, Galileo,GLONASS,GPS receive at the same time) |
| GNSS Augmentation System |
SBAS:WAAS,EGNOS,MSAS QZSS:L1s(SAIF), Other RTCM3.3 |
| Nav. update |
25Hz(Max) |
| Accuracy |
2.0M (Upto 0.7M) |
| Speed accuracy |
0.05m/s |
| Number of satellites(MAX) |
32+ |
| Protocol |
UAVCAN |
| Port Type |
GHR-04V-S |
| Input Voltage (V) |
4.7 to 5.2 |
| Operating Temperature |
-10~70°C |
| Size |
60*60*15.8MM |
| Weight |
33g |
| Shipping Weight | 0.135 kg |
| Shipping Dimensions | 9.5 × 9.5 × 6 cm |
