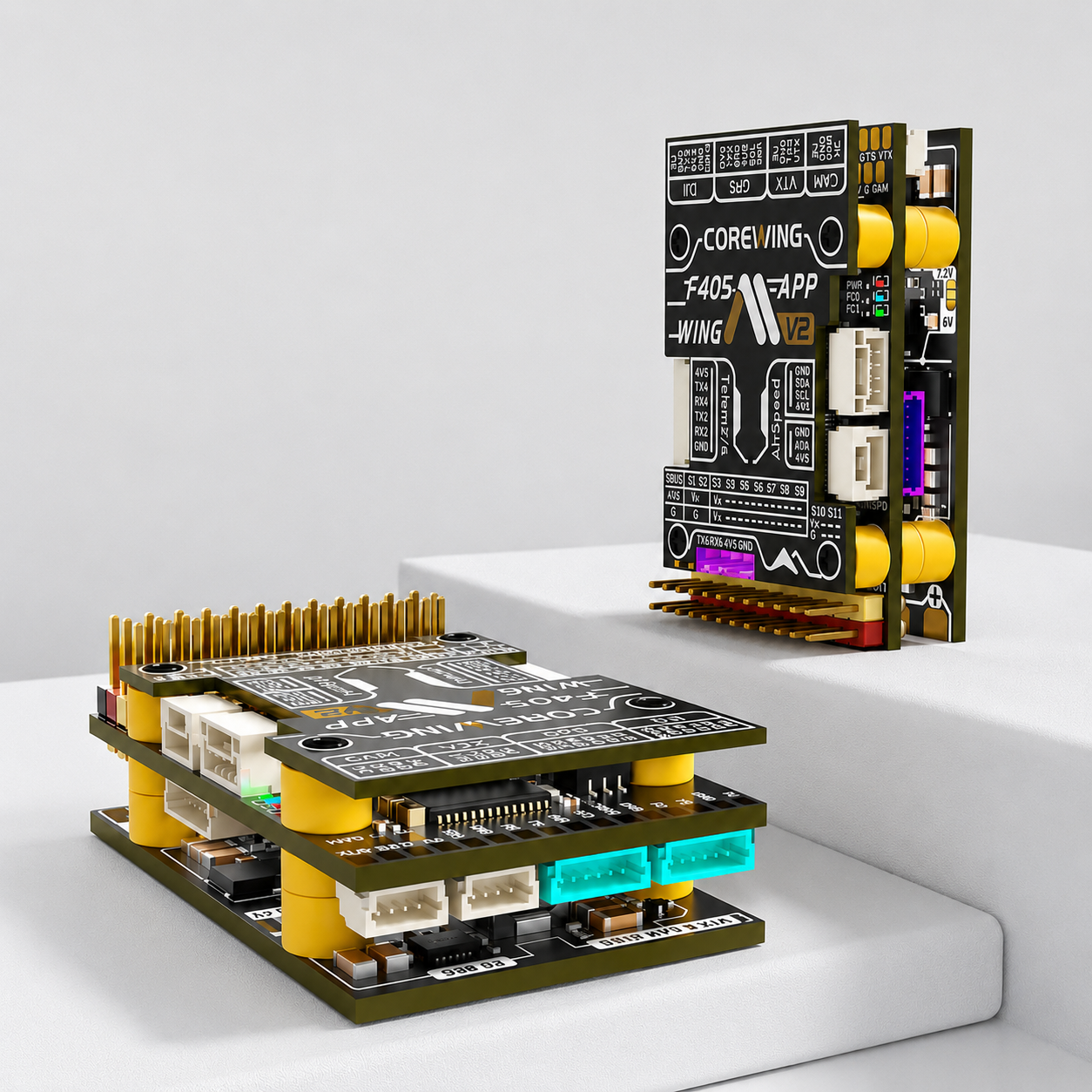

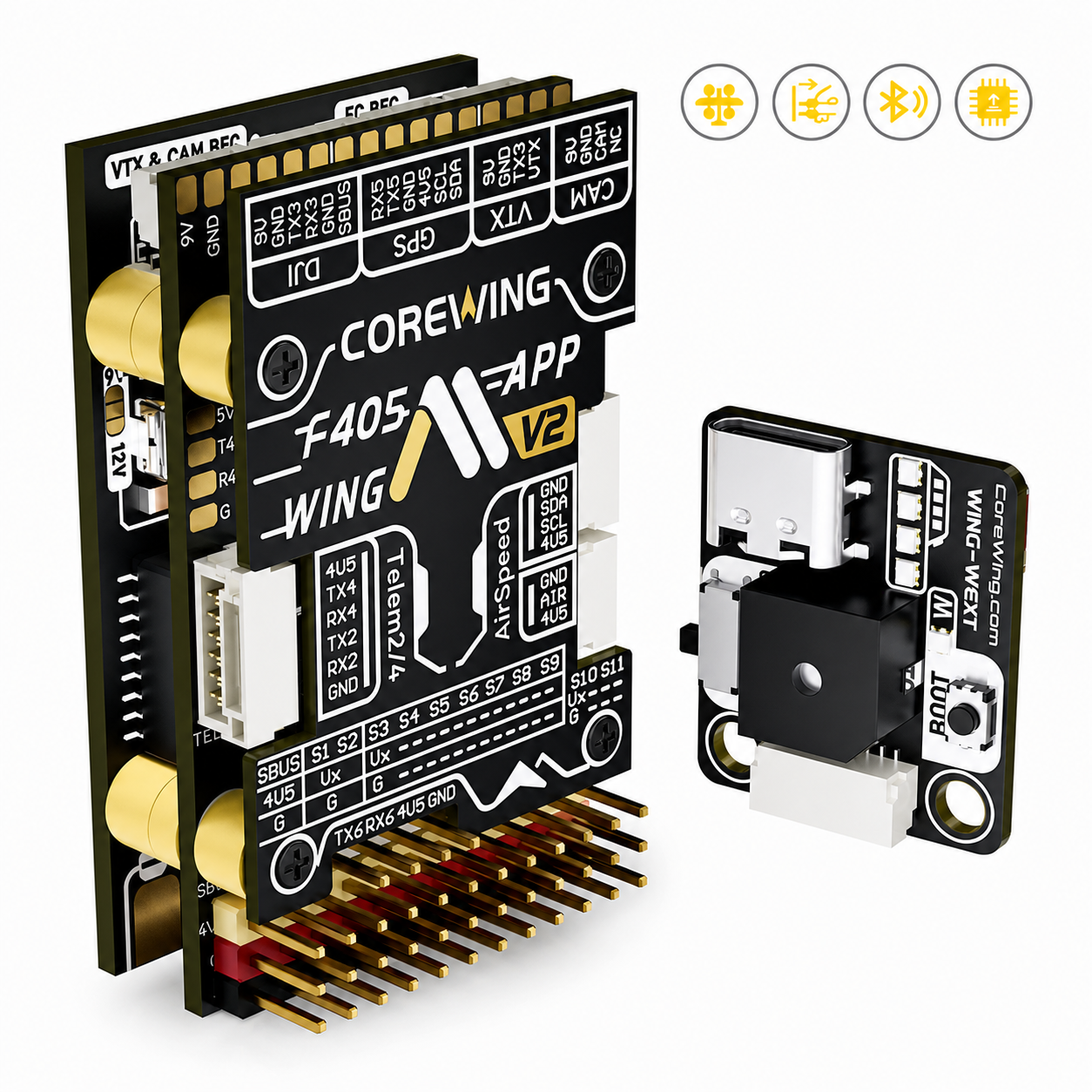

Core F405 WING V2 Flight Controller – Product Description
The Core F405 WING V2 is a high-performance flight controller specially designed for fixed-wing aircraft, VTOL platforms, and professional UAV applications. Powered by a reliable STM32F405 processor and equipped with advanced sensors, it delivers stable flight control, precise navigation, and excellent expandability.
| Feature | Specification |
|---|---|
| Processor (MCU) | STM32F405, 168 MHz, 1 MB Flash |
| IMU (Gyro + Accelerometer) | ICM-42688-P – high-precision motion sensing |
| Barometer | SPA06-003 for accurate altitude hold |
| OSD Chip | AT7456E onboard OSD |
| Blackbox Storage | Micro SD card slot (SDHC supported up to 32 GB) |
| UART Ports | 6× UARTs (UART1–UART6) |
| I²C Interfaces | 2× I²C ports for compass and airspeed sensor |
| ADC Inputs | 4× ADC inputs (Voltage, Current, RSSI, Airspeed) |
| PWM Outputs | 12× PWM outputs (11 Servo rail + 1 LED) |

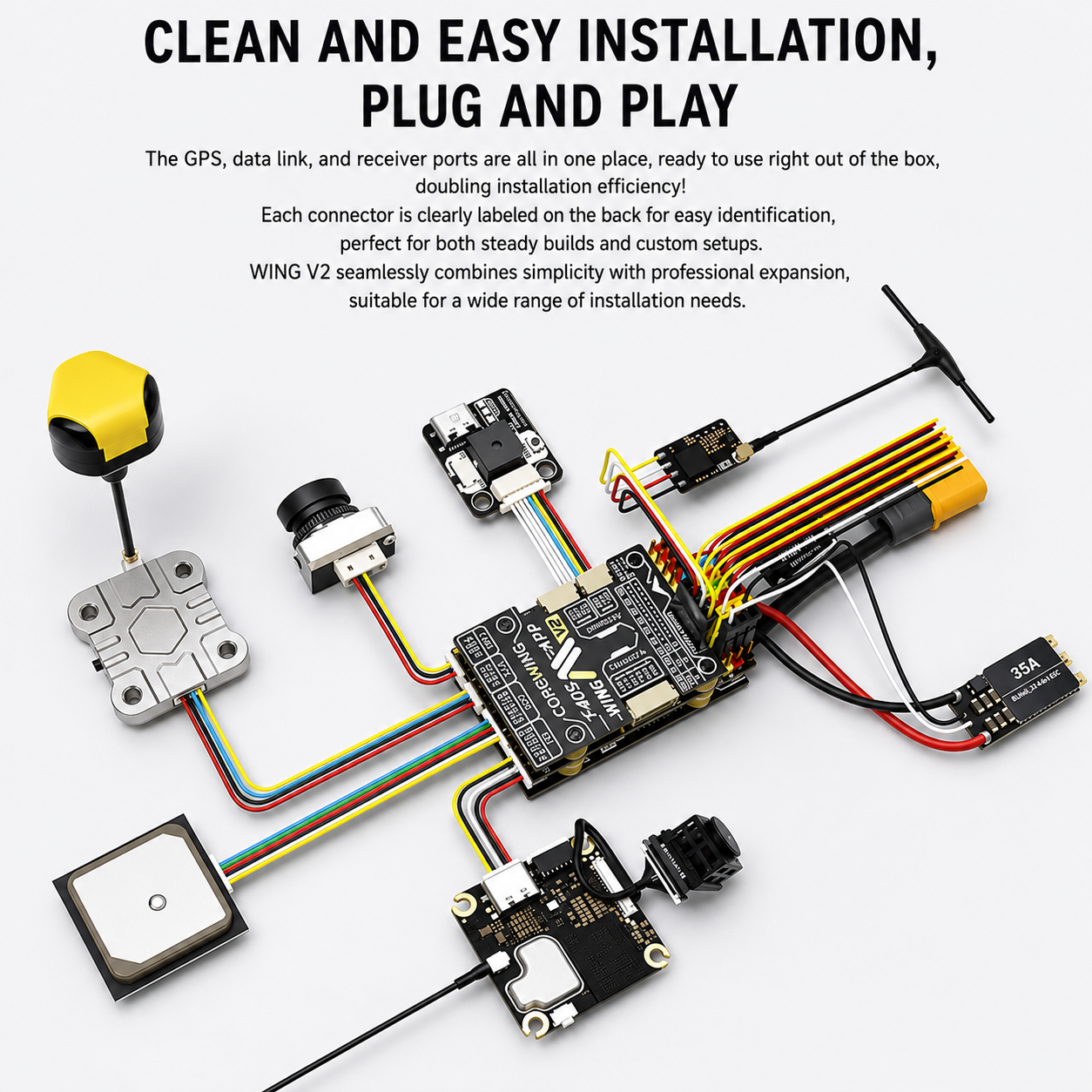

| Receiver Support | ELRS / CRSF via UART6 SBUS (Inverted & Non-Inverted) via UART2 RX |
| Status Indicators | 3× LEDs (Blue, Green, Red) |
| RSSI Input | Dedicated RSSI pad |
| Firmware Compatibility | INAV (Factory Installed), ArduPilot Supported |
