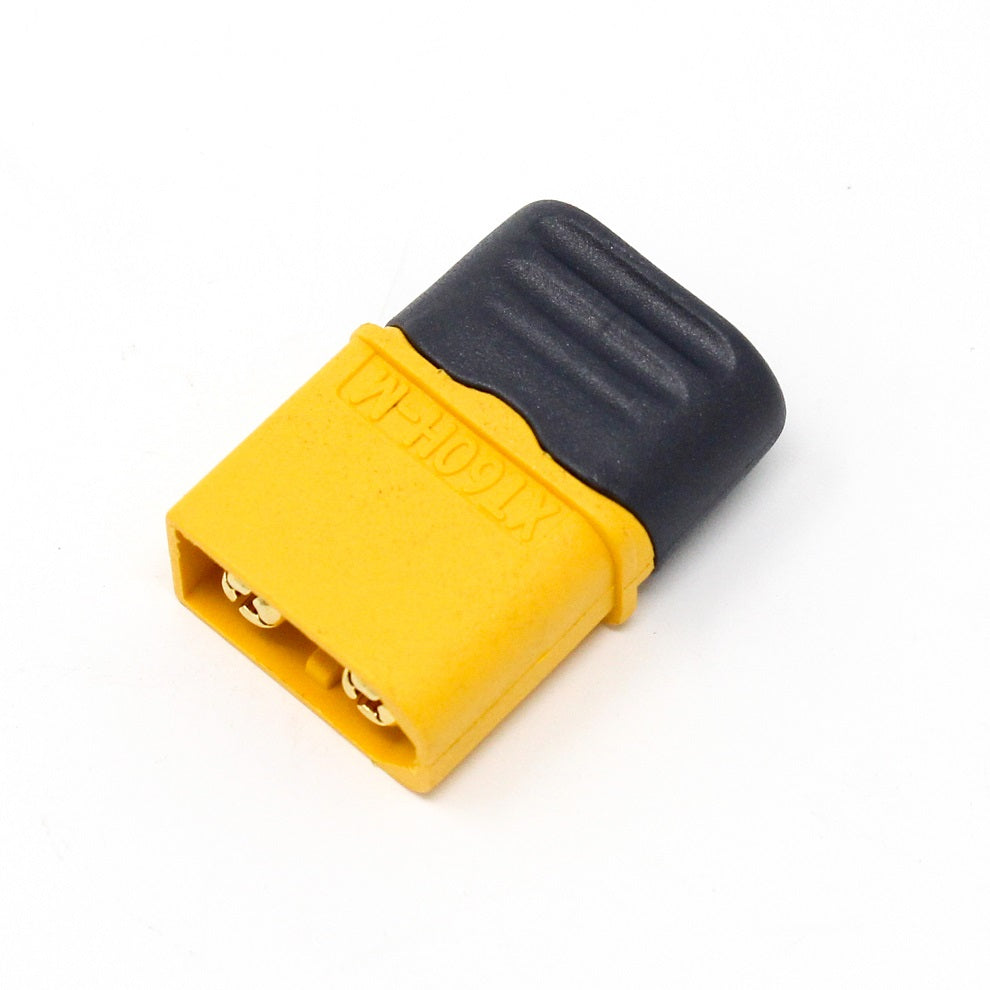

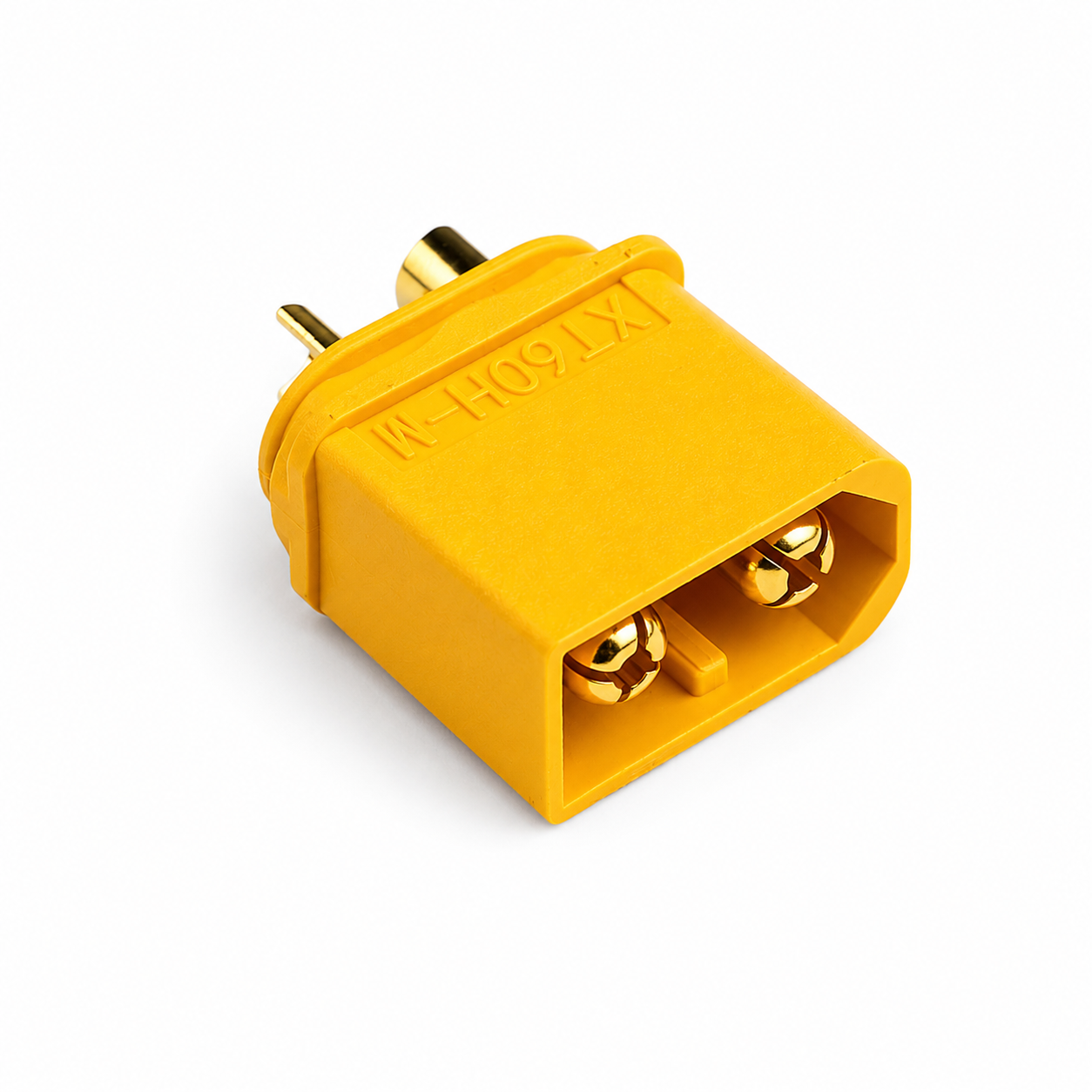

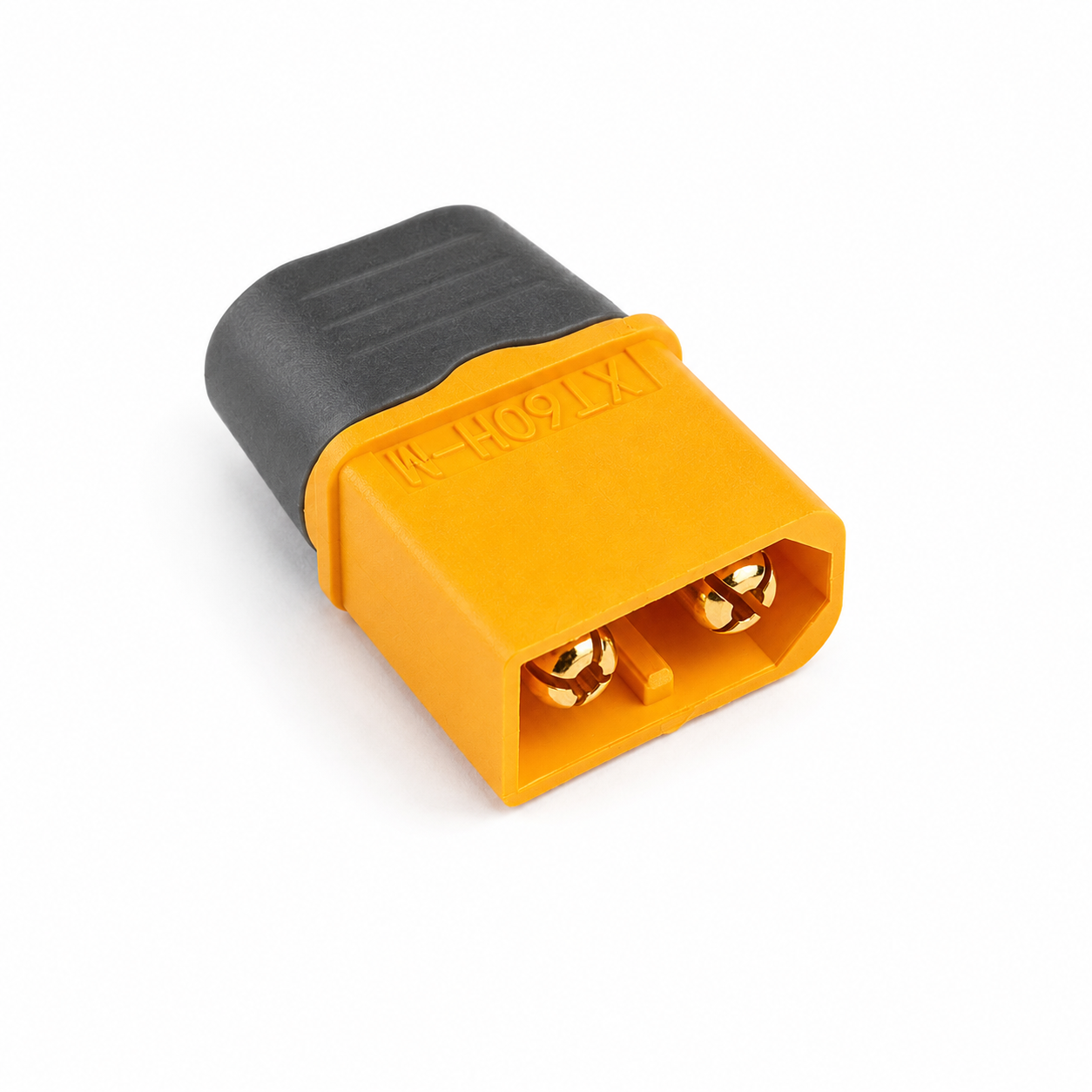

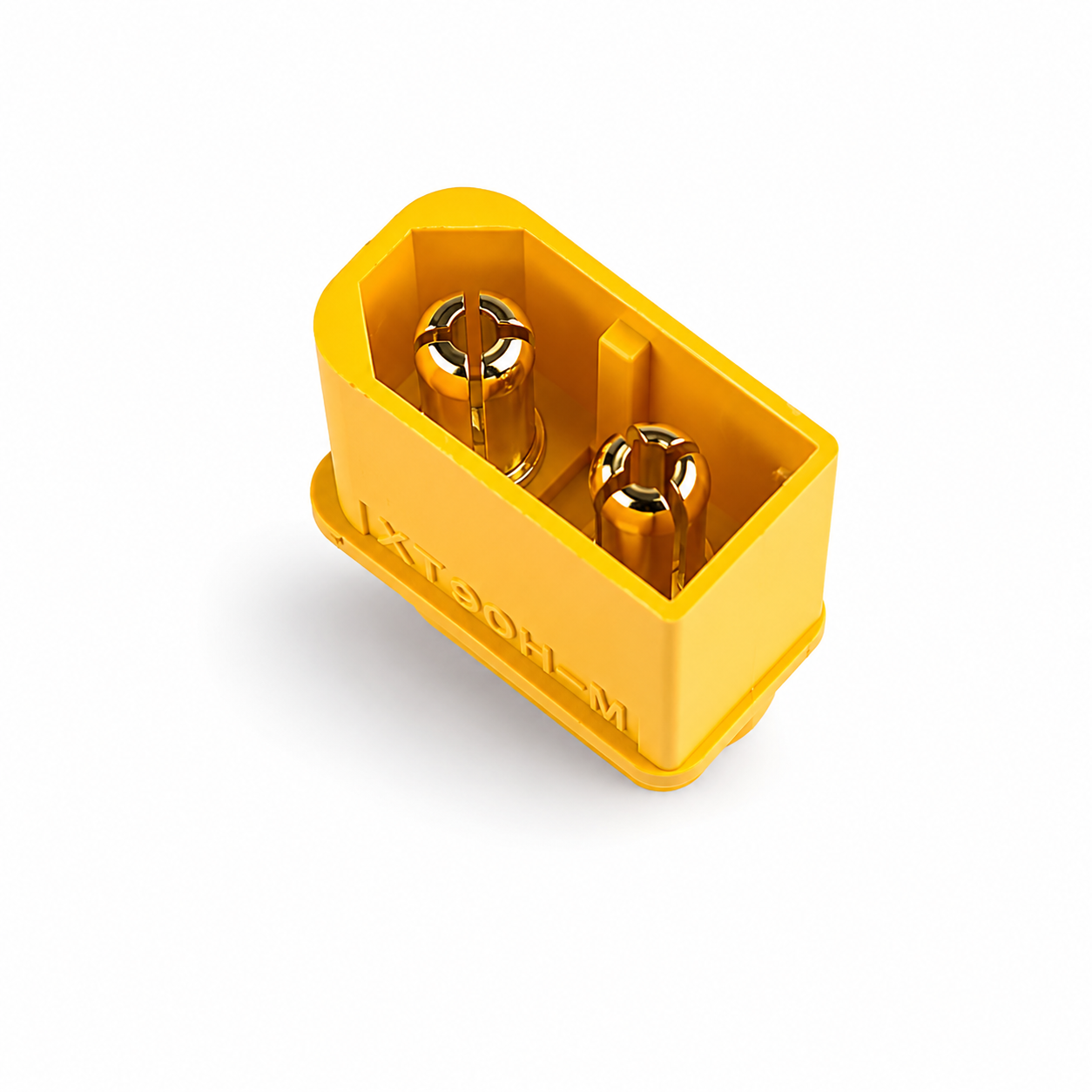

The best battery connectors on the market just got better with the development of the XT60H.

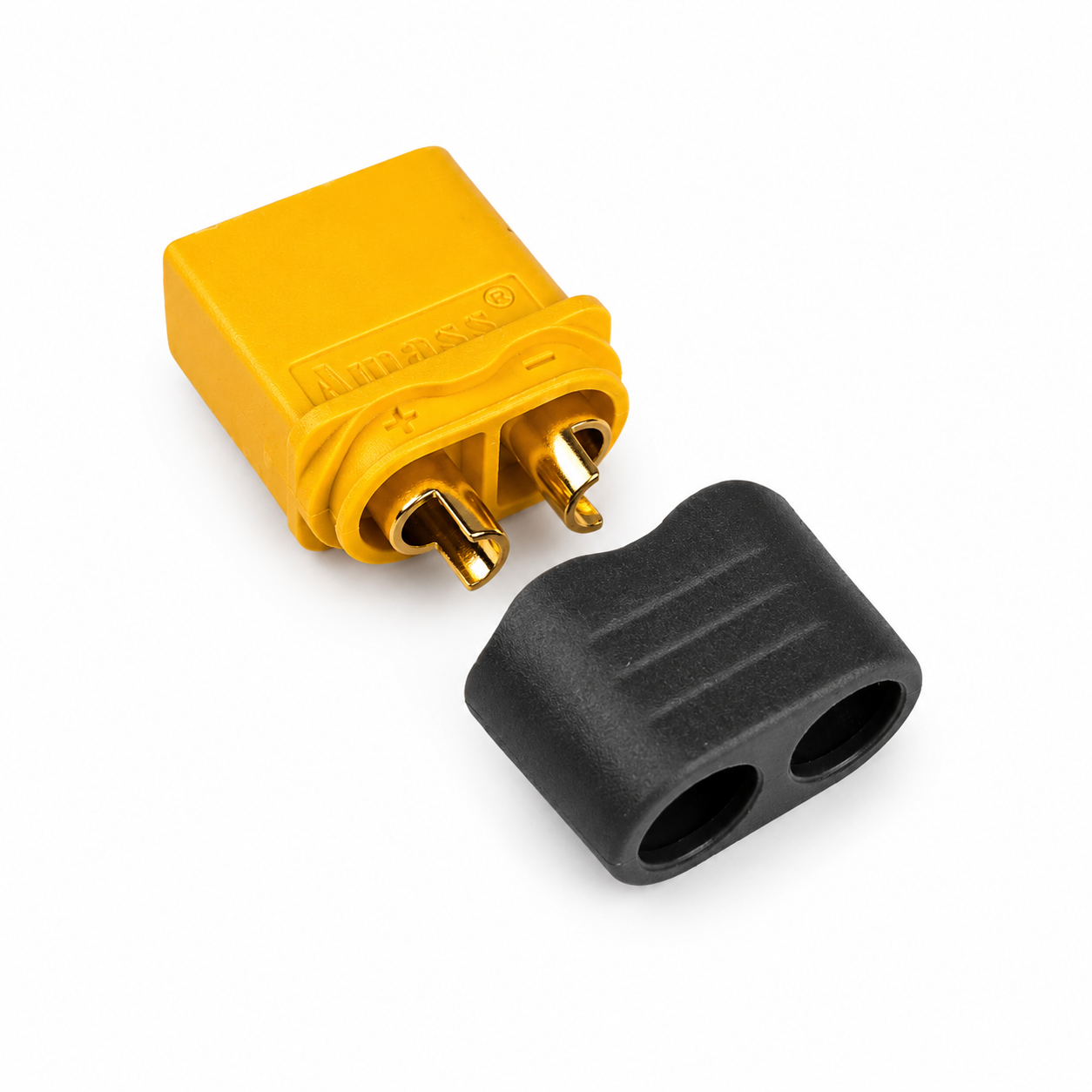

Like the original XT60H, this connector is made from high-temp nylon with gold plated connectors so the XT60H continues to provide an excellent high-amp connection for applications up to 65A. The change in design has made it shorter and lighter and far more user-friendly for connection and disconnection with an improved integrated grip area as well as tight locking Housing with different color provide the protection to the soldered points and make this connector little fancy and that’s why H letter is added in XT60.
The XT60H is completely compatible with original XT60 connectors so you can use them straight away.
IMPORTANT: “These are not cheap copied XT60H plugs. These original Nylon XT60H plugs, manufactured by AMASS, can handle over 60A current for extended periods without exceeding 80DegC thanks to their better contact surface area. The plug is also less likely to deform or melt in comparison to copied non-Nylon XT60H plugs.
Specifications and Features:
- Mechanical mounting for cable
- Electrical mounting soldered
- Contact plating Gold flash
- Spatial Orientation Straight
- Contact Material: Brass
- Compatible for Wire size up to 12AWG
Package Includes:

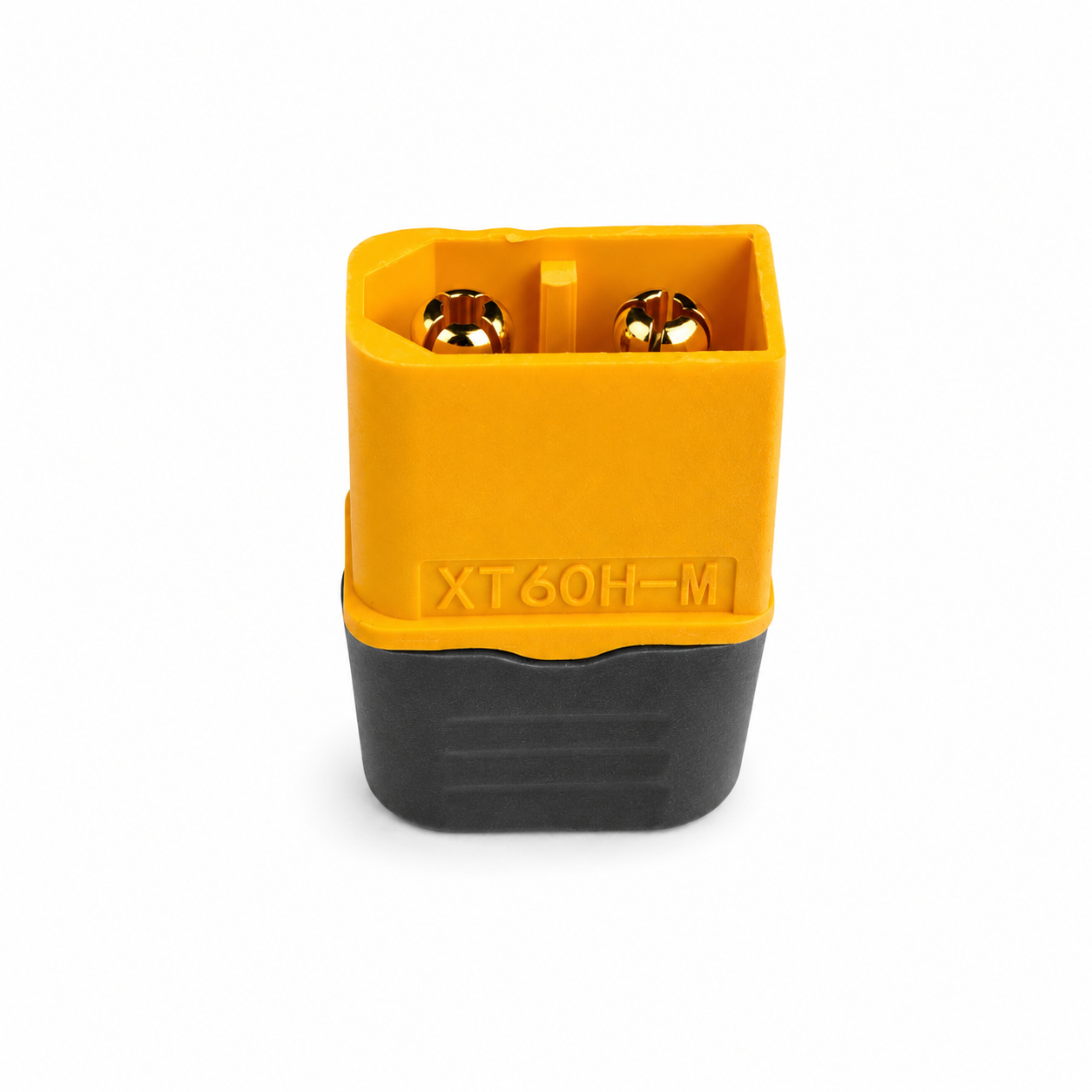

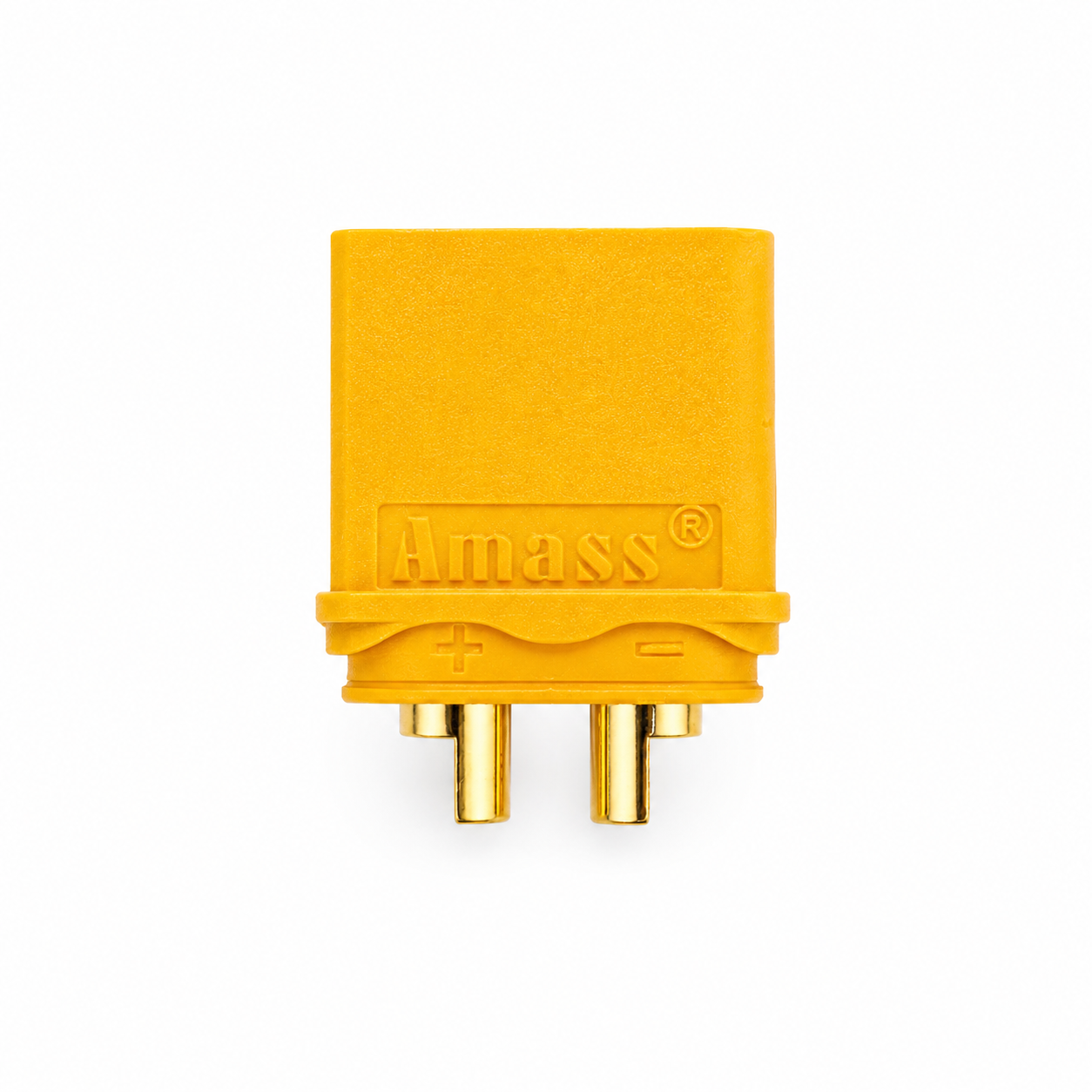

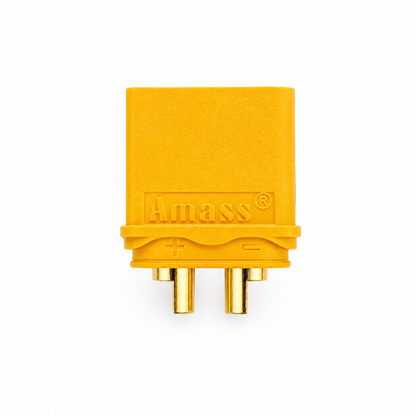

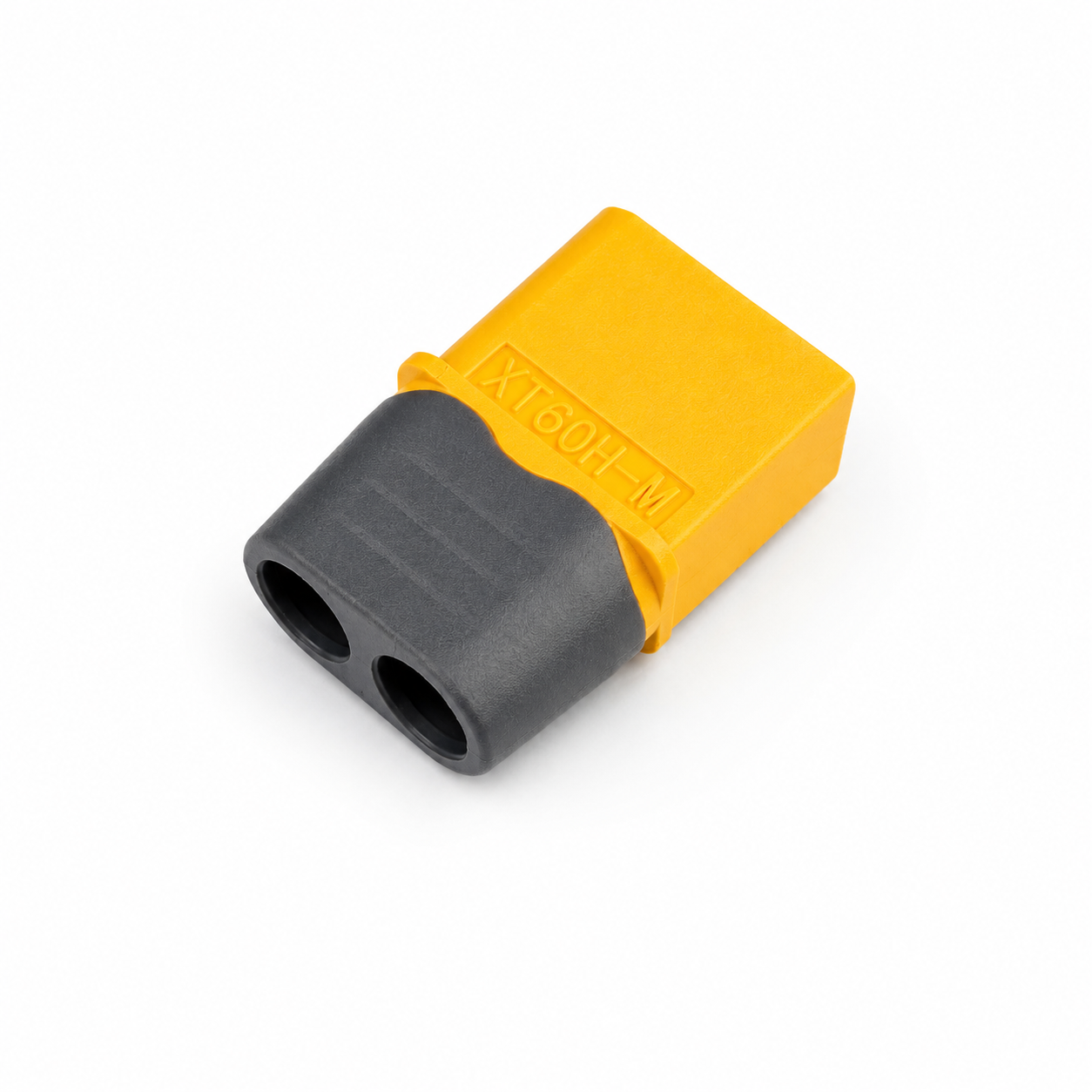

1× Amass XT60H Male Connector with Housing – XT60H-M.G.Y
Specification:-
| Item Type: |
Battery Connector |
|---|---|
| Model Series: |
XT60 |
| Gender: |
Male |
| Operating Voltage (VDC): |
500 |
| Current Handle Capacity (A): |
60 |
| No. of Contact Points |
2 |
| Connector Type: |
XT60H |
| Contact Material |
Brass |
| Contact Plating |
Gold flash |
| Metal Connector Size (mm) |
4.5 |
| Color: |
Yellow-Gray |
| Weight (g): |
6 |
| Operating Temperature (°C): |
-20 to 120 |
| Flammability Rating |
UL94V-0 |
| Allowed Wire Size (AWG): |
12 to 14 |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 8 × 6 × 5 cm |
