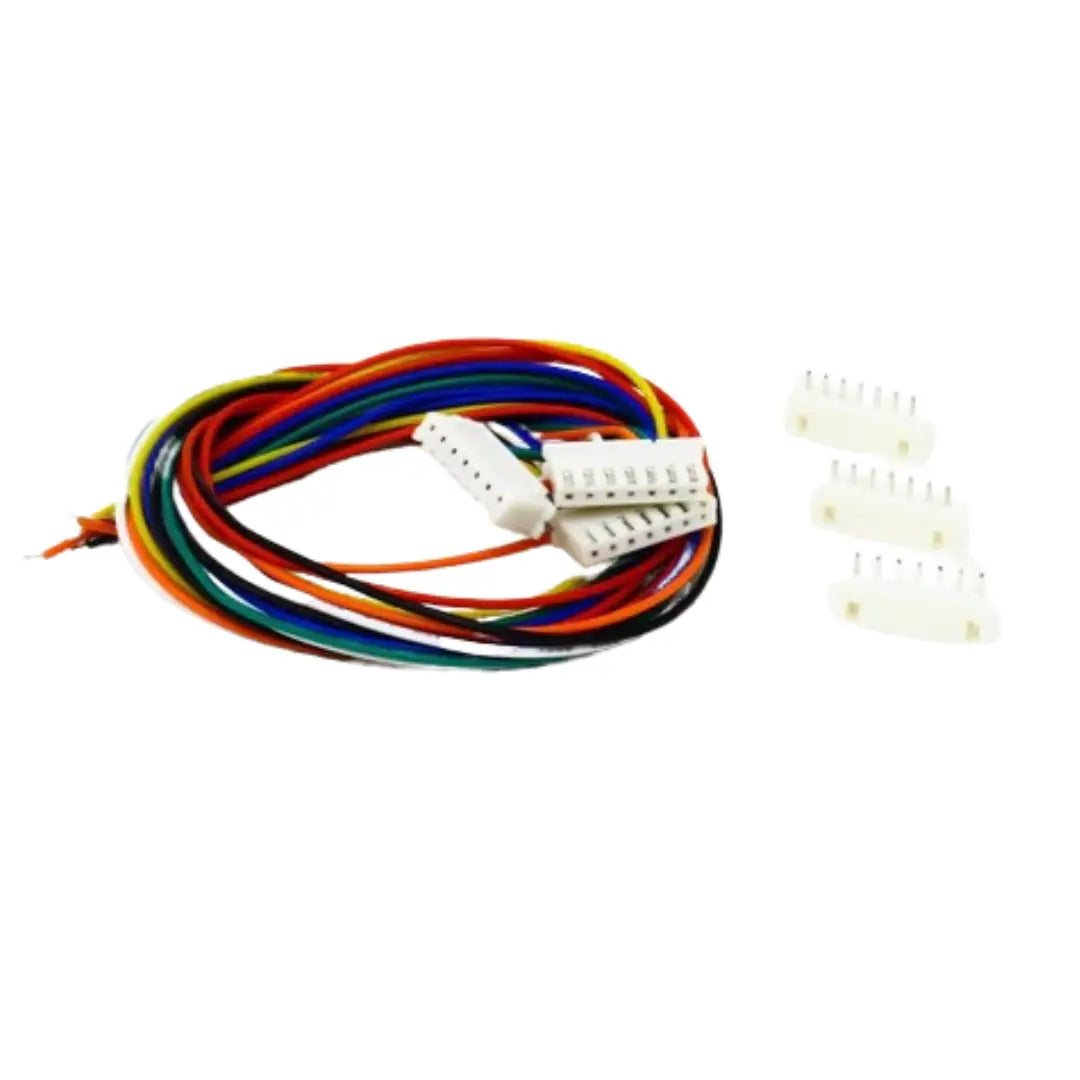

A 7 Pin JST XH 2.54mm Pitch Socket is a type of electrical connector commonly used in electronics and electrical applications to create secure and reliable connections between various components. This particular socket is designed to accommodate a 7-pin male plug with a 2.54mm (0.1 inch) pitch spacing. Here’s a description and the key features of a 7 Pin JST XH 2.54mm Pitch Socket:

Description: The 7 Pin JST XH 2.54mm Pitch Socket is a connector housing with seven female receptacles or sockets designed to receive the corresponding male pins of a plug. These connectors are widely used in electronics, including hobbyist projects, robotics, and various electronic devices. The 2.54mm pitch refers to the spacing between the pins, which is a standard pitch size in the electronics industry.

Features:

1. 7 Pins: This socket has seven female sockets, allowing it to accommodate up to seven different electrical connections. It is suitable for applications where multiple signals or power sources need to be connected or interfaced.
2. JST XH Connector: The use of the JST XH connector ensures a reliable and secure connection between the plug and socket. The JST brand is known for its quality and compatibility with a wide range of electronic components.
3. 2.54mm Pitch: The 2.54mm (0.1-inch) pitch is a standard spacing in electronics, making this socket compatible with various development boards, microcontrollers, sensors, and other electronic components that adhere to this pitch size.
4. Secure Connection: The design of the socket ensures a secure and stable connection between the plug and socket, reducing the risk of signal interference or disconnection.
5. Versatility: 7 Pin JST XH 2.54mm Pitch Sockets are versatile and can be used in a wide range of electronic applications. They are commonly used for connecting sensors, displays, motors, and other components to microcontrollers or control boards.
6. Ease of Use: The socket is designed for easy insertion and removal of the male plug, allowing for quick and hassle-free assembly and disassembly of components without soldering.
7. Durable Construction: These sockets are typically made from durable materials that can withstand repeated use and are resistant to wear and tear.
8. Compatibility: 7 Pin JST XH 2.54mm Pitch Sockets are compatible with a variety of JST XH connectors and are widely available, making it easy to find matching plugs and sockets for specific project needs.
9. RoHS Compliance: Many of these sockets are RoHS (Restriction of Hazardous Substances) compliant, ensuring that they meet environmental and safety standards.
10. Mounting Options: Depending on the specific design, some sockets may come with mounting holes or clips for secure attachment to circuit boards or other surfaces.

In summary, the 7 Pin JST XH 2.54mm Pitch Socket is a versatile and widely used connector in the electronics industry. Its standard pitch size, compatibility with JST XH connectors, and secure connection make it a popular choice for creating reliable electrical connections between various electronic components in a wide range of applications.

Applications:
AC power supply to PCs and lab equipment.
Used in all types of RCs( cars, boats, planes).
Also used in CCTV connections, pick-ups, etc.
