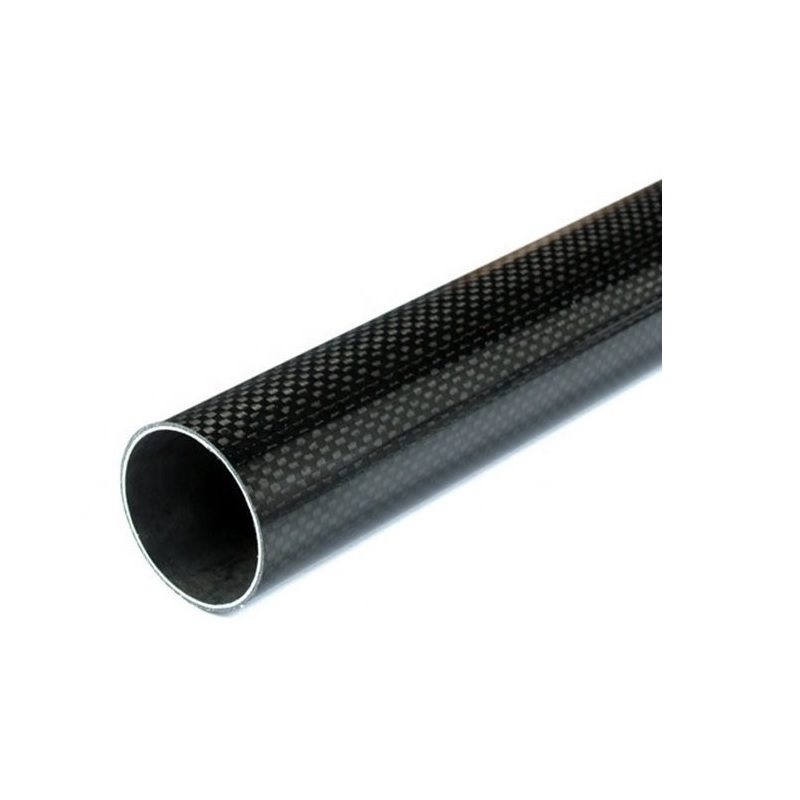

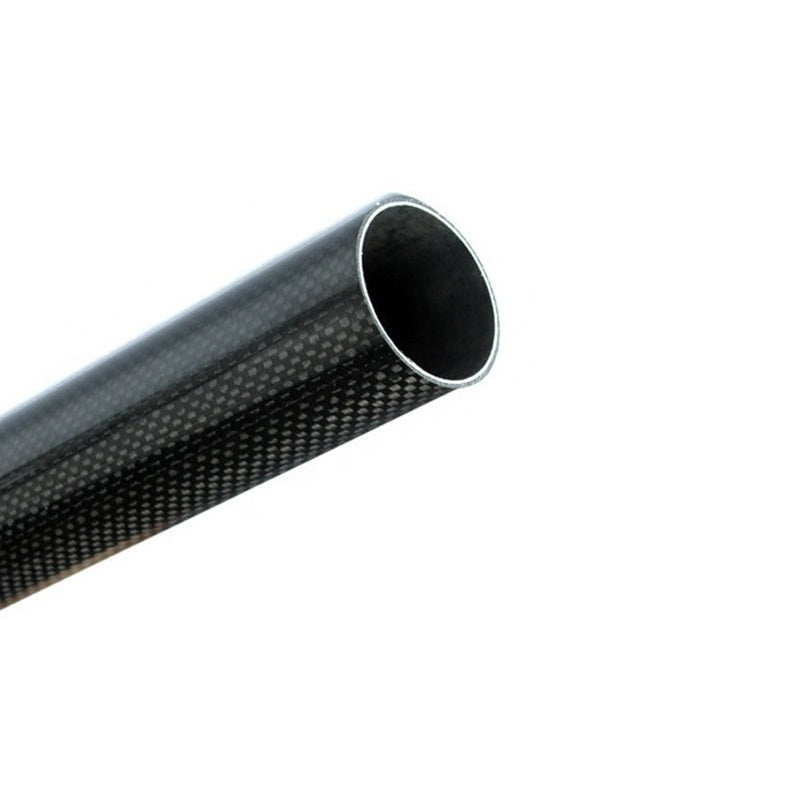

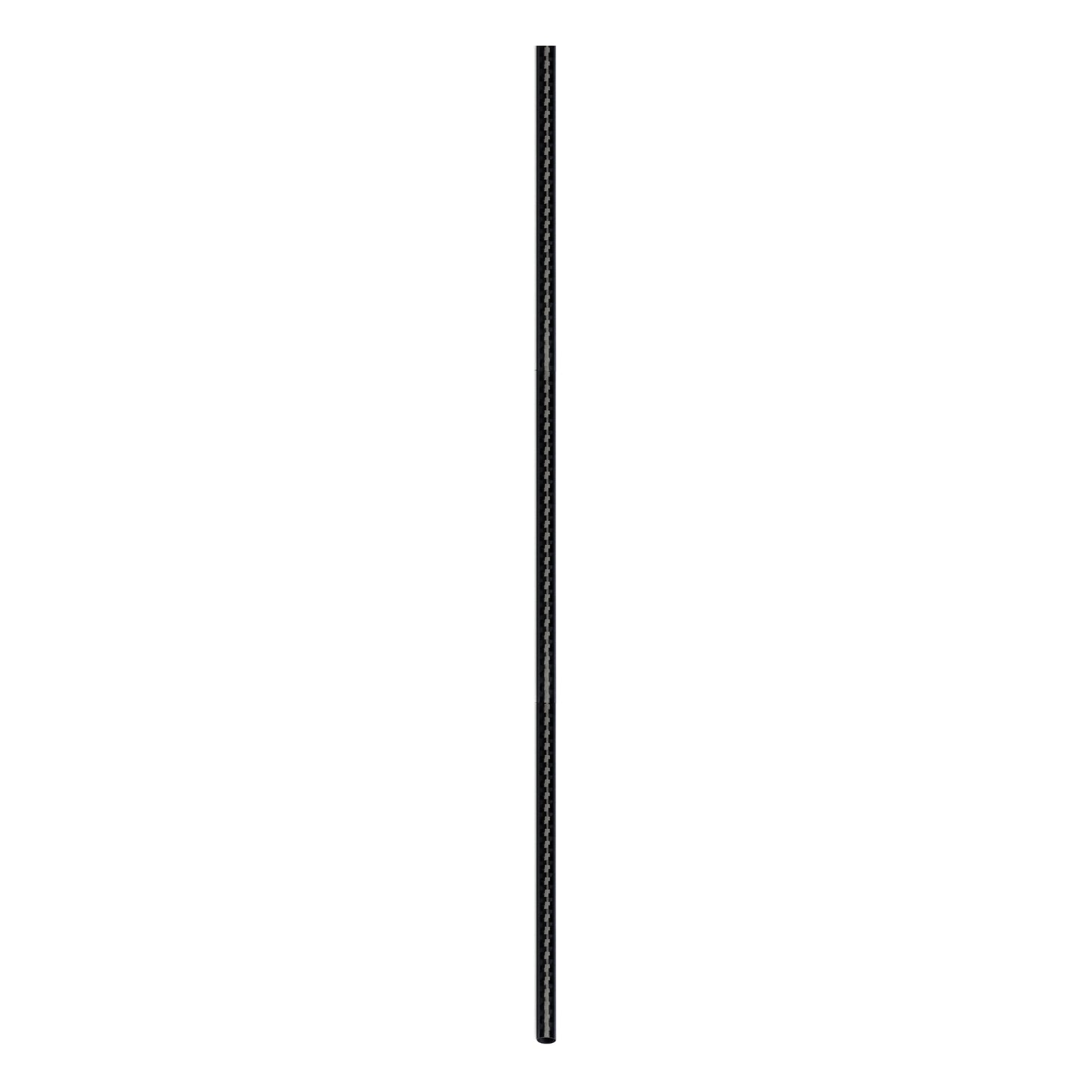

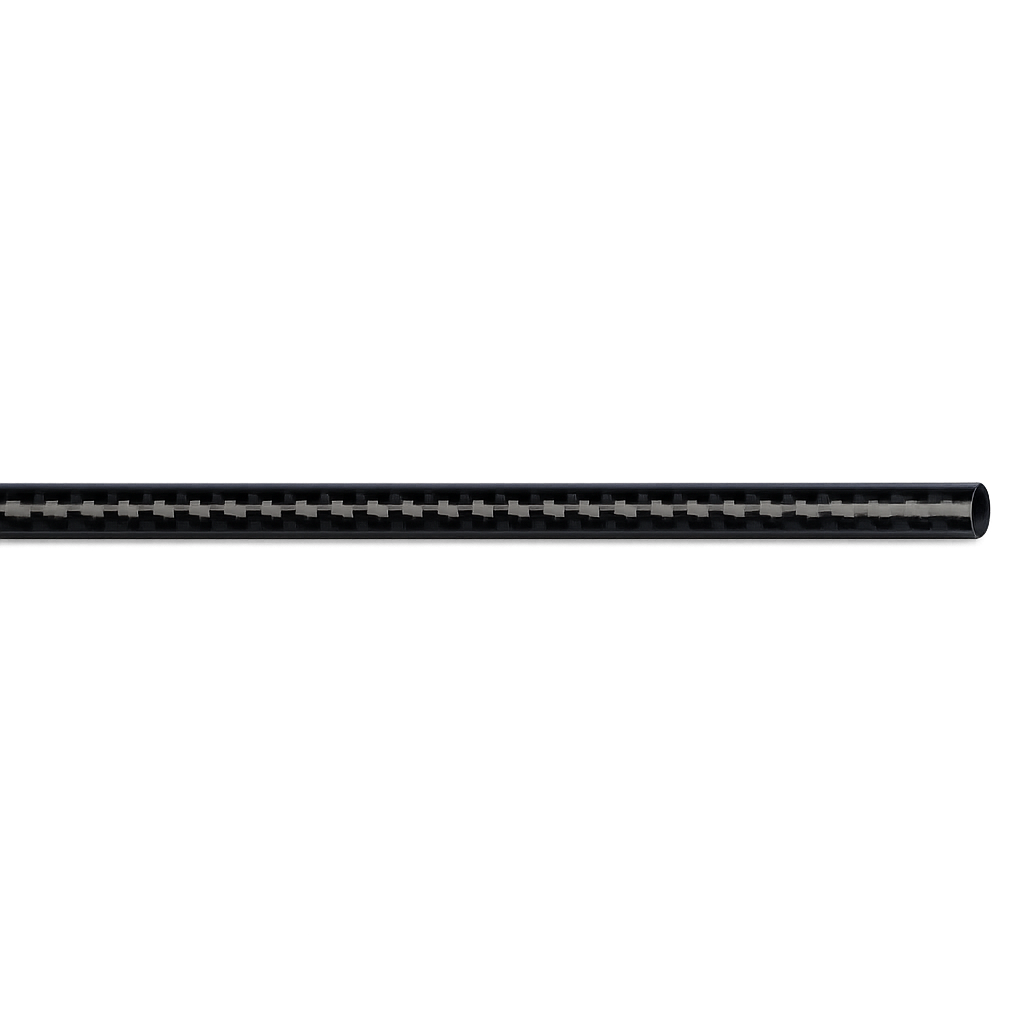

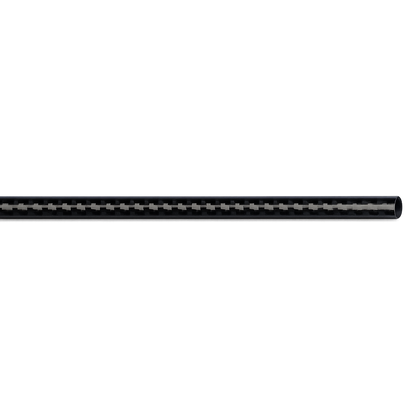

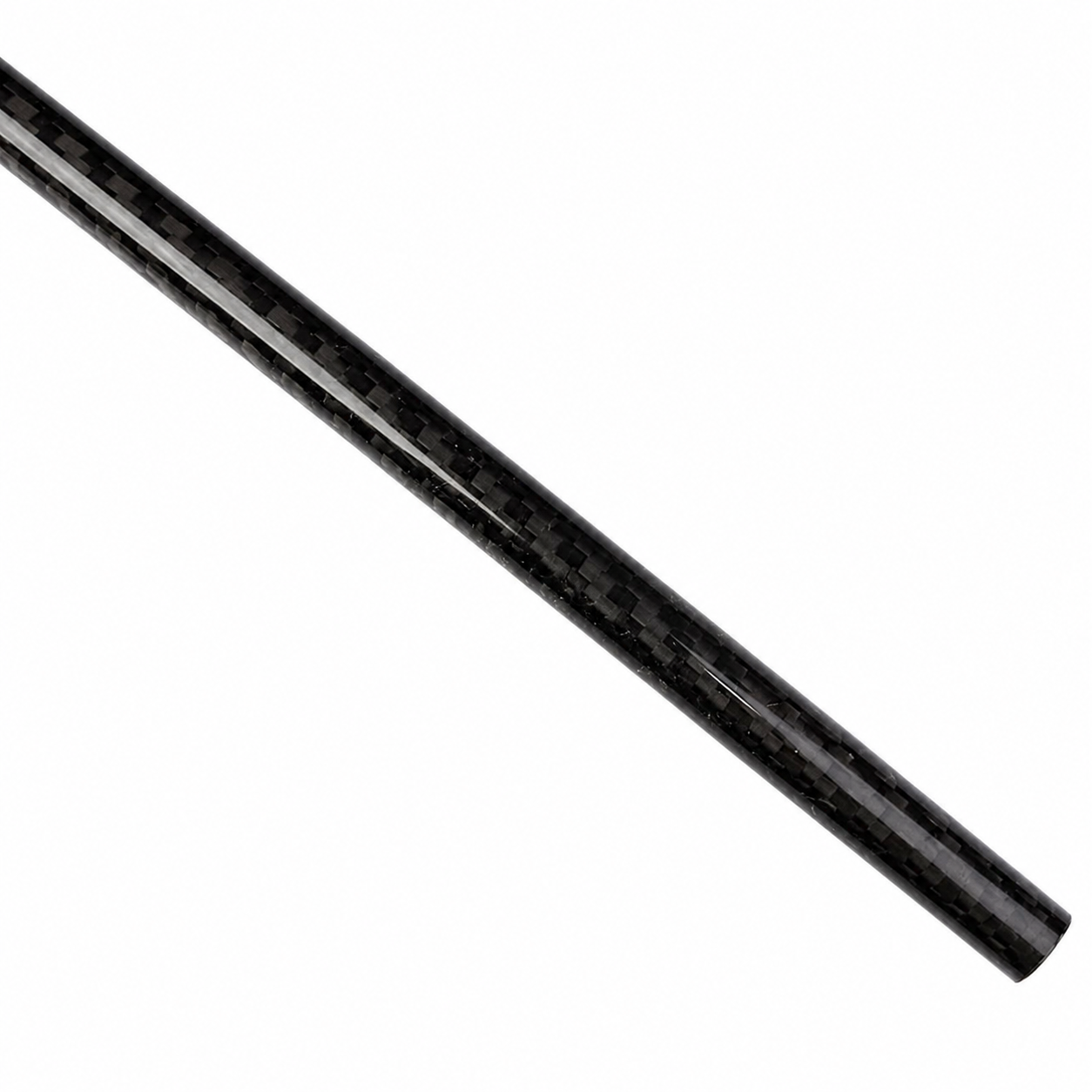

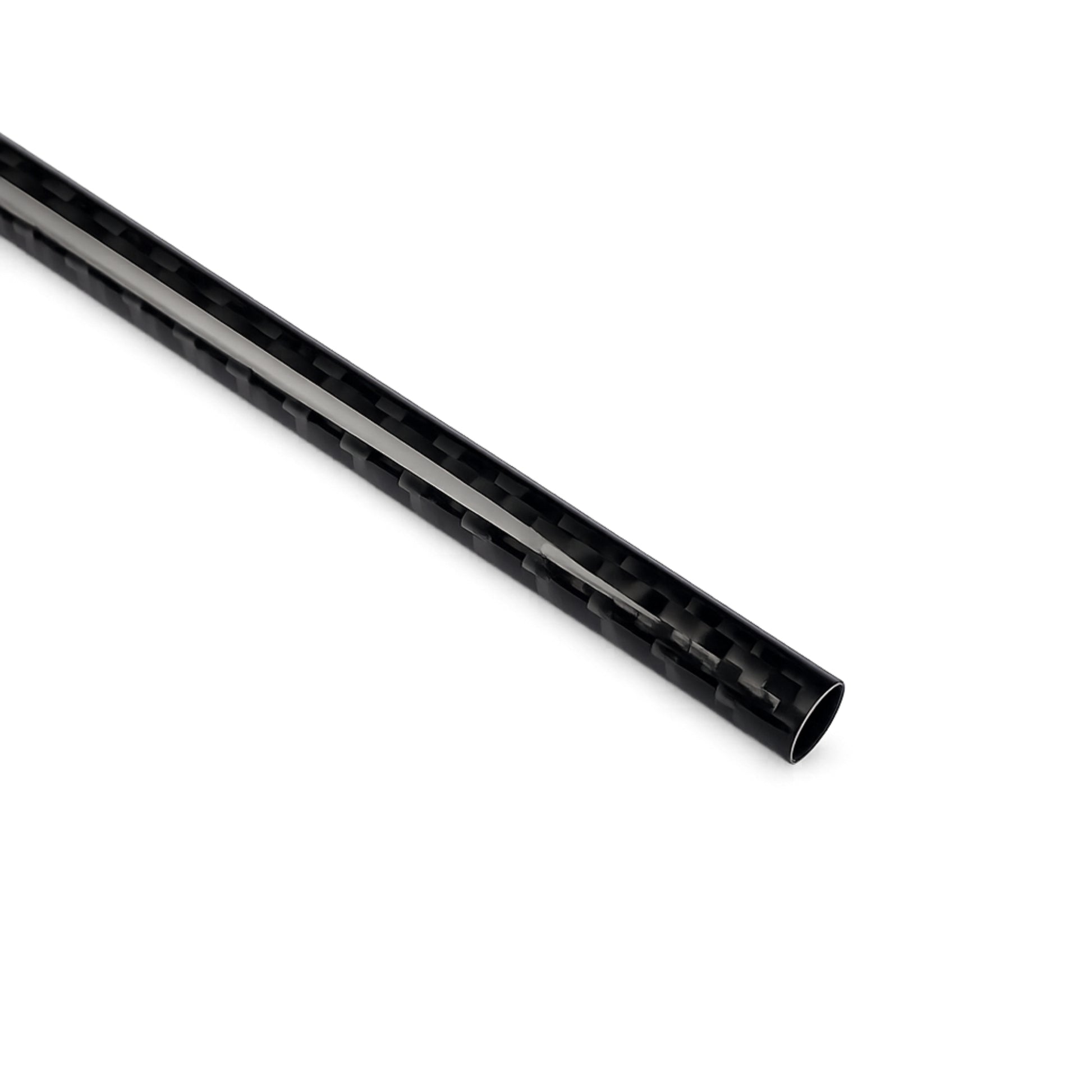

3K Carbon Fiber Tube 10mm OD 8mm ID 1000mm Roll Wrapped Hollow

Carbon fiber tubes can replace aluminum or steel tubes in a wide range of projects. A carbon fiber tube of the same weight as an aluminum or steel tube can be much stronger and lighter. This 10mm roll-wrapped carbon fiber tube is manufactured predominantly using high modulus (T700) unidirectional prepreg carbon fiber oriented to provide maximum strength in the lateral axis.

Roll-wrapped carbon fiber tubes offer superior strength in general use to ‘pultruded’ tubes (which have all their fibers running in exactly the same direction.

The use of unidirectional fibers and maximum strength in the lateral axis means the tube is not as strong across its diameter as along its length, so it should be used in a way that avoids unnecessary crushing forces across the tube.

Roll Wrapping:

The phrase ‘roll wrapped’ refers to the process used to manufacture these tubes. The prepreg carbon fiber is first laid up around a mandrel in multiple layers. Once the reinforcement is in place, it is spiral-wrapped with heat-shrink tape before the whole assembly is oven-cured.

Note: Actual Image may vary in terms of size, shape, and color.

Features:

1. Made of Carbon Fiber material
2. High Strength
3. Stable dimension and UV resistant
4. High Corrosion  Resistance
5. Electrical & Thermal Non-Conductivity

Package Includes:

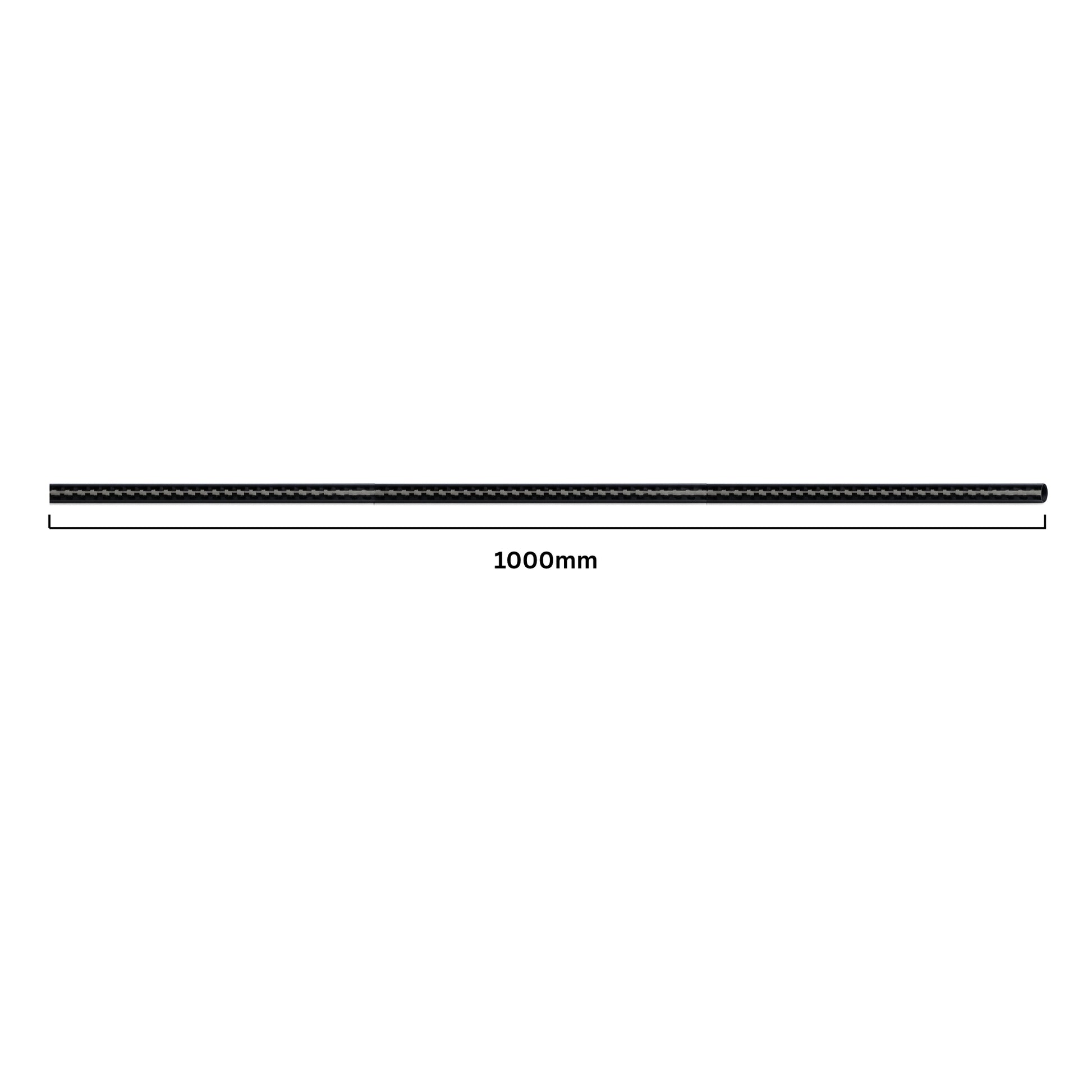

1× 3K Roll-wrapped Carbon Fibre Tube (Hollow) 10mm(OD) * 8mm(ID) * 1000mm(L)
